The Vallox Delico KTD cooker hood is designed to be used above the cooker top
or as a general extraction valve in the kitchen.
MANUAL

2
Vallox
DelicoKTD A
MANUAL
VENTILATION CONTROL
Keep the cooker hood clean. Wipe outer surfaces
regularly with water containing a small amount of a mild
detergent. Clean o any grease stains immediately. Do
not use abrasive or corrosive detergents or tools.
Keep the grease filter clean to ensure an adequate
extract air flow. The grease filter must be washed with
warm water and detergent at least 1-2 times a month.

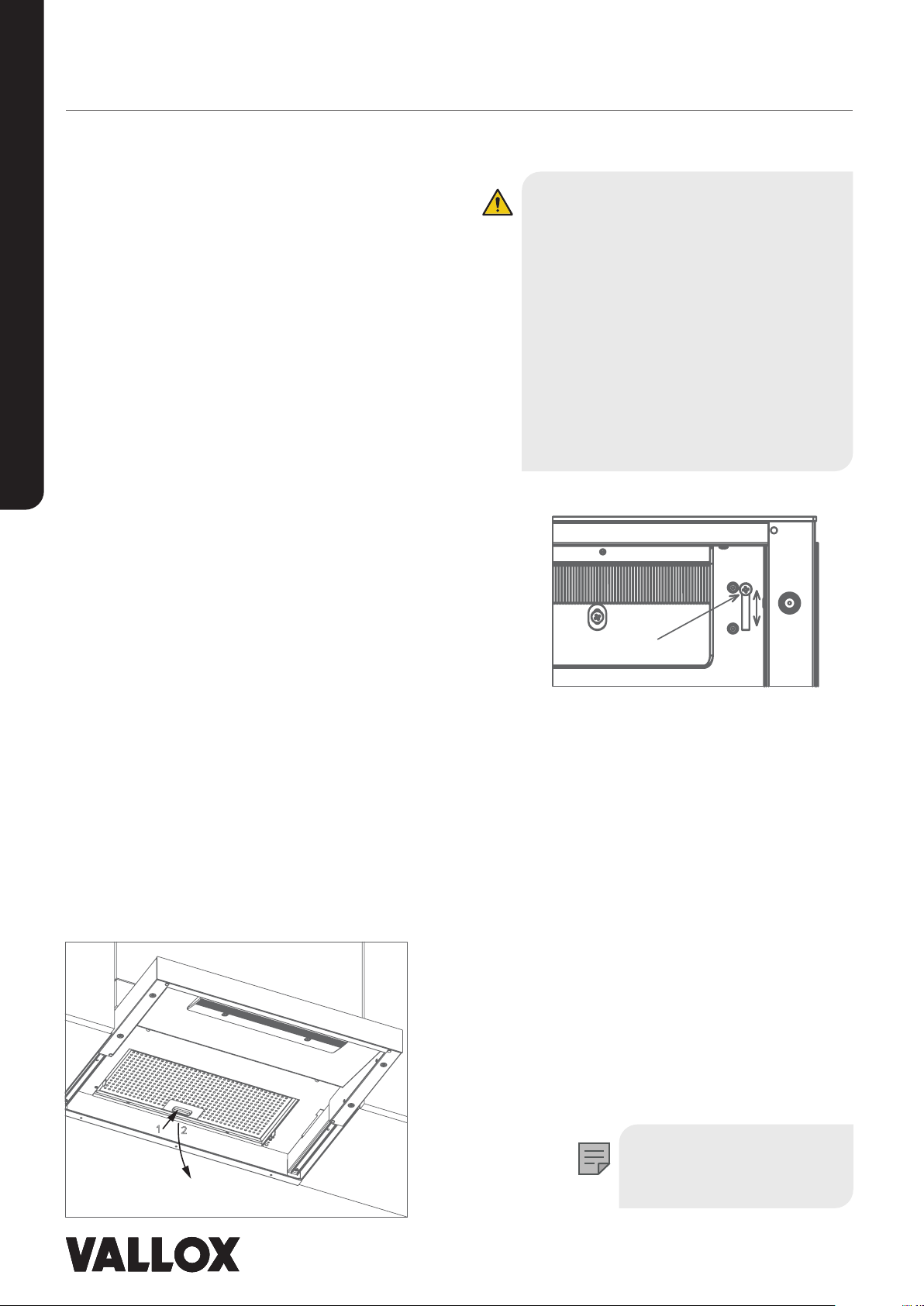

Removing and mounting the grease
filter
12
• Pull the sliding part out of the cooker hood.
• Pull the locking device of the grease filter towards
the front edge of the cooker hood while pulling the
grease filter downwards until it comes o.
• Wash the grease filter and leave to dry.
• Mount the grease filter back in place. Push the
front edge of the filter into the pins on the cooker
hood, and click the rear edge in place.
The cooker hood is designed to be used above the
cooker top and as a general extraction valve in the
kitchen.
The cooker hood has a sliding part that can be pulled
out of the cooker hood. Pull the sliding part out of the
cooker hood for maximal extraction capacity.
Cooker hood light
Turn the light on by pulling the sliding part out of the
cooker hood. Turn the light o by pushing the sliding
part back inside the cooker hood.
The adjustment screw of the switch, located below the
sliding part, can be used to determine how far out the
sliding part needs to be pulled before the light turns
on. The deeper the switch is, the later the light will turn
on, and vice versa. Where needed, the switch can be
adjusted after installation once the limiter screws of the
sliding part have been adjusted.
CAUTION
• Neglecting the cleaning of the grease
filter can cause a fire hazard.
• The outer surfaces of the hood can
become hot when the cooker or the
oven is turned on.
• Flaming is forbidden underneath the
cooker hood.
• Always follow the instructions
provided on adjusting the eciency of
ventilation.
• Enable a sucient supply air flow
into the room if the cooker hood
and non-electric devices are used
simultaneously.
NOTE
Ensure that the locking
device points downwards.
For buildings with a centralized ventilation system.
The air flow of the Vallox Delico KTD cooker hood is
adjusted during setup by using a joint duct valve that is
installed on the hood and also serves as a smoke limiter.
USING THE COOKER HOOD
MAINTENANCE
Light
The cooker hood has a long-lasting LED lighting
module. If the light is not working, contact a servicing
company.
Adjustment screw of the switch

3© Vallox Oy - All rights reserved
Vallox
DelicoKTD A
MANUAL
WARNING
The unit is not intended for
use by children under 8 or
by persons with reduced
sensory, physical or mental
capabilities, or whose lack of
knowledge and experience
do not ensure safe operation
of the unit. Such persons
can use the unit under
supervision, or by following
the instructions of someone
who is responsible for their
safety. Do not let children
play with the unit or to
clean or maintain it without
supervision.
INSTALLATION
43
7
8
1.
2.
3.
1 2
L = Left
5
R = Right
Install the right mounting
strip similarly to the left.
9
CAUTION
The minimum distance
of the bottom edge of
the hood to an electric
cooker is 500 mm and
to a gas cooker 650
mm.
CAUTION
The power outlet used
for the cooker fan must
be easy to access. Only
the power adapter that
is delivered with the
unit and corresponds
to the voltage specified
in the type plate of the
unit must be used to
connect the cooker
hood into the mains.
CAUTION
The cooker hood must
not be connected to
a flue that is used for
removing combustion
gases (e.g. from a wood-
or gas-burning fireplace,
cooker, or stove).
CAUTION
Regulations on leading
extraction air outdoors
must be observed.
293 - 310 311 - 333
20 45
Where needed, install a cover strip behind the cooker hood to
cover the opening. 6
Adjust the glass
of the front panel to be level
with the front surface of the cabinet door
by using the limiter screws behind the sliding part.
10

Vallox
DelicoKTD A
D10605/25.03.2021
www.vallox.com
Vallox Oy | Myllykyläntie 9-11 | 32200 LOIMAA | FINLAND
DIMENSION DIAGRAMS
498 / 598
63
306
507
154
249 / 299
188
94
125 (male)
MANUAL
