Valor 546LFB ZC Portrait Ledgeview Front User manual

4005278-04
©2022, Miles Industries Ltd.
Heat
exchanger
cover
Hardieboard Panel
Stud brackets (2)
ZC Bae
Stand o brackets
Backing Plate
Backing frame
Assembly
530 Engine
(sold separately)
Ledgeview Front with Barrier screen
Insulation
Overview (530 engine sold separately)
The 546LF_ZC Portrait Ledgeview Front
is designed to be used on the 530 Valor
heaters when installed in a zero clearance
application.
For installation with an insert, use 546LF_
Ledgeview Fronts.
Touch Control Wall
Switch with wire
Note: This kit must be
installed or serviced by a
qualified installer, service
agency or gas supplier.
These instructions are to be
used in conjunction with the
main installation instructions
for the above listed heater
model.
Ledgeview Fronts 546LFB_ZC
Approved for use with Valor heater models 530 only in ZC applications;
NOT compatible with 530INI/IPI insert engines for which use 546LF_
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DANGER
!
A barrier designed to reduce the risk of burns from the hot
viewing glass is provided with this appliance and must be
installed for the protection of children and other at-risk
individuals.
INSTALLER: Leave this
manual with the appliance.
CONSUMER: Retain this
manual for future reference.
INSTALLATION MANUAL
Portrait

2
12-3/4”
11”
1-1/2” max.
1/2” min.
6-5/8”
dia. 4”
Top
Outlet
Mantel
‘A’
ZC Stand-os
12-3/4”
11”
4”
Do not put
furniture or objects
within 36” of front
of appliance
1/2”
‘B’
32”
25-1/4”
21-5/8”
22-7/16”
20”
32-1/8”
26”
Insulation
2” sidewall minimum
clearance
1-1/2” between bottom of trim
and bottom of appliance
Kit Contents
546 ZC
1 Backing Frame assembly
1 Backing plate
1 Ledgeview Front assembly
1 Heat Exchanger Cover
1 Ceiling Panel
1 ZC Baffle
1 Barrier Screen (fitted)
2 Stand Offs
1 Insulation
2 Stud Brackets
1 Cement board
1 Touch Control Wall Switch with wire
2 Screws #8 x 3/8 tapping pn hd ph
8 Screws #8 x 1/2” black
4 Screws #8 x 1/2” s/t black

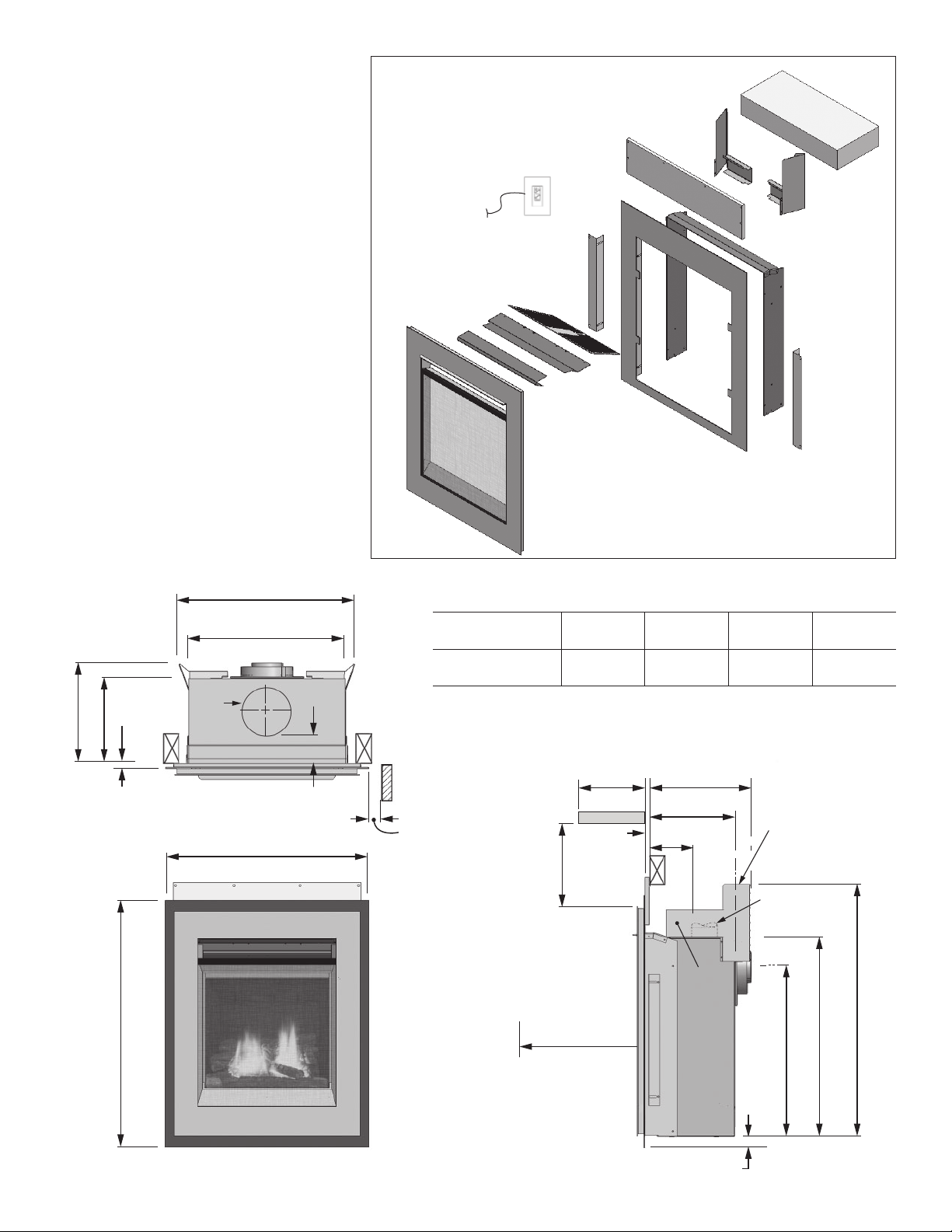

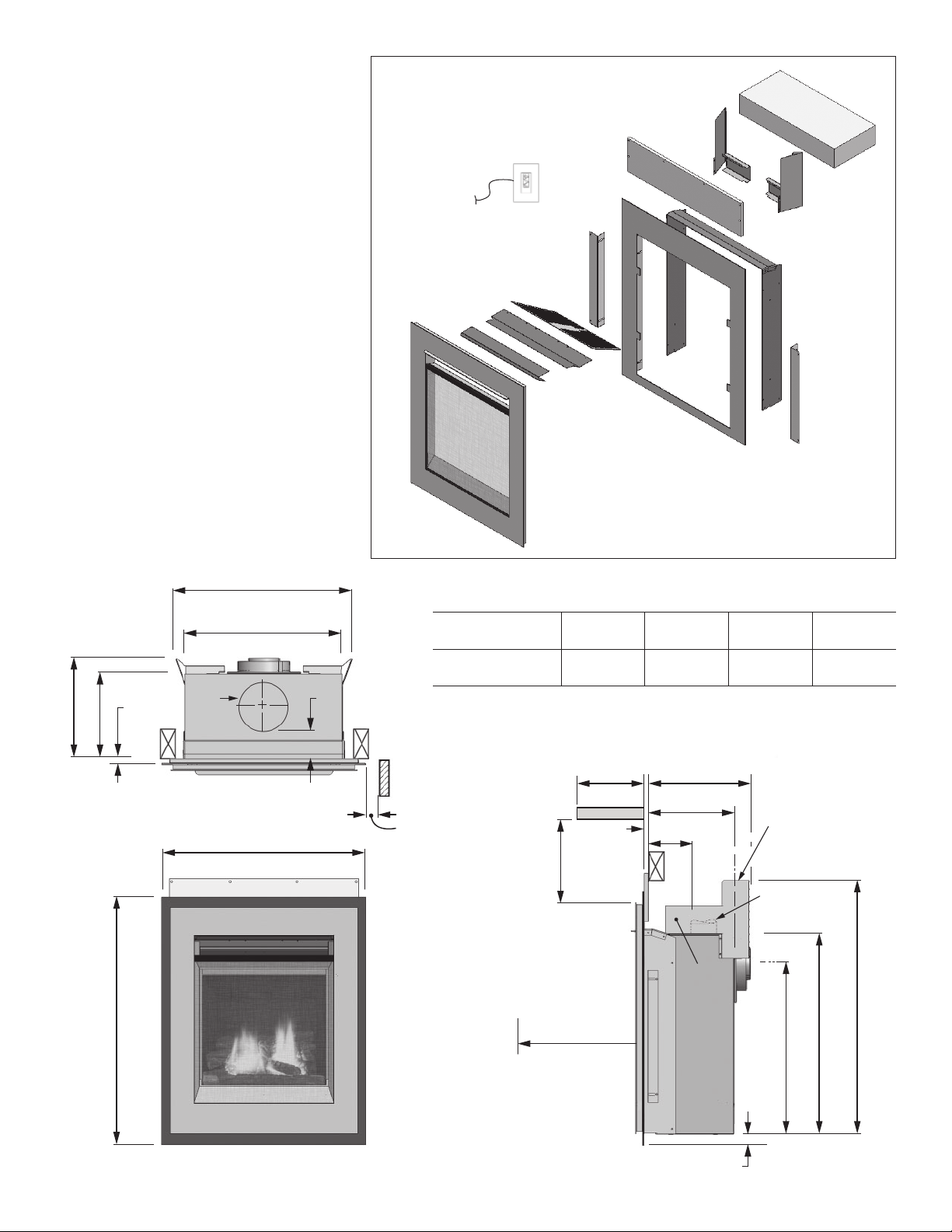

Dimensions and Clearances
Heat
exchanger
cover
Hardieboard
Stud brackets (2)
ZC bae
Stand o brackets
Backing plate
26”Wx 32-1/8”H
Backing frame
assembly
Ledgeview Front with
Barrier screen
Insulation
Ceiling
panel
Mantel Clearances
Touch Control
Wall Switch
with wire
Mantel Depth ‘A’ 0–6”
[0–152 mm]
8”
[203 mm]
10”
[254 mm]
12”
[305 mm]
Mantel Height ‘B’ 4”
[102 mm]
8”
[203 mm]
10”
[254 mm]
12”
[305 mm]

3

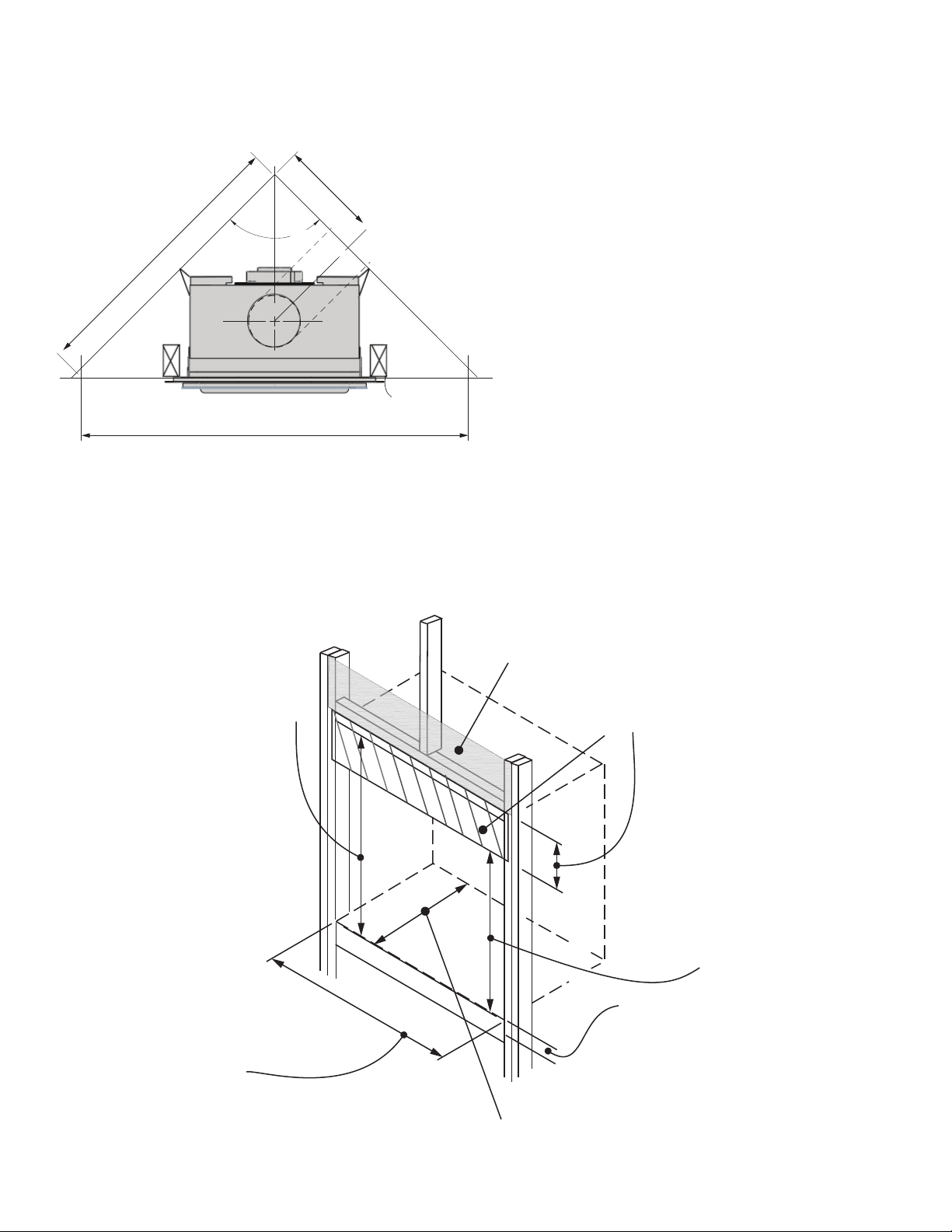

Corner dimensions
48”(1219 mm)
Face of
wall studs
34”(864 mm)
12”
(305 mm)
90°
Framing
22-1/2”
(572 mm)
32”(813 mm)
to header
26-7/8”(684 mm)
to cement board
6-1/8”(154 mm)
cement board
supplied
Wall Finish
This is the framing
width. Drywall to
24”(610 mm) wide
(to edge of stud brackets)
Note -
Finished surface of floor
or hearth/shelf, if used,
must be min. 1-1/2”
lower than bottom of
appliance otherwise the
front trim will not fit
Note -
There is a 1”(25 mm)
gap between bottom
of cement board and
top of backing frame
assembly
Minimum 12-3/4” (324 mm)
(Allow extra if using rear vent elbow)

4
Adjustability of the Ledgeview Front ZC
• Method 1. The appliance’s position within the
framing cavity may be adjusted forward in the
framing up to 1” to accomodate additional wall finish
thickness “tucked” behind the backing plate.
• Method 2. The Backing Plate is also adjustable to
accomodate up to an additional 3/4” of tile or other
non-combustible material over top of the 1/2” non-
combustible wall board.
• Method 1 and Method 2 may be combined for a total
of 1-3/4” of non-combustible material over top of the
1/2” wall board.
Attention! When positioning the appliance forward of
the framing cavity (Method 1), ensure that the front
edge of the backing frame does not protrude beyond
the planned finished wall surface. Otherwise the backing
plate, when installed, will not sit against the finished
wall.
Measured from face of stud
bracket to front edge of backing
plate frame assembly
Method 1 - Appliance Positioning
Method 2 - Backing Plate Positioning
Wall nish thickness: 1/2”
- use hole
Backing Plate is adjustable up to 3/4”.
Wall nish thickness: 1/2” to 1-1/2”
- use slot
Backing frame
assembly
Backing Plate
Stud bracket

5
Installation
1. Fit the ZC baffle under the top panel of the
appliance case. Secure as shown with 2 thread
forming screws provided.
2. Slide the backing plate frame assembly over the
appliance case and secure it with 4 screws provided.
3. Install stud brackets over top of the backing plate
frame assembly with 2 screws per side.
See Adjustability of the Ledgeview Front ZC section for
more information on position of brackets.
4. Required for installation in combustible
construction. Bend the stand-offs into shape and
fix them to the appliance’s case as indicated (4
screws/side, pre-fitted on engine).
5. Required for installation in combustible
construction. Add insulation pad on the top of the
appliance, cutting around the pipe if installing a top
vent.
ZC baffle orientation
—side view

6

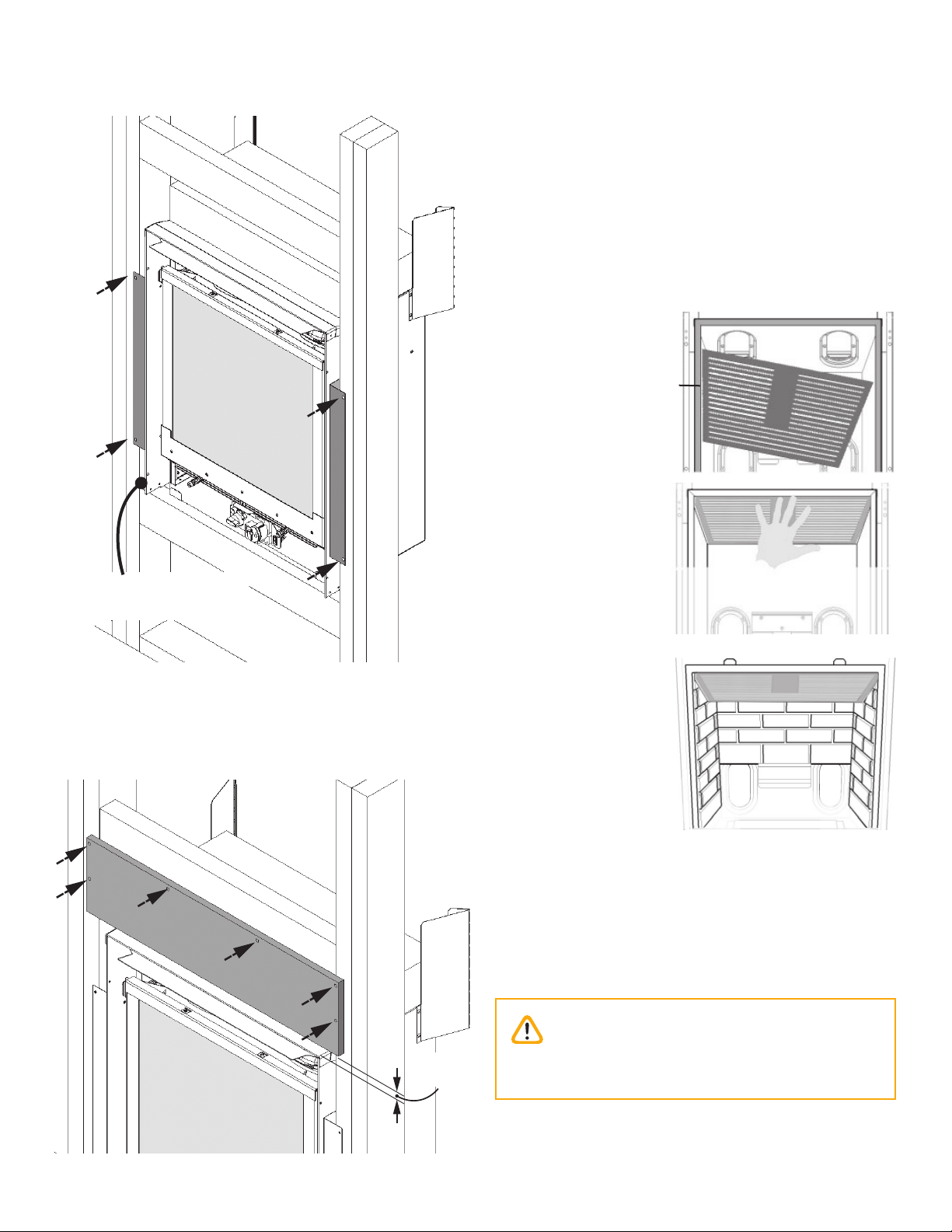

6. Insert the appliance into the framing and secure the
stud brackets with two wood screws per side (not
supplied). Make sure the framing is leveled.
7. Fix the non-combustible cement board to the
header and side studs of the frame. The board
does not touch the top of the appliance—leave
approximately 1” gap.
8. Remove the window if not already done. Connect
the gas and venting. See the heater installation
manual for more information.
9. 555CFK Circulating Fan Kit. If you are installing a fan
kit, we recommend that you proceed now.
10. BEFORE you install the ceramic panels, install the
ceiling panel provided with this kit as follows:
LOGS & ROCKS VERSIONS ONLY. Ceiling panel
cannot be used with coal fuelbed version. Install the
ceiling panel inside the appliance:
a. Insert the ceiling panel in the firebox by aligning
one of its side edge to the edge of the firebox as
indicated.
b. Raise the ceiling
panel up to cover
the top firebox
ports and hold
with one hand.
Note: The port
cover strip
supplied with
the heater is
not required.
c. Place the rear
panel. It should
support the
ceiling panel. If
not, keep holding
it while you
place the side
panels. Refer
to the fireplace
installation
manual for more
information on installing the panels.
11. Install Touch control wall switch. The wall switch
comes with a 25-foot wire and a cover plate. The
switch is connected to the receiver in the fireplace.
The receiver is located left of the control valve
under the burner module.
Caution
DO NOT PUT BATTERIES IN THE REMOTE CONTROL
RECEIVER!
approx.
1”gap
Front edge of Backing Frame
cannot protrude beyond
planned finished wall surface
Grille inserted
parallel to
firebox edge

7
a. Decide where the switch is to be installed. Install
an electrical outlet box (not supplied).
b. Thread the switch wire through an access hole in
the appliance.
c. Unplug the battery box from the receiver.
d. Pull out the receiver. You can remove the
ignition wire to improve access to the receiver.
e. Take the switch wire and plug it into the
receiver’s connection slot as indicated (the other
slot should already be fitted with the valve’s
wire harness connector). See diagram below.
IMPORTANT: The
connection can only be
done one way. Do not
force it or damage the
pins!
f. On the outside of the fireplace, run the switch
wire into the outlet box.
g. Plug the wire into the switch plate and to the
outlet box.
h. Reconnect the ignition wire to the receiver if it
was previously removed.
i. Insert 4 AA alkaline batteries in the battery box
if none already in.
j. Plug the battery box to the receiver.
k. Test the operation of the wall switch.
l. Fix the wall cover plate to the outlet box.
m. Replace the receiver in position and the antenna
if deployed. Put the battery box back in place.
12. Finish the installation of the heater including all the
checks necessary for function. Reinstall the window.
13. Fit a 1/2” thick non-combustible wall board around
the appliance and the non-combustible cement
board. You can then apply additional finish over the
wall board. See Adjustability of the Ledgeview Front
ZC section for more information.
Caution
DO NOT RUN the switch wire over top of firebox.
Route wire so it does not contact firebox.
Caution
To avoid short-circuit to receiver, position
antenna so that it DOES NOT TOUCH ignition wire.

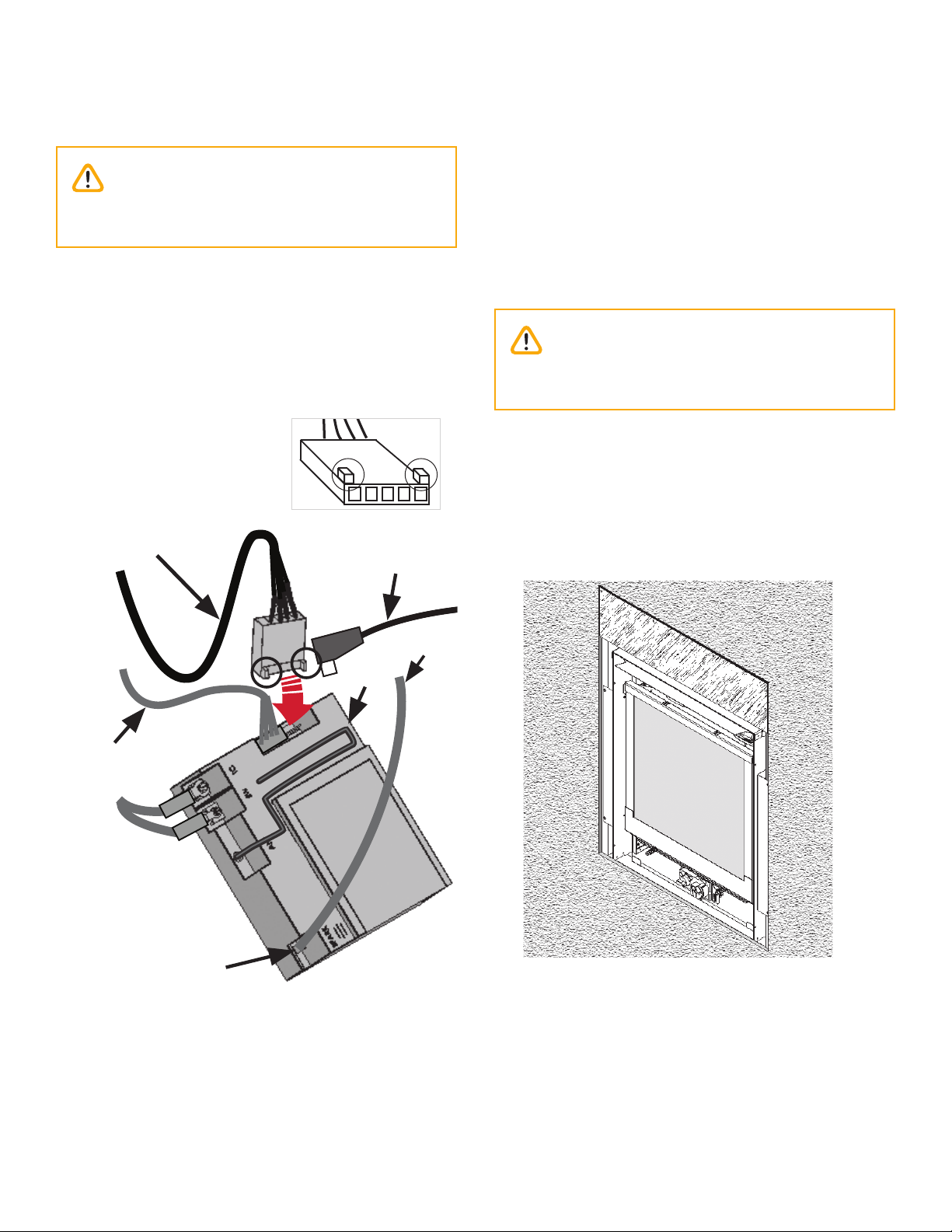

Ignition Wire Connection
(spade type connector)
Be careful when removing and
reinstalling not to bend or break
the spade connector
Ignition Wire
Antenna
Valve Wire
Harness
Wall Switch Harness Battery holder cable
(disconnected)

8

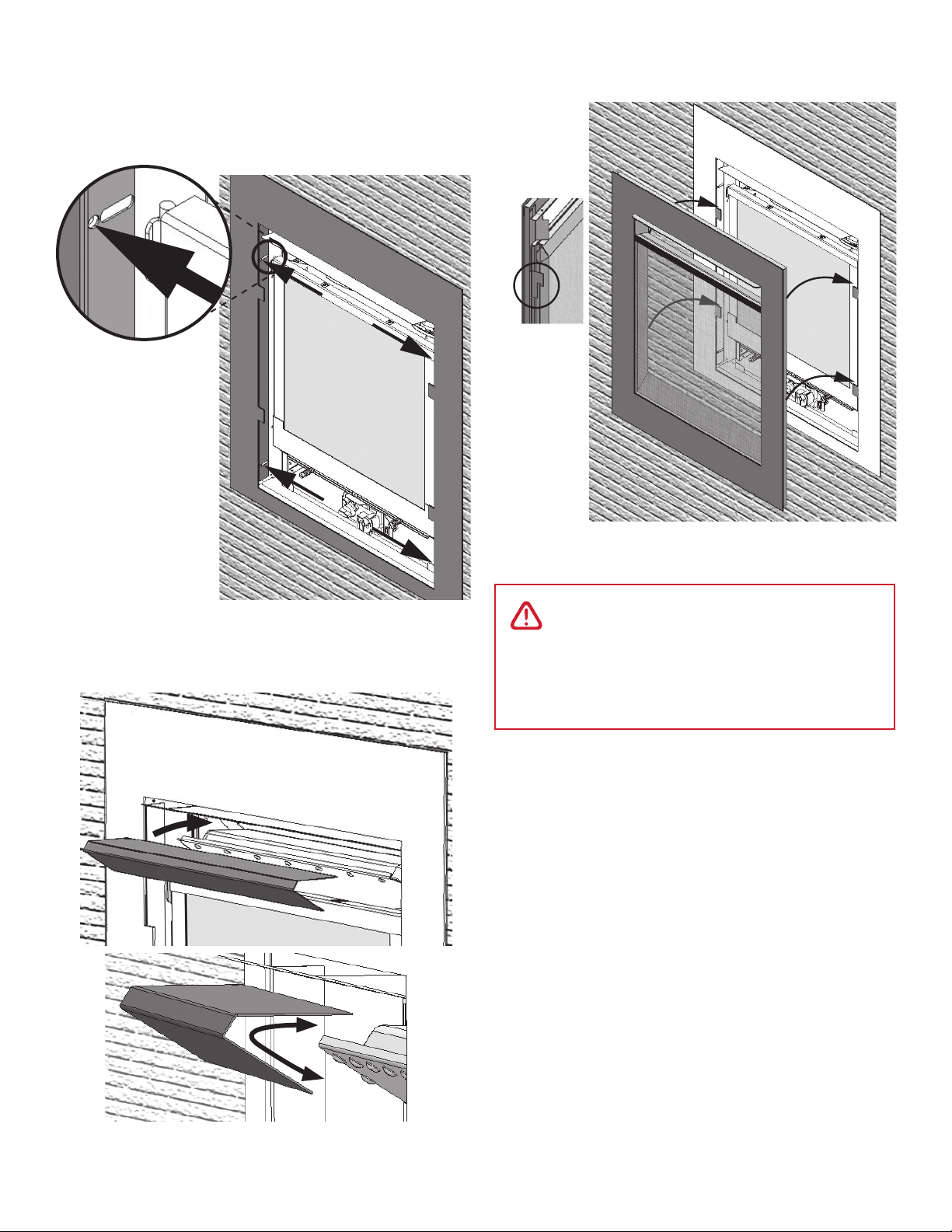

14. Insert backing plate within the frame assembly.
Push plate over wall finish and secure it with two
screws per side using the hole or slot at the sides
depending of the wall thickness.
15. Slide the heat exchanger cover onto the heat
exchanger. Note its shape and orientation.
16. Hook the Ledgeview front assembly to the backing
plate flanges.
Cleaning
To clean the front and barrier screen unhook the front
and use a soft brush.
If the barrier becomes damaged, the barrier shall
be replaced with the manufacturer’s barrier for this
appliance.
To clean the fireplace glass window, refer to the
owner’s manual supplied with the appliance.
DO NOT clean the glass with ammonia.
Always securely replace the window and the front
with barrier screen before lighting.
WARNING
DO NOT TOUCH THE BARRIER SCREEN,
THE FRONT or THE GLASS WHILE THEY ARE
HOT! Let the fireplace cool first before
cleaning it.
Front’s rear
view—hook

9
Wiring Diagram
Connector
Battery Holder
4 AA Batteries
Touch Control
Wall Switch

10
1
2
3
4
5
8
7
7
9
10
11
12
6

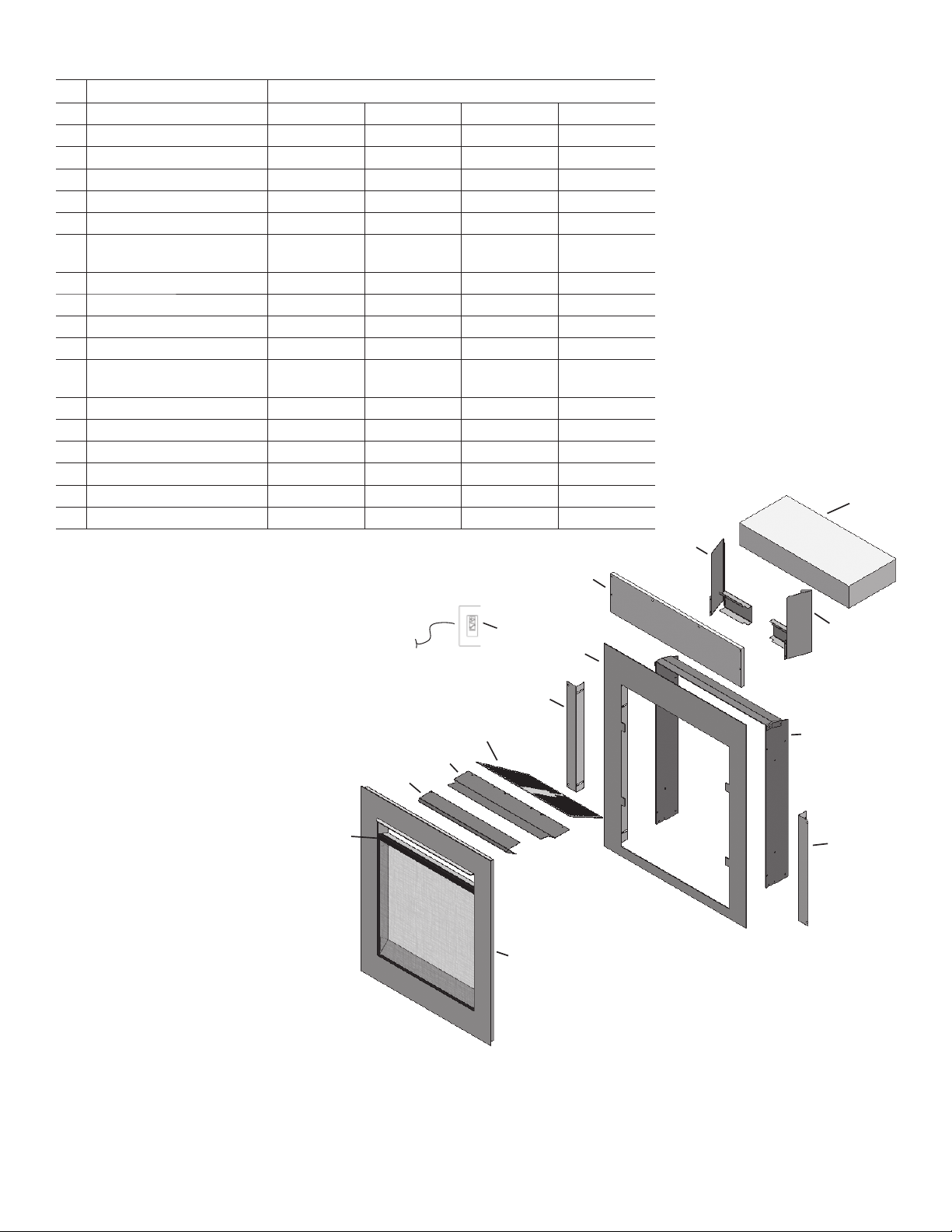

Repair Parts List
#Description PartNumbers
546LFBZC 546FLNZC 546LFZZC 546LFPWZC
Black Nickel Bronze Pewter
1 Insulation 620B987 620B987 620B987 620B987
2LHStandoff4005266 4005266 4005266 4005266
3RHStandoff4005265 4005265 4005265 4005265
4 Cement Board 4005224 4005224 4005224 4005224
5 Backing Frame Assembly 4005272AZ 4005272AZ 4005272AZ 4005272AZ
6 Backing Plate 4005273 4005273 4005273 4005273
7 Stud Brackets (2) 4005262 4005262 4005262 4005262
8 Ceiling Panel 4002101EB 4002101EB 4002101EB 4002101EB
9ZCBaffle 4005250BY 4005250BY 4005250BY 4005250BY
10 Heat Exchanger Cover 4004904BY 4004904BY 4004904BY 4004904BY
11 Ledgeview Front Assembly 4005096B 4005096N 4005096Z 4005096PW
12 Barrier Screen Assembly 4005099 4005099 4005099 4005099
13 Touch Control Wall Switch
With Wire 4001487 4001487 4001487 4001487
Screws no 8 x 3/8 (2) 100A757 100A757 100A757 100A757
Screws no 8 x 1/2 (8) 4001885 4001885 4001885 4001885
Screws no 8 x 1/2 (4) 4004560 4004560 4004560 4004560
13
Designed and Manufactured by / for
Miles Industries Ltd.
190 – 2255 Dollarton Highway, North Vancouver, B.C., CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
Because our policy is one of constant development and improvement, details may vary slightly from those given in this publication.
