Valor 1500IN Operating instructions

L1 SERIES
HOT GLASS WILL
CAUSE BURNS.
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
DV ZC Gas Fireplace
1500IN (NG) & 1500IP (LPG)
WARNING: If the information in these
instructions is not followed exactly, a fire
or explosion may result causing property
damage, personal injury or loss of life.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light the appliance.
• Do not touch any electrical switch; do not
use any phone in your building.
• Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
• If you cannot reach your gas supplier, call
the fire department.
This appliance is only for use with the type
of gas indicated on the rating plate. This
appliance is not convertible for use with
other gases, unless a certified kit is used.
This appliance is suitable for installation in a
bedroom or bed sitting room.
Installation & Owner’s Manual
Do not store or use gasoline or other
flammable vapors and liquids in the vicinity
of this or any other appliance.
Installation and service must be performed
by a qualified installer, service agency or the
gas supplier.
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where not
prohibited by local codes.
Massachusetts: The piping and final
gas connection must be performed by a
licensed plumber or gas fitter in the State of
Massachusetts. Also, see Carbon Monoxide
Detector requirements on page 16.
Please read this manual BEFORE installing
and operating this appliance.
4002873-07
©2012, Miles Industries Ltd.
Manufactured by
MILES INDUSTRIES LTD., British Columbia, Canada
www.valorfireplaces.com
INSTALLER
Leave this manual
with the appliance.
CONSUMER
Retain this manual
for future reference.
Ce guide est disponible en français sur demande.

2
Designed and Manufactured by / for
Miles Industries Ltd.
190–2255 Dollarton Highway, North Vancouver, BC, CANADA V7H 3B1
Tel. [phone] Fax [phone]
www.valorfireplaces.com
© Copyright Miles Industries Ltd., 2012
FOR THE OWNER
FOR THE QUALIFIED INSTALLER
The information contained in this installation
manual is believed to be correct at the time of
printing. Miles Industries Ltd. reserves the right
to change or modify any information or specifica-
tions without notice. Miles Industries Ltd. grants
no warranty, implied or stated, for the installation
or maintenance of your heater, and assumes no
responsibility for any consequential damage(s).
Warranty Card at
the back of this
manual.
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
W
A
R
R
A
N
T
Y
P
R
O
G
R
A
M
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
V
A
L
O
R
C
O
M
F
O
R
T
Table of Contents
Safety Precautions ............................................3
Safety and Your Fireplace .................................4
Owner’s Information ..........................................5

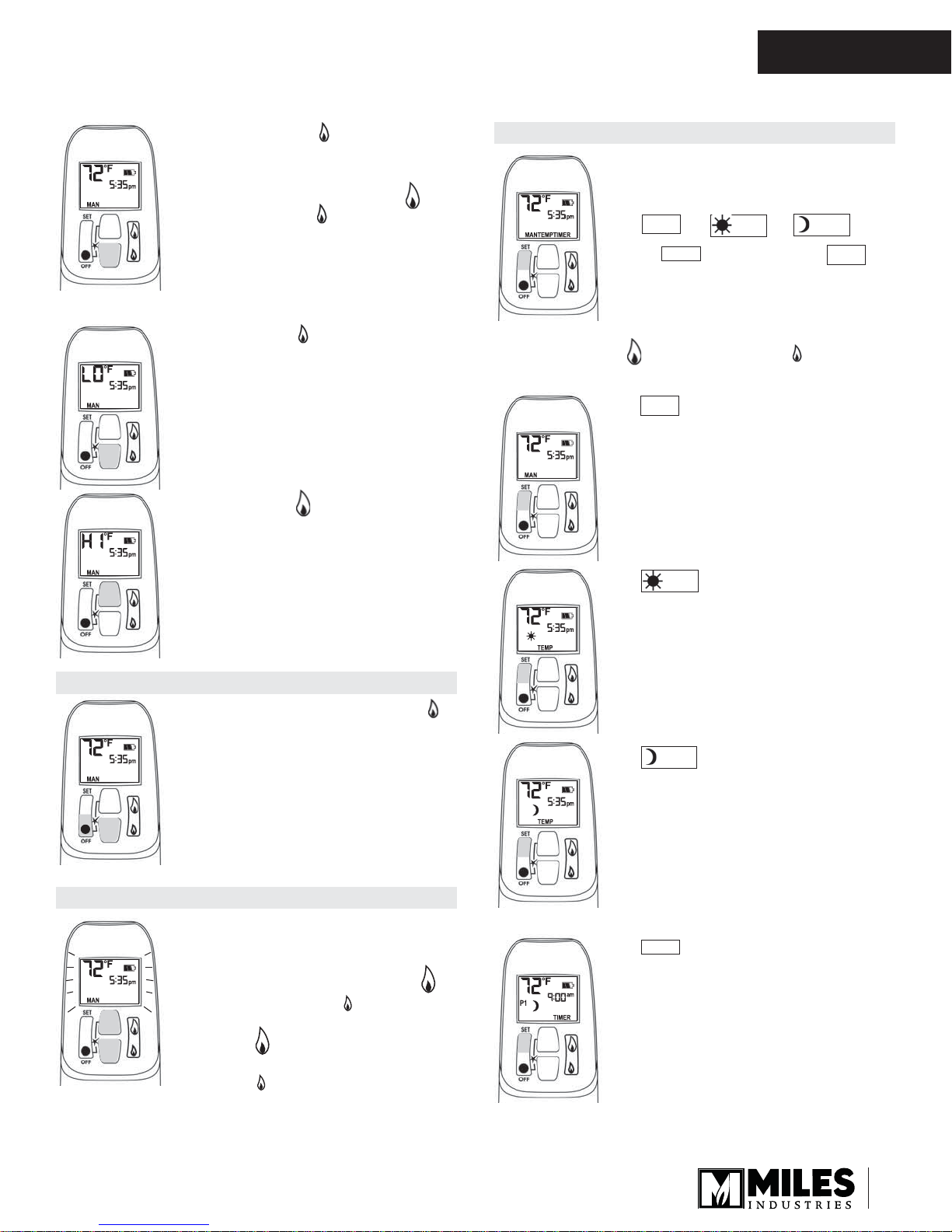

Remote Control Operation...............................10
Options ............................................................14

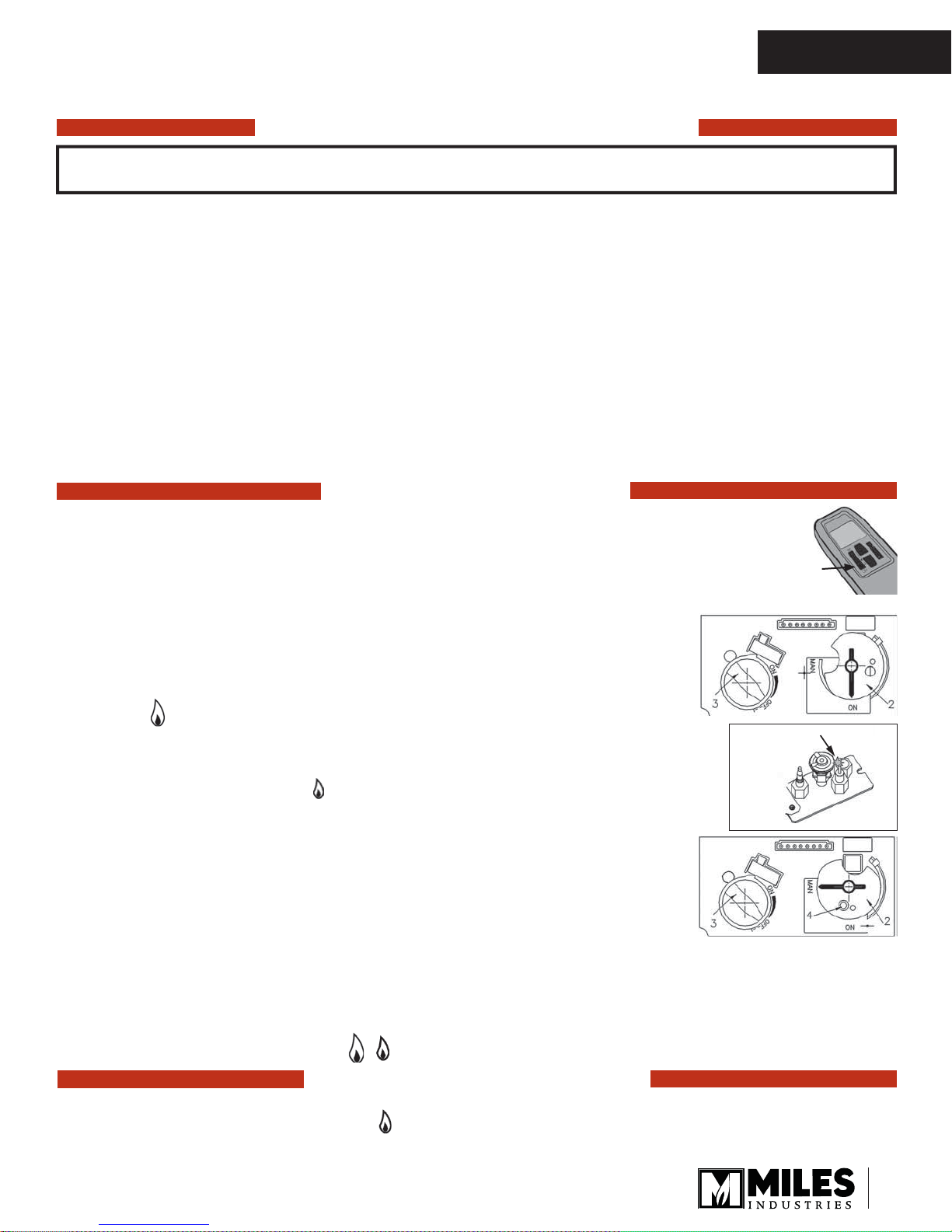

Lighting Instructions.........................................15
Warranty ..........................................................54
Commonwealth of Massachusetts...................16
Specifications ..................................................18
Overview..........................................................19

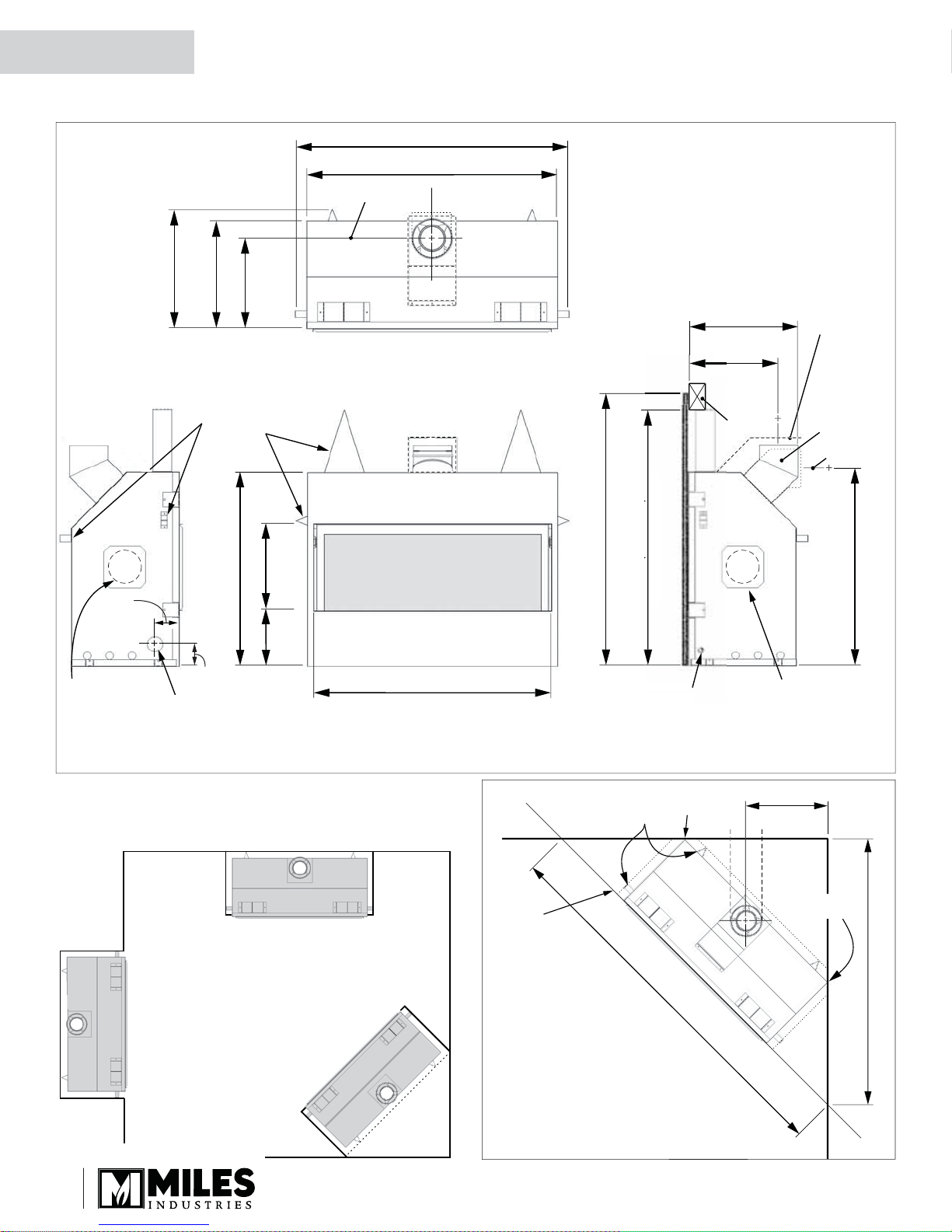

Dimensions & Location.................................... 20

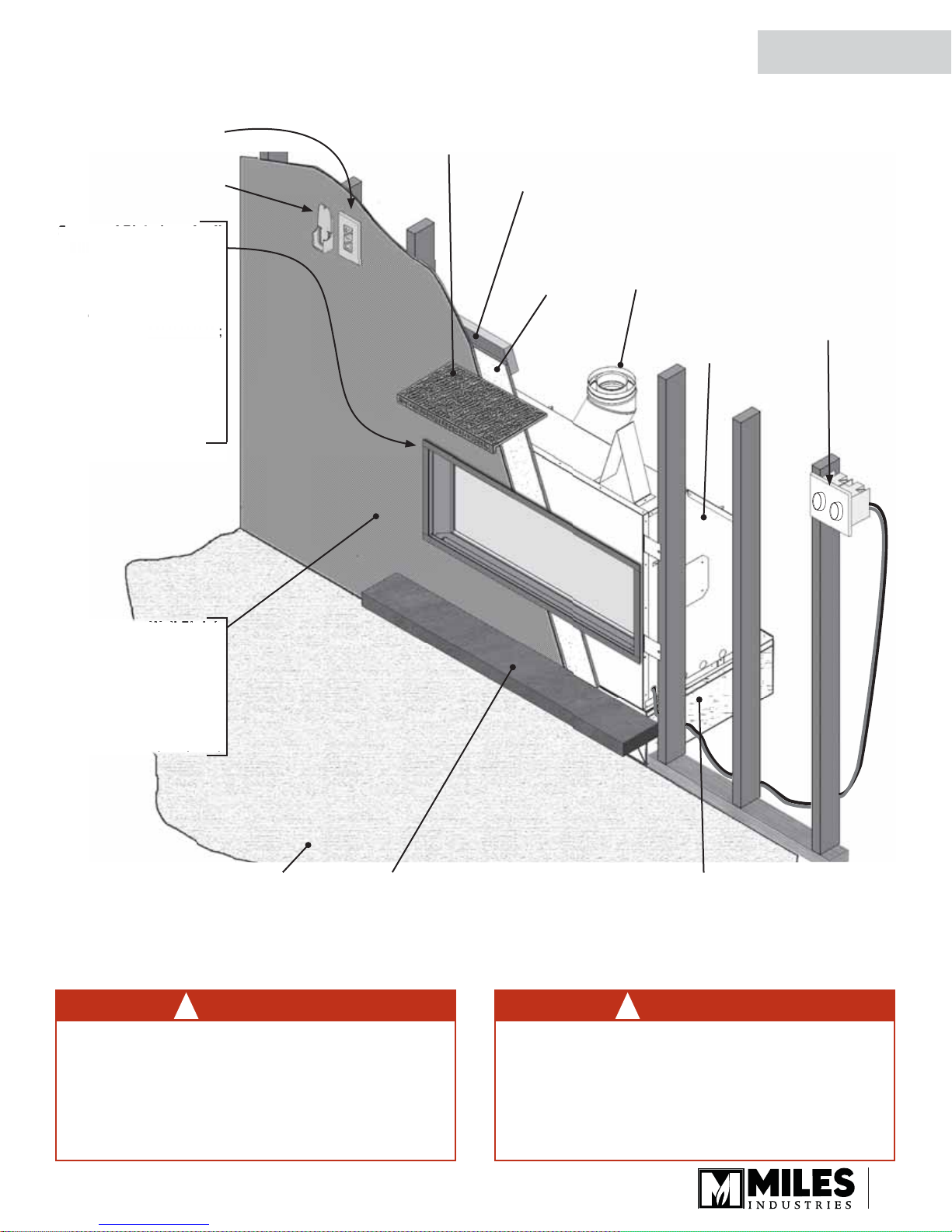

Mantel & Hearth Clearances ...........................21
Framing Requirements.................................... 23
Venting.............................................................27
Co-axial Venting ..............................................28
Co-Linear Venting............................................32
Installation Planning ........................................34
Appliance Preparation .....................................34
Window Removal.............................................37
Electrical Wiring (for optional accessories)......38
Supply Gas Installation....................................39
Liners Installation.............................................41
Long Beach Driftwood Kit Installation..............42
Murano Glass Fire Installation......................... 44
Murano Beads Set Installation.........................46
Window Refitting..............................................47
Wall Switch Kit Installation...............................48
Remote Control Initial Set-up ..........................49
Operation Check & Aeration Settings
Adjustment.......................................................50
Remote Control Handset Wall Holder
Installation .......................................................50
Wiring Diagram................................................ 51
Approved Venting Components.......................52
Warranty ..........................................................54
Spare Parts......................................................55

3
Safety Precautions
!
Children and adults should be ALERTED to the hazards
of high surface temperature and should STAY AWAY to
avoid burns or clothing ignition.
YOUNG CHILDREN should be CAREFULLY
SUPERVISED when they are in the same room as
the appliance. Toddlers, young children and others
may be susceptible to ACCIDENTAL CONTACT
BURNS. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access
to a fireplace or stove, INSTALL AN ADJUSTABLE
SAFETY GATE to keep toddlers, young children and
other at risk individuals out of the room and away from
hot surfaces.

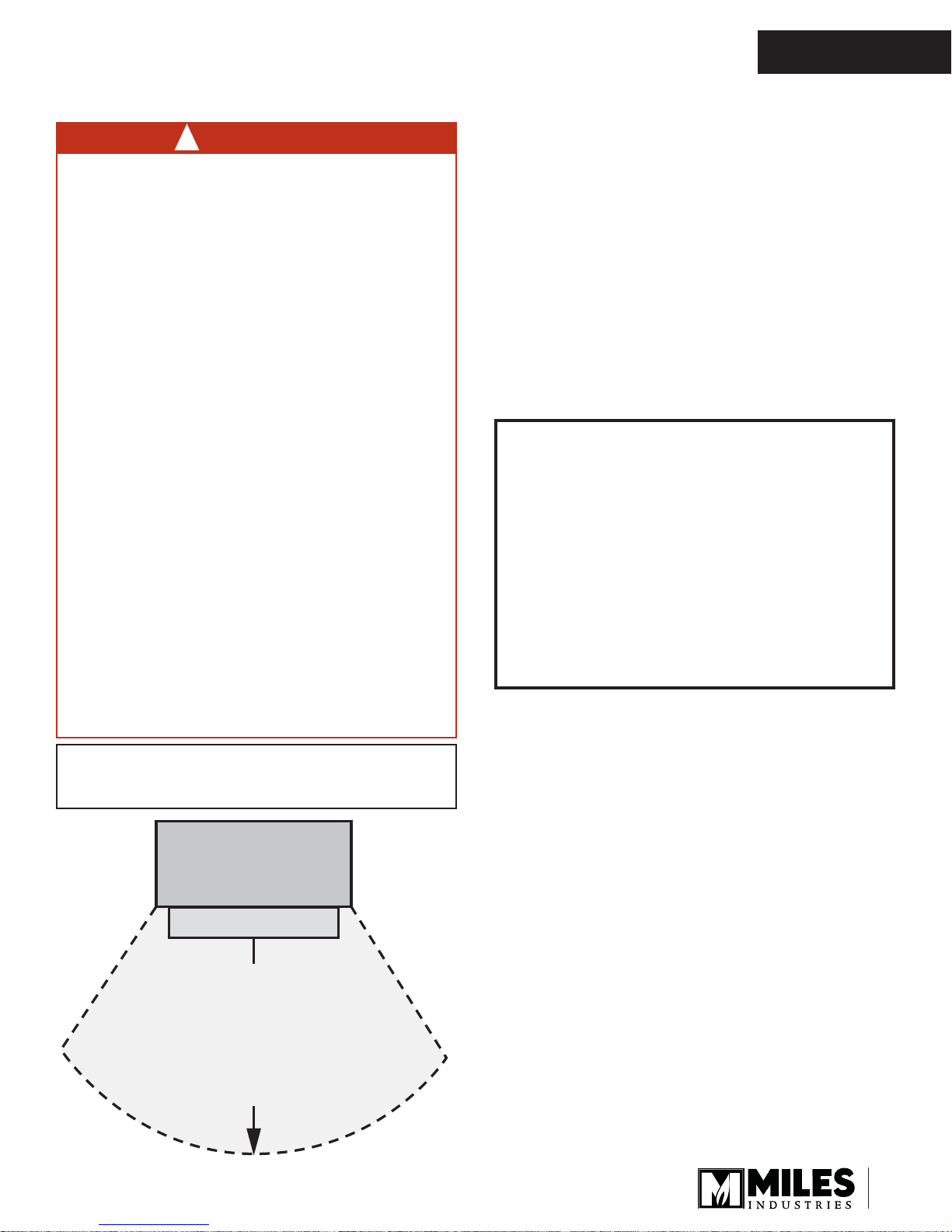

DO NOT place furniture or any other combustible
household objects within 36” of the fireplace front.
READ and UNDERSTAND all instructions carefully
before starting the installation. FAILURE TO FOLLOW
these installation instructions may result in possible fire
hazard and will void the warranty.
Prior to the first firing of the fireplace, READ the
Owner’s Information section of this manual.
DO NOT USE this appliance if any part has been under
water. Immediately, CALL a qualified service technician
to inspect the unit and to replace any part of the control
system and any gas control that has been under water.
THIS UNIT IS NOT FOR USE WITH SOLID FUEL.
Installation and repair should be PERFORMED by a
qualified service person. The appliance and venting
system should be INSPECTED before initial use and at
least annually by a professional service person. More
frequent cleaning may be required due to excessive
lint from carpeting, bedding, etc. It is IMPERATIVE that
the unit’s control compartment, burner, and circulating
air passageways BE KEPT CLEAN to provide for
adequate combustion and ventilation air.
Always KEEP the appliance clear and free from
combustible materials, gasoline, and other flammable
vapors and liquids.
NEVER OBSTRUCT the flow of combustion and
ventilation air. Keep the front of the appliance CLEAR
of all obstacles and materials for servicing and proper
operation.
Due to the high temperature, the appliance should be
LOCATED out of traffic areas and away from furniture
and draperies. Clothing or flammable material SHOULD
NOT BE PLACED on or near the appliance.
Clothing or flammable material SHOULD NOT BE
PLACED on or near the appliance.
This unit MUST be used with a vent system as
described in this installation manual. NO OTHER vent
system or components MAY BE USED.
This gas fireplace and vent assembly MUST be vented
directly to the outside and MUST NEVER be attached
to a chimney serving a separate solid fuel burning
appliance. Each gas appliance MUST USE a separate
vent system. Common vent systems are PROHIBITED.
INSPECT the external vent cap on a regular basis to
make sure that no debris, plants, trees, shrubs are
interfering with the air flow.
The glass door assembly MUST be in place and sealed
before the unit can be placed into safe operation.
DO NOT OPERATE this appliance with the glass door
removed, cracked, or broken. Replacement of the glass
door should be performed by a licensed or qualified
service person. DO NOT strike or slam the glass door.
The glass door assembly SHALL ONLY be replaced
as a complete unit, as supplied by the fireplace
manufacturer. NO SUBSTITUTE material may be used.
DO NOT USE abrasive cleaners on the glass door
assembly. DO NOT ATTEMPT to clean the glass door
when it is hot.
TURN OFF the gas before servicing this appliance.
It is recommended that a qualified service technician
perform an appliance check-up at the beginning of each
heating season.
Any safety screen or guard removed for servicing
MUST BE REPLACED prior to operating this appliance.
BE CAREFUL not to put any decorating objects
sensitive to heat to close above or around the fireplace
as it gets very hot when operating.
DO NOT use this heater as a temporary source of heat
during construction.
This appliance is a DOMESTIC ROOM-HEATING AP-
PLIANCE. It must not be used for any other purposes
such as drying clothes, etc.
State of California. Proposition 65 Warning. Fuels
used in gas, wood-burning or oil fired appliances,
and the products of combustion of such fuels, contain
chemicals known to the State of California to cause
cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6.

4
Safety and Your Fireplace
Please Follow These Important
Child Safety Precautions and
Recommendations,
• Parts of your Valor Fireplace become
extremely hot while in operation.
• The glass viewing window
temperature can
exceed 500 F
at full capacity.
Momentary contact
with a hot glass
surface can cause
a severe burn, even if the fireplace
is operating at reduced heating
capacity.
• The glass window will remain hot
for an extended period of time after
the fireplace has been turned off.
Ensure that children are prevented
from touching the fireplace during the
cool down period.
• Toddlers and Young Children
must be closely supervised at all
times when they are in the same
room as the operating fireplace. They
lack full awareness of danger and
rely on your protection. Toddlers,
in particular, do not have the motor
skills and response reflexes to
withdraw in the event of accidental
contact with a hot surface.
• A physical barrier is strongly
recommended if there are young
children, or at-risk individuals in the
house. Install an approved after-
market safety gate to keep toddlers,
young children and other at-risk
individuals a safe distance from the
fireplace.
• Keep the remote control handset
out of reach of children at all
times. A wall mount storage holster
is provided with your remote control
handset.
• Ensure that the fireplace, including
the pilot light, is completely turned
off when children are present and
close supervision and safety barriers
are not available—see page 8 of
Owner’s Information section.
• If the fireplace is not going to be used
for the summer or any extended
period of time, remove the batteries
from the remote control handset
and receiver. It is recommended that
batteries are replaced annually in any
event—see page 7.
Please Read and Carefully Follow all Safety Warnings and
Operating Instructions Contained in Your Owners Manual
(Replacement Manuals are available by contacting our service department at
1-800-468-2567 or visit www.valorfireplaces.com).
Safety and Your Fireplace
!

5
Operating Your Fireplace for the First Time
When operating your new fireplace for the first time,
some vapors may be released due to the burning of
curing compounds used in the manufacture of the
appliance. They may cause a slight odor and could
cause the flames to be the full height of the firebox, or
even slightly higher, for the first few hours of operation.
It is also possible that these vapors could set off any
smoke detection alarms in the immediate vicinity.
These vapors are quite normal on new appliances. We
recommend opening a window to vent the room. After
a few hours use, the vapors will have disappeared and
the flames will be at their normal height.
Flame Supervision Device
For your safety, this appliance is fitted with a flame
supervision device which will shut-off the gas supply
if, for any reason, the pilot flame goes out. This device
incorporates a fixed probe, which senses the heat
from the pilot flame. If the probe is cool, the device will
prevent any gas flow unless manually lighting the pilot.
See full lighting instructions on page 15 of this manual.
Owner’s Information
Performance of LPG appliances may be affected
by the quality of commercial gas supplied in
your area.
Do not put
furniture or other objects
in this space in front of
the replace:
36” (0.9 m)
Fireplace
Hearth
WARNING
EXTREMELY HOT!!!
• READ the SAFETY information on pages
3 and 4 of this manual BEFORE operating
your gas heater.
• Some parts of your fireplace are EXTREMELY
HOT, particularly the GLASS window.
• DO NOT LET CHILDREN touch the glass or
any parts of your fireplace even after it is
turned off as it is still hot.
• USE A SAFETY SCREEN or a GATE to reduce
the risk of severe burns.
• Keep the remote control handset OUT OF
REACH of children.
•
•
HOT HEARTH / FLOOR!
HOT HEARTH / FLOOR!
The hearth or floor
The hearth or floor
in front of the fireplace may become very hot
in front of the fireplace may become very hot
when the fireplace heats. Do not use the hearth
when the fireplace heats. Do not use the hearth
as a seat or shelf.
as a seat or shelf.
•
•
Some materials or items, although safe, may
Some materials or items, although safe, may
discolor, shrink, warp, crack, peel, and so on
discolor, shrink, warp, crack, peel, and so on
because of the heat produced by the fireplace.
because of the heat produced by the fireplace.
AVOID PLACING
AVOID PLACING
candles, paintings, photos,
candles, paintings, photos,
and other items
and other items
SENSITIVE TO HEAT
SENSITIVE TO HEAT within
36 inches (0.9 m) around the fireplace.
•
•
Solid wood flooring in front of the fireplace (if
Solid wood flooring in front of the fireplace (if
allowed) may shrink during the heating season
allowed) may shrink during the heating season
due to heat.
due to heat.
This manual and particularly the preceeding
and following pages contain very important
information regarding the safe operation of your
fireplace as well as maintenance instructions.
Read carefully BEFORE operating your fireplace
and pay special attention to the SAFETY
WARNINGS.
A heating gas appliance does require safe handling
and for this reason, we very strongly recommend that
no children be allowed to touch the fireplace and its
controls at all times. Do install a screen or barrier
in front of the fireplace to protect your children
against severe burns.
Thank You ...
For purchasing a Valor by Miles Industries. Your new
radiant gas heater is a technical appliance that must
be installed by a qualified dealer. Each Valor fireplace
is fully tested during the production process for your
safety and comfort.
Your unit has been professionally installed by:
Dealer Name: ________________________________
Phone Number :_______________________________
Should you encounter an operational problem, call
your dealer immediately.
Do not try to repair the unit as you may cause an
injury or damage the fireplace.
!
OWNER’S
INFORMATION

6
WARNING
DO NOT TOUCH THE GLASS WHILE IT IS HOT!
Let the fireplace cool first before cleaning it.
!
Spring Loaded
Window Levers
Cleaning
Important - Glass cleaning - Mineral deposits
One of the by-products of the combustion process in
a gas appliance is a mineral which can show up as a
white film on the ceramic glass of the viewing door.
The composition of the deposit varies with location and
time. It is believed to be associated with the varying
sulfur content of the gas. You may have the problem
intermittently.
We have consulted with ceramic glass manufacturers
and they cannot offer a definitive solution to this prob-
lem. Dealers have tried various cleaning products with
varying results. The following are recommendations
only and are not meant to guarantee results.
NOTE: This is a problem beyond Miles Industries’
control and is not covered under warranty.
• Clean the glass regularly as soon as you notice
the buildup (white film). If the film is left for a longer
period of time, it will etch into the glass. It is then
much harder, if not impossible, to remove.
• NEVER use an abrasive cleaner on the
ceramic glass. Any abrasion of the surface
has the immediate effect of compromising the
strength of the glass. An emulsion type cleaner is
recommended.
• Use a soft damp cloth to apply the cleaner. Dry the
glass with a soft, dry, preferably cotton cloth. Most
paper towels and synthetic materials are abrasive to
ceramic glass and should be avoided.
• Our dealers have had good results from the
products listed below. We cannot, however,
guarantee the results of these products.
◊Brasso, Polish Plus by Kelkem, Cook Top Clean
Creme by Elco, White Off by Rutland, Turtle Wax
Do not clean the glass while it is hot. Always
securely replace the window before lighting. If broken,
the glass pane may only be replaced as a complete
window unit as supplied by the manufacturer.
Owner’s Information

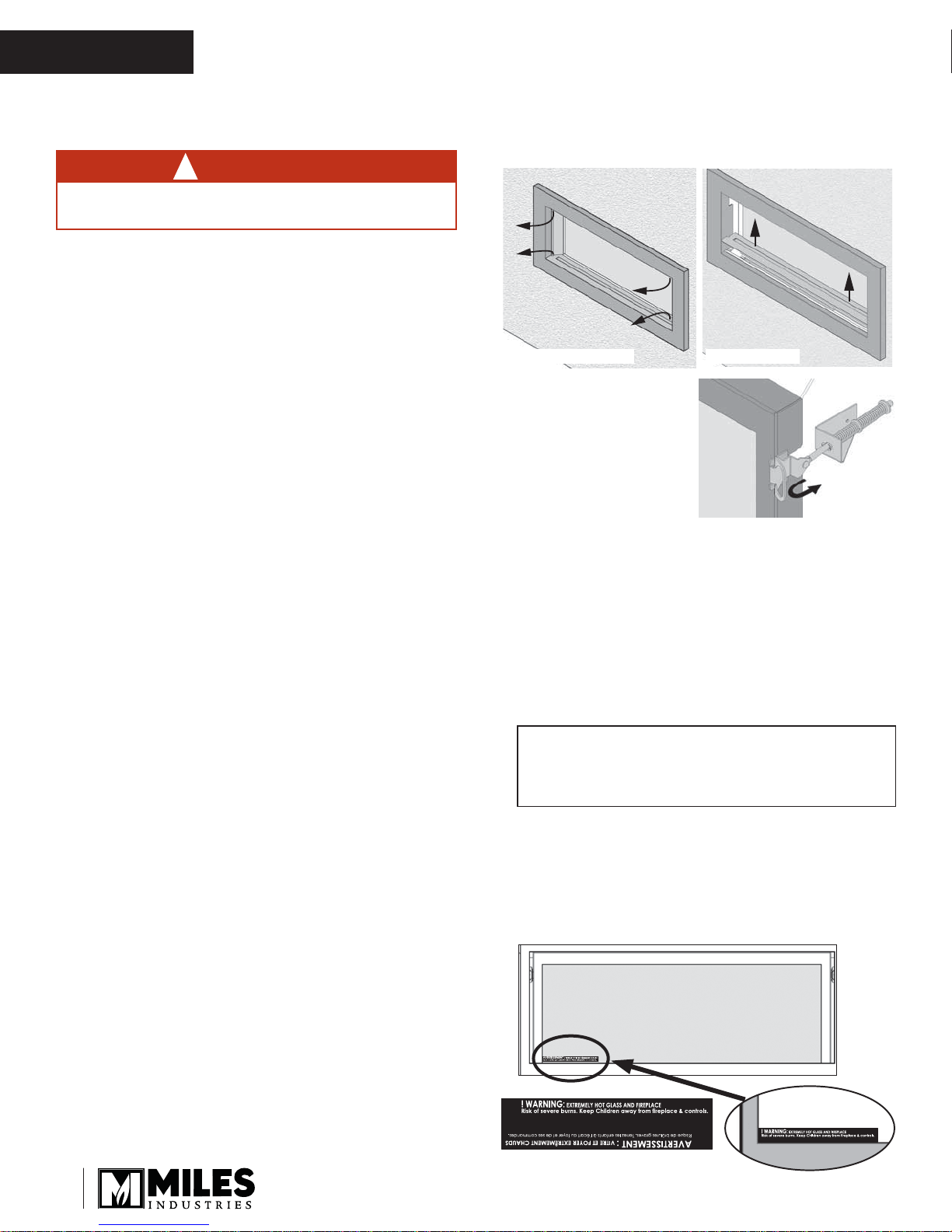

To remove the window for cleaning:
1. Remove the side doors and the plinth.
2. Find the levers on each
side of the window
towards the top. Using
your finger, pull the levers
towards you and unhook
them from the window
frame brackets.
3. Gently pull the top of the
window outward.
4. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.
To refit the window:
1. Place it in its bottom railing and push its top against
the firebox.
2. While you hold it, pull the side levers back into the
window brackets on each side.
3. Apply light hand pressure against the window frame
sides to bed-in the window seal.
4. If the Hot Glass Warning plate has been removed
from the front lower corner of the window,
reinstall it by sliding it between the glass and
the frame as indicated.
IMPORTANT: To ensure a safe operation, verify
that the levers are hooked properly to the window
tabs; then, pull out the top of the window and
release it to insure the springs return it.
Remove plinthRemove side doors
Hot Glass Warning Plate
OWNER’S
INFORMATION

7

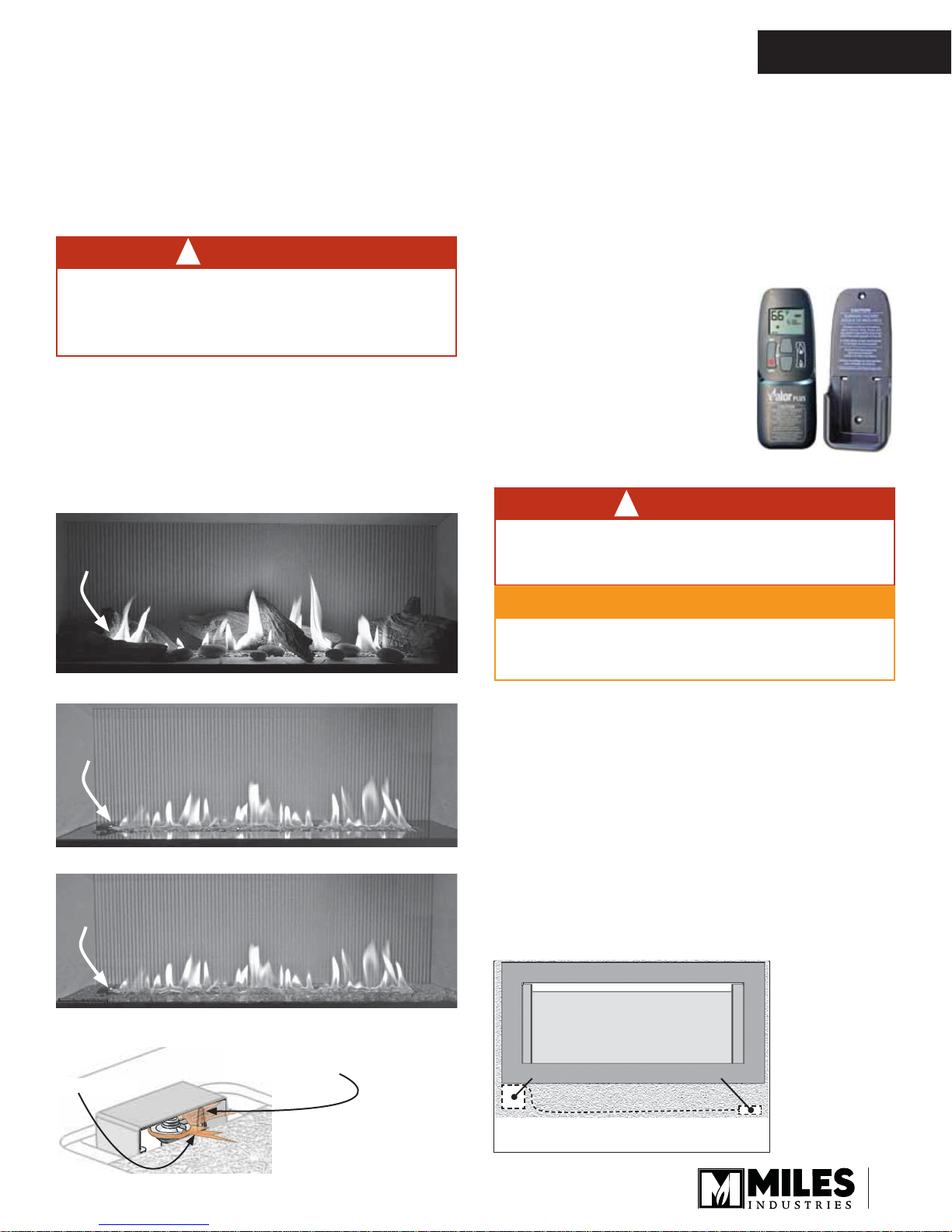

Long Beach Driftwood Kit Correct Flame Picture
Murano Glass Fire Correct Flame Picture
Murano Bead Fire Correct Flame Picture
Pilot Flame can be seen
between the front and
rear left logs
Pilot Flame can
be seen left of
the fire bed
Pilot Flame
Thermocouple Probe
must be in Flame
WARNING
CHOKING HAZARD! Ensure that the fireplace
area is clear of fire glass or vermiculite particles as
these could be ingested by small children. Vacuum
thoroughly around the fireplace area after cleaning.
WARNING
DO NOT ATTEMPT TO CHANGE THE BATTER-
IES WHILE THE FIREPLACE IS STILL HOT! Let
the fireplace cool first before touching it.
CAUTION
DO NOT USE a screwdriver or other metallic
object to remove the batteries from the battery box
or the handset! This could cause a short circuit.
Battery boxReceiver
Window
The battery box is located on the bottom of
the appliance behind the front panel.
Pilot Flame can
be seen left of
the fire bed
Soot or dust can be brushed from the ceramic logs and
rocks and firebox walls using a soft brush. Dust can
also be removed from the burner using a soft brush
after removing the vermiculite or fire glass. When
cleaning, make sure that no particles are brushed into
the slots of the burner.
Checks
A periodic check of the pilot and burner flames should
be made. Check after the fire has been on for at least
30 minutes. The pilot flame must cover the tip of the
thermocouple probe. The main burner flame pattern will
vary from appliance to appliance depending on the type
of installation and climatic conditions.
Owner’s Information
!
The appliance area must always be kept clear and
free from combustible materials, gasoline and other
flammable vapors and liquids.
Inspect the vent terminal outdoors regularly to make
sure that snow, trees, bushes, leaves, or other objects
do not obstruct it.
Examine the vent system and terminal regularly. We
recommend annually.

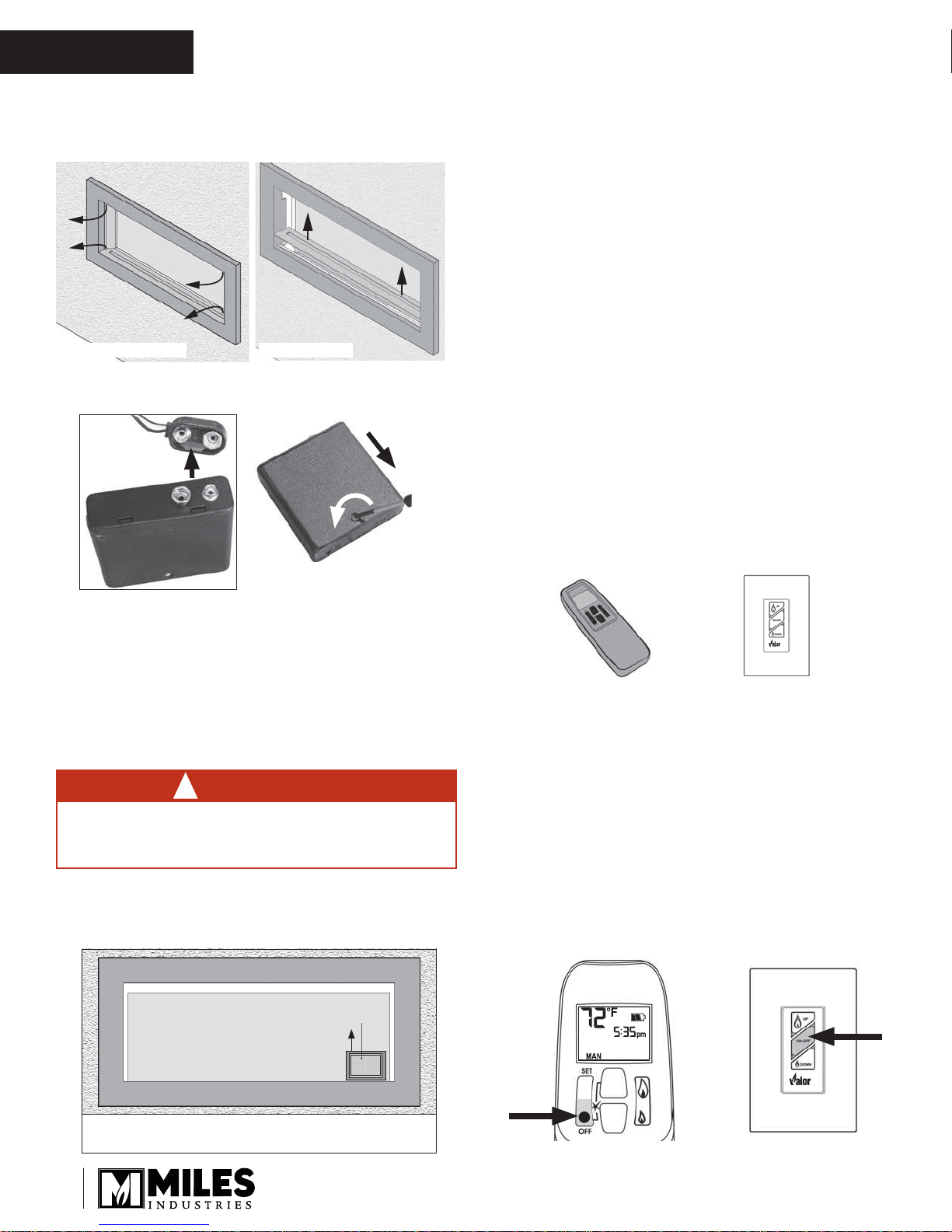

Remote Control Handset
Wall Holder
Your fireplace equipment includes
a wall holder to store the handset.
If it hasn’t be installed, refer to
the instructions further on in this
manual for the installation.
Batteries
Low batteries signal: see page 14.
BEFORE changing the batteries, disconnect the
battery box from the receiver.
The appliance uses four 1.5 V AA alkaline batteries
for its battery box and one 9 V alkaline battery for its
handset. Batteries should last one to two seasons,
depending on usage. Removing the batteries in the off-
season will extend the battery life.
To replace the batteries in the battery box:
The battery box is located to the right hand side on
the bottom of the appliance behind the front panel. It
is held in place with a piece of Velcro.
!
OWNER’S
INFORMATION

8
Thermostatic
Remote Control
Wall Switch
Wall Switch
Remote control handset
WARNING
DO NOT ATTEMPT TO TOUCH THE DATA PLATE
WHILE THE FIREPLACE IS STILL HOT! Let the
fireplace cool first before touching it.
Data
plate
Window
The rating plate is located on the bottom of the
appliance behind the front panel.
To access the plate, remove the side doors and the
plinth. Grab the return edge of the plate and slide it out
of its rails. There is important information on both sides
of the plate.
Servicing
If any attention is required for your appliance, contact
your supplier quoting the model number. It will be
helpful if the appliance’s serial number can also
be quoted. This number is on the rating plate. The
replacement parts are shown at the end of this manual.
Please always quote the part number and description
when requesting spare parts.
Fireplace Control Devices
There are two ways to control your fireplace.
1. Thermostatic Remote Control;
2. Wall Switch.
The Thermostatic Remote Control can be programmed
to function automatically—see pages 10–14.
The Wall Switch can be used to turn on, off and to
increase or decrease the flame height.
How to Turn Your Fireplace OFF
(including pilot)
Familiarize yourself with each of these methods before
operating your fireplace.
Press and hold the OFF button for a second (either on
the handset or the wall switch).
If the flames are on, they go down and you hear the
valve motor wind down. You hear a clunk and a beep
indicating that the valve has received the signal from
the remote control.
Owner’s Information
1. Remove the side doors and the plinth. Grab the
battery box and pull it out from its location.
2. Disconnect the battery box.
3. Remove the screw and slide the cover off.
4. Replace the 4 AA alkaline batteries orienting
them as indicated inside the holder.
5. Replace the cover and screw in place.
6. Reconnect the battery box.
7. Put the battery box back in its position.
8. Reinstall the plinth and the side doors.
Lighting, Operation and Rating Information
The Lighting, Operation and Rating information is
located on a plate at the right hand side of the fireplace
opening. The plate slides out from under the plinth.
!
Remove plinthRemove side doors
OWNER’S
INFORMATION

9
Gas valve
Battery boxReceiver Gas valve
Window
The battery box, receiver and gas valve are located on
the bottom of the appliance behind the front panel.
Owner’s Information
How to Ensure Your Fireplace Cannot
Be Turned ON Inadvertently
You can use one of the two following methods to
ensure that your fireplace will not turn on when you
don’t want it on.
First, ensure your fireplace is turned off—including
the pilot—and cold BEFORE going ahead.
• Turn the dial on the gas valve from the ON position
to the MAN position as shown. Turning the dial to
MAN (arrow up) will ensure that the main burner can
not come on. The pilot will remain on if it is lit.
• Alternately, remove all batteries from the receiver as
well as the battery from the handset.
Automatic Shut-Off (in certain conditions)
Your fireplace’s remote control is equipped with an
automatic shut-off mechanism which is activated in
certain conditions. See page 14 in the Remote Control
Operation section for a description of this feature.
OWNER’S
INFORMATION

10
Remote Control Operation
When the pilot is off, it will take 2
minutes before it can be lit again.
TO TURN ON APPLIANCE TO TURN OFF APPLIANCE
FLAME HEIGHT ADJUSTMENT
• On the valve, turn MAN knob on the ON, full
counterclockwise position.
• Place ON/OFF switch (if equipped) in I (ON
position). STANDBY MODE (Pilot Flame)
• Press and hold (small flame) to set appliance at
pilot flame.
• Simultaneously press the OFF and
(large flame) buttons until a short
beep confirms the start sequence
has begun; release buttons.
• Continuing beeps confirm the
ignition is in process.
• Once pilot ignition is confirmed,
there is main gas flow.
• After main burner ignition the
handset will automatically go into
manual (MAN) control mode.
• Press OFF button.
When the pilot is off, it will take 2
minutes before it can be lit again.
• In standby mode: Press and hold
(large flame) button to increase
flame height.
CAUTION
When pilot ignition is confirmed, motor turns
automatically to maximum flame height.
NOTE: Before using the remote control system for
the first time, the receiver and the handset must be
synchronized. See the section Remote Control Initial
Set-up on page 49 of this manual.
Set (scrolls
through
modes and
settings)
OFF (returns
to set mode,
turns the burner
and the pilot o)
Large ame
button (ames
up, sets hours,
temperature)
Small ame
button (ames
down and o,
sets minutes,
temperature)
Current
temperature
(F or C)
Current time
(12 or 24 hour clock)
Modes (Manual,
Temperature, Timer)
Handset
sensor
Battery status
Current
programmed
period (Timer)
Period
start or end
(Temp, Timer)
Display Overview
Handset Overview
Note: In the TEMP or TIMER modes, the remote
handset senses the room temperature and adjusts the
flame accordingly.
To communicate, the handset should be within 15 feet
(4.5 meters) of the fireplace.
Do not leave the handset on the mantel or hearth.
IMPORTANT: BEFORE YOU BEGIN, please note that
on this system, the settings of time, temperature and
automatic ON/OFF can only be programmed when
the function display is flashing. Be patient when
programming as it can take a few seconds to set.
OWNER’S
INFORMATION

11
Remote Control Operation
SETTING THE TIME
SETTING ºC/24-HOUR OR ºF/12-HOUR CLOCK
MODES OF OPERATION
NOTE: Manual mode can also be reached by pressing
either the (large flame) or the (small
flame) buttons.
• Press and hold (small flame)
button to decrease flame height or
to set the appliance at pilot flame.
• For fine adjustment tap the
(large flame) or (small flame)
buttons.
• Briefly pressing the SET button
changes the mode of operation in
the following order:
→→
→→and back to .
• Double-click (small flame)
button. “LO” will be displayed.
NOTE: Flame goes to high fire first
before going to designated low fire.
• In MAN mode, press OFF and
(small flame) buttons until display
changes from Farenheit/12-hour
clock to Celsius/24-hour clock and
vice versa.
• The time display will flash after
either:
◊Installing the battery or
◊Simultaneously pressing the
(large flame) and (small
flame) buttons.
• Press (large flame) button to
set the hour.
• Press (small flame) button to
set the minute.
• Press OFF or simply wait to return
to MAN mode.
• Double-click (large flame)
button. Flame automatically goes
to high fire. “HI” will be displayed.
• - Manual Mode - Manual
Flame Height Adjustment.
Express Low and High Fire
• - Daytime Tempera-
ture Mode (Appliance must be in
standby mode; pilot ignited) - The
room temperature is measured and
compared to the set temperature.
The flame height is then auto-
matically adjusted to achieve the
Daytime Set Temperature.
• - Nighttime Setback
Temperature Mode (Appliance
must be in standby mode; pilot
ignited) - The room temperature
is measured and compared to the
Nighttime Setback temperature.
The flame height is then automati-
cally adjusted to achieve the Night-
time Setback Temperature.
• - Timer Mode (Appliance
must be in standby mode; pilot
ignited) - The timers P1 and P2
(Program 1, Program 2) each can
be programmed to go ON and OFF
at specific times. For instructions
see Timer Programming Mode.
NOTE: The display shows the set temperature every
30 seconds.
x 2
x 2
MAN
MAN
MAN
TEMP
TEMP
TEMP
TIMER
TEMP
TIMER
OWNER’S
INFORMATION

12
Remote Control Operation
SETTING THE ON / OFF TEMPERATURES
• Briefly press SET button to scroll to
TEMP (sun) mode. Hold
the SET button until the TEMP
flashes.
• Press (large flame) button
to increase the Daytime Set
Temperature.
• Press (small flame) button
to decrease Daytime Set
Temperature.
• Press OFF or simply wait to
complete programming.
SETTING THE “DAYTIME” TEMPERATURE SETTING THE “NIGHTTIME SETBACK”
TEMPERATURE
Default Settings: (sun), 23ºC / 74ºF Default Settings: (moon), “--” (OFF)
• Press (large flame) button to
increase Nighttime Setback
Temperature.
• Press (small flame) button to
decrease Nighttime Setback
Temperature.
• Press OFF or simply wait to
complete programming.
• Briefly press SET button to scroll to
TEMP (moon) mode. Hold
the SET button until the TEMP
flashes.
Tip
Set the different parameters when they are flashing.
TEMP
TEMP
TEMP
TEMP
OWNER’S
INFORMATION

13
Remote Control Operation
SETTING PROGRAM TIMERS
• You can program two periods of time between 12:00
am and 11:50 pm in each 24-hour cycle.
• The Programs P1 and P2 must be set in the
following order during a 24-hour cycle: , ,
and .
• The icon indicates the beginning of the period (ON)
and the icon indicates the end of the period (OFF).
• If = or = , the programming
is cancelled.
• To keep the fireplace ON all night, set at
11:50 am and at 12:00 am.
Default settings:
Program 1: 6:00 am 8:00 am
Program 2: 11:50 pm 11:50 pm
• Briefly press SET button to scroll to
TIMER mode.
• Hold the SET button until
(sun) is displayed and the time
flashes.
• Briefly press SET button to scroll
to TIMER (moon) while the
time flashes.
• Press (large flame) button to
set the hour.
• Press (large flame) button to set
the hour.
• Press (small flame) button to
set the minutes.
• Press (small flame) button to
set the minutes.
SETTING P1 ON TIME SETTING P2 ON TIME
• Briefly press SET to scroll to TIMER mode
(sun) while the time flashes.
• Follow the instructions given to set P1 ON time.
SETTING P2 OFF TIME
• Briefly press SET to scroll to TIMER mode
(moon) while the time flashes.
• Follow the instructions given to set P1 OFF time.
Press OFF button to save these settings. The timers
are programmed. See the diagram on programming
sequences on the following page.
Tip
If you want to program only one period, program
and with desired times and program and
with the same time as .
SETTING P1 OFF TIME
P1
P1
P1
P1
P1 P1
P2
P2
P2
P2
P2
P2
P1
P1
P1
P1
P1
P1
P2
P2
P2
P2
P2
OWNER’S
INFORMATION

14
Fuel Beds (required)
1505DWK—Linear Drift Wood Kit
1510DGM—Linear Decorative Glass Effect
1512MBS—Murano Bead Set
Ceramic Liners (required)
1515FBL—Linear Fluted Black Liner Set
1520FSL—Linear Fluted Sand Liner Set
1525EBL—Linear Enamel Black Liner Set
Trims (required)
1550LSZ—Linear 3-1/2” Surround Bronze
1550LSB—Linear 3-1/2” Surround Black
1555LFB—Linear 1” Finishing Trim Black
Conversion Kit (optional)
1500PGK—Conversion Kit to Propane Gas
1500NGK—Conversion Kit to Natural Gas
Accessories (optional)
1560LSG—Linear Barrier Screen
1565LLK—Linear Lighting Kit
1595CFK—Circulating Fan Kit
1270RBK—Remote blower kit
Hearth Gate (optional)
Hearth gates such as Cardinal’s VersaGates are
available at retail stores carrying safety products
for children.
Remote Control Operation
Options
AUTOMATIC TURN DOWN
AUTOMATIC SHUT OFF
LOW BATTERY INDICATION
HANDSET / RECEIVER MATCH
Remote handset: The battery icon will show
when the battery needs to be replaced.
Replace with one 9 V alkaline battery.
Receiver: Three short ‘beeps’ will sound when the
motor turns when the batteries need to be replaced.
Replace with four 1.5 V alkaline batteries.
The remote control handset and receiver are program-
med to function together. In case of a replacement of
the handset or the receiver, you will need to reset the
receiver to allow them to function together. Contact your
dealer for details.
• No communication. If there is no communication
between the receiver and the handset for a period of
6 hours, the appliance goes into pilot mode.
• No change in flame height. If there is no change
in flame height for a period of 6 hours, the appliance
goes into pilot mode.
NOTE: In TEMP or TIMER modes, the flame height
will vary according to room temperature. The appli-
ance will continue to work normally. However, if the
room temperature remains the same for 6 hours, the
appliance will go into pilot mode.
• Low batteries in the receiver. With low battery
power in the receiver the system shuts off
completely.
NOTE: This does not apply when the power supply
is interrupted.
• No change in pilot. The appliance shuts off
completely when it is continually in pilot position—
without any change—for a period of 5 days.
Timer Programming Example (default temperatures shown)
6:00 a.m.—
P1
Start time
4:00 p.m.—
P2
Start time
6:00 a.m.—
P1
Start time
8:00 a.m.—
P1
End time
10:00 p.m.—
P2
End time
Set temp 74˚F Set temp 40˚FSet temp 74˚F
Set temp 40˚F
☼☼☼
☼☼
☽☽
☽☽
CAUTION
DO NOT USE a screwdriver or other metallic
object to remove the batteries from the battery box
or the handset! This could cause a short circuit.
OWNER’S
INFORMATION

15
Lighting Instructions
FOR YOUR SAFETY, READ BEFORE LIGHTING
WARNING: If you do not follow these instructions exactly, a fire or explosion may result
causing property damage, personal injury or loss of life.
A. This appliance has a pilot which must be lighted by hand, remote control, or wall switch. Follow these instructions
exactly. To save gas, turn the pilot off when not using the appliance for a prolonged period of time.
B. BEFORE LIGHTING, smell all around the appliance area for gas. Be sure to smell next to the floor because
some gases are heavier than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electric switch; do not use any phone in your building.
• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the fire department.
C. Use only your hand to push in or turn the control knobs. Never use tools. If the knobs will not push in or turn by
hand, don’t try to repair them; call a qualified service technician. Force or attempted repair may result in a fire or
explosion.
D. Do not use this appliance if any part has been under water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the control system and any gas control, which has been under water.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. TO CLEAR ANY GAS, turn main valve off by pressing OFF (red dot) button on remote
handset (1).
• Wait five (5) minutes to clear out any gas, then smell for gas, including near the floor. If you
smell gas, STOP! Follow “B” in the safety information above on this label. If you don’t smell
gas, go to the next step.
3. AUTOMATIC IGNITION: MAN-knob (2) in ON position. Ensure Flame Adjustment
knob (3) is set to lowest setting ()(Fig. 1). Locate the pilot (Fig. 3.) inside of
firebox at left hand side.
• On the remote control handset, press the OFF button (red dot) and large flame
button () simultaneously; a short acoustic signal confirms the start has begun.
• Further short acoustic signals indicate the ignition process is in progress.
• When the pilot is lit, the Flame Adjustment knob (3) will automatically rotate to
the highest setting.
• Press the small flame button () on the remote control handset to reduce the
flame height.
4. MANUAL IGNITION: MAN-knob (2) in MAN position (Fig. 2). With the window
off, locate the pilot (Fig. 3) inside of firebox at left hand side.
• Set Flame Adjustment knob (3) to the lowest setting ().
• Push down the metallic core (4) with a pen or similar instrument; this will establish
the pilot gas flow.
• Light gas at the pilot (5) with a match.
• Continue holding down metal core (4) for about 10 seconds; after release, pilot
should remain lit.
• If the pilot will not stay lit after several tries, turn the gas control knob (3) to OFF () and call your local
service technician or gas supplier.
• Reinstall the window and set the MAN-knob (2) to ON; turn Flame Adjustment knob (3) up () or down ()
manually or use the flame buttons ()() buttons on the remote control handset to adjust the flame height.
TO TURN OFF GAS TO APPLIANCE
AUTOMATIC SHUT-OFF (using the remote control handset):
• Press and hold the small flame button () on the remote control handset to shut-off the main burner gas flow.
• Press OFF button (red dot) on remote handset to shut-off the appliance, including pilot flame.
Spark
Pilot
Fig 3
5
Fig 1
Fig 2
1
OFF
OWNER’S
INFORMATION

16
State of Massachusetts Carbon Monoxide
Detector/Vent Terminal Signage
Requirements
For all side wall horizontally vented gas fueled
equipment installed in every dwelling, building or
structure used in whole or in part for residential
purposes, including those owned or operated by the
Commonwealth and where the side wall exhaust
vent termination is less than seven (7) feet above
finished grade in the area of the venting, including
but not limited to decks and porches, the following
requirements shall be satisfied:
1. INSTALLATION OF CARBON MONOXIDE
DETECTORS. At the time of installation of the side wall
horizontal vented gas fueled equipment, the installing
plumber or gas fitter shall observe that a hard wired
carbon monoxide detector with an alarm and battery
back-up is installed on the floor level where the gas
equipment is to be installed. In addition, the installing
plumber or gas fitter shall observe that a battery
operated or hard wired carbon monoxide detector
with an alarm is installed on each additional level of
the dwelling, building or structure served by the side
wall horizontal vented gas fueled equipment. It shall
be the responsibility of the property owner to secure
the services of qualified licensed professionals for the
installation of hard wired carbon monoxide detectors.
a. In the event that the side wall horizontally vented
gas fueled equipment is installed in a crawl space or
an attic, the hard wired carbon monoxide detector with
alarm and battery back-up may be installed on the next
adjacent floor level.
b. In the event that the requirements of this subdivision
can not be met at the time of completion of installation,
the owner shall have a period of thirty (30) days
to comply with the above requirements; provided,
however, that during said thirty (30) day period, a
battery operated carbon monoxide detector with an
alarm shall be installed.
2. APPROVED CARBON MONOXIDE DETECTORS.
Each carbon monoxide detector as required in
accordance with the above provisions shall comply
with NFPA 720 and be ANSI/UL 2034 listed and IAS
certified.
3. SIGNAGE. A metal or plastic identification plate
shall be permanently mounted to the exterior of the
building at a minimum height of eight (8) feet above
grade directly in line with the exhaust vent terminal for
the horizontally vented gas fueled heating appliance
or equipment. The sign shall read, in print size no less
than one-half (1/2) inch in size, “GAS VENT DIRECTLY
BELOW. KEEP CLEAR OF ALL OBSTRUCTIONS”.
4. INSPECTION. The state or local gas inspector of
the side wall horizontally vented gas fueled equipment
shall not approve the installation unless, upon
inspection, the inspector observes carbon monoxide
detectors and signage installed in accordance with the
provisions of 248 CMR 5.08(2)(a)1 through 4.
(b) EXEMPTIONS: The following equipment is exempt
from 248 CMR 5.08(2)(a)1 through 4:
1. The equipment listed in Chapter 10 entitled
“Equipment Not Required To Be Vented” in the most
current edition of NFPA 54 as adopted by the Board;
and
2. Product Approved side wall horizontally vented
gas fueled equipment installed in a room or structure
separate from the dwelling, building or structure used in
whole or in part for residential purposes.
(c) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM PROVIDED.
When the manufacturer of Product Approved side
wall horizontally vented gas equipment provides a
venting system design or venting system components
with the equipment, the instructions provided by the
manufacturer for installation of the equipment and the
venting system shall include:
1. Detailed instructions for the installation of the venting
system design or the venting system components; and
2. A complete parts list for the venting system design or
venting system.
Commonwealth of Massachusetts
QUALIFIED
INSTALLER

17
(d) MANUFACTURER REQUIREMENTS - GAS
EQUIPMENT VENTING SYSTEM NOT PROVIDED.
When the manufacturer of a Product Approved side
wall horizontally vented gas fueled equipment does
not provide the parts for venting the flue gases, but
identifies “special venting systems”, the following
requirements shall be satisfied by the manufacturer:
1. The referenced “special venting system” instructions
shall be included with the appliance or equipment
installation instructions; and
2. The “special venting systems” shall be Product
Approved by the Board, and the instructions for that
system shall include a parts list and detailed installation
instructions.
(e) A copy of all installation instructions for all Product
Approved side wall horizontally vented gas fueled
equipment, all venting instructions, all parts lists
for venting instructions, and/or all venting design
instructions shall remain with the appliance or
equipment at the completion of the installation.
Commonwealth of Massachusetts
QUALIFIED
INSTALLER

18
X
Ratings
Model NP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 30,000 28,000
Input Minimum (Btu/h) 16,000 15,000
Manifold Pressure (in
w.c.) 4.0” 9.5”
Minimum Supply
Pressure (in w.c.) 5” 11”
Maximum Supply
Pressure (in w.c.) 10” 14”
Main Burner Injector
Marking 850 300
Pilot Injector Marking 51 30
Min. Rate By-Pass
Screw 185 135
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500 feet
(1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas utility
to confirm.
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88-2009/
CSA 2.33-2009 American National Standard / CSA
Standard for Vented Gas Fireplace Heaters for use in
Canada and USA, and to CGA 2.17-91 High Altitude
Standard in Canada. This appliance is for direct vent
installations.
This appliance complies with CSA P4.1-09 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas
Code, ANSI Z223.1 or the Natural Gas and Propane
Installation Code CAN/CGA-B149. Only qualified
licensed or trained personnel should install this
appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA
70 or the Canadian Electrical Code, CSA C22.1.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 1500IN is used with natural gas.
Heater engine 1500IP is used with propane gas.
The supply pressure must be between the limits shown
in the Ratings section above.
The supply connection is 3/8” NPT male and located
on the left hand side of the firebox. A shut-off valve (not
supplied) is required on the supply line to isolate the
unit during service. See Gas Supply Installation section
for details.
Conversion Kits
The 1500 L1 is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kit for further information.
Electrical
The 1500 is designed to run on battery power and
does not require an electrical power source to operate
as a heater. However, it requires electrical power to
operate optional 1565LLK Linear Lighting Kit, 1595CFK
Circulating Fan Kit or 1270RBK Remote Blower Kit.
QUALIFIED
INSTALLER

19
Overview
Fire On/Off
Wall Switch (20-
foot wire length) Mantel—See Mantel & Hearth Clearances
Hearth: not required.
If used, must be minimum 4”
below fireplace opening.
Optional Decorative
Light Dimmer
Switch and Fan
Speed Control—not
provided. Consult
your electrician.
S
S
Su
Su
Su
rr
o
o
u
d
d
d
nd
P
P
P
P
l
l
l
la
t
t
te
(
(
(
(
re
qu
i
i
i
ir
d
d
d
ed
)
)
)
)
Na
r
r
row 1
”
Trim 1
555
LFB
–
–
m
ou
nt
s
o
v
e
r
ce
m
e
nt
board, not ad
j
ustable,
CA
A
NN
O
T accommodate
add
d
iti
o
n
a
l
fi
ni
s
h m
a
t
e
ri
a
l
u
nderneath
;
w
wi
de
r
3-
1/
2”
T
ri
m
15
50
a
a
d
j
ustable, accepts up
t
o
1
”
add
iti
o
n
a
l n
o
n-
co
o
m
bus
ti
b
l
e
fi
ni
s
h
o
v
e
r
ce
me
nt
b
oa
rd
a
nd
be
hin
d
tri
m.
1500
Combustible Floor
Framing—See Framing Requirements
Non-combustible
cement board
– supplied with
appliance
Supplied as
vertical outlet, field
convertible to
horizontal outlet.
Remote Handset
Wall Holder
W
W
Wa
ll
ll
ll
F
F
F
i
i
in
i
i
is
h
h
h
An
y
y
wall finishes applie
d
o
v
e
e
r
ce
m
e
nt
boa
r
d
m
u
st
be
n
o
n-
co
m
bus
ti
b
l
e
.
C
ombustible mantel
are ok provided th
ey
co
nf
o
rm t
o
c
h
a
rt
(s
(
(
ee
p
p
p
. 21
)
)
)
Combustible Framing Allowed Beneath Fireplace.
When the appliance is installed directly on carpeting,
tile or other combustible material other than wood
flooring, the appliance shall be installed on a metal
or wood panel extending the full width and recessed
depth of the appliance.
WARNING
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not use the
hearth as a seat or shelf. Solid wood flooring
in front of the fireplace (if allowed) may
shrink during the heating season due to heat.
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel, and
so on because of the heat produced by the
fireplace. Avoid placing candles, paintings,
photos, and other items sensitive to heat
around the fireplace.
! !
QUALIFIED
INSTALLER

20
4
4-1/2”
(
1130 mm
)
to to
p
of cement boar
d
4
3”
(
1092 mm
)
()
to underside o
f
header
E
l
ectr
ic
al
I
n
n
le
t
P
o
in
t
1270
RB
K
D
uc
t
Ki
t
Inle
t
(remove
p
late
)
127
0
RBK D
uct
K
i
t
Inle
t
(remove p
l
ate
)
Gas
Line
A
ccess Po
i
nt
Zer
o
Cl
e
a
r
a
n
ce
Stand-O
ffs
H
ea
d
e
r
C
en
t
er
Li
n
e
6-5
/
8”dia
.
Ventin
g
f
ield-
co
nver
t
i
b
le
f
rom to
p
t
o
re
a
r
outl
e
t
C
en
t
er
o
f ven
t
He
at
sh
ie
ld
required
f
o
r
rear ven
t
out
le
t
applications
46”
(
1168 mm
)
18”
(
457 mm
)
15-1
/
16”
(
383 mm
)
15-1/16”
15-
3
mm
)
(
38
3
18-1
/
2
”
(
469 mm
)
3-3/4
”
(
95 mm
)
4”
(
102 mm
)
19-7/8
”
(
505 mm
)
32-3/8”
(
822 mm
)
33-1/8”
(
841 mm
)
14-1/2
”
(
369 mm
)
9-3
/
8
”
(
238 mm
)
4
2”
(
1067 mm
)
39-11/16”
(
1009 mm
)
Zero Clearance
to Stand-offs
at Back and Sides
Zero Clearance
at back corners
78”(1981 mm)
55-1/8”(1400 mm)
16-15/16”
(430 mm)
Zero Clearance
at back corners
Face of
Framing
Top View
Dimensions & Location
Dimensions
Location
Front ViewLeft Side View Right Side View
Corner Dimensions
QUALIFIED
INSTALLER
