Valor LEGEND G3.5 User manual

Canadian Patent 2717779
US and other patents pending
with
©2020, Miles Industries Ltd.
4008152-03
Hot glass
will cause burns.
Do not touch glass
until cooled.
Never allow children
to touch glass.
A barrier designed to reduce
the risk of burns from the hot
viewing glass is provided with this
appliance and must be installed for
the protection of children and
other at-risk individuals.
DANGER
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings
exactly could result in serious
injury, death, or property damage.
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
WHAT TO DO IF YOU SMELL GAS
▪Do not try to light any appliance.
▪Do not touch any electrical switch; do
not use any phone in your building.
▪Leave the building immediately.
▪Immediately call your gas supplier from
a neighbor’s phone. Follow the gas
supplier’s instructions.
▪If you cannot reach your gas supplier,
call the fire department.
Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
Installer: Leave this manual with the appliance.
Consumer: Retain this manual for future reference.
Direct Vent Insert
Gas Fireplace
natural gas 700MN
propane gas 700MP
Installation Manual
G3.5

2
Ce guide est disponible en français sur demande.
This appliance is a domestic room-
heating appliance. It must not be used
for any other purposes such as drying
clothes, etc.
This appliance is suitable for
installation in a bedroom or bed
sitting room.
This manual contains instructions to
install the ENGINE ONLY. A trim kit is
REQUIRED to complete the installation.
A barrier screen is provided with the
trim kit. Refer to the manual supplied
with the trim for installation.
The information contained in this manual is believed
to be correct at the time of printing. Miles Industries
Ltd. reserves the right to change or modify any
information or specifications without notice. Miles
Industries Ltd. grants no warranty, implied or stated,
for the installation or maintenance of your heater,
and assumes no responsibility for any consequential
damage(s).
© Copyright Miles Industries Ltd., 2020. All rights reserved.
Designed and manufactured for Miles Industries Ltd.
Valor Fireplaces
190–2255 Dollarton Highway
North Vancouver, BC, Canada V7H 3B1
T 604.984.3496 F 604.984.0246
valorreplaces.com
This appliance may be installed in an
after-market permanently located,
manufactured (mobile) home where
not prohibited by local codes. This
appliance is only for use with the type
of gas indicated on the rating plate.
This appliance is not convertible for
use with other gases, unless a certified
kit is used.
INSTALLER: Leave this manual with the
appliance.
CONSUMER: Retain this manual for
future reference.
Massachusetts:
The piping and final gas connection must be
performed by a licensed plumber or gas fitter
in the State of Massachusetts. Also, see Carbon
Monoxide Detector requirements in the fireplace
installation manual.
WARNING
This product can expose you to chemicals
including Benzene, which is known to the State
of California to cause cancer and birth defects or
other reproductive harm. For more information
go to www.P65Warnings.ca.gov.
Note: Natural gas, in its original state, contains
Benzene.

3
Please read this manual BEFORE
installing and operating this
appliance.
This appliance has been professionally installed by:
Dealer Name: ________________________________
Phone:______________________________________
Welcome to Valor®
Fireplace Safety .........................................................................4
Specications .............................................................................6
Kits & Accessories......................................................................7
Dimensions .................................................................................8
Installation Planning................................................................9
Clearances ..................................................................................................9
Finishing Materials .......................................................9
Before Installation ................................................................................ 10
Concept .....................................................................................................11
Venting........................................................................................12
Concept .................................................................................................... 12
Preparation................................................................................13
Existing Fireplace Preparation......................................................... 13
Installation .................................................................................14
Window and Fan................................................................................... 14
Venting...................................................................................................... 15
Gas Supply............................................................................................... 16
Liners ......................................................................................................... 18
Fuel Beds.................................................................................................. 20
Install Birch Log Kit 700BLK......................................20
Install Traditional Log Kit 700LSK ............................23
Install Driftwood Log Kit 700DWK...........................26
Window Re-Installation & Checking............................................. 29
Remote Control Pairing......................................................................30
Check Operation and Aeration....................................................... 31
Accessories.............................................................................................. 32
Install Side Shrouds ...................................................32
Install Front, Trim and Barrier Screen.....................32
Remote Control Holder...................................................................... 33
GV60 Wiring Diagram.........................................................................34
Approved Venting Components...................................... 35
Appendix A—Lighting Instructions ............................... 36
Appendix B—Remote Control Operation.................... 37
Appendix C—Spare Parts ....................................................41

4
This manual contains very important information about the safe installation and operation of the fireplace. Read and
understand all instructions carefully before installing and operating the fireplace. Failure to follow these instructions
may result in possible fire hazard and will void the warranty.
Replacement manuals are available by contacting the Valor Customer Service at 1-800-468-2567, or by visiting
valorreplaces.com.
Fireplace Safety
WARNING: Extremely Hot!
Heat and ammability
• Some parts of the fireplace are extremely hot, particu-
larly the glass window. Use the barrier screen provided
or a gate to reduce the risk of severe burns.
• The glass windows can exceed 500°F at full capacity.
• Always keep the appliance clear and free from combus-
tible materials, gasoline, and other flammable vapors
and liquids.
• Be aware of hot wall surfaces! The wall directly above
the fireplace can get very hot when the fireplace heats.
Although safe, it may reach temperatures in excess of
200ºF (93°C) depending on choice of optional accesso-
ries. Do not touch!
• Be aware of hot hearth/floor surfaces! Any projections
directly around the fireplace can get very hot when the
fireplace heats. Although safe, they may reach temper-
atures in excess of 200ºF (93°C) depending on elevation
of hearth. Be careful of touching these! Temperature
of projection surfaces will be reduced when barrier
screens are installed.
• Some materials or items, although safe, may discolor,
shrink, warp, crack, peel, and so on because of the heat
produced by the fireplace. Avoid placing candles, paint-
ings, photos and other combustible objects sensitive
to heat or furniture within 36 inches (0.9m) around the
fireplace.
• Solid wood flooring in front of the fireplace (if allowed)
may shrink during the heating season due to heat.
• Any safety screen, guard, or barrier removed for servic-
ing an appliance must be replaced prior to operating
the appliance
• Due to its high temperatures, the appliance should be
located out of traffic areas and away from furniture and
draperies.
• Children and adults should be alerted to the hazards
of high surface temperature and should stay away to
avoid burns or clothing ignition.
• Young children should be carefully supervised when
they are in the same room as the appliance. Toddlers,
young children, and others may be susceptible to
accidental contact burns. A physical barrier is recom-
mended if there are at-risk individuals in the house. To
restrict access to a fireplace or stove, install an adjust-
able safety gate to keep toddlers, young children, and
other at-risk individuals out of the room and away from
hot surfaces.
• A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and
shall be installed for the protection of children and
other at-risk individuals
• Clothing or flammable material should not be placed on
or near the appliance.

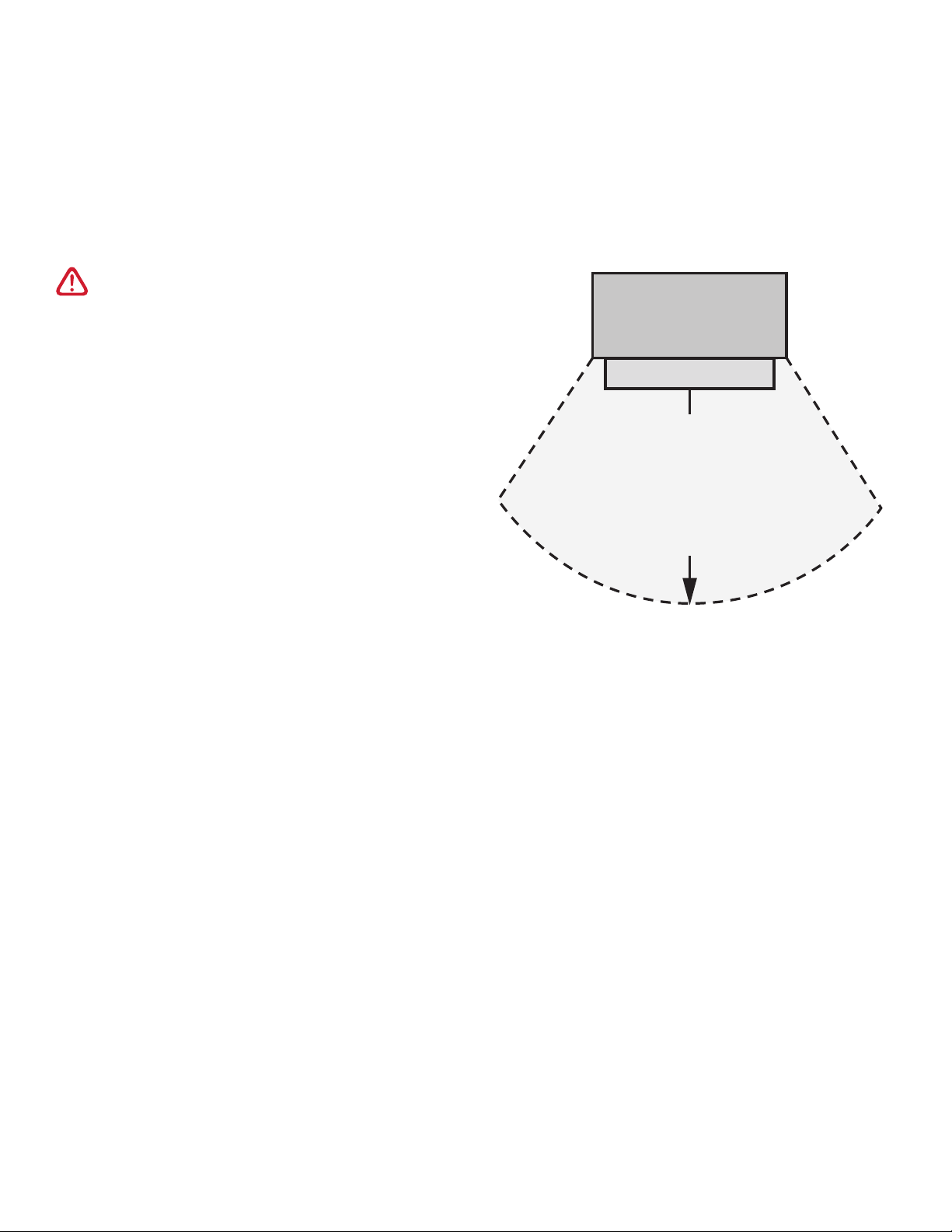

Do not put
furniture or other objects
in this space in front of
WKHȴUHSODFH
36” [0.9 m]
)LUHSODFH
Hearth

5
Fireplace Safety
Glass window
• The glass front assembly must be in place and sealed
before the unit can be placed into safe operation.
• The glass front assembly must only be replaced as a
complete unit, as supplied by the fireplace manufac-
turer. No substitute material may be used.
• Do not use abrasive cleaners on the glass front assem-
bly. Do not attempt to clean the glass when it is hot.
Venting
• This unit must be used with a vent system as described
in this manual. No other vent system or components
may be used.
• Never obstruct the flow of combustion and ventilation
air. Keep the front of the appliance clear of all obstacles
and materials for servicing and proper operation.
• This gas fireplace and vent assembly must be vented
directly to the outside and must never be attached to
a chimney serving a separate solid fuel burning ap-
pliance. Each gas appliance must use a separate vent
system. Common vent systems are prohibited.
WARNING
Do not operate this appliance with the
glass front removed, cracked, or broken.
Replacement of the glass front should
be performed by a licensed or qualified
service person. Do not strike or slam the
glass front.
Intended use
• This appliance is designed and approved as a supple-
mental heater and provides the potential for most en-
ergy conservation when used while attended. The use
of an alternate primary heat source is advisable.
• This unit is not for use with solid fuel.
• Do not use this heater as a temporary source of heat
during construction.
Installation and Servicing
• Installation and repair should be done by a qualified
service person. The appliance should be inspected
before use and at least annually by a professional ser-
vice person. More frequent cleaning might be required
due to excessive lint from carpeting, bedding material,
et cetera. It is imperative that control compartments,
burners, and circulating air passageways of the appli-
ance be kept clean.

6
Specifications
Approval & Codes
This appliance is certified to ANSI Z21.88/CSA 2.33
American National Standard / CSA Standard for Vented
Gas Fireplace Heaters for use in Canada and USA, and
to CGA 2.17-91 High Altitude Standard in Canada. This
appliance is for direct vent installations.
This appliance complies with CSA P.4.1-15 Testing
method for measuring annual fireplace efficiencies.
The installation must conform to local codes or, in
the absence of local codes, with the National Fuel
Gas Code, ANSI Z223.1/NFPA 54 or the Natural Gas
and Propane Installation Code CAN/CGA-B149.1. Only
qualified licensed or trained personnel should install
this appliance.
This appliance must be electrically grounded in
accordance with local codes, or, in the absence of local
codes, with the National Electrical Code, ANSI/NFPA 70
or the Canadian Electrical Code, CSA C22.1.
Ratings
*High Altitude Installations
Input ratings are shown in BTU per hour and are
certified without deration for elevations up to 4,500
feet (1,370 m) above sea level.
For elevations above 4,500 feet (1,370 m) in USA,
installations must be in accordance with the current
ANSI Z223.1 and/or local codes having jurisdiction.
Heating value of gas in some areas is reduced to
compensate for elevation—consult your local gas
utility to confirm.
For installations at elevations above 4,500 feet
(1,370 m) in Canada, please consult provincial and/or
local authorities having jurisdiction.
Supply Gas
Heater engine 700MN uses natural gas.
Heater engine 700MP uses propane gas.
The supply pressure must be between the limits shown
in the Ratings section.
The supply connection is 1/2” NPT female and located
on the left side of the control valve. The gas line entry
point is on the the upper left hand side of the fireplace.
See Gas Supply Installation section for details.
Electrical
The 700M is designed to run on battery power and
does not require an electrical source to operate as a
heater. However, if the appliance is fitted with a fan, a
grounded power source is required.
Conversion Kits
The 700M is supplied as natural gas or propane gas
and is field convertible between fuels. See instructions
packaged with the conversion kits for further
information.
Floor/Hearth
This appliance is approved for installation into existing
solid-fuel burning fireplaces only. Combustible material
such as plywood and so on may be used for leveling
and shimming beneath the unit. This appliance does
not require a hearth other than to support the weight
of certain fronts.

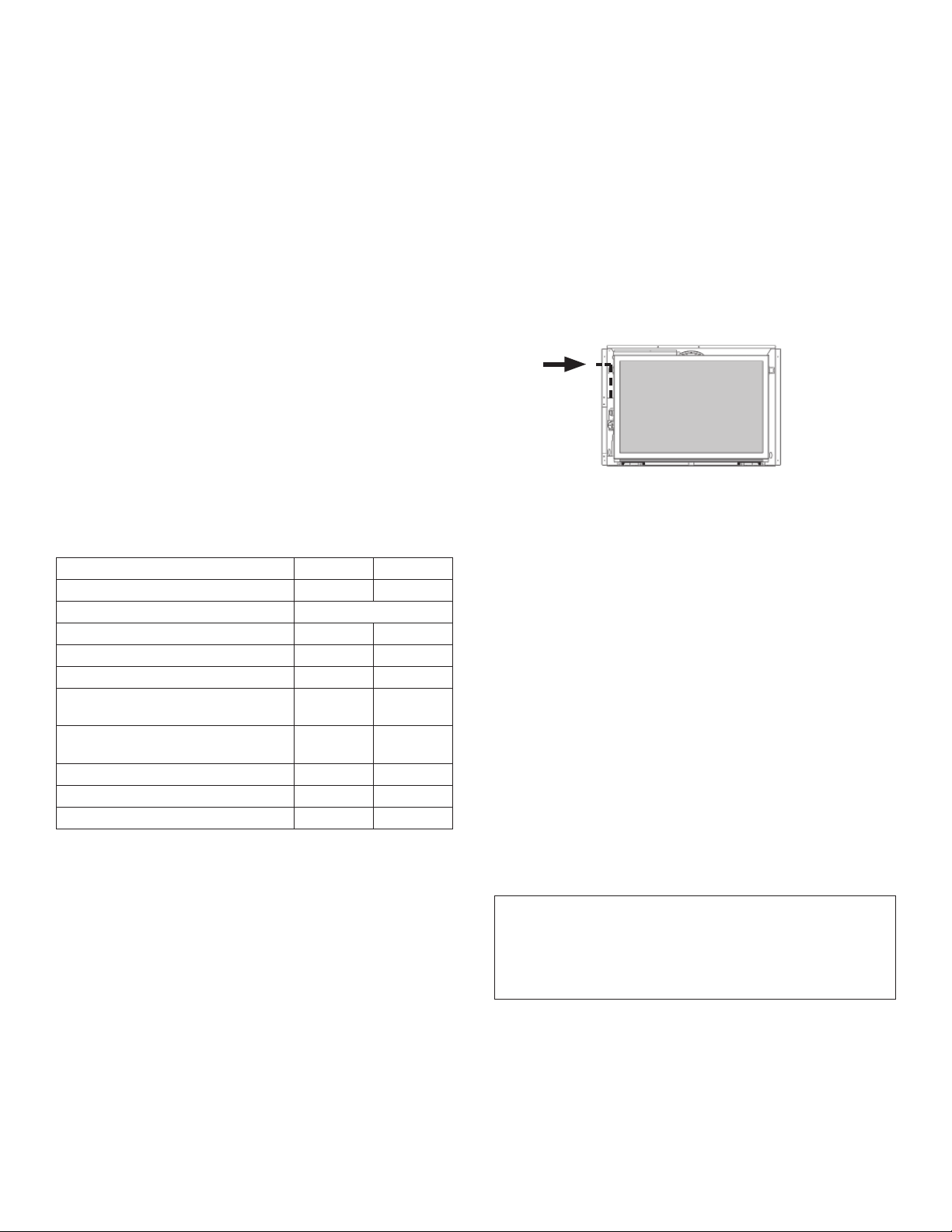

Model 700MN 700MP
Gas Natural Propane
Altitude (Ft.)* 0-4,500 feet*
Input Maximum (Btu/h) 26,000 26,000
Input Minimum (Btu/h) 13,000 11,000
Manifold Pressure (in w.c.) 3.5” 10”
Minimum Supply Pressure (in
w.c.) 5” 11”
Maximum Supply Pressure (in
w.c.) 10” 14”
Main Burner Injector Marking 750 260
Pilot Injector Marking 51 30
Min. Rate Bypass Screw 175 105
X
X
Note: This appliance is designed and approved as a
supplemental heater and provides the potential for
most energy conservation when used while attended.
The use of an alternate primary heat source is
advisable.

7
Kits & Accessories
Information accurate at the time of printing and subject to change without notice.
Required Kits Optional Accessories
Fuel Beds (choose one)
700LSK Traditional Log Set
700DWK Driftwood Log Set
700BLK Birch Log Set
Liners (choose one)
705LSLV3 Ledgestone Panels
706RGL Reflective Glass Panels
707FBL Fluted Black Panels
708VRL Valor Red Brick Panels
Fronts (choose one) Barrier
Screen
709FT Floating Trim Kits 3 Sided
4003381
709FTB Black
709FTP Polished
709FTV Vintage iron
709FTZ Bronze
713FF Floating Trim Kits 4 Sided
713FFB Black
713FFV Vintage iron
716EC Edgemont Craftsman Fronts
4007965AZ
716ECBR Bronze
716ECPW Pewter
716ECCB Champagne Brass
721ED Edgemont Fronts
4003834
721EDN Polished
721EDV Vintage iron
721EDZ Bronze
Backing Plates (choose one)
717BPB
(3-sided floating)
717BPBF
(3-sided flat)
719BPB
(4-sided floating)
36-1/4” W x 26-5/8” H
37-3/8” W x 27-1/4” H
36-1/4” W x 29-1/4” H
Required backing
plates black for 716
& 721
Riser Trims (choose one)
725RTB
793RTB Riser trim black for 3 sided fronts
793RTV Riser trim vintage iron for 3 sided fronts
Backing Plates (choose one)
710BPB
714BPB Optional backing plates black for 709 & 713
Gas Conversion Kits
700MNGK Conversion Kit to Natural Gas
700MPGK Conversion Kit to Propane Gas
Other Accessories
795CFKV2 Circulating Fan Kit
1265WSK Wall Switch Kit
RBWSK Remote Battery & Wall Switch Kit
Hearth Gate
Hearth gates such as Cardinal’s VersaGate
are available at retail stores carrying safety
products for children.

8

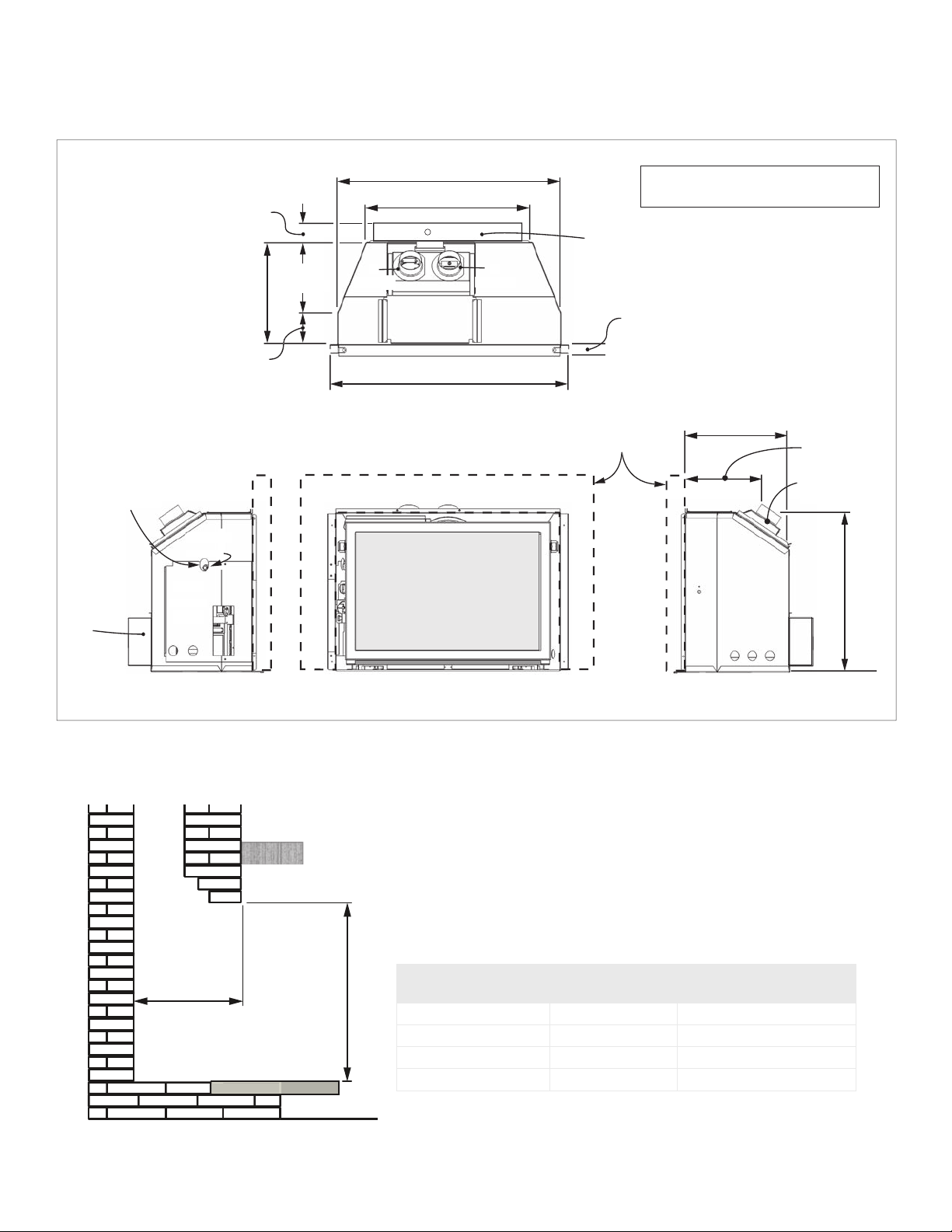

Dimensions
28-5/8”
(
727 mm
)
21-1/4”
(
540 mm
)
1
3
”
(
330 mm
)
9”
(
228 m
m
m)
1
3
”
(
102 mm
)
4”
(
102 mm
)
F
a
n
bo
x
:
3”
(
76 mm
)
3”
(76
m
m
m
)
3”
(76
mm
)
9-1
/
2
”
(241 mm
)
2
0”
(
508 mm
)
to to
p
of rebox
Gas line
n
ac
ce
s
s
G
as
l
ine 34“ (864 mm)
of ex protrudin
g
from
sheet metal box
tal
box
Optiona
l
fan
Optional
f
a
n
Au
t
o
Fire sli
d
er
assembly
ass
Tr
im
(
so
ld
separate
l
y
)
Valve
a
ccess
p
anel
30-5/8”
(
778 mm
)
1-1
/
2
”
(
38 mm
)
Top View
Dimensions
Front ViewLeft Side View Right Side View
Minimum Cavity Dimensions
Check that masonry step does not interfere with install
dimensions or vent pipe.
If mantel is combustible, see the following section for allowable
clearances.
A hearth is not required, although any hearth/floor within 4” of
the bottom of the unit must be non-combustible.
X
Y
Cavity
IMPORTANT: See below for
minimum cavity dimensions!
Minimum
Dimension
With 717BPBF
(Flat Plate)
With All Other (Floating)
Backing Plates
Depth (X) 14-1/2” [368 mm] 13-1/2” [343 mm]
Depth with fan (X) 17-1/2” [445 mm] 16-1/2” [420 mm]
Height (Y) 22-3/8” [521 mm] 20-1/2” [521 mm]
Width (not shown) 30-7/8” [784 mm] 28-7/8” [734 mm]

9
A
B
Non-combustible hearth
With optional
Fan: depth
+3” (76 mm)
Do not put
furniture or
objects within
36” (914 mm)
of the front of
appliance

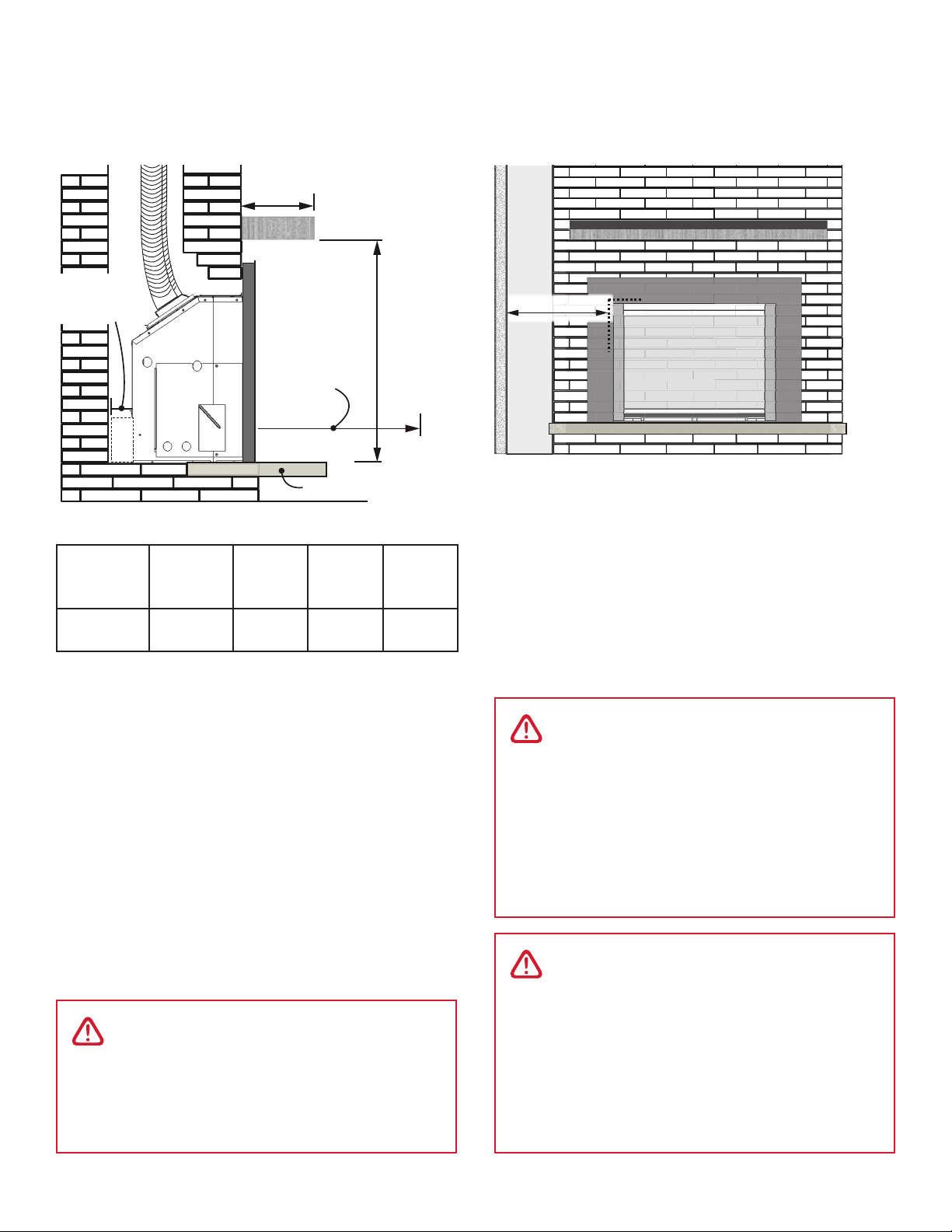

Combustible Mantel Clearances
*Measure taken from the underside of the mantel to
finished hearth or surface that the unit is sitting on.
Finishing Materials
Combustible materials: Materials made of or surfaced
with wood, compressed paper, plant fibers, plastics, or
other material that can ignite and burn, whether flame
proofed or not, or plastered or unplastered.
Non-combustible materials: Material which will not
ignite and burn. Such materials are those consisting
entirely of steel, iron, brick, tile, concrete, slate, glass or
plasters, or any combination thereof.
Materials that are reported as passing ASTM E 136,
Standard Test Method for Behavior of Materials in a
Vertical Tube Furnace at 750 °C
Mantel Pro-
jection A
0-6”
(0-152
mm)
8”
(203 mm)
10”
(254 mm)
12”
(305 mm)
Mantel
Height B*
33”
(838 mm)
35”
(890 mm)
37”
(940 mm)
39”
(990 mm)
Minimum distance from side of appliance (liner box) to
combustible wall: 4” (102 mm).
Floor/Hearth Clearances
Combustible shims/supports may be used beneath
the appliance to level or raise the appliance within the
existing fireplace cavity.
Combustible flooring/hearths in front of the appliance
must be at a minimum of 4” (102 mm) below the bottom
of the appliance. The gas insert does not require a
hearth.
4” (102 mm)
Combustible Mantel—Left Side View
Installation Planning Clearances
Sidewall Clearances
WARNING
Some materials or items, although
safe, may discolor, shrink, warp,
crack, peel, and so on because of the
heat produced by the fireplace. Avoid
placing candles, paintings, photos, and
other items sensitive to heat around
the fireplace.
WARNING
HOT GLASS! The use of a screen in front
of the glass is highly recommended
particularly in households with
children.
WARNING
HOT HEARTH / FLOOR! The hearth
or floor in front of the fireplace may
become very hot when the fireplace
heats. Do not use the hearth as a seat
or shelf. Solid wood flooring in front of
the fireplace (if allowed) may shrink
during the heating season due to heat.

10
Installer - READ THIS FIRST!
1. YOU NEED TO KNOW FROM THE HOMEOWNER:
• What accessories (surround, screen, fan*, etc)
will be installed
2. Unpack the appliance, removing all items packed
inside and around it. Recycle the packaging.
3. Check that you have everything, using the Pack Con-
tent sheet. Also, check that you have:
• Fuel bed (packed separately)
• Liner panels (packed separately)
• Optional accessories (if ordered)
• Gas conversion kit (if necessary)
• Venting accessories
• Electrical accessories (if used)
4. Carefully read the Installer’s Checklist included with
the fireplace for the installation sequence.
Caution
Only qualified, licensed, or trained personnel
should install this appliance.
Note
* If installing a fan, you will need to use the remote
control to test the fan operation. In this case, put
batteries in the handset and the battery holder and
set up the remote control.
Electrical connections must be done BEFORE
the appliance is placed in its final position, since
the connections are done from the back of the
appliance.
Installation Planning Before Installation

11
Installation Planning Concept
WARNING
Some materials or items, although safe,
may discolor, shrink, warp, crack, peel,
and so on because of the heat produced
by the fireplace. Avoid placing candles,
paintings, photos, and other items
sensitive to heat around the fireplace.
WARNING
HOT HEARTH / FLOOR! The hearth or floor
in front of the fireplace may become very
hot when the fireplace heats. Do not
use the hearth as a seat or shelf. Solid
wood flooring in front of the fireplace (if
allowed) may shrink during the heating
season due to heat.

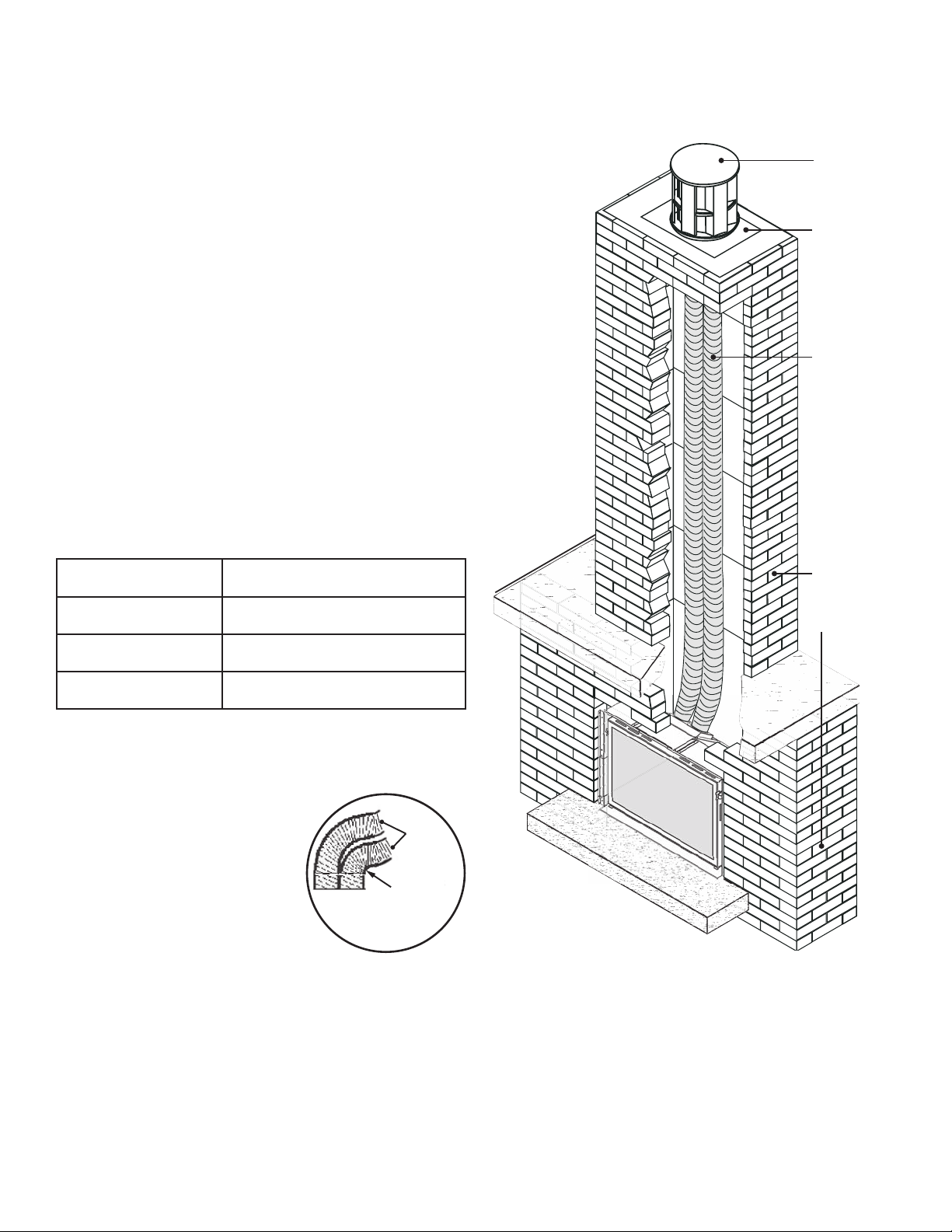

Intended Installation
This appliance may ONLY be installed in an existing unaltered, functioning solid-fuel burning fireplace with a working
flue and constructed of non-combustible material.
DO NOT install into combustible construction. This appliance is NOT APPROVED for installation with a zero clearance
kit.
700M fireplace
Chimney
Terminal Cap
Flashing
2 x 3”
approved flex
chimney liners
running full
length
Existing
unaltered,
functioning
solid-fuel
burning
fireplace &
chimney
Existing non-combustible
hearth. Combustible hearth
or floors within 16” of insert
must be a minimum 4” (102
mm) below bottom of insert.
Gas insert does not require a
hearth.
Trim
(sold separately)

12
Typical Vent Installation
NOTE: Flexible co-linear vent pipes may only be
installed into existing non-combustible solid-fuel
burning replaces and chimneys.
See list of approved Venting Accessories on page 41 of
this manual. The appliance must not be connected to
a chimney flue serving a separate solid-fuel burning
appliance.
The required fireplace dimensions and clearances are
shown in Dimensions (page 8) and Clearances (page
9) sections of this manual.
Vent Location
The vent terminal must be located through the roof. This
direct vent appliance is designed to operate when an
undisturbed airflow hits the outside vent terminal from
any direction.
Check local codes for allowable vertical vent termination.
Venting Table
Maximum vertical height 40 ft (measured to bottom of
termination)
Minimum vertical height 10 ft (measured to bottom of
termination)
Maximum horizontal run 4 ft (measured center to center of
pipe)
Maximum oset angle 45˚ (sweeping bend to allow for
obstructions)
Venting Notes
Where possible, avoid joining flex pipes. If joints are
required, use a approved connector and seal joints with
RTV high temp sealant.
Horizontal offset is permissible to
allow for routing around masonry
projections. Avoid bending flex
pipe over a 45 degrees radius
where possible.
Terminal Cap
Flashing
2 x 3” ex
liners—see
Venting
Table for
length
allowed
Existing
replace
and
chimney
Venting Concept
3”Liners
3” min.
Bend
Radius

13
Preparation Existing Fireplace Preparation
Existing Fireplace Preparation
A few points must be considered before inserting
the 700 into an existing fireplace cavity. Generally, no
modifications are allowed to the existing fireplace that
will compromise the integrity of the existing fireplace.
Components that are bolted or screwed on such as
dampers or baffles may be removed to accommodate
the installation of the 700 engine. Cutting away
any sheet metal parts of the existing fireplace to
accommodate the installation of the 700 is prohibited.
Check with local authorities if in doubt.
Clean Fireplace and Chimney
Have the chimney swept and the fireplace cavity
including ash dumps and clean-outs cleaned before
installing the 700 heater and vent liners. Any creosote
or soot residue remaining in the fireplace cavity
chimney or clean-out may cause odors or stains once
the 700 insert is installed. Consult with chimney sweep
for information on how best to clean.
Existing Dampers
Factory-built, zero-clearance fireplaces will require
the damper to be removed in order to install the vent
liners. These dampers are usually bolted into place.
Dampers in masonry fireplaces must be fixed open and
may remain in place.
Ash Retaining Curbs
Some fireplaces (particularly factory-built) have a
raised curb at the front edge to retain ashes. Check the
dimensions carefully to ensure the 700 engine will fit
behind any raised curb (some curbs may be removed
separately from the refractory base).
Gas Line Routing
Plan the routing of the gas line before proceeding.
Utilize the existing hole for the gas line of the factory-
built fireplace.
If the fireplace has no access hole, carefully drill an
access hole of 1.5 inch (38 mm) or less through the
lower sides or bottom of the firebox. The access hole
must be plugged with non-combustible insulation after
the gas supply line has been installed.
See Dimensions section for detailed location of gas
inlet. Also, take into consideration whether or not a fan
or shut-offvalve will interfere when planning routing of
the gas line.
Existing Glass Doors and Wire Screens
Existing glass doors must be permanently removed
prior to installing the 700 insert.
Combustible Mantels
Combustible mantel clearances must conform to those
required for the original solid-fuel fireplace into which
the 700 is being installed.
Attach Warning Conversion Plate to Existing
Fireplace
(plate supplied loose with 700 heater)
Attach the “This fireplace has been converted...” label to
the existing fireplace using screws or other mechanical
means and store any removed parts in back of the
existing fireplace for future use.

14

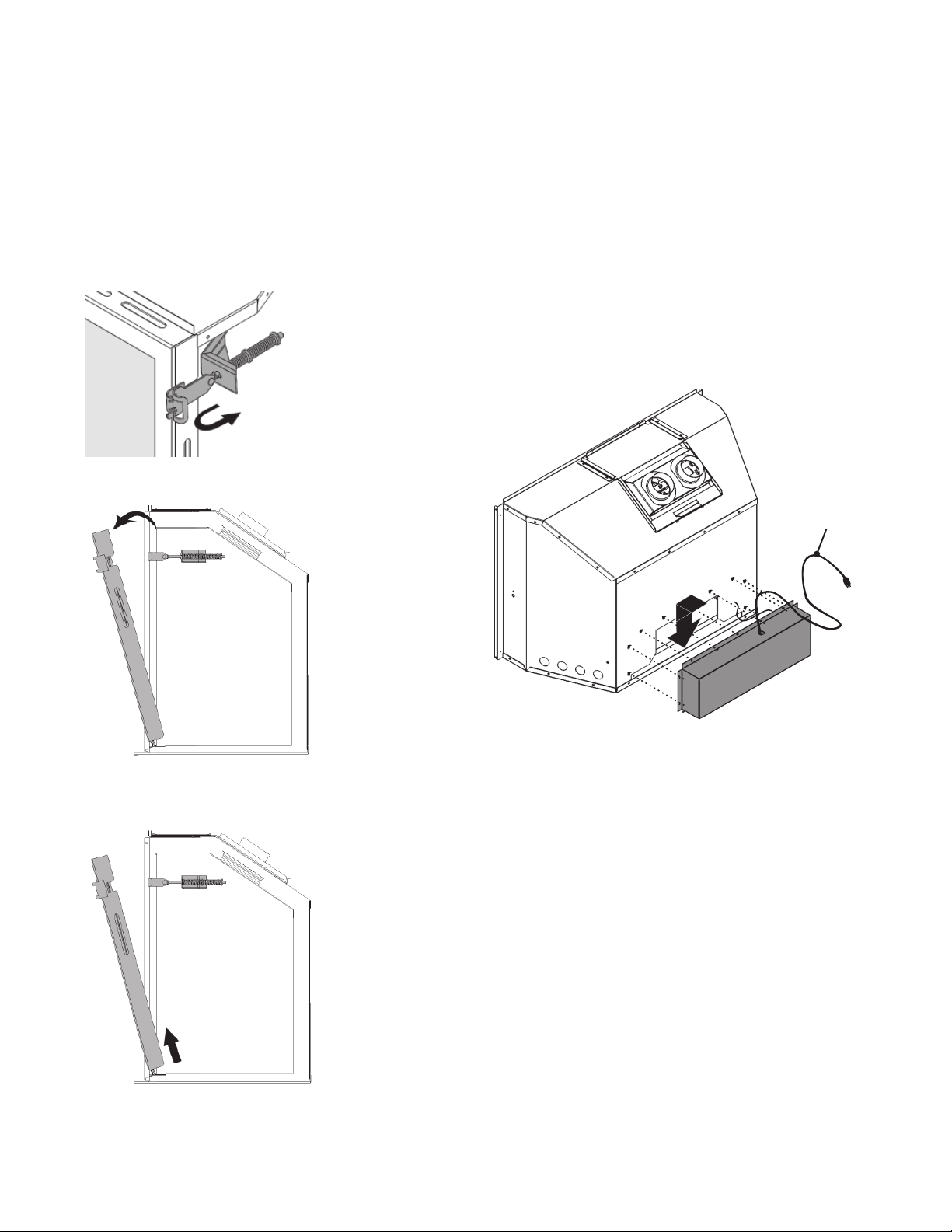

Installation Window and Fan
Install Fan Kit (if used)
If the 795CFKV2 Circulating Fan Kit (blower) is to be
installed, we suggest that you do it now.
The fan cavity is accessible from the back of the firebox
to facilitate its installation. If the fan is retrofitted after
the installation of the appliance, the appliance will need
to be removed. Therefore, we recommend that, where
possible, the fan be installed before the appliance is
fitted into the cavity.
Refer to instructions provided with the 795CFKV2 to
install the fan.
6’ power
cord
Remove Window
The window is held in place by a spring-loaded lever on
each side. To remove the window:
1. Locate the levers on each side of the window
towards the top. Using your finger, pull the lever
towards you and unhook it from the window frame
bracket.
2. Gently pull the top of the window outward.
3. Lift the window out of its bottom railing and set it
aside in a safe place to avoid damage.

15
Connect Venting
IMPORTANT: This appliance’s venting system is room sealed and therefore
does not require room air to be used in the combustion process.
1. Rough-in two 3” diameter vent liners into the existing chimney
system from the roof. Be careful not to tear or damage the liners in
the process. It may be easier to install both liners at the same time
rather than one at a time. Leave plenty of liners at the bottom to
facilitate the connection of the liners to the vent slider. It is best to
leave the top termination until later.
Designate and mark the top and bottom of one liner as “EX-
HAUST” to avoid confusion later.
2. Release the two screws retaining the vent slider to the front of the
firebox. Remove the slider from the firebox by sliding it towards the
back of the firebox.
3. Fit the two liners ensuring that the exhaust liner is connected to
the identified “EXHAUST” vent collar. Secure liners to collars with
hose clamps (included) and 2 tapping screws per liner.
4. Slide the firebox onto the vent slider in the cavity taking care not to
damage the liners. Make sure that the rear edge of the slider is
hooked over the cleat on the firebox. Secure the vent slider to the
front of the firebox with two screws removed earlier.
5. From the roof, pull the liners and fit the flashing.
6. Fit the terminal cap ensuring that the exhaust liner is connected
to the exhaust vent collar. Secure with screws.
7. Seal the terminal and flashing from water penetration as required.
1
3
5
44
6
2
7
3
Installation Venting
WARNING
Failure to position the parts in
accordance with these diagrams or
failure to use only parts specifically
approved with this appliance may
result in property damage or personal
injury.

16
Connect Gas Supply
The gas supply inlet connection is a 1/2” NPT female.
Gas shut-offvalve supplied on the end of stainless steel
flexible connector. Flex connector is located on the left
hand rear corner of the appliance.
Use only new black iron or steel pipes, CSST, or copper
tubing if acceptable—check local codes. Note that
in USA, copper tubing must be internally tinned for
protection against sulfur compounds.
The burner module and gas train on this appliance
may be removed as a unit for servicing. The flex pipe
supplied with the unit provides a union for removal of
the module.
Unions in gas lines should be of ground joint type.
The gas supply line must be sized and installed to
provide a supply of gas sufficient to meet the maximum
demand of the appliance without undue loss of
pressure.
Sealant used must be resistant to the action of all gas
constituents including LP gas. Sealant should be applied
lightly to male threads to ensure excess sealant does
not enter gas lines.
Pressure test the supply line for leaks.
The appliance and its individual shut-offvalve must be
disconnected from the gas supply piping system during
any pressure testing of that system at test pressures in
excess of 1/2 psig (3.5 kPa).
The appliance must be isolated from the gas supply
piping system by closing its equipment shut-offvalve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psi (3.5
kPa).
Failure to either disconnect or isolate the appliance
during pressure testing may result in regulator or valve
damage and void the warranty. Consult your dealer in
case of damage.
Pressure Test Points
The minimum supply pressure is given in the section
Specifications of this manual—page 6.
All piping and connections must be tested for leaks after
installation or servicing. All leaks must be corrected
immediately.
When testing for leaks:
• Make sure that the appliance is turned off.
• Open the manual shut-offvalve.
• Test for leaks by applying a liquid detergent or soap
solution to all joints. Bubbles forming indicate a gas
leak.
Never use an open ame to check for leaks.
Correct any leak detected immediately.

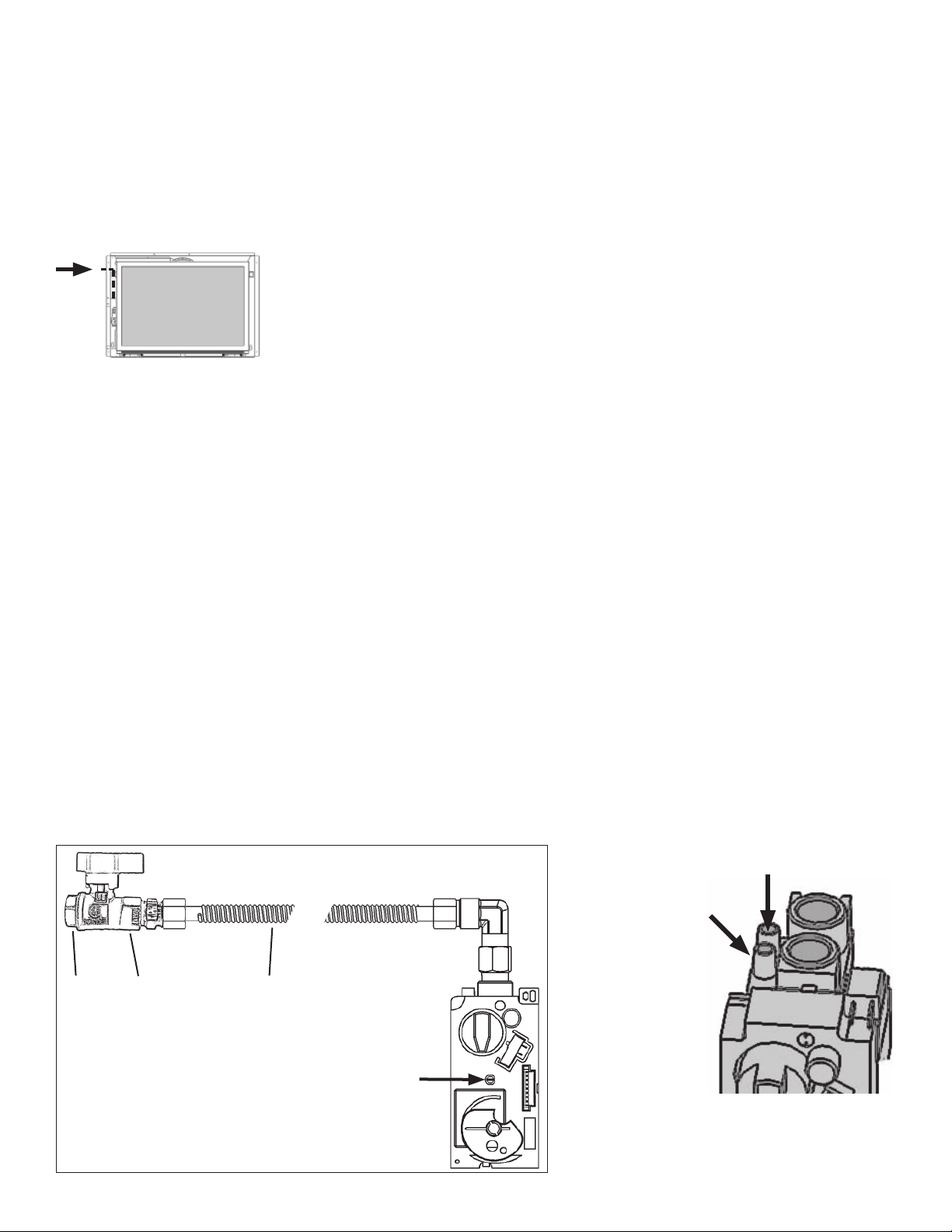

The pressure test tapping locations are shown in the
figure below. An internal regulator within the valve
controls the burner manifold pressure.
The correct pressure range is shown in the table in
section Specifications of this manual on page 6. The
pressure check should be made with the burner alight
and at its highest setting. See Lighting Instructions
section for full operating details on page 36.
X
X
Valve Assembly
34” (864 mm) flex
pipe supplied with
appliance
Shut-offvalve
(supplied with
appliance)
1/2” NPT
female Control
Valve
Manifold
Pressure
Adjustment
behind Plastic
Cap
Pressure Testing
Manifold Test
Pressure
Valve Inlet
Pressure
Installation Gas Supply

17
Installation Gas Supply
Inlet Connection
The appliance is sup-
plied with a flared elbow
connector fitted onto the
valve and a flex connec-
tor supplied loose to be
attached to the elbow
connector. To facilitate
the installation of the flex
connector, remove the
valve access panel on the
left side of the appliance
case.
NOTE: The flex connector
minimum bend radius
must be no smaller than
the size of a golf ball
(approx. 1-3/4” or 44 mm) as indicated.
Alternate Inlet Connection
When the fireplace opening width is too narrow, you
may use common elbows and fittings (not supplied) to
redirect the position of the flex connector closer to the
side of the appliance.
1. Remove elbow connector.
2. Install alternate elbow (not supplied).
3. Re-install original supplied connector elbow.
4. Install the flex connector to the alternate elbow.
3/8” elbow
+ short
3/8” nipple
OR
3/8” street elbow(s)
(where allowed)
6-3/8”
(162 mm)
13-1/4”
(337 mm)
Gas
line exit

18

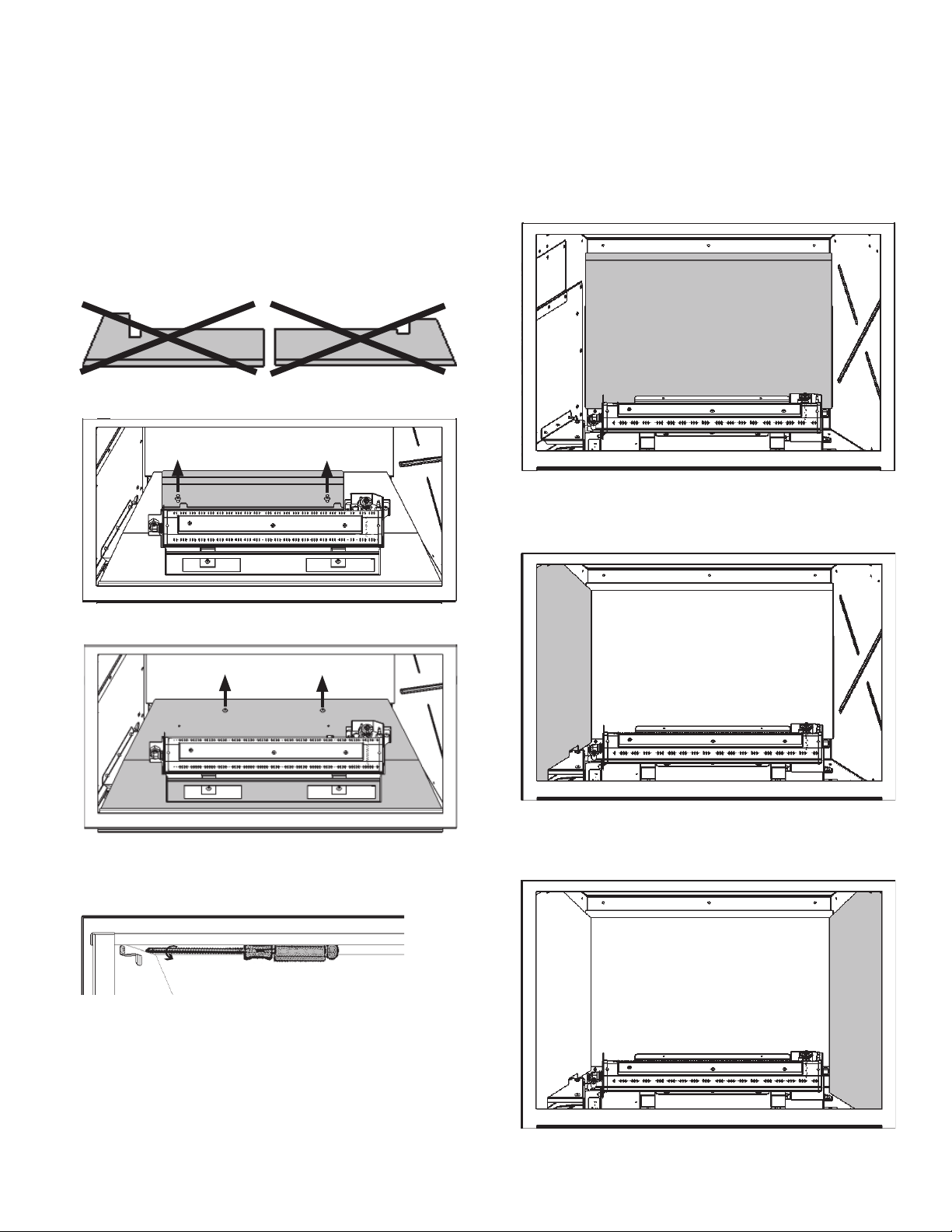

Liner Installation
The following guidelines apply to all panels except
706RGL Reflective Glass Liners, for which separate
instructions are provided with that kit.
Note all ceramic liner kits come with two extra base
pieces. These may be disposed of, they are not installed
in a 700M.
1. Remove the log support (2 screws).
2. Remove the burner cover (2 screws).
3. Inside the firebox, on the top of each side, release
the screw of the side brick anchors (one per side)
just enough to allow them to rotate.
4. Install the rear panel on the rail behind the burner,
against the back of the firebox. The angled edge
faces the top of the firebox. Support the rear panel
with your hand.
5. Install the left hand panel against the inside of the
firebox, bottom edge first. Rotate the anchor down
to hold the panel.
6. Install the right hand panel against the inside of the
firebox, bottom edge first. Rotate the anchor down
to hold the panel.
Installation Liners

19
Installation Liners
7. Install the roof panel, supporting it with the rear and
side panels.
8. Tighten the anchor screws on each side.
9. Replace the burner cover (2 screws).
10. Replace the log support (2 screws).

20
Installation Fuel Beds
Install Birch Log Kit 700BLK
Material required
• Birch Log Kit, which contains:
• 10 logs
• 1 bag of embers
• Gloves, if desired
Installation
Carefully unpack the kit. Note each log has its own
number stamped on the bottom. Some logs have pegs
to help you place them on the burner platform, or other
logs.
Install the logs as shown below.
1. Confirm the front edge of the rear log support is
flush with the cutout in the burner support
platform.
2. Place log G4 directly on the burner, and slide it all
the way to the left. There is a groove on the
underside of the log that fits on the front rail on the
burner.
3. Place log H10 in the front left cutout in the burner
platform with the long end pointing to the left.
4. Place log H11 in the front right cutout in the burner
platform. Orient the H11 with its angled end
pointing to the right.
G4
H11
H10
G4
Angled
end
G1 G2 G3
H7 H11H10
G6
G5
H9
G4
G4
H10
longer on
left side
