Vanner TS Series User manual

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -1-
TS Series
400 Watt
Pure Sine Wave Inverter
Models
TS12-400 TS24-400

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -2-
Table of Contents
1. SAFETY INST UCTIONS 4
1-1. General Safety Precautions 4
1-2. Other Safety Notes 5
2. FUNCTIONAL CHA ACTE ISTICS INT ODUCTION 6
2-1. System 6
2-2. Block Diagram 6
2-3. Electrical Specification 7
2-3-1. TS12-400, TS24-400 Specification ................................................
2-3-2. Voltage & temperature performance .............................................. 8
2-4. Mechanical Drawings 9
3. INSTALLATION AND MAINTENANCE 10
3-1. AC Output Side (Front Panel) Introduction 10
3-1-1. Main Switch ................................................................................. 10
3-1-2. LED Indicator ............................................................................... 10
3-1-3. Function Switch ........................................................................... 11
3-2. DC Input Side ( ear Panel) Introduction 12
3-2-1. Chassis Ground ........................................................................... 12
3-2-2. Remote Control Green Terminal .................................................. 13
3-2-3. DC Input Cables .......................................................................... 13
3-3. Maintenance 14

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -3-
4. OPE ATION 15
4-1. Connecting the DC cable 15
4-2. Connecting the input power 15
4-3. Connecting the loads 15
4-4. Switch ON Inverter 15
4-5. Protection Mechanism 16

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -4-
1. Safety Instructions
1-1. General Safety Precautions
Warning! Before using the Inverter, read the safety
instructions.
 Do not expose the inverter to rain, snow, spray or dust. To reduce the
risk of fire hazard, do not cover or obstruct the ventilation openings
and do not install the inverter in a zero-clearance compartment.
 To avoid the risk of fire and electric shock, make sure that the
existing wiring is in good electrical condition, and the wire size is not
undersized.
 This equipment contains components which can produce arcs or
sparks. To prevent fire or explosion do not install in compartment
containing batteries or flammable materials or in location which
require ignition protected equipment. This includes any space
containing gasoline-powered machinery, fuel tanks, or joints, fittings,
or other connection between components of the fuel system.
 Depending on the user scenario, the AC output of the inverter may
require user installed breaker or fuse. In AC output hardwire
application, AC socket will not been provided. The inverter
incorporates standard AC short circuit protection.
 An over current protection at the time of installation shall be provided
by others for the AC output circuit.
 Additional breakers suitable for 20 A branch circuit protection shall
be provided for the GFCI receptacles.
 The following precautions should be taken when working on the
inverter:
Step 1 Remove watches, rings, or other metal objects
Step 2 Use tools with insulated handles
Step 3 Wear rubber gloves and boots

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -5-
1-2. Other Safety Notes
 Upon receipt, examine the carton box for damage. If you have
found any damage on the carton box please notify Vanner.
 Do not operate near water or in excessive humidity.
 Do not open or disassemble the inverter, and warranty may be
voided.
 The DC side connections should be firm and tight.
 Grounding: Reliable grounding should be maintained.
 Do not drop a metal tool on the battery. The resulting spark or
short-circuit on the battery or on the other electrical part may
cause an explosion.
 Install the inverter in a well-ventilated area. Do not block the front
air vents, or the rear air exhausts of the unit.
 Wiring: Adequate input power must be supplied to the inverter for
proper use; correct wiring sizes must be ensured.
 Mount the inverter such that the fan axis is horizontal.
 Do not operate the inverter close to combustible gas or open fire.
 Do not operate appliances that may feed power back into the
inverter.
 Temperature: The inverter should be operated in an ambient
temperature range of -25° to 40° otherwise the output efficiency
may be affected. Air flow to the inverter must not be blocked.

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -6-
2. Functional Characteristics Introduction
2-1. System
The unit is a highly reliable DC-AC inverter system, designed with
advanced power electronic and microprocessor technology offering
the following features:
 Pure sine wave output waveform O/P voltage THD < 5 %
 Intelligent software for power management
 Loading and temperature controlled cooling fan
 Dry contact terminal
 Advanced Protection Features
 Input over/under voltage protection
 Internal over temperature protection
 Input reverse polarity protection (Fuse)
 Output overload protection
 Output short circuit protection

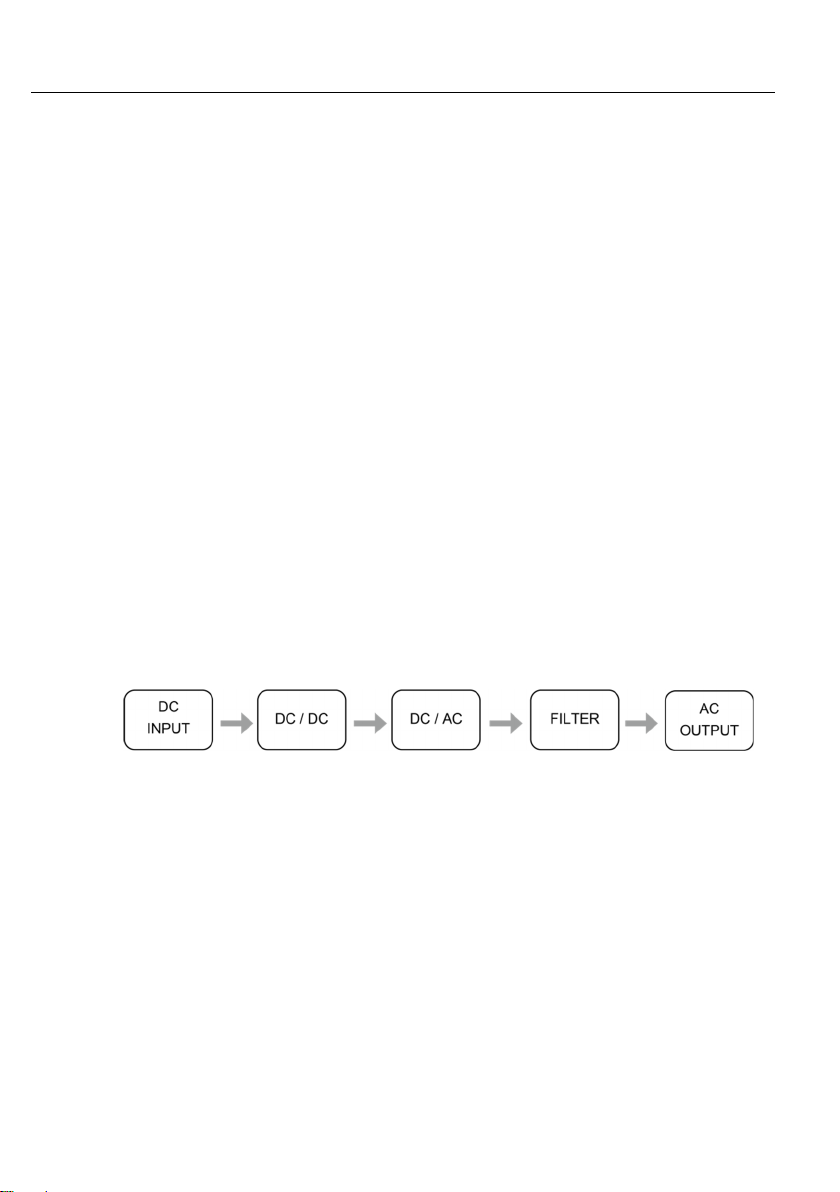

2-2. Block Diagram

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual - -
2-3. Electrical Specification
2-3-1. TS12-400, TS24-400 Specification
Electrical
Specification
Model No.
Item
TS12
-
4
00
TS24
-
4
00
Input
Characteristics
Voltage 12VDC 24VDC
Input Over-Voltage
Protection
1
16.0 ± 0.3VDC 32 ± 0.5VDC
Input Under-Voltage
Protection 10.5 ± 0.3VDC
21 ± 0.5VDC
Voltage Range 10.5~16.0VDC 21~32VDC
No Load Current < 1A @12VDC < 0.5A @24VDC
Power Saving Mode < 0.2A @12VDC < 0.1A @24VDC
Output
Characteristics
Continuous Output Power 400 W (± 3%)
Surge Power (3Sec) < 600 W
Frequency 50 / 60 Hz ± 0.5% (Dip Switch Selectable)
Output Voltage 100 / 110 / 115 / 120 VAC (± 5%)
(Dip Switch Selectable)
Efficiency (Typ.). 88% 89%
Short-Circuit Protection 1 Sec Shutdown
Output Waveform Pure Sine Wave (THD < 5%@ Normal Load) ²
Signal and Control LED Indicator Red / Orange / Green LED
Remote Control Terminal 2-port Green terminal (for inverter ON / OFF)
Protection
Input Protection Over / Under Voltage, Reverse Polarity (Internal Fuse)
AC Output Protection Short-Circuit, Overload
Others Over / Under Temperature Protection
(by Heat sink Temperature +80℃/-25℃)
Environment
Operating Temp. -20°C ~40°C
3
Storage Temp. -30°C~ 0°C
Storage Temp. & Humidity 10 ~95% RH
Safety & EMC Safety Standards Certified UL 458
EMC standards Certified FCC class B
Dimension(WxHxD) .02 X 2.99 X 8.20 inch
Weight 3. 0 Ib
Cooling Temperature & Load Controlled cooling Fan
Table 1. TS12-400/TS24-400 Specification.
Note：
：：
：
1 Voltage range：Please refer to Figure 1
2 Normal load Condition：Vin =12.5V/25V, Vo=100/110/115/120 VAC 80% Full load (PF=1.0)
3 Operating temperature：Please refer to Figure 2

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -8-
2-3-2. Temperature performance
Figure 1. TS 400W
Output power vs. temperature

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -9-
2-4. Mechanical Drawings
Figure 2. TS series rawing (Top View)
Figure 3. TS series rawing (AC output/Front View)
2.99
1.30
6.39
4.57
8.20
Ø 0.276
7.02

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -10-
3. Installation and Maintenance
3-1. AC Output Side (Front Panel) Introduction
Figure 4. TS 400W AC output panel view
Model TS Series
AC output socket
LED Indicator
ON / OFF / Remote Main switch
Function switch
Table 2. TS Series AC output si e intro uction
3-1-1. Main Switch
The 3-stage switch is for turning on, turning off and remote mode.
3-1-2. LED Indicator
Inverter status to display fault condition.
3-1-2-1. LED signal
Status LED Signal Description
Normal or
Power ON
LED lights in solid green
Over load
LED fast blink with two long
beeps
Over / Under temp.
(Heat sink temp. over 80℃ or
under -20℃)
LED slow blink
Over current / Over
load
(AC output short-circuit and
over load)
LED lights in solid red with one
short beeps
Over voltage
(Input DC voltage over spec.) LED fast blink
B
C
D
A

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -11-
Status LED Signal Description
Under voltage
(Input DC voltage under
spec.)
LED slow blink with one long
beeps &two short beeps
Table 3. Inverter LED Status In icator
3-1-3. Function Switch
Figure 5. DIP switch ON/OFF position
3-1-3-1. Function Switch D finition
Dip Switch Function
S1 Voltage select
S2 Voltage select
S3 Frequency Select
S4 Power saving ON/OFF
Table 4. Function Switch Definition
3-1-3-2. Output voltag s l ction (S1&S2)
Output voltage S1 S2
100V 0 0
110V 0 1
115V 1 0
120V 1 1
Table 5. Function Switch efinition: output voltage selection
Note! 100V series can be selected between
100/110/115/120VAC
3-1-3-3. Output Fr qu ncy S l ction (S3)
Frequency S3
50Hz 0
60Hz 1
Table 6. Function Switch efinition: Output Frequency selection

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -12-
3-1-3-4. Pow r Saving S l ction (S4)
Saving function S4
Power Saving OFF 0
Power Saving ON 1
Table 7. Function Switch efinition: Power Saving selection
3-1-3-5. Pow r Saving Load
Model Input Saving Power Saving Wake up
TS 400W <20 W >30 W
Table 8. Power saving setting range (Min)
3-2. DC Input Side ( ear Panel) Introduction

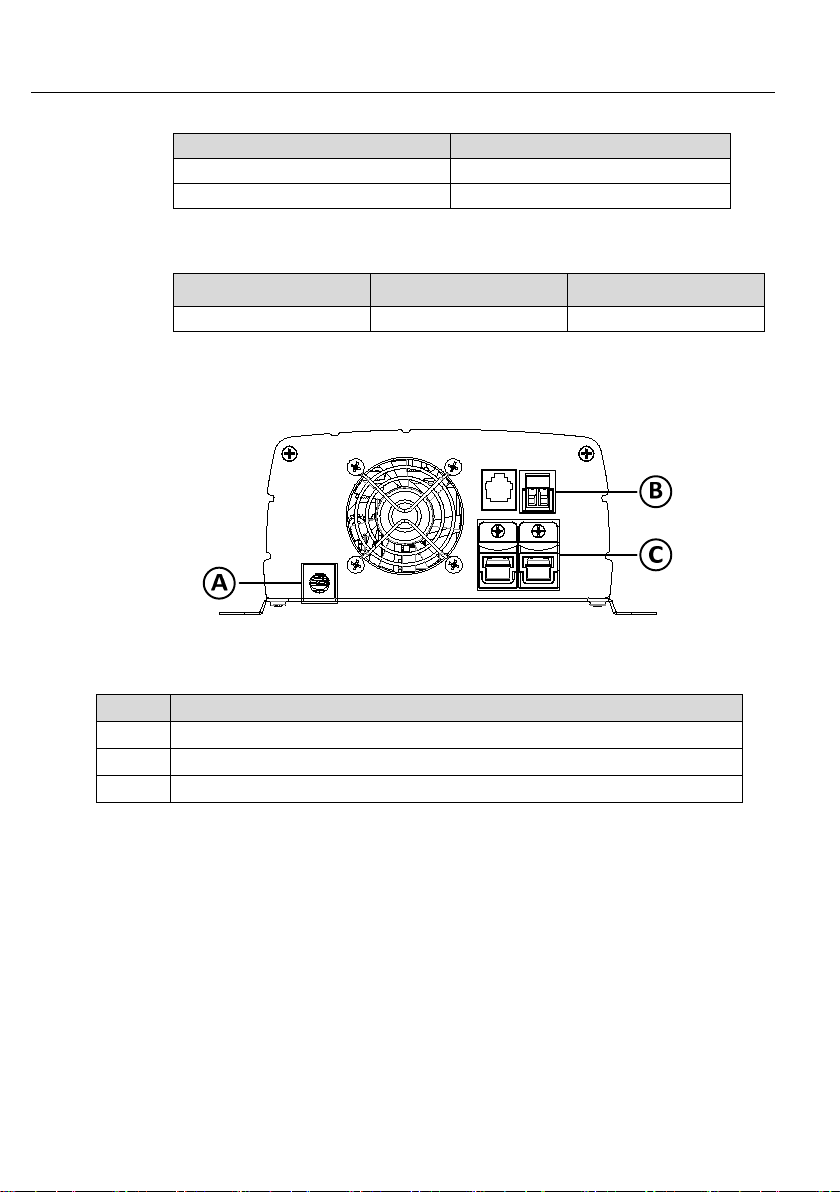

Figure 6. TS 400W DC input panel view
Model TS Series
A Chassis ground
B Remote control green terminal
C DC input connector
Table 9. TS Series DC input si e intro uction
3-2-1. Chassis Ground
Must be connected to earth ground prior to making any other
connections to the equipment.

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -13-
3-2-2. Remote Control Green Terminal
Remote inverter control green terminal may be used to control the
inverter from a remote POS switch or source to Vin (position 2).
Figure 7. Remote control terminal
3-2-3. DC Input Cables
Model Number TS12-400 TS24-400
Wire Size MAX Distance from battery to inverter in feet
(Total circuit length is 2 times the distance.)
12 NR 5.0
10 4.5 8.0
8 .5 13.0
6 12.0 20
4 19.5 20
Fuse Rating 50 Amp 30 Amp
Fuse Part Number 098 3 014632
Fuse Holder Part
Number 014633
Table 10. TS Series Wiring Cable iameter an Inline Fuse
Note! Batteries are capable of providing very large currents
in case of short circuit. The fuse should be as close to the
positive battery terminal as possible.

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -14-
3-3. Maintenance
Make sure that the fan vents are not blocked.
Use a vacuum cleaner to remove any dust from the fan area
When cleaning the case or front panel, use a soft, dry cloth, only. If
the case or front panel is very dirty, use a neutral, non-abrasive
detergent. Do not use alcohol or ammonia based solutions.
Regular service, and relocation of the inverter, should be performed
by a qualified service technician. Avoid spilling liquid on the inverter.

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -15-
4. Operation
4-1. Connecting the DC cable
Connect DC input terminals to 12V / 24V battery or other DC power
source [ + ] is positive, [ - ] is negative. Reverse polarity connection
can blow the internal fuse and may damage the inverter
permanently.
Warning! Make sure that all the DC connections are
tight (torque to 9 – 10 ft-lbs, 11. – 13 Nm). Loose
connections could result in overheating and can be a
potential hazard.
Warning! The recommended inline fuse should be
installed as close to the battery positive terminal as
possible (within 18.0”) failure to use a fuse on the “+”
cable running between the inverter and battery may
cause damage to the cable / inverter and will void
warranty.
4-2. Connecting the input power
Before making the DC input side connections, the main switch
must be at “OFF”.
4-3. Connecting the loads
Calculate the total power consumption of the output load. Make sure
that the total power consumption does not exceed the rated power.
If the total power consumption over the rated power of the inverter,
remove the non-critical: loads until the total power consumption is
below the rated power.
4-4. Switch ON Inverter
Set the power switch to the “ON” position. The inverter will carry out
self-diagnosis and, the LED’s will also appear various colors.
Set the power switch to the “OFF” position. The inverter stops and all
the lights that are on will go off.

VANNER Incorporated Owner’s Manual
400 Watt TS Series Inverter Owner’s Manual -16-
4-5. Protection Mechanism
Model
Over Voltage (DC)
Under Voltage
Alarm
Under Voltage
Shutdown estart Shutdown estart
12V 16.5V ± 0.3V 14.5V± 0.3V 10.5V ± 0.3V 10.5V ± 0.3V 12.5V± 0.3V
24V 33V ± 0.5V 29V ± 0.5V 21V± 0.5V 21V ± 0.5V 25V ± 0.5V
Table 11. Protection Mechanism
Model Over temperature protection
Shutdown estart
12V 80°C 60°C
24V
Table 12. Over Temperature Protection Mechanism
Vanner Incorporated
4282 Reynolds Drive
Hilliard, Ohio 43026
Ph: 800-AC POWER
Ph: 614- 1-2 18
Fax: [phone]
www.vanner.com
Manual P/N: D918919-A
January 2018
