Vapotherm Heliox Precision Flow User manual

Blocked tube
General fault
Water out
Alarm mute
LED
Alarm mute
button
Setting
Control
Knob
Battery low
or charging
(not indicative of
charge level)
Disposable
Water Path
faulty or
absent
Low Flow
Circuit
Installed
Vapor Transfer
Cartridge fault
Gas supply
fault
Run/Stop
Status LED
Run/Standby
button
QUICK REFERENCE GUIDE
High Flow
Circuit
Installed

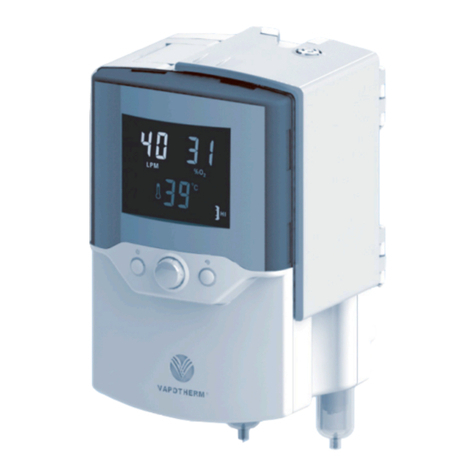

This guide provides you with basic instructions on how to set up and operate
the Precision Flow® Heliox. Before operating the Vapotherm Precision Flow®
Heliox, please review the Instructions For Use which can be found at our
website www.vapotherm.com and on the USB drive provided in the Start-Up
Kit.

ALARM ICON WARNING INDICATES CAUSE ACTION
GENERAL FAULT
and
– – IN FLOW
(FLASHING)
Malfunction of
sensor or control
system
Internal
component failure
Check gas supply. If not
corrected, disconnect patient.
Unplug AC power, press and
hold Run/Standby button for
3 seconds to clear the alarm,
send for service.
GENERAL FAULT
and
– – IN 02
(FLASHING)
O₂ sensor fault Depleted or
defective O₂ sensor
Unplug AC power, press and
hold Run/Standby button for
3 seconds to clear the alarm.
Replace O2sensor. Restart unit.
GENERAL FAULT
and
– – IN TEMP
(FLASHING)
Temperature
out of range.
Overheating or
temperature sensor
malfunction.
Cannot be corrected by user:
disconnect patient. Unplug AC
power, press and hold Run/
Standby button for 3 seconds
to clear the alarm, send for
service.
WATER OUT
No water in dispos-
able
water path. Gas ow
continues without
heating or water
circulation.
Sterile water empty,
or obstructed inlet
tube.
Replace water bag or straighten
inlet tube. Restart unit. If alarm
persists, disconnect patient
from therapy.
DISPOSABLE
WATER PATH
(FLASHING)
Disposable water
path faulty or not
detected. Unit will
not run.
Disposable water
path defective, not
properly seated or
not installed.
If disposable water path is
present, place unit into
Standby, remove and replace
disposable patient circuit to
reset detector. Restart unit.
BATTERY
CHARGING
(STEADY)
The internal battery backup is not fully charged. The unit would not run on
battery for the full rated time in the event of a power failure. No action is
necessary.
BATTERY
(FLASHING)
The unit is running
in BATTERY mode.
Gas ow and
blending continues
without heat or
water circulation.
AC power is
disconnected Reconnect AC power.
BLOCKED TUBE
(FLASHING)
High back pressure
Obstructed or
kinked cannula/
delivery tube, incor-
rect cannula for
ow rate or DPC
improperly seated
Clear obstruction, check
cannula type, re-install DPC
GENERAL FAULT ALARMS: Failures in the control or measurement systems will cause a General Fault alarm
indicated by this icon accompanied by the Temp display showing numbers between 50 & 84 (error codes) and
dashes in O₂ and Flow displays. When an error code is displayed, gas delivery is stopped. The user needs to monitor
the treatment and respond to general fault alarms. General Fault alarms cannot be silenced with the mute button.
To reset, rst disconnect the unit from AC power and then press the Run/Standby Button. With the exception of O₂
sensor replacement, the unit must be repaired by an approved service facility.
CARTRIDGE CANNULA TYPE OPERATIONAL FLOW RATES
High Flow Adult, Pediatric/Adult Small, Pediatric Small* 5-40 liters per minute (L/min)
Low Flow Premature, Neonatal, Infant, Intermediate Infant,
Solo, Pediatric Small*
1-8 liters per minute (L/min)
CANNULA FLOW RATES
*Pediatric Small cannula is intended to deliver ow rates of 1-20 L/min

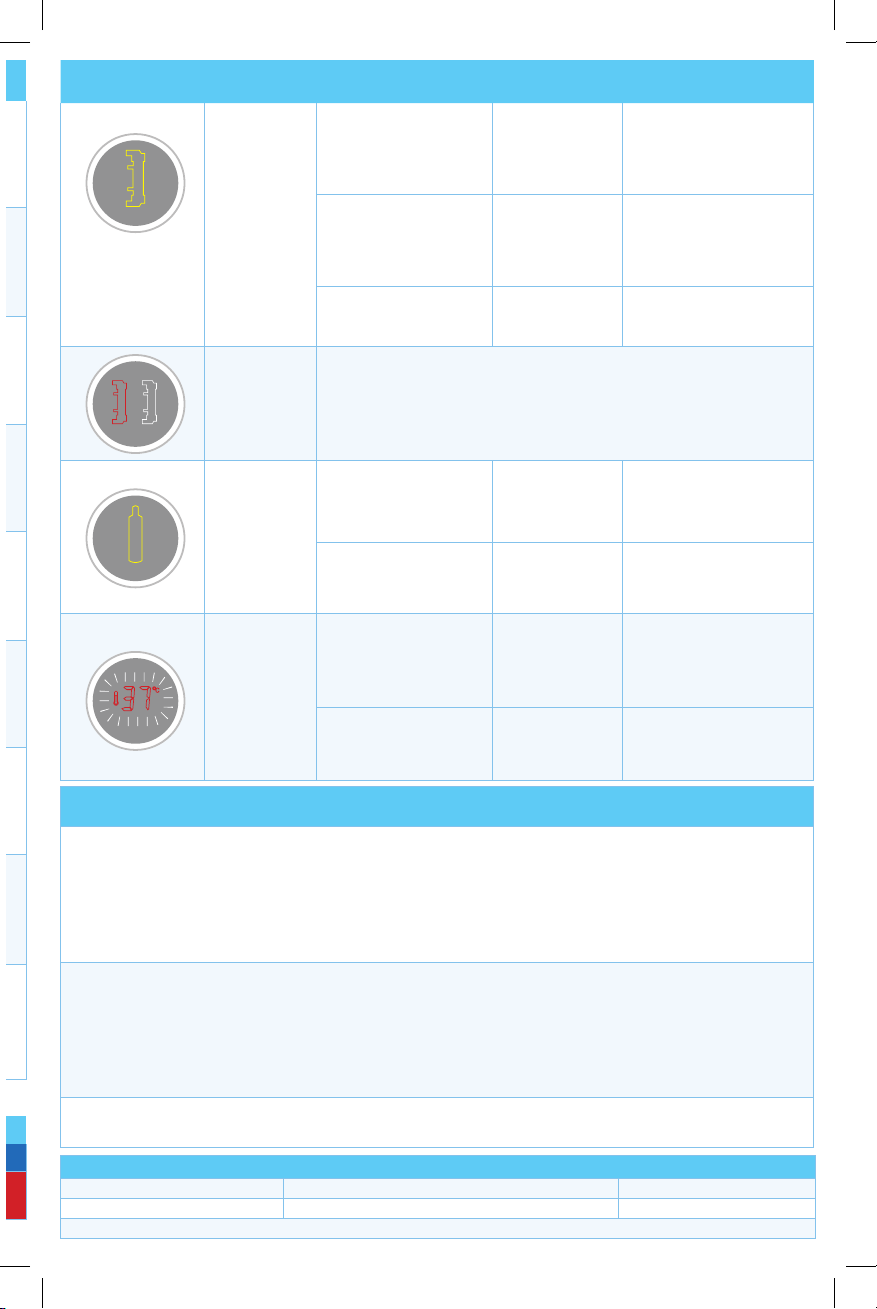

ALARM ICON WARNING INDICATES CAUSE ACTION
CARTRIDGE
FA U LT
Cartridge and/or DPC not
detected. Unit will not run.
RUN mode: faulty
sensor or cartridge
not detected.
Disconnect patient. Remove
disposable patient circuit.
Check cartridge installation.
Check sensor windows are
clean.
Gas bubbles in water
circulation. Unit
continues to operate.
Excessive gas
diusion through
cartridge bers.
Disconnect patient. Place
unit into Standby. Replace
disposable patient circuit
including water path,
cartridge & delivery tube.
Cartridge and/or DPC
not detected.
STANDBY mode:
missing cartridge.
Remove disposable
patient circuit. Check
cartridge installation.
CARTRIDGE
TYPE
Indicates type of cartridge installed (low or high ow). Not an alarm.
GAS SUPPLY
(FLASHING)
GAS SUPPLY
(CONTINUOUS
AND FLOW
RATE NUMERIC
DISPLAY
FLASHES)
Gas supply pressure
outside 4-85 psi
(28-586 kPa) range.
Unit will not operate.
Gas supply is
disconnected or
exhausted.
Check gas supply and correct
as necessary.
Selected ow can not
be provided from current
gas supply.
Inlet gas pressure
too low for
selected ow rate.
Increase gas pressure or
decrease ow setting.
TEMPERATURE
NUMERIC
DISPLAY
FLASHES
Temperature 2° > set point
User enters set
point much lower
than previous
temperature.
Silence alarm and wait for
temperature to drop.
Temperature 2° < set point
Very low water
temperature after
bag replacement.
Silence alarm and wait for
temperature to rise.
INDICATIONS, WARNINGS AND CAUTIONS
Primary Indications:
The Precision Flow®Heliox is intended to add warm moisture to breathing gases from an external source for
administration to a neonate/infant, pediatric and adult patients in the
hospital, subacute institutions, and home settings. It adds heat and moisture to a blended medical heliox (79%
helium, 21% oxygen)/ oxygen mixture and assures the integrity of the precise heliox/oxygen mixture via an
integral oxygen analyzer. The flow rates may be from 1 to 40 liters per minute via nasal cannula.
Contraindications: General:
• Not appropriate for patients who are not spontaneously breathing, are unable to protect their airway or have anatomic or
injury induced blockage of the nasal pathway to the nasopharyngeal space
• Not for treating OSA and snoring
• The Precision Flow® Heliox is not for eld transport
• The Precision Flow® Heliox is MRI unsafe. Do not use it in an MR environment.
Additional patient monitoring including pulse oximetry is necessary if the Precision Flow® Heliox is used to give
supplementary oxygen.
Precision Flow® Heliox Packaging contains:
Precision Flow® Heliox Unit Instructions For Use on USB Quick Reference Guide
Power Cord Delivery Tube clip O2 Sensor cell
US ONLY - Heliox and Oxygen Hoses

ALARM ICON WARNING INDICATES CAUSE ACTION
GENERAL FAULT
and
– – IN FLOW
(FLASHING)
Malfunction of
sensor or control
system
Internal
component failure
Check gas supply. If not
corrected, disconnect patient.
Unplug AC power, press and
hold Run/Standby button for
3 seconds to clear the alarm,
send for service.
GENERAL FAULT
and
– – IN 02
(FLASHING)
O₂ sensor fault Depleted or
defective O₂ sensor
Unplug AC power, press and
hold Run/Standby button for
3 seconds to clear the alarm.
Replace O2sensor. Restart unit.
GENERAL FAULT
and
– – IN TEMP
(FLASHING)
Temperature
out of range.
Overheating or
temperature sensor
malfunction.
Cannot be corrected by user:
disconnect patient. Unplug AC
power, press and hold Run/
Standby button for 3 seconds
to clear the alarm, send for
service.
WATER OUT
No water in dispos-
able
water path. Gas ow
continues without
heating or water
circulation.
Sterile water empty,
or obstructed inlet
tube.
Replace water bag or straighten
inlet tube. Restart unit. If alarm
persists, disconnect patient
from therapy.
DISPOSABLE
WATER PATH
(FLASHING)
Disposable water
path faulty or not
detected. Unit will
not run.
Disposable water
path defective, not
properly seated or
not installed.
If disposable water path is
present, place unit into
Standby, remove and replace
disposable patient circuit to
reset detector. Restart unit.
BATTERY
CHARGING
(STEADY)
The internal battery backup is not fully charged. The unit would not run on
battery for the full rated time in the event of a power failure. No action is
necessary.
BATTERY
(FLASHING)
The unit is running
in BATTERY mode.
Gas ow and
blending continues
without heat or
water circulation.
AC power is
disconnected Reconnect AC power.
BLOCKED TUBE
(FLASHING)
High back pressure
Obstructed or
kinked cannula/
delivery tube, incor-
rect cannula for
ow rate or DPC
improperly seated
Clear obstruction, check
cannula type, re-install DPC
GENERAL FAULT ALARMS: Failures in the control or measurement systems will cause a General Fault alarm
indicated by this icon accompanied by the Temp display showing numbers between 50 & 84 (error codes) and
dashes in O₂ and Flow displays. When an error code is displayed, gas delivery is stopped. The user needs to monitor
the treatment and respond to general fault alarms. General Fault alarms cannot be silenced with the mute button.
To reset, rst disconnect the unit from AC power and then press the Run/Standby Button. With the exception of O₂
sensor replacement, the unit must be repaired by an approved service facility.
CARTRIDGE CANNULA TYPE OPERATIONAL FLOW RATES
High Flow Adult, Pediatric/Adult Small, Pediatric Small* 5-40 liters per minute (L/min)
Low Flow Premature, Neonatal, Infant, Intermediate Infant,
Solo, Pediatric Small*
1-8 liters per minute (L/min)
ALARM ICON WARNING INDICATES CAUSE ACTION
CARTRIDGE
FA U LT
Cartridge and/or DPC not
detected. Unit will not run.
RUN mode: faulty
sensor or cartridge
not detected.
Disconnect patient. Remove
disposable patient circuit.
Check cartridge installation.
Check sensor windows are
clean.
Gas bubbles in water
circulation. Unit
continues to operate.
Excessive gas
diusion through
cartridge bers.
Disconnect patient. Place
unit into Standby. Replace
disposable patient circuit
including water path,
cartridge & delivery tube.
Cartridge and/or DPC
not detected.
STANDBY mode:
missing cartridge.
Remove disposable
patient circuit. Check
cartridge installation.
CARTRIDGE
TYPE
Indicates type of cartridge installed (low or high ow). Not an alarm.
GAS SUPPLY
(FLASHING)
GAS SUPPLY
(CONTINUOUS
AND FLOW
RATE NUMERIC
DISPLAY
FLASHES)
Gas supply pressure
outside 4-85 psi
(28-586 kPa) range.
Unit will not operate.
Gas supply is
disconnected or
exhausted.
Check gas supply and correct
as necessary.
Selected ow can not
be provided from current
gas supply.
Inlet gas pressure
too low for
selected ow rate.
Increase gas pressure or
decrease ow setting.
TEMPERATURE
NUMERIC
DISPLAY
FLASHES
Temperature 2° > set point
User enters set
point much lower
than previous
temperature.
Silence alarm and wait for
temperature to drop.
Temperature 2° < set point
Very low water
temperature after
bag replacement.
Silence alarm and wait for
temperature to rise.
INDICATIONS, WARNINGS AND CAUTIONS
Primary Indications:
The Precision Flow®Heliox is intended to add warm moisture to breathing gases from an external source for
administration to a neonate/infant, pediatric and adult patients in the
hospital, subacute institutions, and home settings. It adds heat and moisture to a blended medical heliox (79%
helium, 21% oxygen)/ oxygen mixture and assures the integrity of the precise heliox/oxygen mixture via an
integral oxygen analyzer. The flow rates may be from 1 to 40 liters per minute via nasal cannula.
Contraindications: General:
• Not appropriate for patients who are not spontaneously breathing, are unable to protect their airway or have anatomic or
injury induced blockage of the nasal pathway to the nasopharyngeal space
• Not for treating OSA and snoring
• The Precision Flow® Heliox is not for eld transport
• The Precision Flow® Heliox is MRI unsafe. Do not use it in an MR environment.
Additional patient monitoring including pulse oximetry is necessary if the Precision Flow® Heliox is used to give
supplementary oxygen.
LO HI
Precision Flow® Heliox Packaging contains:
Precision Flow® Heliox Unit Instructions For Use on USB Quick Reference Guide
Power Cord Delivery Tube clip O2 Sensor cell
US ONLY - Heliox and Oxygen Hoses

VAPOTHERM, INC.
100 Domain Drive
Exeter, NH 03833
T: 603-658-0011
USA
3101541 Rev. A
DISPOSABLE PATIENT CIRCUIT
START UP AND ADJUSTING PARAMETERS
CONNECT TO PATIENT
INTERNAL BATTERY BACK-UP
SHUT DOWN
May be patented. www.vapotherm.com/patents
Technical Support
T: 855 557 8276 Domestic
[phone] International
[email protected]
• Press the Run/Standby button. Unit will enter Standby mode (No Flow), indicated by
the AMBER light
• Clamp the water inlet tube. Open the door, remove the Disposable Patient Circuit
(includes delivery tube & cartridge) by sliding it upwards out of the docking station
• Discard all disposables according to hospital guidelines
• Disconnect unit from AC power
• Wipe down with Super Sani-Cloth®. In addition, if hospital procedures require, the
following may be used: 70-90% Isopropyl Alcohol, 2% (maximum) chlorine cleaning
solution, 6% (maximum) Hydrogen Peroxide cleaning solution, CaviWipesTM, AF3
Germicidal, Incidin® OxyWipe, Bacillol® 30 Tissues, Clinell® Alcohol Wipes, or Tue
Disinfectant Wipes
• The back-up battery is designed for temporary use only, when AC power to the unit
has been interrupted
• The unit will enter into battery mode and will maintain ow and oxygen percentage
for at least 15 minutes
• The battery icon will ash
• Replace battery every two years
• Battery recharges in two hours
• The ashing green LED becomes steady when the set variables are reached
• Place the cannula on the patient. Once the unit has reached at least 33°C, connect to
delivery tube
• The unit should not be placed in Standby mode for extended periods of time. For
pauses in therapy, keep unit in RUN mode, remove cannula from the patient, and set
the parameters to the lowest available setting. To reinitiate therapy, before cannula is
placed on patient, clear accumulated condensate
• Install oxygen sensor. Replace sensor annually
• Install gas inlet lters on back with lter bowls vertical (glass side down). Replace gas
inlet lters every six months
• Attach heliox & O₂ hoses. Plug in power cord
• Rotate the blue Setting Control Knob to illuminate display
• Press in Setting Control Knob to select the parameter and rotate to adjust the value
• Press and release (do not hold) the Run/Standby button once to start
A GREEN light indicates RUN mode (AMBER light indicates STANDBY mode, No Flow)
• Green light will stop ashing once temperature is reached
• Assemble Disposable Patient Circuit according to provided instructions.
• Open door and install Disposable Water Path into docking station so there is no gap
between bottom of the Disposable Water Path and the Docking Station Floor
• Hang sterile water bag or bottle
• Wipe water spike with alcohol pad or equivalent and insert into sterile water bag
• Allow a minimum of 200ml of water to ll into the Disposable Patient Circuit
• Precision Flow Heliox is ready for start up
