VAUPEL 3100 ASR User manual

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 1

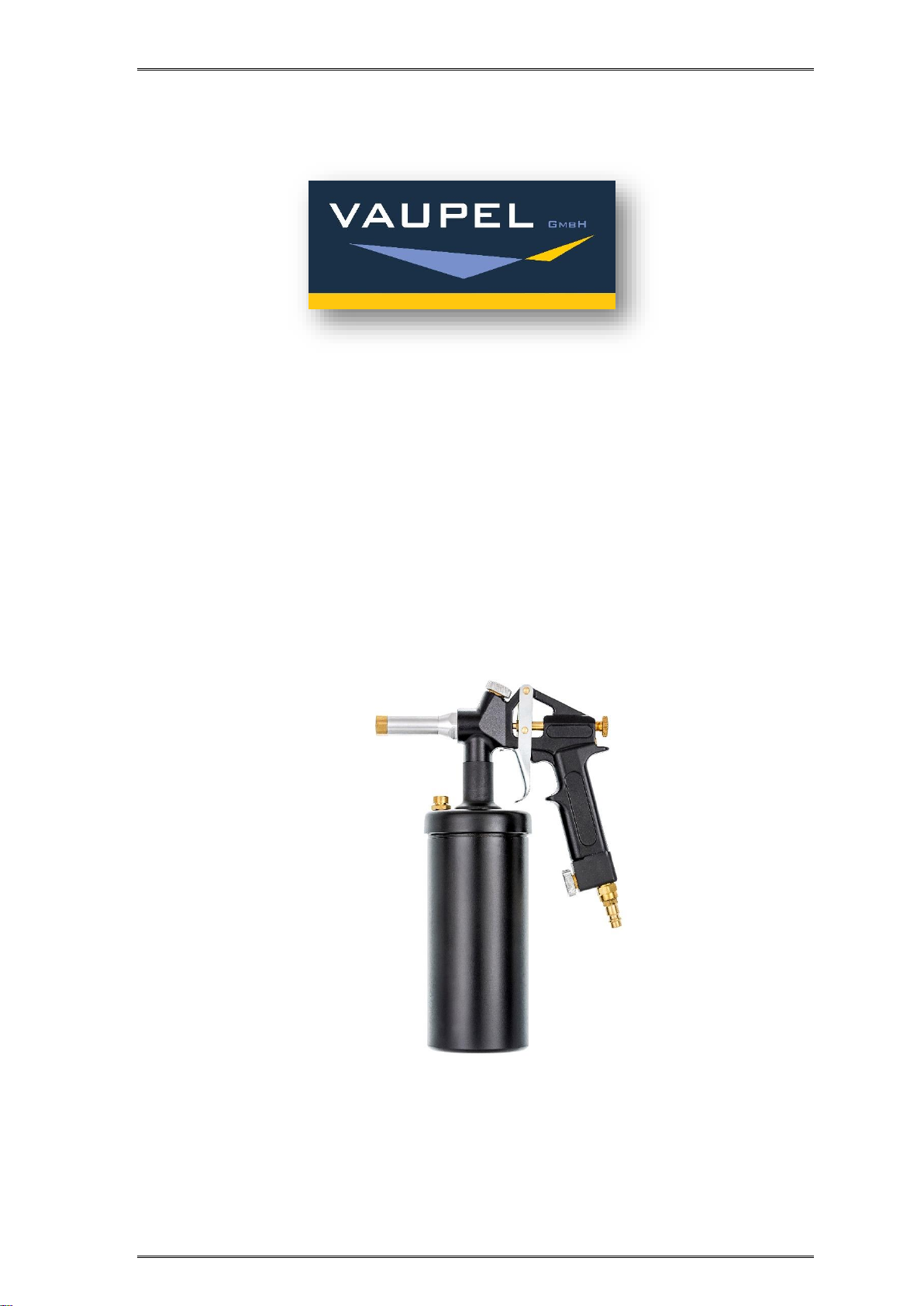

Pressure cup spray gun
3100 ASR
Art. no.: 31306 / 31301

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 2
Thank you very much for the trust you have placed in us and our products.
Please read the operating manual first before working with
the pressure cup gun.
This operating and maintenance manual contains important information required
for the safe and trouble-free operation of your pressure cup gun. Therefore, always
keep this operating manual with the pressure cup gun.
General notice:
This pressure cup gun was developed for certain applications. We explicitly point
out that this pressure cup gun must not be modified and/or used in a way that does
not correspond to its intended use.
Content:
1. Technical data …………………………………………………………………………………………... 3
2. Extent of delivery ………………………………………………………………………………..….…3
3. Intended use .………………………………………………………………………………………...…3
4. Features …………………………………………….…………………………………………………….. 3
5. Safety instructions ……………………………………………………………………………………. 3
6. Installation / end of work …………………………………………………………………………. 5
7. Maintenance and care ……………………………………………………………………………... 5
8. Storage ………………………………………………………………………………….…………….…… 6
9. Troubleshooting …………………………………………………………………………………..…… 6
10. Warranty terms ……………………………………..…………………………………………………. 7
11. Address ………………………………………………………………………………………………….…. 7
12. EC-declaration of conformity ………………………………………………………………….... 8
13. Notices ……………………………………………………………………………………………………... 9
14. Technical drawing ……..………..………………………………………………………………….. 10
15. Spare parts list ………………………………………………………………………....…………...… 11

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 3
1. Technical data
Description
3100 ASR
Operating pressure
2-8 bar
Maximum pressure
8 bar
Container volume
1.000 ml
Connection thread Air
¼“
Compressed air connection
via quick coupling
Adjustable spray pattern
3 times
Measurement3000 ASR
310 x 207 x 95 mm
Measurement cardboard
360 x 230 x 110 mm
Net weight
approx. 1260 g
Gross weight
approx. 1584 g
Weight hose set 3900 WHSK 02/04
150 g *
Required air quality
filtered, condensate-free
* included with 3100 ASR-Set
2. Extent of delivery
Pressure cup gun, compressed air connection, operating manual.
Additionally included with 3100 ASR set: Hose set 3900 WHSK 02 or 04.
3. Intended use
This pressure cup gun is a compressed air operated quality tool for professional
use. It is suitable for processing liquid media in the form of commercially avail-
able 1-litre cans.
4. Features
The effectiveness of the pressure cup gun 3100 ASR is based on overpressure.
For this purpose, pressure is built up in the pressure container by means of an
air duct integrated in the gun body. This conveys the material present in the
pressure container via a riser pipe to the material nozzle. At the material nozzle,
the adjustable spray air causes mixing with the medium, resulting in an adjust-
able spray jet.
5. Safety instructions
This pressure cup gun is not suitable for alkaline and acidic
media.
Such media must not be processed with this pressure cup gun!

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 4
Protect yourself and the environment by taking appropriate precautions against
the risk of accidents and observe the following instructions in your own inter-
est:
The operator must ensure proper operation.
Do not bring compressed air and/or medium into contact with
skin or eyes.
Never direct the spray jet at animals, people or yourself.
Keep children and pets away from the operating area.
No manipulations, emergency repairs or misappropriations
may be carried out on the pressure cup gun.
Pressure cup guns may only be operated and maintained by
instructed persons.
Repairs must only be carried out by qualified persons.
The following applies to all maintenance and repair work::
It is essential to disconnect the pressure cup gun from the
compressed air connection before carrying out maintenance
or repair work.
Only use original spare parts.
The maximum working pressure must not be exceeded (see
point 1 "Technical data"). The working pressure must be
adjusted via a (filter) pressure reducer.
Only use compressed air as energy source.
The compressed air connection may only be made via a quick
coupling.
When working with the pressure cup gun, wear the necessary
protective clothing, protective goggles, work gloves, ear pro-
tection if necessary and a respirator mask.
If there are leaks in the device or other operating faults, the
device must be disconnected from the compressed air supply
immediately and the cause of the fault must be eliminated.
Open fire, sparks or smoking is prohibited.
Beware of flammable materials.
Processed media and cleaning media must be disposed of in
an environmentally friendly manner.
The disposal of the compressed air device must be carried out
according to the valid legal regulations..

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 5
6. Installation / end of work
Preparing the gun for the first start-up: Screw in the compressed air connection
and tighten it firmly using a 13 mm open-end wrench or ring spanner, if
necessary glue it in place.
With optional pressure regulator instead of air volume regulation: Screw the
pressure gauge included in the extent of delivery into the pressure regulator, if
necessary glue it in.
Start-up: Unscrew the pressure container and fill the medium into the con-
tainer. Then screw the gun with the container lid onto the pressure container
hand-tight. Do not use any tools for this! Connect the gun to the compressed
air supply via the quick coupling. By pressing the trigger you put the pressure
cup gun into operation.
Attention:
Wear heat-resistant gloves when using
heated medium. Danger of burns!
The spray pattern can be influenced by the following factors:
Material quantity via stop screw/nozzle needle
Adjusting the intake pressure
Spraying air via knurled screw on gun head
For fine jet - add a lot of air
For coarse jet - add little air
Distance between spray nozzle and object
Angle of the gun to the object
End of work: Vent the pressure container using the exhaust air valve - pos. 24.
Disconnect the device from the compressed air supply after each use. Clean the
device according to the instructions given in point 7.
Attention:
Never operate the trigger while the container is under pres-
sure but the pressure cup gun is not connected to the com-
pressed air source. This can push the medium into the air ducts
and render the pressure cup gun unusable!
7. Maintenance and care
Clean the compressed air device after each use. Fill the pressure tank with
cleaning medium and flush the pressure cup gun and the hoses (if present) by
starting the device.
We recommend benzine or commercially available turpentine-based cleaners.
Do not use aggressive cleaning media! Following the maintenance instructions

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 6
will ensure a long service life and trouble-free operation for this quality prod-
uct.
Attention:
Pay attention to a proper disposal of the residues, which arise
during the maintenance and care.
8. Storage
The compressed air tool must be stored under the following conditions:
If residual material is present, store only upright.
Carefully clean the pressure cup gun after each use.
Store in a dry and dust-free place.
Do not expose to liquids and/or aggressive chemicals.
•Keep out of the reach of children.
9. Troubleshooting
In all cases of malfunction, please first check whether there is sufficient com-
pressed air available, whether the spray material can still be processed, wheth-
er the expiry date has passed or whether the material has dried out.
Gun sprays messy
Possible cause: Adjustment options not optimally adjusted.
Solution: Operating pressure, spraying air, material quantity to be adjusted
to each other.
Gun does not spray any material
Possible cause: The riser pipe and/or spray nozzle are clogged.
Solution: Clean clogged parts.
Air escapes from the spray nozzle even though the trigger is in its initial
position.
Possible cause: Valve bolt is jammed.
Solution: : Pour oil onto the valve bolt and/or into the compressed air intake.
Operate the trigger several times.
Material exits the spray nozzle even though the trigger is in its initial
position.
Possible cause: Nozzle needle is jammed.
Solution: Clean the nozzle needle, apply oil to the nozzle needle and/or
slightly re-duce the pressure on the nozzle needle seal using a 9mm wrench.
In order to ensure error-free use, a clamping effect on the nozzle needle seal
must remain. Press the trigger several time.

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 7
10. Warranty terms
The basis for all warranty claims is the complete pressure cup gun and the proof
of purchase. Damage caused by improper handling of the pressure cup gun is
not covered by the warranty.
If you have any questions, please indicate the type description or the article
number of the pressure cup gun.
In conformity with legal regulations, you receive a 24-month warranty on
all products against material and manufacturing defects.
Excluded from the warranty: :
Wear parts.
Damage caused by improper use.
Damage caused by lack of maintenance.
Damage caused by dirt.
Damage caused by untreated compressed air.
If warranty claims are made, the pressure cup gun must be in its original condi-
tion.
11. Address
In case of service your sales representative is at your side or contact the fol-
lowing address:
Vaupel GmbH
Gerätebau & Drucklufttechnik
Am Forsthaus 6
35713 Eschenburg-Simmersbach
Germany
Telephone: [phone]
E-Mail: [e-mail]
Internet: www.vaupel-gmbh.de
Notice: We reserve the right to make technical changes. Illustrations may differ
from the original. We assume no liability for printing errors

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 8
12. EC-declaration of conformity
EC-declaration of conformity
In accordance with the EC Machine Directive 2006/42/EC,
Type of gun: Pressure cup gun
Type designation: Type 3000 ASR
Type description: Pressure cup spray gun
Article number Manufacturer: 31306, 31301
Is developed, designed and manufactured in accordance with the above EC
Directives, under the general responsibility of
Company: Vaupel GmbH
Gerätebau & Drucklufttechnik
Am Forsthaus 6
35713 Eschenburg-Simmersbach
The technical documentation is complete.
The following harmonised standard has been applied:
DIN EN ISO 12100 - Sicherheit von Maschinen –Allgemeine Gestaltungsleit-
sätze - Risikobeurteilung und Risikominderung
The operating instructions belonging to the machine are available in the origi-
nal version and in the respective national language.
Simmersbach, 01.04.2020
Place, Date Signature, Managing director

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 9
13.Notices

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 10

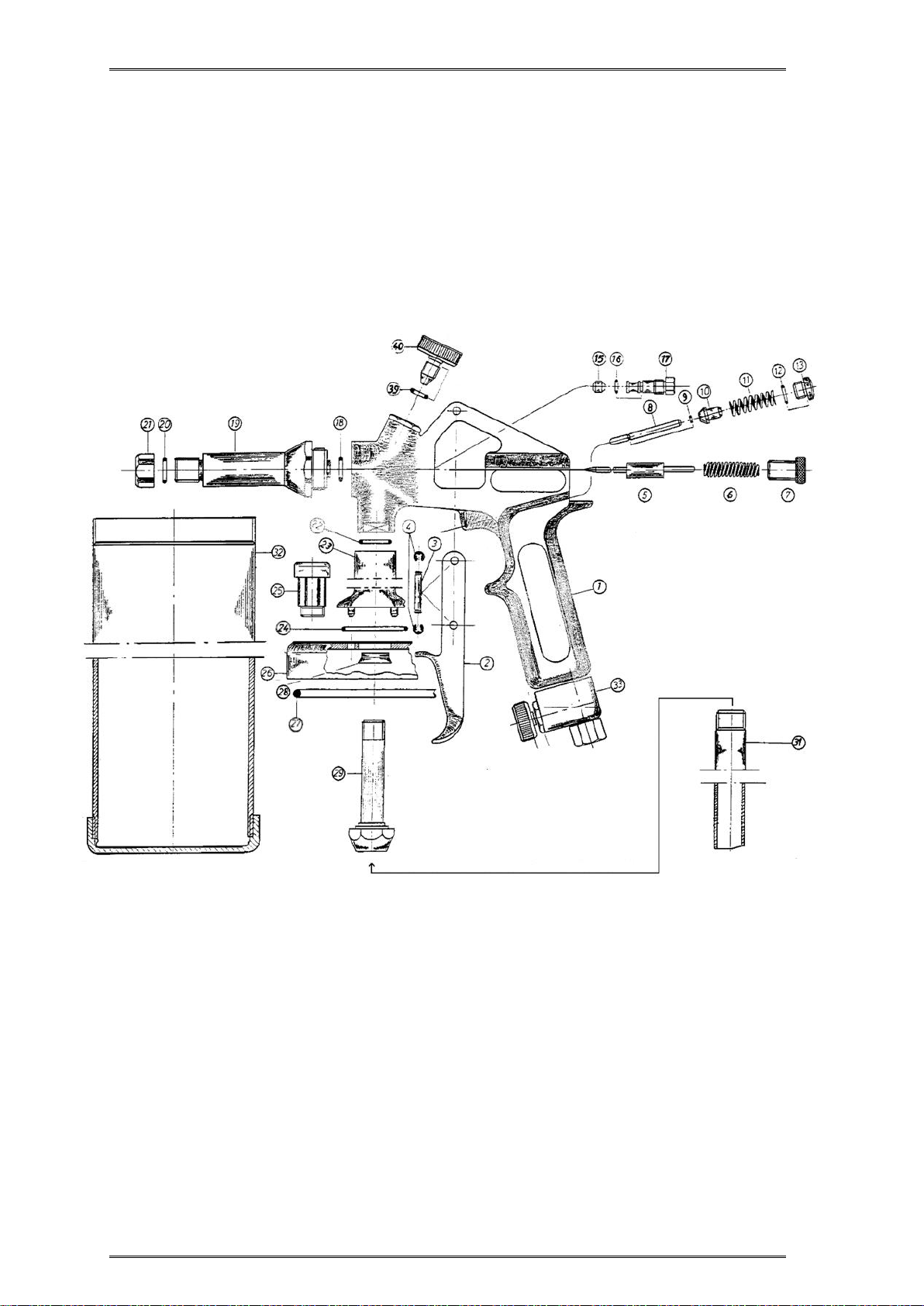

14.Technical drawing

OPERATING MANUAL 3100 ASR V4.4/20-EN
Page| 11
15.Spare parts list
Pos.
Article no.
Description
1
---
Gun body
2
50 3909 005
Trigger
3
30 1102 006
Lever axis
4
60 3100 029
Lock washer
5
83002
Nozzle needle complete
6
60 3104 007
Spring for nozzle needle
7
30 1122 005
Stop screw
8
80158
Valve bolt
9
O-ring 1.5 x 0.75 mm
10
Valve seal
11
60 3103 003
Spring for valve
12
60 4100 362
O-ring 8 x 1 mm
13
30 1120 002
Locking screw
14
15
40 4100 003
Needle seal Teflon
16
60 4100 364
O-ring 5 x 1 mm
17
30 1421 012
Needle gland
18
60 4100 366
O-ring 8 x 2.5 mm
19
83003
Spray nozzle 3000
20
60 4100 314
O-ring 10 x 2 mm
21
30 1411 007
Air nozzle SW 17 mm
22
83313
O-ring 15 x 2 mm
23
Adapter 3000
24
O-ring 33 x 2 mm
25
80502
Exhaust air valve
26
10 2112 006
Container lid with ¼"
27
60 4100 060
O-ring 84 x 4 mm
28
83005
U-cup 12 x 18 x 4.5 x 1.6
29
Fixing screw
31
60 3129 012
Riser pipe 183 mm long
32
10 2109 003
Pressure container
33
83004
Air volume regulation device (optional)
34
30 1423 002
Compressed air connection D
35
30 1423 001
Compressed air connection F (optional)
36
30 1413 002
Compressed air connection CH (optional)
37
30 1422 001
Compressed air connection ¼" AG (optional)
