2 VAUTH-SAGEL VS TAL®Larder
CAUTION:
The cabinet must be securely fastened to
the wall studs to prevent it from tipping over.
Appropriate fastening material is not supplied
with the set.
It is the responsibility of the installer to insure
the unit is properly installed and securely
fastened to wall studs.
400 - 600 mm
300 mm

3
VAUTH-SAGEL VS TAL®Larder
1
(PZ 2)
1
Ø 5 mm
325
101
69
197
357
10
ø 5 mm
mm
3 x
4.0 x 16 mm
ø 5 mm
2 x
Please install top runner rst.
These two positions
for locator pins
must be drilled!

4 VAUTH-SAGEL VS TAL®Larder
2
(PZ 2)
1
mm
1.
2.
3.
7 x
4.0 x 16 mm
1 x
4.0 x 16 mm
56
37
261
325
357
389
421
2
center of cabinet
1.
3.
2

5
VAUTH-SAGEL VS TAL®Larder
3
(PZ 2)
4
6
6
4.5 x 16 mm
A
VS TAL
®
Larder
E
F
G
H
I
1
64
96
2 x 96
256
384
2
64
128
4 x 96
512
640
3
64
112
7 x 96
768
896
4
64
96
10 x 96
1024
1152
5
64
128
12 x 96
1280
1408
6
64
96
14 x 96
1408
1536
7
64
96
16 x 96
1600
1728
ø 5 mm ø 5 mm
148 I
FG
E
H
X
C
A
X
300
232
400
325
450
375
500
425
600
525
A
A
C door overlay = A - B
B
C
mm
mm
ø 5 mm
ø 5 mm
4 x
Ø 5 mm
4
4
6 6
C door overlay = A - B

6 VAUTH-SAGEL VS TAL®Larder
4
(PZ 2)
Z
X
Z
3
Adjust the height of the frame!
Z= X - 139 mm
Z= internal height of frame
X= internal height of cabinet
3
3
Caution
These screws need
to be tightened
before use!
Caution
The exact frame
height has to be
adjusted!

7
VAUTH-SAGEL VS TAL®Larder
5
5
5
3
1 x
4 x 16 mm
2 x
M6 x 28 mm
Caution
This screw needs
to be tted
before use!
6
(PZ 2)
3
2

8 VAUTH-SAGEL VS TAL®Larder
7
3
8Panhead
4,5 x 40 mm
3
3
7
8
9
(PZ 2)

9
VAUTH-SAGEL VS TAL®Larder
9/12
2
1
5
4
3
A
A
B
4 mm
!
4 mm
B
A
A
B
9/12
2
1
5
4
3
A
A
B
4 mm
!
4 mm
B
B
(PZ 2)
(PZ 2)
4 mm
4 mm

10 VAUTH-SAGEL VS TAL®Larder
1.
2.
3.
4.
5.
1. 2. 3.
4.
5.
Removal of the frame
Weight adjustment on frame
Push button
to release
frame
For reassembly follow from step 9

11
VAUTH-SAGEL VS TAL®Larder
11/12

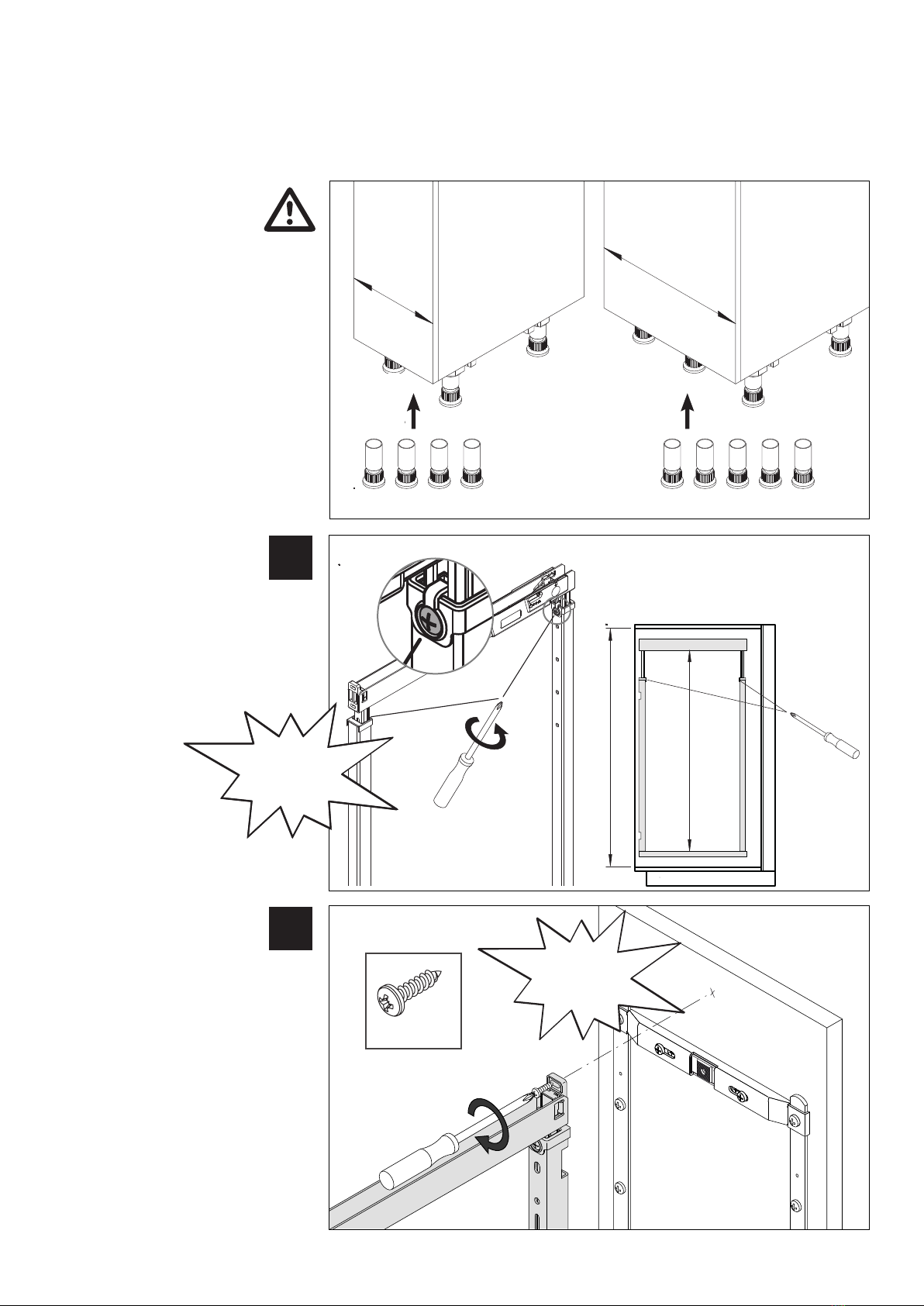

BEFORE USE OF THIS LARDER UNIT PLEASE ENSURE THE FOLLOWING IMPORTANT
SAFETY POINTS HAVE BEEN FOLLOWED.
400 - 600 mm
!
300 mm
4
5
On 400, 500 and 600 mm
Width Versions ensure the
5th Plinth foot (included)
has been fitted to the
base in a central position
(Page 2/12)
The frame has been
correctly height adjusted
to 139 mm less than the
internal carcase height
(Page 6/12)
The security screw has
been fitted through the top
of the frame into the back
of the top of the door
(Page 6/12)
4.5 x 16 mm
X
X -
139 mm = Z
Z = X
-
139 mm
X = internal height of cabinet
Z = internal height of frame
Caution
This screw needs
to be fitted before
use.
4
5
1 x
4 x 16 mm
Caution
These screws need
to be tightened
before use!
11/12
BEFORE USE OF THIS LARDER UNIT PLEASE ENSURE THE FOLLOWING IMPORTANT
SAFETY POINTS HAVE BEEN FOLLOWED.
400 - 600 mm
!
300 mm
4
5
On 400, 500 and 600 mm
Width Versions ensure the
5th Plinth foot (included)
has been fitted to the
base in a central position
(Page 2/12)
The frame has been
correctly height adjusted
to 139 mm less than the
internal carcase height
(Page 6/12)
The security screw has
been fitted through the top
of the frame into the back
of the top of the door
(Page 6/12)
4.5 x 16 mm
X
X -
139 mm = Z
Z = X
-
139 mm
X = internal height of cabinet
Z = internal height of frame
Caution
This screw needs
to be fitted before
use.

12 VAUTH-SAGEL VS TAL®Larder
VAUTH-SAGEL Neue Straße 27
|
D-33034 Brakel-Erkeln [phone] [e-mail]
Please use
vacuum cleaner
to clean the
runner
BEFORE USE OF THIS LARDER UNIT PLEASE ENSURE THE FOLLOWING IMPORTANT
SAFETY POINTS HAVE BEEN FOLLOWED.
The bottom runner is clear
of dirt and debris - Please
do not use any lubricants
(Page 7/12)
Cleaning the lower runner
clean with dry cloth and vacuum cleaner only
no oil
