Vax Ultima Cyclonic VZL-101 User manual

www.vax.co.uk Please read carefully before using this cleaner.
Always fully extend the mains cable before use.
Retain for future reference.
Vax careline
0870 6061248
instruction manual
Bagless upright
Vax model number:
VZL-101
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 1

VZL-101

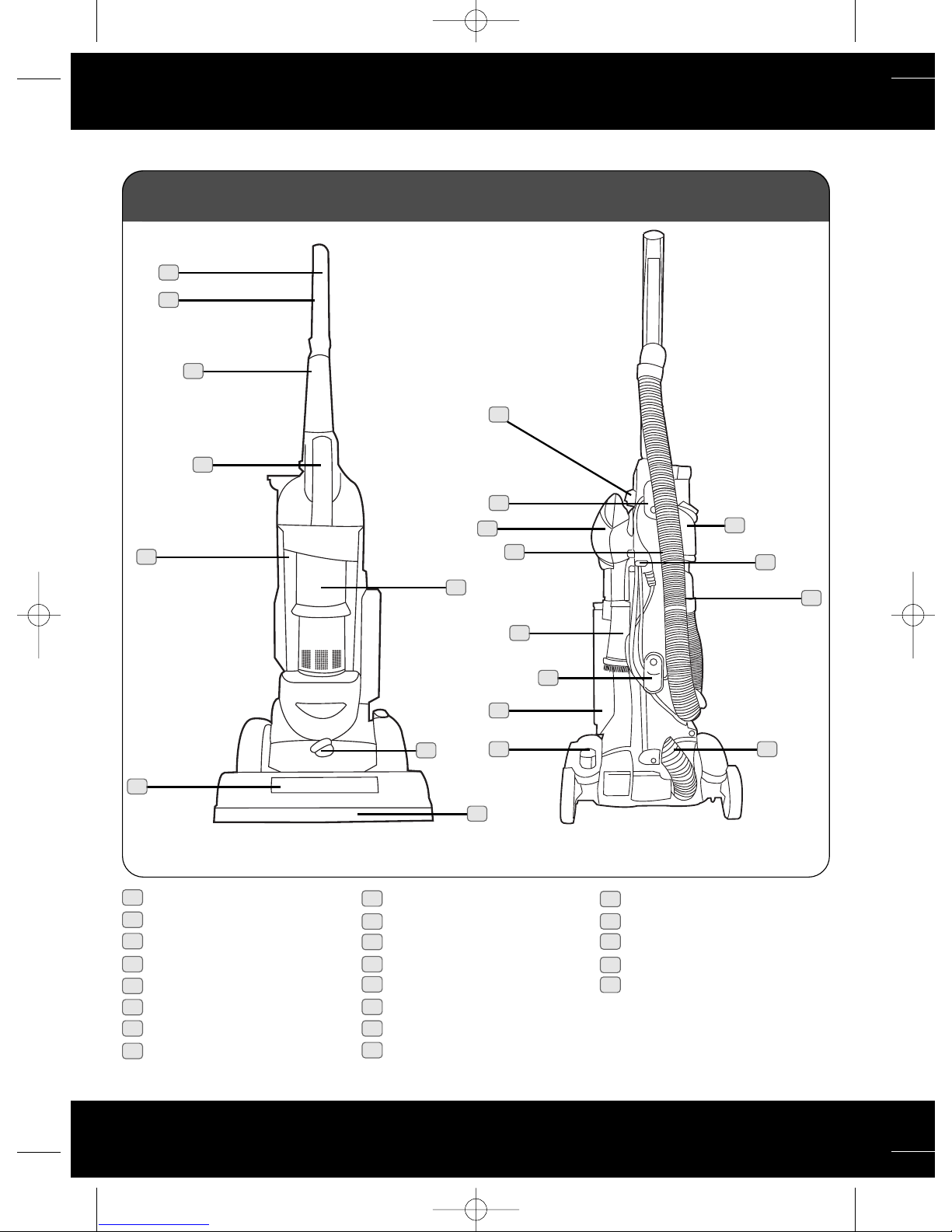

1. Diagram
www.vax.co.uk
2parts overview
Fig.1/1
3
2
1
21
4
8
9
11
17
19
20
5
6
10
15
14
16
12
13
18
7
1 Handle Grip
2 Handle
3Dirt Container
4Brush bar window
5 Extension wand
6Carry Handle
7 Central Dust Chamber
8 Carpet Height Adjuster
9 Bumper strip
10 Turbo Tool
11 Cord
12 Dusting Brush
13 Crevice Tool
14 Handle release pedal
15 Hose
16 Upper Cord Wrap
17 Upholstery tool
18 Lower Cord Wrap
19 Lower Hose
20 Hose connector
21 Power on/off switch
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 2

3
Vax Careline 0870 606 1248
safety information
2. Safety Information
For Household Use Only
When using the vacuum cleaner, basic safety precautions
should always be observed, including the following:
1. Only use the vacuum cleaner indoors on dry
surfaces.
2. Turn off the vacuum cleaner controls before
connecting or disconnecting from the mains supply.
3. Always unplug the vacuum cleaner before
connecting or disconnecting the vacuum hose and
accessories.
4. Close attention is necessary when used by or
near children. Do not allow children to use as
atoy.
5. Use only as described in this manual.
Use only the manufacturer’s recommended
attachments.
6. Do not use the vacuum cleaner if it has been
dropped, damaged, left outdoors or dropped into
water. Do not use the vacuum cleaner with a
damaged cord or plug. If the supply cord or plug is
damaged, return the vacuum cleaner to a Vax
Authorised Service Agent or suitably qualified
person for examination, repair or adjustment.
7. Do not pull or carry by the cord. Do not use the cord
as a handle, close a door on the cord or pull the cord
around sharp edges or corners. Do not run the
vacuum cleaner over the cord. Keep the cord away
from heated surfaces.
8. Do not handle the plug or vacuum cleaner with wet
hands. Do not use outdoors or on wet surfaces.
9. Do notput anyobjects intoopenings. Do notuse
with anyopenings blocked and do not restrict air
flow. Keep all openings free of dust, lint, hair or
anything that may reduce airflow.
10. Keep hair,loose clothing, fingers and all parts ofthe
body away from openings and moving parts.
11. Do not pick up hot coals, cigarette butts, matches or
any hot, smoking or burning objects.
12. Do not pick up flammable or combustible materials
(lighter fluid, petrol, kerosene, etc) or use in the
presence of explosive liquids or vapours.
13. Do not vacuum up harmful or toxic material (chlorine
bleach, ammonia, drain cleaner, etc).
14. Do not vacuum up hard or sharp objects such as
glass, nails, screws, coins, etc.
15. Do not use without the filters in place.
16. Take extra care when vacuuming on stairs.
17. Keep vacuuming area well lit.
18. Store the vacuum cleaner indoors in a cool, dry area.
19. Turn off the on/off switch before unplugging the
vacuum cleaner.
20. Use only CE-approved 13 amp extension cords. Non-
approved extension cords may overheat. Care should
be taken to arrange the cord so that the cord cannot
be pulled or tripped over.
WARNING: Always switch off and unplug the
vacuum cleaner from the electrical outlet
before assembling, opening or emptying the dirt
container, or before connecting/disconnecting the
attachments.
CAUTION: The vacuum cleaner is a very
powerful unit. Before plugging the cord into
the electrical outlet, make sure the switch is in the
‘off’ position. Hold the vacuum cleaner firmly when
starting and in use.
IMPORTANT: Ifthe inlet, hose or extension
tube is blocked, switch off the vacuum cleaner and
remove the blockage(s) before re-starting the
vacuum cleaner.
IMPORTANT: Cleaning filters regularly improves
vacuum performance. Make sure all filters are
replaced back into the vacuum cleaner before using.
This vacuum cleaner is intended for household use
only and not for commercial or industrial use.
PLEASE KEEP THESE INSTRUCTIONS FOR
FURTHER USE.
!
!
!
!
Motor Thermostat
IMPORTANT: The motor is equipped with a
thermal cut-out. If for any reason, the
vacuum cleaner should over-heat, the thermostat
will automatically turn the unit off. Should this
occur, unplug the vacuum cleaner from the
electrical outletand turn off the switch. Remove
the dirt container and empty. Clean the filters.
Allow the cleaner to cool for approximately one
(1) hour. To re-start, plug into an electrical outlet
and switch back on.
!
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 3

www.vax.co.uk
4how to assemble / how to operate

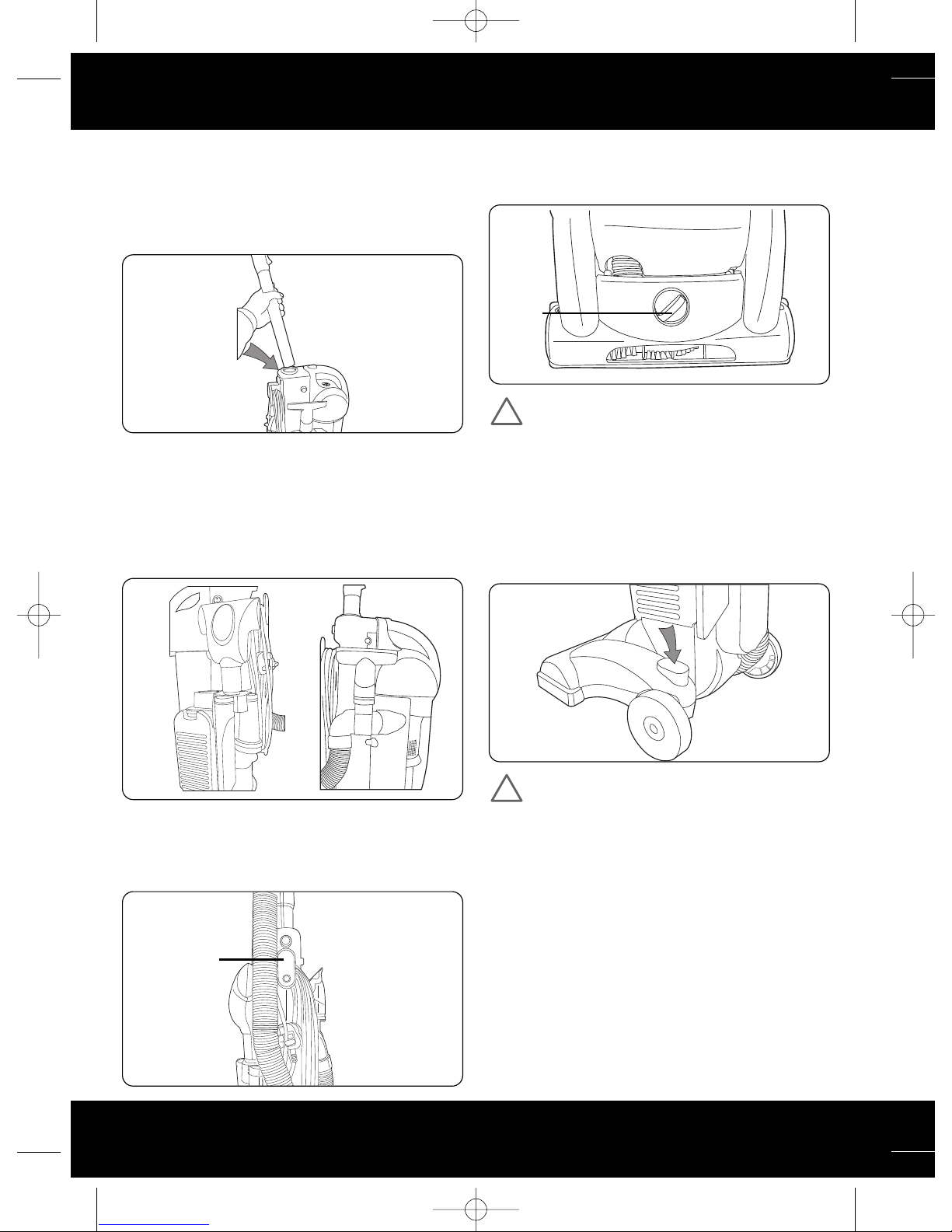

3. How to assemble
Handle Assembly
Slide wand into slot until you hear a click. Insert screws
into holes indicated (Fig.3/1).
Tool Storage
Attach tools: (a) Slide the upholstery tool onto the caddy
above the hose connector and slide the TurboTool onto
the caddy on the other side. (b) Clip the dusting brush and
crevice tool into the holsters below the TurboTool.
(Fig.3/2). (c) Clip Turbo Tool onto the side of the
cleaner (Fig.3/2).
4. Howto operate
Cord release
Turn Upper Cord Release for easy cord removal (Fig.4/1).
Carpet height adjuster
Turn the carpet height adjuster knob to match the
surface being cleaned (Fig.4/2).
IMPORTANT: For easiest adjustment, place
cleaner in full upright position.
On/Off Switch
Plug cord into electrical outlet. Turn cleaner on by
pressing the on/off button located above the TurboTool
caddy.
Handle Release Pedal
Torelease handle, push the handle release pedal located
on the lower left side of the cleaner (Fig.4/3).
CAUTION: Brushbar continues to rotate while
hose is removed or in use and at all times
while cleaner is on. Keep hair, loose clothing, fingers,
and all parts of body away from brush area while
cleaner is on. Cleaner must be in the upright position
to lift the rotating brush off the carpet when
cleaning above the floor.
Fig.3/2
Fig.4/1
Fig.4/2
Fig.4/3
!
!
CordRelease
Height
adjuster
Fig.3/1
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 4

5
Vax Careline 0870 606 1248
how to operate
Floor/Carpet Cleaning
Move the handle and adjust it to the desired position for
(a) storing the upright, (b) operating the cleaner, and (c)
de-press the handle release pedal again to clean under
furniture. NOTE: Brushbar could cause rug fringe area to
become tangled within cleaner. Use caution when
vacuuming throw rugs with fringe.
Using the Accessories
Cleaner must be in its
uprightposition to raise brushbar. Turn carpet height
adjuster to long carpet pile setting (Fig.4/5).
Press the wand release button and pull the handle and
wand out of the slot. Fig.4/6).
Any of the accessories can be directly attached to the
end of the extension wand.
The extension wand length can be adjusted by pressing
the release button forward and sliding the wand end up
or down. Take pressure off release button when desirable
wand length has been found. (Fig 4/7).
Simply push the attachment firmly onto the end of the
extension wand. Toremove tool, twist and pull apart
gently (Fig.4/8).
The TurboTool is ideal for removing pet hair from stairs
and upholstery. The TurboTool is most effective when
using backward strokes over the area that
is being cleaned .
Carry Handle
Use the carry handle located on the top ofthe dirt
container lid tomove the cleaner from room to room
(Fig.4/9).
Fig.4/5
Fig.4/6
Fig.4/7
Fig.4/8
Fig.4/9
Carpet height adjuster
Fig.4/4
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 5

www.vax.co.uk
6dirt container and filter

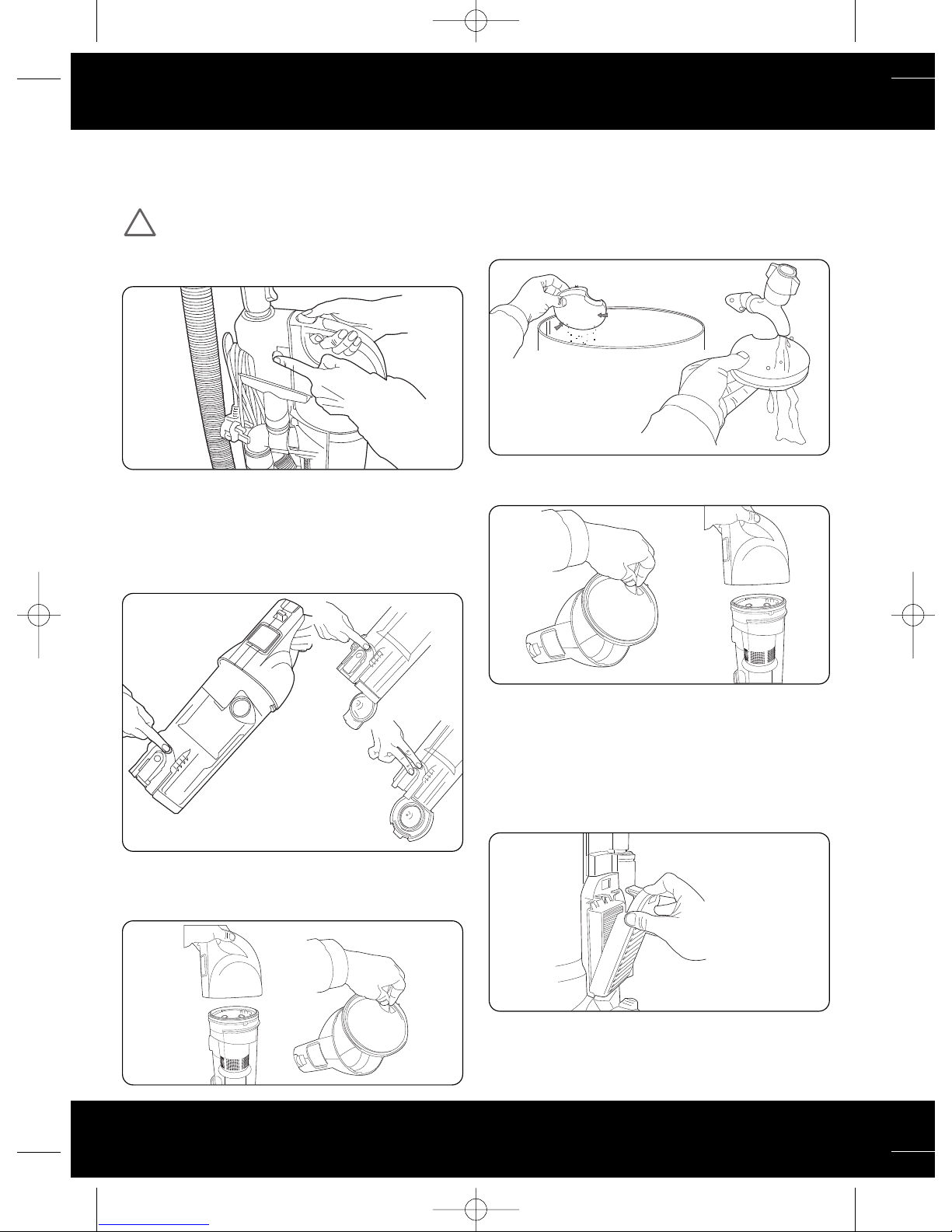

5. Dirt container & filter:
removal & replacement
WARNING: to reduce risk of injury from moving
parts - unplug before servicing.
Press both dirt container release buttons and remove dirt
container from cleaner (Fig.5/1).
Hold the dirt container inside rubbish bin and press the
twobin empty release buttons to release the dirt into the
bin. Press the U-shaped button first to release the fine
dustfrom the central dirt chamber then the smaller
button to release the restof the dust. (fig 5/2).
Remove central dust chamber
Cleaning the pre-motor filter
Remove the dirt container lid, pull out the filter assembly
and separatethe filter from it. (Fig.5/3).
Separate the filter assembly by removing the foam filter
from its plastic housing. Tap the foam filter on the inside
of a rubbish bin to remove excess dust and dirt from filter.
Tap the filter inside a bin to shake off excess dust. The
filter can be washed under cold running water to clean it
more thoroughly. (fig 5/4)
Return foam filter to its housing and replace into dirt
container lid. (fig 5/5)”.
NOTE: The filter housing also needs to be washed
regularly with cold water and dried thoroughly before
replacing and restarting the vacuum cleaner.
Cleaning the exhaust filter
Press tab on top of exhaust cover and pull cover back to
remove.
Press the twotabs at top offilter and lift off side of
cleaner (Fig.5/7).
Fig.5/1
Fig.5/2
Fig.5/5
Fig.5/3
!
Fig.5/6
Fig.5/4
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 6

7
Vax Careline 0870 606 1248
dirt container and filter
Tap the exhaust filter on the inside of a rubbish bin to
remove excess dust and dirt from filter (Fig.5/8).
Wash the exhaust filter under cold running water every 9
-12 months. Leave to dry for 24 hours before replacing
in machine.
Return exhaust filter to side of cleaner and snap into
place (Fig.5/9).
Replace exhaustfilter cover and snap into place to secure
(Fig.5/10).
Replace dirt container
Return dirt container to cleaner. Align slot on bottom of
dirt container with tab on cleaner. Push to snap into place
(Fig.5/11).
Regular Maintenance
Each time the dirt container is emptied, the pre-motor
filter should be checked and when necessary, cleaned
(Filter maydiscolour after use, this will not affect the
filters performance). Do not brush the filter. The cleaning
instructions may vary depending on the dirt conditions.
In some cases, moreor less cleaning ofthe filter maybe
required.
Fig.5/8
Fig.5/7
Fig.5/9
Fig.5/10
Fig.5/11
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 7

www.vax.co.uk
8belt or brush bar
6. Belt or brushbar: removal
and replacement
TOOL REQUIRED: Phillips screwdriver
WARNING: to reduce the risk of injury from
moving parts - unplug cleaner before changing
belt or brush.
To remove belt
Stand cleaner up (Fig.6/1).
Base should lay flat and face up. To remove nozzle guard,
use Phillips screwdriver to remove the TWO (2 ) screws.
Arrows show location of screws (Fig.6/1).
Remove sole plate by lifting off (Fig.6/2).
Lift and remove brushbar. Dispose of old belt (Fig.6/3).
Toreplace belt or brushbar
Slide belt onto motor shaft (Fig.6/4).
Place new belt in area of brushbar without bristles (Fig.6/5).
With newbelt in place, pull and slide brushbar into nozzle
making sure that the brushbar end caps are in the correct
orientation (Fig. 6/6 inset). Rotatebrushbar manually to
make sure belt is properly aligned.
Replace base hood onto base of cleaner (Fig. 6/7).
Fig.6/1
Fig.6/3
Fig.6/4
Fig.6/5
!
Fig.6/6
Fig.6/2
Fig.6/7
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 8

9
Vax Careline 0870 606 1248
belt or brush bar / lightbulb removal and replacement
2. Remove dirt container (Pg. 6) and check dirt container
inlet located on cleaner.
Debris removal/Turbo Tool
To check for blockages in the TurboTool, simply lift the
inspection flap for access to the turbine. (see fig 8/3)
Replace all Two (2) screws to secure nozzle guard
(Fig.6/8).
7. Lightbulb: removal and
replacement
Please contact Vax on 0870 606 1248 for further
advice.
IMPORTANT: Do not attempt to remove or replace the
lightbulb yourself.
8. General maintenance
WARNING: To reduce risk of injury from moving
parts - unplug beforeservicing.
Debris removal/nozzle guard
•Check tosee if dirt container is full; empty if needed.
•Plug cleaner in and check to see if there is any suction
at end of hose.
1. Unwrap hose from caddy. Press and remove tabs at
either end to remove. Clean out hose with broom handle.
Remove the two (2) screws on the base of the cleaner
and lift up base hood tocheck nozzle for blockages
(Fig.8/1).
Fig.6/8
Fig.8/1
!
Fig.8/2
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 9

www.vax.co.uk
10 general maintenance / troubleshooting
9. Troubleshooting
WARNING: To reduce risk of personal injury,
unplug vacuum cleaner before servicing.
PROBLEM: Cleaner won’t run
Cause: Not properly plugged into wall outlet.
Solution: Plug in firmly.
Cause: No electricity in wall outlet.
Solution: Check fuse or breaker.
Cause: On/off switch not turned on.
Solution: Push on/off switch to on.
Cause: Motor thermostat tripped.
Solution: Switch off and unplug the vacuum cleaner.
Leave for one (1) hour. See page 3.
Cause: Blown fuse/tripped breaker.
Solution: Reset circuit breaker or replace fuse.
PROBLEM: Cleaner won't pick up
Cause: Full or clogged dirt container.
Solution: Clean dirt container.
Cause: Clogged nozzle.
Solution: Remove obstruction.
Cause: Clogged dirt inlet.
Solution: Remove suction channel cover and remove
obstruction.
Cause: Clogged hose.
Solution: Remove obstruction.
Cause: Hose not inserted fully.
Solution: Push hose in securely.
Cause: Dirty filters or filter container.
Solution: Clean/change filters or filter container.
PROBLEM: Accessories won't pick up
Cause: Accessories not attached correctly.
Solution: Refer to page 5 for fitting information.
PROBLEM: Brushbar does not turn
Cause: Brushbar blocked.
Solution: Remove blockages.
PROBLEM: Air flow restricted with attachment use
Cause: New carpet debris clogging air path.
Solution: Remove obstruction.
10. UK Service & Help
Vax Care 0870 6061248
Monday-Friday 8.00am to 6.00pm.
Saturday 9.00am to 5.00pm.
Sunday 10.00am to 4.00pm.
An answerphone is available outside of these hours. Any
queries or concerns about using the Vax, call the Vax
Careline. Calls are charged at the UK national rate.
Please make a note of the serial number and model
number of the carpet cleaner before calling. There are
over 400 approved Vax Service Agents in the UK. For the
nearest Service Agent, please call the Vax Careline.
www.vax.co.uk
!
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 10

11
Vax Careline 0870 606 1248
service & help / technical specification
11. Technical Specification
Voltage: 220 – 240V ~50Hz
Wattage: 1300W
Capacity: 1.4 litres
Filters: Foam pre-motor
Pleated HEPA exhaust filter
Cord Length: 6m
Weight: 8.4kg
Subject to technical change without notice.
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 11

EEC STATEMENTOF COMPLIANCE
Manufacturer/EEC importer: Vax Limited, hereby on our own responsibility, declare that the
VZL-101 Ultima Cyclonic Upright is manufactured in compliance with the following Directives:
Safety: 2006/95/EC LowVoltage Directive
EMC: 2004/108/EC Electromagnetic Compatibility Directive
Waste electrical products should not be disposed of with household waste. Please recycle where
facilities exist. Check with your Local Authority or retailer for recycling advice.
Vax Ltd., Kingswood Road, Hampton Lovett, Droitwich, Worcestershire, WR9 OQH, UK
email: inf[email protected]o.uk -website: www.vax.co.uk
Vax VZL 101 User Guide.qxd 4/10/07 09:03 Page 12
