Vaxcel T0436 Instruction manual

Page 1 / 6
180720
Important to Know:
1. If you are not familiar with state and local electrical
codes, it is recommended that you consult with a
qualified electrician.
2. This fixture requires a 120 VAC, 60 Hz power
source.
3. For general safety and to avoid any possible
damage to the sensor, be sure the power is
switched "off" before adjustment.
Maximum Wattage: 22 W
Working Temperature Range: - 4°F ~ 113°F
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
NOTES: 1. Before installing, consult local electrical codes for wiring and grounding requirements.
2. READ AND SAVE THESE INSTRUCTIONS.
T0436
Features:
WARNING:
TO AVOID RISK OF ELECTRICAL SHOCK, BE SURE TO SHUT OFF
POWER BEFORE INSTALLING OR SERVICING THIS FIXTURE.
Note: Fixture can be wall mounted only.
1. Energy saving LED fixture.
2. Motion sensor: turns light ON automatically when
motion is detected and turns light OFF automatically
when motion stops.
3. Photocell keeps the light OFF during daylight hours.
4. When in manual override mode, use wall switch
to change the function and perform the function
conversion.
Hardware Package (included):
Fixture Mounting Screw
X1
Mounting Strip
X1
Wire Connector
X3
Mounting Screw
X2
Wall Mounted
Read notes section on page 2 for additional
information about mounting location of fixture.
Light fixture should be mounted as shown when
installed.
Decorative Cover
X1

Page 2 / 6
180720
Installation Steps
1. Install the mounting strip to the outlet box with the stamped word “FRONT” facing away from the outlet box, using
two mounting screws that best fit the outlet box. Back plate should sit flush against wall surface when secured.
(Choose one matching pair of suitable mounting screws from the 3 pairs provided)
2. Pull out the source wires from the outlet box. Make wire connections using wire connectors as follows:
---Connect the black wire from the fixture to the “hot” wire from the power source. (usually black)
---Connect the white wire from the fixture to the neutral wire from the power source (usually white).
Carefully tuck the wires back into the outlet box.
3. Place fixture light against the outlet box, insert the fixture mounting screw through the fixture light hole, thread fixture
mounting screw into the center hole of the mounting strip. Tighten the fixture mounting screw securely. Push the
decorative cover firmly into the fixture mounting screw hole on the light fixture.
▲ When mounting to a wall, the “UP” arrow must point upward.
4. With silicone caulking compound (not included), caulk completely around where the back plate
of the fixture the wall surface.
CAUTION: Be sure to caulk completely where the plate meets the wall surface to prevent
water from seeping into the light fixture (C)and/or outlet box ( See Fig 1).
Turn off the power at fuse or circuit box.
Turn on the power at the main fuse or circuit breaker box.
Mounting Strip
Outlet Box
Wire Connector(G)
Mounting Screw
FRONT
Fixture Mounting Screw
Decorative cover
Function and operation
Note:Before operating the function, please open the decorative cover of the
light body at the bottom, and then recovery the decorative cover after operating.
Sensitivity of Motion Sensor:
1. You can adjust the sensitivity of the motion sensor by using the
“SENSITIVITY” selector located on the right side of the bottom surface of
light body.
2. Adjust motion sensor sensitivity to achieve desired performance.
3. Approximate range for each setting from 5ft to 40ft.
Note: When power is first applied, the light will be on immediately.
Waiting for 20 seconds to allow the sensor to warm up.
Decorative Cover
Fig.3
TIME
3MIN
TEST
OFF PC
5S AUTO SENSITIVITY
Decorative Cover
Fig. 2
（See Fig.2 Fig.3）
Fig.1

Page 3 / 6
180720
Function and Operation
1. TEST MODE (daytime and nighttime operation.)
● With the power on, the owl’s eyes turn to low-level brightness automatically and wall light is always on.
● The owl’s eyes and wall light turn to high-level brightness when motion is detected, and stay on as long as the
motion continues. Then the owl’s eyes switch back to low-level brightness about 5 seconds after motion is no longer
detected.
2. OFF MODE (nighttime operation only)
● To shift to the “OFF” mode, slide the switch to “OFF” position, and rotate Time knob to the desired time setting
(between 5 seconds and 3 minutes). At dusk, the owl’s eyes and wall light will be off , When the motion is
detected, both the owl’s eyes and wall light will be on at full brightness, When no longer movement, the owl’s
eyes and wall light at full brightness remain on for the predetermined time you set
(5s ~ 3min), after then the light turns off automatically.
● The light turns off automatically at dawn.
3. AUTO MODE (nighttime operation only)
● To shift to the “AUTO” mode, slide switch to “AUTO” position, and
rotate Time knob to the desired time setting (between 5 seconds
and 3 minutes). At dusk,the wall light is always on and the owl’s eyes
turn on at low brightness, When motion is detected, the owl’s eyes
turn to full brightness and stay on as long as motion continues.
When the motion is no longer detected,the owl’s eyes at full brightness
remain on for the predetermined time you set (5s ~ 3min), and then the
owl’s eyes switch back to low level automatically.
● The light turns off automatically at dawn.
4. PC MODE (nighttime operation only)
● The owl’s eyes and wall light turn on at full brightness at dusk
and remain “ON” until dawn.
5. Manual Override (nighttime operation only)
● To shift to the manual override mode, set the mode selector to
“OFF” “AUTO” mode. Turn the wall switch “OFF”, and turn it “ON”
twice within 3 seconds. The light will remain on all night long. To
shift back to “OFF” “AUTO” mode, turn the wall switch “OFF”, and
turn it “ON” twice within 3 seconds again.
● The light turns off automatically at dawn.
Note: To make sure the above functions operate properly,
always keep the wall switch in the “ON” position
(including the daytime).
“OFF” “AUTO”
MODE
Manual
Override
Turn wall switch OFF-ON
-OFF-ON in 0.5~3 Seconds
Turn wall switch OFF-ON
-OFF-ON in 0.5~3 Seconds

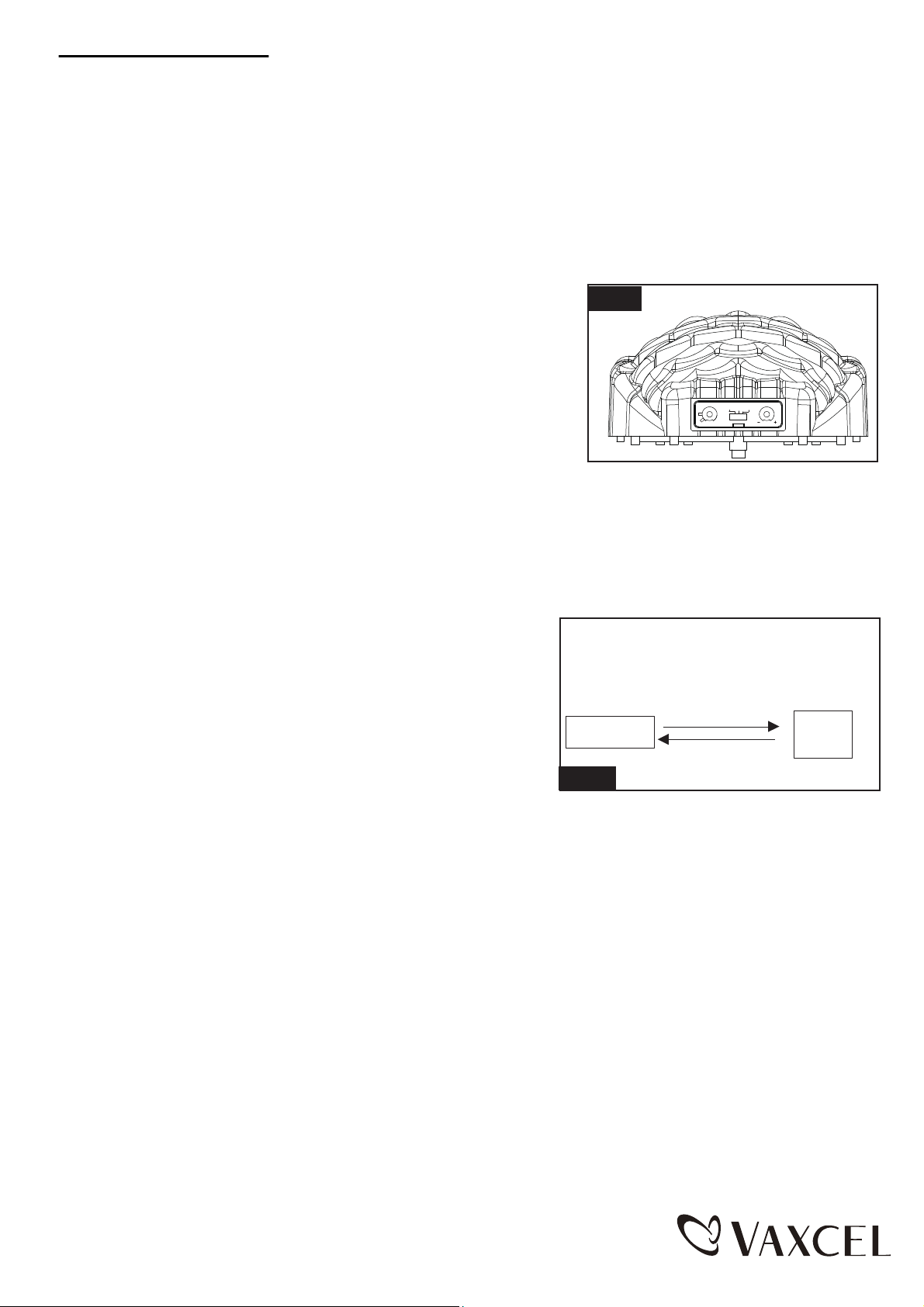

Fig. 5
TIME
3MIN
TEST
OFF PC
5S AUTO SENSITIVITY
Fig. 4
Shut-off Delay
Customization Options
● The shut-off delay is the length of time the light will stay at full brightness after motion is detected.
● You can set the shut-off delay by rotating the Time Delay knob so it points to the desired time setting(from
5 seconds to 3 minutes). To increase the shut-off delay, turn the knob clockwise. To decrease the shut-off delay,
turn the knob counterclockwise.
Notes:
1. The sensitivity of the motion sensor will increase as the environmental temperature gets cooler. For best
performance, gently clean the lens with a soft cloth every 1 or 2 months to ensure maximum sensitivity.
2. For best performance, install fixture at least 6-8 feet above the ground. At such a height, the fixture will provide a
detection distance of up to 40 feet at 77 degrees Fahrenheit. (See Fig.6)
3. The sensor detects movement across a detection range of 120 degrees. (See Fig.7)
4. The sensor will be more sensitive to motion across its detection path than motion directly towards it. (See Fig.8)
5. To reduce possible nuisances, do not mount the fixture near a heat source like an air conditioner, vent or furnace
exhaust, or in a direction facing any reflective object or other nearby light source.
Manual Override Operation Diagram

Page 4 / 6
180720
Fig.8
Motion
Least sensitive
Motion
Most sensitive
Sensor
5'
6.0'
10.0'
40'
Be sure the light is mounted straight on the wall
otherwise, the detection distance may be limited.
Fig. 6 Fig.7
˚
120
TROUBLE SHOOTING
Problem
The light will not come on. The light switch is turned off.
Possible Cause Solution
The fuse is blown or the circuit
breaker is turned off.
Turn the light switch on.
Replace the fuse or turn the circuit
breaker on.
Recheck after dark.
Verify the wiring is correct.
Re-aim the motion sensor to cover
the desired area.
Increase the “SENSITIVITY” setting.
Daylight turn-off (photocell) is in
effect.
The circuit wiring is incorrect (if this
is a new installation).
The motion sensor is aimed in the
wrong direction.
The outside air temperature is close
to the same as a person’s body heat.
The light comes on during the
day.
The motion sensor may be installed in
a relatively dark location.
The light fixture is operating
normally under these circumstances
Set the “TIME” switch to the 5s to 3
minute setting.
The “TIME” switch is in the “TEST”
position.
The light comes on for no
apparent reason.
The light turns off too late in
the PC setting. The light fixture may be installed in a
relatively dark location.
Relocate the light fixture setting.
The motion sensor may be sensing
small animals or automobile traffic.
Decrease the “SENSITIVITY” setting
or reposition the motion sensor.
Decrease the “SENSITIVITY” setting.
The light fixture is operating normally
under these circumstances.
Decrease the “SENSITIVITY” setting.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
The “SENSITIVITY” switch is set too high.
The switch is in the “PC“ setting.
The outside temperature is much
warmer or cooler than a person’s body
heat (summer or winter).
The light fixture is wired through a
dimmer or timer.

Page 5 / 6
180720
Assembly Kit
5892MM (1 SET)
Spare Parts List:
Mounting Screw
X2
Wire Connector
X3
Mounting Strip
X1
Decorative Cover
X1
Fixture Mounting Screw
X1
The following parts are available for re-order if damaged or missing.
Problem
The light stays on continuously.
Possible Cause Solution
The motion sensor may be picking up
a heat source, such as an air vent,
dryer vent, or brightly painted,
heat-reflective surface.
Decrease the “SENSITIVITY” setting
or reposition the motion sensor.
Switch the motion sensor to auto.
See Using manual mode on page 4.
Do not use a dimmer or timer to
control the light fixture. Replace the
dimmer or timer with a standard
on/off wall switch.
Install the light fixture on a circuit
without motors, transformers, or
fluorescent bulbs.
The motion sensor is in manual mode.
The light fixture is wired through a
dimmer or timer.
The light fixture is on the same circuit
as a motor, transformer, or fluorescent
bulb.
The light flashes once then
stays off in manual mode.
The light flashes on and off.
The motion sensor is detecting light from
the lamp heads.
Reposition the lamp heads to keep
the
area below the motion sensor
relatively dark.
Heat or light from the lamp heads may
be turning the motion sensor on and off.
Heat is being reflected from other objects
and may be turning the motion sensor on
and off.
The motion sensor is in “TEST” mode
and warming up.
Reposition the lamp heads away
from the motion sensor.
Decrease the “SENSITIVITY” setting
or reposition the motion sensor.
While in “TEST” mode, the light only
stays on for 5 seconds. Set the
“TIME” switch to 5s to 3 minutes.
If unable to fix any of the above issues, please consult a certified electrician.

Page 6 / 6
180720
A:7-1/4"
B: 9-1/2"
C: 4-1/2"
A
B
C
5-YEAR LIMITED WARRANTY:
All products are warranted to be free of defects in material and workmanship for five (5) years from date of purchase.
This warranty is limited to the correction of any such defect, or the replacement of any such defective item(s), provided
that: (a) we are properly notified and consent to return of the item(s) in question:(b) the item(s) is / are returned with proof
of purchase date; and (c) it is found upon inspection by us that the item(s) is / are defective as noted above. This warranty
does not cover labor costs, consequential damages, nor does it apply to any item(s) that have been improperly installed,
overloaded, altered, or otherwise abused by the customer, its agent(s) or employee(s). Finishes are specially excluded
from the terms of this warranty since they are subject to environmental maintenance deemed beyond our control. Other
than the described obligation, we assume no further liability with respect to the sale or use of our products.We make no
warranty, express or implied, and disclaim any warranty of merchantability or fitness for a particular purpose.
