Multi-brand diagnostics system.
101463_ContiSys_dt_eng_39l_01.indd 12-1 03.04.2009 13:50:43 Uhr

2
3
Our passion for mobility inspires us to reach new goals,
achieve greater progress, and overcome boundaries.
This is both our vision and our fascination as one of the
world’s leading automotive suppliers. It is evident in
everything we do. VDO employees are united around
the globe by a common enthusiasm for state-of-the-
art vehicle technologies and an awareness of market
and customer needs.
An imagination for the possibilities is just as important
to us as experience and focused research and devel-
opment. That’s why experts from the most diverse
fields work together within our company. Our innovative
developments continue to serve as proof of the suc-
cess of this operational model – success for our cus-
tomers – and towards the advancement of mobility.
Our extensive range of replacement parts for the after-
market is just one example of our products,
*same quality in accordance with GVO 1400/2002, Item. t), u).
Mobility shapes our life –
moving ahead is our passion
ContiSys 4
ContiSys OBD 6
ContiSys VCI 7
ContiSys PAD 8
ContiSys DSI 9
ContiSys Update Plus 10
101463_ContiSys_dt_eng_39l_01.indd 2-3 03.04.2009 13:50:48 Uhr

4
5
With a powerful troubleshooter to handle problems, service stays service.
ContiSys
Easy, quick and safe
Today, even “simple” jobs often require electronic aids.
The EOBD Hand Scanner ContiSys OBD lends itself to
just these cases.
Range of functions
A number of other important functions can be carried
out in addition to EOBD engine troubleshooting. These
include resetting the service interval indicators (incl.
Condition Based Service, CBS), activating electronic
parking brakes, and checking ABS and SRS (airbags
and pretensioners) as well as air conditioning.
Today’s standards require modern vehicles be equipped with more than one electronic control unit. Engine con-
trols have been joined by safety, body control systems, chassis controls, and often more. If a problem arises, only
first-class testing technology programmed with up-to-date, userfriendly diagnostic software can help.
Computer-aided high performance
In order to fully respond to service demands, often even
more powerful diagnostic solutions are needed. This
is exactly where ContiSys VCI comes in, whether it is
to augment ContiSys OBD or as a solution that will
stand alone in the workshop. In addition to well-known
ContiSys OBD functions, a broad range of other tests
can be carried out by using the simple and intuitive
computer software ContiSys DSI together with
ContiSys OBD. Windows™ software compatible, it runs
on all current computers. The vehicle interface com-
municates via a modern, secure WLAN port with any
workshop PC.
Rugged hardware for the daily grind
VDO offers a sturdy solution in order to meet the tough
challenges of the workshop: the ContiSys PAD tablet
PC. A computer specially developed for tough work-
shop environments, it takes the most difficult condi-
tions in stride.
101463_ContiSys_dt_eng_39l_01.indd 4-5 03.04.2009 13:50:51 Uhr

6
7

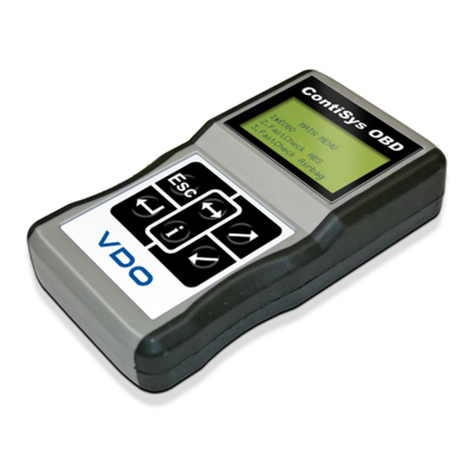

Compact, high-performance and always up-to-date:
The OBD scanner with a plus.
A compact troubleshooting device must enable me-
chanics to make quick EOBD control unit diagnoses
for many cars. ContiSys OBD offers far more than that:
It supports many service and test functions (not limit-
ed to EOBD vehicles) that professionals regularly need
in the workshop daily. Systems such as ABS, SRS
(airbags and pretensioners), electronic parking brakes
(EPB) or air conditioning can be checked simply and
quickly. And it goes without saying that resetting service
interval indicators and correct adjustment of steering
angle sensors are part of its repertoire.
ContiSys OBD has a self-explanatory, easy-to-use
menu structure. The function keys are large and clear.
Understandable symbols make navigation through
user menus simple. And if the need ever arises, an in-
tegrated help system and accompanying CD-ROM
handbook can quickly provide the required know-how.
But ContiSys OBD can do even more
To meet the range of rapidly changing service de-
mands, VDO offers a Software Update Service: With
an annual subscription to ContiSys Update Plus it is
a mouse click away to ensure the test unit and its ad-
vantageous features remain up-to-date.
But there is no obligation to subscribe to this service.
The user can decide how current the function range of
the testing unit should be.
Highlights
•Ruggedhousing
•Dimensions:150x90x35mm
•Large,backlitgraphicdisplay
•Userinterfaceisclearlystructured
and easy-to-use
•Languages:English,German,Dutch,French,
Spanish, Italian, Portuguese
•Morethan20,000manufacturer-specificerrorcodes
•Internetsoftwareupdates
•Protocolssupported
– ISO9141/KWP2000
– J1850 PWM
– J1850 VPW
– CAN
•Optional:vehiclespecificcablesets
Basic functions
•IncludesallEOBDmodes
•Readanddeleteerrorcodes
•Livedata
•Lambdasensortest
•Freeze-framedata
Tests and sets systems
•Aircondition
•Brakes
– ABS
– EPB
– SBC
•SRS
– Airbags
– Pretensioners
•Steeringanglesensors
•Resetserviceinterval
– incl. CBS
ContiSys Update Plus ODB
•Remainscurrentwithinternetupdates
•Easytouse
•12-monthvalidityperiod
•Renewalasdesired
ContiSys OBD
Computer-aided and always up-to-date: Multi-brand diagnosis.
ContiSys VCI
ContiSys VCI is the high-performance diagnostic
solution for your workshop
Displays and deletes error memory, tests and activates
components, brings up technical information or quickly
checks the parts catalogue. ContiSys VCI offers you all
this and more. And it remains as up-to-date as de-
sired. Just opt for the internet software updating ser-
vice ContiSys Update Plus.
Immediately after ContiSys DSI has been installed,
the diagnostic system is ready to run
Simply connect the vehicle interface (VCI) via the EOBD
port or, if necessary, use vehicle specific adapter cable
sets that are available as an option. Data transfer be-
tween the vehicle interface and the workshop PC
takes place via a modern WLAN port.
ContiSys VCI comes in a carrying case with all the
components needed to get it up and running immedi-
ately.
•Vehicleinterface(VCI)
•EOBDcable
•USBcableforupdates
•Quickreferenceguide
•SoftwareCD,includingoperatinginstructions
And the best is: The first two years of software
updates are included in the price.
Functions
•IdentifiesECUsautomatically
•Readanddeleteerrorcodes
•Read,record,anddisplaylivedata
and measured values
•Activatecomponents
Systems
•Brakes
– ABS
– EPB
– SBC
•SRS
– Airbags
– Pretensioners
•Resetserviceinterval
– incl. CBS
•Codingofcontrolunits
•Injectorcoding
•Tirepressuremonitoringsystems(TPMS)
•Chassiscomputer
•Vehicleimmobilizer
•Enginecontrol(gasoline/diesel)
•Bodycontrolsystems
•Steeringanglesensors
Interfaces
•RS232,USBandWi-Fi(802.11g)
•Multiplexer
•Supportsthefollowingprotocols,amongothers:
– ISO 9141-2 (K-Line and L-Line)
– ISO 15765-4 (CAN)
– SAE J1850 PWM
– SAE J1850 VPW
– ISO 14320-4 KWP
– ISO 11519 CAN (fault-tolerant)
– SAE J2411 Single-Wire-CAN (GM LAN)
– SAE J1708
– SAE J2610 (Chrysler SCI)
•Cablesetsavailableasoption
– BMW
 –Fiat/Alfa/Lancia
– PSA
– Mercedes
– VAG
101463_ContiSys_dt_eng_39l_01.indd 6-7 03.04.2009 13:50:54 Uhr

8
9
Fortoughjobsandservicelife:TheworkshoptabletPC.
ContiSys PAD is the newest hardware generation
testing unit for the automobile industry
Its modern CPU design ensures long-term component
availability while keeping up with the demands of inno-
vation.
Suitable for use across the full range of brands, the
ContiSys PAD not only sets a performance standard, it
also meets all the tough requirements of workshop
operations.
•Easilyreadable,high-contrastdisplay
•Housingprotectiontoafallheightofupto0.9m
•SplashguardIP54
•Surfaceresistanttofluidsusedintheworkshop
Beyond that, the ContiSys PAD is flexible and easy to
handle. Light weight and small dimensions allow easy,
flexible, wireless use: using Class 2 Bluetooth radio
technology and 802.11 n standard WLAN. And hard
disk drive (HDD) changes without tools are just as
much a matter of course as removing a battery.
Technical data – Standard version
PC technology
•NapaplatformwithMerom
•MeromCPU
•1.06GHz/1GBRAM
User interface
•12.1"TFTdisplay500cd/m2
350 cd/m2prior to touch
•1024x768pixelswithresistanttouchscreen
for outside use
Hardware keys
•4(programmable)
Hard drive
•120GB
Wireless connection
•Bluetooth2.0/WLANIEE802.11gorn
Operating time
•Batteryoperation>4hours
Housing
•Die-castmagnesium,IP54
Fall height
•0.9m(max.)
Weight
•2.4kg
Dimensions
•305x230x40mm
Operating temperature
•–5°Cto40°C
Ventilation
•Nofan
ContiSys PAD
A control center system: The diagnostic software.
ContiSys DSI
ContiSys DSI diagnostic software is the heart of the
multi-brand diagnostic system ContiSys VCI. Among
other things this is where the choice of vehicle, identi-
fication of vehicle systems, the activation of compo-
nents and the recording of data takes place. The user
can get help for repair problems and branch into other
software modules (e.g. catalogues). Despite the diver-
sity of functions, the software is self-explanatory and
can be used without any special training.
And if you still need help now and then, the hotline is
always there to help you.
Highlights
•Windows™XP/Vistacompatible
•Multilingual:English,German,Dutch,French,
Spanish and Portuguese
•Modularsoftwarearchitecture
•Intuitiveuserinterface
•Oneyearofsoftwareupdatesincluded
Functions
•Masterdata
– Customer
– Vehicle
•Vehiclediagnosis
•Technicalinformation
•Cataloguemodule
Service
•Freehotline
•Optionalrepairhotline
•Internetsoftwareupdates
Tests and sets systems
•Brakes
– ABS
– EPB
– SBC
•SRS
– Airbags
– Pretensioners
•Resetserviceinterval
– incl. CBS
•Codingofcontrolunits
•Injectorcoding
•Tirepressuremonitoringsystems(TPMS)
•Chassiscomputer
•Vehicleimmobilizer
•Enginecontrol(gasoline/diesel)
•Bodycontrolsystems
•Steeringanglesensors
101463_ContiSys_dt_eng_39l_01.indd 8-9 03.04.2009 13:50:56 Uhr

10
11
All it takes is a mouse click to get up-to-date:
The Software Update Service.
And with ContiSys Update Plus, Software Update
Services are available for the ContiSys VCI diagnostic
system just as they are with the Hand Scanner
ContiSys OBD. And the first two years of software
updates are included in the sale price of ContiSys VCI
diagnostic system. As soon as they become available,
the updates are immediately made ready for download
to guarantee the greatest degree of flexibility and safety.
Starting in the third year, the Software Update Service
can be booked as an option. Subscription activation
takes place simply and securely via the internet. And if
the user do not want to update the software after the
two years, the use of earlier ContiSys DSI software
versions can continue without limitations or problems.
ContiSys Update Plus
•Remainscurrentwithinternetupdates
•Easytouse
•12-monthvalidityperiod
•Renewalasdesired
ContiSys Update Plus Key Features in Overview
Air- SRS- Body
Function EOBD modes OBD ABS EPB condition Systems control Chassis Instrumentation
Product
ContiSys OBD x x x x x x
ContiSys VCI x x x x x x x x x
ContiSys VCI Plus x x x x x x x x x
Component Technical Technical Catalogue Update Service Repair
Function activation data basis data advanced module service hotline hotline
Product
ContiSys OBD optional x optional
ContiSys VCI x x x two years inclusive/ x optional
optional after the 3rd year
ContiSys VCI Plus x x x two years inclusive/ x optional
optional after the 3rd year
101463_ContiSys_dt_eng_39l_01.indd 10-11 03.04.2009 13:50:57 Uhr
