Vega VEGABAR 82 User manual

Quick setup guide
Pressure transmitter with ceramic
measuring cell
VEGABAR 82
4 … 20 mA
Document ID: 46305

2
Contents
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
Contents
1 For your safety
1.1 Authorised personnel ....................................................................................................... 3
1.2 Appropriate use................................................................................................................ 3
1.3 Warning about incorrect use............................................................................................. 3
1.4 General safety instructions............................................................................................... 3
1.5 CE conformity................................................................................................................... 3
1.6 Measuring range - permissible process pressure............................................................. 4
1.7 NAMUR recommendations .............................................................................................. 4
1.8 Environmental instructions ............................................................................................... 4
2 Product description
2.1 Conguration.................................................................................................................... 5
3 Mounting
3.1 General instructions for use of the instrument .................................................................. 7
3.2 Ventilation and pressure compensation............................................................................ 7
4 Connecting to power supply
4.1 Connecting....................................................................................................................... 8
4.2 Single chamber housing................................................................................................... 9
5 Set up with the display and adjustment module

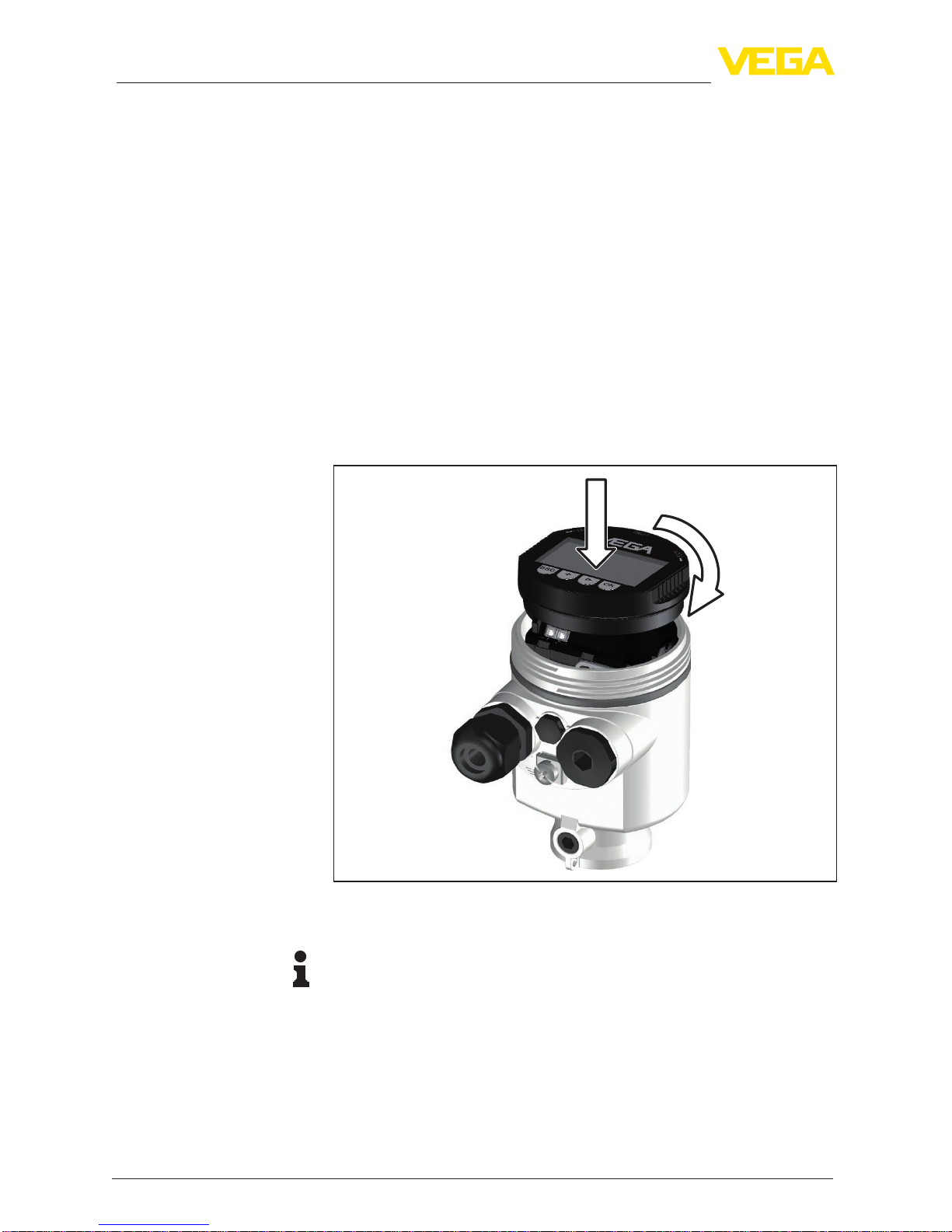

5.1 Insert display and adjustment module............................................................................ 10

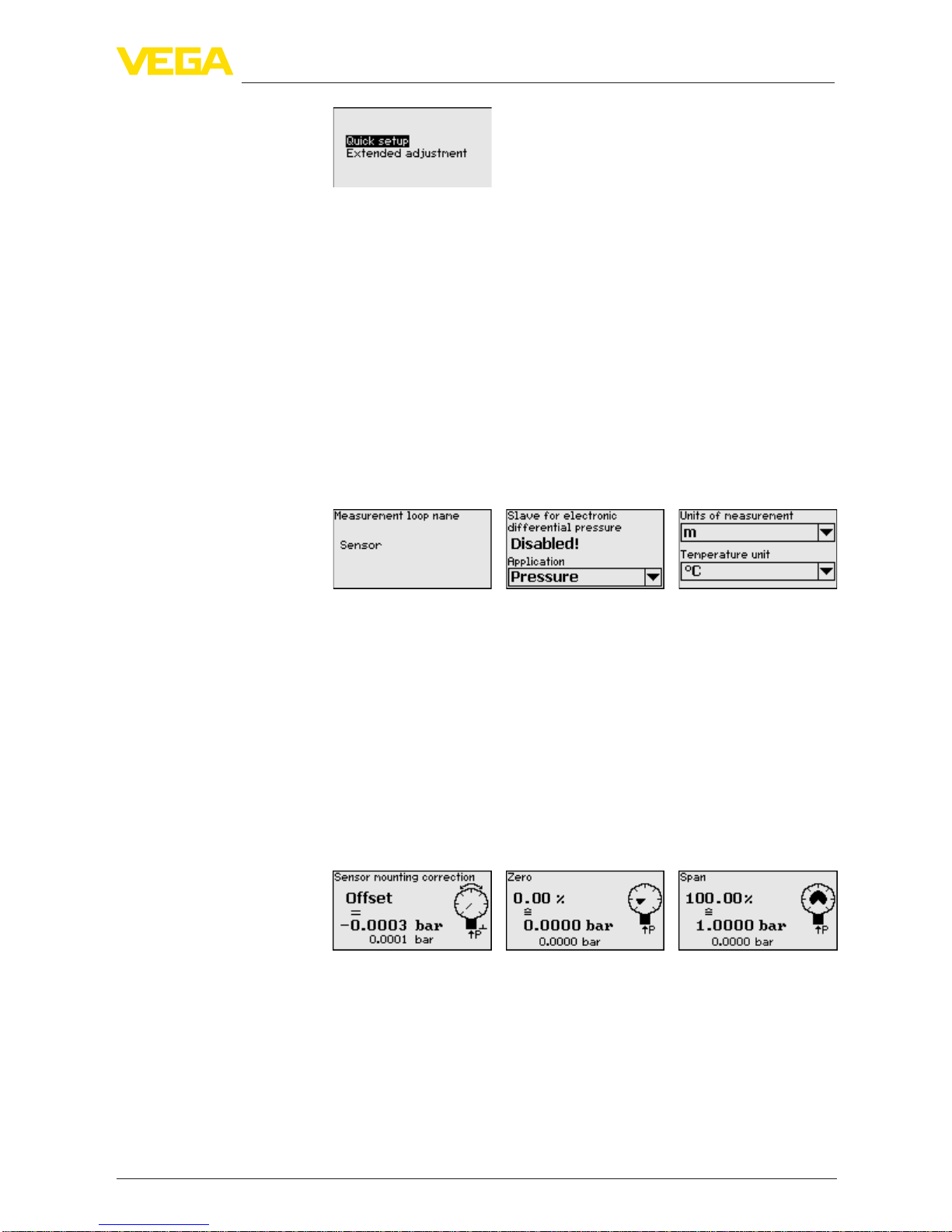

5.2 Parameter adjustment - Quick setup .............................................................................. 10
5.3 Parameter adjustment - Extended adjustment................................................................ 12
6 Supplement
6.1 Technical data ................................................................................................................ 15
Information:
This quick setup guide enables a quick setup of your instrument.
Yo u canndfurtherinformationinthecomprehensiveoperatingin-
structions listed below. This manual is available on the supplied DVD
or in the download area under "www.vega.com".
Operating instructions VEGABAR 82 - 4 … 20 mA: Document-ID
45027
Editing status of the quick setup guide: 2013-11-21

3
1 For your safety
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
1 For your safety
1.1 Authorised personnel
All operations described in this operating instructions manual must
be carried out only by trained specialist personnel authorised by the
plant operator.
During work on and with the device the required personal protective
equipment must always be worn.
1.2 Appropriate use
The VEGABAR 82 is a pressure transmitter for process pressure and
hydrostatic level measurement.
Yo u cannddetailedinformationontheapplicationrangeinchapter
"Product description".
Operational reliability is ensured only if the instrument is properly
usedaccordingtothespecicationsintheoperatinginstructions
manual as well as possible supplementary instructions.
1.3 Warning about incorrect use
Inappropriate or incorrect use of the instrument can give rise to
application-specichazards,e.g.vesseloverllordamagetosystem
components through incorrect mounting or adjustment.
1.4 General safety instructions
This is a high-tech instrument requiring the strict observance of stand-
ard regulations and guidelines. The user must take note of the safety
instructionsinthisoperatinginstructionsmanual,thecountry-specic
installation standards as well as all prevailing safety regulations and
accident prevention rules.
Theinstrumentmustonlybeoperatedinatechnicallyawlessand
reliable condition. The operator is responsible for trouble-free opera-
tion of the instrument.
Duringtheentiredurationofuse,theuserisobligedtodeterminethe
compliance of the necessary occupational safety measures with the
current valid rules and regulations and also take note of new regula-
tions.
1.5 CE conformity
ThedevicefulllsthelegalrequirementsoftheapplicableECguide-
lines.ByaxingtheCEmarking,weconrmsuccessfultestingofthe
product.
Yo u canndtheCECerticateofConformityinthedownloadsection
of our homepage.
Electromagnetic compatibility
Instruments with plastic housing as well as those in four-wire or Ex-d-
ia version are designed for use in an industrial environment. Never-
theless,electromagneticinterferencefromelectricalconductorsand

4
1 For your safety
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
radiatedemissionsmustbetakenintoaccount,asisusualwithclass
A instruments according to EN 61326-1. If the instrument is used in
adierentenvironment,theelectromagneticcompatibilitytoother
instruments must be ensured by suitable measures.
1.6 Measuring range - permissible process
pressure
Thepermissibleprocesspressureisspeciedonthetypelabelwith
"Processpressure",seechapter"Conguration".Forsafetyreasons,
this range may not be exceeded. This applies even if a measuring cell
with a measuring range (order-related) higher than the permissible
pressurerangeoftheprocessttingisinstalled.
1.7 NAMUR recommendations
NAMUR is the automation technology user association in the process
industry in Germany. The published NAMUR recommendations are
acceptedasthestandardineldinstrumentation.
ThedevicefulllstherequirementsofthefollowingNAMURrecom-
mendations:
•NE 21 – Electromagnetic compatibility of equipment
•NE 43 – Signal level for malfunction information from measuring
transducers
•NE53–Compatibilityofelddevicesanddisplay/adjustment
components
•NE107–Self-monitoringanddiagnosisofelddevices
For further information see www.namur.de.
1.8 Environmental instructions
Protection of the environment is one of our most important duties.
That is why we have introduced an environment management system
with the goal of continuously improving company environmental pro-
tection.Theenvironmentmanagementsystemiscertiedaccording
to DIN EN ISO 14001.
Pleasehelpusfulllthisobligationbyobservingtheenvironmental
instructions in this manual:
•Chapter "Packaging, transport and storage"
•Chapter "Disposal"

5
2 Product description
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
2 Product description
2.1 Conguration
Thenameplatecontainsthemostimportantdataforidenticationand
use of the instrument:
2
1
14
15
16
17
13
11
12
5
3
6
4
7
8
9
10

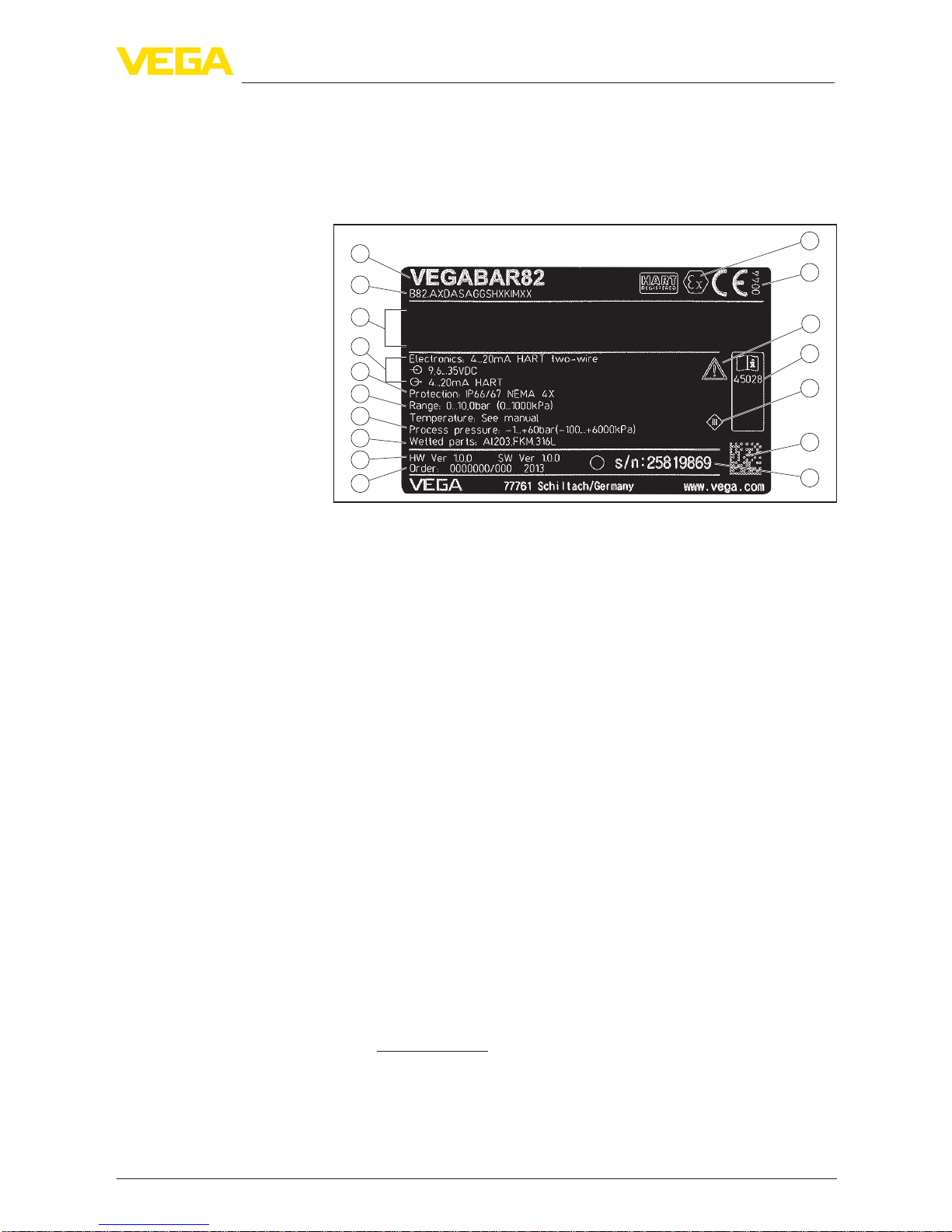

Fig. 1: Layout of the type label (example)
1 Instrument type
2 Product code
3 Field for approvals
4 Power supply and signal output, electronics
5 Protection rating
6 Measuring range
7 Permissible process pressure
8 Material, wetted parts
9 Hardware and software version
10 Order number
11 Serial number of the instrument
12 Data-Matrix-Code for Smartphone-App
13 Symbol of the device protection class
14 ID numbers, instrument documentation
15 Reminder to observe the instrument documentation
16 NotiedauthorityforCEmarking
17 Approval directive
The type label contains the serial number of the instrument. With it
youcanndthefollowingdataonourhomepage:
•Product code of the instrument (HTML)
•Delivery date (HTML)
•Order-specicinstrumentfeatures(HTML)
•Operating instructions at the time of shipment (PDF)
•Order-specicsensordataforanelectronicsexchange(XML)
•TestcerticatePressureTransmitters(PDF)
Go to www.vega.com,"VEGATools" and "Serial number search".
Alternatively,youcanaccessthedataviayoursmartphone:
•Download the smartphone app "VEGATools" from the "Apple App
Store" or the "GooglePlayStore"
•Scan the Data Matrix code on the type label of the instrument or
Type plate
Serial number

6
2 Product description
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
•Enter the serial number manually in the app

7
3 Mounting
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
3 Mounting
3.1 General instructions for use of the instrument
Protect your instrument against moisture penetration through the fol-
lowing measures:
•Use the recommended cable (see chapter "Connecting to power
supply")
•Tighten the cable gland
•Turn the housing in such a way that the cable gland points down-
ward
•Loop the connection cable downward in front of the cable gland
This applies particularly to:
•Outdoor mounting
•Installations in areas where high humidity is expected (e.g. through
cleaning processes)
•Installations on cooled or heated vessels
3.2 Ventilation and pressure compensation
Thelterelementismountedintotheelectronicshousing.Ithasthe
following functions:
•Ventilation of the electronics housing
•Atmospheric pressure compensation (with relative pressure meas-
uring ranges)
→ Turnthehousingsothatthelterelementpointsdownwardafter
the instrument is installed. This provides better protection against
buildup.
1 2 3
4 4 4
Fig.2:Positionofthelterelement-non-Ex,Ex-iaversion
1 Housing plastic, stainless steel precision casting
2 Housing aluminium
3 Housing stainless steel, electropolished
4 Filter element
With the following instruments a blind plug is installed instead of the
lterelement:
•InstrumentsinprotectionIP66/IP68(1bar)-ventilationviacapil-
laries in non-detachable cable
•Instruments with absolute pressure
Protection against mois-
ture
Instruments in non-Ex
and Ex-ia version

8
4 Connecting to power supply
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
4 Connecting to power supply
4.1 Connecting
The voltage supply and signal output are connected via the spring-
loaded terminals in the housing.
Connection to the display and adjustment module or to the interface
adapter is carried out via contact pins in the housing.
Information:
The terminal block is pluggable and can be removed from the
electronics.To dothis,lifttheterminalblockwithasmallscrewdriver
andpullitout.Whenreinsertingtheterminalblock,youshouldhearit
snap in.
Proceed as follows:
1. Unscrew the housing cover
2. Ifadisplayandadjustmentmoduleisinstalled,removeitbyturn-
ing it slightly to the left.
3. Loosen compression nut of the cable entry gland
4. Removeapprox.10cm(4in)ofthecablemantle,stripapprox.
1cm (0.4 in) of insulation from the ends of the individual wires
5. Insert the cable into the sensor through the cable entry

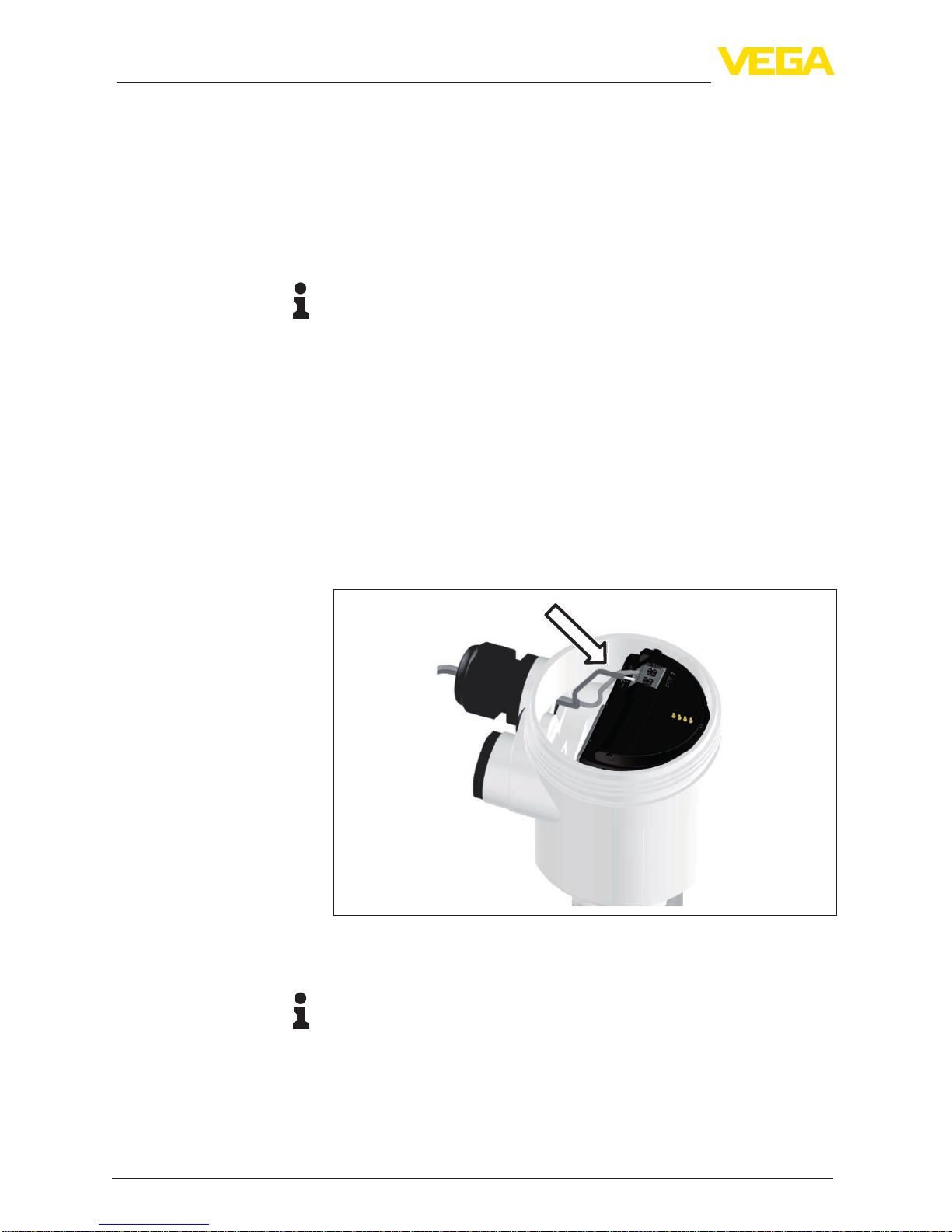

Fig. 3: Connection steps 5 and 6 - Single chamber housing
6. Insert the wire ends into the terminals according to the wiring plan
Information:
Solidcoresaswellasexiblecoreswithwireendsleevesareinsert-
eddirectlyintotheterminalopenings.Incaseofexiblecoreswithout
endsleeves,presstheterminalfromabovewithasmallscrewdriver,
theterminalopeningisthenfree.Whenthescrewdriverisreleased,
the terminal closes again.
Yo u canndfurtherinformationonthemax.wirecross-sectionunder
"Technicaldata/Electromechanicaldata"
Connection technology
Connection procedure

9
4 Connecting to power supply
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
7. Check the hold of the wires in the terminals by lightly pulling on
them
8. Connectthescreentotheinternalgroundterminal,connectthe
outer ground terminal to potential equalisation
9. Tighten the compression nut of the cable entry gland. The seal
ring must completely encircle the cable
10. Reinsertthedisplayandadjustmentmodule,ifonewasinstalled
11. Screw the housing cover back on
Theelectricalconnectionisnished.
4.2 Single chamber housing
The following illustration applies to the non-Ex as well as to the Ex-ia
version.
5
12
+
( ) (-)
678
4...20mA
2
3
4
1
Fig.4:Electronicsandterminalcompartment,singlechamberhousing
1 Voltagesupply/Signaloutput
2 For display and adjustment module or interface adapter
3 For external display and adjustment unit or Slave sensor
4 Groundterminalforconnectionofthecablescreen
Electronics and terminal
compartment

10
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
5 Set up with the display and adjustment
module
5.1 Insert display and adjustment module
The display and adjustment module can be inserted into the sensor
and removed any time. Four positions displaced by 90° can be se-
lected. It is not necessary to interrupt the power supply.
Proceed as follows:
1. Unscrew the housing cover
2. Place the display and adjustment module in the requested posi-
tion onto the electronics and turn to the right until it snaps in
3. Screw housing cover with inspection window tightly back on
Removal is carried out in reverse order.
Thedisplayandadjustmentmoduleispoweredbythesensor,anad-
ditional connection is not necessary.
Fig. 5: Installing the display and adjustment module in the electronics compart-
ment of the single chamber housing
Note:
Ifyouintendtoretrottheinstrumentwithadisplayandadjustment
moduleforcontinuousmeasuredvalueindication,ahighercoverwith
an inspection glass is required.
5.2 Parameter adjustment - Quick setup
To quicklyandeasilyadaptthesensortotheapplication,select
the menu item "Quick setup" in the start graphic on the display and
adjustment module.

11
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
Carry out the following steps in the below sequence.
Yo u cannd"Extendedadjustment" in the next sub-chapter.
1. Measurement loop name
Intherstmenuitemyouassignasuitablemeasurementloopname.
Permitted are names with max. 19 characters.
2. Application
Inthismenuitem,youactivate/deactivatetheslavefortheelectronic
dierentialpressureandselecttheapplication.Theapplicationcom-
prises process pressure and level measurement.
3. Units
In this menu item you determine the adjustment and temperature
units of the instrument. Depending on the selected application in the
menu item "Application",dierentadjustmentunitsareavailable.
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Zero adjustment
Inthismenuitemyoucarryoutthezeroadjustmentfortheprocesss
pressure.
Enter the respective pressure value for 0 %.
6. Span adjustment
In this menu item you carry out the span adjustment for the processs
pressure
Enter the respective pressure value for 100 %.
4. Position correction
Inthismenuitemyoucompensatetheinuenceoftheinstallation
positionoftheinstrument(oset)onthemeasuredvalue.
5. Max. adjustment
In this menu item you carry out the max. adjustment for level
Enter the percentage value and the corresponding value for the max.
level.
Presettings
Quick setup - Process
pressure measurement
Quick setup - Level meas-
urement

12
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
6. Min. adjustment
In this menu item you carry out the min. adjustment for level
Enter the percentage value and the corresponding value for the min.
level.
Thequicksetupisnished.
5.3 Parameter adjustment - Extended adjustment
Fortechnicallydemandingmeasuringpoints,youcancarryout
extended settings in "Extendedadjustment".
Themainmenuisdividedintovesectionswiththefollowingfunc-
tions:
Setup:Settings,e.g.,formeasurementloopname,application,units,
positioncorrection,adjustment,signaloutput
Display:Settings,e.g.,forlanguage,measuredvaluedisplay,lighting
Diagnosis:Information,e.g.oninstrumentstatus,pointer,measure-
mentreliability,simulation
Additional adjustments:PIN,date/time,reset,copyfunction
Info:Instrumentname,hardwareandsoftwareversion,dateofmanu-
facture,sensorfeatures
Note:
Foroptimumadjustmentofthemeasuringpoint,theindividualsub-
menu items in the main menu item "Setup" should be selected one
aftertheotherandprovidedwiththecorrectparameters.Ifpossible,
go through the items in the given sequence.
The procedure is described below.
The following submenu points are available:
The submenu points described below.
Main menu

13
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
Setup
Menu item
Measurement loop name
Application
Units Unit of measurement
Temperature unit
Position correction
Adjustment Min. adjustment
Max. adjustment
Damping Integration time
Linearization Linearizationtype
Scaling Scaling 1
Scaling 2
Characteristicvaluesofthedierential
pressure transmitter
Volume/Massow
Current output 1 and 2 Currentoutput-Size
Current output - adjustment
Current output - Mode
Currentoutput-Min./Max.
Block adjustment
Display
Menu item
Language
Displayed value 1
Displayed value 2
Backlight
Diagnostics
Menu item
Sensor status Status signals - Function control
Statussignals-Outofspecication
Status signals - Maintenance
Status signals - Failure
Peak value indicator Pressure
Temperature
Simulation

14
5 Set up with the display and adjustment module
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
Additional adjustments
Menu item
PIN
Date/Time
Copy instrument settings
Special parameters

15
6 Supplement
VEGABAR 82 • 4 … 20 mA
46305-EN-131125
6 Supplement
6.1 Technical data
Electromechanical data - version IP 66/IP 67 and IP 66/IP 68; 0.2 bar
Options of the cable entry
ƲCable gland M20 x1.5
ƲCable diameter (options) 5 … 9 mm (0.20 … 0.35 in)
6… 12 mm (0.24 … 0.47 in)
10 … 14 mm (0.39 … 0.55 in)
ƲCable entry ½ NPT
ƲBlind plug M20 x1.5; ½ NPT
ƲClosing cap M20 x1.5; ½ NPT
Plug options
ƲSignal circuit PlugM12x1,accordingtoISO4400,HartingHAN,
7/8"FF
ƲIndication circuit M12 x1 plug
Wire cross-section (spring-loaded terminals)
Ʋ Massivewire,cord 0.2 … 2.5 mm² (AWG 24 … 14)
ƲStranded wire with end sleeve 0.2 … 1.5 mm² (AWG 24 … 16)
Voltage supply
Operating voltage UB
ƲNon-Ex instrument 9.6 … 35 V DC
ƲEx-d instrument 9.6 … 35 V DC
ƲEx-ia instrument 9.6 … 30 V DC
ƲEx-d-ia instrument 15 … 35 V DC
ƲEx-d-ia instrument with ship approval 15 … 35 V DC
Interpolation protection Integrated
Permissibleresidualripple-Non-Ex,Ex-iainstrument
Ʋfor UN 12 V DC (9.6 V< UB< 14 V) ≤0.7Ve(16…400Hz)
Ʋfor UN 24 V DC (18 V< UB< 35 V) ≤1.0Ve(16…400Hz)
Permissible residual ripple - Ex-d-ia instrument
Ʋfor UN 24 V DC (18 V< UB< 35 V) ≤1Ve(16…400Hz)
Load resistor
ƲCalculation (UB - Umin)/0.022A
ƲExample - Non-Ex instrument with
UB= 24 V DC
(24V-9.6V)/0.022A=655Ω

Printing date:
VEGA Grieshaber KG
Am Hohenstein 113
77761 Schiltach
Germany
46305-EN-131125
All statements concerning scope of delivery, application, practical use and operat-
ing conditions of the sensors and processing systems correspond to the information
available at the time of printing.
Subject to change without prior notice
© VEGA Grieshaber KG, Schiltach/Germany 2013
Phone [phone]
Fax [phone]
E-mail: [email protected]
www.vega.com
