Vega VEGACAL 67 User manual

Operating Instructions
VEGACAL 67
Foundation Fieldbus

Contents
1About this document
1.1Function ............................. 4
1.2Target group .......................... 4
1.3Symbolism used ....................... 4
2For your safety
2.1Authorised personnel .................... 5
2.2Appropriate use........................ 5
2.3Warning about misuse ................... 5
2.4General safety instructions ................ 5
2.5CE conformity ......................... 5
2.6Compatibility acc.to NAMUR NE 53......... 5
2.7Manufacturer declaration ................. 6
2.8Environmental instructions ................ 7
3Product description
3.1Configuration.......................... 8
3.2Principle of operation .................... 9
3.3Adjustment ........................... 11
3.4Storage and transport ................... 11
4Mounting
4.1General instructions ..................... 12
4.2Mounting information .................... 13
5Connecting to power supply
5.1Preparing the connection ................. 15
5.2Connection steps....................... 16
5.3Wiring plans,single chamber housing ........ 17
5.4Wiring plans,double chamber housing ....... 19
5.5Wiring plans,version IP 66/IP 68 (1bar)...... 21
6Setup with the indicating and adjustment module
PLICSCOM
6.1Short description ....................... 22
6.2Installing the indicating and adjustment module
PLICSCOM ........................... 22
6.3Adjustment system ..................... 24
6.4Setup procedure ....................... 25
6.5Menu schematic ....................... 29
2VEGACAL 67 -Foundation Fieldbus
Contents
31760-EN-060306

7Setup with PACTware™and other adjustment
programs
7.1Connecting the PC ..................... 32
7.2Parameter adjustment with PACTware™...... 32
7.3Parameter adjustment with AMS™.......... 33
7.4Saving the parameter adjustment data ....... 33
8Maintenance and fault rectification
8.1Maintenance .......................... 34
8.2Fault rectification ....................... 34
8.3Exchange of the electronics module ......... 36
8.4Shorten the probe ...................... 37
8.5Instrument repair ....................... 37
9Dismounting
9.1Dismounting procedure .................. 38
9.2Disposal ............................. 38
10 Supplement
10.1Technical data......................... 39
10.2Foundation Fieldbus .................... 45
10.3Dimensions ........................... 49
10.4Industrial property rights.................. 51
VEGACAL 67 -Foundation Fieldbus 3
Contents
31760-EN-060306

1About this document
1.1Function
This operating instructions manual has all the information you
need for quick setup and safe operation.Please read this
manual before you start setup.
1.2Target group
This operating instructions manual is directed to trained,
qualified personnel.The contents of this manual should be
made available to these personnel and put into practice by
them.
1.3Symbolism used
Information,tip,note
This symbol indicates helpful additional information.
Caution,warning,danger
This symbol informs you of a dangerous situation that could
occur.Ignoring this cautionary note can impair the person and/
or the instrument.
Ex applications
This symbol indicates special instructions for Ex applications.
lList
The dot set in front indicates a list with no implied sequence.
àAction
This arrow indicates a single action.
1Sequence
Numbers set in front indicate successive steps in a procedure.
4VEGACAL 67 -Foundation Fieldbus
About this document
31760-EN-060306

2For your safety
2.1Authorised personnel
All operations described in this operating instructions manual
must be carried out only by trained specialist personnel
authorised by the operator.For safety and warranty reasons,
any internal work on the instruments must be carried out only
by personnel authorised by the manufacturer.
2.2Appropriate use
VEGACAL 67 is a sensor for continuous level measurement.
Detailed information on the application range of VEGACAL 67
is available in chapter "Product description".
2.3Warning about misuse
Inappropriate or incorrect use of the instrument can give rise to
application-specific hazards,e.g.vessel overfill or damage to
system components through incorrect mounting or adjustment.
2.4General safety instructions
The VEGACAL 67 is a high-tech instrument requiring the strict
observance of standard regulations and guidelines.The user
must take note of the safety instructions in this operating
instructions manual,the country-specific installation standards
(e.g.the VDE regulations in Germany)as well as all prevailing
safety regulations and accident prevention rules.
2.5CE conformity
VEGACAL 67 is in CE conformity to EMC (89/336/EWG)and
LVD (73/23/EWG).
Conformity has been judged acc.to the following standards:
lEMC:
-Emission EN 61326:2004 (class B)
-Susceptibility EN 61326:2004 including supplement A
lLVD:EN 61010-1:2001
2.6Compatibility acc.to NAMUR NE 53
VEGACAL 67 meets NAMUR recommendation NE 53.VEGA
instruments are generally upward and downward compatible:
VEGACAL 67 -Foundation Fieldbus 5
For your safety
31760-EN-060306

lsensor software for DTM-VEGACAL 67 HART,PA or FF
lDTM VEGACAL 67 for adjustment software PACTware™
ladjustment module PLICSCOM for sensor software
The parameter adjustment of the basic sensor functions is
independent of the software version.The range of available
functions depends on the respective software version of the
individual components.
The software version of VEGACAL 67 can be determined as
follows:
lvia PACTware™
lon the type label of the electronics
lvia the indicating and adjustment module PLICSCOM
You can view all software histories on our website www.vega.
com.Make use of this advantage and get registered for update
information via e-mail.
2.7Manufacturer declaration
In conformity with DIN EN 60079-14/2004,para.5.2.3,point
c1,the capacitive probe VEGACAL 67 is suitable for use in
zone 2.
The operator must use the instrument correctly and follow the
specifications of the following documents:
lthis operating instructions manual
lthis manufacturer declaration (24639)
lthe applicable installation regulations
Max.increase of the surface temperature during operation:
15 K(individual components in the instrument)
With an ambient temperature of +70°C(+158°F)on the
housing and a process temperature of +70°C(+158°F), the
max.ambient temperature during operation is +85°C(+185°F).
Measures to maintain the explosion protection during oper-
ation:
lOperate you instrument in the range of the specified
electrical limit values.Permissible supply voltage:see
"Technical data"
lMount and operate the instrument in such a way that no
ignition danger is expected by electrostatic charges.The
process fitting,the plastic-coated/covered probe part or the
housing are made of electrically non-conductive plastic
(depending on the version).
6VEGACAL 67 -Foundation Fieldbus
For your safety
31760-EN-060306

lMake sure that the seal is mounted correctly between
lower part of the housing and cover.Screw the cover on
tightly.
lMake sure that there is no explosive atmosphere,if you
want to operate the instrument with open cover
lMake sure that the cable gland is tight and strain-relieved.
The outer diameter of the connection cable must be
adapted to the cable gland.Tighten the pressure screw of
the cable gland carefully.
lCover unused openings for cable glands tightly
lMount the instrument in such a position that the sensor
cannot touch the vessel wall or vessel installations.Keep
the influences of product movements in the vessel in mind.
lThe surface temperature on the housing must not exceed
the ignition temperature of the concerned explosive
atmosphere
This instrument was judged by a person that fulfils the
requirements acc.to DIN EN 60079-14.
2.8Environmental instructions
Protection of the environment is one of our most important
duties.That is why we have introduced an environment
management system with the goal of continuously improving
company environmental protection.The environment man-
agement system is certified acc.to DIN EN ISO 14001.
Please help us fulfil this obligation by observing the environ-
mental instructions in this manual:
lChapter "Storage and transport"
lChapter "Disposal"
VEGACAL 67 -Foundation Fieldbus 7
For your safety
31760-EN-060306

3Product description
3.1Configuration
The scope of delivery encompasses:
lVEGACAL 67 level sensor
ldocumentation
-this operating instructions manual
-Ex-specific safety instructions (with Ex versions), if
necessary further certificates.
VEGACAL 67 consists of the following components:
lProcess fitting with probe
lHousing with electronics
lHousing cover,optionally available with indicating and
adjustment module PLICSCOM
Scope of delivery
Components
8VEGACAL 67 -Foundation Fieldbus
Product description
31760-EN-060306

1
2
3
4

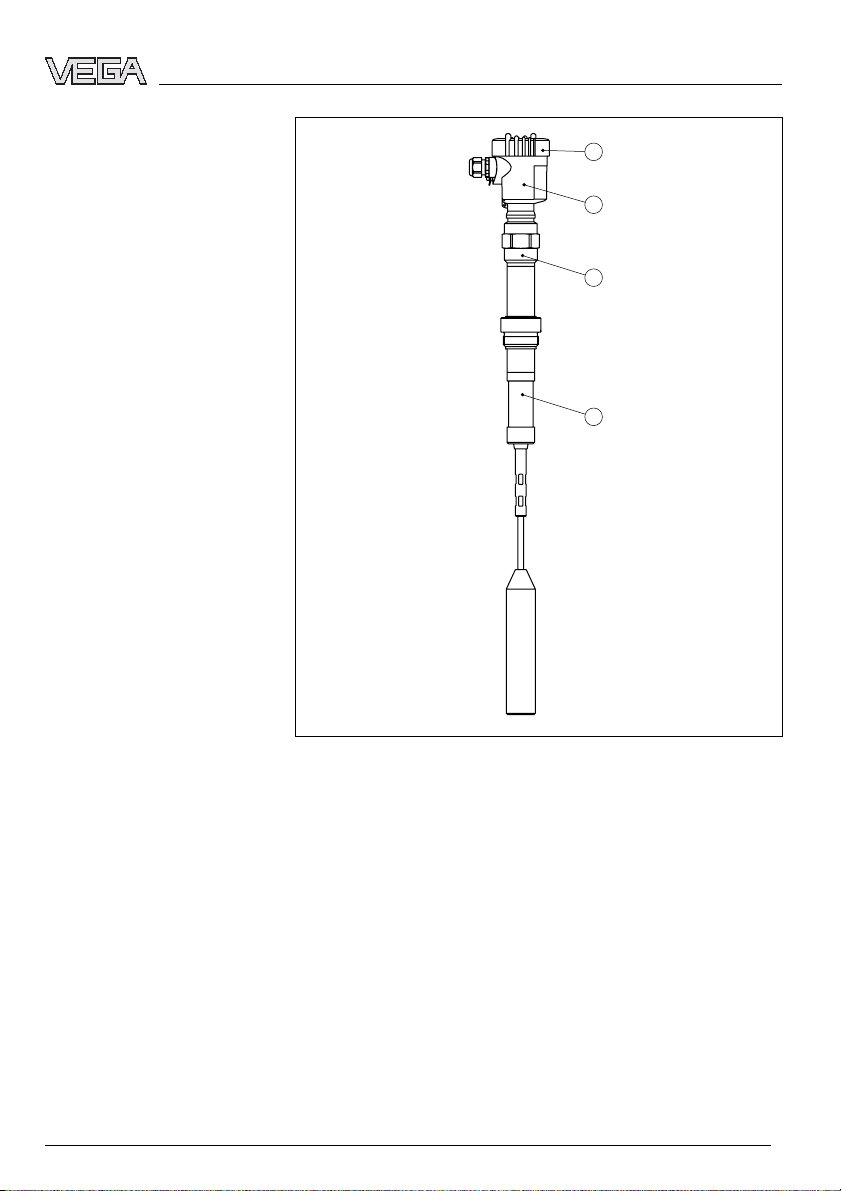

Fig.1:VEGACAL 67 with plastic housing
1Housing cover
2Housing with electronics
3Process fitting
4Ceramic insulator
3.2Principle of operation
VEGACAL 67 is a level sensor with partly insulated electrode
for continuous level measurement under high process tem-
peratures.
The electronics functions acc.to the admittance principle
(phase-selective admittance processing).
It is designed for industrial use in all areas of process
technology and can be applied in all areas of industrial process
measurement.
Area of application
VEGACAL 67 -Foundation Fieldbus 9
Product description
31760-EN-060306

Probes such as VEGACAL 67 are used in solids applications.
The range of the process temperature is -50 …300°C
(-58 …572°F). With remote housing -50 …400°C
(-58 …752°F).
The probe,the measured product and the vessel wall form an
electrical capacitor.The capacitance is influenced by three
main factors.
1
2
3

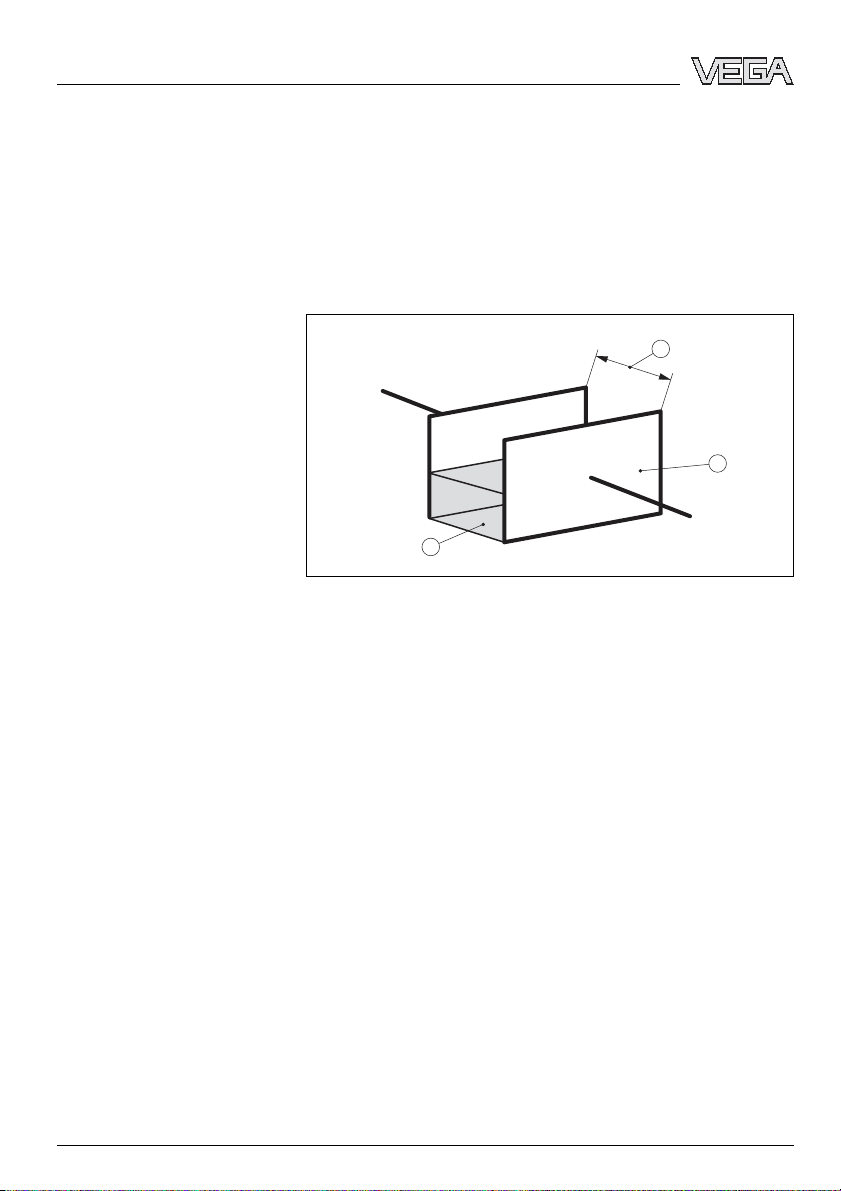

Fig.2:Functional principle -Plate capacitor
1Distance between the electrode surfaces
2Size of the electrode surfaces
3Type of dielectric between the electrodes
The probe and the vessel wall are the capacitor plates.The
measured product is the dielectric.Due to the higher dielectric
constant (DK value)of the product compared to air,the
capacitance increases as the probe is gradually covered.
The capacitance as well as the resistance change are
converted in the oscillator into a level-proportional signal.
Power is supplied via the H1Fieldbus.Atwo-wire cable acc.to
Fieldbus specification serves as carrier of both power and
digital data transmission for multiple sensors.This cable can
be operated in two versions:
lvia an H1interface card in the control system and
additional power supply
lvia a linking device with HSE (High speed Ethernet)and
additional power supply acc.to IEC 61158-2:
The DD (Device Descriptions)and CFF (capability files)
necessary for planning and configuration of your FF (Founda-
tion Fieldbus)communication network are available in the
Physical principle
Power supply and bus com-
munication
DD/CFF
10 VEGACAL 67 -Foundation Fieldbus
Product description
31760-EN-060306

download area of the VEGA homepage www.vega.com under
"Services -Downloads -Software -Foundation Fieldbus".The
appropriate certificates are also available there.ACDwith the
appropriate files and certificates can be ordered via e-mail
under [e-mail] or by phone from one of the VEGA
agencies under the order number "DRIVER.S".
The optional heating requires an own supply voltage.Details
are specified in the supplementary instructions manual
"Heating for indicating and adjustment module PLICSCOM".
3.3Adjustment
VEGACAL 67 can be adjusted with three different adjustment
media:
lthe indicating and adjustment module PLICSCOM
lthe suitable VEGA DTM in conjunection with an adjustment
software acc.to the FDT/DTM standard,e.g.PACTware™
and PC
la configuration tool
The entered parameters are generally saved in VEGACAL 67,
optionally also in PLICSCOM or in PACTware™.
3.4Storage and transport
Your instrument was protected by packaging during transport.
Its capacity to handle normal loads during transport is assured
by a test acc.to DIN EN 24180.
The packaging of standard instruments consists of environ-
ment-friendly,recyclable cardboard.For special versions,PE
foam or PE foil is also used.Dispose of the packaging material
via specialised recycling companies.
lStorage and transport temperature see "Supplement -
Technical data -Ambient conditions"
lRelative humidity 20 …85 %
Packaging
Storage and transport tem-
perature
VEGACAL 67 -Foundation Fieldbus 11
Product description
31760-EN-060306

4Mounting
4.1General instructions
Select an installation position you can easily reach for
mounting and connecting as well as later retrofitting of an
indicating and adjustment module.The housing can be rotated
by 330°without the use of any tools.You can also install the
indicating and adjustment module in four different positions
(each displaced by 90°).
With screwed versions,the housing must not be used for
screwing in!Tightening can cause damages on the locking
piston of the housing.
Use the hexagon for screwing in.
Use the recommended cables (see chapter "Connecting to
power supply")and tighten the cable gland.
You can give your VEGACAL 67 additional protection against
moisture penetration by leading the connection cable down-
ward in front of the cable entry.Rain and condensation water
can thus drain off.This applies mainly to mounting outdoors,in
areas where moisture is expected (e.g.by cleaning processes)
or on cooled or heated vessels.

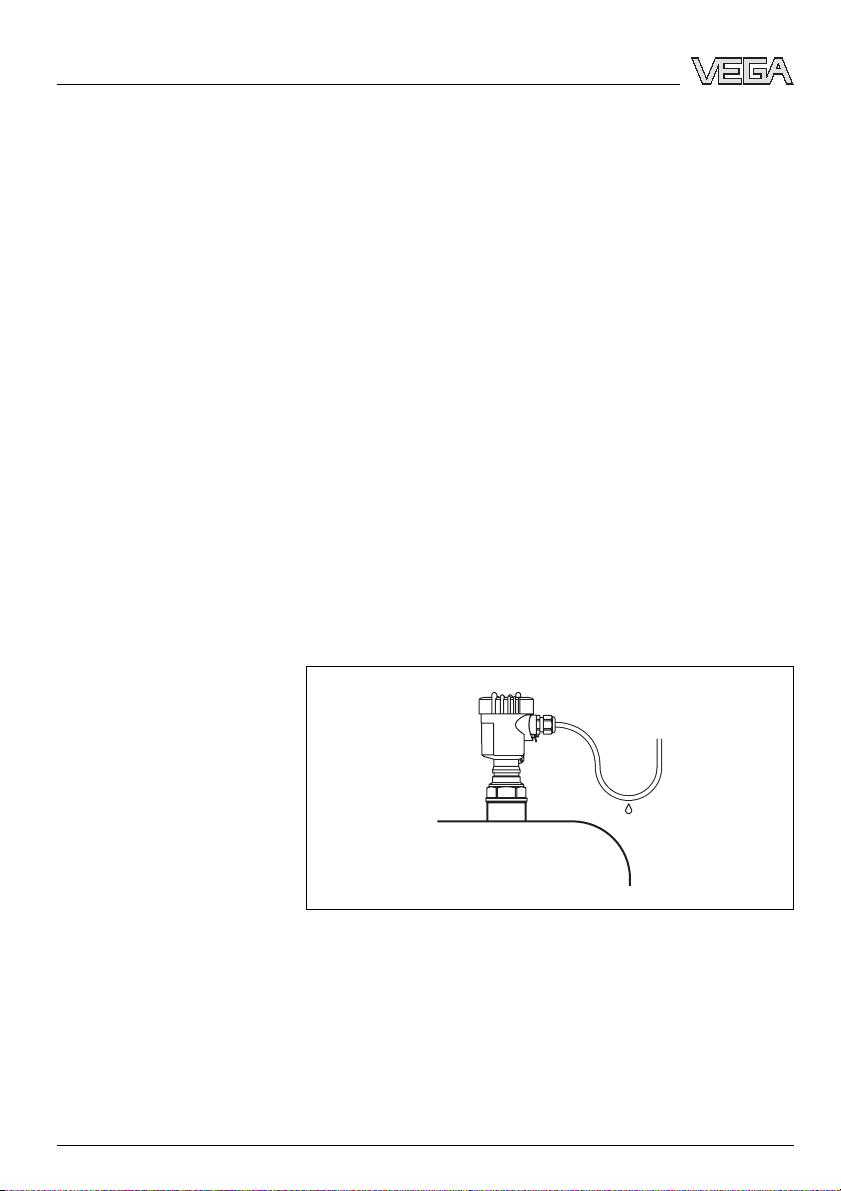

Fig.3:Measures against moisture penetration
The process fitting must be sealed if there is gauge or low
pressure in the vessel.Before use,check if the seal material is
resistant against the measured product.
The max.permissible pressure is stated in the "Technical
data"in the "Supplement"or on the type label of the sensor.
Installaton position
Handling
Moisture
Pressure/Vacuum
12 VEGACAL 67 -Foundation Fieldbus
Mounting
31760-EN-060306

Insulating measures,such as e.g.covering the thread with
teflon tape,can interrupt the necessary electrical connection
with metal vessels.For this reason,ground the probe on the
vessel or use a conductive seal material.
Metal vessel
Make sure that the mechanical connection of the probe to the
vessel is electrically conductive to ensure sufficient grounding.
Use conductive seals such as e.g.copper or lead etc.
Insulating measures,such as covering the thread with Teflon
tape,can interrupt the necessary electrical connection with
metal vessels.For this reason,ground the probe on the vessel
or use a conductive seal material.
Non-conductive vessel
In non-conductive vessels,e.g.plastic tanks,the second pole
of the capacitor must be provided separately,e.g.in the form
of a concentric tube.
If possible,the capacitive probe should be mounted vertically
or parallel to the counter electrode.This applies particularly to
applications in non-conductive products.
In cylindrical tanks,spherical tanks or other asymmetrical tank
forms,nonlinear level values are generated due to the varying
distance to the vessel wall.
Use a concentric tube in non-conductive products or linearize
the meas.signal.
4.2Mounting information
IfVEGACAL 67 is mounted in the filling stream,unwanted
switching signals may be generated.Mount VEGACAL 67 at a
location in the vessel where no disturbing influence from e.g.
filling openings,agitators,etc.can occur.
This applies particularly to instrument versions with a longer
probe.
Vessel material
Vessel forms
Inflowing material
VEGACAL 67 -Foundation Fieldbus 13
Mounting
31760-EN-060306

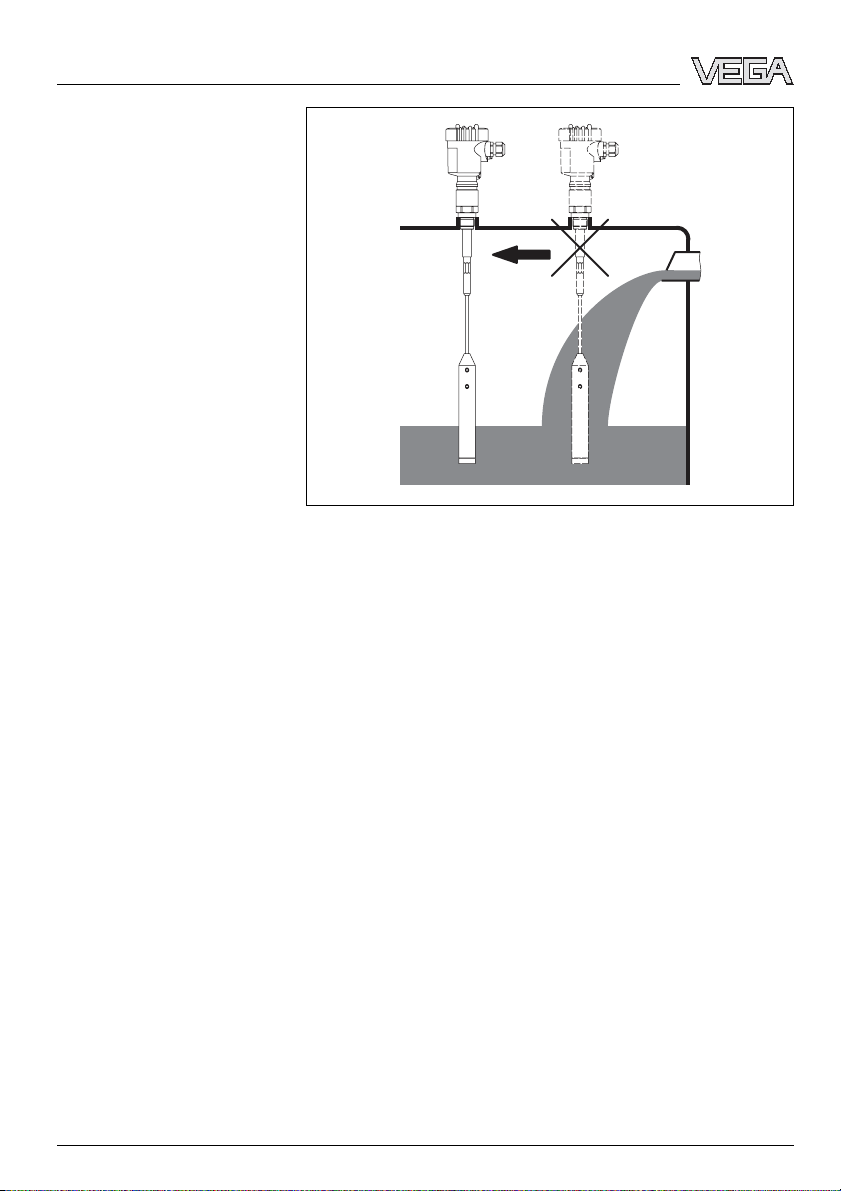

Fig.4:Inflowing material
Make sure that the max.permissible tensile load of the
suspension cable is not exceeded.The danger of this
happening exists particularly with very heavy solids and large
meas.lengths.The max.permissible load is stated under
"Technical data"in the "Supplement".
Tensile load
14 VEGACAL 67 -Foundation Fieldbus
Mounting
31760-EN-060306

5Connecting to power supply
5.1Preparing the connection
Always observe the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltages are expected,overvoltage arresters should
be installed acc.to Foundation Fieldbus specification.
VEGACAL 67 requires a power supply of 9…32 VDC.Power
and the digital bus signal are carried on the same two-wire
connection cable.Power supply via the H1power supply.
VEGACAL 67 is connected with screened cable acc.to the
Fieldbus specification.An outer cable diameter of 5…9mm
ensures the seal effect of the cable gland.
Please make sure that your entire installation is carried out
acc.to the Fieldbus specification.In particular,make sure that
the termination of the bus is done with appropriate terminating
resistors.
OnVEGACAL 67 with cable gland ½NPT and plastic housing,
a metal ½" threaded insert is moulded in the plastic housing.
Caution:
No grease should be used when screwing the NPT cable
gland or steel tube into the threaded insert.Standard grease
can contain additives affecting the connection between
threaded insert and housing.This will influence the stability of
the connection and the tightness of the housing.
In systems with potential equalisation,connect the cable
screen directly to ground potential at the power supply unit,in
the connection box and at the sensor.The screen in the sensor
must be connected directly to the internal ground terminal.The
ground terminal outside on the housing must be connected to
the potential equalisation (low impedance).
In systems without potential equalisation,connect the cable
screen directly to ground potential at the power supply unit and
at the sensor.In the connection box or T-distributor,the screen
of the short stub to the sensor must not be connected to
ground potential or to another cable screen.The cable screens
to the power supply unit and to the next distributor must be
connected to each other and also connected to ground
potential via a ceramic capacitor (e.g.1nF,1500 V). The low
Note safety instructions
Select power supply
Select connection cable
Cable gland ½NPT
Cable screening and ground-
ing
VEGACAL 67 -Foundation Fieldbus 15
Connecting to power supply
31760-EN-060306

frequency potential equalisation currents are thus suppressed,
but the protective effect against high frequency interference
signals remains.
5.2Connection steps
Proceed as follows:
1Unscrew the housing cover
2If an indicating and adjustment module is installed,remove
it by turning it slightly to the left.
3Loosen compression nut of the cable entry
4Remove approx.10 cm (4in)of the cable mantle,strip
approx.1cm (0.4in)insulation from the ends of the
individual wires
5Insert the cable into the sensor through the cable entry
6Lift the opening levers of the terminals with a screwdriver
(see following illustration)
7Insert the wire ends into the open terminals according to
the wiring plan
Fig.5:Connection steps 6and 7
8Press the opening lever of the terminals downward,you will
hear the terminal spring closing
9Check the hold of the wires in the terminals by lightly
pulling on them
16 VEGACAL 67 -Foundation Fieldbus
Connecting to power supply
31760-EN-060306

10 Connect the screen to the internal ground terminal and the
external ground terminal to potential equalisation
11 Tighten the compression nut of the cable entry,the seal
ring must completely encircle the cable
12 Screw the housing cover back on
The electrical connection is finished.
5.3Wiring plans,single chamber housing
1
4
44
2 3

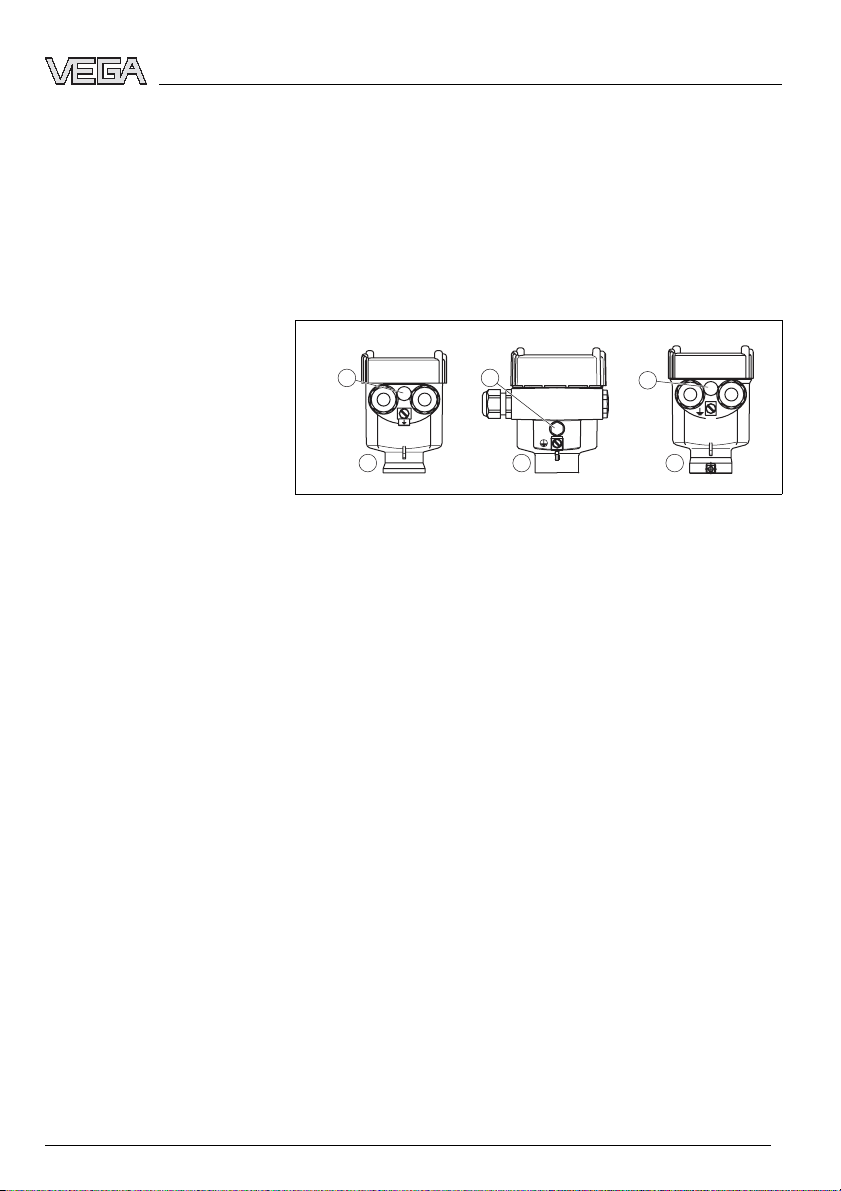

Fig.6:Material versions,single chamber housing
1Plastic
2Aluminium
3Stainless steel
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar
Housing overview
VEGACAL 67 -Foundation Fieldbus 17
Connecting to power supply
31760-EN-060306

I2C
3
4
51
2
Display
Ty p :
12 5678
Bus
Sim.
Fig.7:Electronics and connection compartment,single chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Spring-loaded terminals for connection of the external indication VEGADIS
61
3Ground terminal for connection of the cable screen
4Spring-loaded terminals for Foundation Fieldbus connection
5Simulation switch ("on"=mode for simulation release)
I2C
Display
1
12 5678
Fig.8:Wiring plan,single chamber housing
1Power supply/Signal output
Electronics and connection
compartment
Wiring plan
18 VEGACAL 67 -Foundation Fieldbus
Connecting to power supply
31760-EN-060306

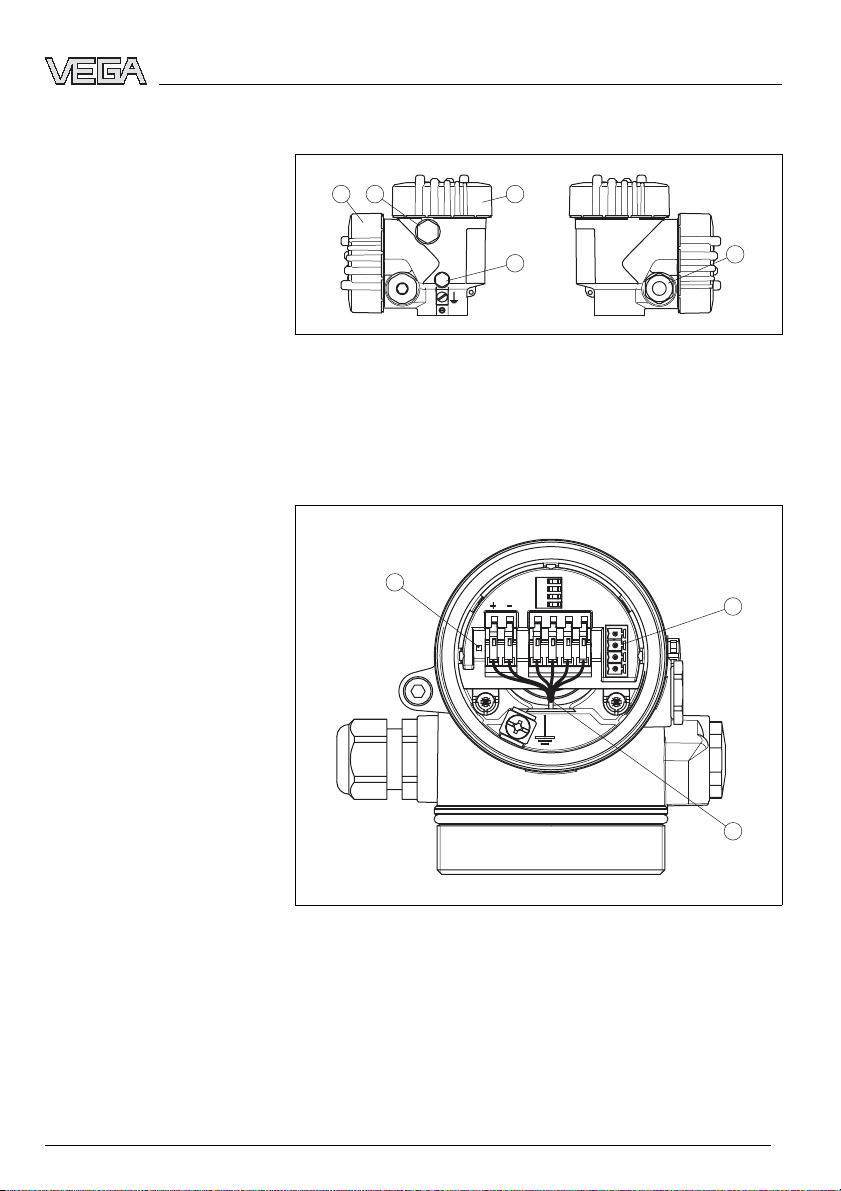

5.4Wiring plans,double chamber housing
1 2 3
45
Fig.9:Double chamber housing
1Housing cover,connection compartment
2Blind stopper or plug M12x1for VEGADIS 61 (option)
3Housing cover,electronics compartment
4Filter element for pressure compensation or blind stopper with version IP 66/
IP 68,1bar1)
5Cable entry or plug
I2C
2
3
1
Display
Ty p :
12 5678
Bus
Sim.
Fig.10:Electronics compartment,double chamber housing
1Simulation switch ("on"=mode for simulation release)
2Connection for VEGACONNECT (I²Cinterface)
3Internal connection cable to the connection compartment
1)Version IP 66/IP 68,1bar not with four-wire instruments.
Housing overview
Electronics compartment
VEGACAL 67 -Foundation Fieldbus 19
Connecting to power supply
31760-EN-060306

3
1
2
Display
12
I2C

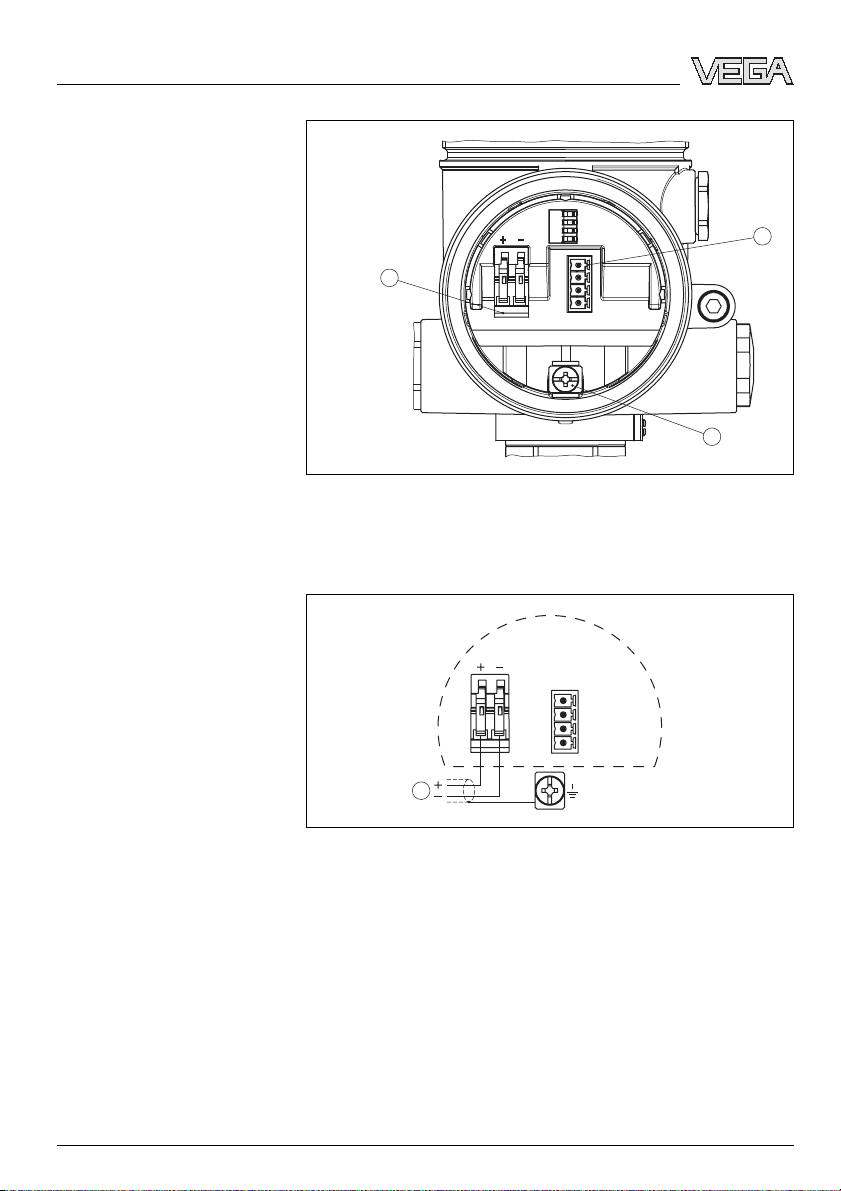

Fig.11:Connection compartment,double chamber housing
1Plug connector for VEGACONNECT (I²Cinterface)
2Ground terminal for connection of the cable screen
3Spring-loaded terminals for power supply
I2C
1
12
Fig.12:Wiring plan,double chamber housing
1Power supply/Signal output
Connection compartment
Wiring plan
20 VEGACAL 67 -Foundation Fieldbus
Connecting to power supply
31760-EN-060306
