Vega KFD0 Series User manual

Separating and protective instru-
ments
Separating and protective
instruments
VEGATRENN
149AEx
Separator type KFDO
Barrier type 9001
Product Information

Content
2Separating and protective instruments –Separating and protective instruments
Content
1Product description . . ........................................................................ 3
2Type overview .............................................................................. 5
3Mounting instructions......................................................................... 6
4Connecting to power supply
4.1Preparing the connection ................................................................... 7
4.2Wiring plan ............................................................................. 7
5Operation
5.1Adjustment of the separators ................................................................ 9
5.2Adjustment of the sensor ................................................................... 9
6Technical data ............................................................................. 10
7Dimensions................................................................................ 13
8Product code .............................................................................. 14
Take note of safety instructions for Ex applications
Please note the Ex specific safety information which you will find on our homepage www.vega.com\services\downloads and
which come with the appropriate instrument with Ex approval.In hazardous areas you should take note of the appropriate
regulations,conformity and type approval certificates of the sensors and power supply units.Each with Ex approval is an
associated,intrinsically safe instrument and must not be installed in hazardous areas.
31996-EN-071204

1Product description
Functional principle
Separators separate intrinsically safe circuits from non-intrinsi-
cally safe circuits.In general,a difference is made between gal-
vanic separation by:
lEx separators (with external energy)
lSeparators (without external energy)
Limitation of the electrical variables by:
lSafety barriers
Ex separator VEGATRENN 149AEx
The Exseparator VEGATRENN 149AEx is used as intrinsically
safe power supply for Ex approved 4…20 mA/HART sensors.
Through the auxiliary energy the sensor can be provided with
more power.The instrument ensures a galvanic separation be-
tween sensor circuit and processing circuit and hence between
Ex and non-Ex areas.The load-independent 4…20 mAcurrent
is transmitted linearly to the output.The sockets in the front en-
able HART communication with the sensor via VEGACONNECT
3.The necessary communication resistance (R=250 Ω) is al-
ready integrated in VEGATRENN 149AEx.
Product properties:
lUniversal for all passive 4…20 mA/HART sensors
lHART transmission to the output side
lSockets in the front for connection of VEGACONNECT
lSIL 2qualified
Fig.1:Ex separator VEGATRENN 149AEx
Separator type KFD0
The separator KFD0-CS-Ex1.51Pis used for intrinsically safe
power supply and signal transmission of Ex approved 4…20 mA
sensors.It is loop-powered without external energy.The instru-
ment ensures a galvanic separation between sensor circuit and
processing circuit and hence between Ex and non-Ex areas.The
load-independent 4…20 mAcurrent is transmitted linearly to the
output.However,aHART signal is not transmitted.
Product properties:
lUniversal for all passive 4…20 mAsensors
lAlso in conjunction with signal conditioning instruments with-
out own Exapproval
lLoop-powered,i.e.no additional power supply required
lMounting of the separator in Ex zone 2permitted
Fig.2:Separator type KFD0-CS-Ex1.51P
Safety barrier type 9001
The safety barrier type 9001 is used for intrinsically safe measur-
ing current transmission in ExZone 1without galvanic separation.
It is hence suitable for connection of an indicating instrument to
the non-intrinsically safe 4…20 mAoutput of a signal condition-
ing instrument.Safety barriers are also called zener barriers.
Product properties:
lUniversal use for all 4…20 mAindicating instruments
lLoop-powered,i.e.no additional power supply required
Fig.3:Safety barrier type 9001
1.1Application examples
Ex separator VEGATRENN 149AEx
20 ... 253 V
AC/DC
4 ... 20 mA SPS
1
2 3 4
Fig.4:Intrinsically safe supply of an ultrasonic sensor via VEGATRENN 149AEx,
indication of the measured value or transmission to a PLC/control system input card
(4…20 mA)
1Sensor
2VEGATRENN 149AEx
3Indication
4PLC/Control system/Processing system
Product description
Separating and protective instruments –Separating and protective instruments 3
31996-EN-071204

Separator type KFD0-CS-Ex1.51P
4 ... 20 mA
1
2
3
Fig.5:Connection of a guided microwave sensor to a VEGALOG 571 processing
system via the separator type KFD0
1Sensor
2Separator type KFD0-CS-Ex1.51P
3VEGALOG 571 processing system
Safety barrier type 9001
1
3
2
4
Fig.6:Connection of an indicating instrument to a VEGAMET signal conditioning
instrument via the safety barrier type 9001
1Sensor
2Safety barrier type 9001
3VEGAMET signal conditioning instrument
4Indication
Product description
4Separating and protective instruments –Separating and protective instruments
31996-EN-071204

2Type overview
Ex separator
VEGATRENN149AEx
Separator
Type KFD0-CS-Ex1.51P
Safety barrier
Type 9001
Applications:Galvanically separated voltage
supplyofEx approved4…20 mA
sensors
Galvanic separation of
intrinsically and non-intrinsically
safe 4…20 mAcircuits
Intrinsically safe measuring current
transmission in Ex zone 1
HART signal transmission:Yes NoNo
Sensors:4…20 mApassive 4…20 mApassive 4…20 mAindication
Mounting:Carrier rail Carrier rail Carrier rail
Ignition protection label:II (1)G D [EEx ia]IIC II (1)G D [EEx ia]IIC II (1/2)G[EEx ia/ib]IIC/IIB
Type overview
Separating and protective instruments –Separating and protective instruments 5
31996-EN-071204

3Mounting instructions
Installation
All separators described in this product information manual are
mounted on carrier rail 35 x7.5according to EN 50022.
Mounting instructions
6Separating and protective instruments –Separating and protective instruments
31996-EN-071204

4Connecting to power supply
4.1Preparing the connection
Note safety instructions
Always keep in mind the following safety instructions:
lConnect only in the complete absence of line voltage
lIf overvoltage surges are expected,overvoltage arresters
should be installed
Tip:
We recommend VEGA overvoltage arresters B61-300
(external energy)and B62-36G(sensor supply).
Take note of safety instructions for Ex applications
In hazardous areas you should take note of the appro-
priate regulations,conformity and type approval certifi-
cates of the sensors and power supply units.
Select power supply
The voltage supply for the Ex separator VEGATRENN 149AEx
mustbe in therangeof20 …250 V AC,50/60 Hz or 20 …250 V DC.
Selecting connection cable
For power supply of VEGATRENN 149AEx,an approved instal-
lation cable with PE conductor is necessary.
The sensor or the signal conditioning instrument are connected
with standard two-wire cable to the separator.If strong electro-
magnetic interference is expected,screened cable should be
used.
Cable screening and grounding
If screened cable is used,connect the cable screen on both ends
to ground potential.In the sensor,the screen must be connected
directly to the internal ground terminal.The ground terminal on the
outside of the housing must be connected to the potential equal-
isation.
If potential equalisation currents are expected,the screen con-
nection on the separator or signal processing instrument must be
made via a ceramic capacitor (e.g.1nF,1500 V). The low fre-
quency potential equalisation currents are thus suppressed,but
the protective effect against high frequency interference signals
remains.
Select connection cable for Ex applications
Take note of the corresponding installation regulations
for Ex applications.In particular,make sure that no po-
tential equalisation currents flow over the cable screen.
In case of grounding on both sides this can be achieved
by the use of a capacitor or a separate potential equal-
isation.
4.2Wiring plan
Ex separator VEGATRENN 149AEx
0+H 0+ 0- L/+ N/-
0+H0+0-L/+N/-
I+ I-
1
2
3
4

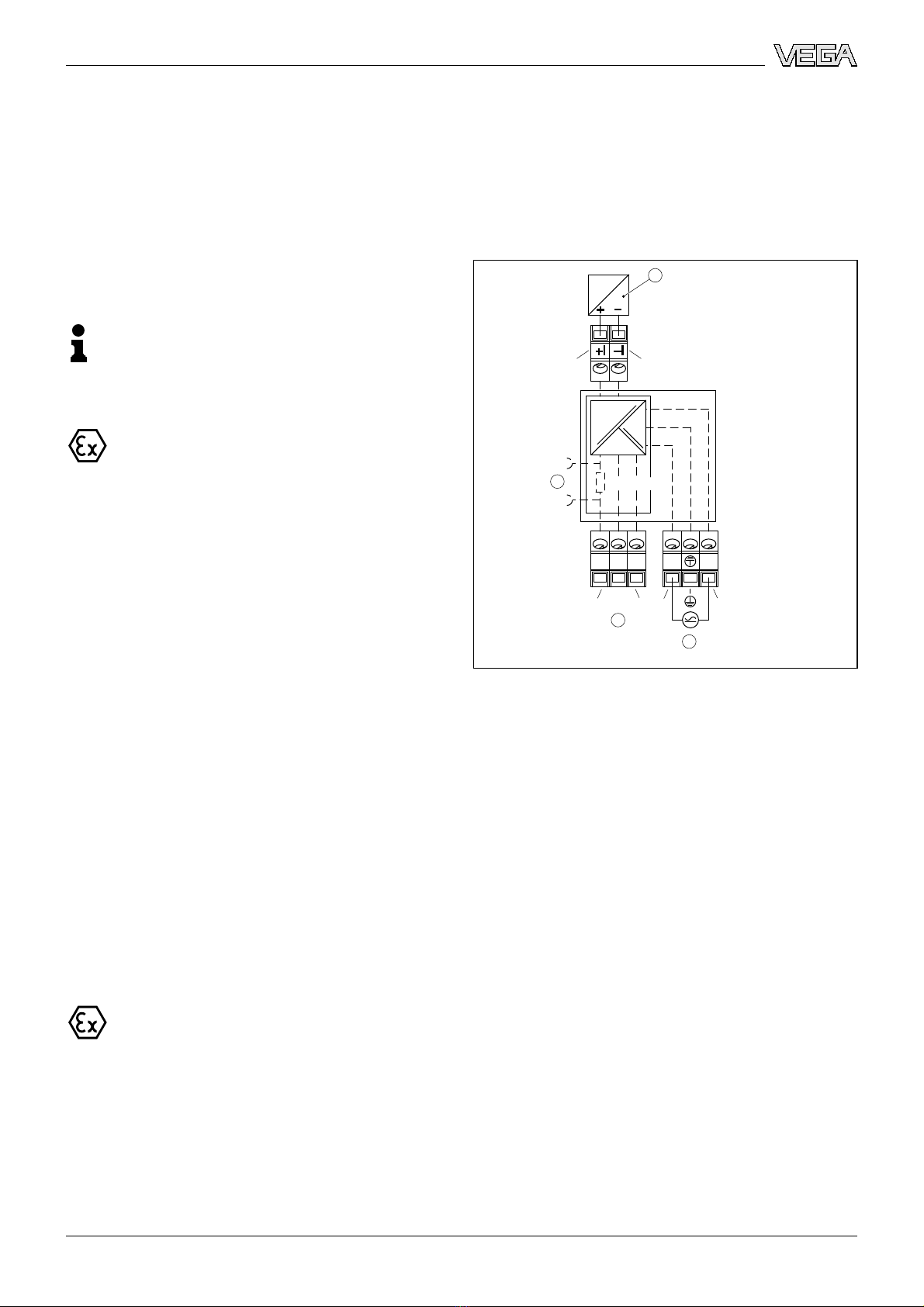

Fig.7:Terminal assignment VEGATRENN 149AEx
1Sensor circuit
2Processing circuit
3Power supply
4HART communication sockets
Connecting to power supply
Separating and protective instruments –Separating and protective instruments 7
31996-EN-071204

Separator type KFD0-CS-Ex1.51P
2-
-
-
1+
12- 11+
J
U
1
2
Fig.8:Terminal assignment separator type KFD0-CS-Ex1.51P
1Sensor circuit
2Processing circuit
Safety barrier type 9001
3 4
1 2
9001/01-
086/150/10
160
+-
+
-
+-
34
1
2
Fig.9:Terminal assignment safety barrier type 9001
1Input circuit (non-intrinsically safe)
2Output circuit (intrinsically safe)
Connecting to power supply
8Separating and protective instruments –Separating and protective instruments
31996-EN-071204

5Operation
5.1Adjustment of the separators
After installation,the separators described in this product infor-
mation manual are immediately ready for operation.An adjust-
ment is not required.
5.2Adjustment of the sensor
A VEGA sensor powered via the VEGATRENN 149AEx can be
also adjusted via the VEGATRENN 149AEx.You will need a
Windows-PC with the configuration software PACTware™and
a suitable instrument driver (DTM)according to the FDT stand-
ard.For connection,the VEGACONNECT 3interface converter
with corresponding cable is required.
4 ... 20 mA SPS
1
2
4
5
VEGACONNECT 3
PACTwa re /
VEGA-DTM
TM
2 3 6
Fig.10:Adjustment of the sensor via VEGACONNECT 3and VEGATRENN
149AEx
1Sensor
2VEGATRENN 149AEx
3Indication
4HART adapter cable for VEGACONNECT 3
5RS232 connection
6PLC/Control system/Processing system
Necessary components:
lSensor
lPC with PACTware™and suitable VEGA DTM
lVEGACONNECT 3with HART adapter cable
lVEGATRENN 149AEx
Operation
Separating and protective instruments –Separating and protective instruments 9
31996-EN-071204

6Technical data
General data
VEGATRENN149AEx
Series Instrument for mounting on carrier rail 35 x7.5according to EN 50022
Dimensions W=22.5mm (0.89 in), H=112 mm (4.41 in), D=110 mm (4.33 in)
Housing material Polycarbonate ABS,flammability class UL94V-0
Weight approx.150 g(0.44 lbs)
Separator type KFD0-CS-Ex1.51P
Series Instrument for mounting on carrier rail 35 x7.5according to EN 50022
Dimensions W=20 mm (0.79 in), H=115 mm (4.53 in), D=107 mm (4.21 in)
Weight approx.100 g(0.22 lbs)
Safety barrier type 9001
Series Instrument for mounting on carrier rail 35 x7.5according to EN 50022
Dimensions B=12.2mm (0.48 in), H=71.5mm (2.81 in), T=102 mm (4.01 in)
Housing material Polyamide 6GF
Weight approx.115 g(0.44 lbs)
Sensor circuit
VEGATRENN 149AEx
Range 4…20 mA
Supply voltage 16.7V±0.2V(at 20 mA)
Open-circuit voltage 26 V±5%
Shortcircuit current ≤32 mA
Inner resistance 328 Ω
VEGATRENN 149AEx intrinsically safe (max.values in case of failure)
Open-circuit voltage U
o
≤27.3V
Shortcircuit current I
o
≤84.1mA
Power P
o
≤576 mW
Capacitances
-EEx ia IIC C
o
≤86 nF
-EEx ia IIB C
o
≤683 nF
-EEx ia IIA C
o
≤683 nF
Inductances
-EEx ia IIC L
o
≤5.5mH
-EEx ia IIB L
o
≤20 mH
-EEx ia IIA L
o
≤20 mH
Separator type KFD0-CS-Ex1.51P
Range 4…20 mA
Output voltage
-at 4V<supply voltage <24 V≥supply voltage - (0.4x current in mA)V-1V
-with supply voltage ≥24 V23 V- (0.4x current in mA)V
Shortcircuit current ≤65 mA
Separator type KFD0-CS-Ex1.51Pintrinsically safe (max.values in case of failure)
Open-circuit voltage U
o
≤25 V
Shortcircuit current I
o
≤93 mA
Power P
o
≤585 mW
Capacitances
-EEx ia IIC C
o
≤2.41 µF
-EEx ia IIB C
o
≤16.8µF
-EEx ia IIA C
o
≤75 µF
Inductances
-EEx ia IIC L
o
≤4mH
-EEx ia IIB L
o
≤17 mH
-EEx ia IIA L
o
≤32 mH
Technical data
10 Separating and protective instruments –Separating and protective instruments
31996-EN-071204

Input circuit
Safety barrier type 9001
Nominal voltage 6V DC
Zener voltage 8.6V
Leakage current against ground with U
Nom
≤1µA
min.longitudinal resistance 64 Ω
max.longitudinal resistance 73 Ω
Processing/Output circuit
VEGATRENN 149AEx
Open-circuit voltage 24 V±10 %
Max.load
-without communication resistance 700 Ω
-with communication resistance 450 Ω
Separator type KFD0-CS-Ex1.51P
Voltage 4…35 V DC
Current 40 mA
Power loss
-with 40 mAand voltage <24 V700 mW
-with 40 mAand voltage ≥24 V1.2W
Indication circuit
Safety barrier type 9001
Shortcircuit current ≤150 mA
Capacitances
-EEx ia IIC C
o
≤6.2µF
-EEx ia IIB C
o
≤55 µF
Inductances
-EEx ia IIC L
o
≤1.3mH
-EEx ia IIB L
o
≤7mH
Ambient conditions
VEGATRENN 149AEx
Ambient temperature -20 …+50 °C(-4…+122 °F)
Storage and transport temperature -40 …+70 °C(-40 …+158 °F)
Separator type KFD0-CS-Ex1.51P
Ambient temperature -20 …+60 °C(-4…+140 °F)
Safety barrier type 9001
Ambient temperature -20 …+60 °C(-4…+140 °F)
Storage and transport temperature -40 …+75 °C(-40 …+167 °F)
Voltage supply
VEGATRENN 149AEx
Supply voltage 20 …253 V AC,50/60 Hz
20 …253 V DC
Max.power consumption 2.4W
Electrical protective measures
VEGATRENN 149AEx
Protection IP 20
Technical data
Separating and protective instruments –Separating and protective instruments 11
31996-EN-071204

Separator type KFD0
Protection IP 20
Safety barrier type 9001
Protection
-Terminal bearing IP 20
-Housing IP 40
Electrical separating measures
VEGATRENN 149AEx
Galvanic separation Output circuit of all other circuits
Separator type KFD0-CS-Ex1.51P
Galvanic separation Output circuit to input circuit
Approvals1)
VEGATRENN 149AEx
ATEX II (1)G D [EEx ia]IIC
Separator type KFD0-CS-Ex1.51P
ATEX II (1)G D [EEx ia]IIC
Safety barrier type 9001
ATEX II (1/2)G[EEx ia/ib]IIC/IIB
Environmental instructions
VEGA environment management system certified according to DIN EN ISO 14001
You can find detailed information under www.vega.com.
Technical data
12 Separating and protective instruments –Separating and protective instruments
1)Deviating data in Ex applications:see separate safety instructions.
31996-EN-071204

7Dimensions
VEGATRENN 149AEx
on
CONNECT
149AEx
110mm (4 21/64")
96mm (3 25/32")
22,5mm
(57/64")
112mm (4 13/32")
Fig.11:Dimensions VEGATRENN 149AEx
Separator type KFD0-CS-Ex1.51P
107mm (4 7/32")
20mm
(25/32")
115mm (4 17/32")
Fig.12:Dimensions separator type KFD0-CS-Ex1.51P
Safety barrier type 9001
102mm (4 1/64")
12,2 mm
(31/64")
71,5mm (2 25/64")
9001/01-
086-150
101
3 4
160
160
Fig.13:Dimensions safety barrier type 9001
Dimensions
Separating and protective instruments –Separating and protective instruments 13
31996-EN-071204

8Product code
VEGATRENN 149AEx
Approval
EX.X ATEX II (1) G D [EEx ia] IIC
TRENN149A
Separator type KFD0-CS-Ex1.51P
KFD0-CS-EX1.51P
Safety barrier type 9001
TRENN9001.
Product code
14 Separating and protective instruments –Separating and protective instruments
31996-EN-071204

Separating and protective instruments –Separating and protective instruments 15
31996-EN-071204

VEGA Grieshaber KG
AmHohenstein 113
77761 Schiltach
Germany
Phone [phone]
Fax [phone]
E-Mail:[e-mail]
www.vega.com
You can find at www.vega.com
downloads of the following
loperating instructions manuals
lmenu schematics
lsoftware
lcertificates
lapprovals
and much,much more
Subject to change without prior notice 31996-EN-071204
