Veil Atlas User manual

CoversbyVeil.com
1-833-567-5050
1

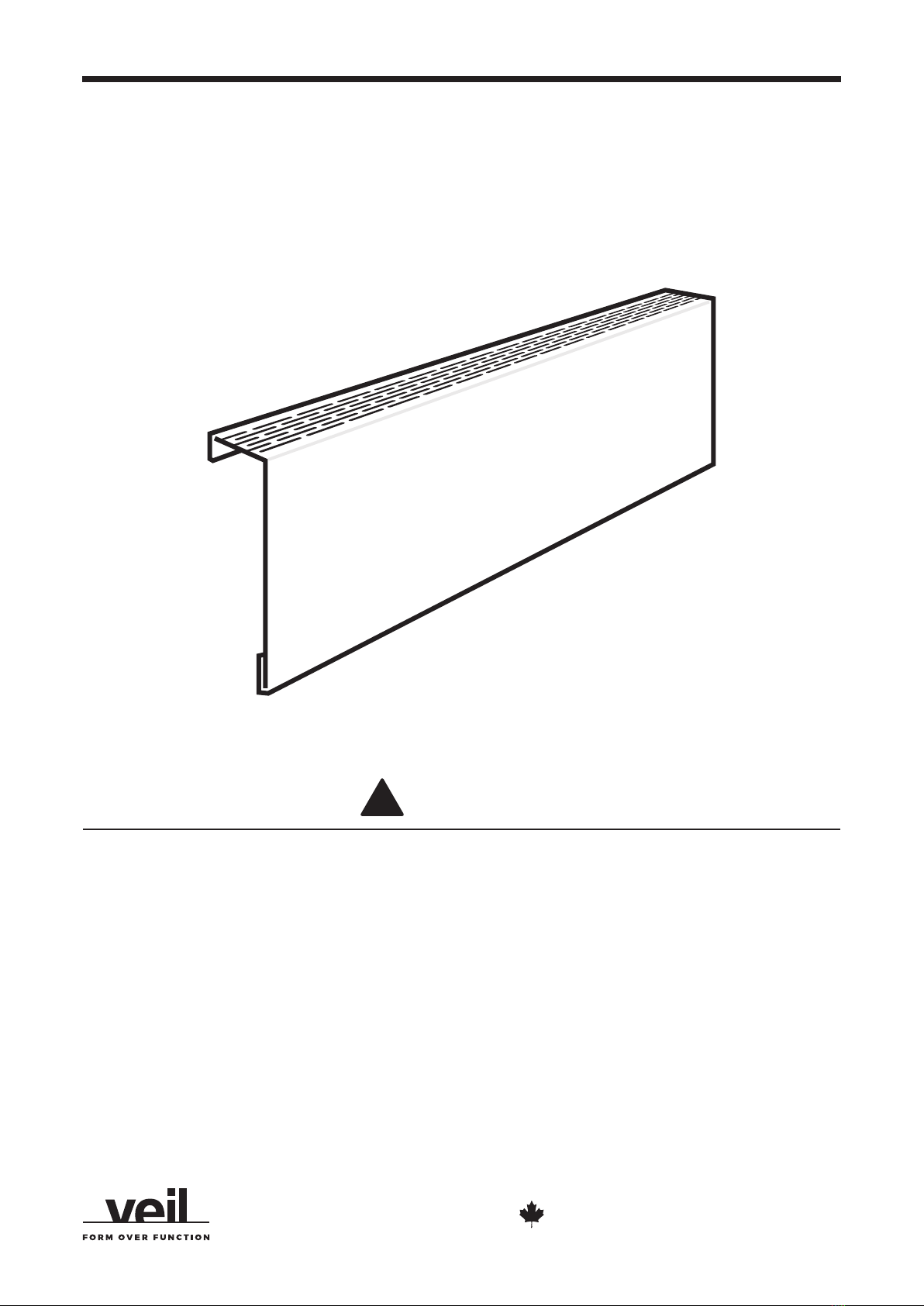

Atlas &Atlas XL
Baseboard heater covers Installation Guide
WARNING
Sharp edges. Watch your ngers.
Made in Canada
WHEN USING ELECTRICAL APPLIANCES, BASIC
PRECAUTIONS SHOULD ALWAYS BE FOLLOWED TO REDUCE
THE RISK OF FIRE ELECTRIC SHOCK, AND INJURY TO
PERSONS, INCLUDING THE FOLLOWING:
1. Read all instructions before installing or using the cover.
2. Sharp edges and corners may be present on the baseboard

using the proper end cap. Please use caution during installation
to avoid injury.
!

4.Do not insert or allow foreign objects to enter any ventilation

or damage the heater.



from heater.

2
1
2
Remove old cover.
Install the new panel
a
b

CoversbyVeil.com
1-833-567-5050
3
3Install the end caps
The end cap can be any of these options:
Zero Clearance Open Closed
a
b

4
If you do not have an existing back plate, you can use the mounting
bracket add-on:
?
Done !
1Screw-in the brackets to the wall 2Install the panel and proceed as
described it the end caps.

CoversbyVeil.com
1-833-567-5050
5
You can join to adjacent panels using the coupler piece:
?
1
2
2
a
b
Please make sure there is a clearance of at least 3/4 inches between
the heater cover and the floor to insure proper air flow.
!
3/4” or Bigger

6
You can join to adjacent panels at an angle using the corner pieces:
?
1
a
b
2
The corner piece can be any of these options:
90 degrees
outside corner
90 inside corner 135inside corner
135 degrees
outside corner
