Vela Tango 500 User manual

VELA Tango
VELA Tango 500 VELA Tango 500El
VELA Tango 510ElVELA Tango 510
500/500EL/510/510EL
VERSION:
INSTRUCTION FOR USE EN
Manual no. 105234

TABLE OF CONTENTS
1.0. INTRODUCTION 3
1.1. WARNINGS 4
1.2. TROUBLESHOOTING 5
1.3. VELA TANGO WITH ELECTRIC HEIGHT ADJUSTMENT 6
1.3.1. Power input 6
1.3.2. Emission 6
1.3.3. Surge protection 6
1.4. LABELS USED ON THE CHAIR 7
1.5. SAFETY 7
1.5.1. Application 7
1.5.2. Transport 8
1.6. WARRANTY 8
1.7. UNPACKING THE CHAIR 8
1.8. MAINTENANCE 8
1.8.1. Wheels 8
1.8.2. Frame 9
1.8.3. Padding 9
1.8.4. Recycling guide 9
1.9. RECYCLING AND DISPOSAL 9
2.0. SETTINGS 10
2.0.1. Attaching the backrest 10
2.0.2. Height adjustment (VELA Tango El) 10
2.0.3. Height adjustment (VELA Tango) 10
2.0.4. Setting angle of seat 11
2.0.5. Setting angle of backrest 11
2.0.6. Adjusting lumbar support (ALB back) 11
2.0.7. Setting the back height 11
2.0.8. Back bolt (High back) 12
2.0.9. Adjusting the armrest height 12
2.0.10. Adjusting the armrest width 12
2.0.11. Fold-down armrest 12
2.0.12. Rotation 13
2.0.13. Brake 13
2.0.14. Charging (VELA Tango El) 13
2.0.15. Folding footrest 13
2.0.16. Footrest (optional) 14
2.0.17. Strolling bracket (optional) 14
2.0.18. Foot pedal for braking (optional) 14
2.0.19. Angle switch (optional) 14
2.0.20. Hand box (optional) 15
2.0.21. Electric braking (optional) 15

3
DEAR CUSTOMER
Congratulations on your new VELA chair! We are sure
this chair will give you daily pleasure. This user manual
provides useful information on adjusting, operating
and maintaining your chair.
Important
Please read this user manual carefully and keep it safe
for when you need to refer to it. This manual is also
available on VELA’s website: www.vela.eu, where you
can also find other relevant information.
If you have any questions, please contact your
supplier.
We reserve the right to make changes.
VELA
Gøteborgvej 8-12
9200 Aalborg SV
Denmark
www.vela.eu
1.0. INTRODUCTION

4
1.1. WARNINGS
Use In case of an allergic reaction, stop using the chair and consult a doctor
Use Only use original spare parts from VELA
Use Only use the supplied charger for charging the chair
Use Do not make any changes to the accessories that come with the chair
Use Only use the chair for the intended purpose
Use Only adjust the seat angle while the user’s feet are on the floor
Use Always have the chair brake on when you sit down or get up
Use Never use the chair on surfaces with level dierences as the chair may become unstable
Use Maintenance other than cleaning should always be performed by a professional
Use Never service the chair while it is in use
Use Always follow the recommended maintenance and cleaning instructions
Use The chair's functions are intended for the user. Only the user or trained professionals
should adjust the chair while the user is sitting in it
Use Never use the electric height adjustment for more than two minutes at a time
Use In the event of an electrical error or unintentional height adjustment, push both of the
buttons for height adjustment simultaneously for 10 seconds
Use Risk of shearing or squeezing fingers in moving parts. Therefore, never use the chair if
someone is touching underneath the seat
Choking hazard Choking hazard on small parts. Never allow children to play with the chair, as small parts
are removable
Choking hazard If the chair is equipped with electric height adjustment, cables will be present. Never let
children play with these
Electric noise Using cables other than the standard ones may increase electrical emission or decrease
electrical immunity
Electric noise Avoid placing the chair close to appliances that emit electrical noise
Electric noise The chair may only be used with accessories mentioned in this user manual, as electro-
magnetic interference may otherwise occur
Electric noise If the chair moves unintentionally or does not work as expected, find another location
for the chair

5
1.2. TROUBLESHOOTING
Mistake Possible cause and solution
Electric height adjustment does not work The plug is not in the armrest – plug it in
There is no power on the chair's battery. Charge the
battery with the supplied charger
The fuse is broken. See section 1.3.3
Manual height adjustment does not work There is too much load or uneven load on the chair.
Try to adjust the height without sitting in the chair. If
this does not work, the gas cartridge is defective and
should be replaced. Contact your VELA supplier
The brake function does not work The brake is not activated. See section 2.0.13, 2.0.18,
or 2.0.21
The armrest seems loose One of the hand screws might be loose. Tighten the
hand screw
The chair rolls badly Wheels are blocked. Clean the wheels for wire residue
and the like.
Brake rod or chassis is in the way when I move in the
chair
You have a chair with seat rotation. Use seat rotation to
straighten the chair. See section 2.0.12
If the above does not solve your problem, you should contact your VELA
supplier.

6
1.3. VELA TANGO WITH ELECTRIC HEIGHT ADJUSTMENT
1.3.1. POWER INPUT
Voltage: 24Vdc
Current: 0.5A
Power: 12VA
1.3.2. EMISSION
A VELA chair with electrical functions has been tested and complies with
current requirements regarding electromagnetic radiation (EMC requirements).
The chair is tested to the following specifications:
:: Emission class CISPR 11, Group 1, Class B
See more details at www.vela.eu
1.3.3. SURGE PROTECTION
A fuse is installed on the chair which secures the chair against power surges.
The replaceable part of the fuse has the following specifications:
:: Flat fuse, type: ATOF blade fuse, fast-acting
:: Voltage: 32V
:: Current: 10A
:: Max. current: 1000A
Replacement of the fuse may only be performed by professionals, as the
cause of the breach must be documented for safety reasons.

7
1.5. SAFETY
This chair is CE marked and com-
plies with applicable EU regulations.
The chair is manufactured by:
VELA, Gøteborgvej 8-12,
9200 Aalborg SV, Denmark.
The VELA Tango 500/510 with
electrical functions meets all safe-
ty requirements according to IEC
60601-1, including requirements for
EMC according to IEC60601-1-2.
1.5.1. APPLICATION
This chair is an indoor chair
intended for sitting and private use.
:: The chair is not built to stand on
:: The wheel brake must always be
activated when sitting down or
standing up
All variants of this chair are tested
and approved for a maximum load
of 160 kg.
IN GENERAL
1.4. LABELS USED ON THE CHAIR
Warning Risk of shear and squeeze:
Keep hands and fingers away from moving parts
Icon
Read ”Instruction For Use” before use
Icon
Part used:
Type B cf. IEC60601-1
covering the following areas of the chair:
Labels 60 x 22.5 mm
This label only applies to
chairs with electrical functions:
The chair is IP21 approved,
which corresponds to protection against
water droplets as well as against touching dangerous parts with a finger.
Labels on the chair should be read at a distance of approx. 40 cm under normal
daylight conditions.
For labels related to the operation of the chair, please refer to section 2.0.
IdentNo.:
<Model name>
<Model ref no.>
<Manufacturer>
<Adress>
<Webpage>
<IdentNo.>
<Safe Working load>
<Production date/order no.>
<ME Equipment mass>
Follow instructions
for use
IP21
EN60601-1
Blade fuse: 10A/32V,
0.5A
Input:
24V
Duty cycle: 10%,
max. 2min/18min Storage limits
-20°C 60°C

8
Note: Persons using a harness in
the chair must always be supervised
when the harness is in use.
1.5.2. TRANSPORT
When transporting the chair by
car, airplane or any other means of
transport, always use the chair brake.
The chair is not approved for use as
a passenger seat in any means of
transportation and may not be used
as such.
The chair is designed to be
transported under the following
environmental conditions:
Temperature: - 20°C to + 60°C
Humidity: 15-95%
Allow the chair to stand for 24 hours
before use if it has been stored
below - 10°C.
1.6. WARRANTY
VELA grants a right of claim under
applicable law in the country where
the chair is acquired. The right of
complaint applies only when using
original spare parts and accessories,
as well as customisations made by
professionals.
Note: if an exclusive contractual
agreement has been made directly
with VELA, this applies!
VELA assumes no liability for
damages to the product or the user
caused by:
:: Transportation
:: Misuse
:: Normal wear and tear
:: Wrong use
:: Use of spare parts and accessories
that are not original VELA products
:: Adjustments made by unauthor-
ised service technicians
1.7. UNPACKING THE CHAIR
The chair comes in environmentally
friendly and recyclable packaging.
In case of defects or transport
damage to the chair, please contact
your VELA supplier right away. In
such cases, do not attempt to use
the chair or to fix it yourself.
On delivery you have received:
:: VELA chair
:: Instructions for use
:: Charger (only for chairs with elec-
trical functions)
Note: see item 2.0.1 for correct
attachment of backrest.
1.8. MAINTENANCE
We recommend an annual inspec-
tion of the chair to identify any de-
fective or worn parts. All removable
parts should be tightened regularly.
You can find various guides on
www.vela.eu.
1.8.1. WHEELS
We recommended you regularly
check the wheels and remove any
residual threads, etc.

9
1.8.2. FRAME
Clean with lukewarm water and if
necessary, add some pH-neutral
detergent.
1.8.3. PADDING
Fabric: Clean by chemical cleaning,
with furniture cleaner or with water
using a hard-wrung cloth.
Synthetic fabric or leather: Clean
with water or mild soap using a hard-
wrung cloth.
Leather: Clean by vacuuming with a
soft brush. Avoid using detergent.
Note: On www.vela.dk you can
find cleaning instructions for all our
standard upholstery types.
1.8.4. RECYCLING GUIDE
Your VELA chair can be reused by
another person when you no longer
need it as long as the chair is ser-
viced by a technician beforehand.
The life expectancy of the chair is
five years for regular and proper use
as long as VELA, your VELA supplier
or a trained professional perform an
annual inspection with replacement
of worn parts.
1.9. RECYCLING AND DISPOSAL
This product contains recyclable
materials. Therefore, the product
must be disposed of in accord-
ance with local regulations and not
together with ordinary household
waste. Proper disposal and recycling
will help prevent negative eects on
the environment and people.
Note: Electrical and electronic
equipment and accompanying
batteries contain materials, com-
ponents and substances that can
be harmful to human health and
the environment if the waste is not
handled properly.
Electrical and electronic equipment
and batteries are marked with the
icon shown below. This symbolises
that electrical and electronic equip-
ment and batteries must not be
disposed of together with unsorted
household waste but must be col-
lected separately.
It is important that you return your
used batteries to the established
schemes. In this way, you help
ensure that batteries are recycled in
accordance with current legislation
and do not cause unnecessary harm
to the environment.

10
VELA
TANGO
VELA
TANGO EL
2.0.2. HEIGHT ADJUSTMENT (VELA TANGO EL)
Can be operated from the underside of either the right or left
armrest. The armrest can easily be moved to the opposite side.
VELA Tango El is also available with height adjustment via hand
box (if caregivers are to be able to adjust the height).
Note: Height function should only be used continuously for
one minute, then a nine-minute break should follow.
2.0.3. HEIGHT ADJUSTMENT (VELA TANGO)
Adjusted by pulling up the front handle on the right-hand side.
2.0. SETTINGS
The gas spring and the electric lifting mechanism
should only be replaced by a VELA technician or a
person trained in this field.

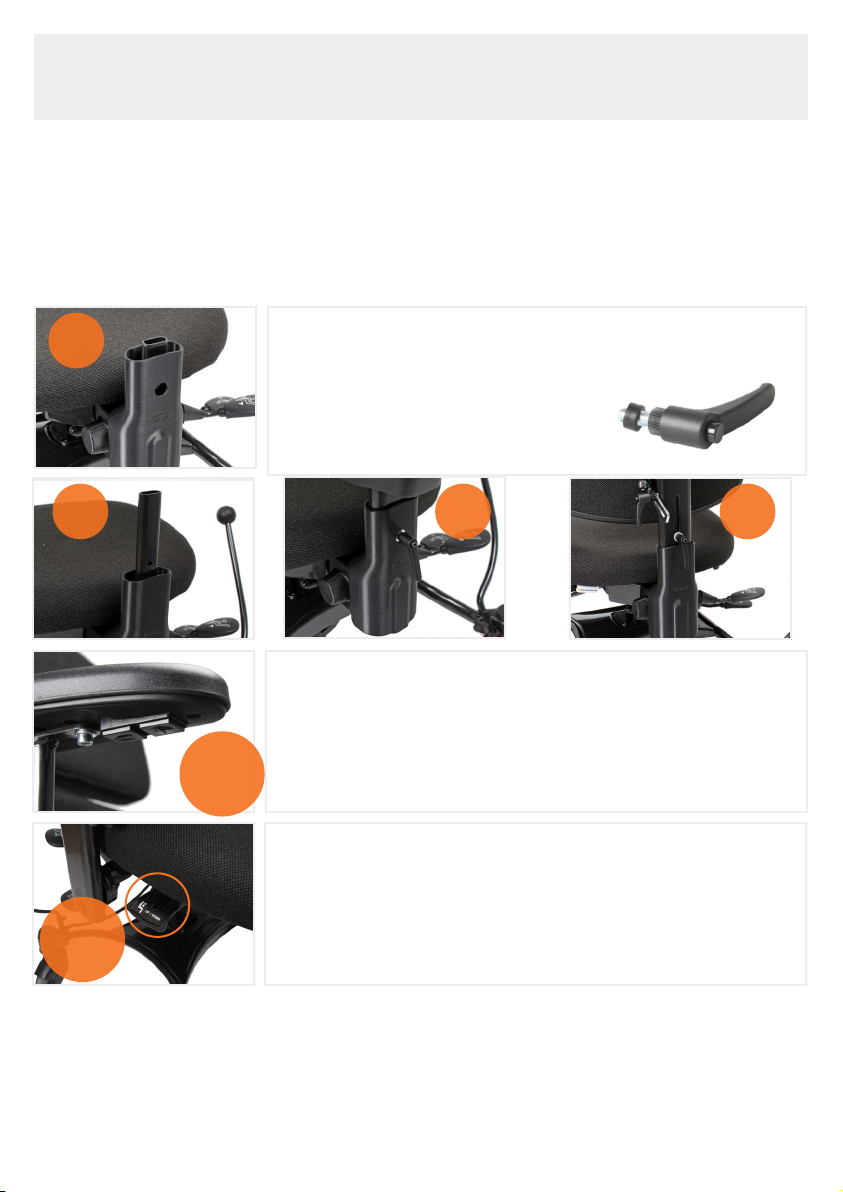

2.0.1. ATTACHING THE BACKREST
The backrest is lowered into the hole. Screw the handle
back on and tighten securely.
Remember that the plastic disc should be placed in the
outermost position
as shown here.
ALB
BACK
HIGH
BACK
ALB
BACK
HIGH
BACK


11
2.0.7. SETTING THE BACK HEIGHT
Release the handle located on the back. Adjust the back.
Remember to tighten the handle afterwards.

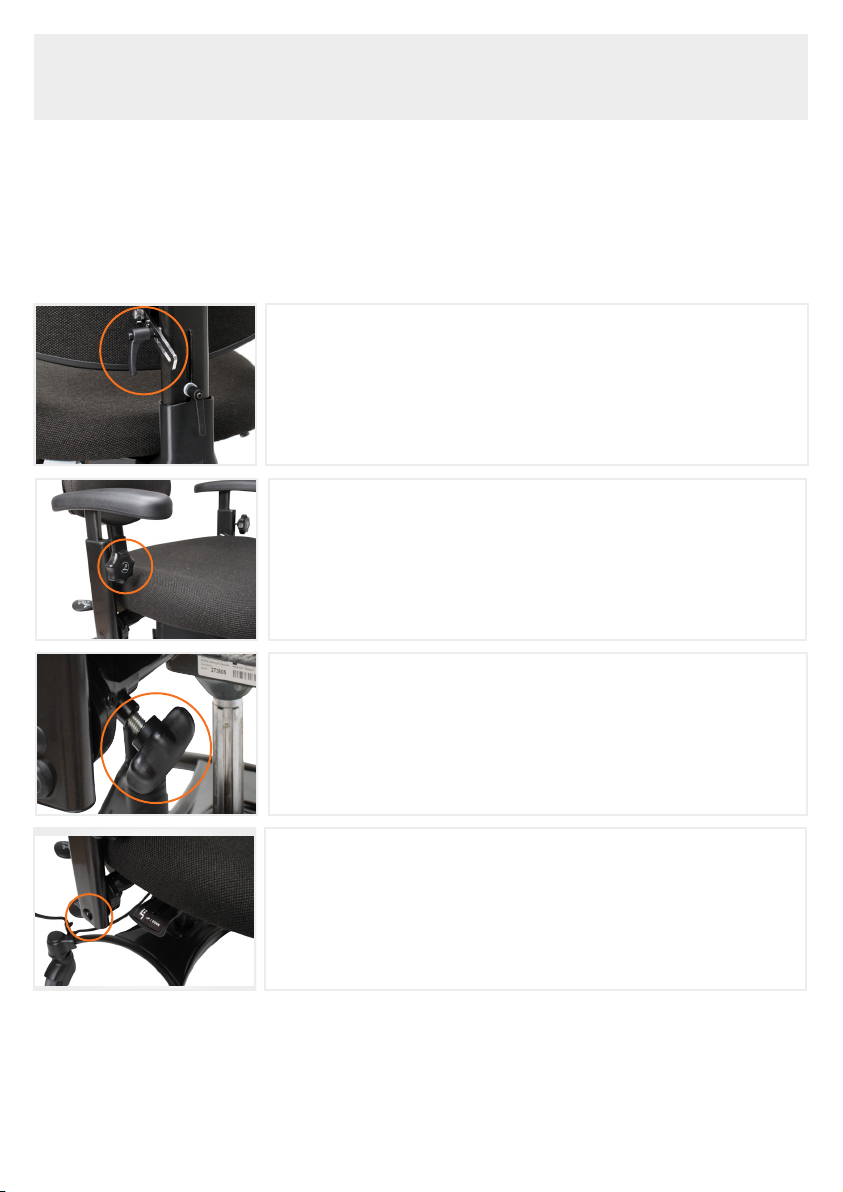

2.0.4. SETTING ANGLE OF SEAT
Adjusted by pulling up the middle handle on the right-hand
side. The handle is pressed down to lock the desired seat
angle.
Note: Be aware of pinching risk when adjusting the seat angle!
2.0.5. SETTING ANGLE OF BACKREST
Adjusted by pulling up the rear handle on the right-hand side.
The handle is pressed down to lock the desired back angle.
2.0.6. ADJUSTING LUMBAR SUPPORT (ALB BACK)
The backrest can be adjusted to provide optimal lumbar
support by pulling up the handle on the right-hand side of
the backrest. The backrest adjusts to fit and support the lower
back. Release the handle, and the backrest remains in the
desired lumbar angle.
ALB
BACK
Note: Setting the angle of backrest and seat should
always be done with your feet flat on the floor.

12
2.0.11. FOLD-DOWN ARMREST
To fold down the armrest, press the button on the side of the
armrest and push the armrest backwards and down.
Note: The armrest is only locked when it is in an upright
position. The armrest can only be folded down if the width
adjustment of the armrest allows it.
2.0.10. ADJUSTING THE ARMREST WIDTH
Adjusted by loosening the screw under the seat on the seat
support and adjusting the armrest width by pulling out the
armrest. Remember to tighten the screw when done.
2.0.9. ADJUSTING THE ARMREST HEIGHT
Adjusted by loosening the screw on the armrest bar and
adjusting the height of the armrest. Remember to tighten the
screw when done.
2.0.8. BACK BOLT (HIGH BACK)
The backrest can be set to a specific angle by adjusting and
attaching the bolt mounted on the back of the backrest.

13

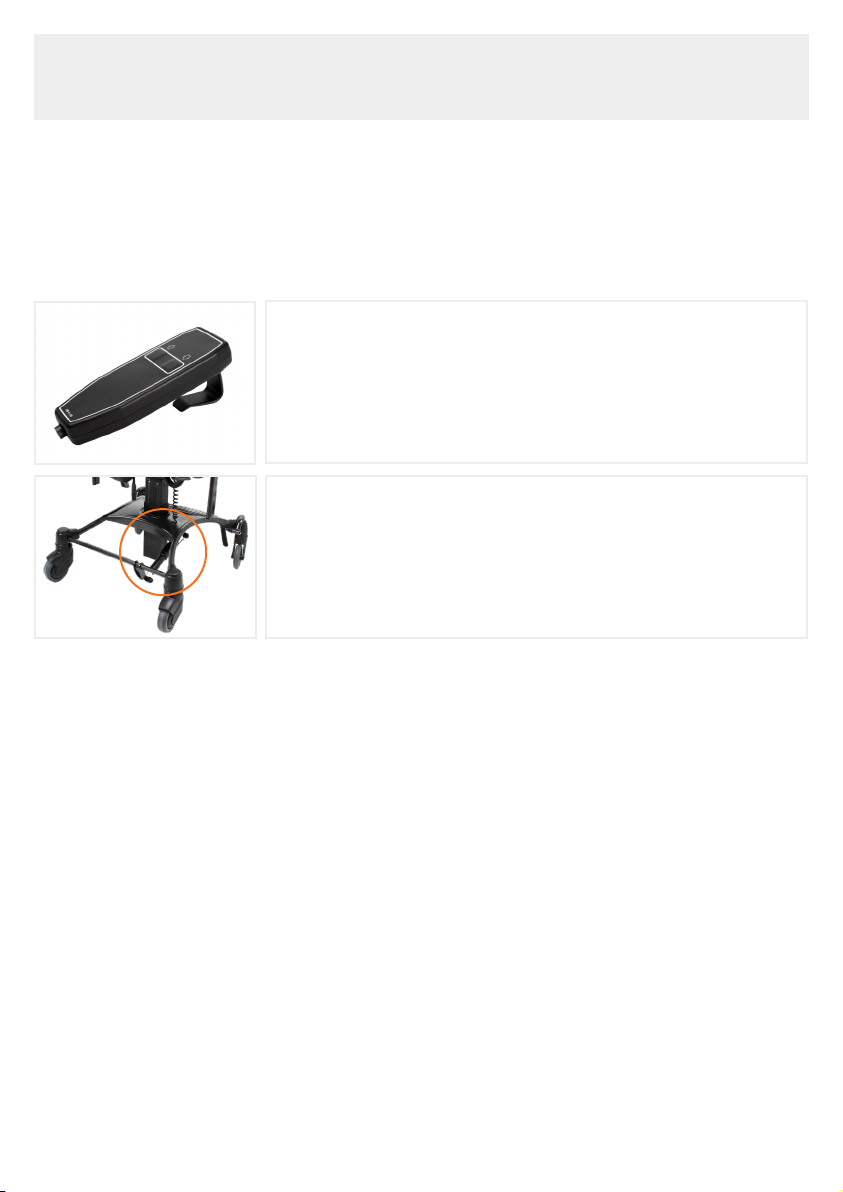

2.0.15. FOLDING FOOTREST
Stabilising foot support that can also be used as a footboard
when moving in and out of the chair.

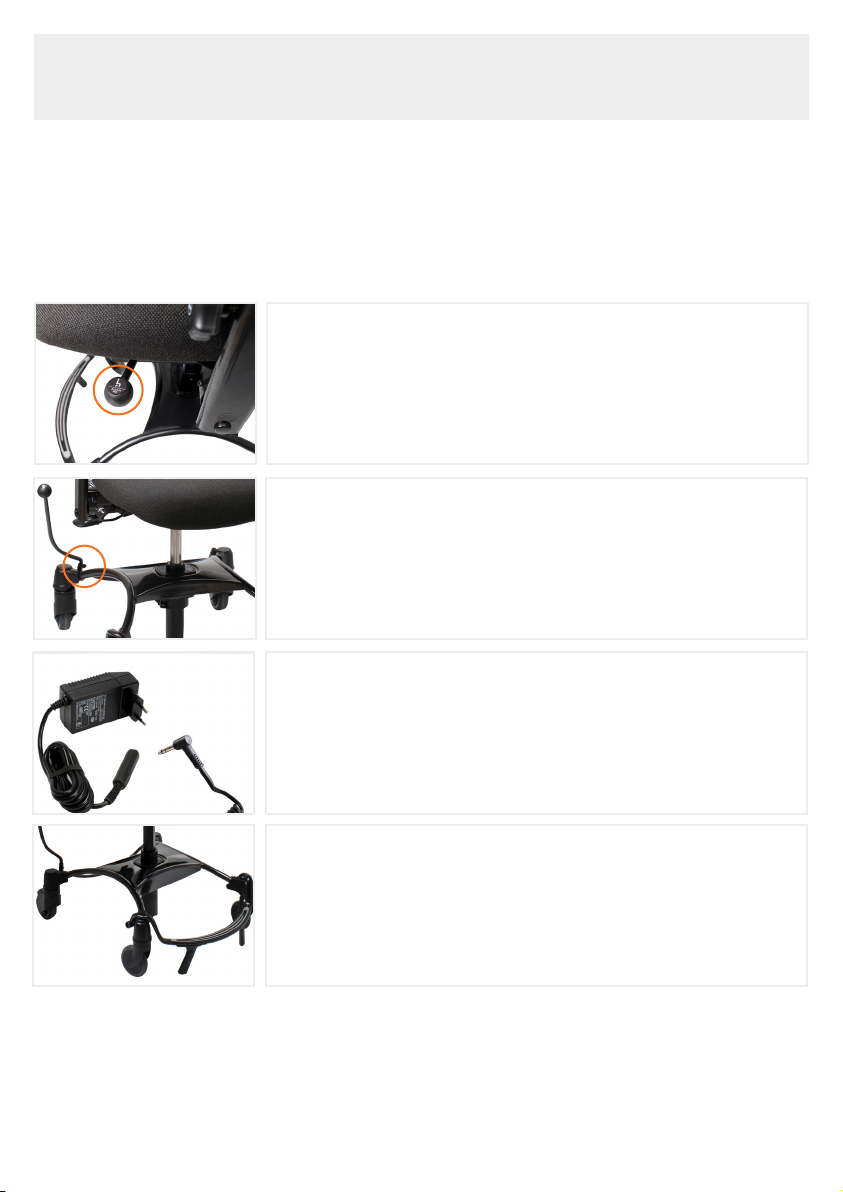

2.0.14. CHARGING (VELA TANGO EL)
Daily charging is recommended. Place operation plug in
charging socket - when the chair is charging, the LED on the
charger turns yellow. When the chair is fully charged, the LED
turns green. If the battery voltage is too low during use, you will
hear an audible alarm tone. Please charge the chair as soon as
possible. Note: The chair should not be used during charging.
2.0.12. ROTATION
The seat is rotated by pushing back on the front handle on
the left-hand side. Rotation can be turned and locked in the
following positions: 90° to the left and 90° to the right.
2.0.13. BRAKE
The brake on the VELA Tango is activated by moving the handle
on the side of the chair forward. Unlock the chair by moving
the handle back into the upright position. Note: The brake can
be moved to the other side by loosening the wing screw on the
brake lever, removing the plastic plug from the opposite side hole,
and inserting the brake lever. Tighten the wing screw firmly again.

14

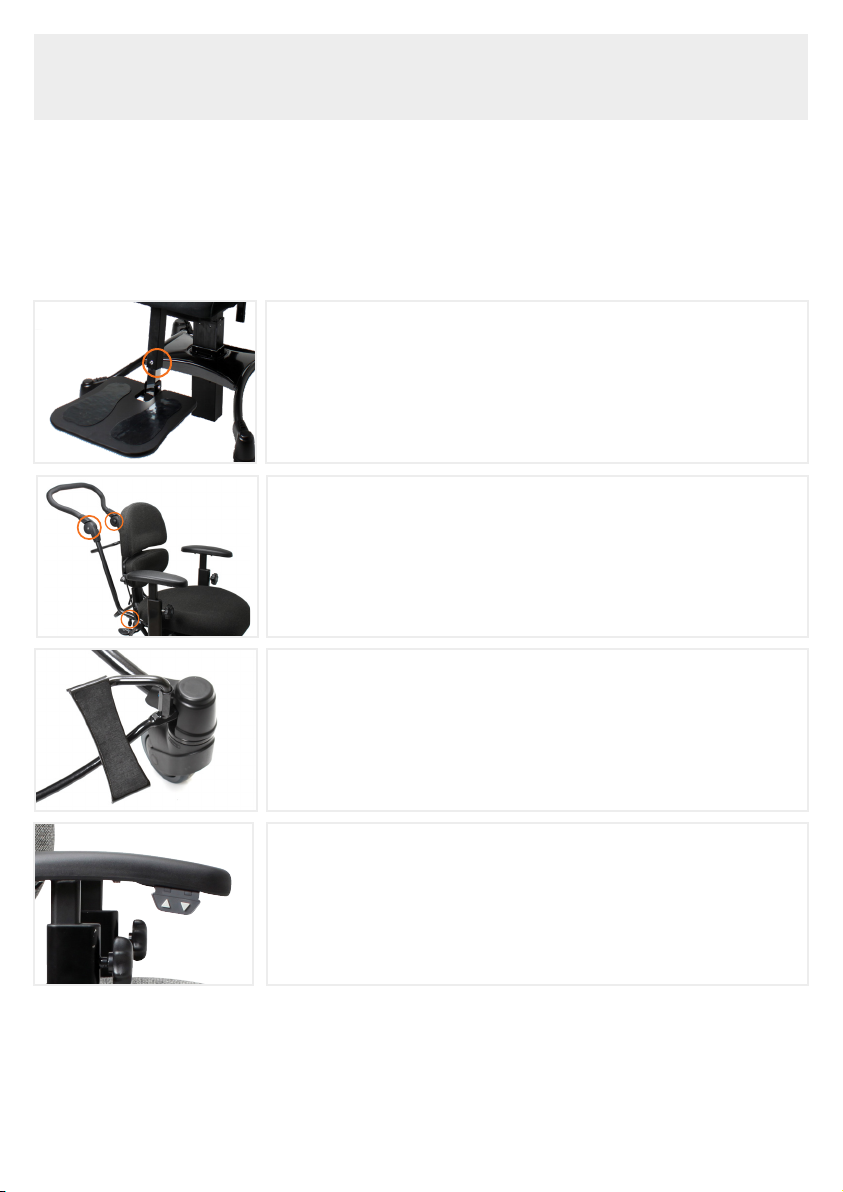

2.0.16. FOOTREST (OPTIONAL)
The footrest can be adjusted in length by loosening the hand
screw on the back of the footrest lever. Remember to tighten
the screw when done. The footrest can be folded up so that it
is not in the way when getting in and out of the chair.
2.0.17. STROLLING BRACKET (OPTIONAL)
Strolling bracket for transporting a person in the chair. The
strolling bracket is mounted to fittings under the seat using
two finger screws. This is also where the depth is adjusted. The
height is adjusted by pressing the two buttons on the side of
the bracket while the handle is positioned at the desired height.
2.0.19. ANGLE SWITCH (OPTIONAL)
Placed on the underside of the left or right-hand armrest as
required. Remember, position the switch correctly (see section
2.0.2.).
2.0.18. FOOT PEDAL FOR BRAKING (OPTIONAL)
On a VELA Tango with foot pedal the brake is activated by
pressing the upper part of the pedal forward. Unlock the chair
by moving the foot brake back into the upright position.
Note: The foot pedal can be mounted on the left or right-hand
side, on the rear of the chair.

15

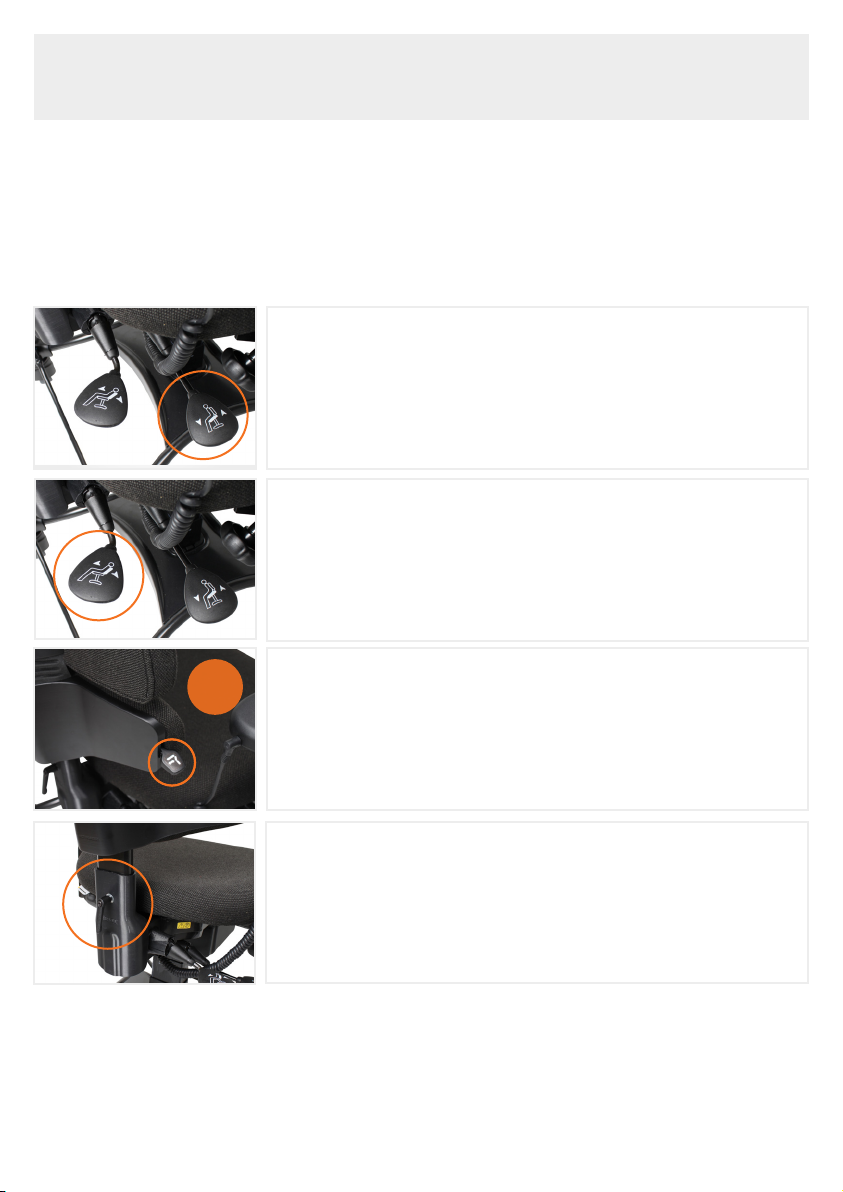

2.0.20. HAND BOX (OPTIONAL)
The hand box is used via push buttons on the front. VELA hand
boxes can have one or more functions. The icons on the hand
box show the button functions.
Note: Insert plug in hand box to operate functions.
2.0.21. ELECTRIC BRAKING (OPTIONAL)
On a VELA Tango with electric brake, the brake is activated and
deactivated using the hand box or angle switch. The brake is
hydraulic, so it is advisable to activate or deactivate the brake
completely when using this feature.
Note: This brake can only be used via switches under the
armrest, on the hand box, or on the angle switch.

701.3383 © Vermund Larsen A/S
VELA :: Gøteborgvej 8-12 :: DK-9200 Aalborg SV :: Tlf: [phone] :: [email protected] www.vela.eu
