User Manual - ADR-D 400 D90
English
Index
Safety instructions pag. 16
Technical specications pag. 17
Description pag. 19
Dimensions pag. 19
Installation pag. 20
Selecting programming parameters pag. 21
Reading of quantities pag. 24
Serial output RS 485 pag. 26
Error messages pag. 27
Reference standards pag. 28

- 16 -
User Manual - ADR-D 400 D90
English
User Manual
THREE-PHASE NETWORK ANALYSER 90A
Read all the instructions carefully
The ADR-D 400 D90 network analyzer is a direct connection digital multimeter for
three-phase systems up to 90 A for true effective value measurements (TRMS). The
isolated RS-485 serial output allows, through the MODBUS protocol functions and
the use of the relative registers, to connect the analyzer to a Master device (PC/
PLC...) for data visualization and archiving.
SAFETY INSTRUCTIONS
During the installation and operation of the device, observe the following
instructions:
1) The device must be installed by a qualied person
2) The device must be installed in an electrical panel which, after installation,
leaves terminals inaccessible
3) The electrical system in the building where the device is installed must
feature a switch or circuit breaker: this must be near the device and in a
position that can be easily reached by operators
4) A protection device against over-currents must be installed in the electrical
system, upstream of the instrument
5) Connect the device as shown in the diagrams of this manual
6) Before making contact with terminals, ensure that conductors to be
connected to the device are not live
7) Do not power or connect the device if any part of it is damaged.
NOTE: Network analyzer ADR-D 400 D90 is aimed for use in places with over-
voltage category III and pollution degree, 2 as per EN 61010-1
Code Model Description
VE045100
ADR-D 400 D90 Direct-connection three-phase network analyzer 90A

- 17 -
User Manual - ADR-D 400 D90
English
TECHNICAL SPECIFICATIONS
• Power supply: 400 Vac (-15%/+10%), 50/60 Hz (terminals 2 and 3)
• Electrical quantities measured:
− Phase voltage, voltage between lines (chain), and system voltage
− Phase and system current
− Active, reactive, and apparent phase and system power
− Active and reactive phase and total system Energy (zeroable)
− Phase and system power factor (cos )
− Frequency
• Connection type:
− 3-wire connection with neutral
− 3-wire connection without neutral: only for symmetrical and balanced systems
• Voltmetric inputs: Vmax = 440 V rms (phase – phase)
Vmax = 3x253 V rms (phase – neutral)
• Amperometric inputs: Ib= 10 A; Imax = 90 A
• Maximum overload in continuos use mantaining class 1: 100 A
• Insulated serial output RS-485, for communication protocol MODBUS RTU
• Termination:
− voltmetric inputs: 4-pole terminal strip; maximum section of wires: 2,5 mm2
− RS485 serial line: 2-pole terminal strip; maximum section of wires: 2,5 mm2
− amperometric inputs: direct connection, with the current wires inserted into the
suitable holes; maximum section of current leads: 25 mm2; maximum diameter of
through hole: 12,5 mm
• Maximum consumption (device only):
− voltage circuits < 2.5 VA
− current circuits < 2.5 VA
− power supply < 4 VA
• Display: LCD display
• Dimensions: 7 DIN sizes
• Operating temperature: -10 °C ÷ 45 °C
• Storage temperature: -10 °C ÷ 60 °C
• Relative humidity: 10% ÷ 90% non condensing
• Protection rating: IP20/IP51 on the front

- 18 -
User Manual - ADR-D 400 D90
English
RESOLUTION AND ACCURACY
• Voltage
− Maximum reading: 266 V (phase - neutral)
− Accuracy: ±0,5% full scale ± 1 digit (full scale: 253 V)
− Resolution: 1 V
• Current
− Minimum reading: 0,10 A
− Maximum reading: 95,0 A
− Accuracy: ±0,5% full scale ± 1 digit (full scale: 90 A)
− Resolution: 0,01 A (range 0,10÷9,99 A) or 0,1 A (range 10,0÷90,0 A)
• Active power
− Accuracy: ± 1% full scale ± 1 digit at 50 Hz
(full scale: 100 W, 1 kW, 10 kW, 100 kW)
− Resolution: 0,1 W (range 0÷99,9 W) - 1 W (range 100 W÷999 W)
0,01 kW (range 0,01 kW÷9,99 kW)
0,1 kW (range 10 kW÷100 kW)
• Reactive power
− Accuracy: ±1% full scale ± 1 digit
(full scale: 100 Var, 1 kVar, 10 kVar, 100 kVar)
− Resolution: 0,1 Var (range 0÷99,9 Var)
1Var (range 100 Var÷999 Var)
0,01 kVar (range 0,01 kVar÷9,99 kVar)
0,1 kVar (range 10 kVar÷100 kVar)
• Active energy
− Accuracy: class 1 to standard EN 62053-21 (Ib=10 A; Imax=90 A)
− Resolution: 0,1 kWh
• Reactive energy
− Accuracy: class 3 to standard EN 62053-23 (Ib=10 A; Imax=90 A)
− Resolution: 0,1 kVarh
• Power factor (cos
)
− Accuracy: ±1% ± 1 digit
− Resolution: 0,01
• Frequency
− Accuracy: ±0,1 Hz ± 1 digit (from 47 Hz a 63 Hz)
− Resolution: 0,1 Hz

- 19 -
User Manual - ADR-D 400 D90
English
DESCRIPTION
FRONT VIEW
TERMINALS AND KEYS
Terminal 1: Neutral (required for non-symmetrical non-balanced systems)
Terminals 2, 3, 4: voltage inputs (L1, L2, L3)
Terminals 5 (-) and 6 (+): Serial communication line RS-485
Through holes for direct current connection to L1, L2, L3
Key to be used to conrm and view system quantities
Previous page Key
Next page key
Programming key
OK
PRG
ADR-D 400 D90
10(90)A
3x230/400 V ~ 50/60Hz

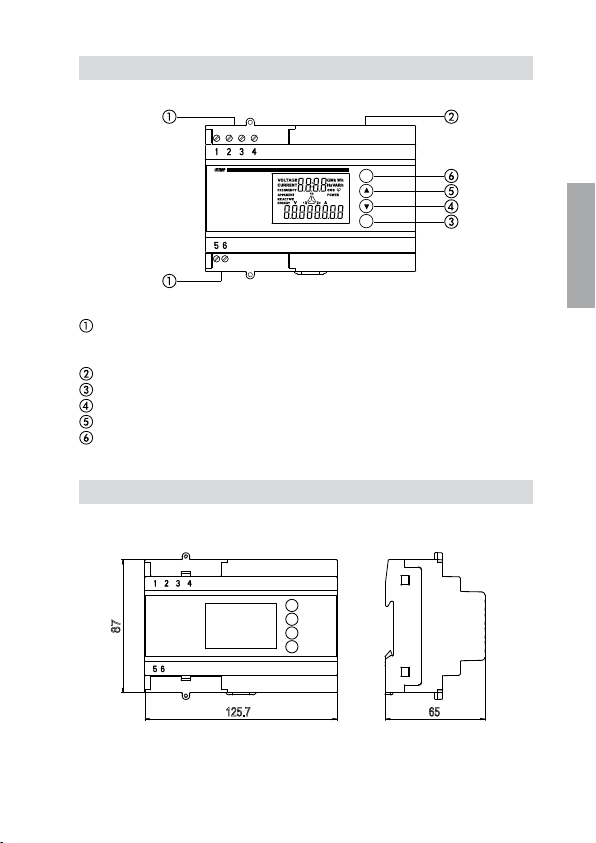

DIMENSIONS (mm)
FRONT VIEW SIDE VIEW
87
125.7
65

- 20 -
User Manual - ADR-D 400 D90
English
INSTALLATION
WIRING DIAGRAM
L1
N
L2
L3
LOAD
NOTE:
Connection of the neutral conductor may ONLY be omitted for balanced
symmetrical three-phase systems
INSTALLATION
Network analyzer ADR D 400 D90 may only be used in three-phase systems 230 Vac
Phase-neutral, with 400 Vac Phase-Phase voltage between lines.
For installation, follow the connection diagram shown above:
− for 4-wire three-phase systems (3 phases + neutral) also with non-symmetrical and/
or non-balanced systems, connect the neutral lead to terminal 1
− for 3-wire three-phase symmetrical and balanced systems, it is possible not to
connect the neutral lead
For correct measurement, the 3 phase leads coming from the distribution panel must
be inserted in the through holes vertically from above; failure to do so will cause a
connection-error warning to appear on the display. In case of a connection error, the
display will indicate which phase or phases are misconnected (cfr. “ERROR MESSAGES
– MISCONNECTION” ).

- 21 -
User Manual - ADR-D 400 D90
English
SELECTING PROGRAMMING PARAMETERS
The following functions are accessed by holding down the PRG key for at least 2
seconds:
− viewing built-in software version and date
− backlighting control
− zeroing total active and reactive energy values
− conguring serial output RS-485
To scroll the various parameters and conrm the values entered, press the OK key. To
change the values or alter the option, press
or .
As soon as the last page is conrmed the programming mode is exited; this also occurs
if no key is pressed for at least 25 seconds: in this case, the parameter that was not
conrmed using the OK key, is not stored.
1) DATE AND VERSION OF BUILT-IN SOFTWARE
• These values cannot be altered
• To move on to the next page (backlighting control), press OK
2) BACKLIGHTING CONTROL
• Press the key o to respectively select “NO” (backlighting off) or “TIME”
(backlighting ON for 60s after any key is pressed)
• Press the OK key to conrm the selection and move on to the next page (Zeroing
Active Energy meter)

- 22 -
User Manual - ADR-D 400 D90
English

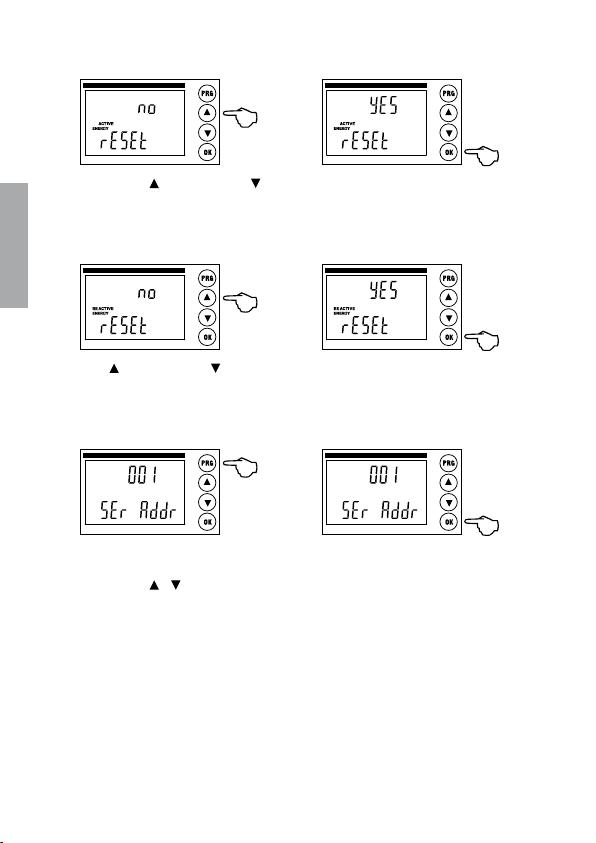

3) ZEROING THE ACTIVE-ENERGY METER
• Press the key to select “NO” or for “YES”
• Press the OK key to conrm the selection and move on to the next page (Zeroing the
Reactive Energy meter)
4) ZEROING THE REACTIVE-ENERGY METER
• Press to select “NO” or to select “YES”
• Press the OK key to conrm the selection and move on to the next page (RS-485
address)
5) RS-485 ADDRESS
• The address range is between 1 and 247
• Press the PRG key to select the digit to be altered (units, tens, hundreds)
• Press the key
o to select the value
• Press the OK key to conrm the address and move on to the next page (RS-485
communication speed)

- 23 -
User Manual - ADR-D 400 D90
English

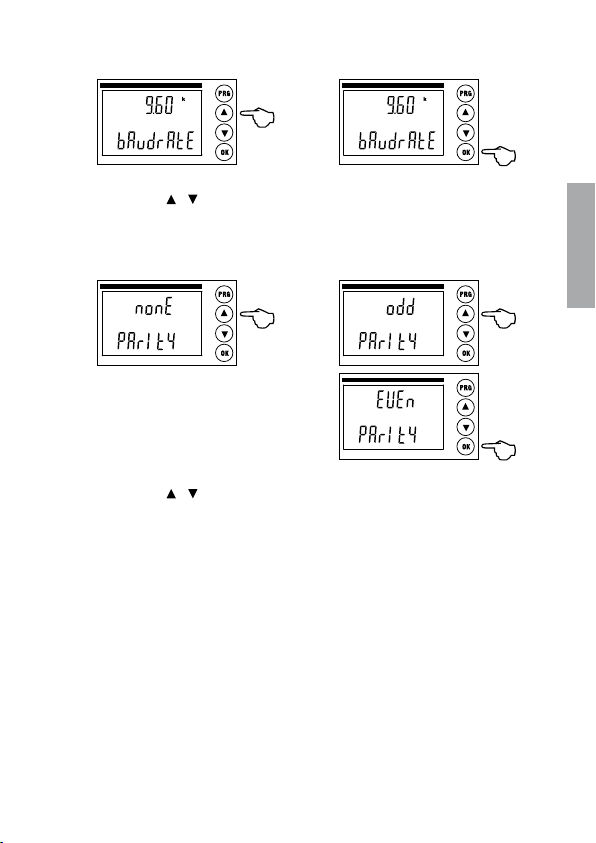

6) RS-485 COMMUNICATION SPEED
• The available Communication speed options are 1200, 2400, 4800, 9600 baud
• Press the key
o to select the desired speed
• Press the OK key to conrm the address and move on to the next page (RS-485
Parity bit)
7) RS-485 PARITY BIT
• Available Parity bit options are “NONE”, “EVEN” and “ODD”
• Press the key
o to select the desired parity bit
• Press the OK key to conrm and exit programming (all the display segments will be
viewed for 2 seconds. Then the main page will be displayed)

- 24 -
User Manual - ADR-D 400 D90
English
READING OF QUANTITIES
On powering up the device the main page is viewed, which reads system voltage, system
current and system active power.
From the main page, press the key
to scroll all the other measurement pages. When
on the last page, press the key , to go back to the main page. Press the key to view
the previous page.
To view the system quantities or the energy for every single phase (active or reactive),
press the OK key.

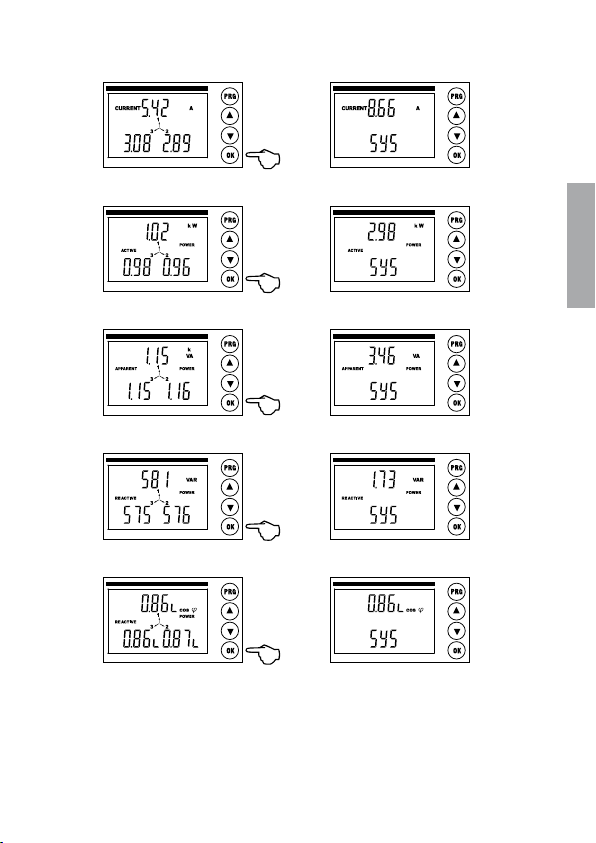

Main page
(system power, voltage and current)

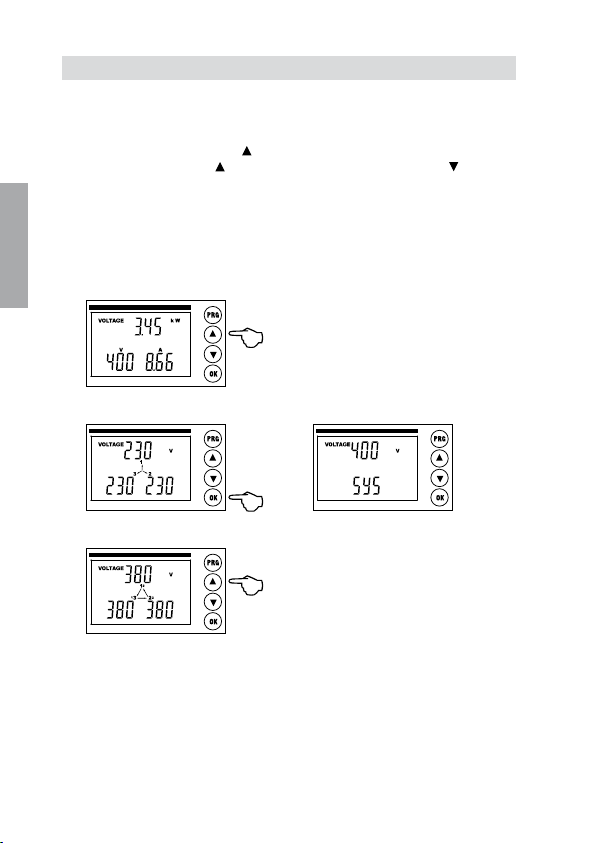

Phase voltage System voltage
Voltage between lines (chain)

- 25 -
User Manual - ADR-D 400 D90
English
Phase current System current
Phase active power System active power
Phase apparent power System apparent power
Phase reactive power System reactive power
Phase power factor (*) System power factor
(*) Depending on load type, “c” stands for capacitive power factor, whereas
“L” stands for inductive phase shift

- 26 -
User Manual - ADR-D 400 D90
English
Total active energy Phase active energy
Total reactive energy Phase reactive energy
Frequency
SERIAL OUTPUT RS 485
The ADR-D 400 D90 has an isolated RS 485 serial output.
• The data communication system is based on MODBUS protocol (RTU coding system)
and can be connected to a Master system (PC/PLC...) on a common RS 485 line:
− up to 31 ADRs (slaves) without signal ampliers, from a maximum distance
of 1000m
− up to 247 ADRs (slaves) in groups of 30 separated by proper signal ampliers
• For the MODBUS functions and the use of the registers, request the specic
documentation by contacting the technical assistance service.

- 27 -
User Manual - ADR-D 400 D90
English
ERROR MESSAGES

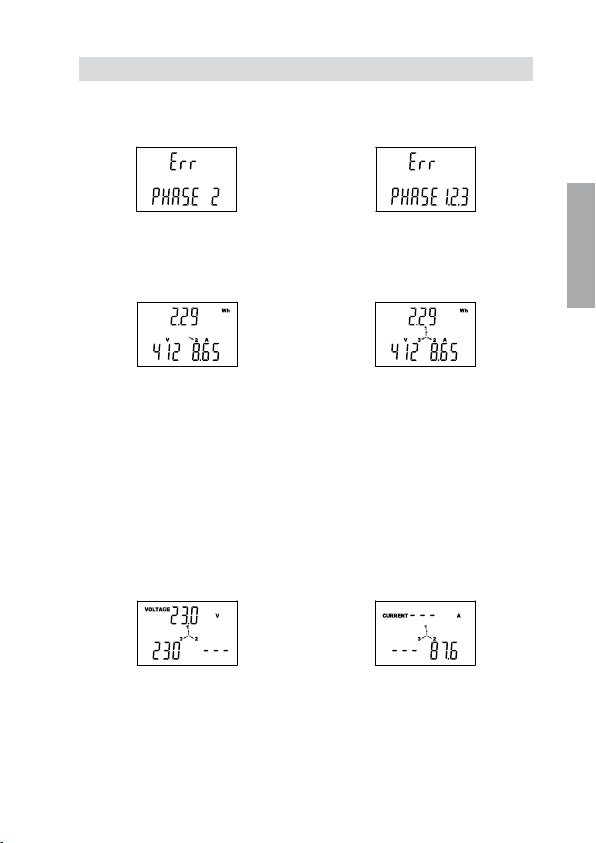

MISCONNECTION
In the rst two minutes after power-up, misconnection is indicated by the reading “Err
PHASE” and the relevant phase number.
Misconnection of phase 2 Misconnection of phases 1, 2 ,3
Two minutes after power up the “Err PHASE” reading disappears. The arrow
corresponding to the misconnected phase will then ash on the display.
The latter warning will stay on the display until the error is removed
Misconnection of phase 2 Misconnection of phases 1, 2 ,3
(arrow 2 ashing) (arrows 1,2,3 ashing)
Possible error causes are:
− one or more phase leads from the distribution panel may have been inserted upward
into the current-measuring through holes
− the phase connected to the voltage input terminals (2,3,4) is not the same one
inserted into the corresponding through hole. For instance: the phase connected to
terminal 2 (phase 1) may have been inserted in the middle through hole (phase 2)

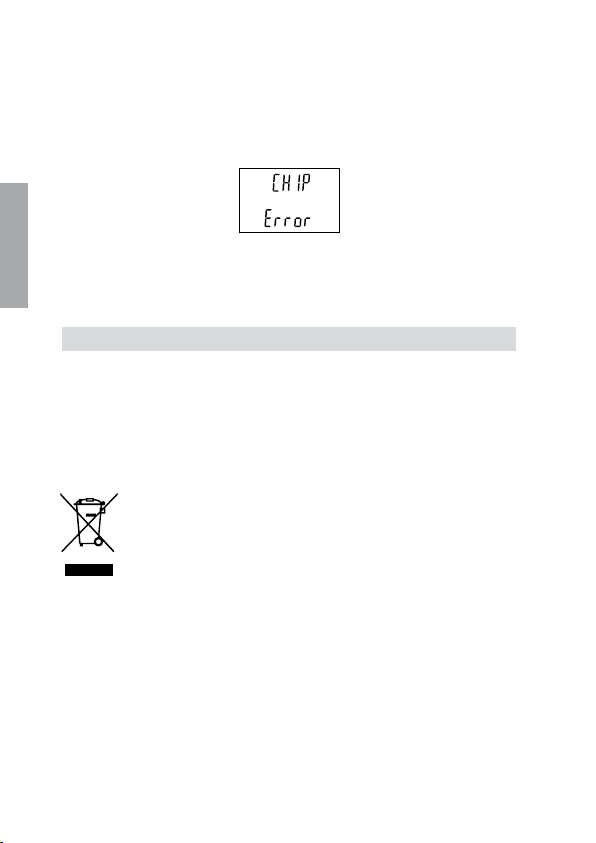

OVER-VOLTAGE OR OVER-CURRENT ERROR
This occurs when the TRMS value of one or more input phases exceeds a voltage of 265V
or a current of 95A. This error is indicated by the ashing of all display pages. Voltage or
current overow is indicated by three dashes “---” on the relevant eld
V2 > 266V I1 and I3 > 95A
The device resumes correct value readings when voltage and/or current get back into
the admitted ranges (V ≤ 253 and I ≤ 90A respectively).

- 28 -
User Manual - ADR-D 400 D90
English
CONFIGURATION ERROR
Every 30 seconds the software checks conguration settings in some internal registries;
if an invalid datum is detected, the device is automatically recongures until the error
disappears.
During these steps, the device does not measure any quantity and reads “CHIP Error”
Conguration error
If the error warning stays on even after disconnecting and reconnecting the device from
the mains, the latter must be considered as faulty.
REFERENCE STANDARDS
Compliance with Community directives:
2014/35/UE (LVD), 2014/30/UE (EMCD)
is declared in reference to the following harmonised standards:
• EN 61010-1 • EN 61000-6-2 and EN 61000-6-4 • EN 62053-21 and EN 62053-23
(metrological requirements)
information to users pursuant to art. 14 of the directive
2012/19 / EU of the european parliament and of the council
of 4 july 2012 on waste electrical and electronic equipment (WEEE)
If the crossed-out bin symbol appears on the equipment or packaging,
this means the product must not be included with other general waste
at the end of its working life.
The user must take the worn product to a sorted waste center,
or return it to the retailer when purchasing a new one.
Products for disposal can be consigned free of charge (without any new purchase obligation)
to retailers with a sales area of at least 400 m2, if they measure less than 25 cm.
An efficient sorted waste collection for the environmentally friendly disposal of the used device, or its
subsequent recycling, helps avoid the potential negative effects on the environment and people’s health,
and encourages the re-use and/or recycling of the construction materials.

V3IS00386-020
Vemer S.p.A.
I - 32032 Feltre (BL)
Via Camp Lonc, 16
e-mail: [e-mail] - web site: www.vemer.it
07-2023
