VENTRA RVM-1XC233 User manual

RVM -1XC233 Rear View Camera Kit
Specification:

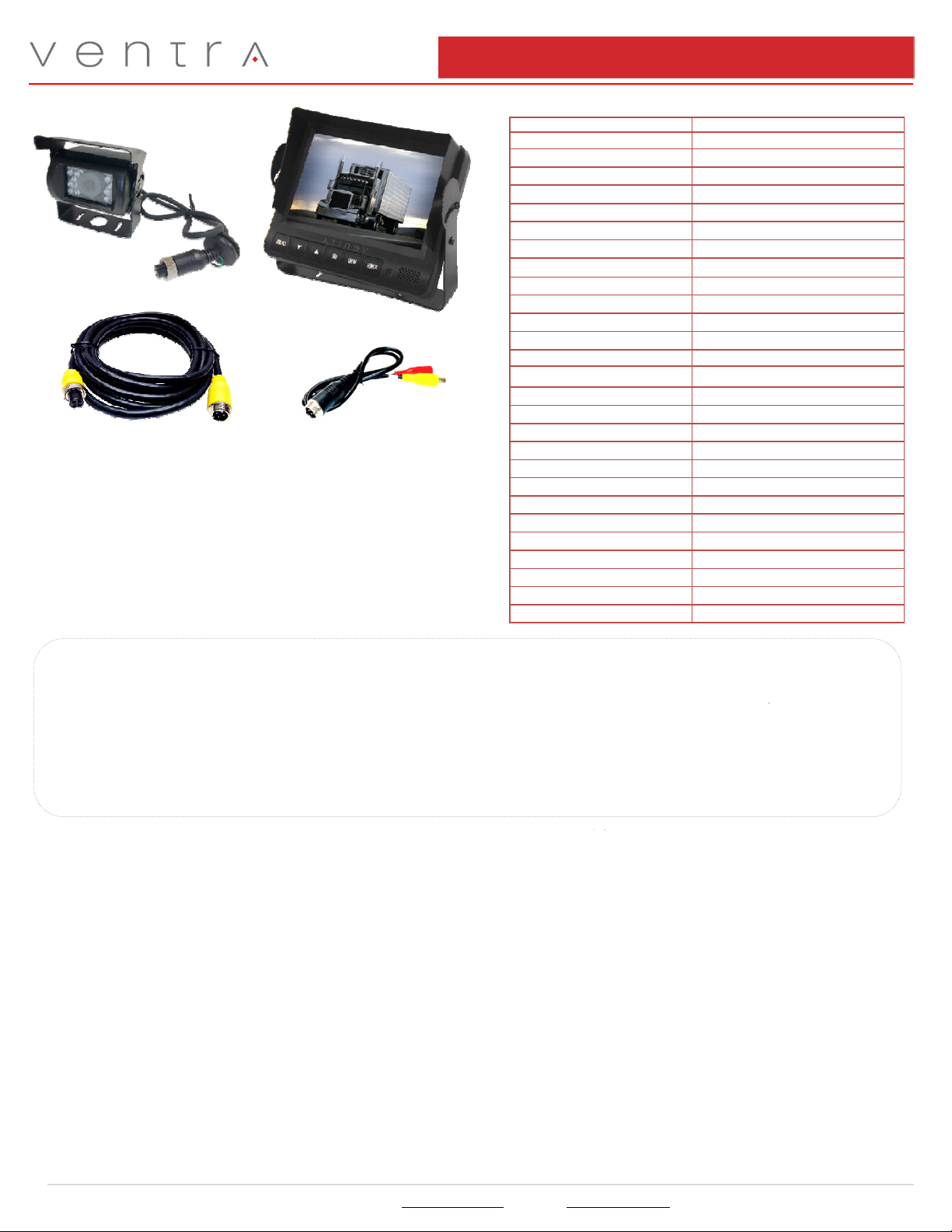

Parts included:
•EX4-XC2 Outdoor Color Camera w/ IR x 1
•VLCD-7 7 LCD Screen x 1
•EX4-CBL33 33ft 4 pin DIN cable x 1
•RVC-PIG DIN to RCA / Power Cable x 1
Ventra Technology Inc. Covina, CA. USA www.ventrainc.com [e-mail] Tel: [phone]
Camera
Chipset 1/3 CMOS
Camera Lens 2.8mm
Resolution 600 TVL
Camera Angle 120 degrees (D) / 90 degrees (H)
Camera Rating IP66 Outdoor Rated
IR LED 12 LED
Illumination 0 Lux – IR on
S/N ration >54db
Electronic Shutter 1/60 ~ 100,000
Auto Gain Control Auto
Back Light Compensation Auto
White Balance Auto
TV System NTSC
Camera Power DC12V ~ 24V 160mA
Humidity <90%
Temperature Range –Operating -4F ~ 150F ( -20C ~ +65C)
Monitor
LCD Screen Size 7 TFT LCD
Resolution 800 x 480
Channels 2 – RCA Video Input
Brightness / Contrast 500cd/m2 / 500:1
OSD Control Contrast, Sharpness, Brightness, NTSC
Viewing Mode Normal, Mirror, Flip
Monitor Power DC 12V ~ 24V 150mA
Cable
Environment Indoor
Pin 4 Pins (Video, Audio and Power)
InstallationGuide
1. Determine the location and mounting position of the camera prior to installation
2. Test the viewing angle by powering both the camera and monitor before permanently securing the camera
3. Once location is determined, securely affix mounting bracket of the camera to the vehicle
4. Connect the EX4-XC camera to EX4-CBL 4 pin DIN cable. Ensure the cable is securely connected
5. Connect the EX4-CBL cable to RVC-PIG DIN to RCA / Power cable
. RVC-PIG:
- 2 power pigtail wire (Red = 12V Positive, Black = Ground) to a power source (i.e. tail light, reverse light, turn signal or vehicle fuse)
- DC power plug to EX4-XC camera
- RCA connection to monitor via RCA cable
7. Secure RCA cable connection by applying heat shrink tube or electrical tape
8. Connect the RCA cable into Input 1 of the VLCD-7 screen
Warning:
Install equipment only when vehicle is safely parked, leveled and power Off
View and access the monitor only when safe to do so
Review surrounding before operating / moving vehicle
Observe all electrical safety guideline and polarity to avoid injury
Please consult with Vehicle Manufacturer for warranty and settings prior to installation
Ventra is not responsible for any warranty pertaining to the vehicle
V. 07 18

RVC -1XC233 Rear View Camera Kit
Ventra Technology Inc. Covina, CA. USA www.ventrainc.com [e-mail] Tel: [phone]
Installation layout
Operation Guide:
1. VLCD-7 monitor supports dual video input. If only 1 camera is connected, that camera will be primary, regardless of which
input it is connected to
2. If connecting 2 cameras,
•Input 2 = Primary Camera
•Input 1 = Secondary Camera
3. To switch camera view, Press for momentary view of the second camera, Or if the secondary camera was powered on / triggered
by a switch (i.e. turn signal). Monitor will auto revert back to the primary camera after approximately 5 seconds.
VLCD-7 equipped with U-shape bracket which
may be flipped for either dash or ceiling mount.
Removable sunshade may be used as needed
VLCD-7 Operation:
1. Press SET key to Enter or Exit Menu
2. Press or to navigate menu. Press or to change setting
EX4-CBL cable is not waterproof and
should not be exposed to direct
sunlight, rain or element. Cable
should be placed in weatherproof
conduit or sleeve
Secure cable connection by
applying heat shrink tube or
electrical tape to minimize
movement from vehicle
vibration
