Vermeiren Timix User manual

VERMEIREN
INSTALLATION MANUAL
Timix

Timix
2021-05
Content
Installation manual
- 1 -
EN
NL
PL
CS
Content
Preface........................................................................................................................ 2
1 This product .................................................................................................. 3
2 Scope of delivery .......................................................................................... 4
3 Assembly and adjustments ......................................................................... 5
3.1 Tools ............................................................................................................... 5
3.2 Adjusting the wheelchair to the user ............................................................... 6
3.2.1 Seat depth ...............................................................................................6
3.2.2 Seat inclination (manual adjustment) .......................................................6
3.2.3 Width between armrests ..........................................................................7
3.2.4 Armrest length .........................................................................................7
3.2.5 Armrest lowest and highest angular position ...........................................8
3.2.6 Footrest width (Footrest B06 or BZ7EF) ..................................................8
3.2.7 Footrest length B06..................................................................................8
3.2.8 Leg rests BZ7/BZ8 adjustments ...............................................................9
3.2.9 Footrest BZ10E adjustments ................................................................. 10
3.2.10 Operating console .................................................................................. 11
3.3 Changing the battery ..................................................................................... 11
3.4 Changing wheels or tyres ............................................................................. 12

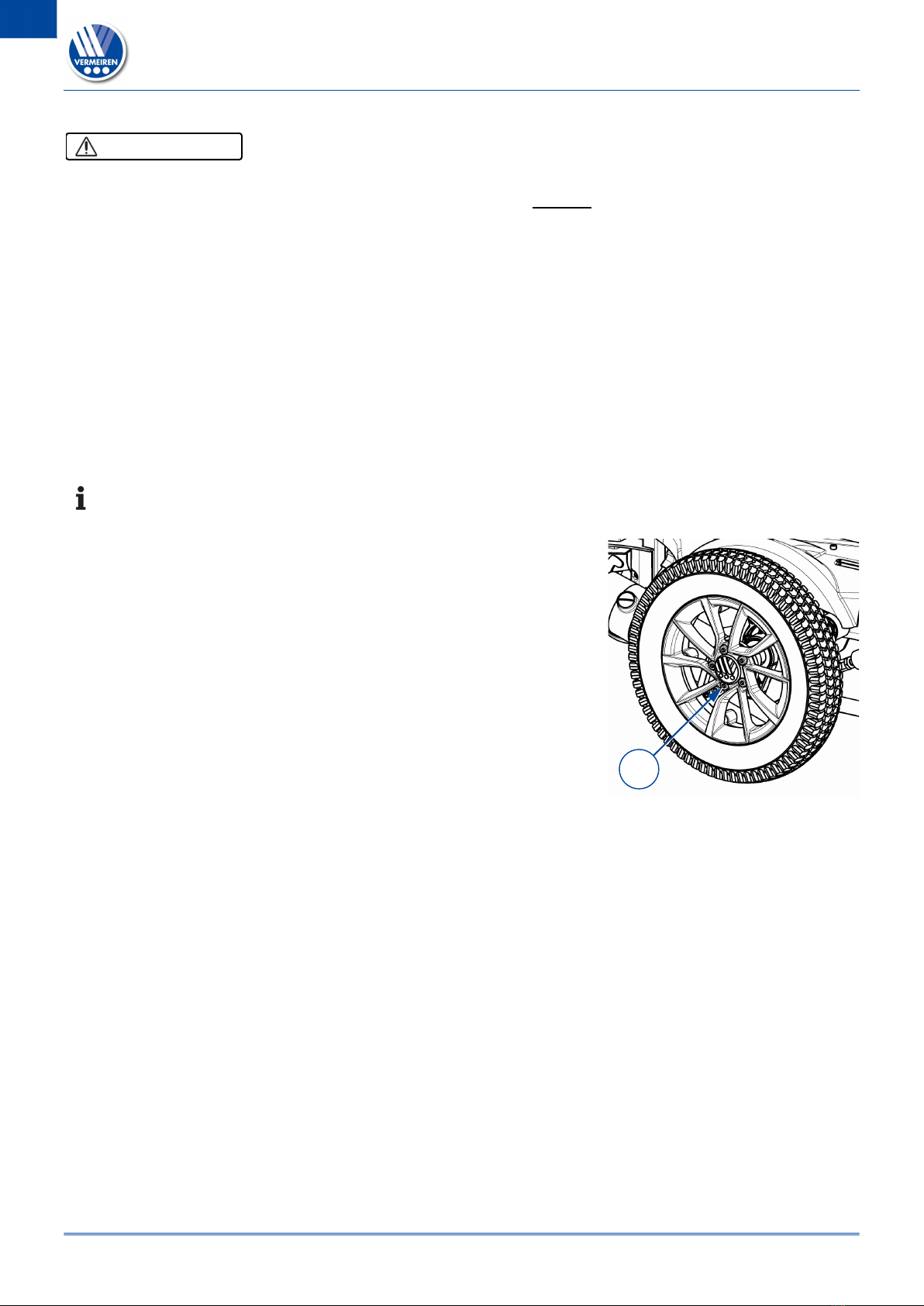

3.4.1 Driving wheels (Front wheels) ................................................................ 12
3.4.2 Steering wheels (Rear wheels) .............................................................. 13

Timix
2021-05
Preface
Installation manual
- 2 -
EN
NL
PL
CS
Preface
To support you on the installation and repairs of this electric wheelchair, we provide you with this
installation manual. Please read it carefully. If you still have questions after reading this manual,
do not hesitate to contact Vermeiren.
The information in this manual applies to the following wheelchair(s):
 Timix
Important note
Pictures of the product are used to clarify the instructions. Details of the shown product may
deviate from your product.
Available information
On our website http://www.vermeiren.com/ you will always find the most recent version of
the information described in this manual. Please consult this website regularly for possible
updates.
Visually impaired people can download the electronic version of this manual and have it read out
by means of a text-to-speech software application.
User manual
For user and specialist dealer
User manual of applied operating console and battery charger.
For user and specialist dealer
Installation instructions (Instructions for detail adjustments and (dis)assembly)
For specialist dealer
Service manual for wheelchairs
For specialist dealer
Drawings of (spare) parts
For specialist dealer
EC declaration of conformity

Timix
2021-05
Content
Installation manual
- 3 -
EN
NL
PL
CS
1 This product
1. Backrest
2. Adjustable armpads
3. Armrests
4. Operator control
5. Seat
6. Lights
7. Legrest(s)
8. Driving wheels
(Front wheels)
9. Footplate
10. Battery cover
11. Identification plate
12. Steering wheels
(rear wheels)
13. Base frame
9
13
8
12
1
4
2
5
6
7
3
10
11
6

Timix
2021-05
Scope of delivery
Installation manual
- 4 -
EN
NL
PL
CS
2 Scope of delivery
The following items are part of the delivery:
 Framework with armrests, operator control, rear and front wheels, seat and backrest
(optional: electrically adjustable seat, backrest, electrical lift)
 Footrests (*)
 Batteries
 Battery charger
 Tools
 User manual of:
o wheelchair
o operating console
o battery charger
 Accessories (if applicable)
Before use, check if everything is included and that no products are damaged.
Please note that the basic configuration may differ in different countries. Contact your specialist
dealer.
(*) Type of footrest/leg rest depends on model.

Timix
2021-05
Content
Installation manual
- 5 -
EN
NL
PL
CS
3 Assembly and adjustments
Important remarks
 Read the user manual of this wheelchair.
 Be aware of the technical details and limits of intended use; see the user manual.

For more information
,
contact Vermeiren.
3.1 Tools
To (dis)assemble and adjust the wheelchair, the following tools are needed:
 Wrench set no. 10 to no. 13
 Allen keyset no. 4 to no. 6
 Screwdriver
Risk of injuries or damage
 The wheelchair needs to be (dis)assembled and adjusted
by a specialist dealer according to
the instructions in this chapter.
 Only use parts and tools described in this manual.
 Prevent bystanders from accessing the (dis)assembling area.
 Keep the (dis)assembling area clean and tidy, to prevent falling.
 Collect all small parts in a box or bag.
 While (dis)assembling and operating the wheelchair, make sure no objects or body parts
get
caught between moving parts. In particular, pay attention to the position of the cables.
 Turn the wheelchair off before you perform any mechanical adjustments and make sure
that
the free-wheel lever is in braking position.
 Make sure all screws are firmly secured before driving.
 Software changes are only allowed if executed by skilled personnel
, taking into account the
user and environment (stability, accellaration, indoor/outdoor, etc.)
.
CAUTION

Timix
2021-05
Assembly and adjustments
Installation manual
- 6 -
EN
NL
PL
CS
3.2 Adjusting the wheelchair to the user
3.2.1 Seat depth
The seat is adjustable in 6 different seat depth settings:
1. Loosen the two M6 socket screws (1) on either side
of the frame.
2. Slide seat frame (2) backwards or forwards to get the
desired position. Make sure that inner and outer tube
holes are in line.
3. Insert the 4 socket screws (1) and tighten the nuts
firmly.
3.2.2 Seat inclination (manual adjustment)
Risk of damage

Ask assistance to p
revent the mounting frame with seat from falling
during adjustment
.
To adjust the seat inclination manually (3 positions):
1. Remove the footrests.
2. Remove the screw Ⓐ that connects the seat frame with the lower frame.
3. Fold the seat frame backwards.
4. Check that the seat frame stays backwards or ask someone that can hold the seat frame
to the back.
5. Remove the screw Ⓑ.
6. Move the inner square tube Ⓒ until the desired seat angle.
7. Retighten the screw Ⓑ.
8. Fold the seat frame back to the front.
9. Retighten the screw Ⓑ.
10. Replace the footrests.
11. Check that the seat frame is firmly fixated.
CAUTION
A
C
B

Timix
2021-05
Content
Installation manual
- 7 -
EN
NL
PL
CS
3.2.3 Width between armrests
Risk of injuries
The maximum width is indicated by two triangles on each side of the seat,
see picture. The outer triangles may not be covered by the frame tube.
To adjust the width of the armrests:
1. Loosen the two M8 socket screws (32) at the bottom of the seat frame, behind the securing
hooks.
2. Adjust the armrest to a comfortable width.
3. Tighten the socket screws (32) firmly.
4. Repeat this at the other side of the wheelchair.
5. Make sure the armrests are positioned identically on both sides of the seat.
3.2.4 Armrest length
The telescopic armrest can be adjusted in 6 positions as follows:
1. If necessary, cut the cable ties that hold the power cable of the console.
2. Loosen the socket screw (33).
3. Slide the inner tube (34) in/out to the desired length.
4. Insert socket screw (33) and tighten properly.
5. Repeat this for the second armrest.
6. Make sure both armrests have the same length.
7. Make sure that both armrests are firmly secured.
8. Tighten the cable with cable ties.
CAUTION
34
33
32
32

Timix
2021-05
Assembly and adjustments
Installation manual
- 8 -
EN
NL
PL
CS
3.2.5 Armrest lowest and highest angular position
Risk of injuries
Always use two socket bolts and two adjustment holes to tighten the armrest. Never
exceed the
maximum angular adjustment (holes).
To change the end position of the turning angle:
1. Hold the armrest and remove the two socket screws (35).
2. Turn the armrest support at the toothed clamp (36).
3. Make sure that the holes of inner and outer clamp part
match.
4. Insert the two socket bolts again and tighten.
5. Repeat this for the second armrest.
6. Make sure both armrests have the same end positions.
7. Make sure that both toothed clamps (36) are firmly
secured.
3.2.6 Footrest width (Footrest B06 or BZ7EF)
The width between the footrests can be adjusted in 3 positions, over 30 mm by adjusting the front
of seat frame.
1. Remove the footrests.
1. Remove the two M6 socket screws (40) on either side
of the seat frame front.
2. Slide the footrest supports (37) in/out of the seat frame
front (38) to get the desired position. Make sure that
inner and outer tube holes are in line.
3. Insert the 2x2 socket screws (40) and tighten the nuts
firmly.
4. Make sure the footrest supports are positioned
identically on both sides of the seat.
5. Reinstall the footrests/footplate.
3.2.7 Footrest length B06
Risk of damage

Avoid that the footrests make any contact with the ground. Keep a
minimum distance of 50 mm above the ground.
1. Remove the screw (39).
2. Adjust the length of the footrest to a comfortable length (range: 120
mm, steps 20 mm).
3. Tighten the screw (39) properly.
Check that the footrests are positioned identically on both sides.
CAUTION
CAUTION
36
35
40
37
38
39
