Vermeiren Pluo User manual

Pluo
INSTRUCTION MANUAL

Pluo
2019-10
1
EN
NL
CONTENTS
Contents .............................................................................. 1
1Preface ........................................................................ 2
2Your product................................................................ 3
2.1 Accessories.............................................................. 4
3Before use ................................................................... 5
3.1 Intended use ........................................................... 5
3.2 General safety instructions...................................... 5
3.3 Symbols on the shower chair .................................. 6
4Scope of delivery ......................................................... 6
5Assembly and adjustments .......................................... 7
5.1 Tools ........................................................................ 7
5.2 (Dis) Assembly......................................................... 7
5.3 Mounting and adjusting the headrest ..................... 9
5.4 Adjusting the seat height (only for 5” wheels)......... 9
5.5 Mounting the safety belt......................................... 9
5.6 Mounting the safety bracket ................................... 9
6Using your shower chair..............................................10
6.1 Brakes.................................................................... 10
6.2 Armrest ................................................................. 11
6.3 Footrest................................................................. 11
6.4 Toilet bucket .......................................................... 12
6.5 Moving to/from shower chair ............................... 12
6.6 Moving/riding the shower chair............................ 12
7Maintenance ..............................................................13
7.1 Expected lifespan .................................................. 13
7.2 End of use.............................................................. 13
8Technical specifications...............................................14

Pluo
2019-10
2
EN
NL
1PREFACE
Please read this manual carefully; it will help you to get familiar with the operation,
capabilities and limitations of your shower chair.
If you still have questions after reading this manual, do not hesitate to contact your
specialist dealer. He/she will be glad to help you on this subject.
To ensure your safety and to prolong the lifetime of your product, please take good care
of it and have it checked and/serviced on regular base.
The warranty of this product is based on normal use and maintenance as described in this
manual. Damage to your product caused by improper use or lack of maintenance will cause
the warranty to lapse.
This manual reflects the latest product developments. Vermeiren has the right to
implement changes to this type of product without being imposed to any obligation to
adapt or replace similar products previously delivered.
Pictures are used to clarify the instructions in this manual. Details of the depicted product
may deviate from your product.
On our website http://www.vermeiren.com/ you will always find the most recent version
of following information. Please consult this website regularly for possible updates.
Visually impaired people can download the electronic version of this manual and have it
read out by means of a text-to-speech software application.
Wheelchair instruction For user/attendant/care taker
Service manual for hygiene support For specialist dealer
Service registration form For specialist dealer
Warranty statements For user/attendant/care taker
EC declaration of conformity

Pluo
2019-10
3
EN
NL
2YOUR PRODUCT
This mobile shower chair with optional toilet bucket is easy to use in bathrooms and is
available with 4 swivelling wheels or with 24” rear wheels.

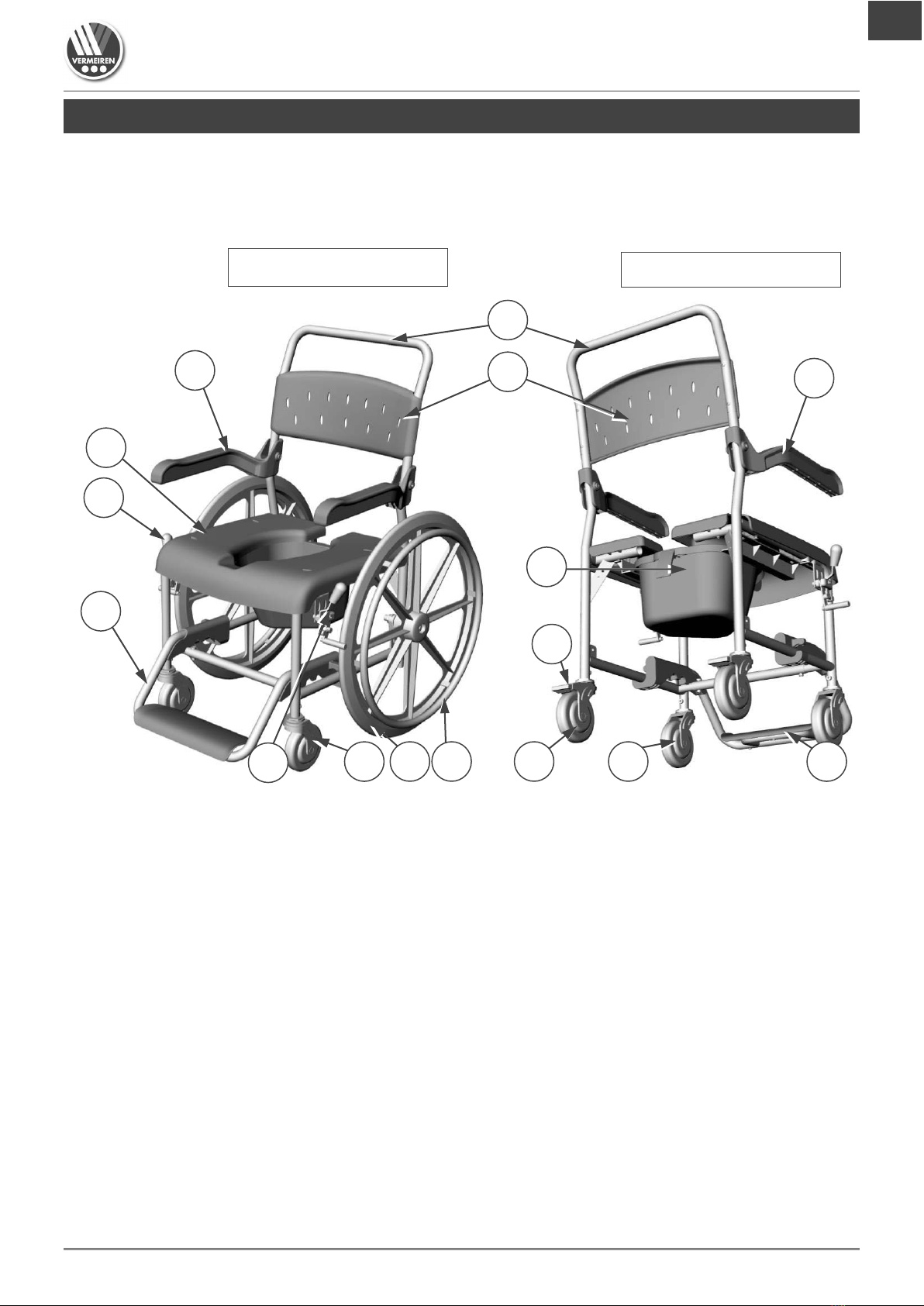

1. BACKREST FRAME / PUSH BAR
2. BACKREST
3. ARMREST ROTATABLE
4. SEAT
5. BRAKE LEVER
6. FOOTREST
7. PARKING BRAKE (FOR 24” ONLY)
8. FRONT WHEEL (STEERING)
9. REAR WHEEL 24”
10. HAND RIM (FOR 24” ONLY)
11. FRONT WHEEL (STEERING)
12. REAR WHEEL 5”
13. PARKING BRAKE (FOR 5” ONLY)
14. TOILET BUCKET
8
6
3
4
5
13
2
1
3
6
11
12
10
9
7
14
24” model front
5” model back

Pluo
2019-10
4
EN
NL
2.1 Accessories
The following options and accessories are available for Pluo:
1. Adjustable leg height (only 5”)
2. Head rest
3. Safety belt
4. Safety vest
5. PU seat and back
6. Gel seat
7. Lateral support
8. Safety bracket

Pluo
2019-10
5
EN
NL
3BEFORE USE
3.1 Intended use
This paragraph contains a brief description of the intended use of your shower chair.
Additionally, relevant warnings are added to the instructions in the other
paragraphs. In this way we would like to make you aware of the possible misuse that
may appear.
•This shower chair is suitable for indoor use only as bathroom chair and for transport
to/from bathroom.
•This shower chair is designed and produced solely to transport one (1) person with
a maximum weight of 150 kg. It is not designed for transport of goods or objects,
nor for any other use as previously described.
•The 5” shower chair is meant to be operated by an attendant; the 24” model can be
operated by occupant as well.
•If applicable, only use accessories and spare parts approved by Vermeiren.
Please read all technical details and limits of your shower chair in §8.
3.2 General safety instructions
Risk of injuries and/or damage
Keep the following general warnings in mind during use:
•Do not use your shower chair if you are under influence of alcohol, medicines or
other substances that may influence your riding abilities. This counts also for your
attendant, operating the shower chair.
•Do not lean too far forwards or sideways to prevent tipping over.
•Do not stand on the footrest.
•Only lift the shower chair when it is empty. Grab the shower chair at the frame tubes.
•Check before each use all parts for damage or cracks. Do not use the shower chair if
it is not in good condition. Contact your specialist dealer for possible repairs or part
replacements.
•Do not modify your shower chair in any way.
CAUTION

Pluo
2019-10
6
EN
NL

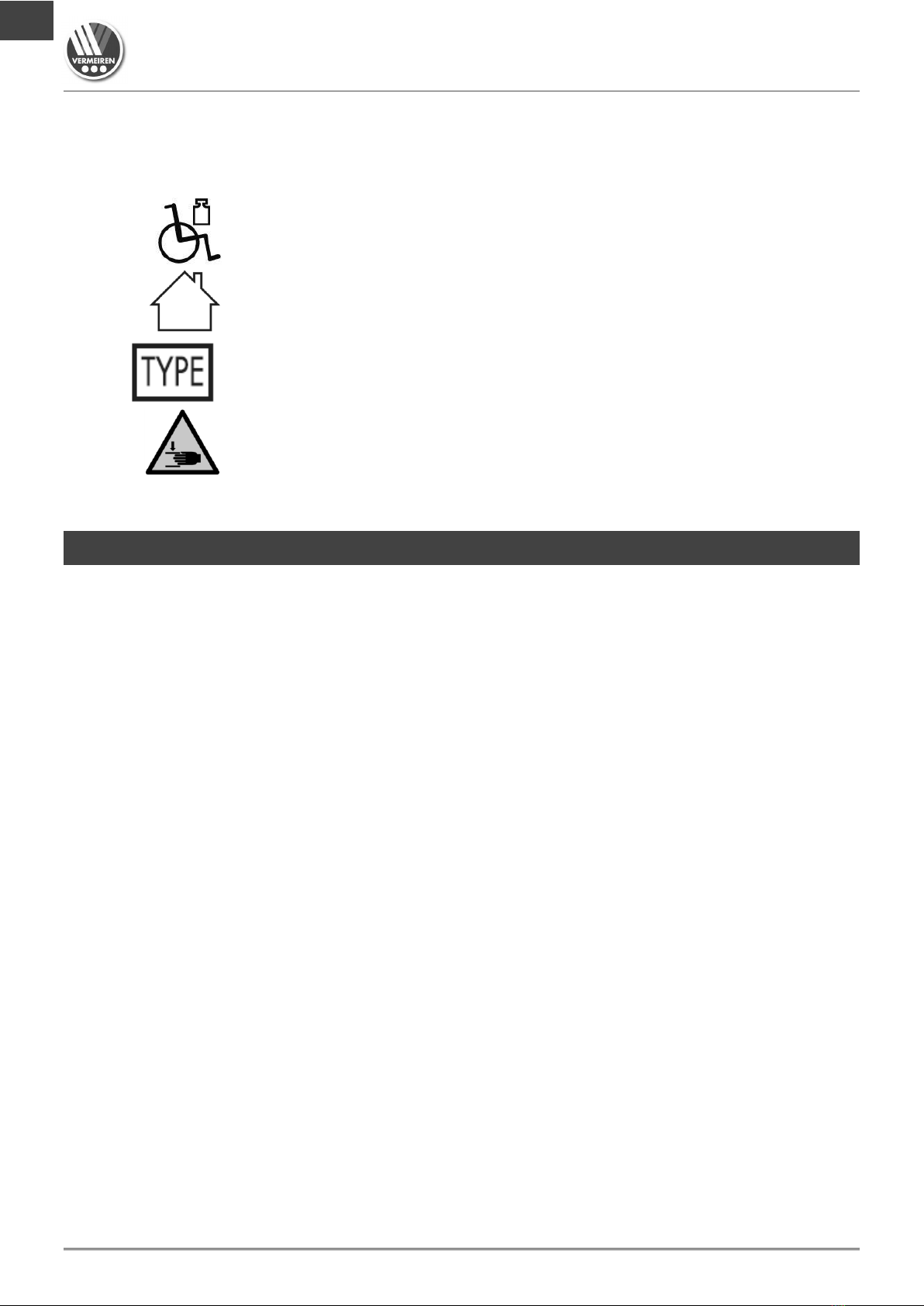

3.3 Symbols on the shower chair
The symbols in following list are applicable for your shower chair. Symbols can be found
in the relevant ISO standard (ISO 7000, ISO 7001 and IEC 417).
Maximum weight of the user in kg
Indoor use only
Type designation
Risk of entrapment
4SCOPE OF DELIVERY
Depending on the packaging method, the frame and wheels are assembled or
disassembled. For the small boxes with disassembled frame, the following items are part
of the delivery:
•Left frame with armrest
•Right frame with armrest
•Front frame tube
•Backrest frame
•Backrest
•Two supports with swivelling wheels, without brakes
•Two supports with rear swivelling wheels and brakes (only for 5” model)
•Two 24” rear wheels (only for 24” model)
•Footrest
•Accessories
•User manual
Before use, check if everything is included and that no products are damaged.

Pluo
2019-10
7
EN
NL
5ASSEMBLY AND ADJUSTMENTS
5.1 Tools
To (dis)assemble and adjust the shower chair, the following tools are needed:
•Wrench set no. 13
•Allen keyset n° 3 - 4 - 5
5.2 (Dis) Assembly
The following description explains the assembly of the chair. To disassemble,
follow the steps in reverse order.

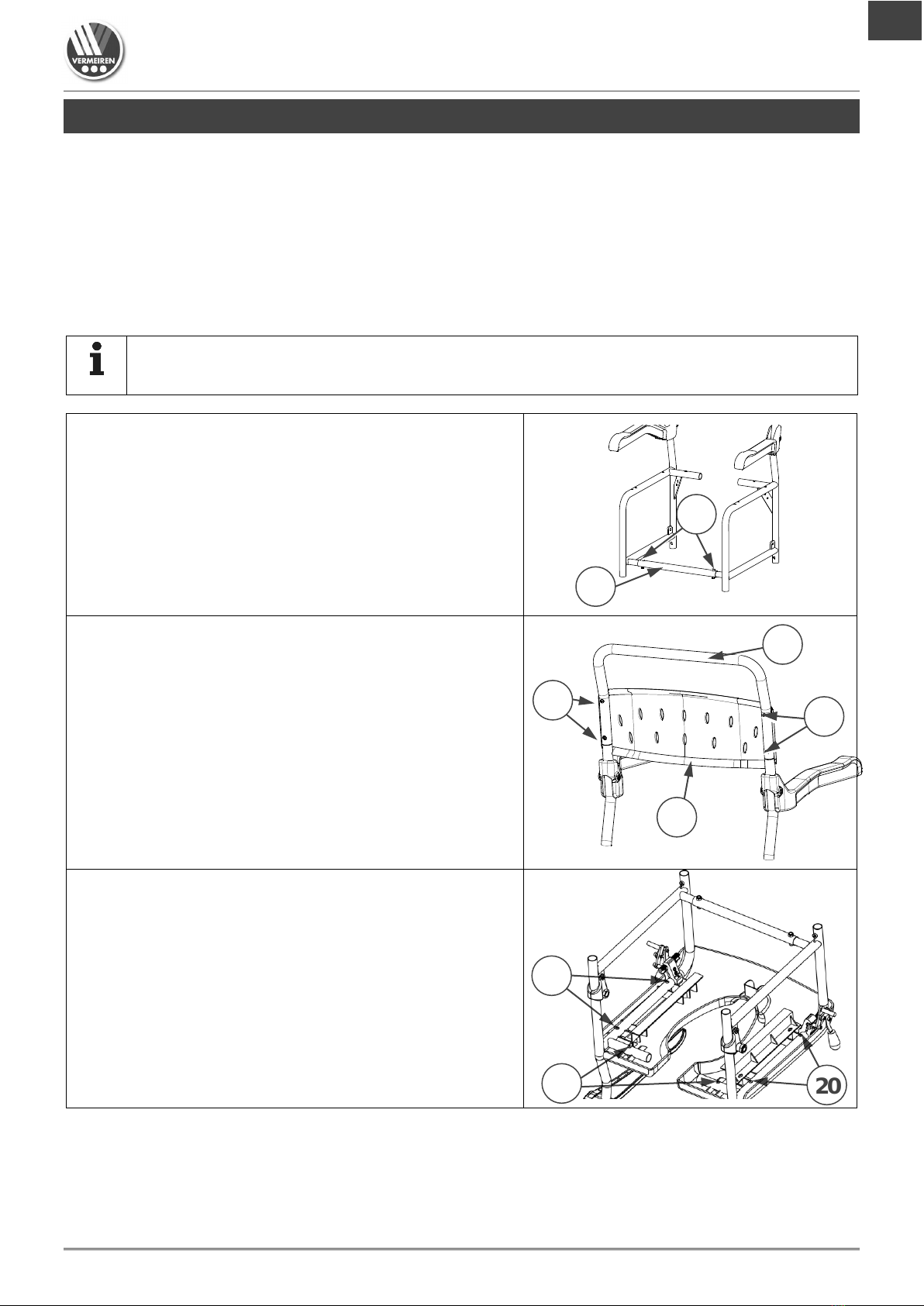

1. Connect left and right frame at the front by
frame tube (17):
•Insert the socket screws (16) in the frame
holes and tighten screws and nuts firmly.
•Verify that the frame parts are well secured.
2. Connect left and right frame at the back by
backrest frame (18).
•Slide the back frame tube (18) over the
protruding tube ends of the side frames.
•Mount the backrest (2) with the curved side
on top.
•Use the four socket screws (19) and tighten
firmly.
3. Mount the seat:
•Turn the frame upside down and place the
seat frame on the underside of the seat.
•Make sure that the bucket stop is at the front.
•Tighten the 2x3 socket screws (20) firmly.
19
19
2
18
20
20
20
16
17

Pluo
2019-10
8
EN
NL

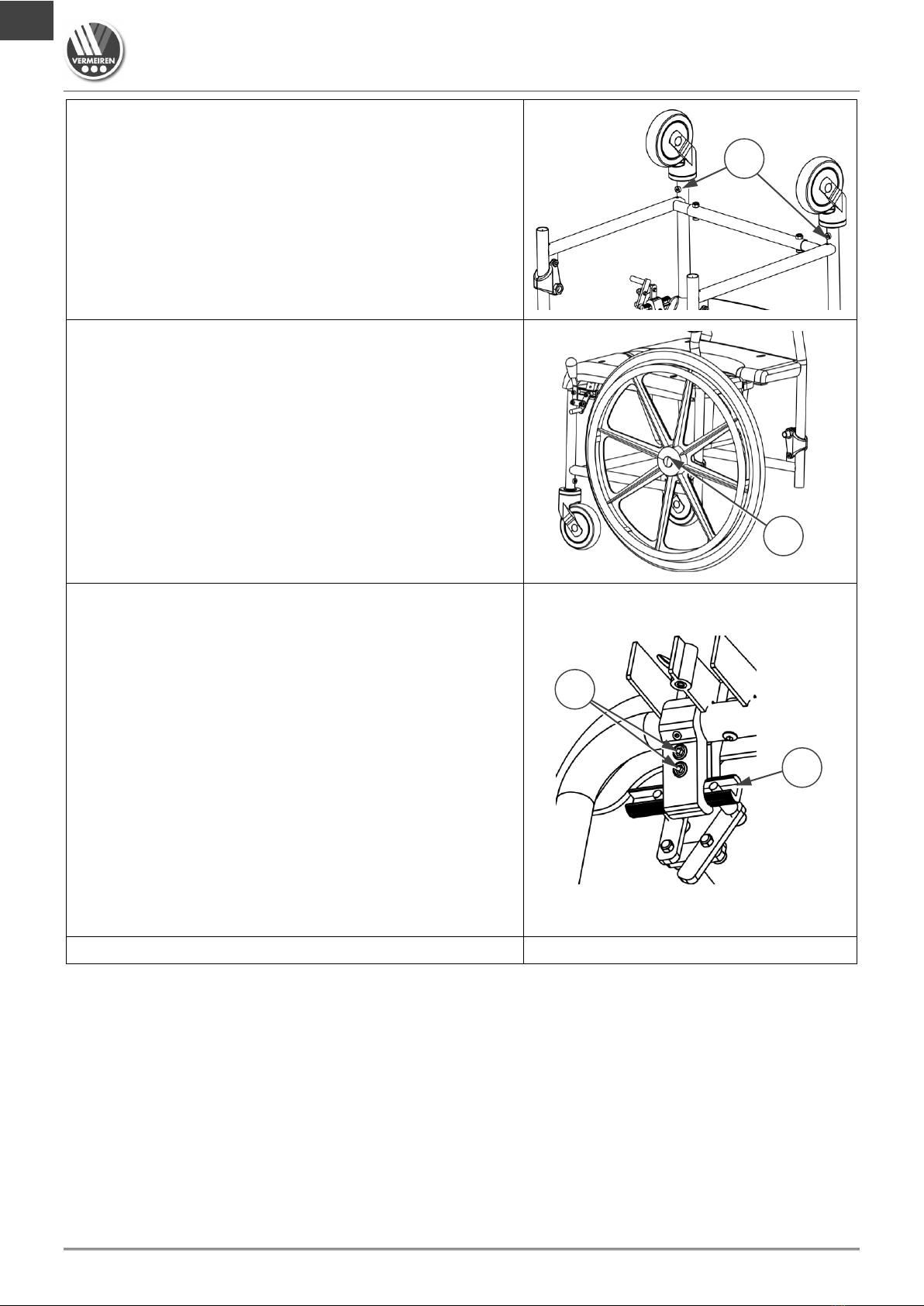

4. Mount the front wheels (2x):
•Insert the tube ends of the wheel supports in
the frame-tube ends.
•Tighten both wheel supports firmly with the
socket screw (21).
•Verify that the fronts wheels are well secured.
5. Add the rear wheels:
•Only for 5” model: Mount both rear wheels
with brakes, see previous step.
•Only for 24” model: Insert the connection pin
(22) of one 24” wheel in the shaft housing on
the frame till a click is heard. Repeat this for
the second wheel.
•Verify that the rear wheels are well secured.
6. Adjust the parking brake (only for 24” model):
•Loosen two socket screws (24).
•Put the parking brake in braking position
(brake lever to the front).
•Slide the parking-brake support (23) till the
brake stop is pressed on the tyre.
•Tighten the two socket screws (24).
•Verify that the shower chair stays in position
when the brake is applied. If not, repeat the
adjustment.
•Repeat this for the second parking brake.
•Make sure that both brake supports (23) are
well secured.
7. To add footrest (6), see §6.3.
21
22
23
24

Pluo
2019-10
9
EN
NL
5.3 Mounting and adjusting the headrest
1. Loosen the two screws (25) on the headrest support.
2. Clasp the headrest to the backrest frame (26).
3. Firmly tighten the two screws (25). Make sure that the
headrest is well secured.
4. Loosen the knob (27) by hand to adjust the headrest height
up/down to the desired position. Retighten the knob firmly.
5.4 Adjusting the seat height (only for 5” wheels)
The seat height can be adjusted over a distance of 90
mm (in steps of 30 mm).
1. Remove the screw (28) from the leg.
2. Adjust the leg to the desired height by sliding
the inner tube (29) up/down in the outer
frame tube (30).
3. Replace the screw (28) and firmly tighten.
4. Repeat for the other legs. Make sure that all
legs are firmly secured, and that they have been set to the same height.
5.5 Mounting the safety belt
The safety belt is attached to the frame by the two lower screws
(31) of the backrest.
5.6 Mounting the safety bracket
To mount the safety bracket, slide it sideways on the armrests from one side to the other.
25
27
26
29
30
28
31

Pluo
2019-10
10
EN
NL
6USING YOUR SHOWER CHAIR
Risk of injuries and/or damage
Be aware that the shower chair may get very hot or cold due to ambient temperature,
solar radiation, heating devices or cleaning water. Be careful when touching.
Make sure that your hands, clothes, belts, buckles or jewellery won’t get caught by
wheels.

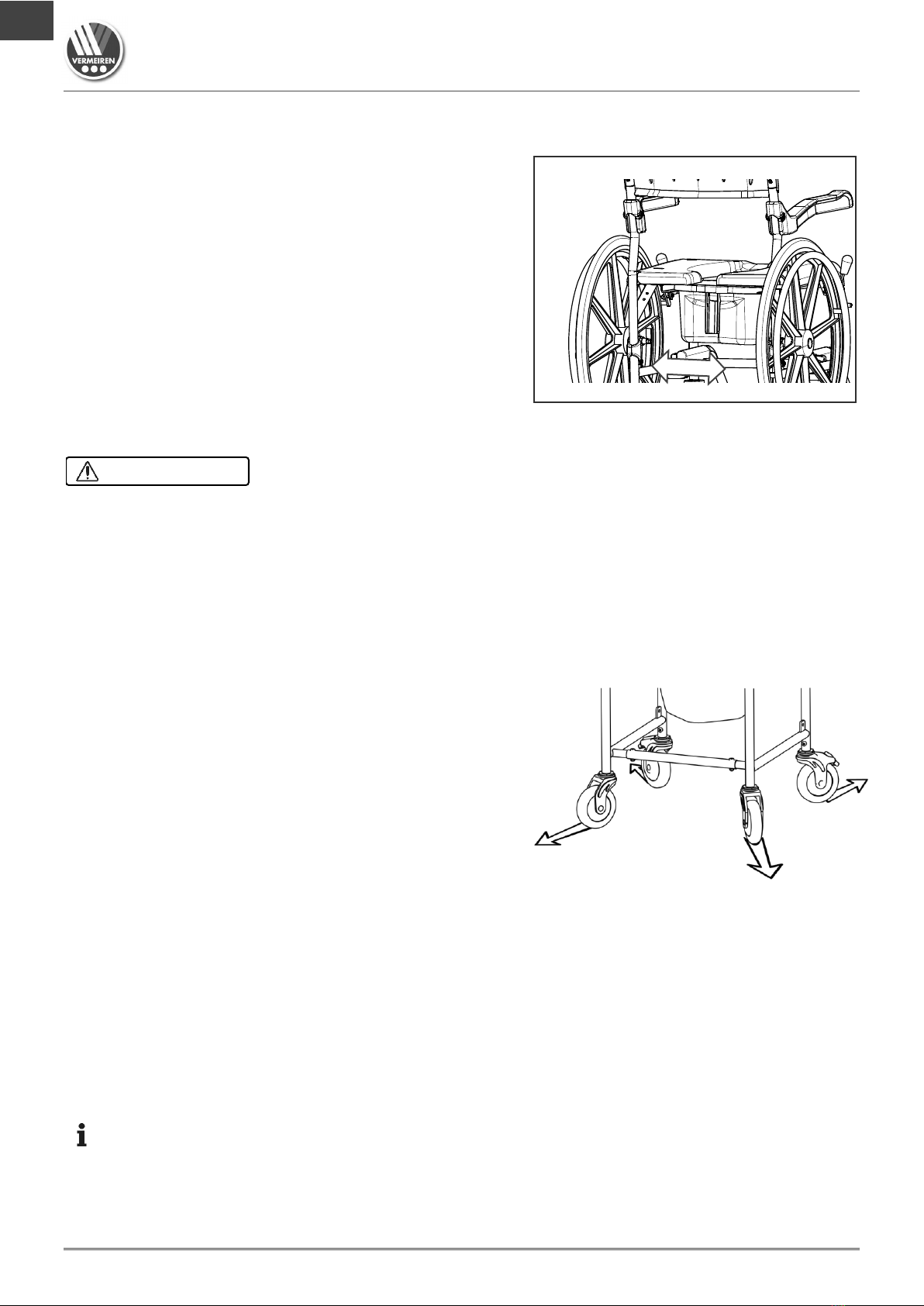

6.1 Brakes
Risk of injuries and/or damage
•Do not use the brakes to slow the shower chair down.
Your shower chair is equipped with two manually-operated parking brakes. These brakes
are intended to prevent movement of the shower chair when parked.
6.1.1 Parking brakes for 24” model
Releasing brakes [A]:
1. Hold one hand rim tight with one hand (or your attendant holds the push bar with one
hand).
2. Pull brake lever (10) of the OTHER wheel to the
REAR.
3. Repeat this for the second wheel and parking
brake.
Applying brakes [B]:
1. Hold one hand rim tight with one hand (or
your attendant holds the push bar with one
hand).
2. Push brake lever (10) of the OTHER wheel to
the FRONT till you feel a distinctive lock.
3. Repeat this for the second wheel and parking
brake.
CAUTION
CAUTION
A
B
10

Pluo
2019-10
11
EN
NL

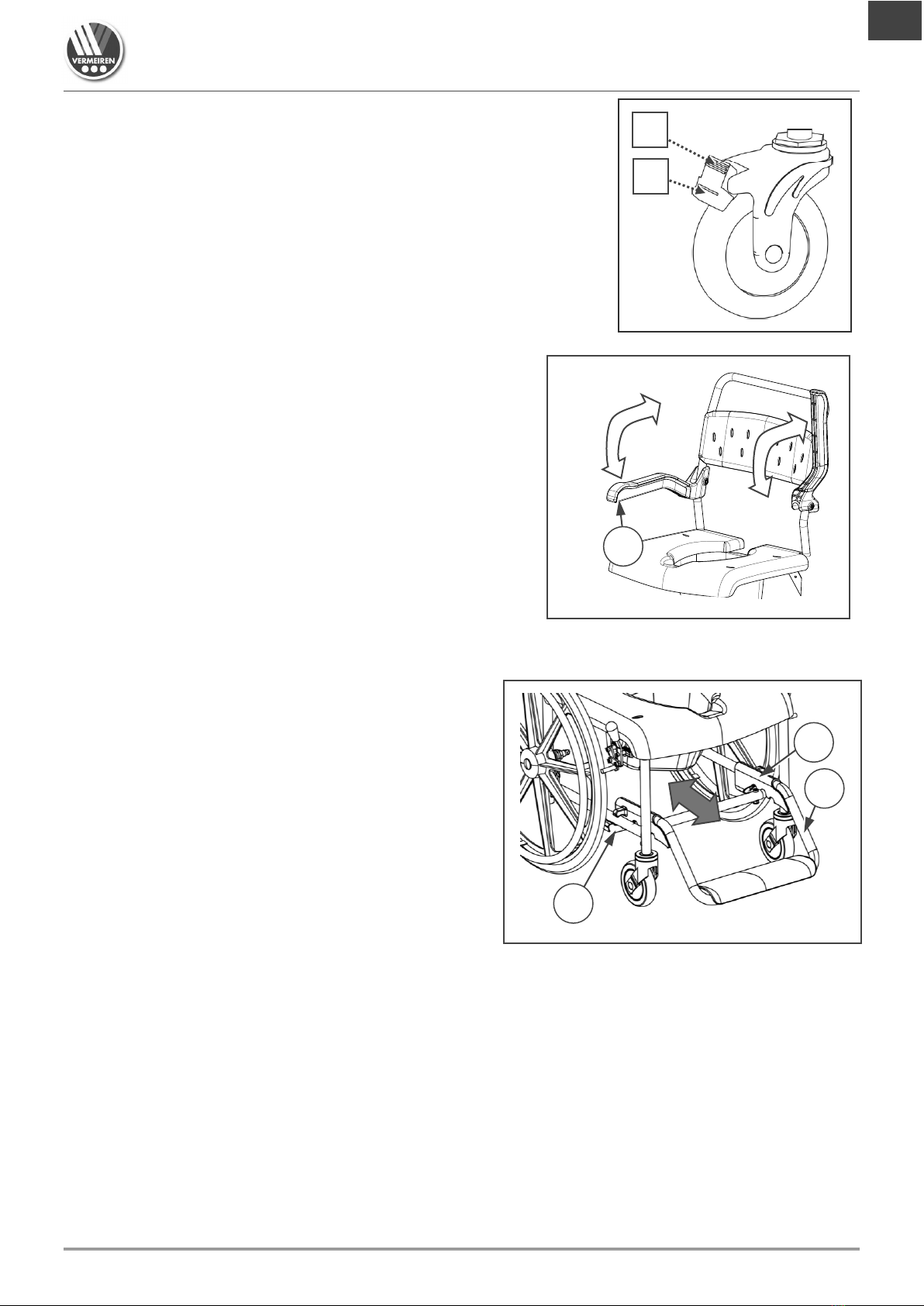

6.1.2 Parking brakes for 5” model
Releasing brakes [C]:
Use your foot to press the top of the brake lever backwards.
Applying brakes [D]:
Use your foot to press the brake lever down towards the
castor wheel.
6.2 Armrest
•Turn it up to make room for passage.
•Turn it down to sit comfortably.
6.3 Footrest
To insert & pull out:
•Push footrest (6) inwards with your foot, to
make room for passage.
•To restore, pull it out. Make sure that the
front tube falls in the recess of the footrest
support (25) (3 positions available)
To remove & install:
•Remove by pulling clamp (26) from the
frame tubes at left and right side. Move the
footrest between the frame tubes of the front wheels.
•To restore, push clamp (26) of the footrest on the frame tube, at left and right side.
Make sure that the front tube falls in the recess of the footrest support (25).
C
D
6
25
26
3

Pluo
2019-10
12
EN
NL
6.4 Toilet bucket
To insert:
•Place the toilet bucket at the rear side, with its
rim on the two guides.
•Slide it to the front against the bucket stop.
To remove:
•Slide the bucket backward while supporting it
with your other hand.
6.5 Moving to/from shower chair
Risk of injuries and damage
•In case you cannot perform the transfer in a safe manner, ask someone to assist you.
•Do not stand on the footplates during transfer.
•Do not lean on the armrests during transfer.
Transfer
•Position the shower chair as close as possible to you when sitting in your chair, couch,
seat or bed.
•Turn the swivelling wheels outwards to get
more stability, see picture.
•Apply the brakes, see §6.1.
•Push the footrest under the seat and turn the
armrest up on one side (see §6.3 and §0).
•Transfer to/from the chair using the strength
of your arms or with the help of an attendant
or lifting equipment.
Sitting in the shower chair
•Sit down on the seat with your lower back against the backrest.
•Reinstall armrest and/or footrest.
•Put your feet on the footplate.
•Make sure that your upper legs are horizontal; adjust the footrest, see §6.3.
6.6 Moving/riding the shower chair
Information on how to negotiate with thresholds and obstacles can be found in our
Wheelchair instruction, please refer to our website.
CAUTION

Pluo
2019-10
13
EN
NL
Risk of injuries and damage
•Before every usage, make sure that:
oall parts are firmly secured, see § 5.
obrakes are working properly, see §6.1.
•Keep your feet on the footplate.
•Thresholds and obstacles should to be taken backwards.
7MAINTENANCE
The maintenance frequency depends on the level of use. To keep the shower chair in
good condition:
•Keep your wheels free of wires, fibres, hair, sand and soap deposits.
•Clean with warm water and a mild soap. Do not use abrasive cleaning agents or
sponges, hard brushes or high-pressure cleaners.
The shower chair can be cleaned at 85°C during maximum 3 minutes.
7.1 Expected lifespan
The average lifespan of your shower chair is 5 years. Depending on the frequency and
way of use and maintenance, the lifespan of your shower chair will increase of decrease.
7.2 End of use
At end of life, you need to dispose your shower chair according to the local
environmental legislation. The best way to do so, is to disassemble the shower chair to
facilitate the transport of recyclable parts.
CAUTION
Risk of damage
•Disinfections may only be undertaken by trained persons. Consult your specialist
dealer.
CAUTION

Pluo
2019-10
14
EN
NL
8TECHNICAL SPECIFICATIONS
The technical details below are only valid for this shower chair, at standard settings and
optimal ambient conditions. Take these details into account during use. The values are no
longer applicable if your shower chair has been modified, damaged or suffers from severe
wear.
Table 1: Technical specifications
Brand
VERMEIREN
Type
Shower chair
Model
Pluo
Description
Dimensions
5” standard
Dimensions
24” rear wheels
Max. weight of user
150 kg
150 kg
Total height
1035 mm
1035 mm
Total width
570 mm
668 mm
Total length (adjustable footrest)
720 - 760 - 785 mm
910 - 950 - 975 mm
Dimensions H x W x L folded
1035 x 570 x 570 mm
1035 x 623 x 570 mm
Footrest height and angle (adjustable)
90 - 105 - 120 mm
4° - 7° - 9°
90 - 105 - 120 mm
4° - 7° - 9°
Seat height
515 mm
515 mm
Seat depth
450 mm
450 mm
Seat width
480 mm
480 mm
Height of backrest
920 mm
920 mm
Distance between armrest and seat
225 mm
225 mm
Front location of armrest structure (footrest in most
front position)
605-665 mm
605-665 mm
Total mass
9,7 kg
14,0 kg
Mass of heaviest part
8,0 kg
7,2 kg
Mass of removable parts
24” Wheel:
Footrest:
Toilet bucket:
NA
1,0 kg
0,7 kg
2,5 kg (each)
1,0 kg
0,7 kg
Volume toilet bucket
9,3 litre
9,3 litre
Front wheel diameter
125 mm
(2x, swivelling, without
brakes)
125 mm
(2x, swivelling without
brakes)
Rear wheel diameter
125 mm
(2x, swivelling with
600 mm
(2x fixed, with brakes)

Pluo
2019-10
15
EN
NL
Description
Dimensions
5” standard
Dimensions
24” rear wheels
brakes)
Hand -rim diameter
NA
530 mm
Use temperature
5°C ~ +50°C
Clean temperature
85°C for max. 3 minutes
Storage temperature
+5°C ~ +65°C
We reserve the right to introduce technical changes.
Measurement tolerance ± 15 mm / 1,5 kg / 1,5°.
NA = not applicable

Service registration form
Service registration form
This product (name): ……………………………………..
was inspected (I), serviced (S), repaired (R) or disinfected (D):
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:
By (stamp):
Kind of work: I / S / R / D
Date:

© Vermeiren Group 2019
Vermeiren GROUP NV
Vermeirenplein 1 / 15
2920 Kalmthout
BE
website: www.vermeiren.com
Instructions for specialist dealer
This instruction manual is part and parcel of the product and must accompany
every product sold.
Version B, 2019-10
All rights reserved, including translation.
No part of this manual may be reproduced in any form what so ever (print,
photocopy, microfilm or any other process) without written permission of the
publisher, or processed, duplicated or distributed by using electronic systems.
R.E.: Vermeiren GROUP, Vermeirenplein 1/15 - 2920 Kalmthout –Belgium
Instruction manual - Pluo_EN_W201898_A5_2019-10_B
