Vermont Castings VCSeries User manual
30006292 1/13 Rev. 1 En
*Includes all colors.
6235
VC323SSP cover
30006292
2
...............................................................................................2
.............................................................................................3
Important Warnings ..............................................................4
Clearance Requirements ......................................................5
Safety ...................................................................................6
Fuels ......................................................................................9
Connecting the Gas Supply ................................................ 11
LP Gas Supply Connection ................................................ 11
Natural Gas Supply Connection ..........................................12
Test for Leaks .....................................................................12
Control Functions ...............................................................13
Lighting the Main Burners ...................................................14
Turning the Burners Off .....................................................15
Flare-ups ............................................................................15
Match Lighting the Main Burner ..........................................15
Rotisserie Setup .................................................................16
Methods of Cooking ............................................................18
Preparing Food for the Grill ..............................................18
Grilling Tips ........................................................................19
Cooking Time Chart ..........................................................20
Burners ...............................................................................23
Cooking Grids ......................................................................24
Drip Tray ............................................................................24
Stainless Steel Panels ........................................................24
Porcelain Enamel Castings ................................................24
Burner Adjustment ...............................................................25
....................................................................................26
.............................................................................................28
Table of Contents
30006292 3
B485
parts id
Parts Identification
Lid
Cooking Grates
Warming Rack
Side Shelf
Burner Control Knobs
Igniter
Side Shelf
Tool / Towel
Holder
Tool / Towel
Holder
Backlight Button
B485
30006292
4
The Signal Words used in this Manual, and their intended meanings, are as follows :
Indicates that a failure to observe the safety instructions could result in death or cata-
strophic bodily injury.
Indicates that a failure to observe the safety instructions could result in serious bodily
injury.
Indicates that a failure to observe the safety instructions could result in property dam-
age or minor bodily injury.
Designates important information relating to the safe use of the Grill.
Since this outdoor cooking appliance is movable, is fueled by natural or propane gas, generates
very high temperatures for cooking and emits carbon monoxide as a by-product of combustion,
prudent precautions must be taken to assure its safe use.
This Gas Barbecue Grill will provide you with many hours of pleasure and enjoyment, if it is used
in accordance with the Warnings and Operating Instructions contained in this Manual.
Always comply with all of the Warnings and Operating Instructions contained in this manual
to prevent personal injury or property damage.
•This Grill has been designed for OUTDOOR use only.
Never use this outdoor Grill inside any building, garage, shed, breezeway, or any other enclosed
area, to prevent a possible re and to prevent the possibility of carbon monoxide poisoning or
asphyxiation.
This outdoor cooking gas appliance is not intended to be installed in or on boats (any vessels).
This outdoor cooking gas appliance is not intended to be installed in or on recreational vehicles.
This outdoor cooking appliance is not for commercial use.
Exposing an overlled or a disconnected propane cylinder to heat could cause venting of fuel
through the pressure release valve. Since propane vapor is heavier than air it tends to pool and, if ignited,
could produce a violent re or explosion.
Never install a propane cylinder in this grill if it is more than 80% full, as the contents may lack
adequate room for expansion when exposed to heat.
Never store a spare Propane Gas Cylinder in the cylinder-compartment of this Grill, because it
will be exposed to high temperatures when the Grill is in use.
The use of alcohol, prescription or non-prescription drugs may impair the ability to properly as-
semble or safely operate this appliance.
This appliance is not intended for and should never be used as a heater.
Warnings
30006292 5
Warnings
• (i.e. where it is
enclosed in any type of construction), to prevent a re or gas explosion.
•
or recreational vehicle, to prevent a possible re and to prevent the possibility of carbon mon-
oxide poisoning or asphyxiation.
• to prevent the accumulation of gas and a
possible re or explosion.
•
•
a combustible object (e.g., an awning or umbrella) or in
a covered area (e.g., a porch or gazebo) before lighting
it, to prevent a possible re.
•
the overhang of a house, a garage or other structure be-
fore lighting it. An overhang will serve to deect are-ups
and radiated heat into the structure itself, which could
result in a re.
•
away from any combustible materials or surfaces
before lighting it, and that no gasoline or other volatile
substances are stored in the vicinity of this Grill. The
temperature of a grease re or of the radiated heat might
otherwise be sufcient to ignite nearby combustibles or
volatile substances.
•
combustion and ventilation air, but never position it in
the direct path of a strong wind.
• to
prevent uncontrolled grease res from erupting.
• or while it is still hot, to prevent possible
personal injury.
• in the vicinity of this Grill
or in the vicinity of any other heat-generating appliances, because of the danger of starting a re.
•
or, in the absence of any applicable local Codes, with either the National Fuel Gas Code, ANSI
Z223.1/NFPA54, Storage and Handling of Liqueed Petroleum Gases, ANSI/NFPA 58; or Natural Gas
and Propane Installation Code, CSA B149.1; Propane Storage and Handling, CSA B149.2.
24"
(610 mm)
12" (305 mm)
B480
clearance
B480
30006292
6
• Never install a propane cylinder that is more than 80 % full, as the contents may lack adequate room
for expansion when exposed to heat. Propane vapor may then be vented through the pressure release
valve, which could accumulate in a pool and later result in a re or explosion.
Always instruct your certied propane fuel supplier to conrm by weight that your cylinder is not more
than 80 % full. An empty cylinder will weigh about 19 lbs., while a properly lled cylinder should weigh
no more than 39 lb.
• Never store a spare Propane Cylinder in the cylinder-compartment of this Grill. Exposing a disconnected
cylinder to heat could result in the venting of propane vapor through the pressure release valve, and
the resulting pooled vapor could cause a violent re. (No hazard is posed by the connected cylinder if
it is not overlled, however, as it tends to refrigerate itself while it is being used.)
Always conrm that all openings in the cylinder compartment of this Grill are free of any obstructions
that would restrict the circulation of ventilation air. Good ventilation will prevent any leaked propane
vapor (which is heavier than air) from pooling. Pooled propane vapor is a hazard, as it could explode
if ignited.
• Always store your spare Propane Gas Cylinders in an outdoor area that is well-ventilated, shady, cool
and removed from any heat source. Always store those cylinders in an upright position. Never store a
spare cylinder in the vicinity of this Grill, or in the vicinity of any other heat-generating appliance.
•
Always consult the Rating Label on the back of the Grill to conrm which fuel must be used with
the Grill. Never operate the Grill with propane gas if it has been congured to use natural gas, to
prevent hazardous overheating.
•
Always conrm that there are no gas leaks before lighting this Grill. Turn on the main gas valve
while the burner valves are set to the “OFF” position. Apply a 50/50 solution of liquid soap and
water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles. If
bubbles appear, a leak is indicated.
•
Turn off the gas supply and repair the leak. Repeat this test until no bubbles appear. Never use a
match or open ame to test for gas leaks.
•
Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use
of this Grill. If necessary, install a replacement hose and regulator obtained from the manufacturer
before lighting this Grill. This procedure requires the opening of a door (or doors) in the Grill.
• Always consult the Rating Label on the back of the Grill to conrm which fuel must be used with the
Grill.
• Never attempt to operate the Grill with natural gas if it has been congured to use propane gas, and
never attempt to use propane gas if it has been congured to use natural gas, to prevent possible bodily
injury.
• Always employ a qualied service agency to install all necessary natural gas supply plumbing, for safety
reasons and to assure compliance with all applicable Codes.
Safety
30006292
Safety
• Always promptly shut off the gas supply and immediately extinguish all ames if you smell gas.
• Always seek assistance from your gas supplier or your local Fire Department if the gas smell persists,
because of the danger of re or explosion.
• Always conrm that there are no gas leaks before lighting this Grill. Apply a 50/50 solution of liquid
soap and water to the gas supply line connectors with a brush or spray bottle, and watch for bubbles.
If bubbles appear, a leak is detected.
• Turn off the gas supply and repair the leak. Repeat this test until no bubbles appear. Never use
a match or open ame to test for gas leaks.
• Always visually inspect the gas supply line for fraying, cracking or rodent damage before each use of
this Grill. If necessary, install a replacement before lighting this Grill. This procedure requires the open-
ing of a door or doors in the Grill.
• Keep the fuel supply hose away from any heated surface(s).
• Always keep children and pets under close supervision when using this Grill, and never permit them
to come near the Grill while it is in use, as the exterior surfaces will be extremely hot.
• Always wear insulated protective mitts when working at the Grill, or when attempting to close a gas
supply valve after cooking has been completed, to prevent possible burns. Always use insulated pot
holders when handling containers of hot food.
• This appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from
hot surfaces or splatter from cooking liquids.
• Always wear an insulated protective mitt when adding a smoking agent to a Smoker Box.
• Never store or use gasoline or other ammable or volatile substances in the vicinity of this Grill, or in
the vicinity of any other heat-generating appliance.
30006292
8
Safety
• Always conrm that this Grill has been grounded in accordance with applicable local Codes or, in the
absence of local Codes, with the National Electrical Code, ANSI/NFPA No. 0 or the Canadian Electri-
cal Code, CSA C22.1, when an external electrical source is being utilized for the Rotisserie Motor.
1. Never immerse the power cord or power plug in water, or in any other liquid to protect against electric
shock;
2. Always unplug the power cord from the outlet when not in use, and before cleaning the Grill. Always
allow the unit to cool before installing or removing any Rotisserie components;
3. Always contact the manufacturer for necessary repair services, if the unit has malfunctioned or has
been damaged in any manner, and never attempt to operate the unit with a damaged power cord or
power plug;
4. Never allow the power cord to contact a hot surface or to hang over the edge of a table, where it might
sustain damage;
5. Never use this Grill for any purpose other than the ones specically intended by the manufacturer;
6. Always connect the power cord to the Grill rst, and then plug it into the power outlet;
. Always connect this Grill to an electrical circuit protected by a Ground Fault Interrupter (GFI);
8. Never remove the 3-pronged (grounded) power plug from the existing Rotisserie Motor power cord,
and never connect the 3-pronged (grounded) power plug to a 2-pronged adapter.
9. If it is necessary to use an extension cord, always select one that has a 3-pronged (grounded) power
plug; that is adequate for the power rating of the unit; and that has been approved for outdoor use, and
has a W-A marking.
10.Keep any electrical supply cord and the fuel supply hose away from any heated surface.
11.Electrical Grounding Instructions: This outdoor cooking gas appliance is equipped with a three-pronged
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-pronged receptacle. Do not cut or remove the grounding prong from this plug.
Replacing the battery incorrectly might result in an explosion. Replace the battery only with the same or
equivalent type recommended by the manufacturer. Dispose of used batteries according to your local
environmental guidelines.
30006292 9
Safety
Never use Natural Gas in a Grill that has been congured to burn Propane Gas to avoid possible bodily
injury. Always consult the Rating Label on the back of the Grill to conrm that it has been congured to
burn Propane Gas.
Always install the pressure regulator and Type 1 propane gas supply coupling and hose that has been
provided with your Propane Grill, as pictured in Figure 2.
• Always install a standard 20 lb. propane cyl-
inder that has been equipped with a Type I
valve outlet as shown in Figure 3, and that is
12” in diameter and 18” in height. Always use
a propane cylinder that has been constructed
and marked in conformance with either the
specications for LP Gas Cylinders of the U.S.
Department of Transportation or the speci-
cations in the National Standard of Canada,
CAN/CSA-B339, Cylinder, Spheres and Tube
for Transportation of Dangerous Goods, as
applicable.
• Always conrm that your propane cylinder
is equipped with a shutoff valve terminating in a Type I propane
cylinder valve outlet connection, and that it has been provided
with a collar to protect the cylinder valve.
• Never install a propane cylinder in this Grill unless it is equipped
with a listed Overll Protection Device (OPD).
• Always have a new propane cylinder properly purged of air by
your certied propane gas dealer. Since a new cylinder is initially
lled with air, the air must rst be purged before it is lled with
propane.
• Always visually inspect the gas supply line for fraying, cracking
or rodent damage before each use of this Grill and, if necessary,
install a replacement hose and regulator obtained from the manu-
facturer prior to lighting this Grill.
• Always place a dust cap on the cylinder valve outlet whenever
the cylinder is not in use and always install the dust cap that was
provided with the cylinder valve. The use of an incorrect dust cap
could result in leakage of propane.
"
,0TANK
Shutoff Valve
Collar
B125
Figure 3
"
QUICKCONNECTHOSE
B232
Figure 2a
Type 1 Connector
Check hose for breaks or wear
before each use.
Regulator
To Main Burner
Manifold
Quick Connect for Reg-
ular Side Burner and
Optional Side Burner of
Built-in Models
30006292
10
Safety
Never install a freestanding outdoor propane Grill in an “island” conguration, (i.e. where it is enclosed in
any type of construction), to prevent a re or gas explosion.
a) Never store a spare LP - Gas Cylinder under or near this appliance
b) Never ll the cylinder beyond 80% full; and
c) Always comply with these warnings, to prevent a re causing death or serious injury.
Always conrm that all opening in the cylinder-compartmet of this Grill are free of any obstructions that
would restrict the circulation of ventilation air. Good ventilation will prevent any leaked propane vapor (which
is heavier than air) from pooling. Pooled propane vapor is a hazard, as it could explode if ignited.
,
away from living quarters and in a well-ventilated, cool, dry area.
•
•
whenever a propane cylinder has been disconnected.
•
•
•
•
•
•
•
•
as shown in Figure 3.
NOTICE
Always have a certied propane gas supplier inspect and re-qualify your rellable propane gas cylinder
prior to each relling, in accordance with DOT or TC requirements for propane cylinders.
30006292 11

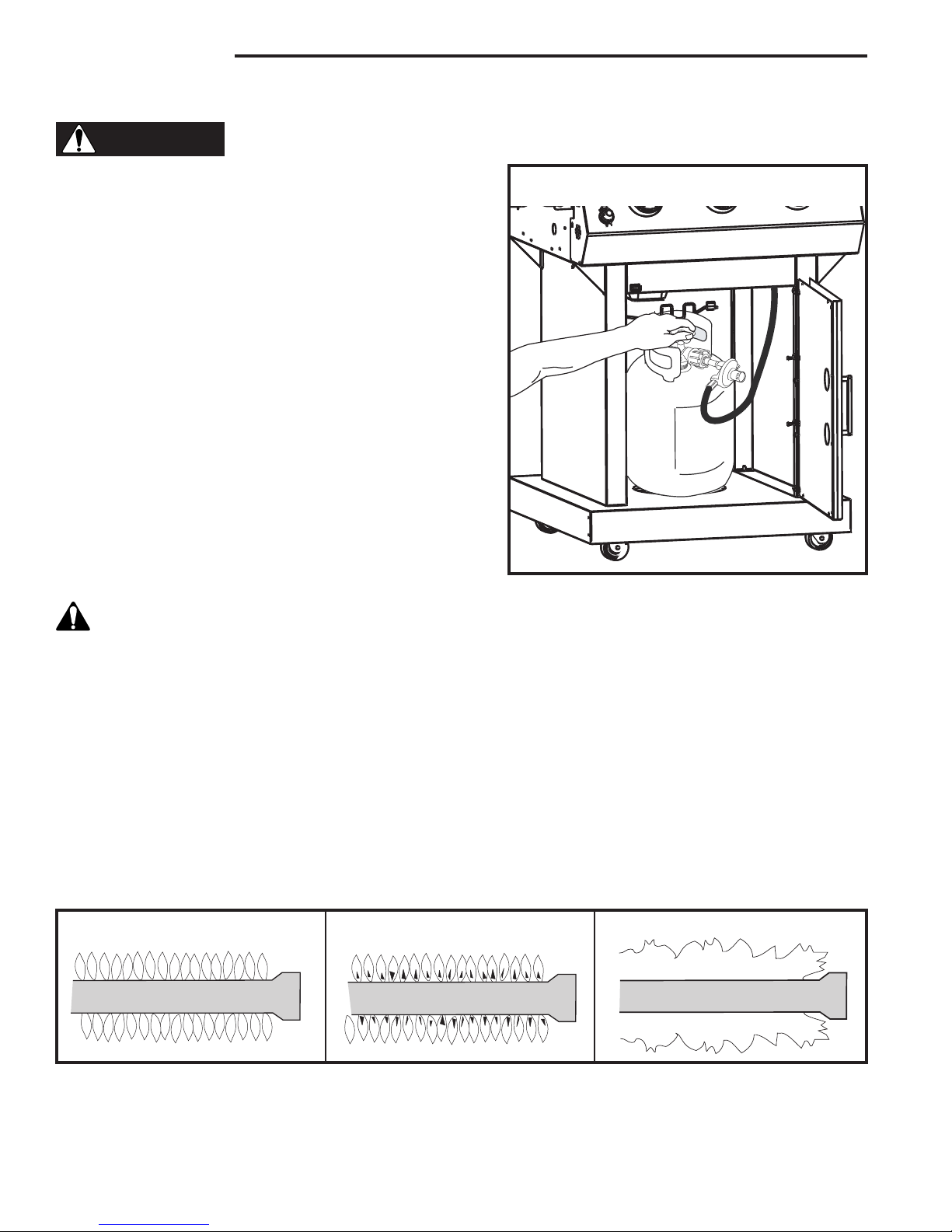

1. Always secure the propane tank in the tank locator hole
in the bottom pan of the cylinder-compart-
ment. (Portable gas grill only.)
2. Always conrm that all burner control knobs
are in the OFF position before activating the
gas supply.
3. Always connect the gas supply regulator by rst
insert-
ing the nipple of the valve coupling into the tank valve
and then tightening the connection collar by turning it
clockwise with one hand while holding the regulator
with the other as shown in Figure 4.
Always conduct the gas leak test described on Page 12
before attempting to light this Grill, to prevent a possible
re or explosion.
1. Never store or use gasoline or any other volatile
substance in the vicinity of this Grill.
2. Never store a spare propane cylinder in the vicinity
of this Grill, or in the vicinity of any other potential heat source.
Always consult your local gas supplier for professional assistance before
attempting to connect this Grill to a xed pipe bulk Propane (LP) gas
supply system.
Gas Connection
NOTICE
B481
install tank
Figure 4
B481
"
LEAKTEST
Figure 5
B126
50/50 Solution of liquid
soap and water
30006292
12
1. Retract the Sleeve on the Socket as shown in Figure 6a.
2. Insert Plug and release the Sleeve. (Fig. 6b)
3. Push the Plug until Sleeve snaps forward to lock the Plug in
the Socket.
1. Push Sleeve back and pull the Plug out.
• Never use Propane Gas in a Grill that has been congured to
burn Natural Gas, (and never use Natural Gas in a Grill that
has been congured to use Propane Gas), to avoid possible bodily injury. Always consult the Rating
Label on the back of the Grill to conrm that it has been congured to burn Natural Gas.
• Always utilize a qualied service agency to perform all required gas supply plumbing. In the U.S., the
supply connection must be made in accordance with local code or, in the absence of local codes, with
the national fuel gas codes, ANSI Z223.1/NFPA54. In Canada, the supply connection shall be carried
out in accordance with the provincial authorities having jurisdiction and in accordance with the require-
ments of the CSA 1-B149.1 installation code.
• A shutoff value must be installed between the gas grill and the main supply. For natural gas, use a
3/8” or 1/2” natural gas supply line capable of an input of at least 100,000 BTUs (depending on the
model).
• Always disconnect the Grill and close its individual manual shutoff valve, when conducting pressure
tests of the gas supply piping system at pressures which exceed 1/2 psi (3.5 kPa).
• Always isolate the Grill from the gas supply piping system by closing its individual manual shutoff valve
when conducting pressure tests of the gas supply piping system at pressures equal to or less than 1/2
psi (3.5 kPa).
1. Always conrm that all burner control knobs are in the OFF position.
2. Always connect the gas supply hose rst and then open the gas shutoff valve.
3. Always use a brush or spray bottle to apply a 50/50 solution of liquid soap and water to all connection
points (as illustrated in Figure 5) to test for gas leaks. Never use a match or open ame for that pur-
pose.
4. Always look for bubbles to appear, as the appearance of bubbles will indicate a gas leak. Always turn
off the gas immediately at the gas supply valve and tighten the connection, if you nd that a leak ex-
ists.
5. Always repeat this procedure until no further gas leaks are found to exist, before lighting the Grill.
6. Never attempt to light this Grill, however, if a leak cannot be stopped. Always call your gas supplier
promptly to obtain assistance.
Retract Sleeve
Release Sleeve
B127
sleeve connect
8/07
Figure 6a
Figure 6b B12
Gas Connection
30006292 13
Igniter
Allumoir
Encendido
CAUTION:
* Read lighting instructions on door below
* Accessible surfaces may become hot
* Turn tank off when not in use
MISE EN GARDE:
* Lisez les instructions d'allumage a l'interieur de la porte ci-dessous
* Les surfaces a decouvert peuvent devenir brulantes
* Fermer le robinet de la bouteille d'alimentation en gaz lorsque l'appareil n'est pas utilise
PRECAUCION:
* Lea las instrucciones de encendido en el interior de la puerta inferor
* Las superficies descubiertas pueden calentarse
* Apague el tanque con no esta en uso
B483
controls
Always open the Propane Tank Valve immediately before lighting the Grill and always close it im-
mediately after cooking has been completed.
Never open the Propane Tank Valve unless the Grill is being prepared for use, to prevent the pooling of
propane vapor.
Always open the Valve immediately before lighting the Grill, and always close it immediately after cooking
has been completed.
(Fig. )
On VC323 series, three valves independently control gas ow to each burner.
The OFF position is indicated above each knob. A full range of ame adjustment is available from High
to Low, (by turning a knob counterclockwise).
Turn on one or more burner control valves. Push and hold the burner igniter. As you push and hold the
Igniter Button, you will hear a series of clicks as the igniter module generates an ignition spark to the
burners. The burner should light within ve seconds. The system is powered by a single “AAA” battery.
Ensure the battery has been installed before using the igniter. To remove or replace the battery, turn the
push button knob counterclockwise, and carefully pull out the spring and battery. Ensure the positive end
of the battery is in the down (bottom) position before replacing the knob.
Operation
Burner Igniter
B483
Figure 7
Backlighting Button
30006292
14
Never stand directly over the Grill when lighting the main
burners, to avoid exposure to possible are-ups.
1.
the Grill and burners before lighting the main
burners.
2.
are in the OFF position before opening the gas sup-
ply.
3. (1 to 2
turns) (Fig. 8) or turn on the main natural gas supply
valve.
4.
position by pushing down on the knob and turning it
counterclockwise.
5. (Refer to Page 13)
The selected burner should light within ve seconds.
Light the burners sequentially from either left to right
or right to left.
immediately turn the burner control knob to the OFF
position, to prevent gas buildup. Wait ve (5) minutes for the gas to clear and then repeat the preceding
starting procedure. If the burner will not light when using the Igniter, follow the match lighting instructions.
(Refer to Page 15)
6. Conrm that the burner is properly lit and the ame pattern is as desired. Refer to Figures 9a, 9b &
9c, for the proper ame patterns. If the ame pattern is other than normal, consult the Troubleshooting
Guide on Page 30 for corrective action.
. Always preheat the grill before starting cooking. A light coating of cooking oil on the cooking grids,
before heating the Grill, will prevent foods from sticking to the Grill. Light all burners and adjust them
to the HIGH position for 5 to 10 minutes. Before placing any food on the Grill, clean the cooking grids
with a brass wire brush.
8. Adjust the Controls to a medium setting for most cooking requirements.
"
#ORRECTBURNERFLAMES
Figure 9a Figure 9b Figure 9c
Normal: Soft blue ames Out of Adjustment: Noisy, hard blue
ames indicate too much air
Poor Combustion: Wavy, yellow ames
indicate too little air.
B129
Operation
When lighting the grill for the rst time, burn with the
main burners on HIGH for at least 30 minutes, to burn off any
manufacturing residues.
B482
turn on tank
Figure 8
B482
30006292 15
Operation
1. Always turn the burner control knob(s) to the OFF position before turning off the main supply valve
when cooking has been completed.
2. Promptly turn OFF the gas supply valve at the propane cylinder or at the main natural gas supply
line.
3. Close the Hood of the Grill.

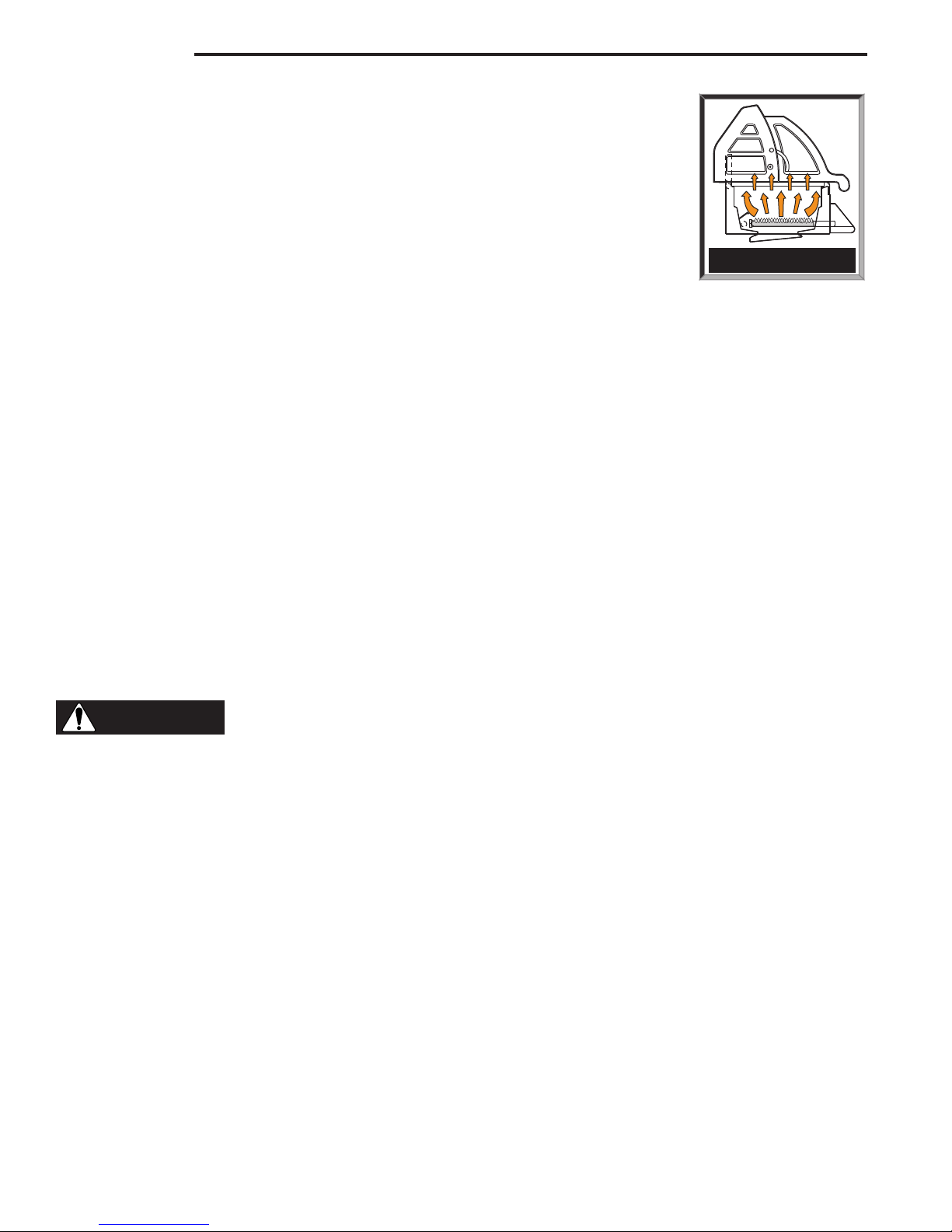

“Flare-ups” sometimes occur when food drippings fall onto the hot sear plates or burners and ignite. Some
aring is normal and desirable, as it helps impart the unique avors associated with grilled foods. Control-
ling the intensity of the are-ups is also desirable, however, in order to avoid burned or unevenly cooked
foods and to prevent the possibility of an accidental re.
Never allow the Grill to operate while unattended to prevent uncontrolled grease res from erupting.
Always monitor the Grill carefully while cooking and turn the flame level down (LOW), or OFF,
if are-ups intensify.
Never stand directly over the Grill when lighting the main
burners, to avoid exposure to possible are-ups.
1. a. Always open the Hood completely and inspect the Grill
and burners before lighting the main burners.
b. Make sure the grease cup is empty and grease tray is
clean.
c. Always visually inspect the gas supply line for fraying,
cracking or rodent damage before lighting the grill and, if
necessary, install a replacement obtained from the manu-
facturer prior to lighting the grill.
2. Always conrm that all of the burner control knobs are in
the OFF position before opening the gas supply.
3. Always turn on the propane gas supply valve at the tank
(1 to 2 turns).
4.
Insert a lit match using the holder provided through the
cooking grate and heat plates. Position lit match close
to burner.
(Fig. 10)
5. Turn the Burner Control Knob to the HIGH position by pushing down on the knob and turning it counterclockwise.
Repeat for each burner.
6.
If the burner will not light within ve (5) seconds, turn off the gas, wait a few minutes to clear the gas
before trying to light the grill again.
Never store ammable or easily combustible objects (matches, butane lighters, cloths, etc.) in the pull out
food warming drawer (if equipped).
B486
match lighting
Figure 10
B486
30006292
16
Operation
The rotisserie assembly includes a counterweight for large
or irregular foods; using the counterweight reduces strain
on the motor which is rated to turn a maximum of 12 lbs.
1. Attach the Rotisserie Motor Bracket to the left side of
the base by aligning the holes and securing the pieces
together using the two (2) bolts and two (2) lock nuts
provided. (Fig. 12a)
2. Remove the warming rack. A at noncombustible pan can
be placed directly on the center cooking grates to catch drip-
pings. Never use the main burner
directly under the pan.
3. Insert the ends of the Rotisserie
Support into the slots of the right
cooking grate, so the edge of the
support is approximately 1” from the
right casting, and the top groove is
in line with the rotisserie spit hole
in the left casting. (Fig. 12b)
4. Engage the Motor Bracket to the left
side of the base as per Rotisserie
instructions.
5. Engage the Rotisserie Motor in the
Motor Bracket. (Fig. 12b)
6. Assemble the spit and meat forks.
Adjust the retainer bushing to keep
the spit in place. (Fig. 12b)
. Tighten the thumbscrews with small pliers.
8. Insert the Spit Rod into the Rotisserie Motor. (Fig.
12c)
"
SPITROD
Spit Rod - Motor End
B132
Figure 12c
NOTICE
The rotisserie assembly includes a counterweight for
large or irregular foods; using the counterweight reduces
the strain on the motor. To keep unbalanced foods turn-
ing smoothly, assemble the counterweight outside of either
rotisserie fork. (Fig. 12b) Adjust the weight to the opposite
side of the heavy side of the food as needed. (Fig. 12d)
B450
rotisserie set up
Rotisserie
Forks
Rotisserie
Motor
Bushing
Rotisserie
Support
B450
Figure 12b
Motor Bracket
Counterweight
Location
(if necessary)
Counterweight Location
(if necessary)
B433
counterweight
Set Amount of
Counterweight
Set Angle of
Counterweight
B433
Figure 12d
Rotisserie Motor Bracket
Figure 12a
B449
rotisserie set up
B449
30006292 1
Operation
• Never use the Rotisserie Motor in the rain, and never use it if it has become wet.
• Always use a grounded three-prong outlet and a three-prong extension cord to energize the Rotisserie
Motor. Never alter or remove the grounding prong on the Rotisserie Power Cord, as an electric shock
hazard would then result.
• Keep any electrical supply cord and the fuel supply hose away from any heated surface.
• Electrical Grounding Instructions: This outdoor cooking gas appliance is equipped with a three-prong
(grounding) plug for your protection against shock hazard and should be plugged directly into a properly
grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
30006292
18
With its combination of burners and accessories your gas grill can provide for
virtually every conceivable style of cooking.
•
The powerful deliver the middle and high range of temperatures
desired for traditional barbecuing. This includes searing and nishing steaks,
hamburgers, pork chops and the like, or grilling chicken parts, sausages, or
kebabs with more moderate heat. (Fig. 14)
Cooking
ROTISSERIE
B133
cooking methods
8/007
GRILL
SEAR BURNER
Figure 14
One of the keys to extending your range of grilling capabilities is a fundamental understanding of the two
common methods of cooking, and cooking.
In the , food is placed directly above the heat source. This method is used in
searing for example where you require high and immediate heat to quickly brown the outside layer of
meats thereby sealing in their juices to enhance avor. On the grill this is accomplished using one or more
of your main burners and placing the food on the porcelain cooking grids directly over the burners. This
may be done with the grill hood either open or closed.
In the , food is placed on the grill offset from the heat source. With the grill lid
closed reected heat surrounds the food cooking it more evenly and gently. This approximates the action
of a convection oven where heat is circulated by the use of a fan to achieve a similar result. This method
is perfect for cooking roasts of any kind but is also useful whenever you want to slow cook or bake a wide
variety of foods. Indirect cooking on your grill is accomplished using one of the main burners and placing
the food on the porcelain cooking grid above the opposite burner, or on the warming rack burner. The grill
hood should always be closed when employing the indirect cooking method
Always observe safe food-handling and safe food-preparation practices when using this Grill, to prevent
food-borne illnesses :
•
Always cook foods adequately. Undercooked foods can retain bacteria, especially if thawed or exposed
to warm conditions prior to cooking.
•
Always use a meat thermometer to conrm that foods have been fully cooked.
•
Always use separate plates and utensils for the handling of raw food. Never place raw food and cooked
food on the same plate, and never place cooked food on a plate that was used for handling raw food.
Always carefully wash all plates and utensils used to handle raw food before using them to handle
cooked food.
•
Always wash all vegetables, seafood and poultry before cooking.
•
Always leave uncooked foods in the refrigerator until you are ready to start cooking.
•
Always marinate meat in the refrigerator. Always dispose of the excess marinade, and never reuse it.
•
Always preheat your Grill for 5 to 10 minutes before cooking, and always remove all grease and food
residue before using the cooking grids.
30006292 19
Cooking
A few helpful hints will ensure that your grilling results are perfect every time.
•
Apply a light coating of cooking oil to your cooking grids before grilling, to prevent foods from stick-
ing.
•
Cook similar portion sizes together, so they all cook evenly.
•
Use tongs to turn foods on the Grill.
•
Never pierce foods while they are cooking on the Grill, as this will dry them out.
•
On foods such as pork chops and steak, slit the fat strip to prevent the meat from curling during cook-
ing.
•
Turn foods infrequently. Some chefs say that a good steak should never be turned more than once.
•
Apply sugar-based sauces such as commercial barbecue sauces only during the latter stages of cook-
ing, to prevent charring.
•
Soak the string you use to tie up roasts and poultry on the Rotisserie spit to protect it from burning. Also,
soak the wooden skewers that you intend to use for kebabs for several minutes before using them for
cooking.
•
Use a disposable aluminum tray lled with water, fruit juice, wine or a marinade to add extra avor and
moisture to slow-cooked foods like roasts, whole chickens, turkeys or ducks. Place the tray on top of
the sear plates below the Grill surface and immediately under the foods being cooked. This will buffer
the heat from below, thereby slowing the cooking process and protecting the bottom of the food from
overcooking. Check the tray periodically during cooking and keep it lled with liquid.
Never let the disposable aluminum tray boil dry, as any fat or grease that may have collected in the tray
could then start a grease re.
Always trim excess fat from your foods to reduce the occurrence of are-ups during cooking.
30006292
20
Cooking Time Chart
Burgers
Roasts
Blade,
Sirloin Tip
Steaks
Porterhouse,
Rib, Ribeye,
Sirloin, T-Bone
Filet Mignon
Chicken, Parts
Chicken, Whole
Chicken Breasts,
Boneless
Cornish Hens
Duck
Turkey
Fish
Fillets
Steaks
Whole Fish
Seafood
Lobster
Shrimp
1 inch
--
1 inch
2 inches
3–4 lb.
1–2 lb.
1–1Z\x lb.
4–5 lb.
13–25 lb.
1–1Z\x inch
1–2 lb.
2–4 lb.
1Z\x–2 lb.
Large
Rare: 4– min.
Medium: –10 min.
Well Done: 10–12 min.
Rare: 18–20 min./lb.
Medium: 20–25 min./lb.
Well Done: 25–30 min./lb.
Rare: 4– min.
Medium: –10 min.
Well Done: 10–12 min.
Rare: 15–1 min.
Medium: 1–19 min.
Well Done: 19–22 min.
30–45 min.
20 min./lb.
12–15 min.
45–60 min.
18–20 min./lb.
20 min./lb.
10
–
15 min.
20–30 min.
30–50 min.
15 min.
5–6 min.
400–450
°
F.
350
°
Maximum (To sear)
400–450
°
F. (To nish)
Maximum (To sear)
400–450
°
F. (To nish)
325–350
°
F.
325–350
°
F.
325–350
°
F.
325–350
°
F.
325–350
°
F.
325–350
°
F.
400–450
°
F.
325–350
°
F.
325–350
°
F.
400–450
°
F.
325–350
°
F.
Other manuals for VCSeries
1
Table of contents
Other Vermont Castings Grill manuals
Vermont Castings
Vermont Castings PIONEER User manual
Vermont Castings
Vermont Castings VC75 Manual
Vermont Castings
Vermont Castings VANGUARD G36601 User manual
Vermont Castings
Vermont Castings Signature VCS5017 User manual
Vermont Castings
Vermont Castings Vanguard 2-Burner Barbecue User manual
Vermont Castings
Vermont Castings Signature VCS301 Series User manual
Vermont Castings
Vermont Castings Signature VCS5037 User manual
Vermont Castings
Vermont Castings Signature VCS501 Series User manual
Vermont Castings
Vermont Castings Signature VCS4027 User manual
Vermont Castings
Vermont Castings VCS Series User manual
Vermont Castings
Vermont Castings VM400 User manual
Vermont Castings
Vermont Castings CF9030 User manual
Vermont Castings
Vermont Castings Signature Series User manual
Vermont Castings
Vermont Castings Signature VCS4007 Manual
Vermont Castings
Vermont Castings VC400 Manual
Vermont Castings
Vermont Castings VANGUARD User manual
Vermont Castings
Vermont Castings VM508 Manual
Vermont Castings
Vermont Castings VCS300SSBI Series Manual
Vermont Castings
Vermont Castings VANGUARD G36603 User manual
Vermont Castings
Vermont Castings VANGUARD XE G54006 User manual
Popular Grill manuals by other brands
SILVER GIANT
SILVER GIANT SGC-36 owner's manual
Bradley
Bradley BS712-240 V owner's manual
Star Manufacturing
Star Manufacturing STAR-MAX 6115RCBD Specification sheet
Domo
Domo DO9033G Instruction booklet
Uniflame
Uniflame NPG2302SS owner's manual
Pit Boss
Pit Boss MEMPHIS PBMEMU1 Operating instructions and recipes
Teka
Teka HS-435 Instructions for use
Backyard
Backyard CBT1704W-C Series owner's manual
Aroma
Aroma SuperPot ASP-137 instruction manual
Rinnai
Rinnai Maxim X6SSII Customer's operating and assembly instructions
Tarrington House
Tarrington House K103M1BME3-1 Assembly instructions
SWISS GRILL
SWISS GRILL CBU-401-A user manual
