Vermont Castings Defiant FlexBurn 1975 User manual

30005220 0515 Rev. 25
0968
Defiant cover
11/00
For use in the
United States and Canada
SAFETY NOTICE: IF THIS APPLIANCE IS
NOT PROPERLY INSTALLED, OPERATED
AND MAINTAINED, A HOUSE FIRE MAY
RESULT.
TO REDUCE THE RISK OF FIRE, FOLLOW
THE INSTALLATION INSTRUCTIONS. FAIL-
URE TO FOLLOW INSTRUCTIONS MAY
RESULT IN PROPERTY DAMAGE, BODILY
INJURY OR EVEN DEATH. CONTACT LOCAL
BUILDING OFFICIALS ABOUT RESTRIC-
TIONS AND INSTALLATION INSPECTION
REQUIREMENTS IN YOUR AREA.
Nous recommandons que nos appareils de chauffage
au bois soient installés et entretenus apr des
professionnels qui ont été accrédités aux É.-U. par le
National Fireplace Institute® (NFI) comme étant des
spécialistes du NFI en matière d’appareilsde chauffage
au ois, ou qui sont accrédités au Canada
dans le cadre du Programme
de formation technique
en énergie du bois (WETT)
The French language version of this manual is available online:www.vermontcastings.com
La version française de ce manuel est disponible en ligne : www.vermontcastings.com
DO NOT DISCARD THIS MANUAL. RETAIN FOR FUTURE USE.
Deant® FlexBurn® Non-Catalytic/Catalytic
Wood Burning Stove
Installation and Operating Manual
Model 1975
Report No. 227-S-40-2.

2
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
This manual describes the installation, operation, and maintenance of the Vermont Castings Deant®Model 1975
Non-Catalytic / Catalytic wood burning heater. This heater meets the U.S. Environmental Protection Agency’s emission
limits for wood heaters sold on or after May 15, 2015. Under specic test conditions this heater has been shown to
deliver heat at rates ranging from 8,200 to 33,000 Btu/hr.
The Deant®Model #1975 has been tested and is listed by OMNI-Test Laboratories of Portland, Oregon. The test standards
are ANSI/UL-1482-2011 and ANSI/UL-737 for the United States, and ULC S627-00 for Canada. The Deant®is listed
for burning wood only. Do not burn other fuels. The Deant®is not approved for use in manufactured (mobile) homes.
We recommend that you hire a professional installer certied by the Wood Heat Education and Research Foundation
(WHERF) or the Wood Energy Technical Training (WETT) to install your stove, or to advise you on the installation should
you attempt to install it yourself.
Please read this entire manual before you install and use your new stove. Failure to follow instructions may result in
property damage, bodily injury, or even death.
Save These Instructions for Future Reference
Welcome
Congratulations on your choice of a Vermont Castings Deant®stove. With this purchase you have made a commitment
to make the hearth a place of warmth, beauty and comfort in your home. At Vermont Castings Group, we share that
joy and appreciation for the hearth. We assure you that your cast-iron Vermont Castings stove has been made with the
utmost care and will provide you with many years of service.
As you become acquainted with your new stove, you will nd that its appearance is matched by its functionality, due to
cast iron’s unique ability to absorb and radiate heat.
Also, Vermont Castings Group products are among the cleanest-burning wood stoves and replaces available today. As
an owner of a Vermont Castings stove, you make a strong statement for pollution-free energy. However, clean burning
depends on both the manufacturer and the operator. Please read this manual carefully to understand how to properly
operate and maintain your stove.
At Vermont Castings Group, we are equally committed to your satisfaction as a customer. That is why we maintain
an exclusive network of the nest dealers in the industry. Our dealers are chosen for their expertise and dedication to
customer service. They are factory-trained and knowledgeable about every Vermont Castings Group product. Feel free
to contact your Authorized Vermont Castings Dealer anytime you have a particular question about your stove or its
performance.
This manual contains valuable instructions on the installation and operation of your Vermont Castings Deant®. It also
contains useful information on maintenance. Please read the manual thoroughly and keep it as a reference.
Sincerely,
Vermont Castings Group

3
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Table of Contents
Specications .......................................................... 4
Installation ............................................................... 5

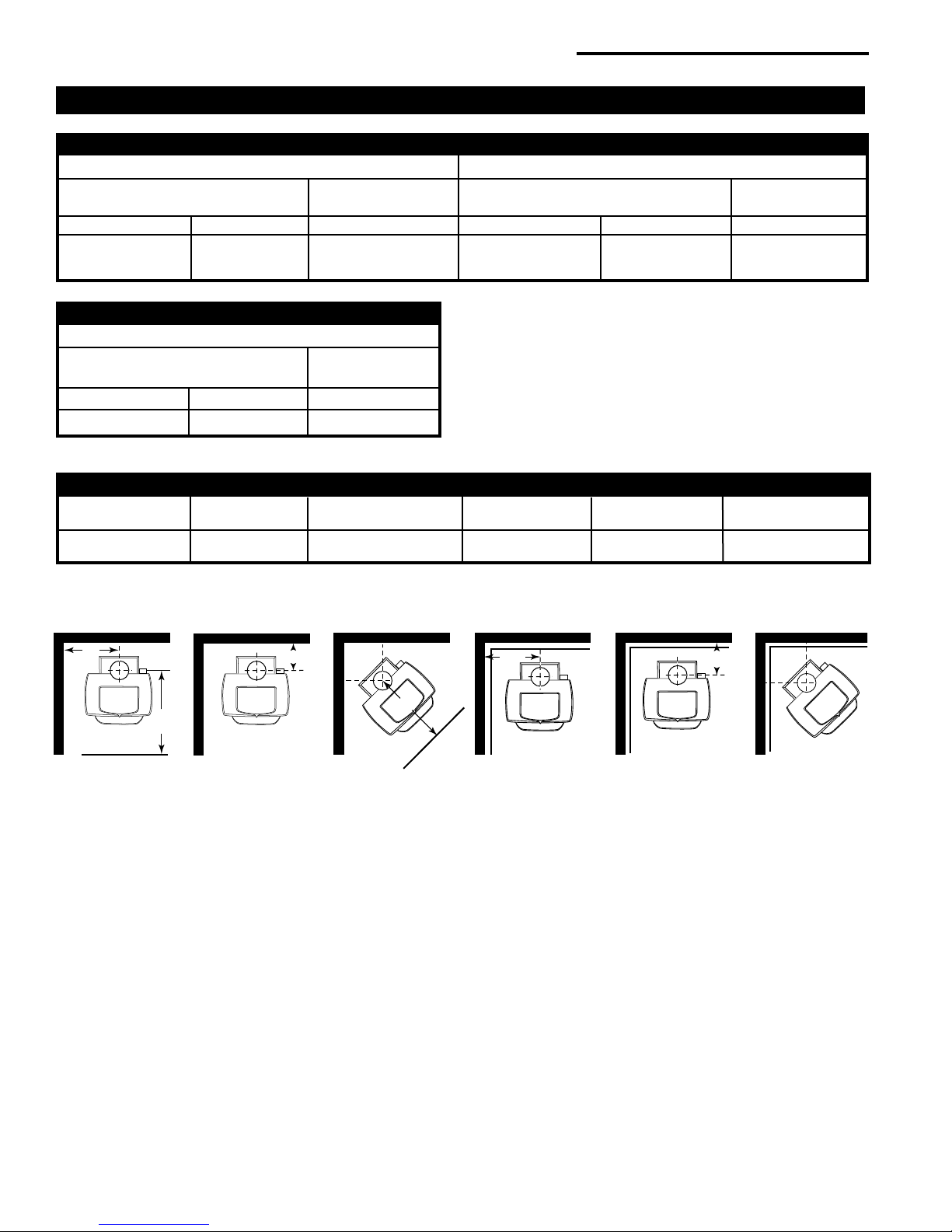

Clearance Charts................................................... 14
Assembly............................................................... 18
Smoke Alarm/Safety Tips ...................................... 21
Operation............................................................... 22
Draft Management................................................. 29
Maintenance.......................................................... 31

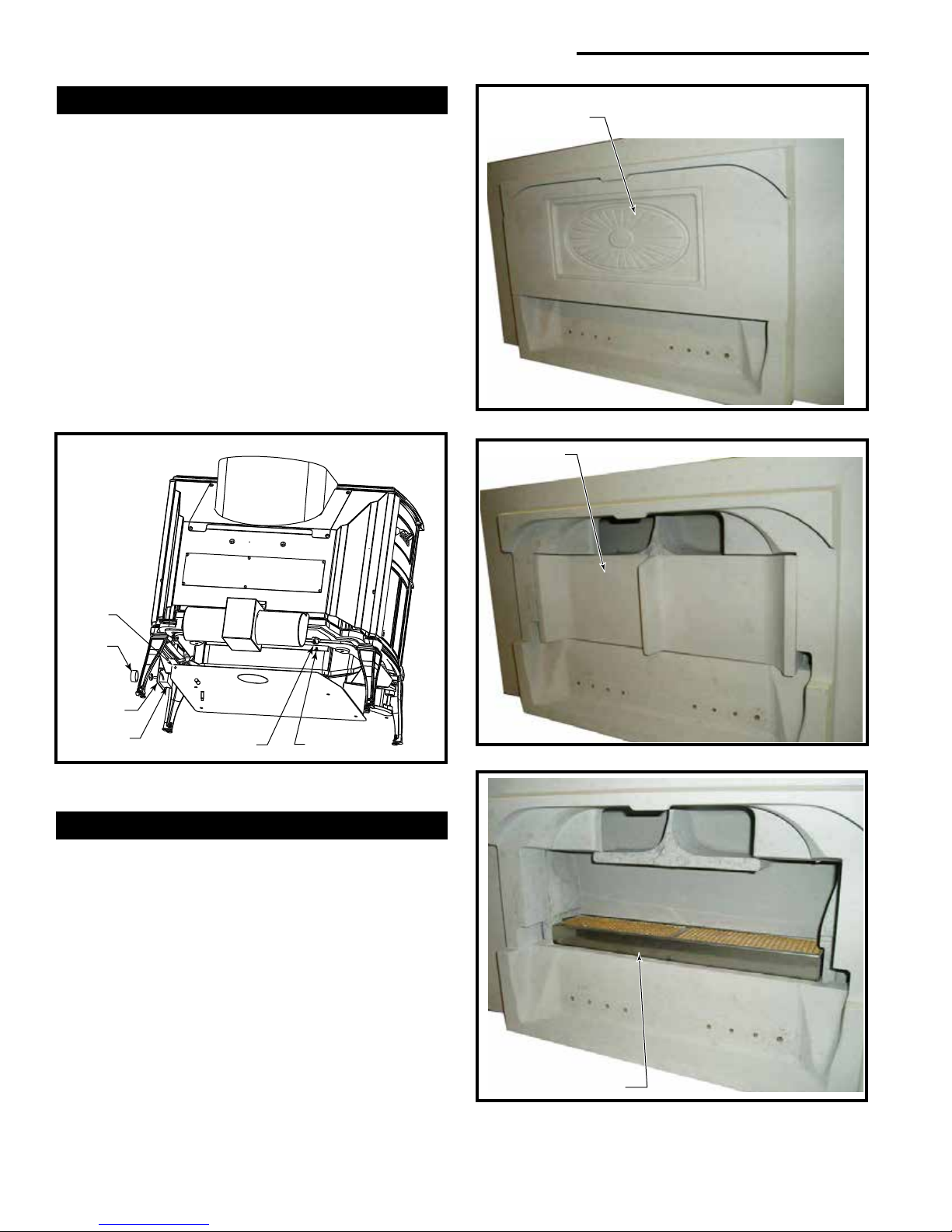

The Catalytic Element ........................................... 34
Replacement Parts................................................ 36
Warranty ................................................................ 39
The Story of the Deant®
No wood-burning appliance, save for Ben Franklin’s Pennsylvania Fireplace, has a stronger heritage than the Vermont
Castings Deant®. Named for a 19th-century steamship, the original Vermont Castings Deant®Wood Burning Stove
came to epitomize America’s resolve and independence during the Energy Crisis of the 1970s.
The year was 1975. With energy prices going through the roof, without an attractive or efcient wood stove to be found
anywhere, two entrepreneurs set out to create a stove that was both beautiful and highly functional. Finely crafted from
cast iron, the Deant® was the rst wood stove to combine an artistically designed exterior with a methodically engineered
interior, using new technologies for efcient combustion.
Americans purchased over a quarter-million Deant® stoves, as they rediscovered the common sense of heating with
wood, a home-grown fuel with none of the political and economic entanglements of foreign oil.
Thirteen years later, in 1988, Vermont Castings ‘retired’ the Deant®, replacing it with modern wood-burners such as the
Encore®. A decade later the Deant®was resurrected and updated with aesthetics and features that again led the industry.
In 2010, the third generation of the Deant®maintains the product’s rich tradition by introducing the most advanced
wood-burning stove on the market. The quality and classic look that consumers have come to expect from Vermont Cast-
ings is combined with the latest combustion technology, an innovative design that allows the stove to quickly be converted
to burn in either a catalytic or noncatalytic mode. In a sense, the Deant®Model 1975 has been 35 years in the making.
Due to its signicant role in American history, the original Deant®model is in the permanent collection of the Smithsonian
Institution in our nation’s capitol. Each new purchase of the Deant®continues that proud history.
Warming Shelf
#0210 Classic Black
#0211 Biscuit
#0213 Ebony
#0218 Bordeaux
#0217 Brown Majolica
#0219 Twilight
#3265* Outside Air Kit
#3180 Outside Air Adapter
#1907 Firescreen
#1860 6" x 12" Oval Starter Pipe
FK26 Fan Kit
#3190 Connector Pipe Heat Shield
#0180 Rectangular Ceiling Kit
#0181 Round Ceiling Kit
A line of porcelain enamel stove pipe is available in
Biscuit, Bordeaux, Ebony, Brown Majolica colors.
*If you order #3265, you will also need #3180.
Installation Accessories
Proposition 65 Warning: Fuels used in gas, woodburn-
ing or oil red appliances, and the products of combus-
tion of such fuels, contain chemicals known to the State
of California to cause cancer, birth defects and other
reproductive harm.
California Health & Safety Code Sec. 25249.6

4
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Specications
Deant®, Model 1975
EPA Emissions rating - Noncatalytic 2.3 g/hr*
Range of heat output - Noncatalytic 8,200 - 33,000
EPA Emissions rating - Catalytic 1.1 g/hr*
Efciency HHV - Noncatalytic/Catalytic 66/74**
Range of heat output -
Catalytic 10,000 to 30,300 BTU/hr.*
Peak heat output 75,000 BTU/hr.***
Area heated Up to 2,400 Square feet****
Fuel length 25"
Fuel capacity 70 pounds, hardwood
Loading Front and top
Chimney Connector:
for 8" ue collar 8" (203 mm) diameter
Chimney Flue Size:
with 8" Chimney Connector 8" (203 mm) minimum
with 6" Chimney Connector 6" (152 mm) minimum
Flue exit position Top or Rear
Primary Air Manually Set, Thermostatically Maintained
Secondary Air Fixed, self-regulating
Ash handling system Removable ash pan
Glass panels High-temperature ceramic
Weight 518 lbs. (235 kg.)
Width (leg to leg) 323⁄8" (822 mm)
Depth (leg to leg) 19" (483 mm)
Height to top of ue collar 297⁄8" (759 mm)
*Under specic conditions during EPA emissions testing.
**Efciency determined by CSA B415.10.
***This value can vary depending on how the stove is
operated, the type and moisture content of the fuel used,
as well as the design, construction and climatic location
of your home. Figures shown are based on maximum fuel
consumption rates obtained under laboratory conditions
and on average efciencies.
****These values are based on operation in building
code-conforming homes under typical winter climate condi-
tions in New England. If your home is of nonstandard con-
struction (e.g. unusually well insulated, not insulated, built
underground, etc.) or if you live in a more severe or more
temperate climate, these gures may not apply. Since so
many variables affect performance consult your Authorized
Dealer to determine realistic expectations for your home.
Fig. 1 Deant®1975 dimensions.
Drawing Not to Scale
DEFIANT
32³⁄₈"
(822 mm)
28⁷⁄₈"
(733 mm)
31¹⁄₂"
(800 mm)
5¹⁄₈"
(130 mm)
19"
(483 mm)
18"
(457 mm)
23³⁄₄"
(603 mm)
1693
Defiant dimensions
1/02
29⁷⁄₈"
(759 mm)
DEFIANT
23⁵⁄₈"
(600 mm)
19"
(483 mm)
26"
(660 mm)
C
L
28⁷⁄₈"
(733 mm)
Rear Venting

5
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Installation
SAFETY NOTICE: IF YOUR DEFIANT®IS NOT PROP-
ERLY INSTALLED, A HOUSE FIRE MAY RESULT. TO
REDUCE THE RISK OF FIRE, FOLLOW THE INSTALLA-
TION INSTRUCTIONS. CONTACT LOCAL BUILDING OR
FIRE OFFICIALSABOUT RESTRICTIONSAND INSTAL-
LATION INSPECTION REQUIREMENTS IN YOURAREA.
Before you begin an installation, be sure that:
• Your stove and chimney connector will be far enough
from combustible material to meet all clearance require-
ments.

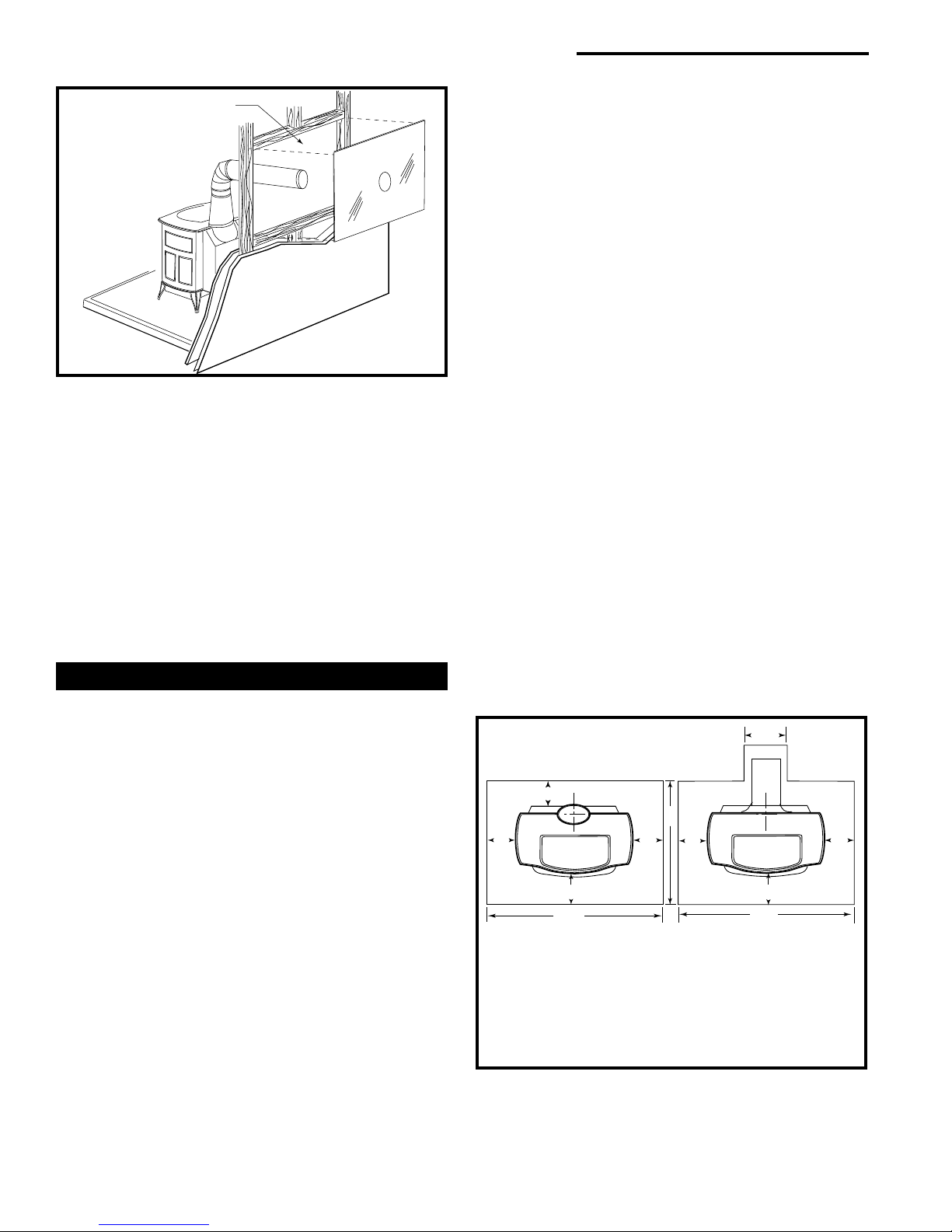

• The oor protector is large enough and is constructed
properly to meet all requirements.
• You have all necessary permits from local authorities.
Your local building ofcial is the nal authority for approv-
ing your installation as safe and determining that it meets
local and state codes.
The metal label permanently attached to the back of every
Vermont Castings’ stove indicates that the stove has been
tested to current UL and ULC standards, and gives the
name of the testing laboratory. Clearance and installation
information also is printed on the label. When the stove
is installed according to the information both on the label
and in this manual, local authorities usually will accept the
label as evidence that the installation meets codes and
can be approved.
However, codes vary in different areas. Before starting
the installation, review your plans with the local building
authority. Your local dealer can provide any additional
information needed.
For any unresolved installation issues, refer to the National
Fire Protection Association’s publication ANSI/NFPA 211
Standard for Chimneys, Fireplaces, Vents and Solid Fuel
Burning Appliances. For Canada, the equivalent publica-
tion is CSA CAN-B365 Installation Code for Solid Fuel
Burning Appliances and Equipment. These standards
are the basis for many national codes. They are nationally
recognized and are accepted by most local authorities.
Your local dealer or your local building ofcial may have a
copy of these regulations.
IMPORTANT: Failure to follow these installation instruc-
tions may result in a dangerous situation, including a
chimney or house re. Follow all instructions exactly,
and do not allow makeshift compromises to endanger
property and personal safety.

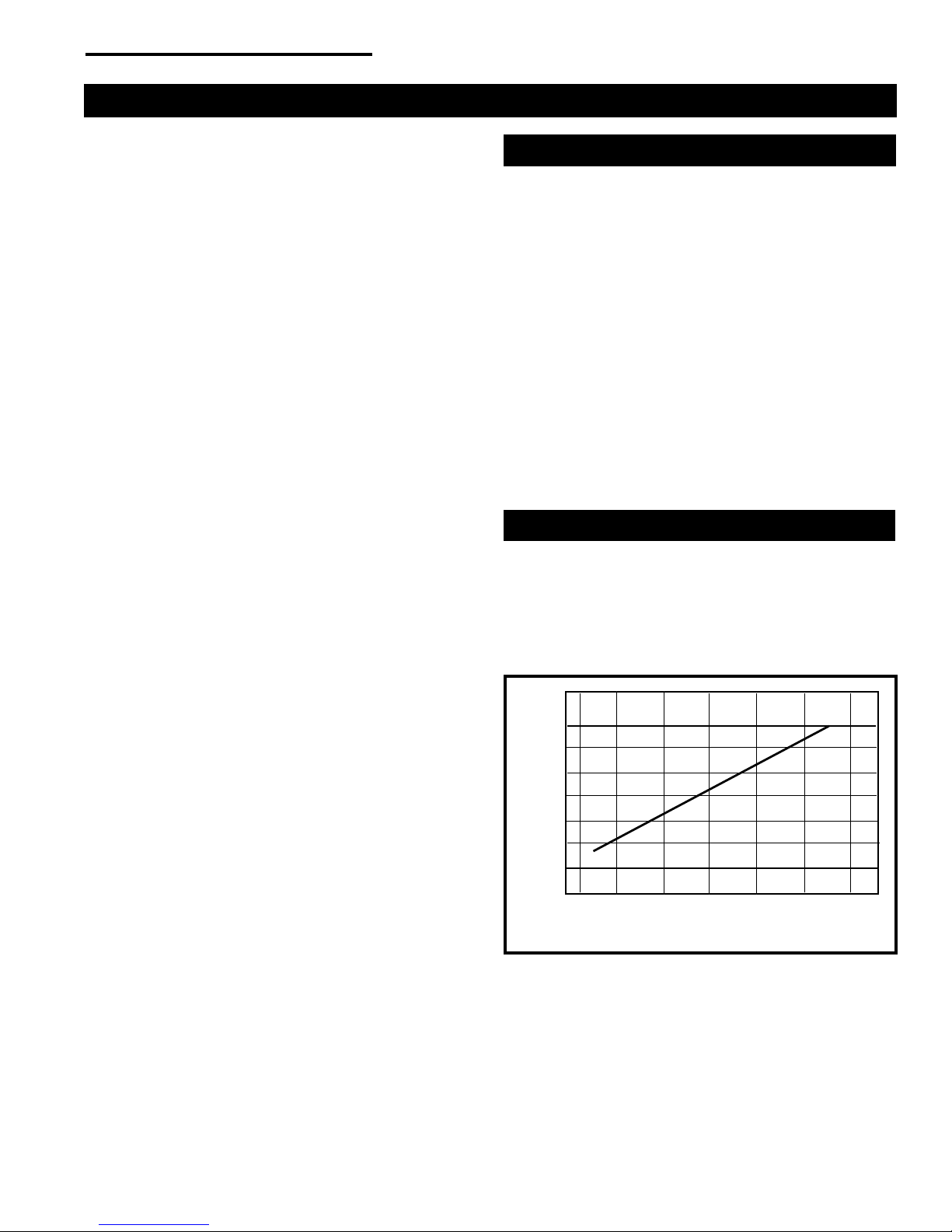

Outside Air
In some modern, super-insulated homes, there may be
inadequate air supply for combustion because of insuf-
cient air inltration into the building. Such air enters a
home through unsealed cracks and openings. Exhaust
fans in kitchens or bathrooms can compete with the stove
for available air and compound the problem.
When poor draft is caused by a low inltration rate, opening
a ground oor window on the windward side of the house
and near the stove will usually alleviate the problem.
A better solution is to install a permanent outside air supply
to the stove and/or room. In fact, bringing air for combustion
from outside the home directly to the air inlet of the stove
is required for new construction in some areas.
Pressure variations within the house do not affect a stove
equipped with an outside air supply, and improved stove
performance often results. An Outside Air Kit for the De-
ant®is available from your local dealer.
Chimney Height
Altitude affects chimney performance. When using an 8"
oval to 6" ue collar adapter on the Deant®, refer to Fig-
ure 1 for suggested chimney heights at various altitudes.
Chimney height should be measured from the ue collar
to the top of the chimney. The recommended minimum
chimney height is 16’ (5 m).
ST491
Fig. 2 Chimney height requirements with 6" chimney and/or
chimney connector.
30
25
20
15
0 2000 4000 6000 8000 10000 12000
Height
Altitude
ST491
Defiant
chimney height
11/2/00 djt

6
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
What Kind of Chimney to Use
You must connect the Deant®to a code-approved masonry
chimney with a ue liner, to a relined masonry chimney that
meets local codes, or to a prefabricated metal chimney that
complies with the requirements for Type HT chimneys in
the Standard for Chimneys, Factory-Built, Residential Type
and Building Heating Appliance, UL 103. Figure 3 illustrates
the two types. The chimney and chimney connector must
be in good condition and kept clean.
If you use an existing masonry chimney, it must be in-
spected to ensure it is in a safe condition before the stove
is installed. Your local professional chimney sweep, building
inspector, or re department ofcial will be able to inspect
the chimney or provide a referral to someone who can.
See “Chimney and Fireplace hazards”, in the appendix,
for particulars.
ST241
chimney types
12/13/99 djt
A prefabricated double-
wall insulated chimney
A tile-lined
masonry
chimney
ST241
Fig. 3 Approved chimney types.
2' Min.
2' Min.
3'
Min.
0 To 10'
3'
Min.
0 To 10'
AC617
RLTSKC8
2/11/98
Reference
Point AC617
Fig. 4 The 2’-3’10’ Chimney Rule.
The chimney must extend at least 3’ (914 mm) above the
highest point where it passes through or near a roof, and at
least 2’ (610 mm) higher than any part of a building within
10’ (3 m) horizontally. (Fig. 4)
For proper draft and good performance, any chimney used
with a Deant®should extend at least 16’ (5 m) above the
ue collar of the stove.
Masonry Chimneys
An inspection of the chimney must conrm that it has a lin-
ing. Do not use an unlined chimney. The chimney should
have no cracks, loose mortar, other signs of deterioration,
and blockage. Repair any defects before the chimney is
used with your stove.
Unused openings in an existing masonry chimney must
be sealed with masonry to the thickness of the chimney
wall, and the chimney liner should be repaired. Openings
sealed with pie plates or wallpaper are a hazard and should
be sealed with mortar or refractory cement. In the event
of a chimney re, ames and smoke may be forced out of
these unused thimbles.
The chimney should be thoroughly cleaned before use.
A newly-built masonry chimney must conform to the stan-
dards of your local building code or, in the absence of a
local code, to a recognized national code. Masonry chim-
neys must be lined, either with code-approved masonry or
pre-cast refractory tiles, stainless steel pipe, or a code-ap-
proved, “poured-in-place” liner. The chimney’s clean-out
door must seal tightly. A loose or leaky clean-out door can
weaken chimney draft, causing performance problems.
Prefabricated Chimneys
A prefabricated metal chimney must be one tested and
listed for use with solid-fuel burning appliances to the
High-Temperature (H.T.) Chimney Standard UL-103-1985
(2100°F) for the United States, and High Temperature
(650°C) Standard ULC S-629 for Canada.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE
SERVING ANOTHER APPLIANCE.
Chimney Size
A Deant® with an 8" (203 mm) ue collar is approved for
venting into a masonry chimney with a nominal ue size
of 8" x 8" (203 x 203 mm) or 8" x 12" (203 x 305 mm), and
into a round ue with nominal ue size of 8" (203 mm). A
Deant® with a 6" (152 mm) ue connector is approved for
venting into a masonry chimney with a nominal ue size of
8" x 8" (203 x 203 mm), and into a round ue with nominal
ue of 6" (152 mm).
NOTE: When installed with a 6" ue collar, the Deant®
may not be operated with the front doors open.
Whatever the ue collar size, a Deant®may be vented
into larger chimneys as well. However, chimneys with
liners larger than 8" x 12" (203 x 305 mm) may experience
rapid cooling of smoke and reduction in draft, especially if
the chimneys are located outside the home. These large
chimneys may need to be insulated or have their ues
relined for proper stove performance.

7
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220

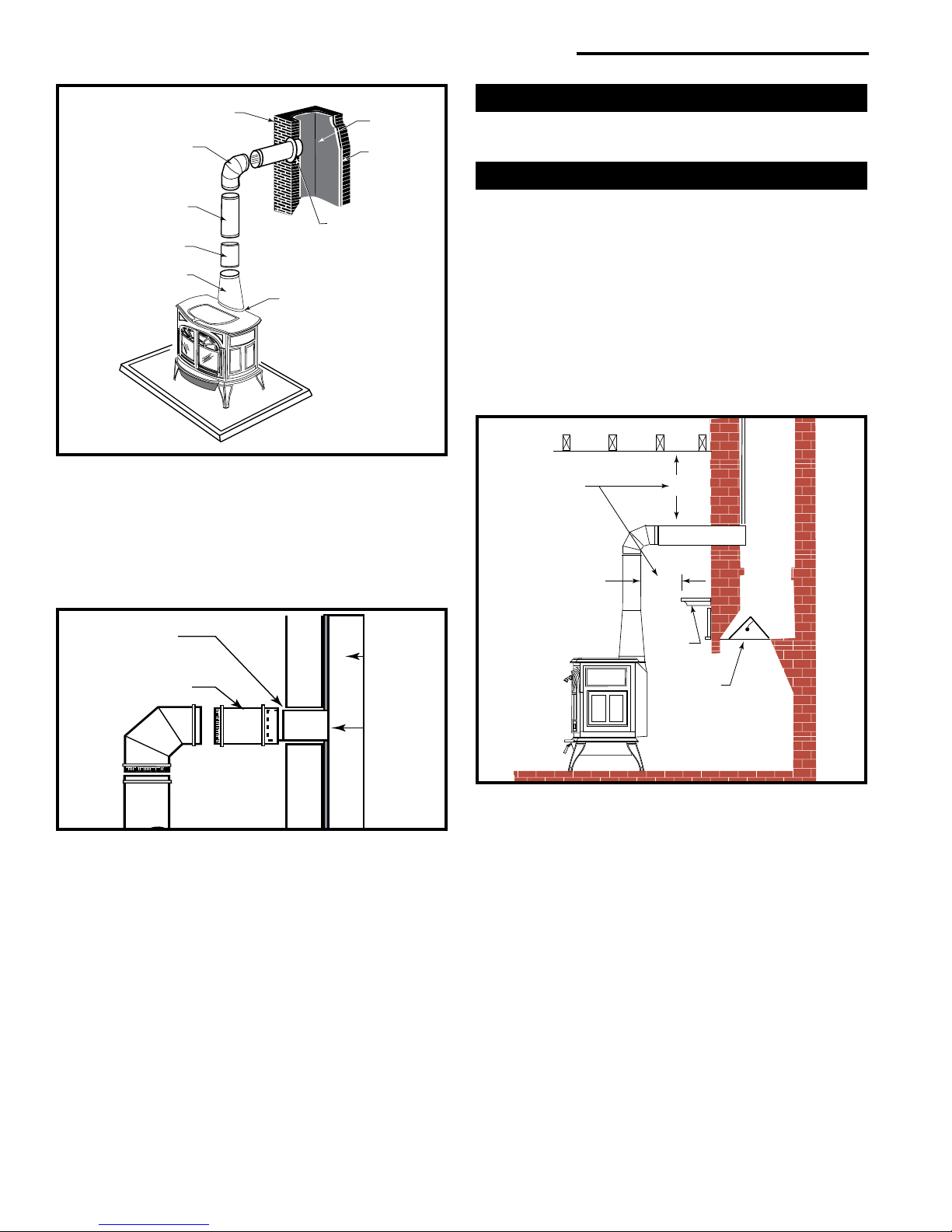

• Fasten the chimney connector to the chimney. Instruc-
tions for various installations follow. Figure 6 illustrates
the general layout of
chimney connector
parts.
• Be sure the installed
stove and chimney
connector are cor-
rect distances from
nearby combustible
materials.
NOTE: Special slip pipes
and thimble sleeves that
form telescoping joints
between sections of
chimney connector are
available to simplify installations. They often eliminate the
need to cut individual connector sections. Consult your
local dealer about these special pieces.
Securing the Single-wall Connector to a
Prefabricated Chimney
Follow the installation instructions of the chimney manufac-
turer exactly as you install the chimney. The manufacturer
of the chimney will supply the accessories to support the
chimney, either from the roof of the house, at the ceiling of
the room where the stove is installed, or from an exterior wall.
Special adapters are available from your local dealer to
make the connection between the prefabricated chimney
and the chimney connector. The top of such adapters
attaches directly to the chimney or to the chimney’s ceil-
ing support package, while the bottom of the adapter is
screwed to the chimney connector.
These adapters are designed so the top end will t outside
the inner wall of the chimney, and the bottom end will t
inside the rst section of chimney connector.
Securing the Single-wall Connector to a
Masonry Chimney
Both freestanding masonry chimneys and replace masonry
chimneys may be used for your installation.
Freestanding Installations
If the chimney connector must pass through a combustible
wall to reach the chimney, follow the recommendations in
the Wall Pass-Through section that follows. The opening
through the chimney wall to the ue (the “breech”) must
be lined with either a ceramic or metal cylinder, called
the “thimble,” which is cemented securely in place. Most
chimney breeches incorporate thimbles, but the t must be
snug and the joint between the thimble and the chimney
wall must be cemented rmly.
ST242
Chimney connector
12/13/99 djt
Flue Gas
Direction
Toward
Stove
ST242

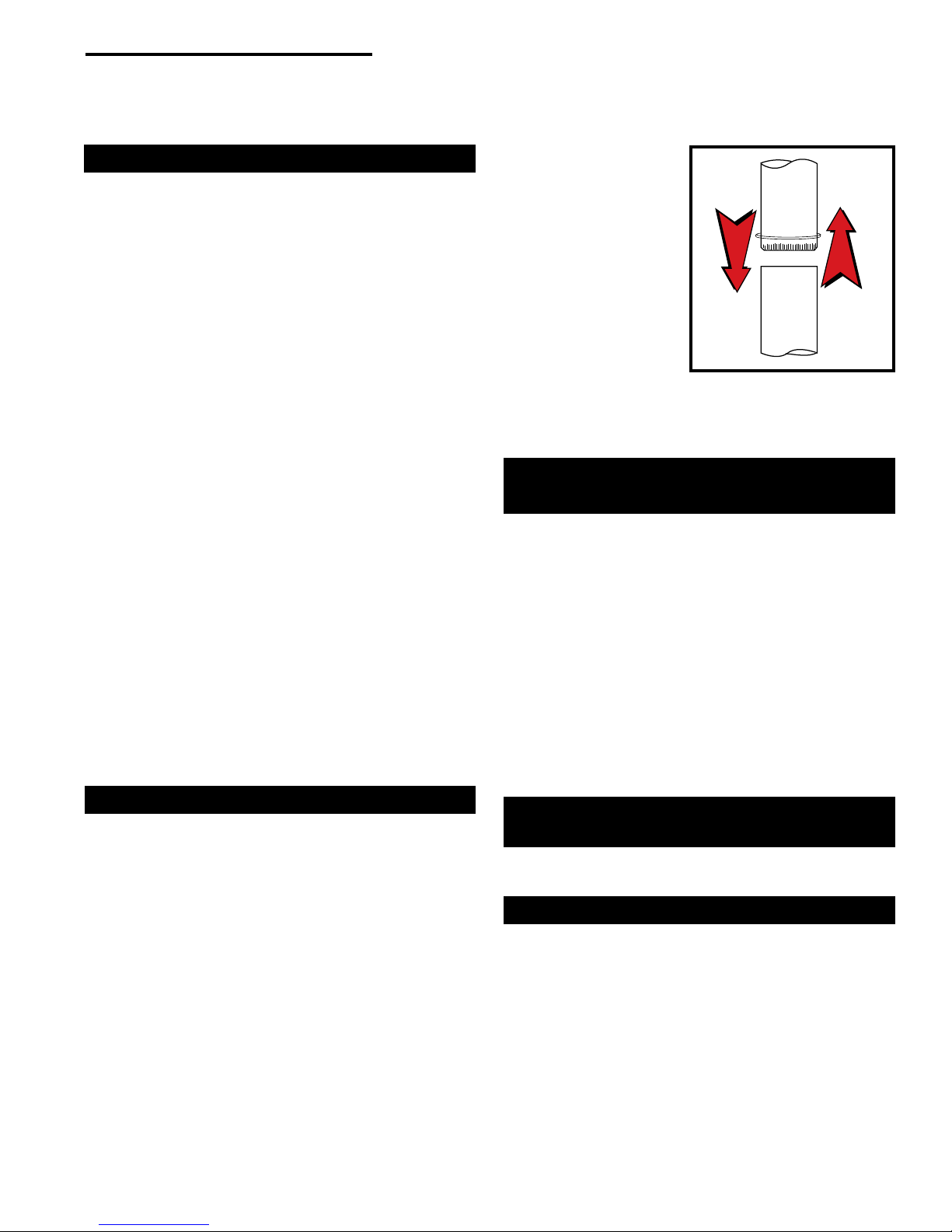

Fig. 5 Chimney connector.
Accessories to help make the connection between stain-
less steel chimney liners and your Deant®are available
through your local dealer.
Chimney Connector Guidelines
A chimney connector is the single-wall pipe that con-
nects the stove to the chimney. The chimney itself is the
masonry or prefabricated structure that encloses the ue.
Chimney connectors are used only to connect the stove
to the chimney.
Single-wall connectors should be made of 24 gauge or
heavier steel. Do not use galvanized connector; it cannot
withstand the high temperatures that can be reached by
smoke and exhaust gases, and may release toxic fumes
under high heat. The connector may be 6" (152 mm) or 8
“ (203 mm) in diameter.
If possible, do not pass the chimney connector through
a combustible wall or ceiling. If passage through a com-
bustible wall is unavoidable, refer to the section on Wall
Pass-Throughs. Do not pass the connector through an
attic, a closet or similar concealed space. The whole con-
nector should be exposed and accessible for inspection
and cleaning.
In horizontal runs of un shielded chimney connector, main-
tain a distance of 30" (762 mm) from the ceiling. Keep it
as short and direct as possible, with no more than two 90°
turns. Slope horizontal runs of connector upward 1/4" per
foot (6mm per meter) going from the stove toward the chim-
ney. The recommended maximum length of a horizontal
run is 3’ (1 m), and the total length should be no longer
than 8’ (2.4 m). In cathedral ceiling installations, extend the
prefabricated chimney downward to within 8’ (2.4 m) of the
stove. This will help maintain a good draft by keeping the
smoke warm, so that it rises readily.
Wear gloves and protective eyewear when drilling, cutting
or joining sections of chimney connector.
Single-wall Chimney Connectors
• Begin assembly at the ue collar of the stove. Insert the
rst crimped end into the stove’s ue collar, and keep
each crimped end pointing toward the stove. (Fig. 5)
Using the holes in the ue collar as guides, drill 1/8" (3
mm) holes in the bottom of the rst section of chimney
connector and secure it to the ue collar with three #10
x 1/2" sheet metal screws. Lift off the griddle, and shield
the stove’s surface between the griddle opening and
the front of the ue collar to protect the nish when you
drill the front hole.
• Fasten each joint between sections of chimney con-
nector, including telescoping joints, with at least three
(3) sheet metal screws. The pre-drilled holes in the top
of each section of chimney connector serve as guides
when you drill 1/8" (3 mm) holes in the bottom of the
next section.

8
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Fireplace Installations
The chimney connector may be connected to the chimney
above the replace opening or through the replace.
Above the Fireplace
The Deant®may be connected to a chimney above a
replace opening. (Fig. 8) In such installations, the stove
is positioned on the hearth in front of the replace and the
chimney connector rises from the stove top and then angles
ninety degrees back into the chimney. The chimney liner
should extend to the point at which the chimney connector
enters the chimney.
If the chimney connector in your installation enters the
chimney above a replace, follow all the guidelines men-
tioned above for freestanding installations. In addition, give
special consideration to the following points:
ST244
Plymouth
fplc over mantel
12/99
DEFIANT
*
*
Check These
Clearances
Mantel
ST244a
Fig. 8 In this installation, the chimney connector attaches to the
chimney above the replace opening.
Seal
This Off
ST243
thinble connection
12/13/99 djt
Thimble Sleeve
Chimney Connector
Flue
Keep
sleeve
end ush
with ue
tile
ST243
Fig. 7 The thimble, made of either ceramic or metal, must be
cemented securely in place.
A special piece called the “thimble sleeve,” slightly smaller
in diameter than standard connectors and most thimbles,
will facilitate the removal of the chimney connector system
for inspection and cleaning. (Fig. 7) Thimble sleeves are
available from your local dealer.
ST492
Defiant
freestanding 
installation
11/00
Chimney
Elbow
Slip Pipe
Standard
Connector
Oval to
Round Adapter
Flue Collar
Thimble
Flue In-
ner
Flue
ST492
Fig. 6 An exploded view of the chimney connection in a free-
standing masonry installation.
• Check the clearance between the stove and the
chimney connector, and any combustible trim or the
mantel.
• Check the clearance between the chimney connector
and the ceiling. The clearance should be at least 30"
(762 mm) with unshielded connectors. Consult the
clearance charts for other installation options.
• The replace damper must be sealed to prevent room
air from escaping up the ue. However, it must be
possible to re-open the damper to inspect or clean the
chimney.
To install a thimble sleeve, slide it into the breech until it is
ush with the inner ue wall. Do not extend it into the actual
ue passage, as this could interfere with the draft.
The thimble sleeve should protrude 1-2" (25-50 mm) into
the room. Use furnace cement and thin gasketing to seal
the sleeve in place in the thimble. Secure the chimney
connector to the outer end of the sleeve with sheet metal
screws.
Without a thimble, a suitable length of chimney connector
can be extended through the breech to the inner face of
the ue liner, and cemented securely in place. Additional
pieces of connector are then attached with sheet metal
screws.

9
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
ST245
fireplace
flex connector
12/99
Flexible
Connector
Mantel Shield
Fireplace Adapter Kit
“Positive Connection”
ST245
Fig. 9 Through the replace installation.
DEF
IA
N
ST493
Brick pass thru
11/00
Wall Stud
Chimney
Connector
Floor Protec-
tion
12" of
Noncombustible
Material
ST493
Fig. 10 An approved wall pass-through for the United States.
Through the Fireplace
If your replace opening height is at least 29" (737 mm),
you may install a Deant®through the opening using a
“positive connection” kit, available from your local dealer.
Positive connection kits ensure a tight t between the stove
ue collar and the chimney ue. (Fig. 9)
Fireplace installations, whether connected to the ue above
or through the replace opening, have special clearance
requirements to adjacent trim and the mantel. You’ll nd
the required safe clearances for Deant® replace instal-
lations on Page 13.
Floor protection requirements also apply to replace instal-
lations. This information is on Page 11.
Wall Pass-Throughs
Whenever possible, design your installation so the connec-
tor does not pass through a combustible wall. If you are
considering a wall pass-through in your installation, check
with your building inspector before you begin. Also, check
with the chimney connector manufacturer for any specic
requirements.
Accessories are available for use as wall pass-throughs.
If using one of these, make sure it has been tested and
listed for use as a wall pass-through.
In the United States, the National Fire Protection Associa-
tion (NFPA) has established guidelines for passing chimney
connectors through combustible walls. Many building
code inspectors follow these guidelines when approving
installations.
Figure 10 shows one NFPA-recommended method. All
combustible material in the wall is cut away from the sin-
gle-wall connector to provide the required 12" (305 mm)
clearance. Any material used to close up the opening must
be noncombustible.
Three other methods are also approved by the NFPA:
• Placing a section of chimney connector inside a venti-
lated thimble, which in turn is separated from combus-
tibles by 6" (152 mm) of berglass insulating material.
• Placing a section of chimney connector inside a section
of 9" (230 mm) diameter, solid-insulated, factory-built
chimney, with 2" (51 mm) of air space between the
chimney section and combustibles.
• Using a section of solid-insulated double-wall high
temperature chimney, with an inside diameter the same
as the chimney connector, at least one inch of solid
insulation, and a minimum of 9" (229 mm) air space
between the outer wall of the chimney section and
combustibles.
In Canada, The Canadian Standards Association has es-
tablished different guidelines for wall pass-throughs. Figure
11 shows one method, in which all combustible material in
the wall is cut away to provide the required 18" (457 mm)
clearance for the connector. The resulting space must
remain empty. A ush-mounted sheet metal cover may
be used on one side only. If covers must be used on both
sides, each cover must be mounted on noncombustible
spacers at least 1" (25 mm) clear of the wall.
Your local dealer or your local building inspector can

10
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
DEF
IA
N
T
ST494
steel
wall pass thru
11/00
18" (460mm) clearance
between pipe and
sides/top/bottom of
opening
ST494
Fig. 11 An approved wall pass-through for Canada.
provide details for other approved methods of passing
a chimney connector through a combustible wall in your
area. In Canada, this type of installation must conform to
CAN/CSA-B365, Installation Code for Solid Fuel Burning
Appliances and Equipment.
NOTE: Do not vent your Deant®into a factory-built
(zero-clearance) replace. These appliances and their
chimneys are specically designed as a unit for use as
replaces. It may void the listing or be hazardous to adapt
them for any other use.
DO NOT CONNECT THE DEFIANT®TO ANY AIR DIS-
TRIBUTION DUCT OR SYSTEM.
Floor Protection
A tremendous amount of heat radiates from the bottom
plate of your stove. The oor area directly under and
around the stove will require protection from radiant heat
as well as from stray sparks or embers that may escape
the rebox.
Heat protection is provided with the use of the Bottom Heat
Shield supplied with the stove.
Most installations will require the bottom heat shield to be
attached. Only when the stove is placed on a completely
noncombustible surface such as unpainted concrete over
earth may it be used without the heat shield.
With the bottom heat shield installed the Deant®1975
was tested using a 1⁄2" (13mm) non-combustible hearth
material with a thermal conductivity, (k) = 0.47 BTU - in/
hr - ft2 -°F, resulting in the requirement of providing a total
thermal resistance (R) of 1.06. (Refer to “How to Determine
if Alternate Floor Protection Materials are Acceptable” sec-
tion.) The oor protector may be covered with a decorative
noncombustible material if desired. Do not obstruct the
space under the heater.
When using a re screen with doors open, UL737, Standard
for Fireplace Stoves, this unit was tested using a 1" (25mm)
non-combustible hearth pad with a thermal conductivity, (k)
= 0.47 BTU - in/hr - ft2 -°F, resulting in the requirement of
providing a total thermal resistance (R) of 2.12. (Refer to
“How to Determine if alternate Floor Protection Materials
are Acceptable” section.) The oor protector may be cov-
ered with a decorative noncombustible material if desired.
Do not obstruct the space under the heater. An 8" chimney
and chimney connector is required an the bypass damper
must be in the fully open position.
Important: All installations on a combustible oor re-
quire the use of the supplied bottom heat shield.
Protection requirements vary somewhat between the Un-
tied States and Canada as follows:
In U. S. installations the oor protector is required under
the stove and must extend at least 16" (not including the
ash lip) from the front of the stove (“F”, Fig. 12), and at least
6" from the sides and rear. (“D” and “E”, Fig. 12)
In rear venting congurations, oor protection must also
extend under the chimney connector and 2" to either side.
(“C”, Fig. 12) For the 8" (203 mm) connector, the protector
must be a minimum of 12" (305 mm) wide. For the 6" (152
mm) connector, the protector must be 10" (254 mm) wide.
The protector must be centered under the connector.
To meet these requirements, a oor protector must be at
least 44" wide and 46" deep.
In Canada: A noncombustible oor protector is required
under the stove as well. The oor protector must extend
18" (457 mm) to the front (“F”, Fig. 12), and 8" (203 mm)
from the sides and rear. (“D” and “E”, Fig. 12)
To meet these requirements, a oor protector must be at
least 46" (1168 mm) wide and 50" (1270 mm) deep.
D
E
A
B
A
E
C
ST500
Defiant
floor protection
1/31/02 djt
E
F
E
F
U.S. Canada
A. 44" 48" (1219 mm)
B. 46" 50" (1270 mm)
C. 12" 12" (305 mm) 8" Connector
10" 10" (250 mm) 6" Connector
D. 6" 8" (203 mm)
E. 6" 8" (203 mm)
F. 16" 18" (460 mm) ST500
Fig. 12 Required oor protection dimensions.

11
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
How to Determine if Alternate Floor
Protection Materials are Acceptable
All oor protection must be noncombustible (i.e. metals,
brick, stone, mineral ber boards, etc.). Any organic materi-
als (i.e. plastics, wood paper products, etc.) are combus-
tible and must not be used. The oor protection specied
includes some form of thermal designation such as R-value
(thermal resistance) or k-factor (thermal conductivity).
Procedure:
1. Convert specications to R-value:
i. R-value given - no conversion needed.
ii. k-factor is given with a required thickness (T) in
inches:
iii. K-factor is given with a required thickness (T) in
inches:
iv. r-factor is given with a required thickness (T) in
inches: R = r x T
2. Determine the R-value of the proposed alternate oor
protector:
i. Use the formula in Step 1 to convert values not ex-
pressed as R.
ii. For multiple layers, add R-values of each layer to
determine overall R-value.
3. If the overall R-value of the system is greater than the
R-value of the specied oor protector, the alternate is
acceptable.
EXAMPLE: The specied oor protector should be 1/2-inch
thick material with k-factor of 0.84. The proposed alternate
is 4" brick with an r-factor of 0.2 over 1/8" mineral board
with a k-factor of 0.29
Step a: Use formula above to convert specication to R-
value:
Step b: Calculate R of proposed system.
4" brick of r = 0.2, therefore:
Rbrick = 0.2 x 4 = 0.8
1/8" mineral board of k = 0.29, therefore
Rmineralboard = x 0.125 = 0.431
Rtotal = Rbrick + Rmineralboard = 0.8 + 0.431 = 1.231
Step c: Compare proposed system Rtotal of 1.231 to
specied R of 0.59. Since proposed system Rtotal is
greater than required, the system is acceptable.
Denitions
R = x T
1
k
R = x T
1
K x 12
R = x T = x 0.5 = 0.59
1
k
1
0.84
1
0.29
r = =
(ft2)(hr)(°F)
(Btu)(in)
1
k
(Btu)(ft)
(ft2)(hr)(°F)
K =
k = = K x 12
(Btu)(in)
(ft2)(hr)(°F)
R = (ft2)(hr)(°F)
Btu
Floor Protection for Fireplace Installation
Do not assume that your replace hearth is completely
noncombustible. Many replace hearths do not satisfy the
“completely noncombustible” requirement because the brick
or concrete in front of the replace opening is supported by
heavy wood framing. Because heat passes readily through
brick or concrete, it can easily pass through to the wood.
As a result, such replace hearths can be a re hazard and
are considered a combustible oor.
For all replace installations, follow the oor protection
guidelines described above, including the need for a bottom
shield. Keep in mind that many raised hearths will extend
less than the required clearance from the front of the heat-
er. In such cases, sufcient oor protection as described
above must be added in front of the hearth to satisfy the
minimum oor protector requirement from the front of the
stove: 16" (410 mm) in the United States and 18" (460 mm)
in Canada. Hearth rugs do not satisfy the requirement for
oor protection as they are not re proof.
Fireplace installations also have special clearance require-
ments to the side walls, side decorative trim and replace
mantel. Refer to the information on replace and mantel
trim shields in this section.
Keep the Stove a Safe Distance
From Surrounding Materials
Both a stove and its chimney connector radiate heat in all
directions when operating, and nearby combustible materi-
als can overheat dangerously if they are too close to the
heat source. A safe installation requires that adequate
clearance be maintained between the hot stove and its
connector and nearby combustibles.
Clearance is the distance between either your stove or
chimney connector, and nearby walls, oors, the ceiling,
and any other xed combustible surface. The Deant®has
specic clearance requirements that have been estab-
lished after careful research and testing. These clearance
requirements must be strictly observed.
In addition, keep furnishings and other combustible ma-
terials away from the stove. In general, a distance of 48"
(1219 mm) must be maintained between the stove and
moveable combustible items such as drying clothes, furni-
ture, newspapers, rewood, etc. Keeping those clearance
areas empty assures that nearby surfaces and objects will
not overheat.
Safe Ways to Reduce Clearances
Clearance requirements are established to meet every
installation possibility, and they involve the combination
of these variables:
• When the stove pipe has no listed heat shield mounted
on it.
• When the wall has no heat shield mounted on it.

12
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
ST248
wall shield construction
12/14/99 djt
Stud Wall
Framing
Wall Shield
Noncombustible
Spacers and
Fasteners
Drywall
Air Flow
Air Flow
Screen
Shield
Metal Spacer
ST248

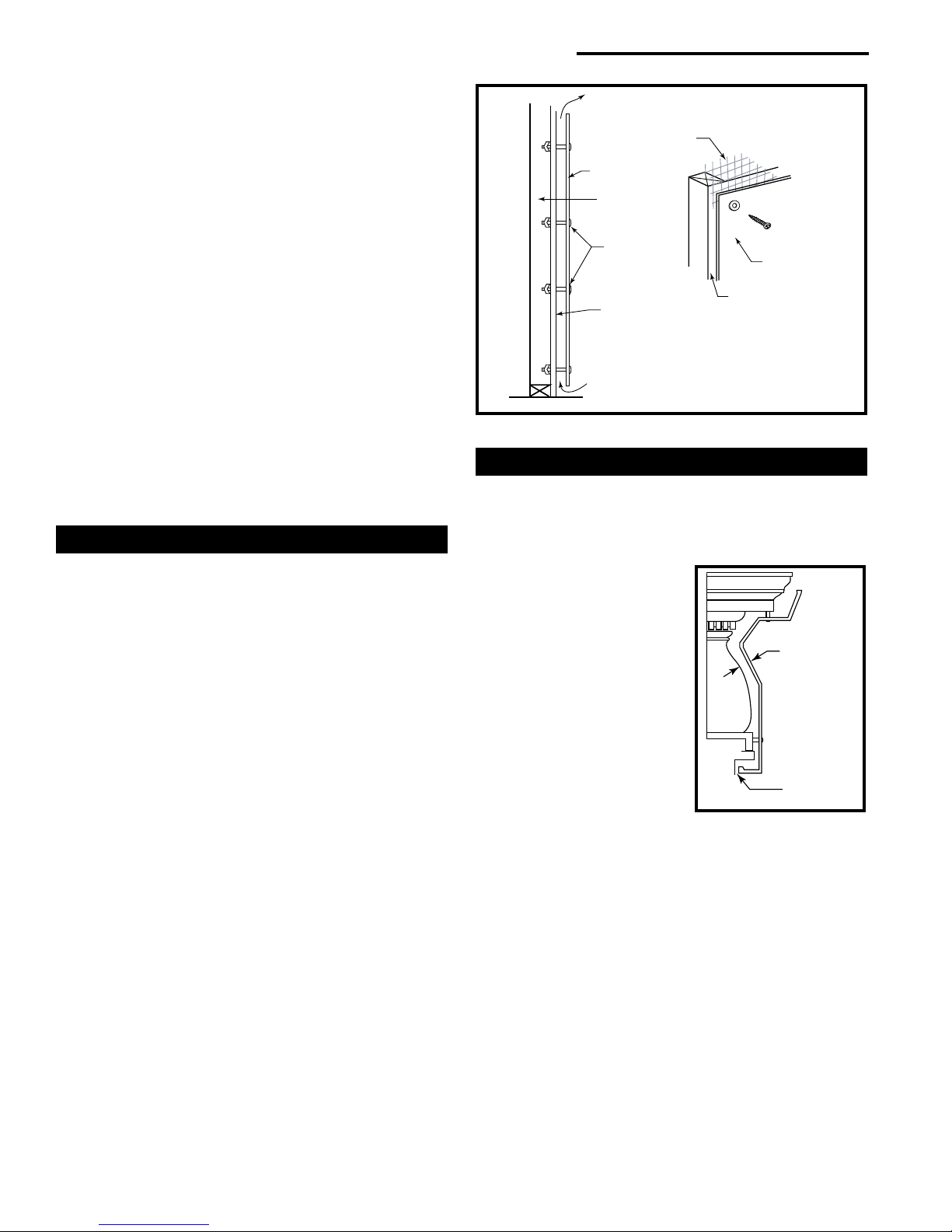

Fig. 13 Approved wall shield construction.
Fireplace and Mantel Trim Shields
A replace installation requires special clearance between
the side of the stove and the right and left walls, between
the side of the stove and the decorative side trim on the
replace face, and between the top of the stove and the
mantel.
Noncombustible shields
installed 1" (25 mm) away
from the combustible surface
on noncombustible spacers,
called ventilated shields, may
be used to reduce clearances.
To protect a mantel from the
heat of a stove in a replace
installation, use a custom-made
ventilated mantel shield that is
at least 48" (1220 mm) long,
centered over the stove. (Fig.
14) Ventilated shields for side
trim must extend the full length
of the trim.
An unprotected mantel (“A”, Fig. 15) cannot be more than
9" (230 mm) deep and must have a minimum clearance of
41" (1041 mm), measured from the stove’s top plate. With
a ventilated shield, this clearance may be reduced safely
to 29" (737 mm).
Unprotected top trim (B) protruding 3/4" (19 mm) or less
from the face of the replace must be a minimum of 28"
(711 mm) from the stove’s top surface. With a ventilated
trim shield, this clearance may be reduced safely to 21"
(533 mm).
Unprotected side trim (C) that protrudes 3/4" (19 mm) or
less from the face of a replace must have a minimum
clearance of 14" (356 mm), measured from the stove’s top
1" (25mm)
1/4" (6mm)
ST501
mantel and
trim shield
11/10/00 djt
ST501
Fig. 14 A custom-formed
mantel shield.
• When the wall has a heat shield mounted on it.
• When the wall and stove pipe have heat shields.
In general, the greatest clearance is required when you
place a stove and its connector near a wall with no heat
shield.
For example, when the Deant®is installed parallel to the
rear wall and no connector shield is used, it must be at
least 15" (381 mm) from the wall behind it and at least 21"
(533 mm) from walls on either side. These dimensions
are measured from the top edge of the stove to the com-
bustible wall.
If the Deant®is installed in a corner and no shield is used,
the corners of the stove top must be at least 5" (127 mm)
from nearby walls.
Clearances may be reduced only by means approved by
the regulatory authority, and in accordance with the clear-
ances listed in this manual. Refer to Page 14 for approved
clearance reduction specications.
NOTE: A minimum ceiling height of 8’ (2.4 m) is required
for all installations of the Deant®.
NOTE: Installation of the Deant®is not permitted in
alcoves.
Wall Shields
One way to reduce clearances is with a wall shield con-
structed of 24 gauge or heavier sheet metal, or of another
noncombustible material such as 1/2" (13 mm) insulation
board such as Durock®or Wonderboard®, or common brick
“laid on at,” with the 31⁄2" (90 mm) side down.
Shields must be spaced out from the combustible surface
1" (25 mm) on noncombustible spacers, as in Figure 13.
The spacers should not be directly behind the stove or
chimney connector.
Air must be able to ow between the wall and the shield.
At least 50% of the bottom 1" (25 mm) of the shield must
be open, and the shield must be open at the top. Metal
screening across the top will keep small stray objects from
being trapped behind the shield. (Fig. 13)
The shield must be a minimum of 48" (1219 mm) tall, and
must extend at least 19" (483 mm) higher than the top
of the stove, whichever is higher. The shield behind the
chimney connector must be 30" (760 mm) wide, centered
behind the pipe; for installations that use an approved
prefabricated chimney to pass through the ceiling, the
shield behind the chimney connector must stop 1" (25 mm)
below the ceiling.
With 8" connections and chimneys, because of potentially
higher pipe temperatures, the shield must extend the full
height of the wall (up to 9’ (2.7 m)) and stop 1" (25 mm)
below the ceiling.

13
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
side edge. If the trim extends more than 3/4" (19 mm), it is
subject to the requirements for wall clearance.
The charts and sample installations that follow list all
the clearances required for the various installation
congurations of the Deant®.
ST253b
Encore
trim clearances
02/01 djt
A B
D
CC
Unprotected Protected
A. Mantel 41" (1041 mm) 29" (737 mm)
B. Top Trim 28" (711 mm) 21" (533 mm)
C. Side Trim 14" (356 mm) 14" (356 mm)
D. Side Wall 21" (533 mm) 11" (280 mm)
Fireplace and Mantel Trim Clearances
ST253b

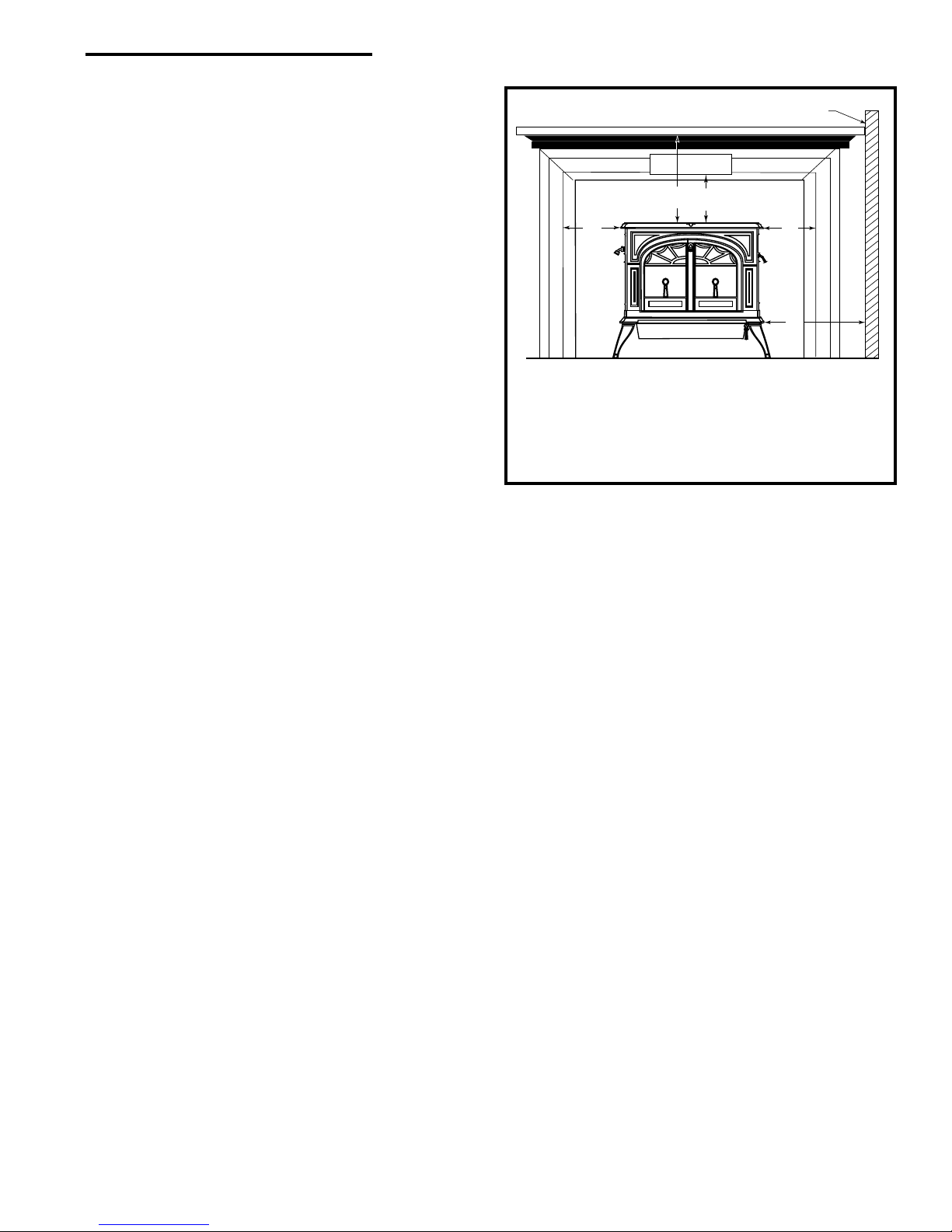

Fig. 15 Maintain clearances to combustible components of the
mantelpiece.
Side Wall

14
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Deant®Clearance Chart for 6" and 8" Connections ONLY
Stove Clearance
Stove Installed Parallel to Wall
Unprotected Surface Protected Surfaces1
No Connector Heat Shields with Connector Heat Shields
Side Rear2 Corners Side Rear2 Corners
Stove Installed Parallel to Wall
Stove
in
Corner
Stove
in
Corner
The attached rear shroud must be used in all installations. The ue collar heat shield must be used in all vertical installations.
1. The connector pipe heat shield must extend 36" (914 mm) above the ue collar.
2. WARNING: If stove has been installed based on the clearances described above as “Top exit with single wall or double wall
connector pipe,” then stove cannot be operated as “Door open with re screen and damper open” without moving the stove so
the clearance meets those described for this type installation.
3. Using a listed double wall oval to round connector.
A ceiling heat shield, 24" (610 mm) in diameter and suspended 1" (25 mm) from the ceiling must surround the pipe in installations
where the chimney penetrates the ceiling.
(to rear (to back edge (to rear (to back edge
shroud) of cast top) shroud) of cast top)
Top exit with single (A) 21" (B) 15" (C) 21" (D) 5" (E) 5" (F) 3" (G) 9" (D) 5"
wall connector pipe (521 mm) (381 mm) (521 mm) (127 mm) (127 mm) (76 mm) (229 mm) (127 mm)
Door open with re
screen used and (H) 22" (I) 18" (J) 24"
damper open (559 mm) (457 mm) (610 mm) n/a n/a n/a n/a n/a
(8" chimney only)2
Top Exit with double (P) 21" (Q) 15" (R) 21" (S) 5" (T) 5" (U) 3" (V) 9" (W) 2"
wall3connector pipe (521 mm) (381 mm) (521 mm) (127 mm) (127 mm) (76 mm) (229 mm) (51 mm)
Rear Exit (X) 21" (Y) 10" (Z) 16" n/a n/a n/a n/a n/a
(521 mm) (254 mm) (407 mm)

15
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
E
F
D
D
D
ST855a
Defiant 2n1
Clearance
Diagrams
D
A
B
H
I
T
U
W
W
S
P
S
Q
X
N/A N/A
Y
CG
N/A
N/A
N/A
J
RV
N/A
Z

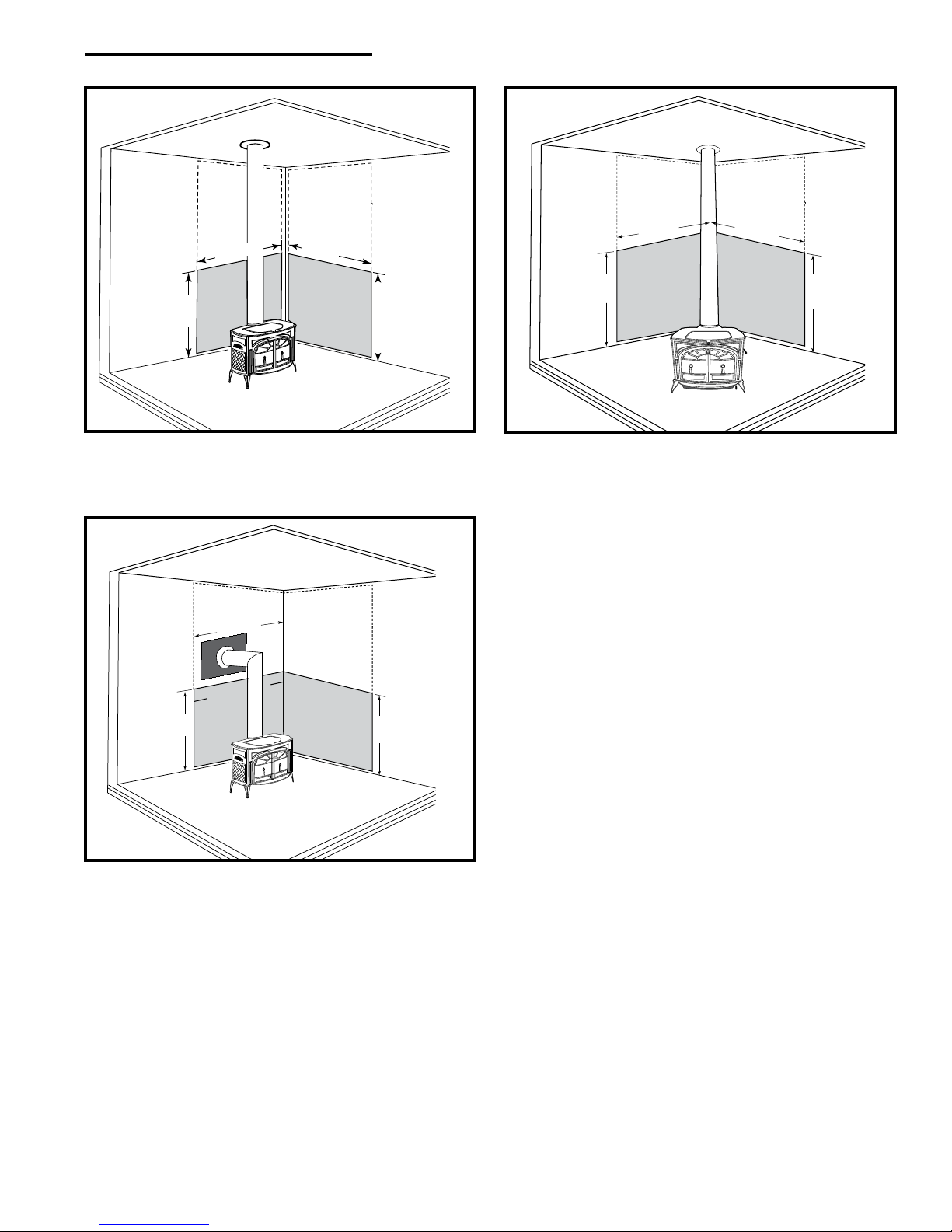

Deant® Clearance Diagrams
for use with either a 6" or 8" chimney connection
Stove Installed
Parallel to Wall Stove in Corner
Stove Installed Parallel
to Wall
Unprotected Surfaces
No Connector Heat Shield
Protected Surfaces
with Connector Heat Shield
Stove in Corner
ST855
Top Exit Installations, double-wall chimney connector, ue collar shield installed
Door open with re screen, damper open, 8" chimney only, 1" oor protection
Top Exit Installations, single-wall connector
Rear Exit Installations

16
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Distance from the Center of the Flue Collar to the Wall
Double-wall Connector
Side (A) Rear (B) Corner (C) Side (D) Rear (E) Corner (F)
361⁄2" (927 mm) 21" (533 mm) 16" (406 mm) 201⁄2" (521 mm) 9" (229 mm) 16" (406 mm)
ST511
Intrepid
flue centerline
Diagrams
11/16/00
*
ABC
*
DEF
* This distance, from the center of the ue collar to the front edge of the hearth, is the same for all installations on this
page: 34" (865 mm) in the United States and 36" (914 mm) in Canada.
Single Wall - No Connector Heat Shields
Unprotected Surfaces Protected Surfaces
Parallel Installations Corner Parallel Installations Corner
Installations Installations
Side (A) Rear (B) Corner (C) Side (D) Rear (E) Corner (F)
361⁄2" (927 mm) 21" (533 mm) 16" (406 mm) 201⁄2" (521 mm) 9" (229 mm) 16" (406 mm)
Doors Open - 8" Connector
Unprotected Surfaces
Parallel Installations Corner
Installations
Side (A) Rear (B) Corner (C)
371⁄2" (953 mm) 18" (457 mm)

17
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
48"
(1220 mm)
48"
(1220 mm)
48"
(1220 mm)
ST498
Defiant
Wall shield B
11/00
Fig. 17 Parallel installation with rear wall pass-through, two wall
shields. Reduced clearances to both rear and side walls. Wall
shields may meet at corner if desired. Wall pass-through must
comply with codes.
Refer to “Special Installations.”
ST498
48"
(1220 mm)
48"
(1220 mm)
48"
(1220 mm)
48"
(1220 mm)
ST497
Defiant
wall shield A
11/00
Fig. 16 Parallel installation, vertical chimney connector, two wall
shields. Reduced clearances for both rear and side walls. Wall
shields may meet at corner if desired. Shielding for connector is
centered behind connector.
ST497
48"
(1220 mm)
48"
(1220 mm)
48"
(1220 mm)
48"
(1220 mm)
ST499
Defiant
Wall Shield C
11/00
ST499
Fig. 18 Corner installation, vertical chimney connector, two wall
shields. Reduced side clearances. Wall shield MUST meet at
corner.

18
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Set Up Your Stove
Cast iron stoves are heavy, and it will take two to four people
to move your Deant®into position.
Wipe the protective coating of oil from the griddle with a
clean dry rag or a paper towel.
Install the handle on the griddle. First, place the griddle
upside down at the edge of a at surface and assemble
the handle as shown.
With the handle point-
ing 45° from its nal
position, tighten the
nut as far as possible
with the pliers. Move
the handle to its fi-
nal position while still
holding the nut with
the pliers.
Assembly
Install Stove Legs
The stove is shipped with the legs attached. In some in-
stances, the legs may have been removed. Follow these
instructions to reattach the legs. Install the stove legs (Fig.
20) using the hex head bolts from the parts bag. Use 3/8"
washers with all four legs; the door handle holder installs
on the right front leg. Position the holder so the hole to
accept the handle hub faces out from the right side of the
stove. Tighten the bolts rmly.
CAUTION: Overtightening can strip tapped threads.
NOTE: When moving the stove, lift the stove to take weight
off the legs whenever possible. Dragging or sliding the
stove, especially across rough surfaces can cause the legs
to loosen or even break.
ST858
attach legs
12/05
Leg Bolt and
Washer
ST858
Fig. 20 Attach the stove legs.
ST564
handle holder
12/13/00
Bottom Heat Shield
Door Handle Holder
Leg Bolt and Washer
ST564
Fig. 21 Handle holder and heat shield positions.
Storing the Handle
Use the removable handle to open or close the doors. After
using it, remove the handle so it will not get hot. Store the
handle in the handle holder installed behind the right front
leg. (Fig. 21)
Install the Bottom Heat Shield
NOTE: The Bottom Heat Shield is required in most instal-
lations. Refer to Floor Protection, Page 10, for further
details.
1. Loosen the four 1/4-20 hex head bolts from the corners
of the ash drop on the stove bottom.
2. Align the bottom heat shield holes with the four bolts.
The outside air cutout hole should be toward the rear
of the stove. The unpainted side must face up towards
the stove.
3. Pass all four bolts through the large end of the keyholes
and then pulling the shield forward to engage the smaller
ends of the keyhole slots. (Fig. 22)
4. Attach the heat shield sides by passing the slots over
the bolt heads. Tighten the hex head bolts.
ST857
abottom heat shield
12/05
1/10
ST857
Fig. 22 Attach the bottom heat shield.
Bottom Heat Shield
ST516
Attach
griddle handle
11/17/00 djt
ST516
Fig. 19 Attach the griddle handle.
Adjust the Leg Levellers
Lift the stove slightly so there is no weight on the leg while
making the adjustment.
Reverse the Flue Collar (If necessary)
Reverse the ue collar by removing the two screws that
attach it to the back of the stove. Be sure the gasket around
the ue collar opening is in position when you screw the
collar back onto the stove.

19
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Adjust Air Deector
If you have the optional fan kit, you may decide to adjust
the air deector to blow heat across the top of your stove.
(Fig. 23) Loosen the two (2) screws on each side and raise
or lower the deector. After adjustment, tighten the screws.
Attach Flue Collar Heat Shield
WARNING: The ue collar heat shield must be attached
to the Deant®stove. Use four #10 sheet metal screws
supplied to secure the ue collar heat shield to the rear
of the stove. (Fig. 23)
ST540
Assembly
handle
11/00
ST540
Fig. 26 Assemble the front door handle.
DEFIANT
ST539
attach
thermostat
handle
11/00
ST539
Fig. 25 Attach the thermostat handle.
Assemble the Removable Insert Handle
The ceramic removable insert handle opens and closes the
front doors. Remove after each use, and store it in the handle
holder behind the right front leg. Assemble the handle by
passing the 33⁄8" screw through the ceramic shaft and into
the bright metal nub. (Fig. 26) Tighten carefully until snug.
ST1180
flue collar heat shield
Sheet
Metal
Screws
Sheet
Metal
Screws
Flue Collar
Heat Shield
ST1180
Fig. 23 Install ue collar heat shield.
WARNING: Flue collar heat shield must be installed.
Air Deector
Air Deector Attach the Damper Handle
Use the 1/4" -20 x 3" screw to attach the damper handle
to the damper stub on the left side.
Attach the Primary Air Thermostat Handle
The primary air thermostat handle is the smaller of the
two black handles. Secure the handle to the stub on the
right side of the stove with an 8-32 x 2" slot head machine
screw. (Fig. 25)
1.4"
1.8"
Bracket mounting screw
hole location
Fold bracket strap
over catalyst probe
shaft and secure with
screw.
Insert catalyst probe
through sheet metal
into cast iron back.
Remove hold plug
from cast iron back.
Insert catalyst
probe bracket with
self-drilling screw.
Fig. 24 Install the Catalyst Temperature Probe
Attach the Catalyst Temperature Probe
To install the catalyst temperature probe, remove the
hole plug from the cast iron wall behind the rear shield
as shown (Fig. 24) use two #10 sheetmetal screws and
bracket supplied, secure the bracket and probe to the
back of your stove. (Fig. 24)

20
Deant®FlexBurn®1975 Non-Catalytic / Catalytic Wood Burning Stove
30005220
Fan Kit Installation
1. Attach the fan assembly at the bottom edge of the in-
ner back with two (2) 1/4-20 x 3/4" hex head screws.
2. Attach snapstat to the mounting holes on the underside
of the bottom with two (2) 1/4-20 pan head screws.
3. Attach the rheostat holder (provided with the stove)
under the right front wing of the bottom heat shield with
two (2) #10 sheet metal screws.
4. Attach the rheostat to its holder by inserting the rheo-
stat control shaft through the holder hole. Install the
retaining ring and rheostat knob onto the shaft.
5. Secure the rheostat cable to the underside of the bot-
tom heat shield using the wire tie provided and the
hole at the right rear edge of the heat shield.
6. Fan will not operate until stove reaches approximately
109°F.
Fig. 27 Fan installation (Kit # 2767).
ST848
fan install
6/05
Rheostat
Knob
Rheostat Snapstat Screws ST848
Hole for Wire
Tie to Secure
Cable
Rheostat
Holder
Installing or Removing Catalyst
1. Remove the access cover by gently lifting up and pull-
ing out from the bottom edge. (Fig. 28)
2. Remove the inner cover by pulling it straight out. (Fig.
29)
3. Remove the catalyst by gently pulling it straight out.
(Fig. 30) Place the catalyst where the catalyst’s ce-
ramic components will not be damaged.
ST1187
remove access cover
Access
Cover
ST1187
Fig. 28 Remove access cover.
ST1188
remove inner cover
Inner Cover
ST1188
Fig. 29 Remove inner cover.
ST1189
remove catalyst
Remove Catalyst ST1189
Fig. 30 Remove catalyst.
