Vestax TR-1 User manual

SPECIFICATION
Features:
> Selectable deck control (Max 4 channels)
> Can control up to more than 160 parameters of compatible software
> New SHIFT switch feature to customize deck control functions
> Smooth 60mm slide input faders for high-precision mixing
> module divided system compatible with any DJ style
MINIMUM SYSTEM REQUIREMENTS (Operating System)
Windows
•Windows XP (SP2, 32Bit) or Window Vista (SP1, 32Bit, 64Bit)
•CPU: Pentium 4 or Athlon 1.4GHz(SSE1) or better
•RAM : 1GB or better
Macintosh
•Mac OS X 10.4 or higher
•CPU: Intel Core™ Duo 1.66GHz or better
•RAM: 1GB or better
POWER SUPPLY • OTHERS
POWER ADAPTOR : DC 9V 500mA (option)
VOLTAGE : 5V (USB POWER)
POWER CONSUMPTION : 300mA
DIMENSIONS : 359(D) x 198(D) x 35(H)[45(H) with knobs]
WEIGHT : 2.6 Kg

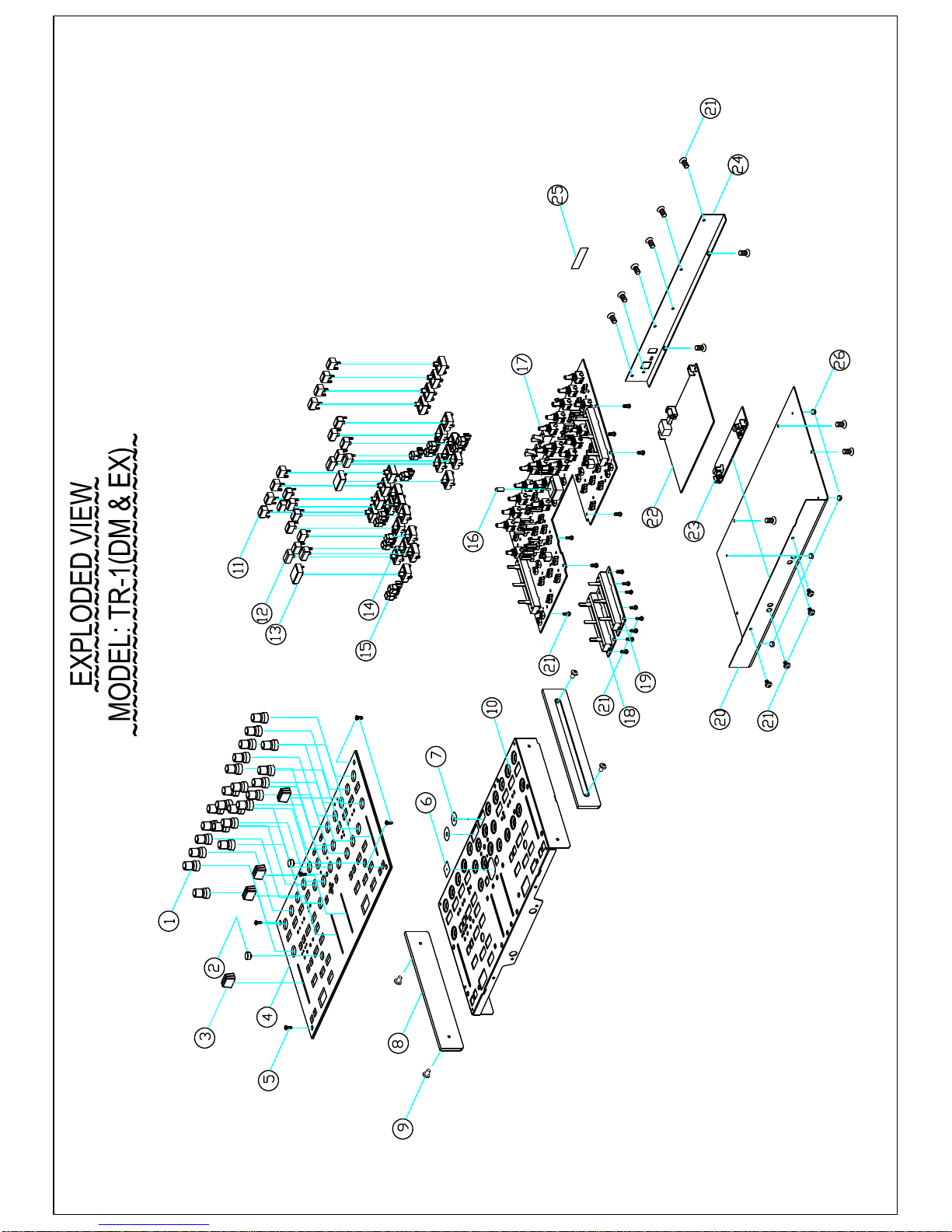

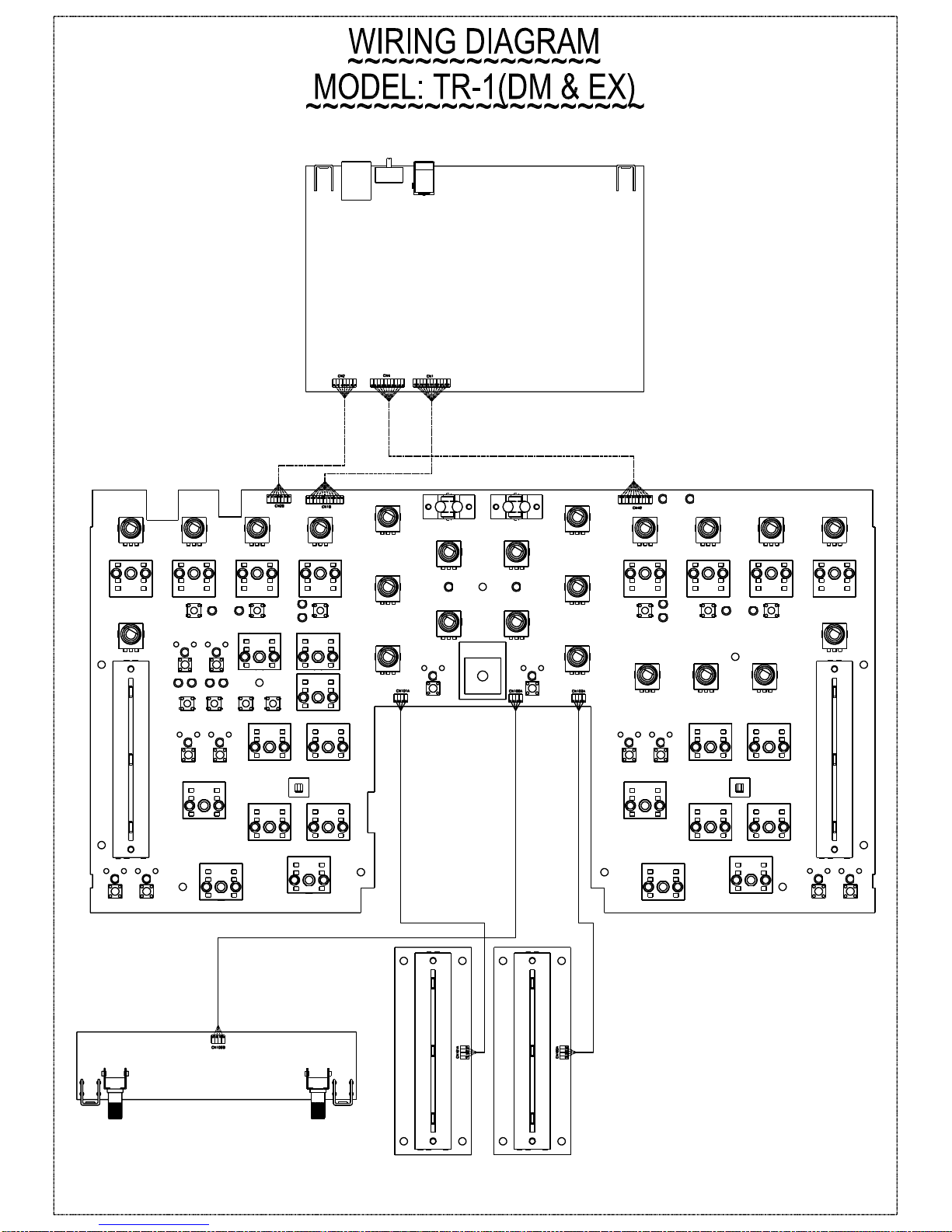

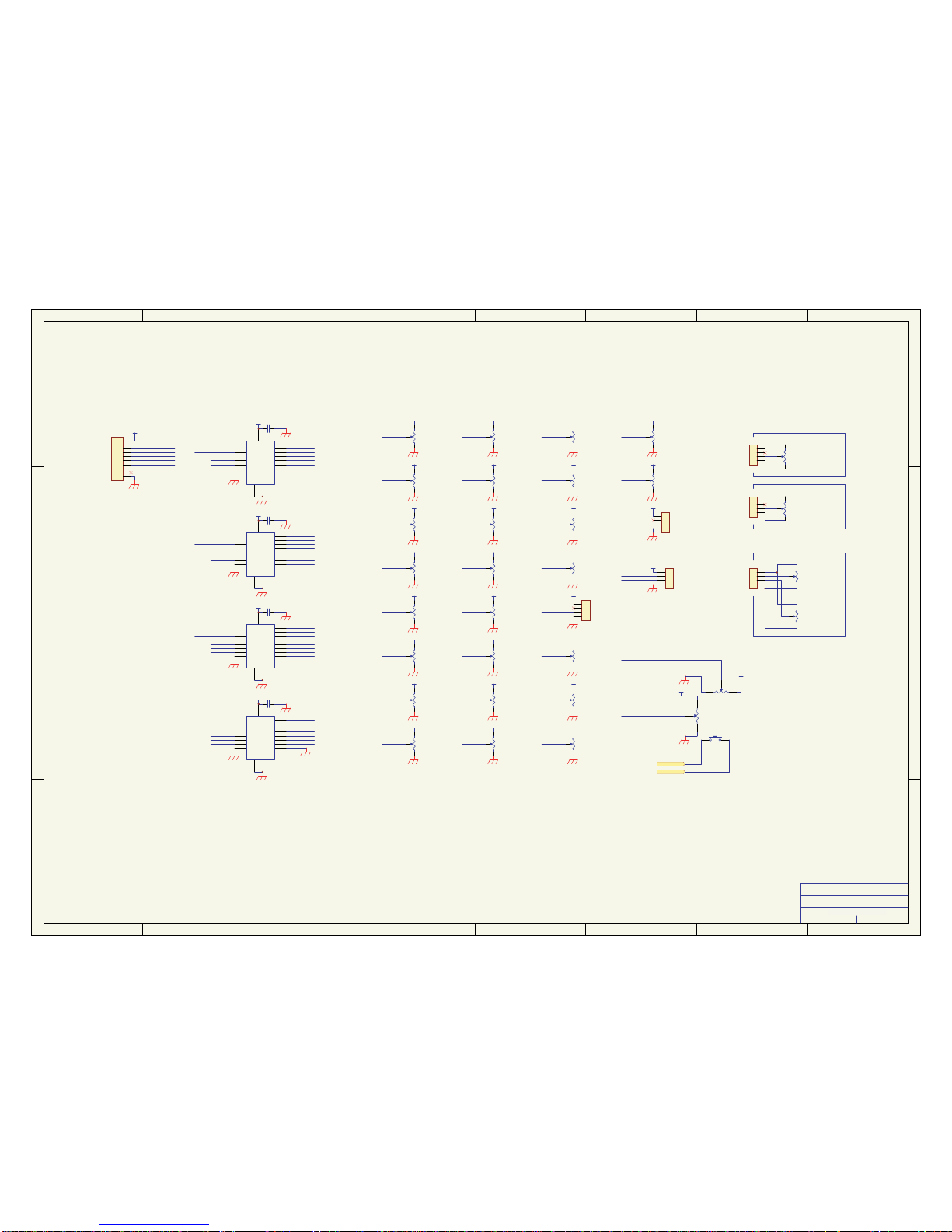

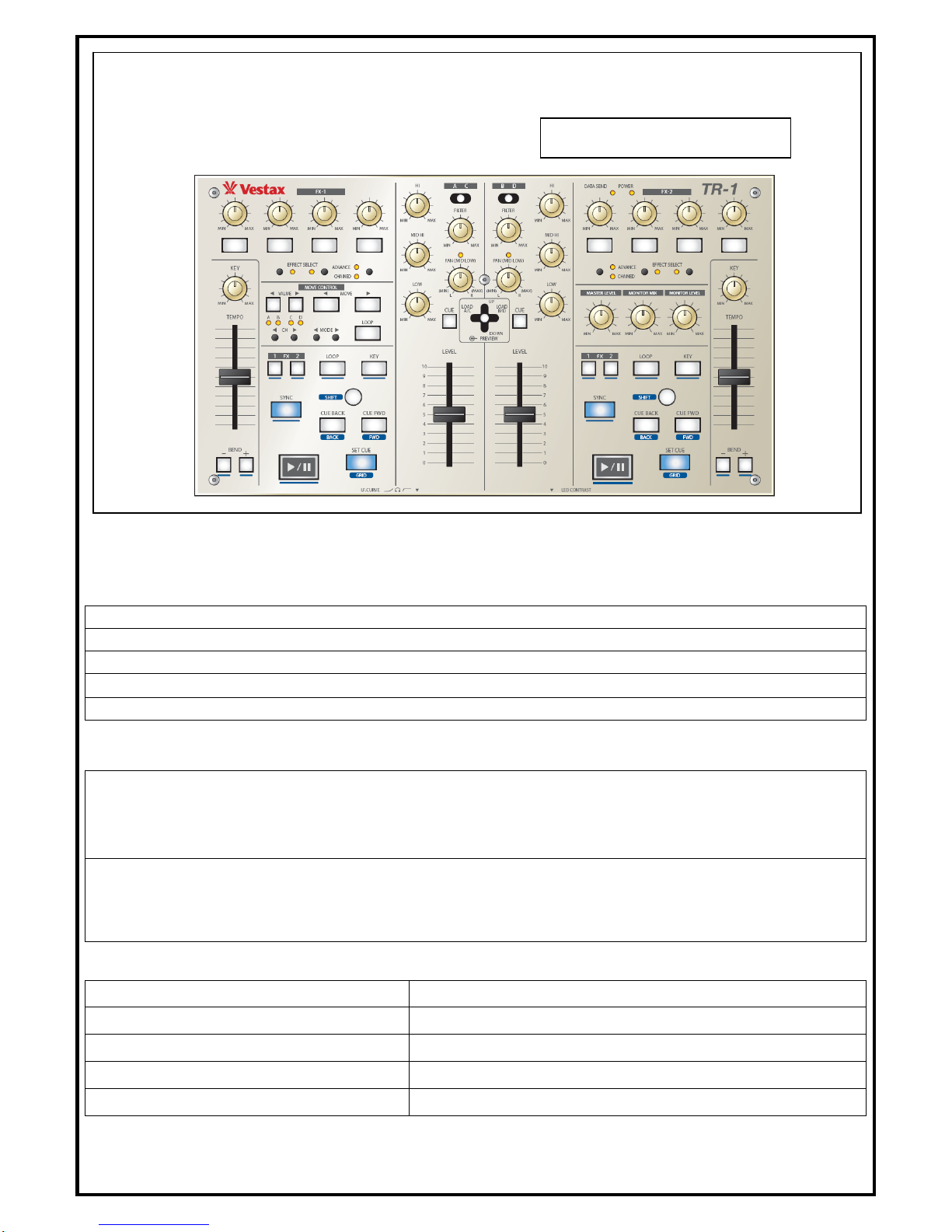

SERVICE MANUAL
MODEL:TR-1 (DM & EX)

No.
1
2
3
ExampleDescription
Please prepare equipment as below:
i. USB cable X 1 pcs
ii. PC (with Midi-OX) X 1 pcs
iii.SNC06 X 1 set

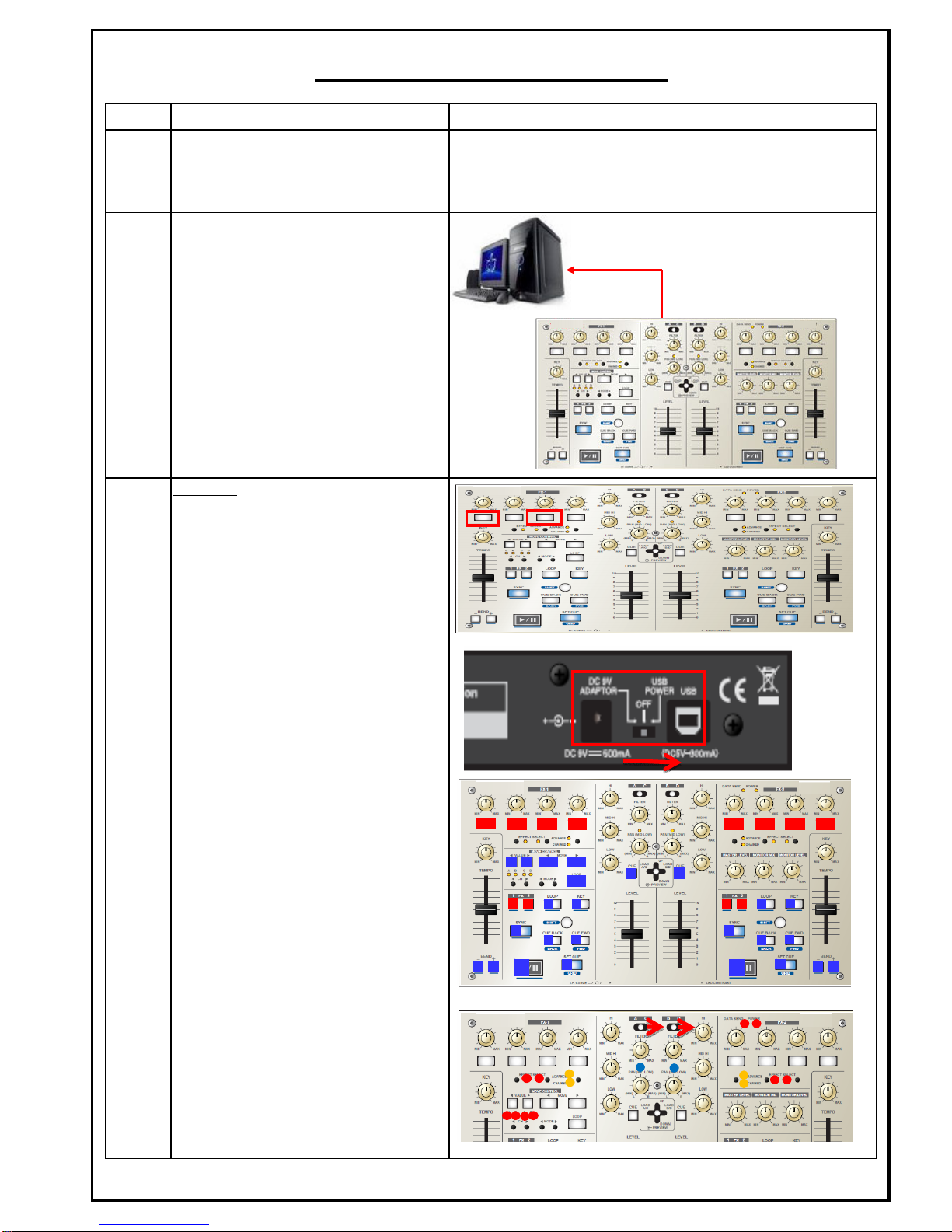

Connect the equipement according to the
figure 1

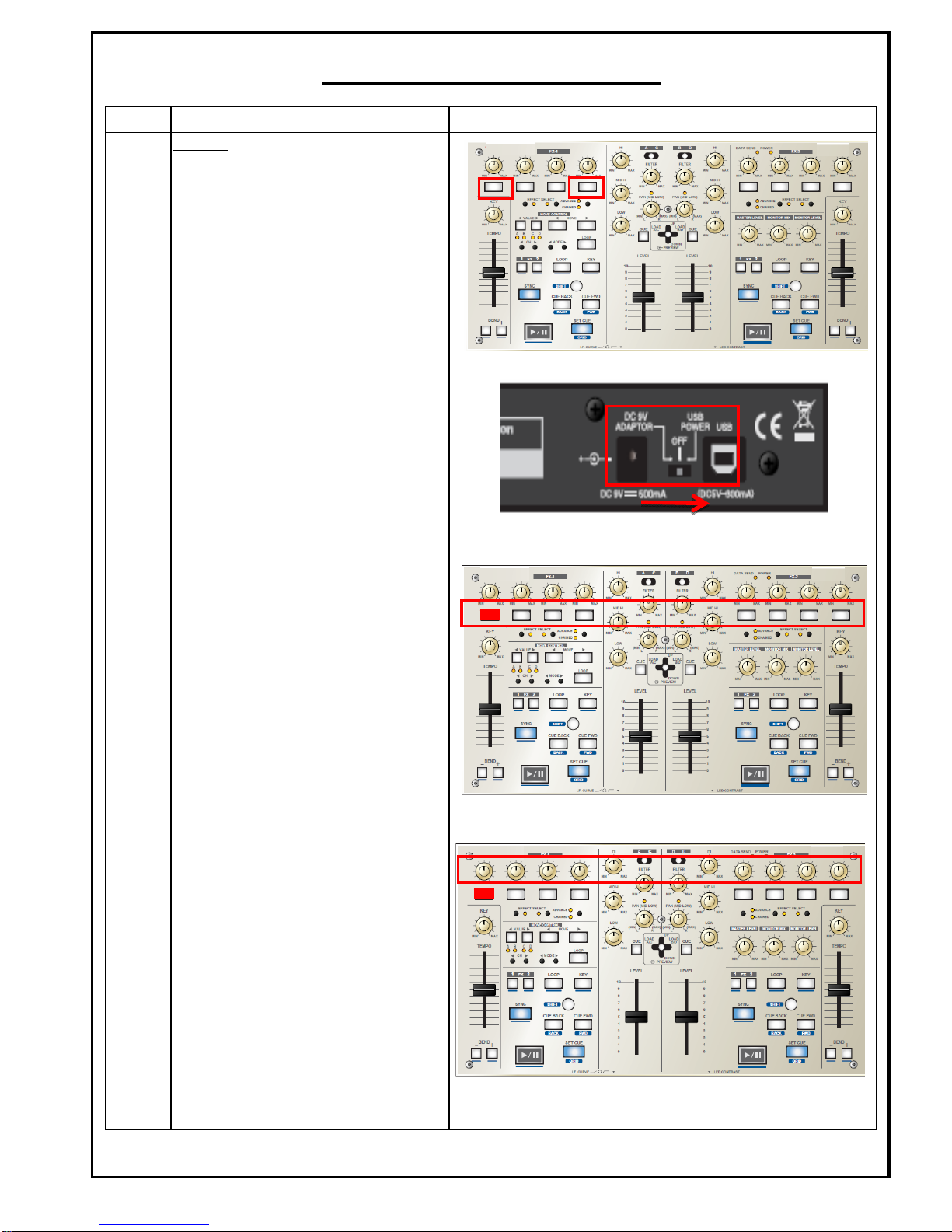

TR-1 TEST PROCEDURE (LED)
LED Test
1. Press the 2 button as high ligthed on
the figure 2. After turn on the power by
swtich to USB like Figure 3.
2. While pressing the button, both button
that pressing will become red. After
release the button. The both side button
such as L
PC
USB
Cable
Figure 1
SNC06
Figure 2
Fi
g
ure 3
Figure 4
Figure 5

No.
1
2
3
4
TR-1 TEST PROCEDURE (VR)
Aftat that turn the FX1 VR1 to min, the
FX-1 Button A will light ON. Turn the
VR1 slowly to Maximum, FX1 Button B,
Button C, Button D, FX2 Button A,
Button B, Button C, and Button D will
lights ON and OFF one by one untill the
VR turn to MAX the lights w
ExampleDescription
VR Test
Press the 2 button as high ligthed on the
figure 6. After turn on the power by
swtich to USB like Figure 7.
While pressing the button, both button
that pressing will become red. After
release the button. All button LED will
OFF
Same As above, Please Move the Fader.
LED movement same as above.
Figure 6
Figure 7
Figure 8
Figure 9

TR-1 TEST PROCEDURE (VR)
No.
5
6
7
8
Description Example

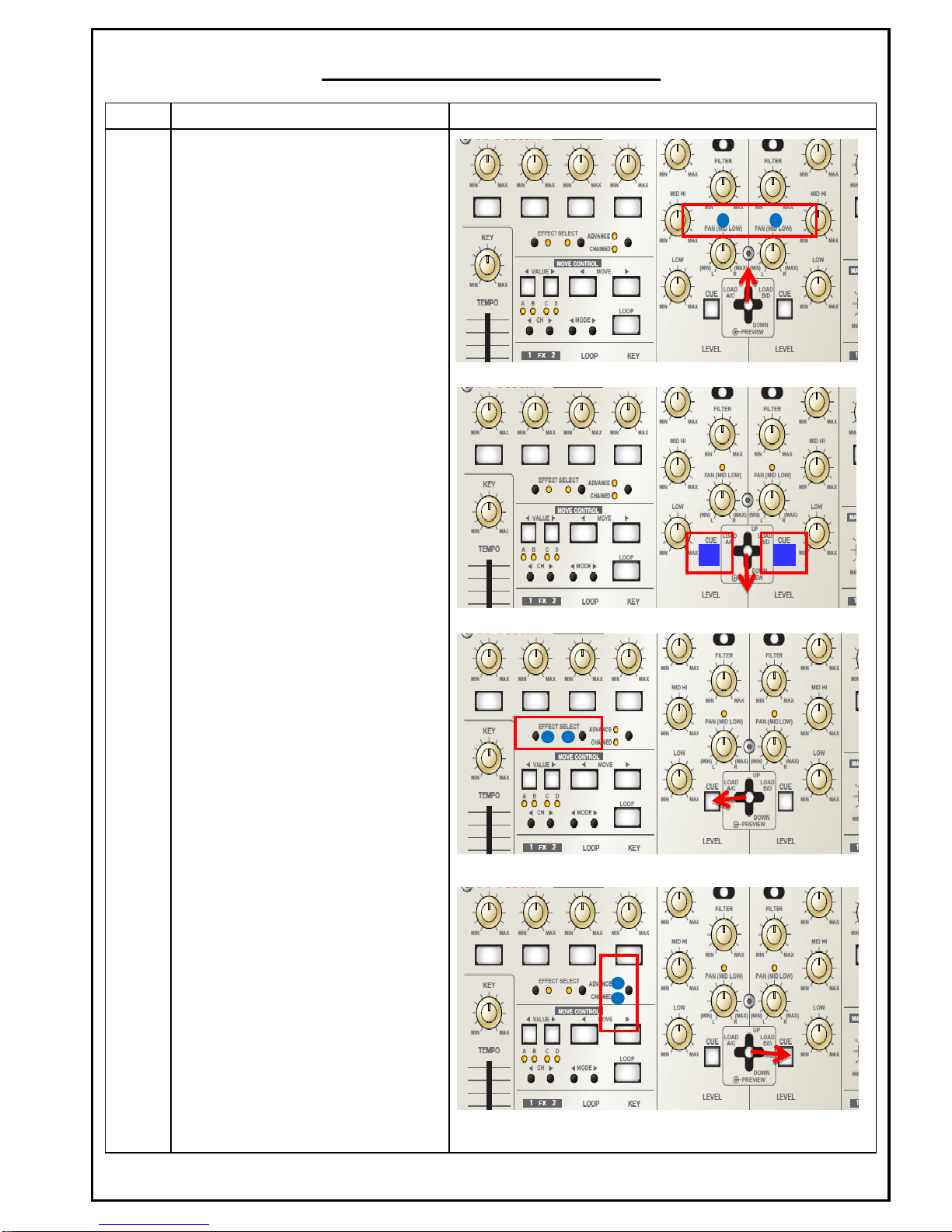

Move the (Figure 10) switch to UP. The
above Pan LED will lights ON
Move the (Figure 11) switch to DOWN.
The CUE LED will lights ON
Move the (Figure 12) switch to LEFT.
The EFFECT & SELECT LED will lights
ON
Move the (Figure 13) switch to RIGHT.
The ADVANCE & CHAINED LED will
lights ON
Figure 10
Figure 11
Figure 12
Figure 13

No.
1
2
3
TR-1 TEST PROCEDURE (USB)
Start to turn the VR, VR from Min Data2
from Screen will show 00 turn to Max will
turn to 7F. Beside that each of the VR have
their own identity at Data 1. Each of the VR
and button idendity will shown at Figure 17.
ExampleDescription
USB Test
Power On the set and click on the MIDI-OX
programe.
The software will prompt out.
1. FX1 VR1 : Data 1 = 18 ; Data 2 = 00~7F
2. FX1 VR2 : Data 1 = 19 ; Data 2 = 00~7F
3. FX1 VR3 : Data 1 = 1A ; Data 2 = 00~7F
4. FX1 VR4 : Data 1 = 1B ; Data 2 = 00~7F
5. FX1 Button1 : Data 1 = 3C ; Data 2 = 00~7F
6. FX1 Button2 : Data 1 = 3D ; Data 2 = 0
