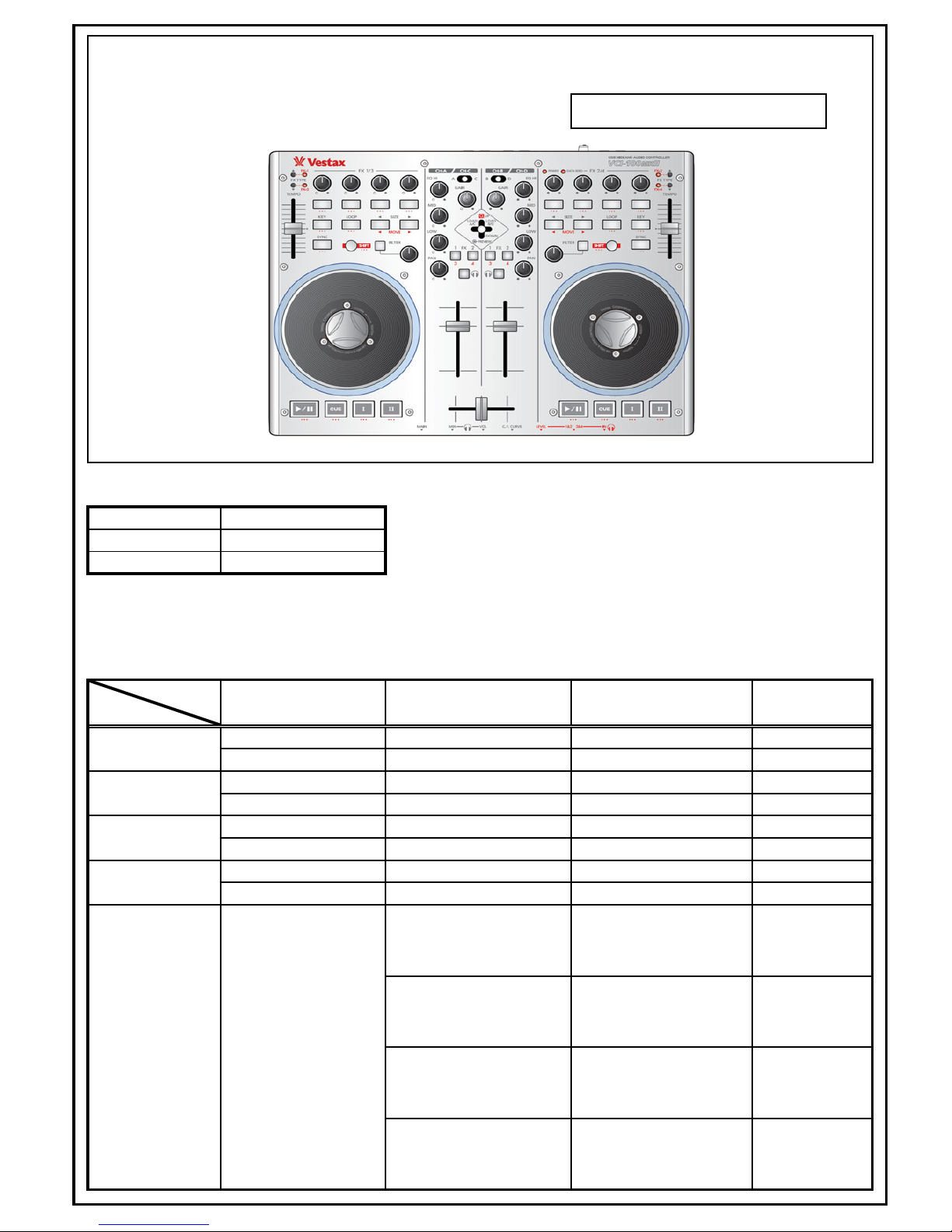

Vestax VCI-100MKII User manual

STANDARD SETTING
Control part Setup location
HP Level VR Max
Input Level VR Max
* Test with adapter ( 7.5V 1A )
* Headphone Loading Z= 34Ω ( 68Ω∥68Ω )
Software : Cubase SX on Windows XP
OUTPUT PERFORMANCE TEST：
±2dBV
±2dBV
±2dBV
±2dBV
SERVICE MANUAL
MODEL: VCI-100MKII
Frequency
Response
Compare with
1KHz,0dBV
output level
Compare with
1KHz,0dBV
output level
Compare with
1KHz,0dBV
output level
Compare with
1KHz,0dBV
output level
20KHz,0dBV Sine Wave Flter : none
Flter : none
10KHz,0dBV Sine Wave Flter : none
no singnal input Less than -80dBV Flter : "A"
1KHz,0dBV Sine Wave Less than -80dBV Flter : "A"
1KHz,0dBV Sine Wave Less than 0.09% Flter : "A"
no singnal input Less than -80dBV Flter : "A"
1KHz,0dBV Sine Wave 4.4dBV±0.2dBV Flter : none
1KHz,0dBV Sine Wave Less than 0.02% Flter : "A"
Signal from Cubase SX
by USB Specification Remark
1KHz,0dBV Sine Wave 5.8dBV±0.2dBV Flter : none
Headphone Output
Master Output 1/2
Headphone Output
Measurement signal
Headphone Output
Master Output 1/2
Headphone Output
Master Output 1/2
Master Output 1/2
Output Level
THD+N
S/N Ratio
Less than -70dBV Flter : "A"
Separating
Crosstalk
Master Output 1/2
1KHz,0dBV Sine Wave
20Hz,0dBV Sine Wave Flter : none
100Hz,0dBV Sine Wave

OUTPUT PERFORMANCE TEST：
±2dBV
±2dBV
±2dBV
±2dBV
INTPUT PERFORMANCE TEST：
Input signal setting on AP："1KHz , 0dBV"；"Sine Wave"；"Unbalance output"；"Output impedance Z = 50Ω".
Record the signal from AP to Cubase SX by VCI-100MKII ( Sound Card ) , than output the recorded signal form
Cubase SX.
Measure the signal of Master output 1
Frequency
Response
Measurement signal Signal from Cubase SX
by USB Specification Remark
Flter : none
Output Level Flter : none
THD+N
Signal from Cubase SX
by USB
Recorded signal by VCI-
100MKII 5.6dBV±0.2dBV
Recorded signal by VCI-
100MKII Less than 0.03%
Measurement signal
Master Output 1
Master Output 1
Specification
Flter : "A"
Remark
Compare with
1KHz,0dBV
output level
10KHz,0dBV Sine Wave Flter : none
20Hz,0dBV Sine Wave Flter : none
100Hz,0dBV Sine Wave
Compare with
1KHz,0dBV
output level
Compare with
1KHz,0dBV
output level
Compare with
1KHz,0dBV
output level
Flter : none
20KHz,0dBV Sine Wave
Headphone Output

No.
1
2
3
4
5

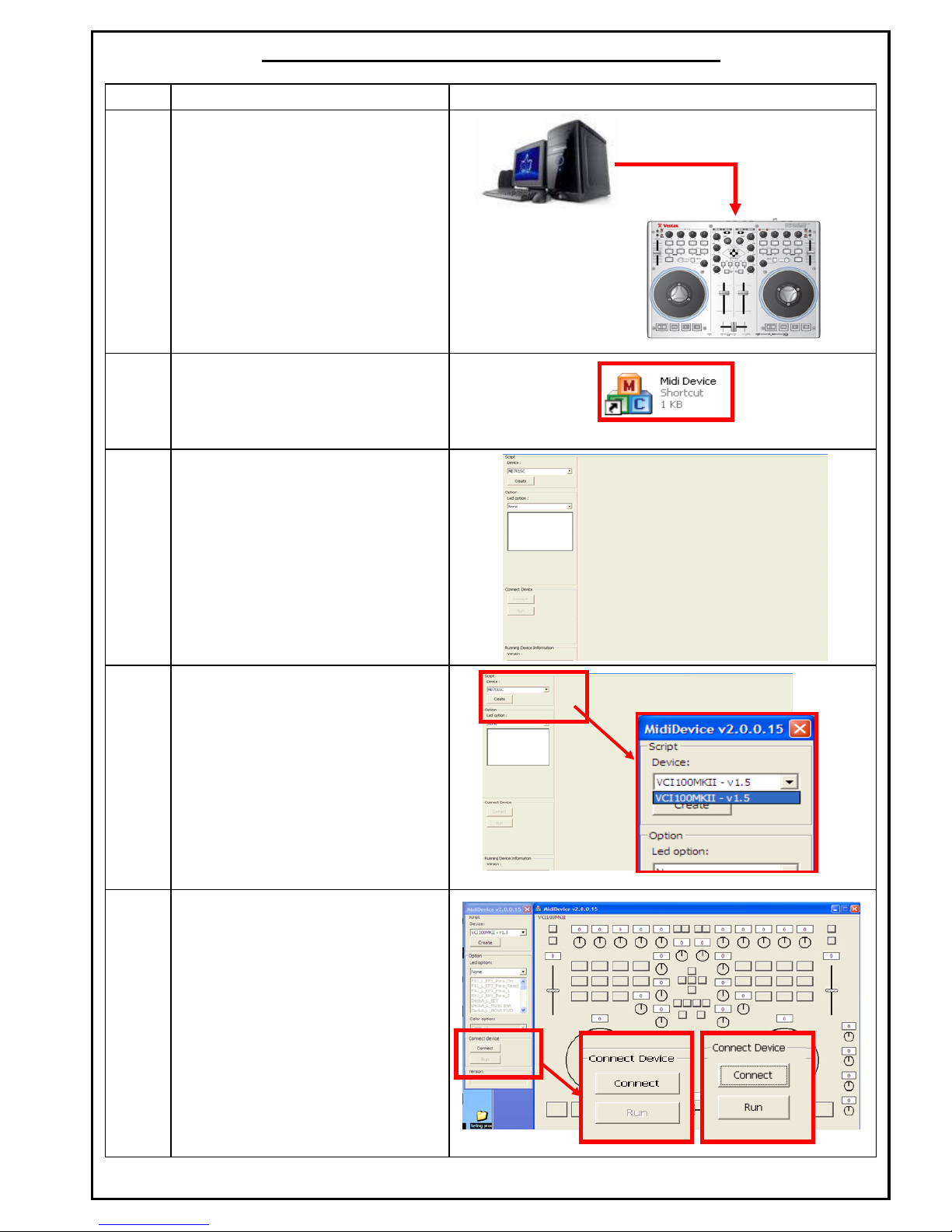

Choose VCI100MKII - V1.5.
ExampleDescription
Connect VCI-100MKII to PC.
Double click the Midi device Icon
VCI-100MKII TEST PROCEDURE (MIDI)
VCI-100MKII virtual panel will prompt
out. Please click "Connect" and wait for
few second untill the "Run" button
prompt out. Click "Run", VCI-100MKII
is ready to use.
The Testing Browser will prompt out.
PC
VCI-100MKII
USB
Cable

No.
6
7
8

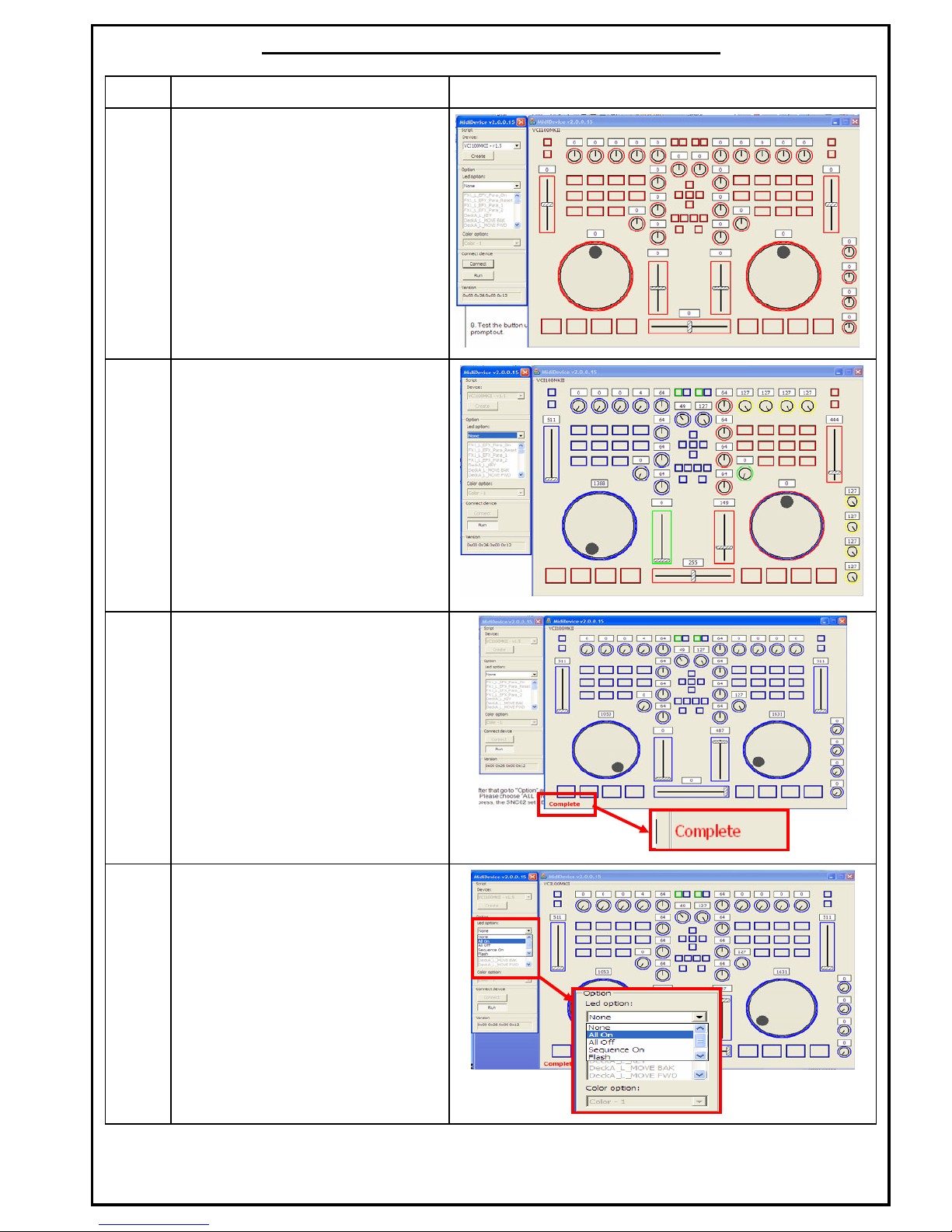

9 After that go to "Option" and click on the
slide bar. Please choose "ALL ON". Once
the button are press, the VCI-100MKII set
1st set of LED will all On.
Start to test VCI-100MKII by press
button, scrath Jog wheel, and slide VR.
Once the button, jog wheel and VR were
tested. The virtual panel button, jog wheel
and VR will become blue color.
Attn: Please test button, jog wheel and
VR one by one.
Test the button untill the "Complete"
word prompt out.
VCI-100MKII TEST PROCEDURE (MIDI)
Description Example
Press "Run" button, each of the button,
jog wheel and VR will become red color.

No.
10
VCI-100MKII TEST PROCEDURE (MIDI)
Description Example
Go to color option choose "color-2".
Press on the "Shift Button" and Hold on
then press on the "FX-4 button" . Switch
to channel C and channel D. The 2nd set
of LED will On.
Attn: The LED brigthness is Low.
2nd 3rd 2nd
1st 1st

No.
1
2
3
4
Double click the N.I. Icon
VCI-100MKII TEST PROCEDURE (LabView)
ExampleDescription
Connect VCI-100MKII to PC and connect
master 1/2, input & H/P to PC NI daq
Attn: Please prepare adaptor 7.5V 1A,
heaphone with impedance 34 ohm.
The Testing Browser will prompt out and
please click on the "MASTER 2" Button.
Follow the instruction below:
I. Open Mixcraft 4 (VCI-100MKII Sound
Card)--Preferences--Default
ouput(playback) set to 1/3
II. Play the sound
III. Press Continue
The Testing Browser will prompt out and
please click on the "MASTER 1" Button.
Follow the instruction below:
I. Open Mixcraft 4 (VCI-100MKII Sound
Card)--Preferences--Default
ouput(playback) set to 1/1
II. Play the sound
III. Press Continue
PC
V
CI-100MKII
USB
Cable RCA N.I. DAQ

No.
5
6 The Testing Browser will prompt out and
please click on the "Record" Button.
Follow the instruction below:
I. Open Mixcraft 4 (VCI-100MKII
Record)--Preferences--Default
ouput(playback) set to 1/3
II. Unplug HP Wire
II. Turn Record Volume to Max
III. Pres
VCI-100MKII TEST PROCEDURE (LabView)
Description Example
The Testing Browser will prompt out and
please click on the "H/P" Button.
Follow the instruction below:
I. Open Mixcraft 4(VCI-100MKII Sound
Card)--Preferences--Default
ouput(playback) set to 1/3
II. Turn HP volume to MAX
II. Play the sound
III. Press Con

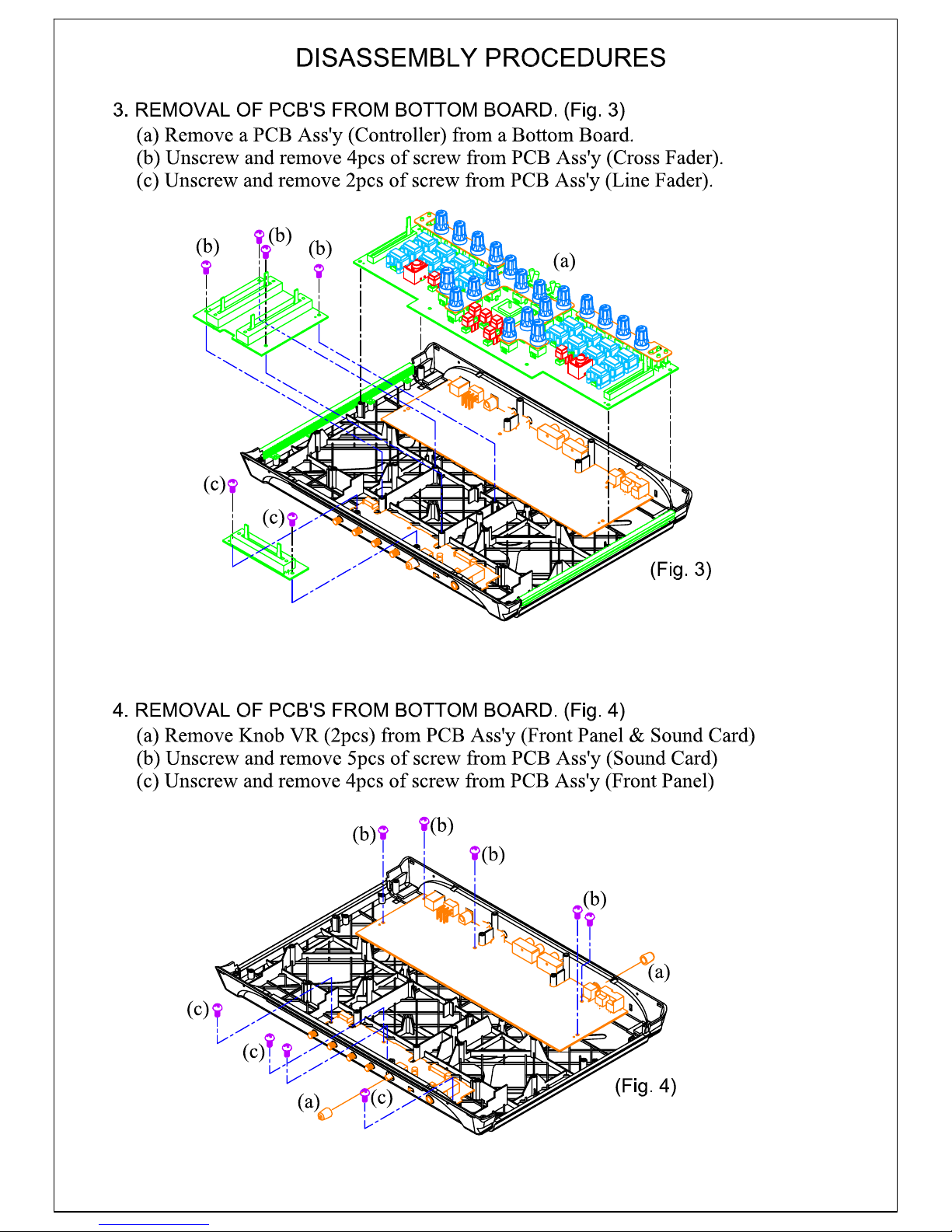

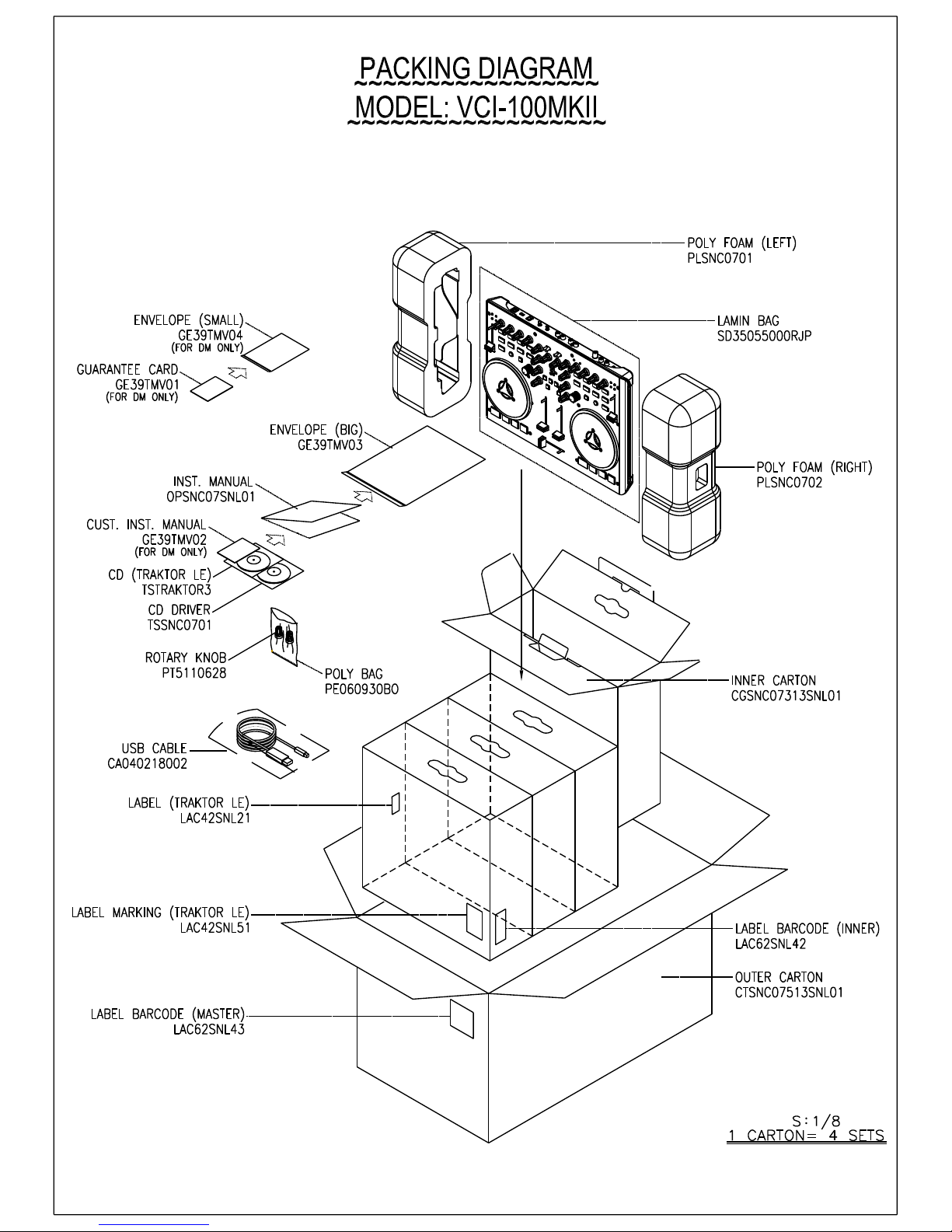

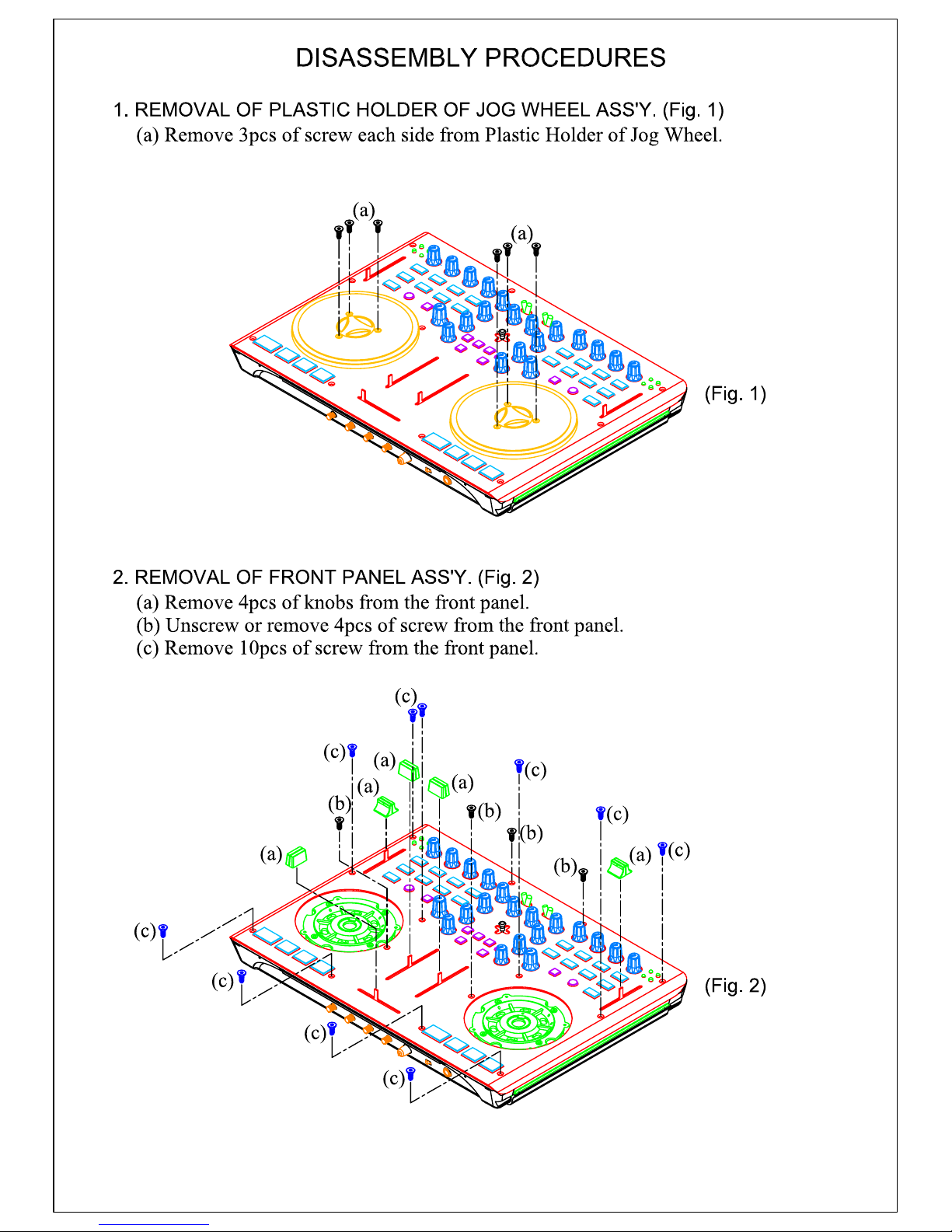

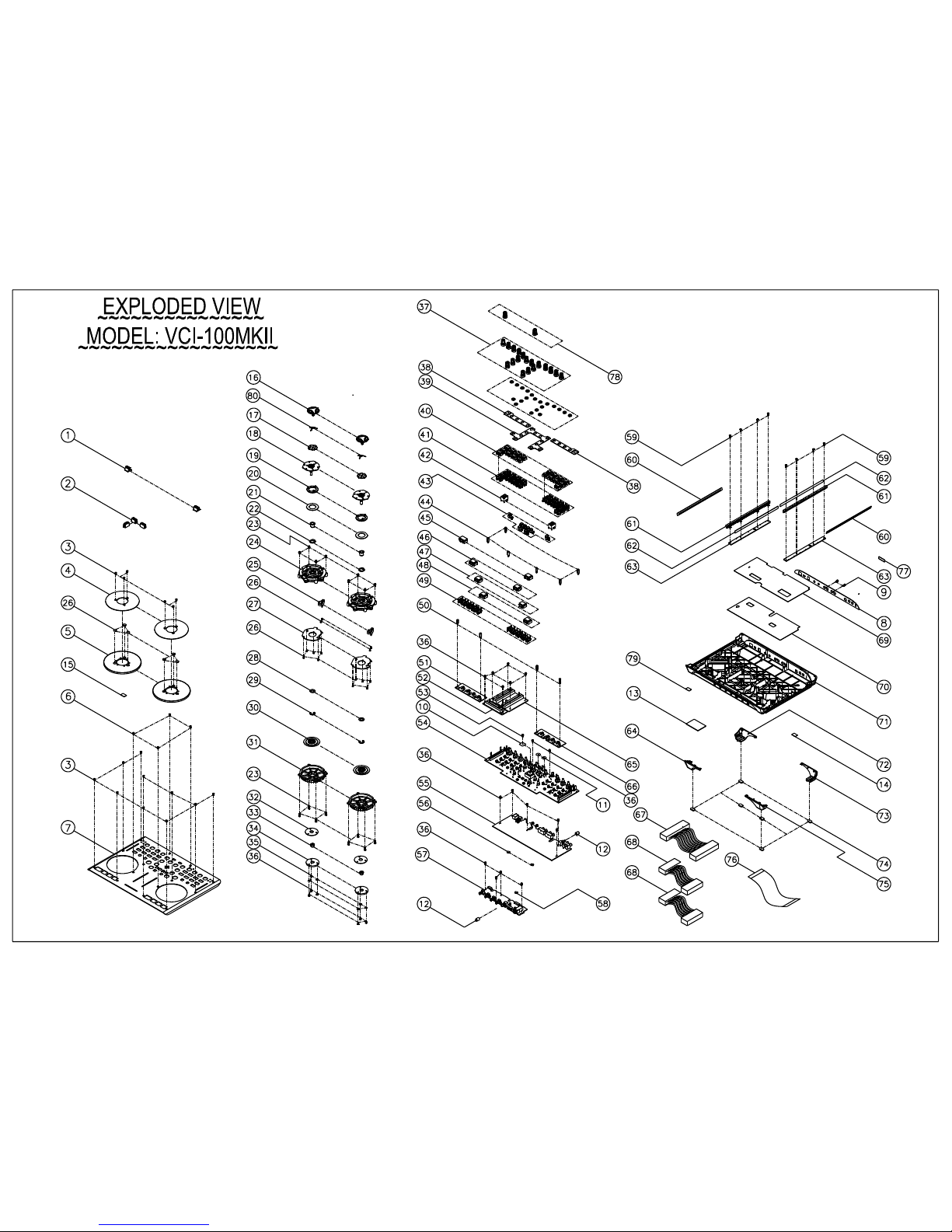

VCI-100MKII (BOM)
Lvl Materials SPECS Qt
y
Part Location
.1 BA244452012MC FADER KNOB W/MATT CHROME 3 2
.1 BA244684010 SLIDER KNOB (2446-8401-0) 2 1
.1 BAHUB-158B USB 2.0 HUB BLACK 1
.1 CGSNC07313SNL01 INNER CARTON 1
.1 CTSNC07513SNL01 OUTER CARTON 0.25
.1 GE39TMV01 GUARANTEE CARD 1 FOR DM VERSION USE
.1 GE39TMV02 CUSTOMER INSTRUCTION CARD 1 FOR DM VERSION USE
.1 GE39TMV03 ENVELOPE (BIG) 1
.1 GE39TMV04 ENVELOPE (SMALL) 1 FOR DM VERSION USE
.1 LAC42SNL21 LABEL (TRAKTOR LE) 1
.1 LAC42SNL51 LABEL MARKING (TRAKTOR LE) 1
.1 LAC42SNL53 LABEL (C-TICK) 1 79
.1 LAC42SNL58 LABEL (TRAKTOR READY) 1 15
.1 LAC52SNL44 LABEL (SAFETY) 1 13
.1 LAC62SNL30 LABEL (LICENSE NUMBERS) SNC07 1 14
.1 MT510440601 FIXED PLATE (RING) W/SPRAYING 2 4
.1 MT513000601 FRONT PANEL W/SPRAYING & PRINTING 17
.1 NM5106104 VELVET CARPET (ROUND) 2 11
.1 NM5106105 VELVET CARPET (SQUARE) 1 10
.1 NP251SNL14 NAME PLATE (REAR PANEL) 1 8
.1 OPSNC07SNL01 INSTRUCTION MANUAL 1
.1 PLSNC0701 POLY FOAM (LEFT) 1
.1 PLSNC0702 POLY FOAM (RIGHT) 1
.1 PT5104409 PLASTIC HOLDER (JOG WHEEL) 2 5
.1 PT511063501 KNOB VR W/SPRAYING 2 12
.1 SC0308AINI HEX HEAD SCREW (FLAT) (M3X8MM) 16 3
.1 SC0308F2BNI SCREW (3X8MM) TAPPING 4 6
.1 SC0308PBBI SCREW 2 9
.1 SD35055000RJP LAMIN BAG 1
.1 SPSASAW0502000E SWITCH POWER ADAPTOR TYPE DC 5V 2A EU 1 FOR EC VERSION USE
.1 SPSASAW0502000 SWITCH POWER ADAPTOR TYPE DC 5V 2A UL 1 FOR US & DM VERSION USE
.1 SPSASAW0502000K SWITCH POWER ADAPTOR TYPE DC 5V 2AUK 1 FOR UK VERSION USE
.1 TSSNC0701 SNC07 CD DRIVER 1
.1 TSTRAKTOR03 TRAKTOR LE SOFTWARE CD (FOR SNC07) 1
.1 TWSNC07SNL01 DIGITAL CONTROLLER ASS'Y 1
..2 CA040218002 USB CABLE (BLACK) + CORE 1
..2 CN1020001003 CONNECTOR WIRE 5P*2/2.0/100MM 2 68
..2 FFC1810000501 FFC CABLE 18P 1.0MM 50MM 1 76
..2 LAC22SNL29 LABEL (SERIAL NO.) 1 77
..2 LAC62SNL42 LABEL BARCODE (INNER) 1
..2 LAC62SNL43 LABEL BARCODE (MASTER) 1
..2 MT5101801 GROUNDING PLATE 2 22
..2 MT5101803 METAL PLATE 2 17
..2 MT5101804 METAL HOLDER 2 80
..2 MT5104412 FIXED PLATE 2 38
..2 MT5104413 FIXED PLATE 1 39
..2 MT5105507 COPPER STUD 4 50
..2 MT5105508 COPPER STUD 6 44
..2 MT5105509 SHAFT HOLDER 2 21
..2 MT5105511 SHAFT HOLDER 2 33
..2 MT5110602 STICK KNOB 1 53
..2 NM5110607 VELVET CARPET 2 32
..2 NP251SNL12 NAME PLATE (GASKET) 2 20
..2 NP251SNL18 NAME PLATE (LIGHT SHADE) 2 60
..2 NP251SNL21 NAME PLATE (INSULATOR) 1 69
..2 NP351SNL20 ALUMINIUM FOIL 1 70
..2 NP351SNL22 ALUMINIUM FOIL 2 62
..2 PE060930BO POLYBAG (0.0005 KG/PCS)-1900 PCS/KG 0.001
..2 PT5104301 PLASTIC PLATE 2 19
..2 PT510440801 PLASTIC HOLDER W/SPRAYING 2 16
..2 PT5104410 HOLDER 2 24
..2 PT5104411 PLASTIC HOLDER (SUPPORT) 2 34

Lvl Materials SPECS Qt
y
Part Location
..2 PT510441201 PLASTIC HOLDER (LEFT FRONT) W/SPRAYING 164
..2 PT510441301 PLASTIC HOLDER (LEFT REAR) W/SPRAYING 172
..2 PT510441401 PLASTIC HOLDER (RIGHT FRONT) W/SPRAYING 175
..2 PT510441501 PLASTIC HOLDER (RIGHT REAR) W/SPRAYING 173
..2 PT5110617 8MM ANGULAR TAKT SWITCH KNOB 8 43
..2 PT5110621 BUTTON (ROUND) 2 42
..2 PT5110622 LED HOLDER 2 61
..2 PT5110628 KNOB (VR) 4 78
..2 PT5110630 BUTTON GUIDE 8 49
..2 PT5110631 BUTTON (15*8MM) 18 40
..2 PT511063201 BUTTON (CUE) 2 46
..2 PT511063202 BUTTON (I) 2 47
..2 PT511063203 BUTTON (II) 2 48
..2 PT511063301 BUTTON W/PRINTING 2 45
..2 PT5110634 BUTTON GUIDE 18 41
..2 PT511063601 ROTARY KNOB (BLACK & WHITE LINE) 18 37
..2 PT5130302 BOTTOM BOARD (JOG WHEEL) SNC07 2 31
..2 PT513030301 BOTTOM BOARD 1 71
...3 PT5130303 BOTTOM BOARD 1
..2 PU0070070008 CONDUCTIVE FOAM 1 58
..2 PU007007004 CONDUCTIVE FOAM 8 56
..2 RN109111 E RING(9MM) 2 29
..2 RU5104401 RUBBER FOOT 6 74
..2 SC0306PBBI SCREW 23 36
..2 SC0308PBBI SCREW 8 59
..2 SC0310RBNI SCREW-RoHS 16 23
..2 SC2605RBNI SCREW 14 26
..2 TWMT5105505 JOG WHEEL ASS'Y 2 18
...3 MT5104407 METAL HOLDER 1
...3 MT5105505 METAL SHAFT (JOG WHEEL) 1
...3 MT5105506 SHAFT HOLDER 1
..2 TWNP651SNL13 SHADER SHEET ASS'Y 2 30
...3 MT0704473 SHADER FIXED PLATE 2
...3 MT5104408 HOLDER (METAL) 1
...3 NP651SNL13 SHADER SHEET 1
...3 RN0416001 16MM CS RING 1
...3 SC0303SIBI SCREW 1
..2 TWPC10S00101 PCB ASS'Y SOUND CARD 1 55
...3 AL2-51-0140 DIODE POWER SCHOTTKY MBRS140LT3 40V 1A 2 ZD903, 904
...3 AL2-61-7223 IC REG VOLTAGE NJU7223DL1-33 3.3V TO-252 2 IC902, 903
...3 AL2-71-0074 IC MC33079 QUAD-OP-AMP SOP-14 (TL074) 2 IC701, 703
...3 AL2-75-4344 IC CONVERTER D/A CS4344 24BIT 192KHZ (12S) TSSOP10 2 IC700, 702
...3 CS100J5003NPO C. CAP. SMD 10 PF 50V 5% 0603 NPO 2 C203, 204
...3 CS101J5003NPO CHIP CAPACITOR SMD 100P/50V ±5% 0603 NPO-ROHS 6 C401, 706, 707, 716, 717, 911
...3 CS102K5003X7R CHIP CAP 1000PF/50V,X7R,+/-10%, SMD 0603 7 C201, 202, 402, 708, 709, 718, 719
...3 CS103K5003X7R C.CAP 0.010UF 50V X7R,±10% SMD 0603 2 C210, 211
...3 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 33 C205~209, 405, 410~417, 700~703,
C710~713, 901~907, 913~916
...3 CS270J5003NPO CHIP CAP 27PF/50V NPO ±5% SMT 0603 2 C408, 409
...3 CS300J5003NPO CHIP CAPACITOR 30PF, NPO, +/-5%, 50V 2 C403, 404
...3 CS332J5003X7R C.CAP 3300PF/50V,X7R,+/-5%,SMD 0603 4 C704, 705, 714, 715
...3 CS471J5003NPO C. CAP. SMD 470 pF 50V 5% 0603 NPO 1 C910
...3 CS472K5003X7R CHIP CAP 4.7NF 50V 10% 0603 X7R 2 C406, 407
...3 CS473K5003X7R C.CAP 0.047UF 50V X7R 0603 1 C720
...3 DI1SS352SM DIODE 1SS352 HE1A 4 D700~703
...3 DIEN1N4148WSM DIODE FAST SWICTHING 1N4848W SOD-123 2 D801, 802
...3 DISR26 SCHOTTKY BARRIER RECTIFIER SMD 2 ZD905, 909
...3 ECS10625B E.CAPACITOR 10UF/25V SMD-B 16 EC203~205, 700~711, 910
...3 ECS10625CL E.CAP 10UF/25V C TYPE SMD LOW LEAKAGE 1 EC801
...3 ECS10725D8 E.CAP 100UF/25V 6.3*7.7MM SMD 3 EC901, 912, 914
...3 ECS10725FLE E.CAP 100UF/25V F TYPESMD LOW ESR 3 EC902, 909, 911
...3 ECS22725F E.CAP 220UF/25V F TYPE SMD 1 EC802
...3 ECS47450B E.CAP 0.47UF/50V 4*5.3MM SMD 2 EC201, 202
...3 ECS47550B E.CAP 4.7UF/50V 4*5.3MM SMD 4 EC903~905, 907

Lvl Materials SPECS Qt
y
Part Location
...3 ECS47625D E.CAP 47UF/25V D TYPE SMD 5 EC712~715, 908
...3 FCN2R1001802 18P FFC CONNECTOR 1.0MM 90° DUAL CONTACT 1 FCN1
...3 IC74AHC1G125GW IC 74AHC1G125G SOT353 1 IC908
...3 IC7805 IC (AN7805) JRC 1 IC901
...3 ICAIC1528N-0G IC AIC1528N-0G SOP8 1 IC905
...3 ICBA4558F IC (4558) SMD 1 IC201
...3 ICG696L293T1UF IC RESET 1 IC403
...3 ICLP2985-50DBVR IC LP2985-50DBVR SOT23-5 1 IC203
...3 ICMC34063ADR IC MC34063ADR SOIC8 (ALTERNATIVE: AL2-61-3463) 2 IC904, 906
...3 ICPCM1808PWR IC PCM1808PWR 1 IC202
...3 ICTC4053BFT IC TC4053BFT TSSOP16 1 IC909
...3 ICTUSB3200 IC TUSB3200ACPAH TQFP 1 IC401
...3 ICYHFRS006 IC WITH PROGRAME 1 IC402
....4 IC24LC64TIMI IC (64K SERIAL EEPROM) SOP 150MIL 1
...3 JK4690-DR30-04F USB2.0 B-TYPE 90 1 JK901
...3 JKDJ-0702B-020 DC SOCKET 2.0MM 1 JK902
...3 NUT0103INI NUT (3M/M)- ROHS 1
(
IC901
)
...3 PC10S001 PCB SOUND CARD DOUBLE LAYER FR-4 280*100MM 1
...3 RJ1039-10-0580B RCA 2P WHITE/RED GOLD PLATED 1 JK201
...3 RJ208PKB015A0AG RCA JACK 2P WHITE/RED GOLD 90DEG 2 JK700, 701
...3 RS000004J06 CHIP RES. 0 Ω5% SMD 1206 4 R906, 951, ZD901, 902
...3 RS000010J03 CHIP RES. 0 Ω5% SMD 0603 8 R409, 410, 413~416, 430, 432
...3 RS001010F03 CHIP RES. 10 Ω1% SMD 0603 1 R431
...3 RS001K10F03 CHIP RES. 1K Ω1% SMD 0603 7 R215, 216, 720, 721, 742~744, 903, 913
...3 RS002K10F03 CHIP RES. 2K Ω1% SMD 0603 2 R207, 208
...3 RS003K10F03 CHIP RES. 3K Ω1% SMD 0603 4 R745~748
...3 RS00R504F06 CHIP RES.0.5 O 1% SMD 1206 1 R916
...3 RS010010F03 CHIP RES. 100 Ω1% SMD 0603 21 R209~212, 411, 412, 434~436, 700~703,
R718, 719, 722~725, 740, 741
...3 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 7 R205, 206, 429, 907, 924, 925, 950
...3 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 1 R437
...3 RS018010F03 CHIP RES. 180 Ω1% SMD 0603 1 R915
...3 RS01K110F03 CHIP RES.1.1K O 5% SMD 0603 1 R904
...3 RS01K510F03 CHIP RES. 1.5K Ω1% SMD 0603 1 R405
...3 RS022K10F03 CHIP RES. 22K Ω1% SMD 0603 3 R203, 204, 908
...3 RS02K210F03 CHIP RES. 2.2K Ω1% SMD 0603 3 R201, 202, 912
...3 RS03K310F03 CHIP RES. 3.3K Ω1% SMD 0603 1 R902
...3 RS03K910F03 CHIP RES. 3.9K Ω1% SMD 0603 1 R914
...3 RS047K10F03 CHIP RES. 47K Ω1% SMD 0603 17 R710~717, 732~739, 909
...3 RS04R704J06 CHIP RES. 4.7 OHM,1/4W,+/-5%,1206 1 R901
...3 RS0R7504F06 CHIP RES. 0.75Ω1% SMD 1206 1 R911
...3 RS100K08F05 CHIP RES. 100K 1% SMD 0805 -ROHS 1 R213
...3 RS10K710F03 CHIP RES. 10.7K OHM,1/10W,?%,0603 4 R708, 709, 730, 731
...3 RS27R410F03 CHIP RES. 27.4 Ω1% SMD 0603 2 R406, 407
...3 RS3K0910F03 CHIP RES. 3.09K Ω1% SMD 0603 1 R401
...3 RS3K2410F03 CHIP RES. 3.24K Ω1% SMD 0603 4 R704, 705, 726, 727
...3 RS4K9910F03 CHIP RES. 4.99K Ω1% SMD 0603 2 R427, 428
...3 RS560K10F03 CHIP RES. 560K Ω1% SMD 0603 2 R801, 802
...3 RS5K3610F03 CHIP RES. 5.36K Ω1% SMD 0603 4 R706, 707, 728, 729
...3 SC0308RINI SCREW 1
(
IC901
)
...3 SW5MD3S12AM6QES SLIDE SWITCH 2P3T 1 SW901
...3 TE622001001 10P CONNECTOR SOCKET 1 TE5
...3 TR2SA1037ASM TRANSISTOR 608 SMD 1 Q801
...3 TR2SD2114KSM TRANSISTOR NPN 2SD2114K SOT-23 (SMD) 4 Q700~703
...3 TRC4116GR TRANSISTOR 2SC4116GR SC-70 1 Q902
...3 TRDTC114YUA TRANSISTOR DTC114YUA 1 Q901
...3 TRK880GR TRANSISTOR 2SK880GR SC-70 4 Q704~707
...3 UH465516-351 COIL 1 L1
...3 UHELL6SH220M INDUCTOR22UH 0.9A SMD PANASONIC 3 L3, 4, 6
...3 UHPIC1207-221M COIL SMD 220UH 1 L2
...3 VRR10302011 RK09K1110-K20-C0-B103 （LM1=20 10KB）2 VR101, 102
...3 VRR50301502 VARIABLE RESISTOR ROTARY 50KA*2 15MM 1 VR201
...3 XTM06000X3 CRYSTAL 6MHZ(49US)-ROHS 1 X401
..2 TWPC10S00201 PCB ASS'Y CONTROLLER 1

Lvl Materials SPECS Qt
y
Part Location
...3 AL2-51-4401 TRANS NPN 2N4401 40V 1A SOT-23 13 Q106~118
...3 AL2-51-4403 TRANSISTOR PNP 2N4403 40V 800MA SOT-23 6 Q100~105
...3 AL2-61-7223 IC REG VOLTAGE NJU7223DL1-33 3.3V TO-252 1 IC202
...3 BALE48211-0A LED HOLDER 6 LD17, 21, 26, 32, 100, 200
...3 CN0420001006 CONNECTOR WIRE 4P/2.0/100MM 1 CN2
...3 CN0420001504 4P CONNECTOR WIRE 150MM PITCH 2.0MM 1 CN1
...3 CN0620001008 CONNECTOR WIRE 6P/2.0/100MM 1 CN3
...3 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 50 C100~102, 200~203, 206~209, 211, 212,
C214~221, 400~404, 500~508, 510, 511,
C515~522
,
528~532
...3 CS150J5003NPO CHIP CAP.15PF ,SMD0603,+/-5 %, 50V, NPO 2 C204, 205
...3 DI1SS302SM DIODE 1SS302 SC-70 2 D402, 403
...3 DI1SS352SM DIODE 1SS352 HE1A 2 D400, 401
...3 DIEN1N4148WSM DIODE FAST SWICTHING 1N4848W SOD-123 38 D200, 205~210, 212~214, 216~221,
D224~226, 229, 232~234, 236, 238~240,
D242~245
,
247~253
...3 ECS10625CLE E.CAP 10UF/25V LOW ESR 5*5.7MM SMD 1 EC200
...3 ECS47616D E.CAP 47UF/16V DTYPE SMD 2 C210, 213
...3 FCN2R1001802 18P FFC CONNECTOR 1.0MM 90° DUAL CONTACT 1 FCN1
...3 IC74AHC1G125GW IC 74AHC1G125G SOT353 2 IC203, 500
...3 IC74AHCT541PWR OCTAL BUFFER/DRIVER W/TRI-STATE OUTS TSSOP-20 74AH 3 IC101, 102, 201
...3 IC74HCT04D IC 74HCT04D SO14 2 IC100, 200
...3 IC74LVC14 IC LOGIC 74LVC14 SOP-14-DR99 1 IC204
...3 ICLM358M IC LM358M DUAL OPA SOP-8 1 IC400
...3 ICTC4051BFN IC TC4051BFN SOP16 1 IC504
...3 ICYH99S01 IC PROGRAME SNC07 1 U200
....4 ICP24HJ128GP210 IC PIC24HJ128GP210 TQFP100 1
...3 LD1030 LED 3MM (YELLOW) 2 LD21, 26
...3 LDC191TBKT-5A LED BLUE SMD 0603 8 LD20, 22, 23, 24, 27, 30, 31, 49
...3 LDIFR324HD LED 3MM (RED) 4 LD17, 32, 100, 200
...3 LDKPT1608SECKKM LED ORANGE SMD 0603 120DEG 12 LD9, 11, 13, 15, 18, 19, 28, 29, 35, 43, 45,
LD47
...3 LDKPTD-1608CGCK LED YELLOW GREEN 0603 SMD 60DEG 10 LD10, 12, 14, 16, 25, 36, 44, 46, 48, 50
...3 LDLTST-C190KRKT LED RED (3-20-0011) 8 LD1, 3, 5, 7, 33, 37, 39, 41
...3 LDLTST-C190KSKT LED (YELLOW) (LDKPT-1608S) 8 LD2, 4, 6, 8, 34, 38, 40, 42
...3 MT5110602 STICK KNOB 1
...3 NM5106105 VELVET CARPET (SQUARE) 1
...3 PC10S002 PCB CONTROLLERDOUBLE LAYER FR-4 350*120MM 1
...3 RS000010J03 CHIP RES. 0 Ω5% SMD 0603 11 R216, 233, 235, 236, 241~245, 400, 509
...3 RS001K10F03 CHIP RES. 1K Ω1% SMD 0603 20 R100, 113, 127, 143, 159, 172, 185~197,
R226
...3 RS001M10F03 CHIP RES. 1M OHM,1/8W,+/-1%,0603 5 R225, 405~408
...3 RS010010F03 CHIP RES. 100 Ω1% SMD 0603 2 R401, 402
...3 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 14 R220, 221, 224, 227, 231, 232, 234, 238,
R239, 240, 250~253
...3 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 10 R115, 117, 119, 121, 129, 161, 175, 177,
R179, 181
...3 RS018010F03 CHIP RES. 180 Ω1% SMD 0603 26 R101~104, 109~112, 114, 116, 118, 120,
R128, 144, 145, 160, 162~167, 174, 176,
R178
,
180
...3 RS01K510F03 CHIP RES. 1.5K Ω1% SMD 0603 2 R403, 404
...3 RS022010F03 CHIP RES. 220 Ω1% SMD 0603 12 R132~135, 138, 139, 147~150, 153, 154
...3 RS033010F03 CHIP RES. 330 Ω1% SMD 0603 3 R126, 131, 146
...3 RS04K710F03 CHIP RES. 4.7K Ω1% SMD 0603 4 R246~249
...3 RS068010F03 CHIP RES. 680 Ω1% SMD 0603 1 R230
...3 SWEVQ11L05R TACT SWITCH(5MM) ROUND TERMINAL 10 SW206, 211, 215, 220, 225, 230, 234,
SW239, 244, 245
...3 SWLBC22M-12K 2 STEP ON/ OFF SWITCH STICK 12MM 2 SW201, 202
...3 SWRKJXK122400Y SWITCH RKJXK122400Y 1 SW200
...3 SWSKHHDHA010 SWITCH SKHHDHA010 H=17MM/0.98N_TYPE 4 SW203, 208, 237, 242
...3 SWSKPMAME010 ON / OFF TACT SWITCH 5MM 1.57N 90DEG 18 SW204, 207, 209, 212, 213, 217, 218,
SW222, 223, 227, 228, 232, 233, 236,
SW238
,
241
,
243
,
246
...3 TE10200502 5P CONNECTOR SOCKET 180° 1 TE6

Lvl Materials SPECS Qt
y
Part Location
...3 TE352001001 5P*2 CONNECTOR 2.0MM DIP 2 TE1, 2
...3 TE622000201 2P CONNECTOR SOCKET 2 TE9, 10
...3 TE622000401 CONNECTOR (4P 90 DEGREE) 4 TE3, 4, 7, 8
...3 TR2SC2412KSM TRANSISTOR 536 SMD 4 Q201~204
...3 VRR10301512 V.RESISTOR ROTARY 10K 1B SHAFT L:15MM CENTER CLICK 8 VR504~507, 516~519
...3 VRR10301513 V.RESISTOR ROTARY:10K 1B SHAFT L:15MM SINGLE CLICK 12 VR500~503, 512~515, 520~523
...3 VRS10304522 ROTARY VR 10K2B 45MM 20MM CENTER CLICK 2 VR508, 509
...3 XTM10000X6 CRYSTAL 10MHZ - 49US SMD 1 X200
..2 TWPC10S00301 PCB ASS'Y MULTI 1
...3 PC10S003 PCB MULTI DOUBLE LAYER FR4 247*247MM 1
...3 TWPC10S003A01 PCB ASS'Y FRONT PANEL 1
....4 CS102K5003X7R CHIP CAP 1000PF/50V,X7R,+/-10%, SMD 0603 2 C300, 301
....4 CS104K5003X7R CHIP CAP 0.1UF/50V,X7R,+/-10%, SMD 0603 6 C304~309
....4 ECS10625B E.CAPACITOR 10UF/25V SMD-B 2 EC300, 301
....4 ECS47625D E.CAP 47UF/25V D TYPE SMD 2 EC302, 303
....4 ICNJM4556AM IC (NJM4556AM) 1 IC301
....4 JKHTJ-064-12D JACK HTJ-064-12D 1 JK300
....4 MT5104410 FIXED METAL 1
(
JK300
)
....4 RS001K10F03 CHIP RES. 1K Ω1% SMD 0603 2 R312, 313
....4 RS006810F03 CHIP RES. 68 Ω1% SMD 0603 4 R308~311
....4 RS010K10F03 CHIP RES. 10K Ω1% SMD 0603 2 R300, 301
....4 RS018K10F03 CHIP RES. 18K Ω1% SMD 0603 2 R304, 305
....4 RS047K10F03 CHIP RES. 47K Ω1% SMD 0603 4 R302, 303, 306, 307
....4 SWSKV-22D21 ON/OFF SLIDE SWITCH 2P 2T 1 SW300
....4 TE10200602 6P CONNECTOR SOCKET 90° 1 TE6
....4 TE622001001 10P CONNECTOR SOCKET 1 TE5
....4 TR2SD2114KSM TRANSISTOR NPN 2SD2114K SOT-23 (SMD) 2 Q300, 301
....4 VRR10302011 RK09K1110-K20-C0-B103 （LM1=20 10KB）4 VR2~5
....4 VRR50301502 VARIABLE RESISTOR ROTARY 50KA*2 15MM 1 VR1
...3 TWPC10S003B01 PCB ASS'Y LEFT SIDE 1
....4 CN0220000503 FLAT WIRE 2P/2.0/50MM 1 CN2
....4 LDC191TBKT-5A LED BLUE SMD 0603 4 LD21, 23, 25, 27
....4 RS01K510F03 CHIP RES. 1.5K Ω1% SMD 0603 4 R21, 23, 25, 27
....4 TE812000211 2P CONNECTOR SOCKET 1
(
CN2
)
...3 TWPC10S003C01 PCB ASS'Y RIGHT SIDE 1
....4 CN0220000503 FLAT WIRE 2P/2.0/50MM 1 CN3
....4 LDC191TBKT-5A LED BLUE SMD 0603 4 LD28, 30, 32, 34
....4 RS01K510F03 CHIP RES. 1.5K Ω1% SMD 0603 4 R28, 30, 32, 34
....4 TE812000211 2P CONNECTOR SOCKET 1
(
CN2
)
...3 TWPC10S003D01 PCB ASS'Y CROSS FADER 1
....4 CS104K5005X7R CHIP CAP 0.1UF ±10% 50V 0805 1 C1
....4 TE622000401 CONNECTOR (4P 90 DEGREE) 1 TE3
....4 VRS10304516 V.RESISTOR 10K 45MM 15MM 1 FD1
...3 TWPC10S003E01 PCB ASS'Y LINE FADER 1
....4 CS104K5005X7R CHIP CAP 0.1UF ±10% 50V 0805 2 C2, 3
....4 TE622000401 CONNECTOR (4P 90 DEGREE) 1 TE4
....4 VRS10306016 V. RESISTOR 10K 2B 60MM 15MM SINGLE 2 FD2, 3
...3 TWPC10S003F01 PCB ASS'Y SENSOR 2
....4 CN0420000703 4P CONNECTOR WIRE 70MM 1 CN4
....4 DIHEDS-9700F50 SMALL OPTICAL ENCODER MODULES DR40 1 ENC1
...3 TWPC10S003G01 PCB ASS'Y TOUCH WHEEL 2
....4 CN0420000703 4P CONNECTOR WIRE 70MM 1 CN1
....4 LDC191TBKT-5A LED BLUE SMD 0603 2 LD18, 20
....4 LDLTST-C190KRKT LED RED (3-20-0011) 2 LD17, 19
....4 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 4 R17~20
...3 TWPC10S003H01 PCB ASS'Y LEFT SIDE SWITCH 1
....4 DIEN1N4148WSM DIODE FAST SWICTHING 1N4848W SOD-123 4 D1~4
....4 LDC191TBKT-5A LED BLUE SMD 0603 4 LD1, 3, 5, 7
....4 LDKPTD-1608CGCK LED YELLOW GREEN 0603 SMD 60DEG 4 LD2, 4, 6, 8
....4 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 4 R2, 4, 6, 8
....4 RS018010F03 CHIP RES. 180 Ω1% SMD 0603 4 R1, 3, 5, 7
....4 SWSKPMAME010 ON / OFF TACT SWITCH 5MM 1.57N 90DEG 4 SW1~4
....4 TE352001001 5P*2 CONNECTOR 2.0MM DIP 1 TE1
...3 TWPC10S003I01 PCB ASS'Y RIGHT SIDE SWITCH 1

Lvl Materials SPECS Qt
y
Part Location
....4 DIEN1N4148WSM DIODE FAST SWICTHING 1N4848W SOD-123 4 D5~8
....4 LDC191TBKT-5A LED BLUE SMD 0603 4 LD9, 11, 13, 15
....4 LDKPTD-1608CGCK LED YELLOW GREEN 0603 SMD 60DEG 4 LD10, 12, 14, 16
....4 RS015010F03 CHIP RES. 150 Ω1% SMD 0603 4 R10, 12, 14, 16
....4 RS018010F03 CHIP RES. 180 Ω1% SMD 0603 4 R9, 11, 13, 15
....4 SWSKPMAME010 ON / OFF TACT SWITCH 5MM 1.57N 90DEG 4 SW5~8
....4 TE352001001 5P*2 CONNECTOR 2.0MM DIP 1 TE2
..2 UHA5FS233X3X12 CORE 45 O 100MHZ 23.3*3*12MM 1
..2 WR112615032G6 WIRE 10P/2.0/150MM 1
..2 WS117010505P WASHER (TEFLON) 2
..2 WS663309IC SPRING WASHER 3M/M 6

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
D D
C C
B B
A A
Ҕ
ર
კ
ဦ
Ӝ
ᆀ

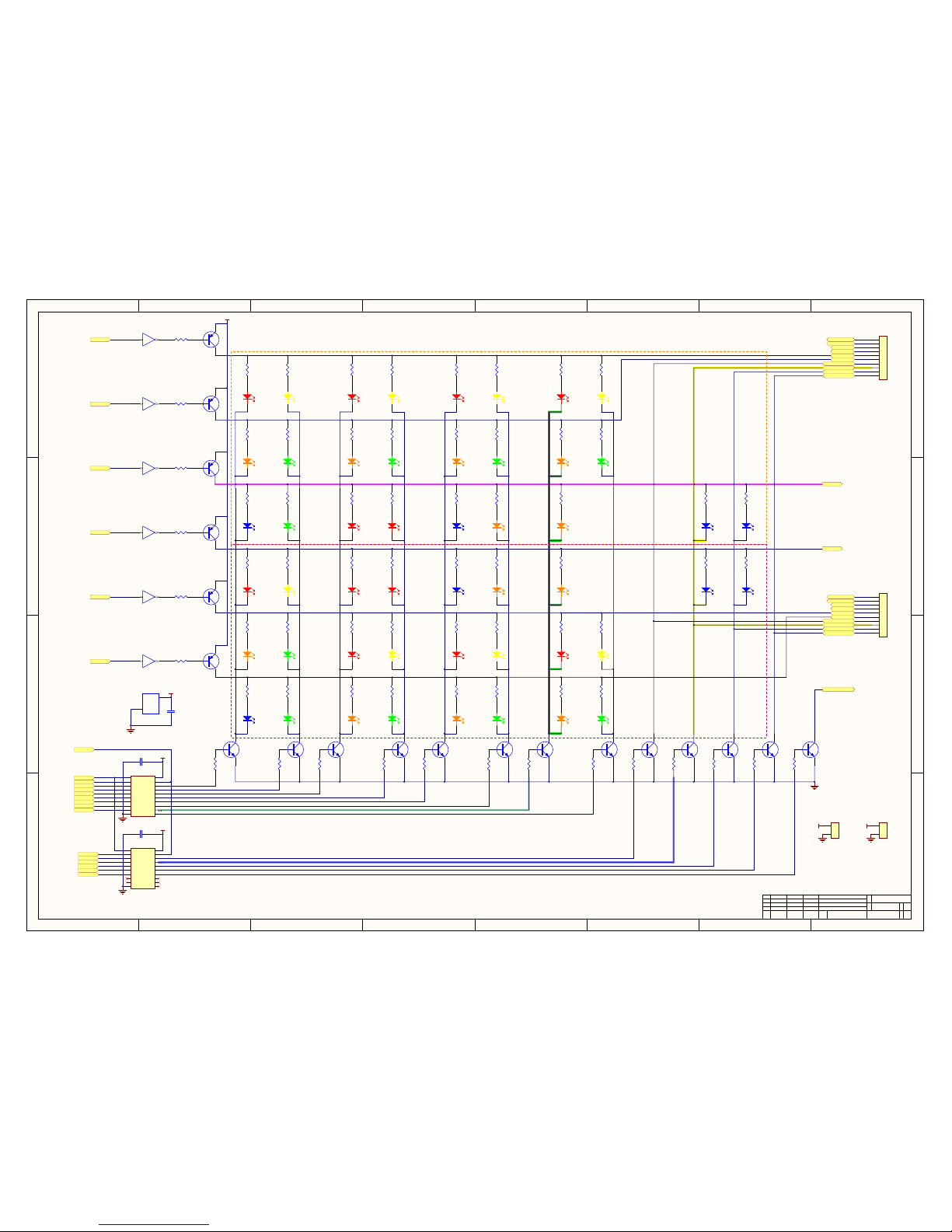

Vestax
೛

ހԃ/Д/Вԛ೛ፓࢗ
A2
R109
150
LD1
23
1
Q100
4403
R110
150
LD2
EFFECT 4
R111
150 R112 150 R101 150 R102 150 R103 150 R104 150
LD3 LD4
EFFECT 2
LD5 LD6
EFFECT 3
LD7 LD8
EFFECT 1
23
1
Q101
4403
R114
150 R115
150
LD9 LD10
KEY
R116
150 R117
150
LD11 LD12
MOVE +
R118
150 R119
150
LD13 LD14
LOOP
R120
150 R121
150
LD15 LD16
MOVE -
23
1
Q102
4403
R128
150 R129
150
LD25LD24
SYNC.
LD17
R131
150
FX-2
LD21
R132
150
FX-4
R133
150
LD22
SHIFT
LD18
R134
150
FX1/3
R135
150
LD19
FX2/4
R144
150
LD33
R145
150
LD34
EFFECT 1
23
1
Q103
4403
LD32
R146
150
FX-1
LD26
R147
150
FX-3
R148
150
LD27
SHIFT
LD28
R149
150
FX1/3
R150
150
LD29
FX2/4
1
2
3
4
5
6
7
8
9
10
TE2
SCAN_0
SCAN_1
23
1
Q104
4403
R160
150 R161
150
LD35 LD36
KEY
R162
150 R163
150
LD37 LD38
EFFECT 2
R164
150 R165
150
LD39 LD40
EFFECT 3
R166
150
LD41
R167
150
LD42
EFFECT 4
R174
150 R175
150
LD50LD49
SYNC.
23
1
Q105
4403
R176
150 R177
150
LD43 LD44
LOOP
R178
150 R179
150
LD45 LD46
MOVE -
R180
150 R181
150
LD47 LD48
MOVE +
1 2
IC100A
74HCT04D
3 4
IC100B
74HCT04D
5 6
IC100C
74HCT04D
89
IC100D
74HCT04D
1011
IC100E
74HCT04D
1213
IC100F
74HCT04D
GND
7
VCC 14
IC100G
74HCT04D
SCAN0
SCAN1
SCAN2
SCAN3
SCAN4
SCAN5
C100
104
C+5V
C+5V
R100
1K
R113
1K
R127
1K
R143
1K
R159
1K
R172
1K
32
1
Q106
4401
R185
1K
32
1
Q107
4401
R186
1K
32
1
Q108
4401
R187
1K
32
1
Q109
4401
R188
1K
32
1
Q110
4401
R189
1K
32
1
Q111
4401
R190
1K
32
1
Q112
4401
R191
1K
32
1
Q113
4401
R192
1K
32
1
Q114
4401
R193
1K
32
1
Q115
4401
R194
1K
32
1
Q116
4401
R195
1K
32
1
Q117
4401
R196
1K
32
1
Q118
4401
R197
1K
SCAN_Data_8
SCAN_Data_11
SCAN_Data_10
SCAN_Data_9
R138
150
LD23
R139
150
LD20
FILTER CUE
R153
150
LD30
FILTER
R154
150
LD31
CUE
SCAN_3
SCAN_2
1
2
3
4
5
6
7
8
9
10
TE1
SCAN_4
SCAN_5
SCAN_Data_8
SCAN_Data_9
SCAN_Data_10
SCAN_Data_11
SCAN_Data_12
SCAN-Data-4
SCAN-Data-5
SCAN-3
SCAN-4
SCAN-Data-2
SCAN-Data-3
SCAN-0
SCAN-1
OE1
1
A1
2
A2
3
A3
4
A4
5
A5
6
A6
7
A7
8
A8
9
GND
10 Y8 11
Y7 12
Y6 13
Y5 14
Y4 15
Y3 16
Y2 17
Y1 18
OE2 19
VCC 20
IC101
74AHCT541
C101 104
LED-OE1
Data0
Data1
Data2
Data3
Data4
Data5
Data6
Data7
C+5V
LED-OE2
1
1
1
2
OE1
1
A1
2
A2
3
A3
4
A4
5
A5
6
A6
7
A7
8
A8
9
GND
10 Y8 11
Y7 12
Y6 13
Y5 14
Y4 15
Y3 16
Y2 17
Y1 18
OE2 19
VCC 20
IC102
74AHCT541
C102 104 C+5V
Data8
Data9
Data10
Data11
Data12
Data13
1
6
1
7
1
2
TE9
D+5V1
2
TE10
D+5V
LED
DECK B/D
DECK A/C

1
1
2
2
3
3
4
4
5
5
6
6
7
7
8
8
9
9
10
10
11
11
12
12
D D
C C
B B
A A
Ҕ
ર
კ
ဦ
Ӝ
ᆀ
Vestax
೛

ހԃ/Д/Вԛ೛ፓࢗ
A1
SCAN5
VR0
VR1
VR2
VR3
VR4
VR5
VR6
VR7
VR16
VR17
TOUCH-L
SENS-R
DBG1
DBG2
DBG3
DBG5 DBG6
VR0
VR1
VR2
VR3
VR4
VR5
VR6
VR7
TOUCH-L
VR17
SCAN5
SENS-R
VR16
A
B
C
JOG2_A
JOG2_B
LED-OE1 LED-OE2
VR8 VR9
VR10 VR11
VR-C2 VR-C1
VR12 VR13 VR14 VR15
Data12 Data13
SENS-L
CRossFader
LineFader2
SCAN3 SCAN2 SCAN4
LineFader1
PitchFader2 PitchFader1
TOUCH-R
SCAN0 SCAN1
KEY-OE2 KEY-OE1
Data5 Data4 Data3 Data2
Data11 Data10
Data1 Data0
PWM2
PWM1
Data9
Data8
Data7
Data6
JOG1_A
JOG1_B
RW
CS
SDA
SCL
+3.3V
+3.3V
+3.3V
+3.3V
+3.3V +3.3V +3.3V
RC0
RC1
SCAN_Data_12
SCAN_Data_11
SCAN_3
FIG_L
VR18
JOG1-A
JOG1-B
JOG1_A
JOG1_B
1
2
3
SW200A
4
5
6
SW200B
7 8
SW200C
AN27/RE3 99
RG12 96
AN24/RE0 93
RG0 90
RF0 87
OC8/CN16/RD7 84 OC5/CN13/RD4 81
OC4/RD3 78
PGC1/EMUC1/AN6/OCFA/RB6
26
VREF+/RA10
29
AN8/RB8
32
AN11/RB11
35
TCK/RA1
38
AN12/RB12
41
AN15/OCFB/CN12/RB15
44
IC7/U1CTS/CN20/RD14
47
U2TX/CN18/RF5
50
PGD3/EMUD3/AN0/CN2/RB0
25
AN3/CN5/RB3
22
AN21/INT2/RA13
19
VDD
16
MCLR
13
SCK2/CN8/RG6
10
AN17/T3CK/T6CK/RC2
7
AN30/RE6
4
RG15
1
AN2/SS1/CN4/RB2
23
PGC3/EMUC3/AN1/CN3/RB1
24
AN5/CN7/RB5
20
TMS/RA0
17
AN20/INT1/RA12
18
AN4/CN6/RB4
21
SDI2/CN10/RG7
11
SDO2/CN10/RG8
12
SS2/CN11/RG9
14
VSS
15
AN18/T4CK/T9CK/RC3
8
AN31/RE7
5
AN16/T2CK/T7CK/RC1
6
AN19/T5CK/T8CK/RC4
9
AN26/RE2 98 AN28/RE4 100
VDD
2
AN29/RE5
3
AN23/CN23/RA7 92
AN25/RE1 94
RG14 95
VDD 86
RF1 88
RG1 89
IC6/CN19/RD13 80
OC6/CN14/RD5 82 OC7/CN15/RD6 83
OC2/RD1 76 OC3/RD2 77
PGD1/EMUD1/AN7/RB7
27
VREF-/RA9
28
AVSS
31
AN9/RB9
33
AVDD
30
AN10/RB10
34
VDD
37
U2RTS/RF13
39
U2CTS/RF12
40
VSS
36
AN14/RB14
43
VSS
45
VDD
46
AN13/RB13
42
U2RX/CN17/RF4
49
IC8/U1RTS/CN21/RD15
48
SDO1/RF8 53
SDA1/RG3 56
SDA2/RA3 59
VDD 62
VSS 65
IC1/RD8 68
IC4/RD11 71
PGC2/EMUC2/SOSCO/T1CK/CN0/RC14 74
RG13 97
AN22/CN22/RA6 91
U1TX/RF3 51
U1RX/RF2 52
SCL2/RA2 58
SCL1/RG2 57
SCK1/INT0/RF6 55
TDO/RA5 61
OSC2/CL KO/RC15 64
OSC1/CLKIN/RC12 63
INT4/RA15 67
IC3/RD10 70
IC2/RD9 69
PGD2/EMUD2/SOSC1/CN1/RC13 73
VDDCORE 85
IC5/RD12 79
VSS 75
TDI/RA4 60
INT3/RA14 66
SDI1/RF7 54
OC1/RD0 72

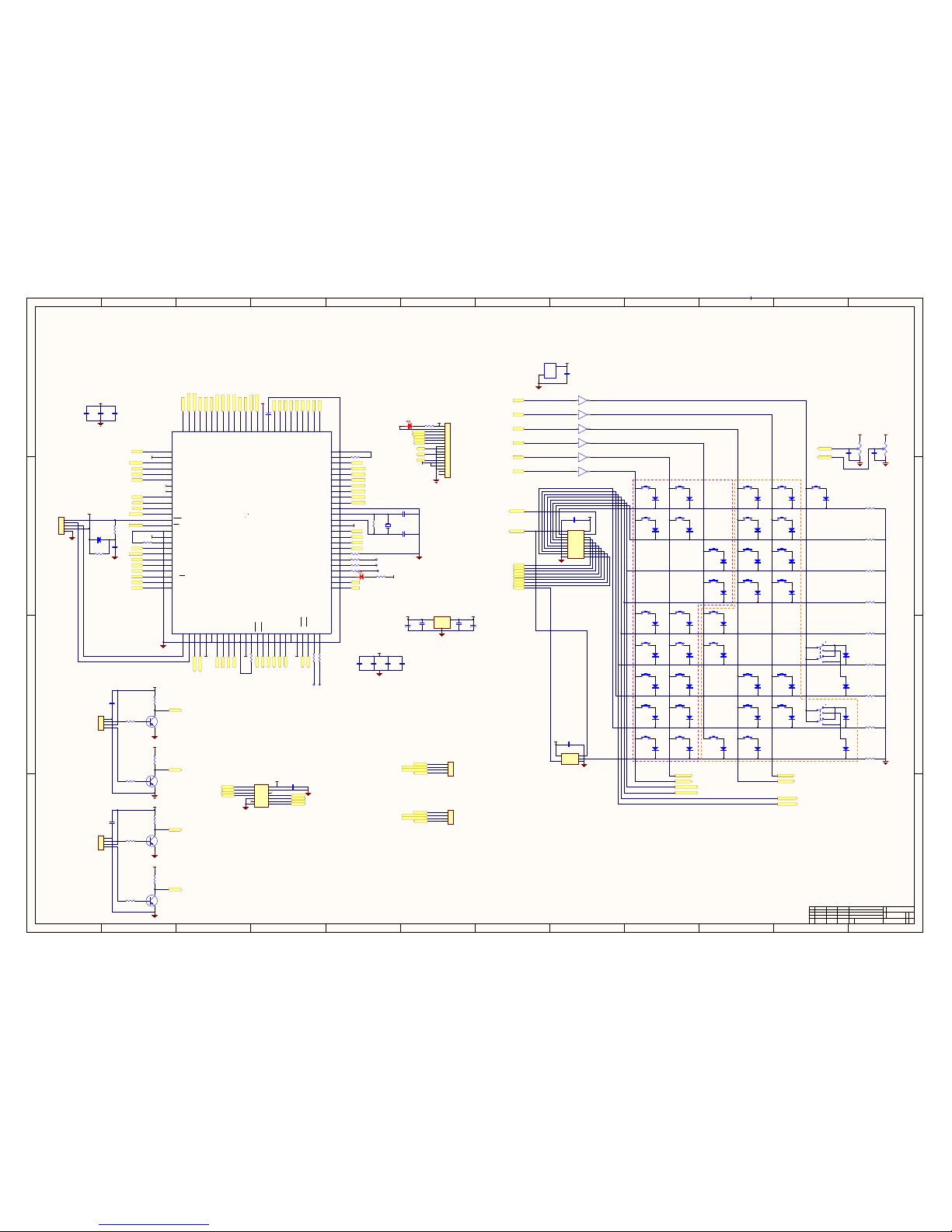

U200
PIC24HJ128GP210
C202
104
VR18
R226
1K
C208
104
D229
1N4148
R232
10K
+3.3V
1
2
3
4
5
TE6
C207
104
R244
0
C214
104
C200
104
C215
104 C216 104 C206 104
R241 0 R242 0 R243 0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
FCN1R230
330 D+5V
LD200
SENS-L
SENS-R
RC0
RC1
SDA
SCL
CS
RW
C+5V
R126
150
LD100
DATA SEND C+5V
R236 0
R235 0
R233 0
R245 0
X200
10MHz
R225
1M
C204 15P
C205 15P
R216 0
+3.3V
+
EC200 10/25-LE
+3.3V
IN
2OUT 1
GND
3
IC202
NJU7223DL1-33
C211
104
C212
104
+C213
47/16
+C210
47/16
C+5V +3.3V
1
2
3
4
TE8
R249
4K7
2 3
1Q203
2412
R253
10K
C+5V
GND
JOG1-B
R248
4K7
2 3
1Q204
2412
R252
10K
GND
JOG1-A
C+5V
C220
104
1
2
3
4
TE7
R247
4K7
2 3
1Q201
4403
R251
10K
C+5V
GND
JOG2-B
R246
4K7
2 3
1Q202
4403
R250
10K
GND
JOG2-A
C+5V
C219
104
DECK B/D
DECK A/C
From Sensor PCB
CN4
From Sensor PCB
CN4
1A
1
1Y
2
2A
3
2Y
4
3A
5
3Y
6
GND
74Y 8
4A 9
5Y 10
5A 11
6Y 12
6A 13
VCC 14
IC204
74LVC14
JOG2-A
JOG2-B
JOG2_A
JOG2_B
C221 104
+3.3V
1
2
3
4
TE3
1
2
3
4
TE4
SCAN_Data_12
SCAN_Data_11
SCAN_2
FIG_R
From/To Touch PCB
CN1
From/To Touch PCB
CN1
DECK A/C
DECK B/D
From/To Sound Card PCB
FCN1
OE1
1
A1
2
A2
3
A3
4
A4
5
A5
6
A6
7
A7
8
A8
9
GND
10 Y8 11
Y7 12
Y6 13
Y5 14
Y4 15
Y3 16
Y2 17
Y1 18
OE2 19
VCC 20
IC201
74AHCT541
C203
104
C+5V
KEY-OE1
KEY-OE2
R220
10K
SW203
FX-1
D212
SW204
EFFECT 4
D213
SW215
FILTER
D221
SW208
FX-3
D217
SW209
MOVE +
D218
SW220
CUE
D226
SW225
CUE
D232
SW213
EFFECT 1
D234
SW223
SYNC.
D233
SW230
FILTER
D236
SW218
KEY
D239
SW228
EFFECT 2
D238
SW233
LOOP
D243
SW234
SHIFT
D244
SW238
EFFECT 3
D248
SW239
FX1/3
D249
SW243
MOVE -
D252
SW244
FX2/4
D253
OE 1
A2
GND 3 Y
4
Vcc
5
IC203
74AHC1G125GW
Data8
C209
104
C+5V
Data0
Data1
Data2
Data3
Data4
Data5
Data6
Data7
SW245
FX2/4
D251
SW246
MOVE +
D250
SW241
EFFECT 1
D247
SW236
MOVE -
D242
SW232
EFFECT 4
D224
SW227
KEY
D219
SW211
SHIFT
D216
SW206
FX1/3
D209
SW207
EFFECT 2
D210
SW212
LOOP
D214
SW217
EFFECT 3
D220
SW222
SYNC.
D225
SW237
FX-2
D240
SW242
FX-4
D245
R221
10K
R224
10K
R227
10K
R231
10K
R234
10K
R238
10K
R239
10K
R240
10K
2
3
1
5
6
4
SW201
D200
D205
D206
2
3
1
5
6
4
SW202
D207
D208
+3.3V +3.3V
Browser
Load
C217
104
C218
104
1 2
IC200A
74HCT04D
3 4
IC200B
74HCT04D
5 6
IC200C
74HCT04D
89
IC200D
74HCT04D
1011
IC200E
74HCT04D
1213
IC200F
74HCT04D
GND
7
VCC 14
IC200G
74HCT04D
C201
104
C+5V
SCAN0
SCAN1
SCAN2
SCAN3
SCAN4
SCAN5
SCAN-Data-2
SCAN-Data-3
SCAN-0
SCAN-1
SCAN-Data-4
SCAN-Data-5
SCAN-3
SCAN-4
MCU_KEY
DECK A/C DECK B/D
