VEVOR WP9600FTR User manual

PIPE INSPECTION SYSTEM
User Manual

This is the original instruction, please read all manual instructions carefully before operating.
VEVOR resees clear interpretation of our user manual. The appearance of the product shall
be subject to the product you received. Please forgive us that we won't inform you again if
there is any technology or software updates on our product.
Applicable model: WP9600FTR / 9600FTR
PIPE INSPECTION
SYSTEM
User Manual
01

ATTENTIONS
DESCRIPTION
PRODUCT SPECIFICATION
02
Item:
Charger:
Batte:
Continuous use time for batte:
Investigation depth:
Material:
Camera light source:
Camera material:
Menu languages
Camera picture:
Parameter
AC100-240V DC12.6V 1000MA
Lithium batte 12V4500MA
Approximate 6h
50m, 91.5m (selectable line length)
Fiber tube with high intensity
With high white light
Stainless steel
Multi-language
Coloul
1. Please read the manual carefully before using it.
2. Handle it carefully during operation, avoid throwing down or pressing it heavily.
3. please keep distance from the system when charging.
4. After being used, turn o the display and pull out all the connection joints.
1. Coloul TFT LCD Screen.
2. High resolution camera and clear picture.
3. Night vision.
4. High-quality special cable, waterproof and anti-corrosion/cold/tensile.
5. 12V 4500MA lithium batte.
6. With sun-visor for a bright environment outside.
7. Range of Application：Water-supply pipe, Air-conditioner pipe, Cable pipe, Pipeline vacuum system,
PLUNBIN pipe, Buildings, Sunken pipe.
8. Operating Temp: -10°C to 60°C

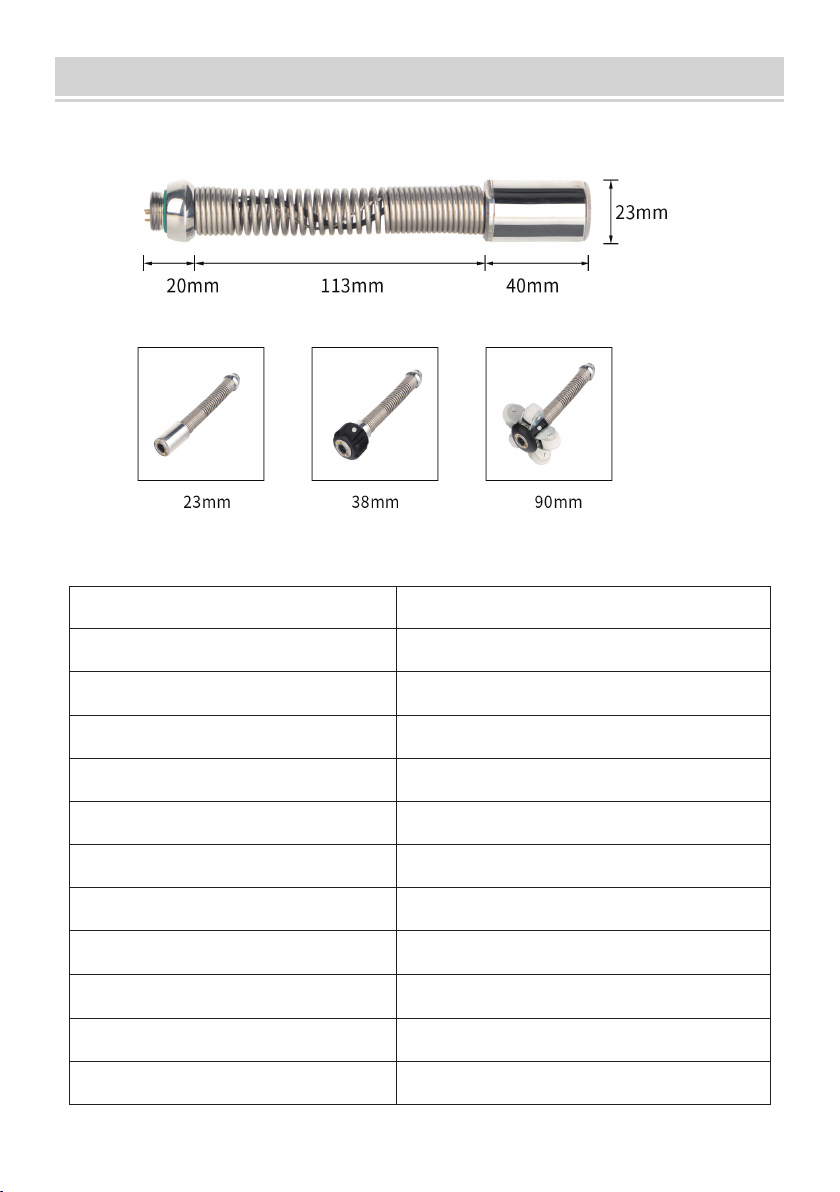

Item:
Camera diameter:
With the tube diameter:
Camera light source:
Cameraworkingvoltage:
Lights’ working voltage:
Waterproof:
Camera material:
Camera size:
Camera protective cover pas material:
Camera protective cover pas size 1:
Camera protective cover pas size 2:
Parameter
23 mm
>25mm
12 LED with high white light(adjustable)
5V
12V
IP68
stainless steel
23mm
plastic-steel
29mm* 40mm
40mm* 90mm
03
1. Work Area Safety
INSTRUCTION FOR PRODUCT
Product Specication

04
Cable Length Scale
the scaled cable can show the cable length
Fixed Buckle
xed the cable wheel
2. Coil
SPECIAL DETECTION CABLE FIXER
Useful Tool

05
Picture 1
1. Vital: turn o the power switch, connect the video camera and the monitor, or the video camera and
the monitor may be damaged.
2. Connect the camera to 3-coil plug, 2-cell box and the 1-monitor. (Pic.1)
3. Turn on the power switch in the power box, the indicator light of the monitor is on, the switchboard
stas.
4. Install the video camera with the protective cover slightly and put it into the pipe, rotate the coil to a
proper depth.
5. Adjust LED light degree adjuster to proper light degree.
For videotape, refer to the DVR operation details (display operation:Recording Type )
6. Switch video to another large screen through video line.
7. After utilization, mover the camera from the pipe carefully, take a clean, soft and d cloth to clear up
it and put it back.
System Installation
1. Monitor Video
2. Power of Monitor
3. Adjacent Coil Plug
4. AV Output
5. Batte Indicator
6. Power Input for Charger
7. light-Degree Adjustment for White Light Led
8. Power Switch
9. Power Light
3. Cell Box

TROUBLE SHOOTING
06
When the batte power is low, it needs charging, and the method is as below:
1. Take out the batte and charger from the box.
2. Connect the charger to the batte.
3. Connect the charger to the alternating current of 100-240V. The red indicator means charging.
4. The green indicator means nishing charging.
Notes: To make sure the batte using age longer, please recharge it timely; otherwise, it will make it
can not be recharged.
Charging
Problem
Show blue screen
Problems with
LED lights
1. Read the manual and check the correct way to turn on the light.
2. Check whether there is water in the front of the camera, which causes the
LED to not light up.
Not running
1. Check whether the batte power is sucient.
2. Check whether the display screen is damaged.
3. Check that the display screen is connected to the power supply normally.
Photo/video
cannot be saved
1. Check whether the memo card is damaged and need to be replaced.
2. Check if there is any foreign matter or deformation in the memo card slot.
Cannot format Memo card is damaged. Replace the memo card
Unable to charge
1. Check the charging po for foreign matters or deformation.
2. Check whether the charger is damaged.
3. When the batte is too low, it should be charged in time to prevent the
batte from being unable to charge due to loss.
Solution
1. Check whether the camera inteace is loose, and the camera is loose,
causing poor contact.
2. Check whether the connection of cable and power supply is normal or loose.
3. Check whether the monitor is connected to the power supply normally.
4. Check whether the cable is broken.
5. Check whether there is water in the front of the camera or if camera is
damaged.
6. When using the camera, please put on the protective cover rst, so as not
to cause the camera to collide with hard objects and damage, causing fail
to display images.

07
Broken cable
Cable knotting
1. When retracting and releasing cables, it shall be noted that the cables shall
not be crossed and knotted, and the bending radian of cables shall not be
less than 90 degrees.
2. When retracting the cable, pay attention to cooperate with the rotating iron
frame to orderly recycle, and do not use it violently.
Equipment
cleaning
When cleaning the equipment, turn o the power before cleaning to avoid
damage to the equipment.
Warning If the fault cannot be solved, please do not disassemble it by yourself.
Please contact the after-sales seice personnel.
1. It is recommended to use the cable on the pipe with a diameter ≥ 60cm.
Pay attention to the force of pushing the cable to avoid breaking the
detection line.
2. This product is only used for pipeline detection and inspection and cannot
be used for other purposes.
OPERATING INSTRUCTIONS FOR HD DVR
REC/-: To sta/stop recording
Play/+: To switch between recording and photographing. (Please refer to the icon in the top left corner)
MENU: To access and loop the settings main menu / long press to rotate the screen 0, 90, 180 or 270
degrees
>: To zoom out
<: To zoom in the image0-36X
POWER: To power on/o the display screen
1. Press MENU button the setup menu: PICTURE; OPTION; TIME; PHOTO; VIDEO
2. Press </> button to option sub-menu
3. Press REC button to adjust the setting”s value OR press REC button enter/conrm
4. Press PLAY button to exit
1. Main Menu Settings
1. Press PLAY button to switch between Recording and photographing. (please refer to the icon in the
top left corner)
2. Press REC button to sta recording/photographing,then press REC button again to stop recording.
2. Recording and Photographing

08
1. Loop press MENU button to nd PHOTO.
2. Press </> button to nd Playback.
3. Press REC button to enter,then press </> to choose one and press REC button to playback.
4. Press PLAY button to exit.
3. Photo playback on monitor
This device complies with Pa 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful inteerence, and (2) this device must accept any
inteerence received, including inteerence that may cause undesired operation.
1. Loop press MENU button to nd RECORD.
2. Press </> button to nd Playback.
3. Press REC button to enter, then press </> to choose one and press REC button to enter.
4. Press REC button to playback.
5. Press PLAY button to exit.
4. Video playback on monitor
FCC INFORMATION
This product is subject to the provision of European Directive 2012/19/EC. The symbol
showing a wheelie bin crossed through indicates that the product requires separate
refuse collection in the European Union. This applies to the product and all accessories
marked with this symbol. Products marked as such may not be discarded with normal
domestic waste, but must be taken to a collection point for recycling electrical and
electronic devices.
*There are any minor changes to the numbers included in the user manual without prior notice.
EU ENVIRONMENTAL PROTECTION

09
512 HZ RECEIVER
Batte:
Batte Life:
Audio Output:
Weight:
Operating Temp:
Dimensions:
Sensors:
6 AA Alkaline batte
4 hours intermittent use
50–1000Hz determined by signal strength
Under 1.6 lbs
-10°C to 60°C
535mmx110mmx50mm
Split angled sensor to derive peak and null signals
Operating Frequency:
Modulation:
512Hz
None
Specications
Sonde/Camera Locator
Common

Your skill at handling this receiver and recognizing its strengths and weaknesses is what makes a
locating job successful. Before taking them out on their rst job,make sure you understand how the
system works.
The 512 only has one mode which is“sonde”mode.In the sonde mode, the receiver searches for the
signal transmitted by a small sonde or camera with a built-in transmitter that has been routed through
a pipe. The sonde must emit a 512Hz signal and the receiver can determine the approximate depth of
the target.
The 512 is designed to be intuitive and requires minimum of training for eective use of the instrument.
The controls and the information display area are large and easy to understand. Yet they include
evething necessa to control the receiver with your thumb.
The following sections will take you through all the steps necessa to use your equipment. We strongly
recommend that you pay close attention to the section“Getting to know your tools”, and come back to
it when you are confused about the responses you are seeing on actual locating jobs.
INTRODUCTION
KNOW YOUR ANALOG RECEIVER
10

Power on/o (keep pressing to power on; keep pressing to power o)
Near/Far Switch–Controls overall sensitivity. The“Far”position is recommended when staing to locate
the sonde. As you app -roach the transmitter and the meter goes to full scale and you can’t reduce the
sensitivity any fuher, switch to“Near”to pinpoint its precise location.
Meter indicator–Indicates the strength of the peak signal (to the right) and the null signal (to the left).
Speaker–Allows you to hear the transmitter’s signal beeping or continuous sound,depending on the
transmitter use case. Batte indicator–Shows the status of the batte’s health.
Instructions: Adjust the locator Near/ Far Switch and Signal+/- according to the actual environment,
then the locator can match transmitter better.
It is recommended to set into Far mode (Signal set to 9) at the beginning, and reduce the signal
sensitivity grade when the LED screen shows ve strong signal (you can hear the louder sound at the
same time), then you can narrow the detection range.
GENERAL LAYOUT
Your 512 receiver suppos the detection of any standard 512Hz sonde or camera in the market.
This type of sonde or camera is usually attached to devices that are sent through non-metallic sewer
lines or water pipes.The emitted magnetic eld easily passes through the walls of such pipes.
Since the signal being traced by the receiver is produced by the sonde or camera,there are some
dierences in the way the receiver is used when compared with normal cable or pipe tracing.
Let’s practice using the 512.
Sta by turning on the receiver and walking around and holding the receiver at waist height and walk
towards general direction of the transmitter while slowly sweeping the receiver back and for the while
pointing in the direction of the transmitter. You will notice that the signal will get louder. Turn the
sensitivity down as needed to keep it in range as you get closer. When you’re unable to keep the meter
below full scale ip the switch to“Near”.
Keep moving in the direction that makes the signal stronger. When you have reached the point that the
signal seems to be the strongest and any direction you move makes it weaker, then you know you
found the sonde which is directly below the center of the antenna rod.
Move to another place and seek this peak signal again and see if you always come back to the same
spot for conrmation.You should nd yourself right over the transmitter each time if you have followed
each step correctly. Keep practicing until you get consistent results.
I keep nding “dead” spots!

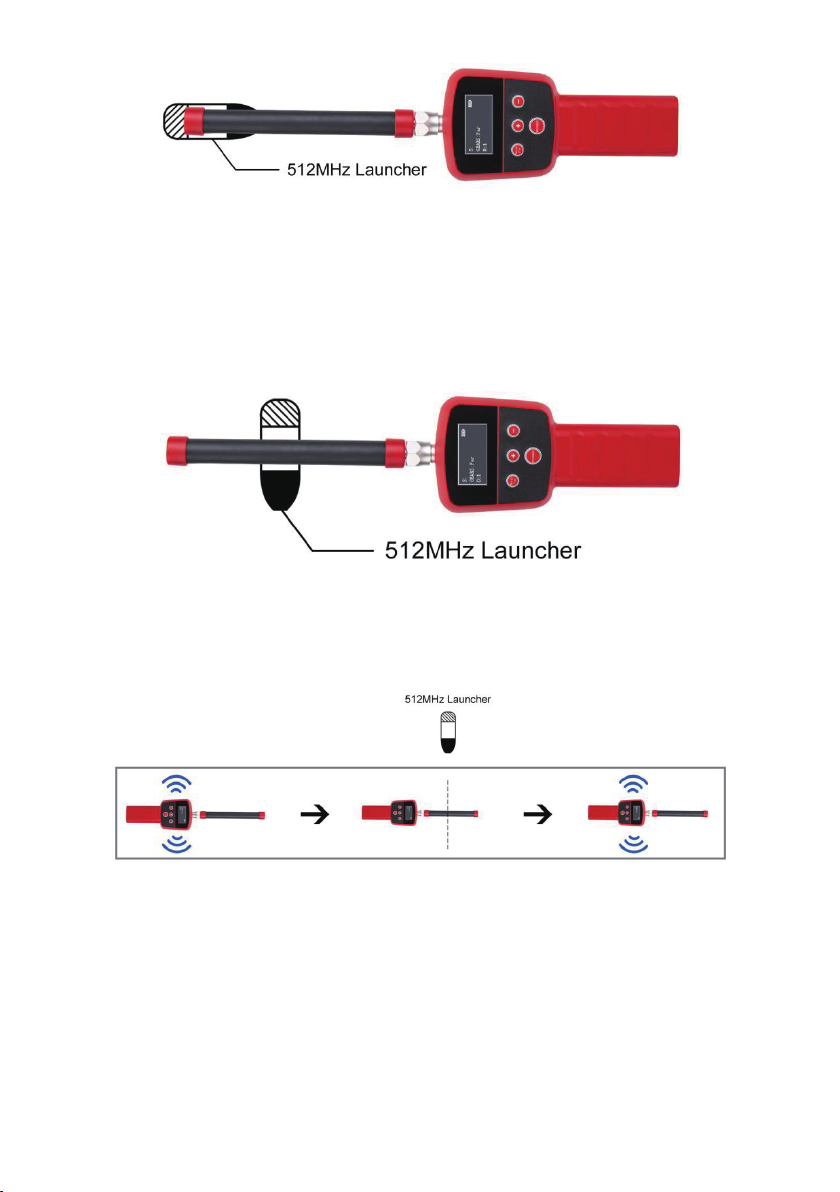

That’s good news! If you haven’t noticed any“dead spots”, let’s go look for some. These dead spots are
known as“nulls”, and they are the key to accuracy. As we nd nulls, notice that they happen at ve
sharp and precise places, unlike“peak signals” which are much more generalized. Let’s look at a clear
demonstration of a“peak” and a“null”. Be sure to do all these tests with the receiver held at waist level.
Hold the receiver directly above the transmitter, parallel to the long axis of the transmitter.
The speaker is loud. This is a peak signal.
GETTING TO KNOW YOUR TOOLS
11

Now turn the receiver to be perpendicular to the transmitter. The signal will suddenly drop to almost
nothing. This is called a“null”. Move the receiver around a little to see how sharp and precise this null
point is and how dependent it is on being exactly perpendicular.
Now let’s look at some other places to nd nulls.Back away from the transmitter and walk past it o to
the end like the image below:
There was a null just as you crossed the axis of the transmitter,just like be fore this is called a“crossing
null”. Walk around and see that the crossing null is detected any time you cross either end of the
transmitter, no matter how far away you are as long as you are within range. The transmitter with the
receiver rod held straight in front of you and notice that you get a crossing null at two points of the
circle,directly across from each other.
And on a line that runs right through the center of the transmitter, parallel with its long dimension.
12

13
What’s so special about this? Well, imagine that you can’t see the transmitter, which is just like a
real-world situation. In fact,have someone put the transmitter under a box or newspaper and orient it in
a way you can’t see. Using the circle method, you can quickly determine which way the transmitter is
lying. Using this method when locating the pipe, you can determine that the pipe lies along the line.
This is a useful method when ting to locate in unknown lines.
Now applying this to the job site.
Before staing any locating job, please ensure to follow these simple steps.
Suey the area before turning on the device.Once you have sueyed the area turn on the receiver and
switch to“Far”,and turn the sensitivity all the way up.Walk around the area where you will be locating
and check for source of noise or electrical sources that can cause issues to the signal and pick up as if
it’s the transmitter.Mark any of these“hot spots”so you won’t be fooled by them when you are locating.
Sonde locating
If you are locating a septic tank using a ushable transmitter,follow our ushing guidelines If the tank is
close to the building, you should nd it pretty quickly.If you suspect it is faher away, and its direction is
unceain,it can be helpful to tie a string or shing line to the transmitter.
Before ushing it,letting it go only 3 to 8 feet on each ush, so you can follow it better.
Find the“Peak Spot”.
Take the receiver in your hand and turn the sensitivity knob all the way up and ip the toggle switch to
“Far”. Hold the receiver parallel to the ground at waist level. Walk around the area you expect the
transmitter to be in, moving the receiver in an arc, back and foh.

14
Listen to the strength of the signal and look at the right half of the meter. When it reaches full scale and
you are unable to turn it down any fuher, ip the toggle witch to“Near”. When you reach what seems
to be the maximum signal, and eve direction you move from there’s a lower signal, you have reached
the “Peak Spot”.
Mark this spot and then move o in another direction and repeat the locating procedure. Keep doing
this until you keep returning to the same spot. You should be able to narrow this rough-in area to within
a few inches. If you are just locating a septic tank, and knowing its depth is not critical, you are ready to
dig. The Peak Spot you have marked is directly above the transmitter, near the inlet bae. Also be
aware that if the transmitter is turning in the tank, it is viually impossible to determine its depth.
If you need to know the lay of the line or the depth of the line,read on.
Determine the lay of the line
Before you can determine the depth of your transmitter, you must establish the lay of line.
Do not skip this step!
Step 4 or 5 feet away from the Peak Spot you marked.Hold the receiver level straight in front of you at
waist height, as before,but don’t wave it back and foh, just hold it straight. Adjust the sensitivity so
that the meter reads about the middle of the scale. Walk in a circle around the peak Spot, keeping your
inside shoulder pointing at the Peak Spot. This would be called a “pylon turn” like if you were ying an
airplane. As you walk the circle slowly, watch the meter and listen to the sound. At two distinct points in
the circle, the signal strength will suddenly drop, then come back up as you move fuher.
These are “null” points. Take the time to precisely determine these points and mark them (the point is
directly below the center of the rod). You will nd that they are directly across the circle from each
other, and describe a line that passes right through the peak area.

TROUBLESHOOTING
15
You have just identied the two“Crossing Nulls”,and the line between them indicates the lay of the line
is parallel to the axis of the transmitter,and we will assume for the moment that line is running straight
through that point,along the line of the Crossing Nulls.If it takes a bend,you’ll still have a good idea of
where to look for it.
Two things to always check before you sta a locate,and again if you have trouble:
Make sure the batteries in both your transmitter and receiver are working. If in any doubt, throw them
out! A weak transmitter batte reduces its range, weak batteries in a receiver can make it act
brain-damaged, as well as reducing the range.
Always test your transmitter and receiver above ground,for operation and range,before sending the
transmitter down the line.
The signal from my transmitter suddenly quit.I was following it ne,then it disappeared.
Aside from checking batteries, 512Hz equipment will penetrate cast iron, but not steel, ductile iron or
other metal.
A sudden loss of signal may also mean you have encountered a null, which is a normal pa of locating.
If the signal drop-o is at a paicular spot, and the signal returns when you move a little fuher away
than it is a null.

My transmitter and receiver seem to work, but I can’t get fuher than about 3 feet away before the
signal dies.
A big reduction in range often means a broken antenna on the receiver.It won’t look broken, but even a
hairline crack in the ferrite core inside the antenna tube can destroy its sensitivity.
It’s easy for us to x, but you have to send it in.A word of advice:never use the antenna rod for ping
or digging or anything but locating.A hard case is a good investment for preventing antenna damage.
My system doesn’t seem to be working,but I don’t know how to tell if the problem is the transmitter
or the receiver.
One obvious thing to t is a dierent receiver, or a dierent transmitter, but this is often not an available
option if you don’t own a lot of equipment. Replace the batteries in both before you go fuher.
An Ardy ushable transmitter can be tested by holding it near an AM radio tuned to a dead spot (no
station) on the dial. If the transmitter is working, you’ll hear its raspy “beep-beep” from the radio.
A receiver can be tested in a rudimenta way by turning it up and holding it near sources of electronic
radiation-like a computer, a cell phone, a dimmer switch. You should hear some noise. If it remains silent,
the receiver is probably malfunctioning.
We’ll play a 512Hz tone over the phone, which you hold up to the receiver’s antenna. If the receiver is
working, the signal strength shown on the receiver will be strong. Please note that this test cannot be
done with a cell phone, it must be an indoor land-line phone. Sadly, there is no phone test possible for
the receiver.
EU Impoer: WAITCHX
Address: 250 bis boulevard Saint-Germain 75007 Paris
UK Impoer: FREE MOOD LTD
Address: 2 Holywell Lane, London, England, EC2A 3ET
Manufacturer: Shenzhen Woshijie Electronic Technology Co., LTD
Add: 5Floor, B2B 501 Building Yingzhan Indust Park, Longtian Community,
Pingshan District, Shenzhen, China
Eurep Uk Ltd
Unit 2264, 100 Ock Street, Abingdon
Oxfordshire England Ox14 5dh
UK REP
EUREP GmbH
Unterlettenweg 1a,
85051 Ingolstadt, Germany
EC
REP
16

Es handelt sich hierbei um die Originalanleitung, bitte lesen Sie vor der Inbetriebnahme alle
Anweisungen sorgfältig durch. VEVOR behält sich eine eindeutige Auslegung unserer
Bedienungsanleitung vor. Das Aussehen des Produkts entspricht dem Produkt, das Sie erhalten
haben. Wir bitten um Ihr Verständnis, dass wir Sie nicht mehr informieren werden, wenn es
irgendwelche Technologie- oder Software-Updates für unser Produkt gibt.
Kompatibel mit Modell: WP9600FTR / 9600FTR
Rohrinspektionssystem
Bedienungsanleitung
17
SIE BRAUCHEN HILFE?
Fragen zum Produkt? Sie brauchen technische Unterstützung?
Bitte kontaktieren Sie uns:

Hinweise
Beschreibung
Produkt-Spezikation
18
Aikel:
Ladegerät:
Batterie:
Ununterbrochene Nutzungsdauer der Batterie:
Ermittlungstiefe:
Material:
Lichtquelle der Kamera:
Kamera-Material:
Sprachen im Menü:
Kamerabild:
Parameter
AC100-240V DC12.6V 1000MA
Lithium-Batterie 12V4500MA
Ungefähr 6 Std
50m, 91.5m (wählbare Leitungslänge)
Faserrohr mit /GFRP beschichtetem Rohr
LED mit hohem Helligkeitswe
Rostfreier Stahl
Multi-Sprachen
Farbig
1. Lesen Sie bitte vor dem Gebrauch des Gerätes die Bedienungsanleitung aufmerksam durch.
2. Beim Betrieb vorsichtig damit umgehen, nicht hinunterween oder stark drücken.
3. Bitte halten Sie beim Auaden Abstand zum System.
4. Schalten Sie das Display nach dem Gebrauch aus und ziehen Sie alle Verbindungsstücke heraus.
1. Farbiger TFT-LCD-Bildschirm.
2. Hochauösende Kamera & klares Bild.
3. Die Nachtsicht.
4. Hochweiges Spezialkabel, wasserdicht & korrosionsbeständig, kältebeständig und zugfest.
5. 12V4500MA Lithium-Batterie.
6. Mit Sonnenblende für helle Umgebung im Außenbereich.
7. Anwendungsbereich: Wasseersorgungsrohr, Klimaanlagenrohr, Kabelrohr, Rohrleitungen,
Vakuumsystem, PLUNBIN-Rohr, Gebäude, Versunkenes Rohr.
8. Betriebstemperatur: -10 °C bis 60 °C
