VEVOR KF-60C-1 User manual

AGRICULTURE SPRAYER
KF-60C-1
USER MANUAL
We continue to be committed to provide you tools with competitive price. "Save
Half", "Half Price" or any other similar expressions used by us only represents
an estimate of savings you might benefit from buying certain tools with us
compared to the major top brands and doses not necessarily mean to cover all
categories of tools offered by us. You are kindly reminded to verify carefully
when you are placing an order with us if you are actually saving half in
comparison with the top major brands.

- 1 -
Have product questions? Need technical support? Please feel free to contact us:
[email protected]
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions carefully before operating.
VEVOR reserves a clear interpretation of our user manual. The appear- ance of the product shall
be subject to the product you received. Please forgive us that we won't inform you again if there
are any technology or software updates on our product.
AGRICULTURE SPRAYER
KF-60C-1

- 2 -
SAFETY INSTRUCTIONS
! For your safety and the safety of others, the following precautions must be observed when
operating the sprayer:
1. During spraying operation, the personnel shall wear clothes in strict accordance with the
regulations, wear masks, glasses, hats, gloves, or protective clothing against pesticide penetration,
and shall not work naked.
2. It is strictly prohibited to spray toxic solutions such as pesticides on people or animals during
use.
3. Patients with mental illness or serious diseases, drunken people, and people without operation
knowledge are prohibited from using this machine. People who have just taken strenuous exercise,
have not had a good rest, or have an insufficient sleep, as well as women in the period of lactation,
should not be engaged in this work.
4. The operator must wash all parts of the body and clean all kinds of clothing after use.
5. When handling pesticides, the safety instructions provided by the pesticide manufacturer should
be followed.
WARNING:
1. Do not leave machines and tools or store them in unattended places. Turn off the power when not
in use.
2. Do not disassemble or change this machine.
3. Operators must spray pesticides in front of the wind direction, and shall not work under the high
temperature for a long time.
4. Before each use of the battery (including the new machine), please charge the battery for 8-12
hours. When the battery is not charged, cover the charging base tightly to prevent water from getting
wet.
5. Try to avoid working without water to avoid damaging the diaphragm of the water pump.
6. Before use, try spraying with clean water to check whether there is water leakage at the base and
whether the atomization effect is good. Only when everything is normal can you prepare liquid
medicine for the operation.
7. When adding liquid medicine, it must pass through the filter screen. If there are impurities, the
normal use of the machine will be affected.
8. If the liquid medicine overflows, please dry it immediately. Battery connectors, electrical

- 3 -
MODEL AND PARAMETERS
components, and wire connectors shall not be exposed to liquid medicine to avoid corrosion.
9. Please do not use non-water bath powder, because it cannot be dissolved into the liquid. And the
suspended solids in the medicine tank will precipitate at the bottom, causing clogging of the filter
screen and pipeline, thus affecting the pump's service life. The use of chemical liquids and special
working fluids is prohibited.
10. When the liquor spraying is completed, turn off the power switch or regulating switch first, and
then release the injection switch after the pump stops working.
Model KF-60C-1
Capacity 15 Gallons(60L)
Pump Membrane mini-pump
Pressure 0-90psi
Max. Performance （4.1±0.3）L/min
Charger Input: 100-240V～50/60Hz 0.5A
Output: DC12.0V,1.6A
Battery Lead acid battery（DC12V,12Ah）

- 4 -

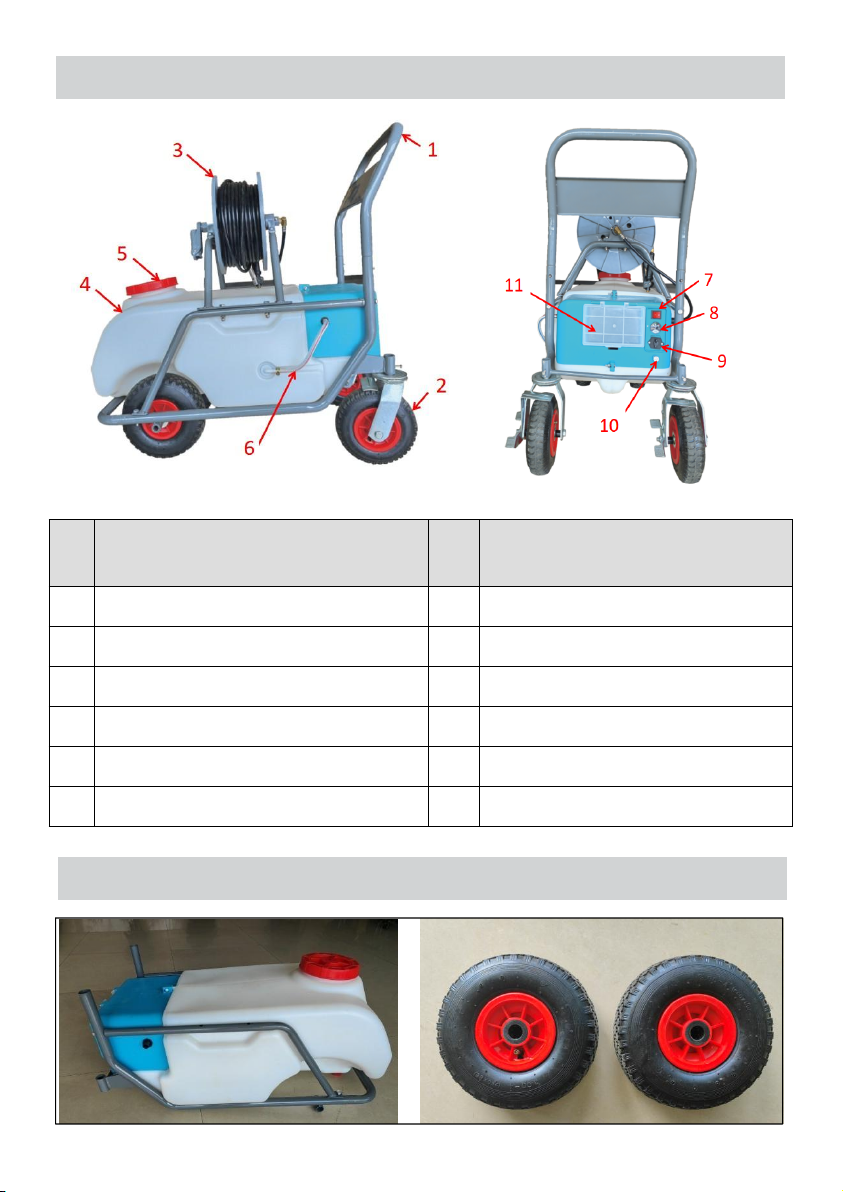

STRUCTURE DIAGRAM
SpecificationSTRUCTURE
№ Parts name № Parts name
1Frame 7Switch
2Wheels 8Voltmeter
3Tube Reel 9Charger Socket
4Water Tank 10 Pressure Regulating Knob
5Water Tank Cover 11 Battery Compartment
6Water Inlet Pipe
COMPONENTS

- 5 -
A Frame+Water Tank(x1) B Front Wheels(x2)
C Rear Wheels(x2) D Wheel Axle(x1)
E R-pin(x2) F Cap Nut(x8) G Bolts M8x35(x4)
H Bolts M6(x2) I Flat Pad(x4) J Tube Reel(x1)
K Fixed Base(x2) L Crank Handle(x1) M Hose（x1)

- 6 -

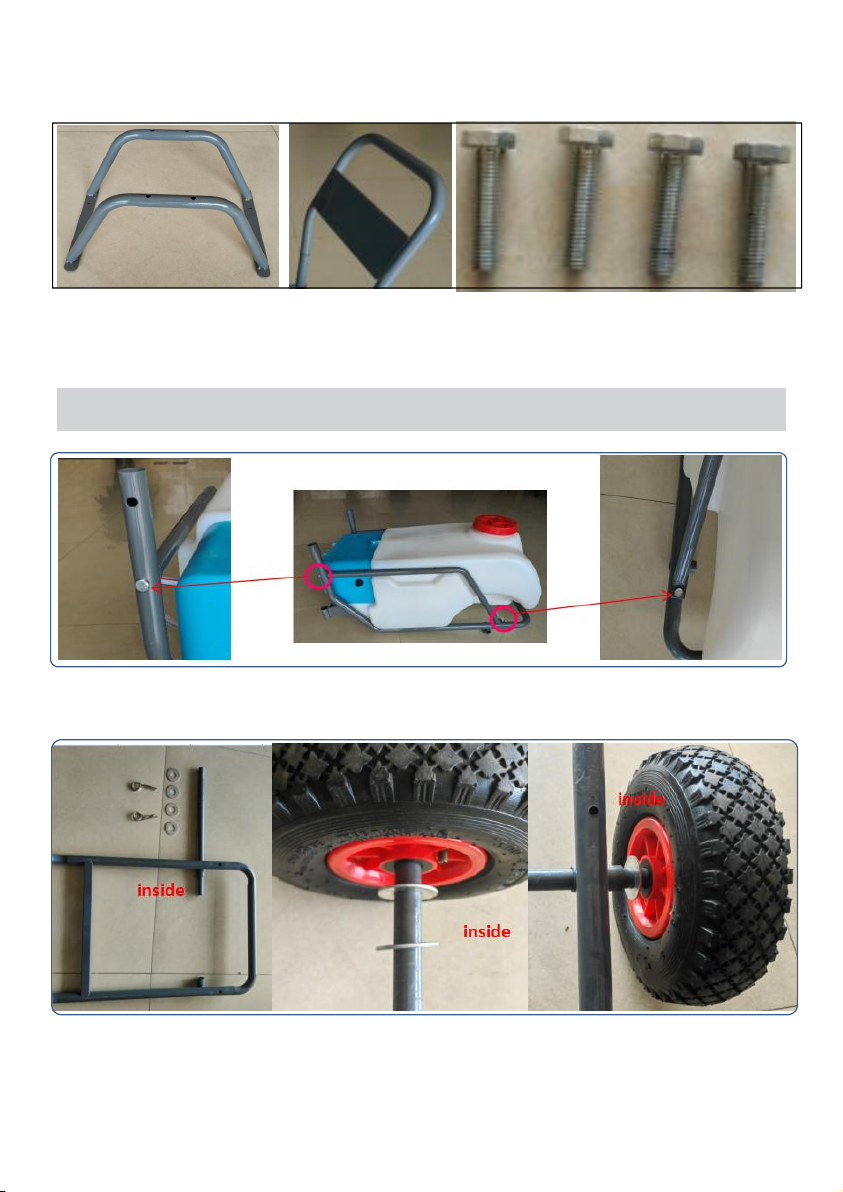

ASSEMBLY AND USE
N Support Frame（x1) O Handrail（x1) P Bolts M8x40(x4)
Step 1: Remove the brackets on both sides of the frame and take out the water tank.
(a) (b) (c)

- 7 -

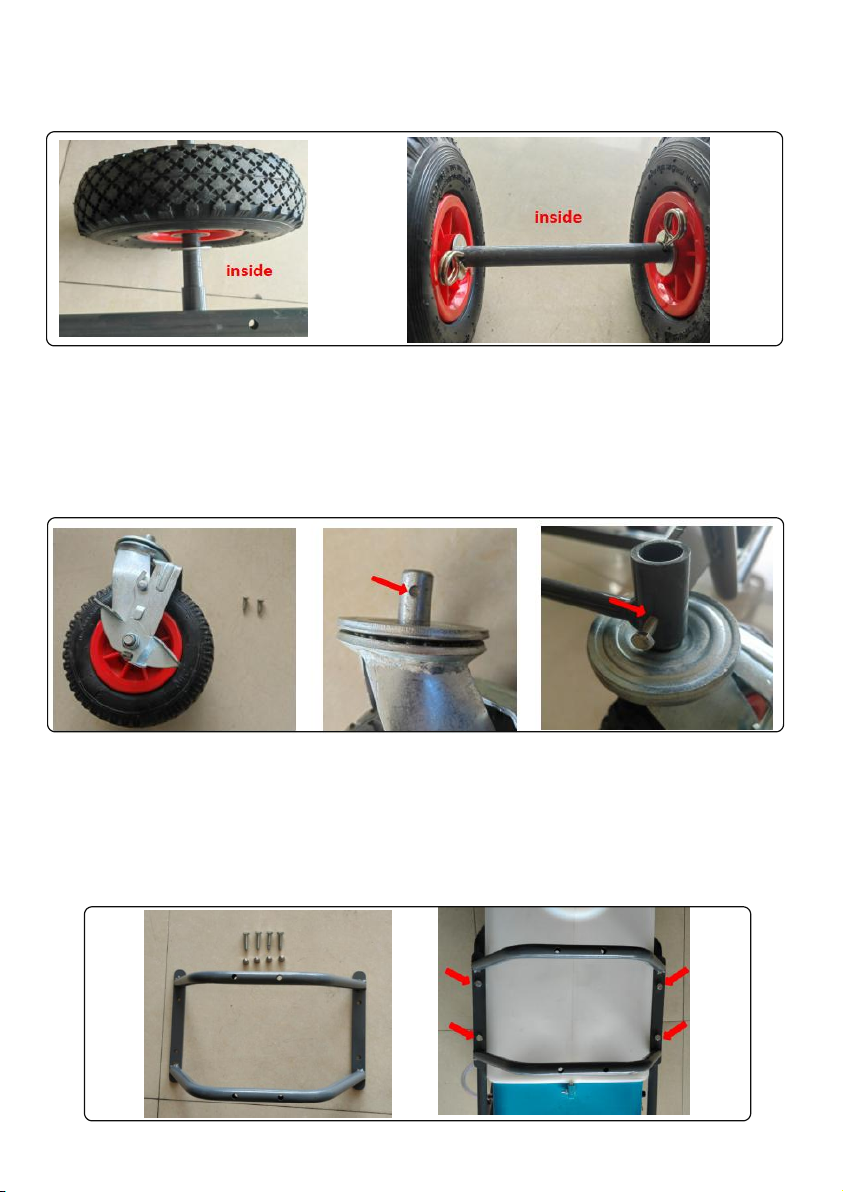

Step 2: Put the axle through the shaft sleeve (a), put in a gasket and a front wheel (b), then put 2
shims, 1 front wheel and 1 shim in sequence(c+d). Finally, pass through the opposite shaft sleeve, and
then put two R-shaped pins into two holes between the front wheels to fix them(e).
Step 3: Install the two universal wheels into the rear wheel (pay attention to the holes of the
universal wheels), and fix them with M6 bolts.
Step 4: Reinstall the water tank and install the brackets on both sides(Refer to step 1).
(d) (e)

- 8 -
Fix the support frame(N) with M8x35 bolts(F+G).
Fix the fixed base with bolt M8x40(F+P)and install the tube reel.
Step 7: Install the crank handle on the tube reel (near the front wheel side) and fix the screws on the
shaft.
Step 8: Connect hose (M) to tube reel (J) water inlet, adjust it to a proper length and fix it with bolts
on the shaft. Finally, connect the other end of the hose to the bucket (on the right side of the power
switch).
Step5:
Step6:
(a) (b) (c)

- 9 -

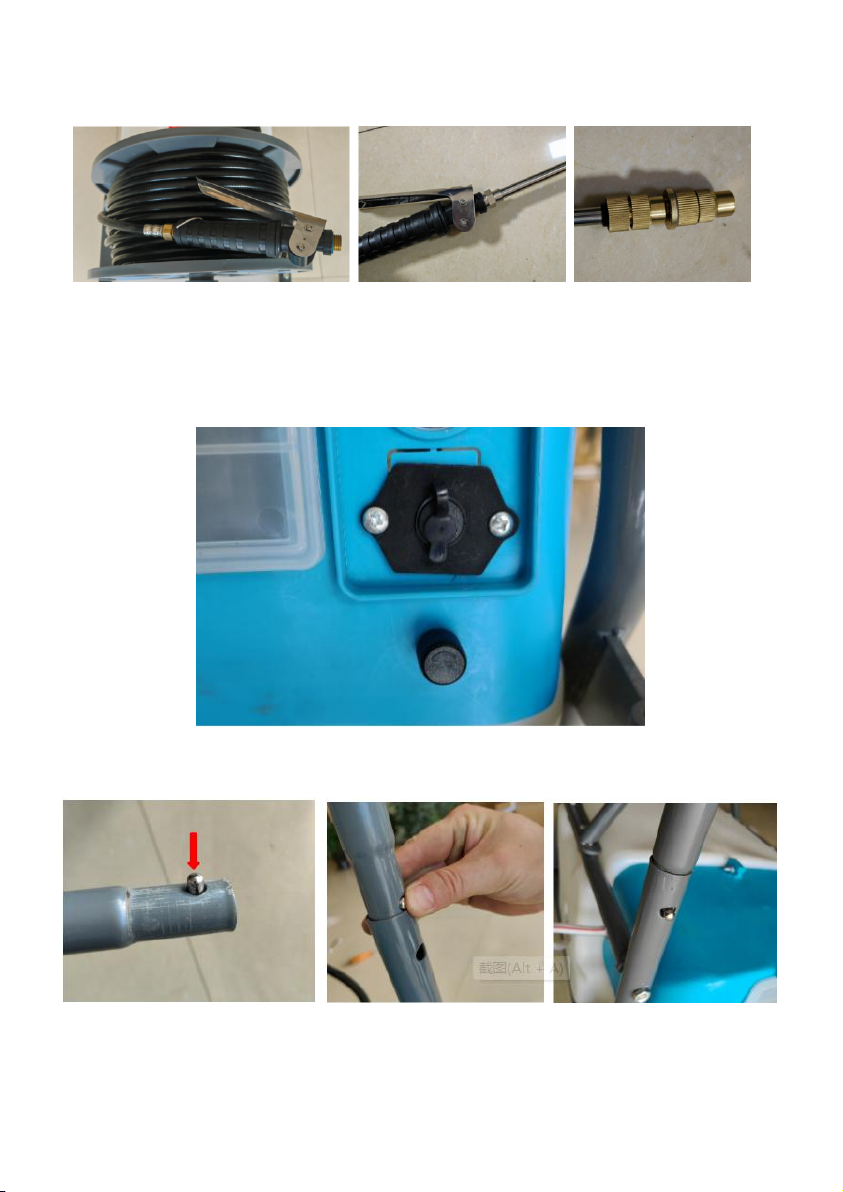

Step 9: Install the handle, spray bar, and proper nozzle in turn.
Note:
1.A sealing ring shall be added at the connection between the water outlet and the handle.
2. If water leaks, please check whether sealing rings are added and tightened.
Step 10: Install the pressure regulating knob(Press in by hand).
Step 11: Install the handrail.
Step 12: Installation completed and start to use.
Step 13: After filling the tank with solution, cover it.
NOTE: Add the sealing ring and then tighten it to prevent water leakage!

- 10
-

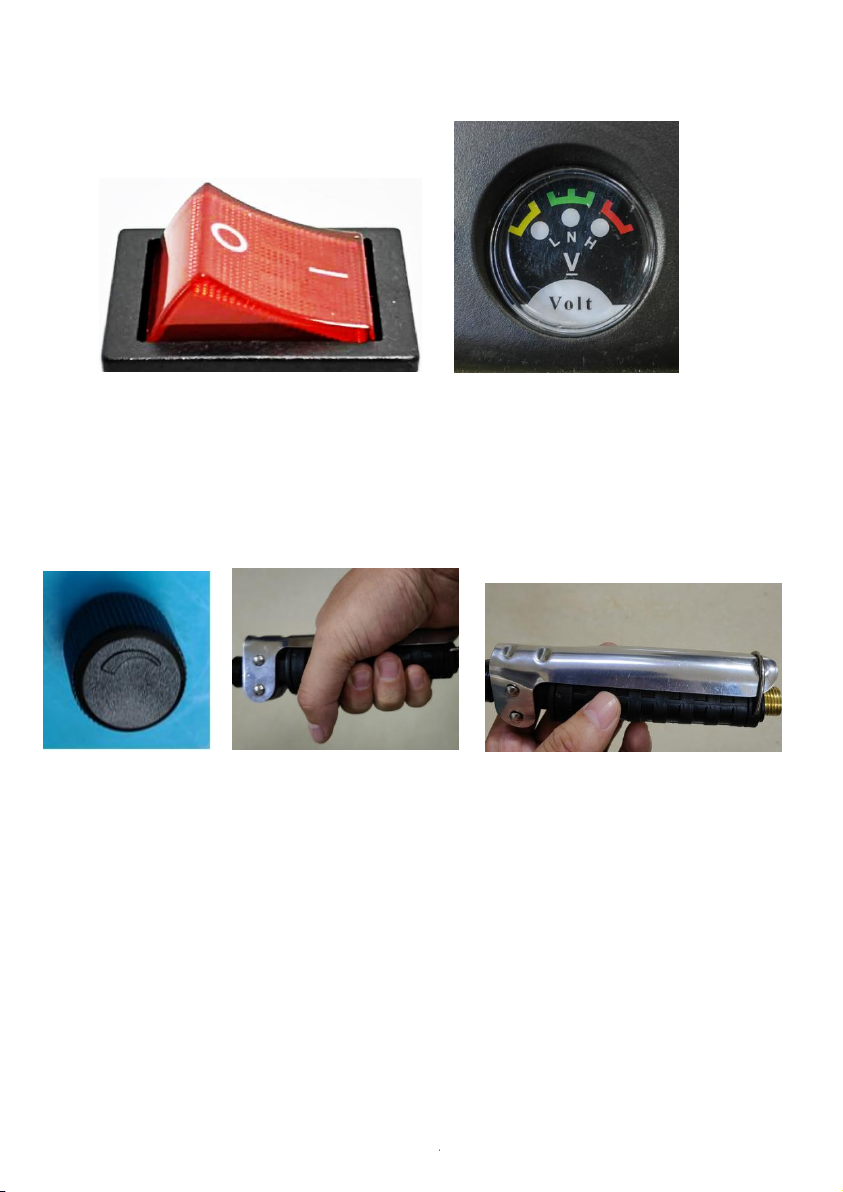

Step 14: Instructions
A. Turn on the switch. ("1" means to turn on the power, and "0" means to turn off the power)
B.Description of the voltmeter:
Yellow Light "L": The battery is insufficient and needs to be charged.
Green Light "N": Sufficient power, can be used normally.
Red Light "H": Abnormal. Stop using and eliminate the problem.
Step 15:Pressure regulation
a). Clockwise rotation increases the pressure. The pressure decreases or stops when rotating
counterclockwise.
b). Press and hold the handle to start working and release it to stop working.
c). When spraying for a long time, the handle can be fixed on the ring of the handle.
Please clean the spray with clean water, and finally turn off the governor and power supply
after use.
Step 17: The red indicator of the charger indicates charging; The green light indicates that the
battery is fully charged.
Note: When charging, please turn off the power!
Step16:
-

- 11
-
INTRODUCTION AND APPLICATION OF NOZZLE
Model KF-01D KF-26E KF-04D KF-86E
Function
introduction
Single-head copper
nozzle: provide a small
amount of spray, or linear
spray (15-20ft), only for
telescopic spray bar.
Single-head plastic
nozzle: provide a small
amount of spray, or
linear spray (15-20ft).
Three-end copper
nozzle: provide a
large amount of
spray with a
concentrated range.
Three-end
plastic nozzle:
provide a large
amount of spray
with a long
range.
Note
The pressure knob must
be adjusted to avoid
intermittent operation of
the motor pump when
using. (It is normal if the
indicator light does not
flash or the motor pump
works continuously.)
The pressure knob
must be adjusted to
avoid intermittent
operation of the motor
pump when using. (It
is normal if the
indicator light does
not flash or the motor
pump works
continuously.)
/ /
Model KF-104E KF-06E KF-56E KF-23E
Function
introduction
Windproof nozzle:
equipped with a
protective cover to
reduce the impact of
wind on spray.
F-type double nozzle:
provide medium
spray effect.
Y-type double nozzle:
provide medium
spray effect.
Fan-shaped
nozzle: provide
90 °~110 °plane
fan-shaped spray,
which is mostly
used in scenes
requiring control
range, such as
weeding.
-

- 12
-
Note / / /
The pressure
knob must be
adjusted to avoid
intermittent
operation of the
motor pump
when using. (It is
normal if the
indicator light
does not flash or
the motor pump
works
continuously.)
-

- 13
-
INTRODUCTION AND APPLICATION OF NOZZLE
Problem Reasons Solution
The motor does
not start after the
power is turned
on
The power connection wire falls off Check the connecting wire and plug the connector
Battery is dead Use after charging
The power switch is off Switch on
The motor makes
abnormal noise
The fixing screws of the water
pump are loose
Check and tighten the screws of the fixing feet of the
water pump
Water leakage of
substructure
Water inlet/outlet pipe of water
pump is loose and cracked
Open the base, check whether the internal water pipe is
loose or broken, and tighten or replace it
Poor atomization
Disassemble the nozzle and clean each part
Replace the nozzle
Nozzle accessories are installed
incorrectly Install according to the correct installation method
The filter screen is blocked Clean the filter screen in bucket
Connecting pipe leaks Tighten or replace the water pipe
Insufficient battery power Charging (The voltmeter indicator light is yellow when the
battery is low)
Water pump blocked
Remove the nozzle and spray water with clean water for 5-
10 minutes (the water output will increase and stabilize
under normal conditions). If the water output does not
increase after 10 minutes, it is recommended to replace
the pump.
The nozzle does
not discharge
water, and the
outlet pressure is
unstable
Nozzle clogging Remove the nozzle for cleaning
Water pump blocked Dismantle the water pump cover and remove foreign
matters
Water pump does
not work
Wiring problem/water pump
damaged
After eliminating the problems of electric wires and
waterways, contact the merchant to purchase a new water
pump, and replace the water pump under the guidance of
the merchant.
Unable to charge Charger cable open circuit Reconnect the disconnected wire
-
Nozzle is worn or blocked /
Spray bar shake Overpressure/Nozzle too small Reduce the pressure/Replace the proper nozzle

- 14
-
CLEANING, CARE AND STORAGE RULES
The battery is broken (the charger
indicator is green, but the spray
cannot be used)
Open the battery cover, take out the battery, and replace it
with a good one. The black wire is connected to the "-"
pole, and the red wire is connected to the "+" pole. (Note:
Before removing the battery, please take a picture of the
line with your mobile phone and install it back according to
the original route to avoid mistakes).
The charger is broken (the charger
indicator does not light up or the
spray still cannot be used after
charging for 10 minutes)
Contact the merchant, inform the product model, and
purchase a new charger
Cleaning and care:
After operating the sprayer, remove the working solution from the tank completely and rinse the tank,
hose, pump, and spray tube with clean water. Finally, spray with clean water for 3 minutes to
eliminate the possibility of a chemical reaction when other chemicals are used in the next spraying.
Residues of chemicals can lead to corrosion and other damage to parts of the sprayer especially
spraying nozzles, filters, and seals.
Storage rules:
- Keep the sprayer in a dry, cool, and out-of-way place for children.
- It is forbidden to store the sprayer near an open fire.
- To prevent damage to the pump and other parts, it must be washed and dried before storing the
sprayer in winter. Clean the surface of machines and tools, filter screen, and nozzle, and dry them in
the air. Do not put them directly in the sun.
- Before storage, the battery must be fully charged. During the storage period, you need to charge
your battery regularly with an adapter (at least once every 2 months).
- Keep the adapter in a dry place.
-

Manufacturer: TAIZHOU KAIFENG PLASTIC&STEEL CO., LTD.
ADD: NO.819 SOUTH ROAD OF JIUTANG, SANJIA JIAOJIANG DISTRICT, TAIZHOU,
ZHEJIANG, CHINA
MADE IN CHINA

E-mail: CustomerServ[email protected]
