FULL BODY HARNESS &
HALF BODY HARNESS
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and doses not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
1
MODEL NO.: Q-3A、Q-2A-S、Q-2A-M、Q-2A-L、Q-2C、B-1A
Have product questions? Need technical support? Please feel free to
contact us:
CustomerService@vevor.com
NEED HELP? CONTACT US!
This is the original instruction, please read all manual instructions
carefully before operating. VEVOR reserves a clear interpretation of our
user manual. The appearance of the product shall be subject to the
product you received. Please forgive us that we won't inform you again if
there are any technology or software updates on our product.
FULL BODY HARNESS &
HALF BODY HARNESS
2
WARNING:
Please read this manual carefully before using the product. Failure to
do so may result in serious injury. SAVE THIS MANUAL
GENERAL INSTRUCTIONS
DEVICE IDENTIFICATION SHEET
Trademark
Reference
standards
ANSI/ASSE 359 or
ASTM F1772
All instructions attached to the device must be read and understood
carefully before use. Attention! This sheet contains only the general
instructions.
1) TRAINING AND PHYSICAL FITNESS.
The activities related to the use of this device are potentially dangerous
and its use is reserved exclusively to competent and trained persons or
persons directly supervised by competent and trained persons. Before
using the device, it is essential to: have received adequate training and
instruction and, where required, specific training for the use of the devices;
be familiar with the device; be in perfect psycho-physical shape. Attention!
Consumption of alcohol or psychotropics, including medication that may
alter perception, balancea and concentration, is to be avoided.
2) WARNINGS. Before use: ensure that all equipment is in perfect
operating conditions, that it is appropriate for the intended use and that all
the elements and components are compatible with each other and comply
with the rules, regulations and directives currently in place; check that the
system is assembled correctly and that the various components work
without interfering with one another. Before and during use: check the
perfect closure of the lever and the associated locking of any connectors
used.
2.1- Devices to be used with ropes. Before and during each use: always
verify the compatibility of the rope/s used: some ropes may be or become
more or less smooth due to different factors (e.g. construction of the sheath;
possible surface treatments; inadequate diameter; wet, icy, dry or muddy
ropes etc.); check the correct positioning of the rope/s inside the device;
pay attention to potential foreign bodies that can prevent the correct
functioning of the device on the rope/s.
2.2 - Conditions for use. This equipment is meant to be used in climatic
conditions typically tolerated by human beings (the permitted temperature
range is shown on the specific instructions). Pay attention to the following
conditions, since they could jeopardize the strength of the device: humidity,
frost, extreme temperatures, aging, inadequate storage. Attention! Do not
apply and avoid the contact with the following substances, that could
damage the device and compromise its safety: chemical substances leg.
paint, solvents, adhesives, corrosive substances, reagents, etc.);
3
self-adhesive labels; other potentially harmful products/substances.
Attention! When using textile devices, be careful to the contact with sharp
edges and, when necessary, use protective devices.
2.3 - Responsibilities. Each individual is responsible for his/her own
choices and actions: anyone who is not capable of assuming this
responsibility must not use these devices under any circumstances. The
responsibility of the manufacturer is limited to manufacturing defects and
materials used. Attention! Do not use a device for activities exceeding its
limitations or for uses that are different to those intended! Attention! Being
equipped with personal protective devices does not justify exposing
oneself to potentially lethal risks. Attention! There are many incorrect or
erroneous usage procedures and only the procedures indicated as correct
are allowed: any other possible usage procedure must be considered as
forbidden.
2.4 - Materials. All materials and treatments (unless otherwise specified)
are antiallergic and do not cause skin irritation or sensitization.
2.5 - Warnings. Such warnings relate only to the devices reporting, in the
specific instructions, the ANSI/ASSE 359 or ASTM F1772 standard. Before
each use: make sure that all the devices show the correct reference to the
standard and that are in perfect working order; make sure that the
maintenance sheets of each device are correctly updated; make sure you
have carefully considered the safest way of access, equipped yourself
properly and provided for a rescue procedure to recover the incapacitated
operator or to deal with any emergency that may arise during work; inform
the user of the existence of the arranged rescue procedure. During each
use: pay attention to the dangers that could jeopardize the performance of
the device (e.g. twisting or dragging of lanyards or rescue ropes on sharp
edges; chemical reagents; electrical conductivity; pendulum falls etc.). For
devices intended for use in a fall arrest system: for the operator's safety it
is necessary that the device or anchor point is always correctly positioned
and that the work is carried out so that the risk of falling and the length of a
fall are minimized; before any use, verify the free space required below the
user at the work station so that, in the event of a fall, there is no collision
with the ground or other obstacles on the path of the fall; consider that a
body harness is the only acceptable body holding device that can be used
in a fall arrest system.
3) INSPECTIONS.
Inspections carried out by the user are necessary to ensure that the device
is in an efficient condition, functions correctly and can be used. Before and
after each use: verify that the metal and plastic parts, if present, do not
show deformations, sharp edges, abnormal variations in color, corrosion
and oxidation;a verify that the metal and plastic parts, if present, do not
show cuts, cracks, incisions or signs of wear with a depth greater than 1
mm; verify that the textile parts, if present, and their stitching do not show
cuts, abrasions, fraying, wear, burns, damage due to exposure to heat or
ultraviolet rays, excessive stretching, corrosion and traces of mold or
chemicals, paying attention in checking any hidden areas as well; verify
that the stitching, if present, do not show cut, pulled or loose threads; verify,
feeling with the fingers the whole length of the devices made of rope, that
the inner core does not show cuts, points of emptiness, splits, swelling;
verify that any moving parts (e.g. opening levers, locking cams, etc.)
4
correctly rotate without jamming and, where provided with a spring, once
released slowly automatically return to their position; verify that there is no
dirt, particularly near any gap le.g. sand. deposits of material).
4) DEVICES FOR PERSONAL USE.
Each device, beside exceptions, is to be considered for strictly personal
use and, where necessary, it must be prescribed that it is delivered
individually to the user. In case of use by a second user, carry out and
inspection of the device before and after use and, where required, note the
details on the appropriate sheet. Attention! Never use a device if you do not
know the related complete life path or if it is provided without the correct
documentation (instructions for use, any inspection sheet, etc.).
5) MARKING.
The indications on the device can appear in different places depending on
the dimension of the device.
1) Product name. 2) Product code. 3) Product definition.4) Name of the
manufacturer or of the responsible for placing the product on the market. 5)
Warning that the device is designed to be used by only one person. 6)
Reference standard.
6) LIFE SPAN.
It is difficult to predetermine with accuracy the real lifespan of a device
because it is influenced by several factors (environment in which the
equipment is used, climatic factors, storage conditions, frequency and
intensity of use, etc.). Nevertheless, it is possible to estimate the device's
maximum lifespan, consisting of an initial period of optimal storage and a
period of use. For textile and plastic products, the maximum lifespan is 12
years from the date of manufacture, of which no more than 10 years from
the date of the first use. The maximum life span of metallic products is
theoretically indefinite, but it is still advisable to replace them after 10 years
of use. Attention! The life span of a device can be limited even to just one
use, where it is involved in an exceptional event (major falls, extreme
temperatures, contact with harmful chemical agents or sharp edges, etc.).
7）INTERRUPTION OF USE / ELIMINATION.
Stop using the device immediately: if the maximum life span has been
exceeded; if it is obsolete, incompatible with more modern devices or
outclassed due to standards' updates; if the result of the inspections is not
satisfactory; if there are doubts on the functioning or on the good condition
of the device; if it has been exposed to an exceptional event or a hard fall:
even if there is no visible defect or degradation, its initial strength and
resistance could be seriously reduced. Atfention! Destroy discarded
products to avoid any further use. Attention! Do not use the device again
until receiving a written confirmation from a competent person authorized
by the manufacturer, stating that it is acceptable to use the device again.
8) PERIODIC INSPECTION.
It is generally recommended, at least every 12 months, a thorough
inspection of the device by the manufacturer, by a competent person
authorized by the manufacturer or by a competent person according to the
current national regulations on PPE inspection. Attention! Such inspection
5
is mandatory only for devices for which it is indicated in the specific
instructions. Nevertheless, regular inspections are essential to ensure the
continued efficiency and durability of the device, on which the safety of the
user depends. The carrying out of the periodic inspections does not
exempt the user from the obligation to carry out the checks before and
after each use, nor to request an extraordinary periodic inspection at the
occurrence of exceptional events (e.g. fall from low height, etc.) or in in
case of doubts on the proper functioning of the device. The data of the
device and the results of the inspections must be reported respectively in
the identification sheet of the device and in the periodic inspection one.
The instructions for use and any additional documents must be kept for the
entire life of the device. Attention! In absence of the document showing the
data of the device and the results of the checks, or if illegible, refrain from
using the device. Attention!
8.1 -Frequency of inspections. The minimum frequency of 12 months
can be changed according to the national regulations in force or to the
frequency, intensity and mode of use (e.g. heavy uses, use in the marine
environment, corrosive atmospheres etc.).
8.2- Device identification sheet (Fig. A). A) Trademark. B) Manufacturer.
C) Product (type, model, code). D) User (company, name and address). E)
Serial number. F) Year of manufacture. G) Purchase date. H) Date of first
use. I) Expiry date. L) Reference standards.
8.3 - Device periodic inspection sheet (Fig. B). O) Date. P) Reason of
the inspection: periodic inspection or additional check. Q) Name and
signature of the person responsible for the inspection. R) Notes (defects
found, repairs performed or other relevant information). S) Inspection
results: device fit for use, device unfit for use. T Date of next inspection.
9) NOTIFIED BODIES.
On the specific instructions for use are indicated the notified bodies
pertaining to the product, they are listed on this instruction.
10) DISPOSAL.
At the end of the lifespan of the equipment, i.e. at the end of its working life,
it is compulsory to take care of its disposal, taking into account the
potential impact on the environment. For this purpose, it is recommended
that the products are disposed in accordance with the laws in force in the
country where the disposal is taking place.
11) TAMPERING AND REPAIRS.
Any alteration or tampering immediately voids the guarantee and it is
forbidden, as it can compromise the safety of the device itself. Repairs,
where feasible, must be carried out exclusively by the manufacturer or by a
competent person expressly authorized by the manufacturer, in
compliance with what is indicated in the inspection and/or maintenance
procedures.
12) LUBRICATION.
If necessary, clean any moving parts of metal devices with compressed
air and lubricate them by using exclusively silicone-based spray oil.
Attention! An excessive quantity of oil encourages dirt and dust to stick.
Remove any excess oil using a cloth. Attention! Check that the lubrication
6
does not compromise the interaction between the device and the other
components of the system le.g. ropes).
13) MAINTENANCE AND CLEANING.
Avoid contact with sources of heat or with abrasive or sharp materials. To
disinfect, use a dilute ammonia solution according to the safety instructions
provided with the product. After washing, or in the case of damp or wet
equipment, leave to dry in the open air away from direct sources of heat.
14) STORAGE AND TRANSPORT.
For optimal storage, put away the devices completely dry at room
temperature in well ventilated areas. Do not expose the devices to
chemically aggressive substances, persistent dusts or dirt or environments
with high concentrations of salt. During transport, avoid compressions,
exposure to direct sunlight and contact with sharp objects. Do not leave the
devices in the car or in closed environments exposed to the sun. For the
transport use the protective case supplied or, if absent, a packaging that
preserves the integrity of the product.
15) GUARANTEE.
The guarantee is valid for 3 years as from the purchase date. and covers
for any manufacturing defect or defect in the materials used. The following
are excluded from the guarantee: normal wear, inadequate maintenance
and storage, incorrect or improper usage, unauthorised tampering or
repairs, lack of observance of the instructions for use. The manufacturer
declines all liabilities concerning the direct, indirect or accidental
consequences, including any consequence that derives from the incorrect
use of the devices, including correct use of the device in unsuitable
situations that do not ensure proper safety levels. For the user safety it is
essential that the retailer provides the devices instruction for use,
maintenance, repair and periodic check in the language of the country
where they will be used, whenever the devices are sold outside of the
original country of destination.
TECHNICAL SPECIFICATIONS
Type
Full body harness
Model
Q-3A
Q-2A-S/Q-2A-M/Q-2A-L
Q-2C
Main Material
Polyester
Color
Yellow + Black
Size
Universal
Small/Medium/Large
Universal
Product
Dimensions
(L*W*H)(mm)
340*240*110
340*240*110
290*240*120
Packing Size
(L*W*H) (mm)
350*250*120
350*250*120
300*250*130
7
Net Weight (kg)
2.1
2.8/2.87/2.9
2.3
Gross Weight (kg)
2.28
2.99/3.03/3.06
2.4
Type
Half Body Harness
Model
B-1A
Main Material
Polyester
Color
Yellow + Black
Size
Universal
Product Dimensions
(L*W*H)(mm)
340*240*110
Packing Size
(L*W*H) (mm)
350*250*120
Net Weight (kg)
2.1
Gross Weight (kg)
2.28
PRODUCT INSTRUCTIONS
MODEL NO.: Q-3A

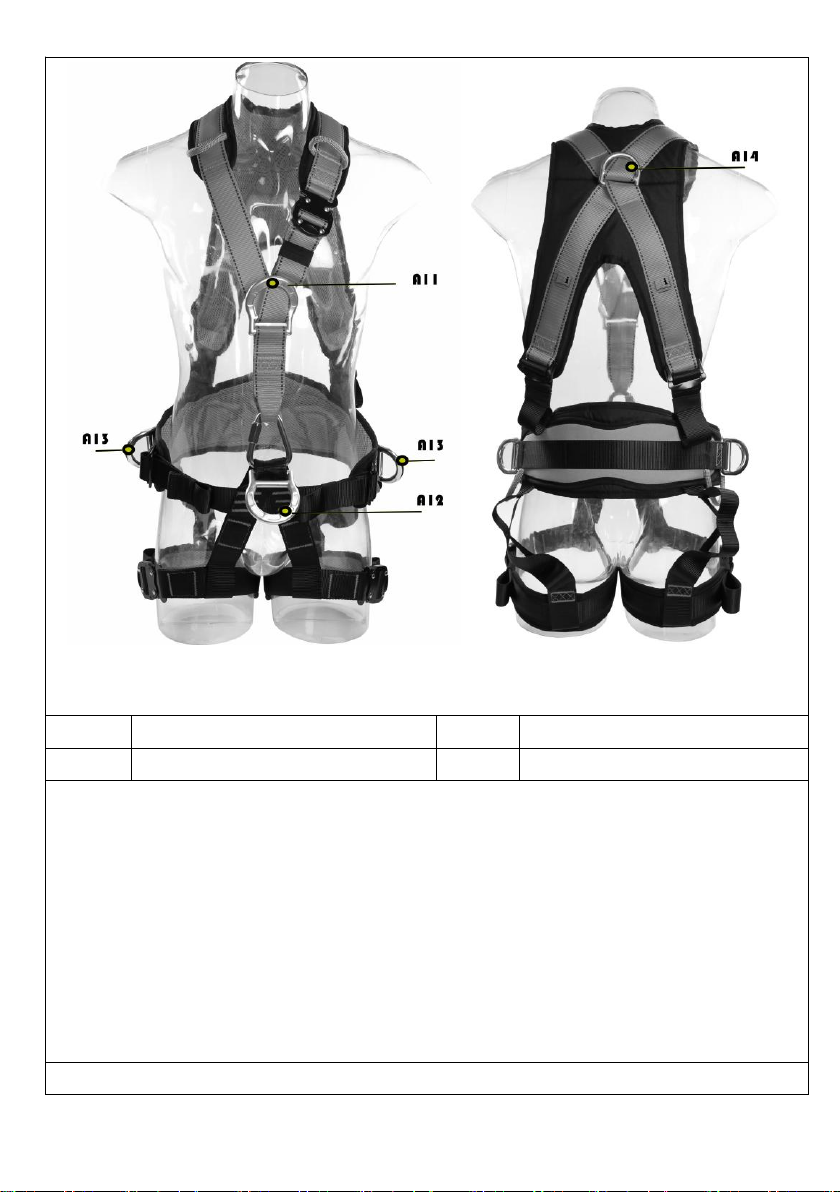

—Harness construction
9
A11
Sternal Attachment
A13
Waist Attachment
A12
Frontal Attachment
A14
Dorsal Attachment

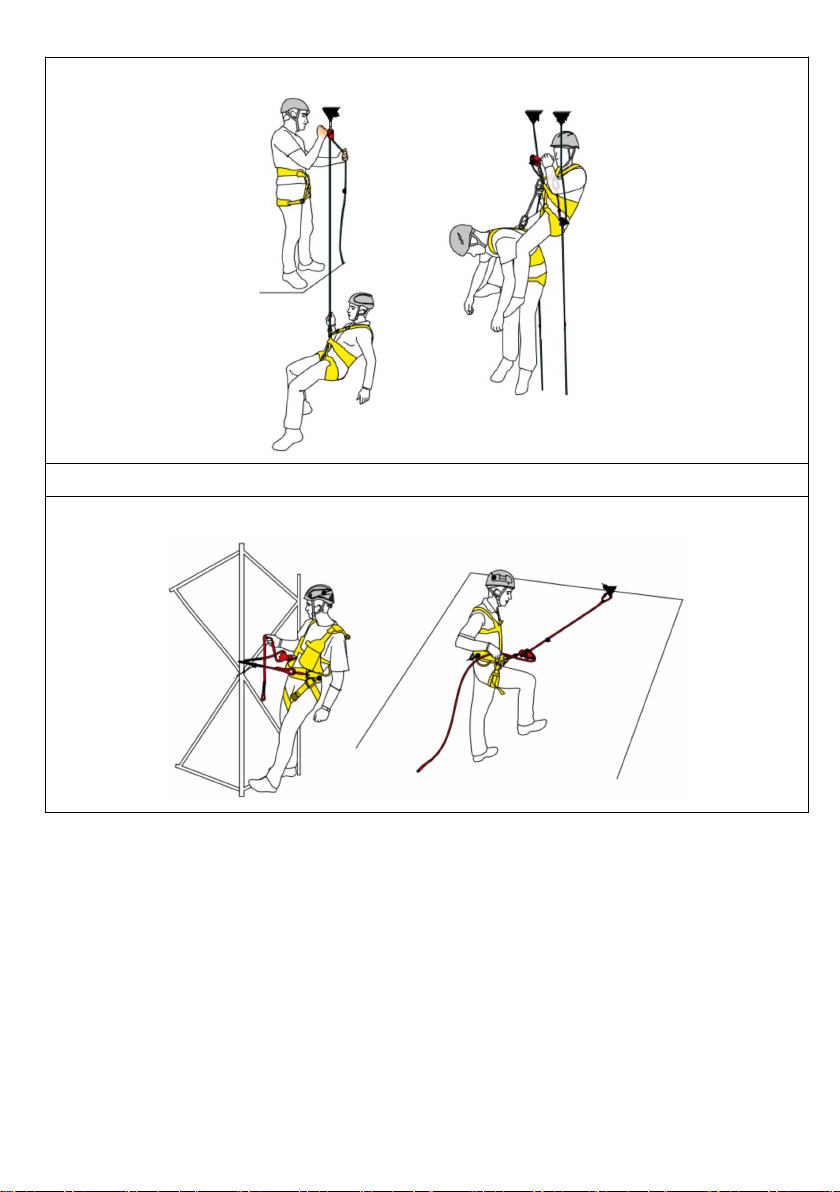

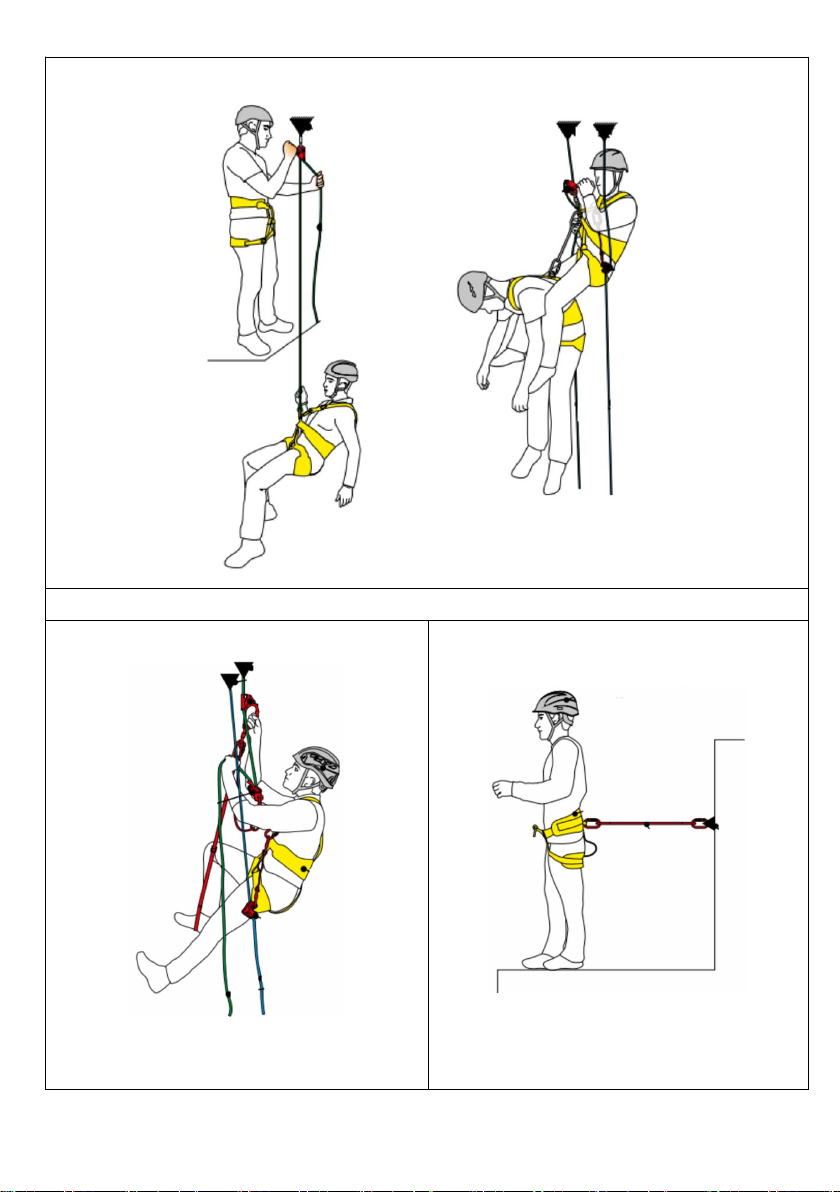

—Harness A11 Sternal Attachment and A14 Dorsal Attachment
10
Fall Arrest
Restraint
11
Rescue
—Harness A12 Frontal Attachment
Rope access
Restraint
12
Rescue
—Harness A13 Waist Attachment
Positioning
14
—Harness Attachment Point
B12
Dorsal Attachment
B13
Waist Attachment
—Harness B12 Dorsal Attachment
Fall Arrest
15
Restraint
Rescue
—Harness B13 Waist Attachment
Positioning
17
—Harness Attachment Point
C8
Dorsal Attachment
C9
Waist Attachment
—Harness C8 Dorsal Attachment
Fall Arrest
18
Restraint
Rescue
—Harness C9 Waist Attachment
Positioning
This manual suits for next models
5
Table of contents
Popular Safety Equipment manuals by other brands
Guardian Fall Protection
Guardian Fall Protection G-Lok Operation and instruction manual
Falltech
Falltech DuraTech Class 2 Leading Edge SRL User instruction manual
IOTA
IOTA B Series instruction manual
EDELRID
EDELRID 12277 manual
Petzl
Petzl CALIDRIS TECHNICAL NOTICE
TIE DOWN
TIE DOWN Big Foot 60060US Safety & operation manual
