Vicon V942D-W312MIR User manual

Installation Guide
Installation Guide

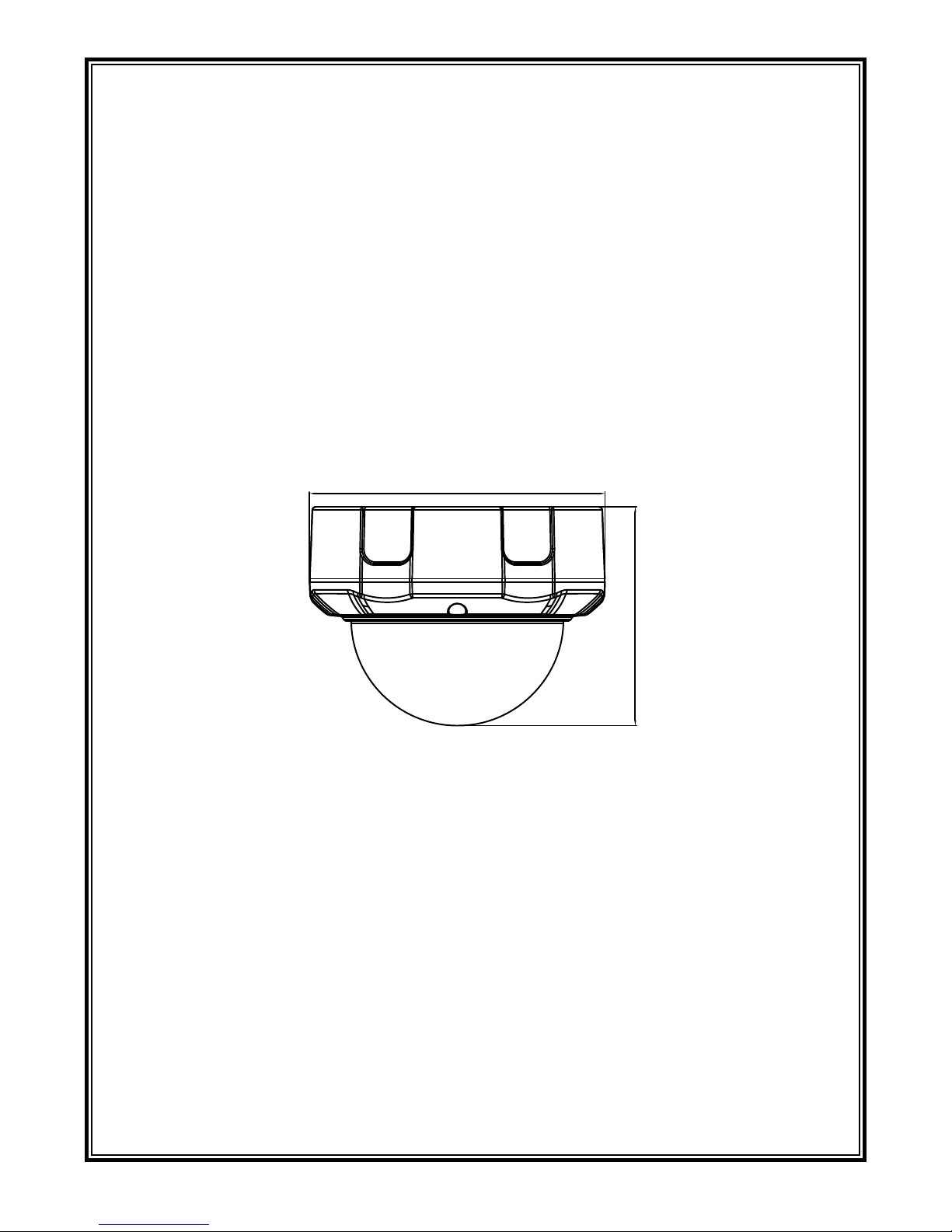

V940D Network Dome Cameras
XX292-00
Vicon Industries Inc. does not warrant that the functions contained in this
eq
uipment will meet your requirements or that the operation will be entirely error
free or perform precisely as described in the documentation. This system has not
been designed to be used in life-critical situations and must not be used for this
purpose.
Document Number: 8009-8292-00-00
Product specifications subject to change without notice.
Issued: 7/17 Copyright © 2017 Vicon Industries Inc. All rights reserved.
Vicon Industries Inc.
Tel: [phone]) Fax: [phone]
Toll Free: 800-645-9116
24-Hour Technical Support: 800-34-VICON
(800-348-4266) UK: 44/(0) 1489-566300
www.vicon-security.com

Notice
Copyright Statement
This manual may not be reproduced in any form or by any means to create any
derivative such as translation, transformation, or adaptation without the prior
written permission of Vicon Industries.
Vicon Industries reserves the right to change this manual and the specifications
without prior notice. The most recent product specifications and user
documentation for all Vicon Industries products are available on our web site
www.vicon-security.com.
Trademarks
Vicon and its logo are registered trademarks of Vicon Industries.
All other trademarks that may appear belong to their respective proprietors.
FCC Warning
The V940D Series Dome Cameras comply with the FCC rules.
Operation is subject to the following two conditions:
This device will not cause harmful interference.
This device must accept any interference received, including interference that
may cause undesired operations.
The V940D Series HD IR IP Dome Camera have been tested and found to
comply with the limits for a Class A digital device, pursuant to the FCC rules.
With these rules and regulations being obeyed to maintain the good working
condition of device, the operation is not supposed to be affected by the external
interruptions under certain circumstances. This device is electromagnetic, so all
the installation and application processing along the device has to follow strictly
to the manual or it may hamper telecommunications around. Meanwhile, there is
no guarantee that interference will not occur in a certain particular installation
situation.

Read this manual carefully before installation. This manual
should be saved for future use.
Important Safety Instructions and Warnings:
Electronic devices must be kept away from water, fire or high magnetic
radiation.
Clean with a dry cloth.
Provide adequate ventilation.
Unplug the power supply when the device is not to be used for an extended
period of time.
Only use components and parts recommended by manufacturer.
Position power source and related wires to assure to be kept away from ground
and entrance.
Refer to qualified personnel for all service matters.
Save product packaging to ensure availability of proper shipping containers
for future transportation.
Indicate that the uninsulated components within the product may carry a
voltage harmful to humans.
Indicate operations that should be conducted in strict compliance with
instructions and guidelines contained in this manual.
Warning: To avoid risk of fire and electric shock, keep the product away
from rain and moisture!

CONTENTS
Chapter I System Introduction ................................................................ 1
1.1 Product Description............................................................................... 1
1.2 Product Model....................................................................................... 2
1.3 Product Features.................................................................................... 2
1.4 System Requirement ............................................................................. 4
1.5 Specifications........................................................................................ 4
1.6 Notes..................................................................................................... 8
Chapter II Installation.............................................................................. 9
2.1 Installation Precautions......................................................................... 9
2.2 Dimensions........................................................................................... 9
2.3 Installation of Surface-Mounted Camera ............................................ 10
Chapter III IE Browser Settings............................................................ 16
3.1 Equipment Connection........................................................................ 16
3.2 Software Installation........................................................................... 16
Chapter IV Basic Function Operation................................................... 19
4.1 Live View............................................................................................ 19
4.2 System ................................................................................................ 23
4.2.1 System Information..............................................................................23
4.2.2 Time Settings.......................................................................................23
4.2.3 Advanced Settings................................................................................25
4.3 Network Settings................................................................................. 28
4.3.1 Network Settings..................................................................................29
4.3.2 FTP Settings.........................................................................................30
4.3.3 SMTP Settings.....................................................................................30
4.3.4 HTTPS Settings...................................................................................31
4.3.5 802.1X Settings....................................................................................31
4.3.6 QoS Settings ........................................................................................32
4.3.7 IGMP Settings......................................................................................33
4.3.8 SIP Settings..........................................................................................34

4.3.9 DDNS Settings.....................................................................................35
4.3.10 UPnP Settings....................................................................................36
4.3.11 NAS Settings......................................................................................37
4.3.12 RTSP..................................................................................................38
4.3.13 IP Filter..............................................................................................38
4.3.14 Monitor Connect................................................................................40
4.4 Camera Settings.................................................................................. 41
4.4.1 Basic Settings ......................................................................................41
4.4.2 Exposure Settings ................................................................................42
4.4.3 Effect Settings......................................................................................43
4.4.4 White Balance......................................................................................45
4.4.5 Focus Settings......................................................................................46
4.4.6 IR Set...................................................................................................48
4.4.7 Reset....................................................................................................48
4.5 Video and Audio Settings.................................................................... 49
4.5.1 Video Settings......................................................................................49
4.5.2 OSD.....................................................................................................52
4.5.3 Motion Detection.................................................................................55
4.5.4 Privacy Mask.......................................................................................56
4.5.5 ROI......................................................................................................57
4.5.6 Storage Path.........................................................................................58
4.5.7 Audio Settings......................................................................................58
4.6 Video Contents Analysis Functions..................................................... 59
4.6.1 Camera Tampering...............................................................................60
4.6.2 Line Cross Detection............................................................................61
4.6.3 Intrusion Detection ..............................................................................63
4.7 Alarm Settings..................................................................................... 64
4.8 Storage Management........................................................................... 67
4.8.1 Record Settings....................................................................................67
4.8.2 Replay..................................................................................................68

4.9 User Settings....................................................................................... 69
4.10 System Log....................................................................................... 72
Appendix I Questions & Solutions......................................................... 73

1
CHAPTER I SYSTEM INTRODUCTION
1.1 Product Description
The information in this manual provides installation and setup procedures for the
V940Dseriesnetwork cameras.
The V940D Series Dome Camera uses a progressive scan CMOS sensor with an
internal HD motorized zoom lens. The camera has an internal Smart IR
technology that provides 98 ft/30m IR distance. The IR LEDs output power can
be adjusted automatically according to the brightness of the scene so that the IR
LEDs do not work at full capacity. The power consumption of the complete unit
is greatly lowered and the service life is lengthened.
V940D Series offers 2MP cameras and 4MP cameras; the 4MP cameras can
support up to 2592×1520@20fps video output. All cameras use H.265/H.264/M-
JPEG encoding, providing output with excellent definition and color
reproduction, more detailed and accurate information and the accuracy of smart
analysis that can, effectively, be guaranteed.
V940D Series cameras boast smart functions, including camera tampering, to
detect if the camera/lens has been moved, blocked, low/high brightness or
defocused; intrusion detection, providing protection for key areas; and line cross
detection, providing border protection, which are important features for many
enterprises. These cameras can be widely used in sites that demand high
definition image quality in low lighting environments, such as ordinary buildings,
supermarkets, hotels, shops, parks, schools, factories, warehouses, underground
parking lots, etc.
The compact design makes it easy to install and provides 3-axis adjustment, for
easy adjustment of the monitoring angle.

2
1.2 Product Model
This manual is for the following models:
V942D-W312MIR HD Megapixel IR IP Dome Camera, WDR,
Intelligence, 2.0MP, 1/3"CMOS, day/night,
H.265/H.264/M-JPEG, with audio/alarm, 2.7~12mm
motorized zoom lens, 98ft/30m IR distance, IP67,
PoE/12VDC/24VAC
V944D-W312MIR HD Megapixel IR IP Dome Camera, WDR,
Intelligence, 4MP, 1/3"CMOS, day/night,
H.265/H.264/M-JPEG, with audio/alarm, 2.7~12mm
motorized zoom lens, 98ft/30m IR distance, IP67,
PoE/12VDC/24VAC
V942D-W310MIR-XW HD Megapixel IR IP Dome Camera, WDR,
Intelligence, 2.0MP, 1/2.8"CMOS, day/night,
H.265/H.264/M-JPEG, with audio/alarm, 3~10.5mm
motorized zoom lens, 98ft/30m IR distance, IP67,
PoE/12VDC/24VAC
V942D-W312MIR-XS HD Megapixel IR IP Dome Camera, WDR,
Intelligence, 2.0MP, 1/1.9"CMOS, day/night,
H.265/H.264/M-JPEG, with audio/alarm, 3.6~10mm
motorized zoom lens, 98ft/30m IR distance, IP67,
PoE/12VDC/24VAC
1.3 Product Features
Progressive scan CMOS sensor
IR-Cut Removable (ICR) Filter for Day/Night switching
98ft/30m IR distance
Uses Smart-IR technology; auto-adjusts IR LED power according to ambient
illumination
Supports multi-frame integration WDR
Smart functions, such as camera tampering, line cross, and intrusion detection

3
Built-in motorized zoom lens, supporting assistant focusing
H.265/ H.264/M-JPEG video encoding, three streams
Maximum resolution of V944D-W312MIR supports 2592×1520@20fps,
2560×1440@25fps
Bi-directional audio, G.711a/G.711u/AAC
Supports corridor mode
Local PC recording
Supports TF card (also referred to as SD card) storage/NAS storage
Supports alarm recording and event recording (including broken network)
Supports alarm snapshot and event snapshot
Supports multiple alarm trigger methods such as I/O input, motion detection,
smart detecting, SD card out, network link down, heart beat lost,etc.; supports
flexible alarm association settings like I/O output, emails, FTP picture
uploading, audio, TF card recording and alarm information push
Up to eight ROI (Region of Interest) areas
Supports motion detection, 4 areas configurable
Supports privacy mask, 4 privacy areas configurable
Supports live access and parameter setting via Web Server from multiple
users
Compatible with Vicon Valerus VMS software
Standard SDK provided for easy integration with other video surveillance
software
ONVIF Profile S and Profile G compliant
Surface mount; mounting accessories available
3-axis adjustment
IP66 rating
Rugged design (IK10)
Supports PoE/12VDC/24VAC power supply
Provides analog video output

4
1.4 System Requirement
Configuration of the computer to display image and control the camera:
CPU: Intel Pentium 4, 2.4 GHz or above
RAM:512MB or greater
Network Port: 100M Ethernet port
Operating System:Microsoft Windows 10, Windows 7, Windows XP
IE browser version: Microsoft Internet Explorer 8.0 or above
1.5 Specifications
Model
numbers
V942D-W312MIR
V944D-W312MIR V942D-
W310MIR-XW
V942D-
W312MIR-XS
I mage Sensor 1/3" CMOS 1/3" CMOS 1/2.8" CMOS 1/1.9" CMOS
Lens
Configuration
Motorized zoom
lens, F1.4,
f=2.7~12mm
Motorized zoom
lens, F1.4,
f=2.7~12mm
Motorized
zoom lens,
F1.4,
f=3.0~10.5mm
Motorized
zoom lens,
F1.5,
f=3.6~10mm
Lens Mount Φ14
IR Lamp
Wave Length
850nm
Night Vision
Distance
30m
Camera Angle
Adjustment
X (Panning): 0°~360°;
Y (Tilting): 0°~72°;
Z (Rotating): 0°~360°
Day/Night
Switching
ICR
Sensitivity Color mode:
0.01 lux@F1.4
(30IRE, AGC
ON);
B/W mode: 0 lux
(IR ON)
Color mode: 0.01
[email protected] (30IRE,
AGC ON);
B/W mode: 0 lux
(IR ON)
Color mode:
[email protected],
AGC ON
B/W mode:
[email protected],
AGC ON
0 lux (IR ON)
Color mode:
0.002@F1.5,
AGC ON
B/W mode:
0.0006@F1.5,
AGC ON
0 lux (IR ON)
Exposure Scene, Manual, Shutter
