GEKO IRN
LED illuminator

EN
English - Instruction manual
ENGLISH
GEKO IRN
LED illuminator

Contents
ENGLISH 1
1 About this manual ....................................................................................................................3
1.1 Typographical conventions ................................................................................................................................................ 3
2 Notes on copyright and information on trademarks.............................................................3
3 Safety rules................................................................................................................................3
4 Identification.............................................................................................................................5
4.1 Product description and type designation................................................................................................................... 5
4.2 Product marking..................................................................................................................................................................... 5
5 Preparing the product for use .................................................................................................6
5.1 Unpacking................................................................................................................................................................................. 6
5.2 Contents .................................................................................................................................................................................... 6
5.3 Safely disposing of packaging material ......................................................................................................................... 6
6 Assembly ...................................................................................................................................6
7 Installation ................................................................................................................................6
7.1 Installation of wall-mounted illuminator....................................................................................................................... 6
7.2 Description of connection cables..................................................................................................................................... 7
7.2.1 Power supply cable version 12Vdc, 24Vdc, and 24Vac............................................................................................................... 7
7.2.2 Power supply cable version from 100Vac to 240Vac................................................................................................................... 8
7.2.3 Control cable............................................................................................................................................................................................. 8
7.2.4 Cable technical specifications............................................................................................................................................................. 9
7.2.5 LED illuminator switching on threshold adjustment.................................................................................................................. 9
7.2.5.1 Twilight sensor activation threshold adjustment............................................................................................................................................. 10
7.2.5.2 Disabling the twilight sensor ................................................................................................................................................................................... 10
7.2.6 LED illuminator power adjustment.................................................................................................................................................10
7.3 Operational test....................................................................................................................................................................11
7.3.1 Check operation of the twilight sensor .........................................................................................................................................11
8 Information on disposal and recycling .................................................................................11
9 Technical data .........................................................................................................................11
9.1 General.....................................................................................................................................................................................11
9.2 Mechanical..............................................................................................................................................................................11
9.3 Electrical...................................................................................................................................................................................11
9.4 Illuminators.............................................................................................................................................................................12
9.5 Environment...........................................................................................................................................................................12
9.6 Certifications..........................................................................................................................................................................12
10 Technical drawings ...............................................................................................................13

Instruction manual - English - EN
3MNVCIRN_1828_EN
1 About this manual
Read all the documentation supplied carefully before
installing and using this unit. Keep the manual in a
convenient place for future reference.
1.1 Typographical conventions
DANGER!
High level hazard.
Risk of electric shock. Disconnect the
power supply before proceeding with any
operation, unless indicated otherwise.
DANGER!
Hot surface.
Avoid contact. Surfaces are hot and may
cause personal injury if touched.
DANGER!
Emission of visible light or infrared.
Can be harmful for eyes. Pay attention to
the provided indications.
CAUTION!
Medium level hazard.
This operation is very important for the
system to function properly. Please read
the procedure described very carefully and
carry it out as instructed.
INFO
Description of system specifications.
We recommend reading this part carefully
in order to understand the subsequent
stages.
2 Notes on copyright and
information on trademarks
The mentioned names of products or companies are
trademarks or registered trademarks.

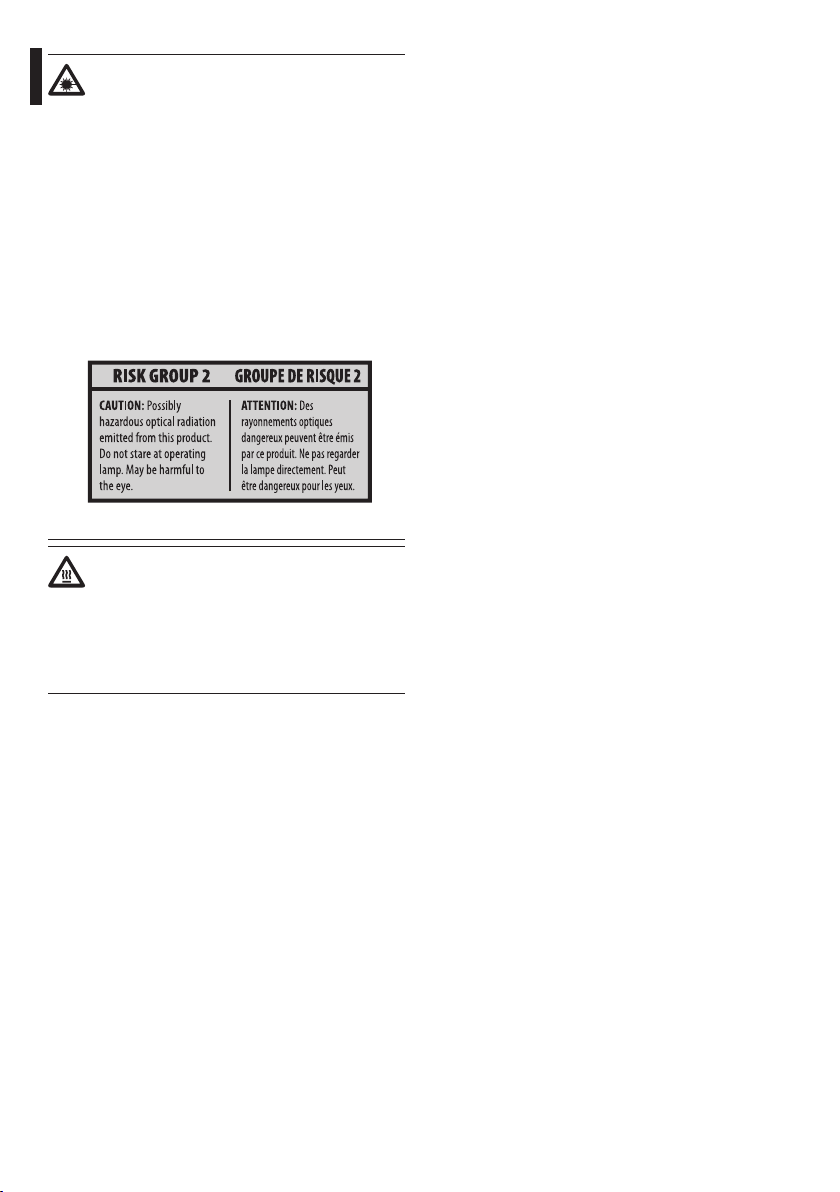

3 Safety rules
CAUTION! Device installation and
maintaining must be performed by
specialist technical staff only.
Do not stare at the lamp when on. Can be
harmful for eyes.

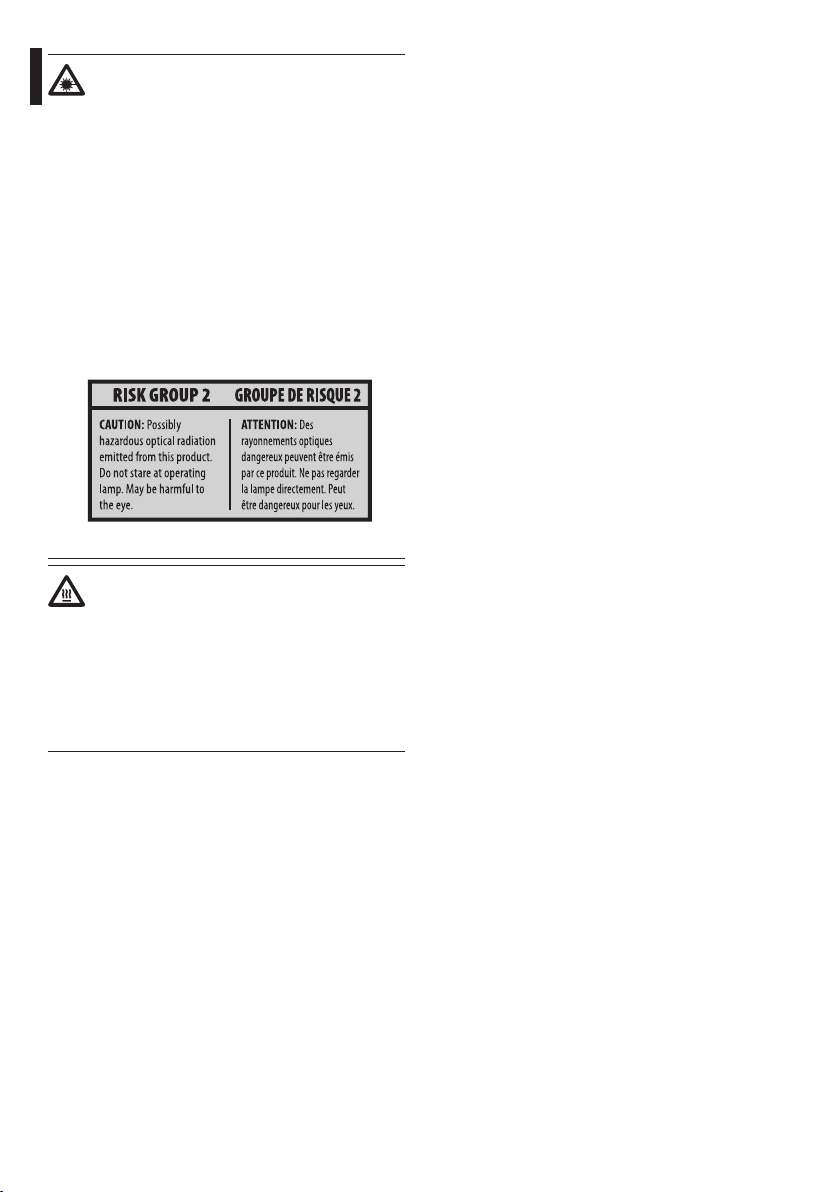

The infrared LED illuminator emits high-
intensity visible light. In compliance
with standard EN62471/IEC62471, the
photobiological safety assessment has
classified the device in Risk Group 2, where
it exceeds the values of the Exempt Group.
The risk linked to the observer depends
on how the product has been installed
and is used. For installation, follow the
instructions in this manual. Do not open
the illuminator for whatever reason. Do not
look directly at the illuminator using optical
lenses. Exposure hazard values (EHV):
88.1s. Hazard distance (HD): 200mm.
Fig. 1 Infrared illuminator.
