Viega Multiplex Trio F User manual

for water inlet through the drain unit
Model Year built:
6145.5 from 06/2015
en_INT
Multiplex Trio F drain/overflow functional
unit
Instructions for Use

Multiplex Trio F drain/overflow functional unit 2 from 25

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.2 Product description 6
2.2.1 Overview 6
2.2.2 Technical data 8
2.3 Accessories 8
3Handling 9
3.1 Assembly information 9
3.1.1 Mounting conditions 9
3.1.2 Installation dimensions 11
3.1.3 Required tools and materials 11
3.2 Assembly 12
3.2.1 Connect and mount pipe interrupter 12
3.2.2 Mounting overflow 14
3.2.3 Mounting the drain 15
3.2.4 Connecting overflow and drain 16
3.2.5 Connecting the wastewater system 17
3.2.6 Connecting the inlet 18
3.2.7 Mounting equipment set 19
3.2.8 Leakage test 20
3.3 Control 20
3.4 Simple maintenance and cleaning pipe 21
3.4.1 Maintenance 21
3.4.2 Cleaning pipe interrupter 22
3.4.3 Cleaning the drain 23
3.5 Disposal 25
Table of contents
Multiplex Trio F drain/overflow functional unit 3 from 25

1 About these instructions for use
Trade mark rights exist for this document, further information can be
found at www.viega.com/legal-notices.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nOperators
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, service this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Multiplex Trio F drain/overflow functional unit 4 from 25

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The pertinent national laws, stand-
ards, regulations and guidelines, as well as other technical guidelines,
have priority over German/European guidelines in this manual: The
information is not binding for other countries and territories and should,
as mentioned, be considered as support.
About these instructions for use
Multiplex Trio F drain/overflow functional unit 5 from 25

2 Product information
2.1 Intended use
2.1.1 Areas of use
NOTICE!
Risk of damage due to unsuitable liquids.
To avoid damaging the drain, only introduce the following
liquids:
– Liquids with a pH-value higher than 4
– typical household wastewater with temperatures up to
95 °C
The Multiplex Trio drain/overflow is a combined inlet, drain and overflow
with odour trap for bathtubs with a 52 mm drain hole. The inlet flows
particularly quietly through the overflow opening.
The drain/overflow is suitable for bathtubs with a middle connection.
Detailed information regarding all bathtub models and the corre-
sponding Viega drains / overflows can be found in the catalogue or on
the Internet.
2.2 Product description
2.2.1 Overview
The following components are included in the scope of delivery of the
Multiplex Trio F drain / overflow:
Product information
Multiplex Trio F drain/overflow functional unit 6 from 25

1
2
3
5
4
6
8
7
10 9111212 1311101415
17 18 19 20 21 22 23 24
16

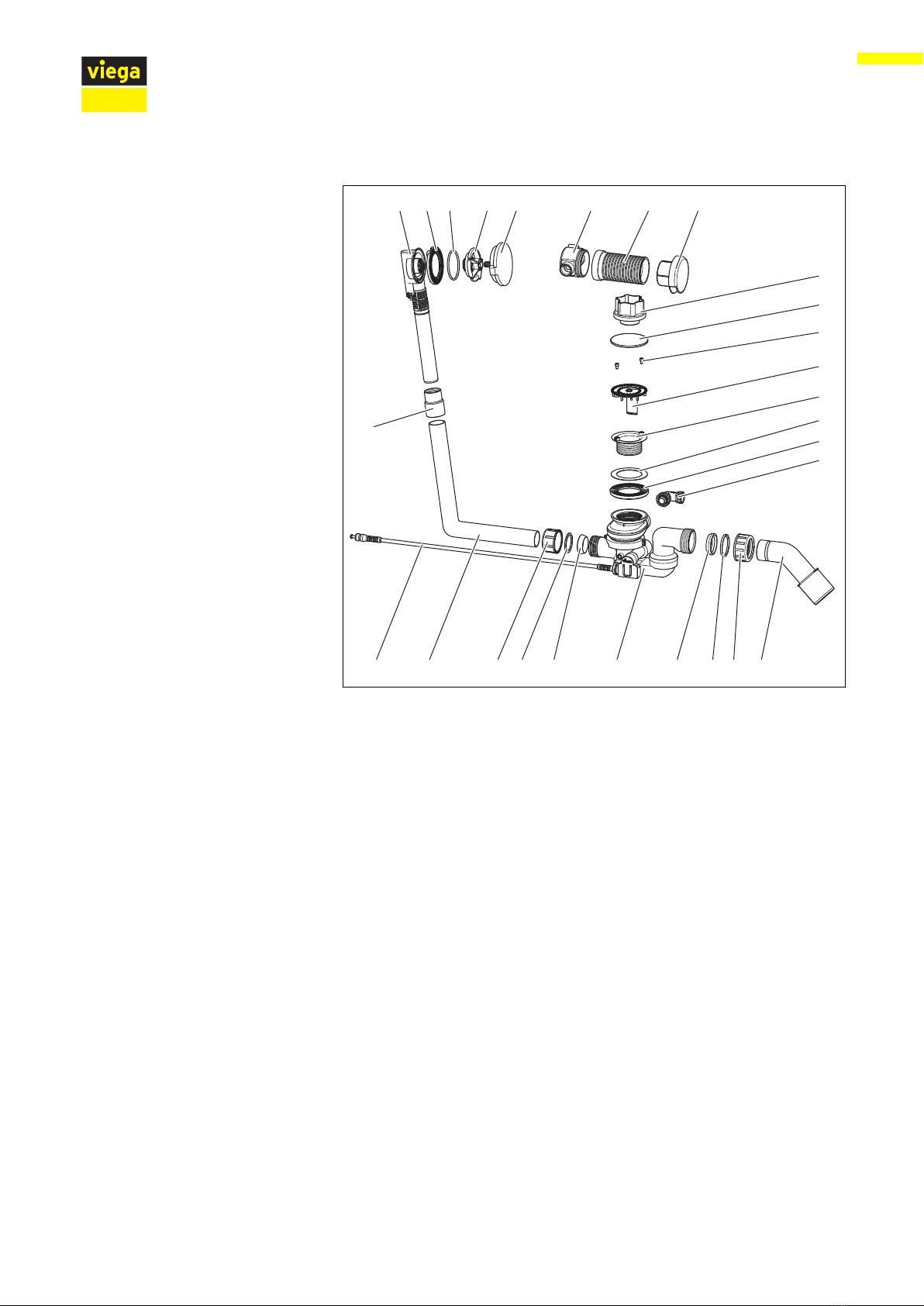

Fig. 1: Component overview
1 - mounting aid
2 - cover plate
3 - fixing screws
4 - inlet element
5 - screw-in valve (1 x 22.5 mm, 1 x 30 mm)
6 - seal
7 - profile seal
8 - connection elbow
9 - drain elbow
10 - union nut
11 - sliding ring
12 - seal
13 - drain unit with odour trap
14 - overflow pipe
15 - Bowden cable
16 - sleeve
17 - overflow unit
18 - profile seal
19 - O-ring
20 - fixing flange
21 - rotatable rosette
22 - pipe interrupter casing
23 - top of the pipe interrupter
24 - pipe interrupter rosette
Product information
Multiplex Trio F drain/overflow functional unit 7 from 25

2.2.2 Technical data
Drainage capacity (at an accumu-
lation height of 300 mm)
0.85 l/s
Overflow capacity (at an accumu-
lation height of 60 mm)
0.63 l/s
Inlet capacity (at 0.25 MPa
(2.5 bar))
20 l/min
Diameter of bathtub drain hole 52 mm
DN (nominal diameter) drain
socket
40 / 50 mm
Length of Bowden cable 725 mm
Length 130–370 mm
Height 180–480 mm
Dimensions and installation depth
ÄChapter 3.1.2 „Installation
dimensions“ on page 11
Water seal level 50 mm
2.3 Accessories
The accessories shown here are not included in the scope
of delivery. If required, it must be purchased separately.

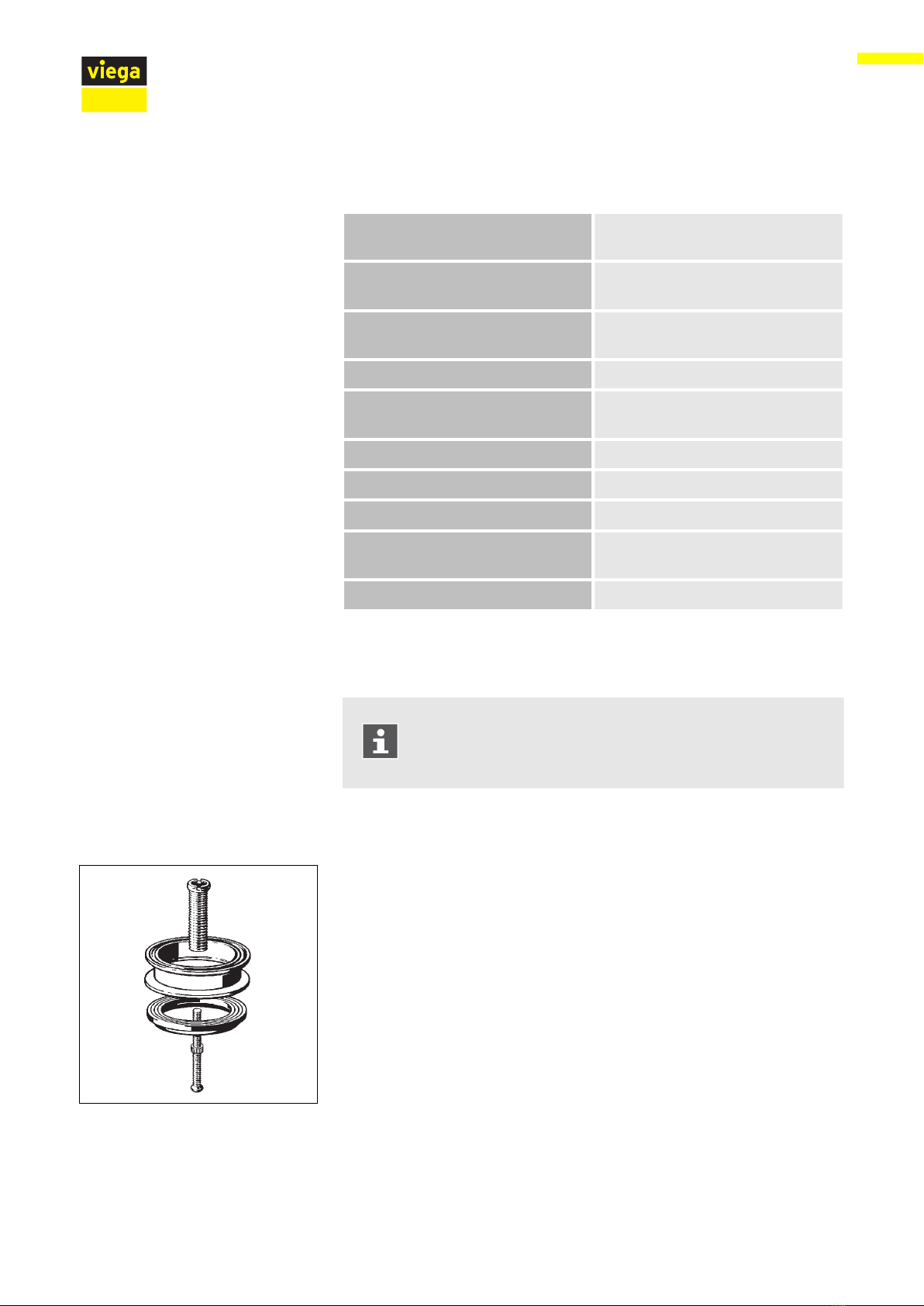

Multiplex extension set
It is possible to extend the odour trap below the bathtub in the case of
bathtubs with a very thick floor. The extension set, model 6161.7, is
available for such cases.
Optional accessories
Product information
Multiplex Trio F drain/overflow functional unit 8 from 25

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
The following requirements exist for the mounting of the drain / over-
flow:
nThe bathtub is installed.
nThe drainage line is installed all the way to the bathtub.
nThe underside of the bathtub is accessible.

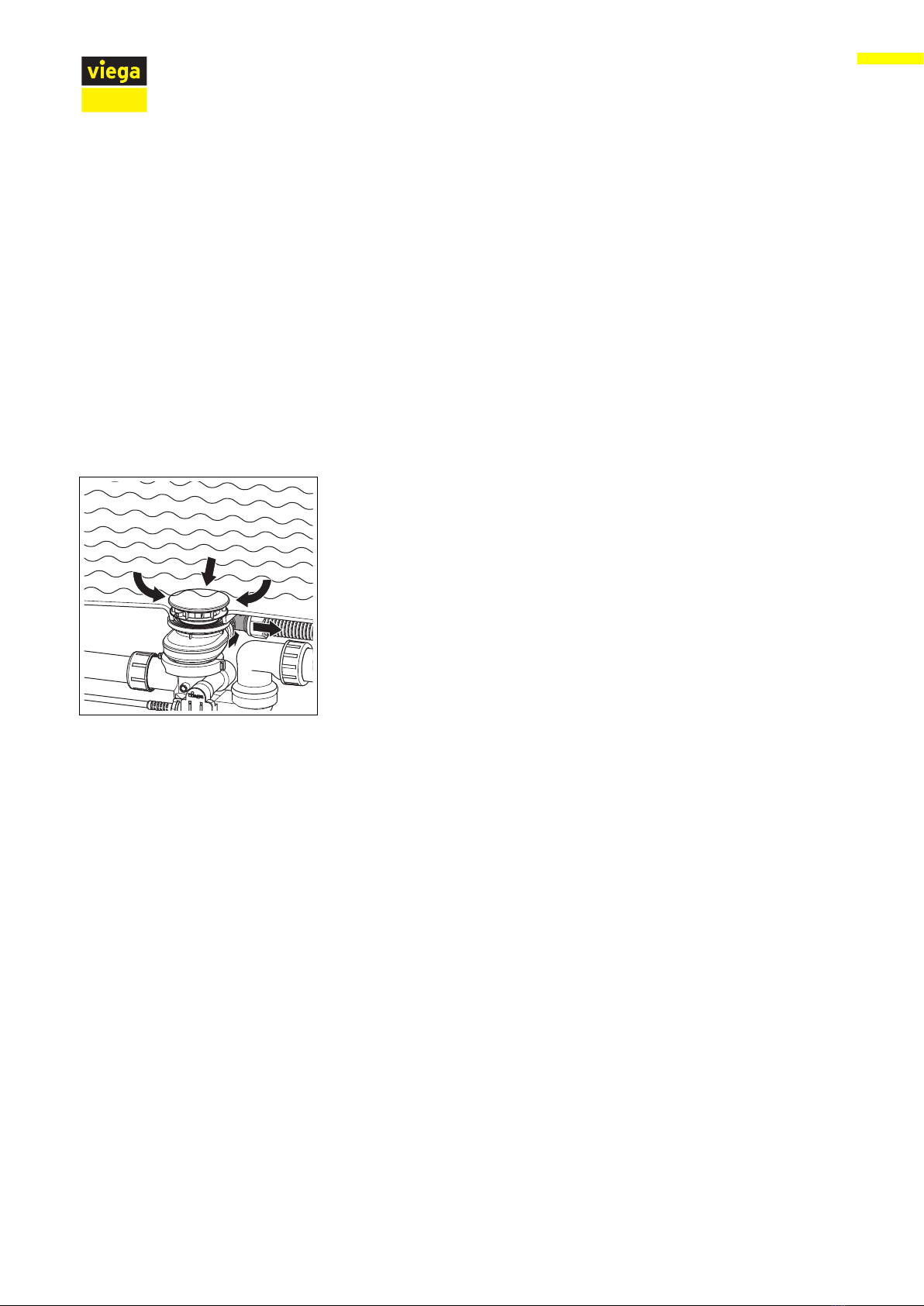

Backflow situation: If a negative pressure situation should occur when
the bathtub is filled, there is a possibility that bath water may flow back
into the drinking water system.
To ensure that no bath water flows back into the drinking water system,
a pipe interrupter must be installed in the pipeline between the shut-off
fitting and the bathtub inlet.
The following schematic diagram shows what this should look like:
Pipe interrupter
Handling
Multiplex Trio F drain/overflow functional unit 9 from 25

0
Fig. 2: Mounting scheme with pipe interrupter
It is important that the pipe interrupter is mounted vertically, in the
direction of flow and at least 150 mm above the top edge of the
bathtub.
Observe the local standards and regulations.
Handling
Multiplex Trio F drain/overflow functional unit 10 from 25

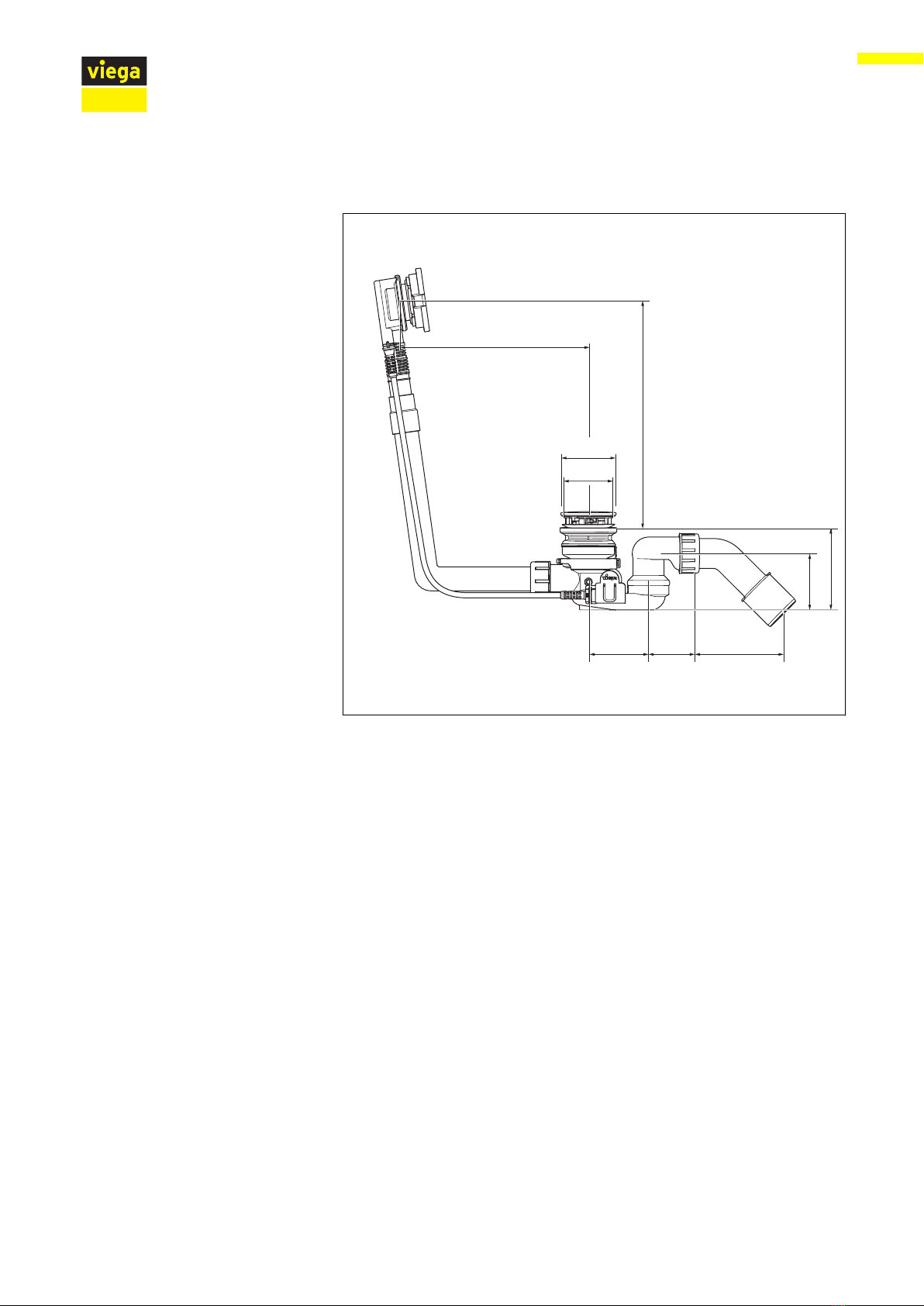

3.1.2 Installation dimensions
Ø75
Ø70
Ø40
Ø50
80 60
L
125
75
110
H
Fig. 3: Dimensional drawing
The following values are valid for L (length) and H (height):
L = 130–370
H = 180–370
3.1.3 Required tools and materials
The following tools are required for mounting:
nfine-toothed saw
nmounting aid (included in the scope of delivery)
nAllen key (SW 3)
No additional material is required for the complete mounting of the
product.
Tool
Material
Handling
Multiplex Trio F drain/overflow functional unit 11 from 25

3.2 Assembly
3.2.1 Connect and mount pipe interrupter
The pipe interrupter must be mounted according to the plan in
ÄChapter 3.1.1 „Mounting conditions“ on page 9 for the subsequent
installation of the bathtub before the work on the walls is finished. Pro-
ceed as follows:
nThe direction of flow runs from diagonal to vertical downwards.
nThe line does not continue to rise downstream from the pipe inter-
rupter.
nAll of the accessories (pipes, connecting pieces ¾ inch) required for
complete assembly are included.
nDuring assembly, the protective plug is to be found on the top stem.
INFO! We show the mounting here with the Viega plug connec-
tion. Mounting can also be carried out with other connecting
materials. If necessary, observe the manufacturer's instructions.
Push the union nut and clamping ring onto the pipe.
Push Viega plug-in seat as far as it will go into the pipe.
Euro cone connections are not compatible.
Push the free end of the plug-in seat into the connection of the pipe
interrupter.
Using the union nut, screw the pipe tightly onto the pipe interrupter.
Repeat the procedure with the second pipe.
INFO! We show the mounting here with the Viega plug connec-
tion. Mounting can also be carried out with other connecting
materials. If necessary, observe the manufacturer's instructions.
Seal adapter elbow and twist into the connection of the mixer tap.
Push the union nut and clamping ring onto the pipe.
Screw in the pipe tight with the union nut onto the adapter elbow.
Lay the free pipe end up to the connection place of the bathtub
drain/overflow.
Handling
Multiplex Trio F drain/overflow functional unit 12 from 25

Align pipe interrupter.
Mark drill holes.
Drill holes.
Screw on pipe interrupter with two crossed slot screws (size 4.5 or
5).
Encase the pipe interrupter and connection line in mortar.
Tile the wall.
Remove protective plug.
90°
Handling
Multiplex Trio F drain/overflow functional unit 13 from 25

Shorten shaft top with a fine-toothed saw.
The shaft top must be flush with the height of the tiles.
Clean shaft top when contaminated.
Insert the rosette into the shaft top.
3.2.2 Mounting overflow
Proceed as follows to the mounting of the overflow:
Push the rubber sleeve onto the pipe of the overflow unit.
The lower edge must be flush with the edge of the overflow pipe.
Handling
Multiplex Trio F drain/overflow functional unit 14 from 25

Fit profile seal in the overflow unit.
Place the O-ring in the annular gap of the fixing flange.
Hold the overflow unit on the overflow opening of the bathtub from
the outside.
Screw the fixing flange into the overflow unit by hand.
Pliers or other tools may damage the fixing flange. Only turn the
fixing flange by hand.
3.2.3 Mounting the drain
Proceed as follows to mount the drain:
Place the profile seal in the recess of the drain unit.
Mount the drain unit with profile seal on the drain opening of the
bathtub from below.
Handling
Multiplex Trio F drain/overflow functional unit 15 from 25

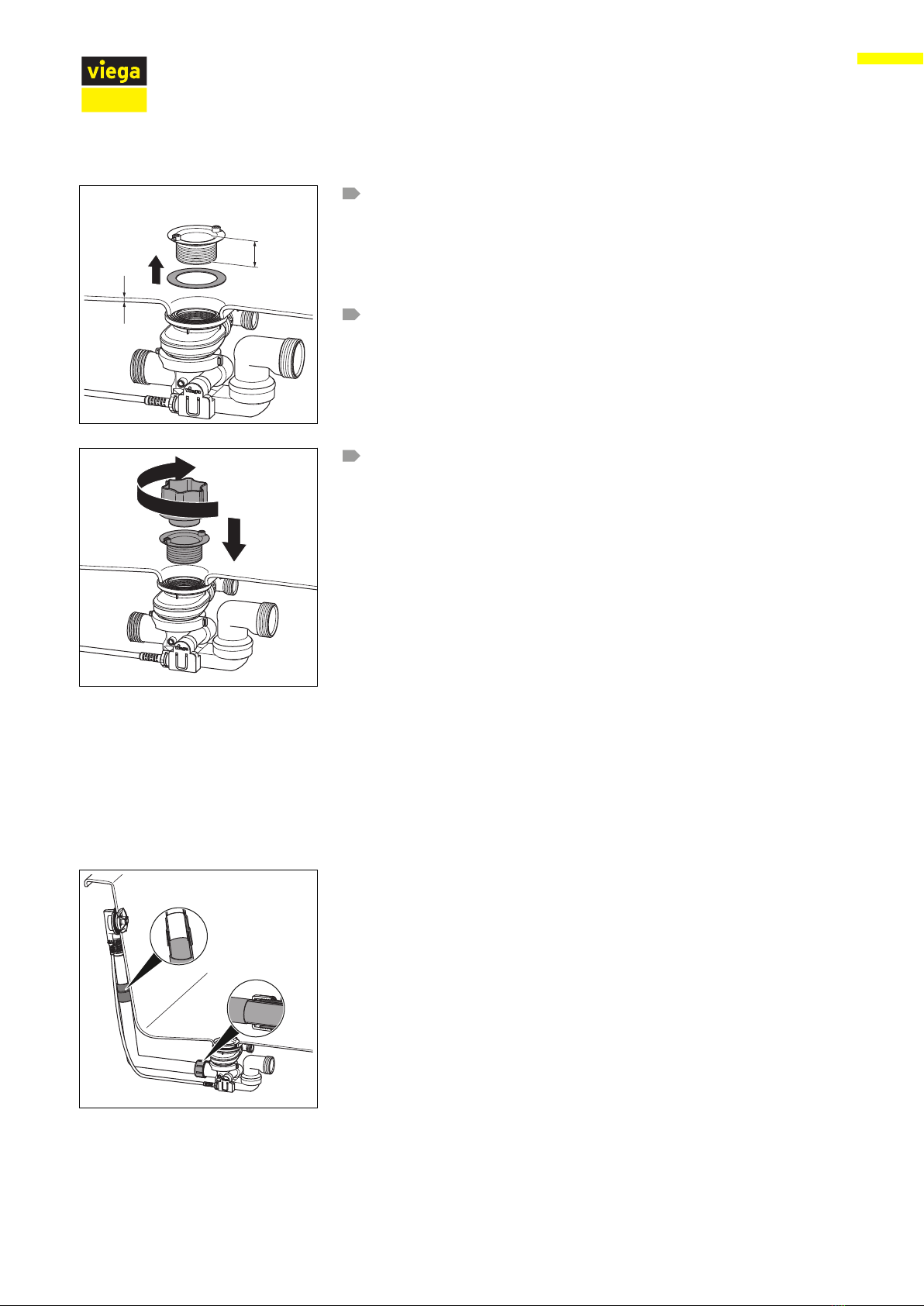

Select suitable valve top:
Use the B = 22.5 mm high flat valve top for steel tubs with wall
thickness A = 2–11 mm.
Use the B = 30 mm high valve top for plastic tubs with wall thick-
ness A = 11–16 mm.
Apply lubricant to the inside of the seal and place onto the under-
side of the valve top.
Install the valve top into the drain unit and screw together with the
mounting aid.
The mounting aid must be placed on the screw recesses with the
holes on the underside.
3.2.4 Connecting overflow and drain
After the overflow and the drain have been mounted, you must connect
them both using the overflow pipe. Proceed as follows:
Requirements:
nThe overflow is mounted in the overflow opening.
nThe drain is securely mounted on the base of the bathtub.
NOTICE! Connections where the pipes are not inserted far
enough into each other become leaky. For this reason, maintain
a minimum insertion depth of 15 mm for every connection.
B
A
Handling
Multiplex Trio F drain/overflow functional unit 16 from 25

Hold the pipe of the overflow unit parallel to the overflow pipe and
mark the positions where the drain and the overflow should be con-
nected.
Maintain an insertion depth of at least 15 mm!
Cut the overflow pipe to the marked length and, if necessary,
deburr.
Push the top end of the overflow pipe into the rubber sleeve.
Maintain an insertion depth of at least 15 mm!
Push the union nut, sliding ring and seal onto the bottom end of the
drain elbow.
Screw the union nut on the drain unit.

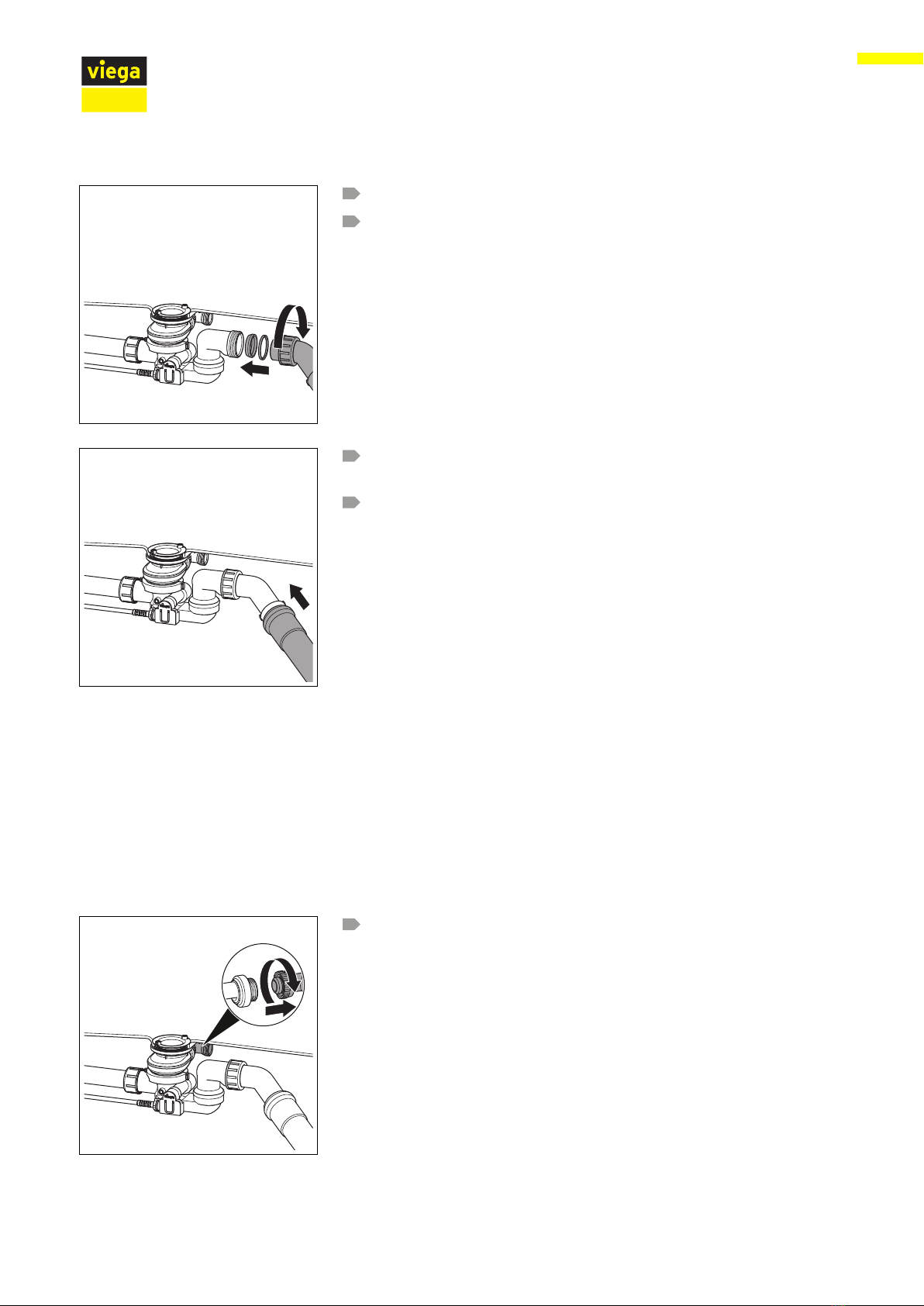

3.2.5 Connecting the wastewater system
Proceed as follows to connect the drain/overflow to the wastewater
system:
Requirements:
nThe overflow and drain units are installed on the bathtub.
nThe connection between overflow and drain has been made.
If the wastewater pipe only has a diameter of 40 mm, cut off drain
elbow.
Ø50
Ø40
Handling
Multiplex Trio F drain/overflow functional unit 17 from 25

Push union nut, sliding ring and seal onto the drain elbow.
Screw the union nut on the drain unit.
Maintain an insertion depth of at least 15 mm!
Turn the drain at the joint until the required position has been
reached.
Push wastewater pipe in the drain elbow.
3.2.6 Connecting the inlet
Proceed as follows to connect the water inlet to the drain unit:
Requirements:
nA connection set (e. g. the pipe interrupter set) is available.
nA pipe interrupter is installed in the supply pipeline.
nOverflow and drain are mounted.
nOverflow and drain are connected.
nThe connection to the wastewater system has been made.
Remove the union nut of the connection elbow from the drain unit
and remove connection elbow.
Ø50
Ø40
Handling
Multiplex Trio F drain/overflow functional unit 18 from 25

INFO! We show the mounting here with the Viega plug connec-
tion. Mounting can also be carried out with other connecting
materials. If necessary, observe the manufacturer's instructions.
Push union nut and clamping ring (parts of the connection set) onto
the water-carrying pipe.
Push the narrow end of the screw fitting (part of the connection set)
into the pipe as far as it will go.
Push the free end of the screw fitting into the connection elbow.
Screw in the pipe tight with the union nut onto the connection
elbow.
Place the connection elbow onto the connection of the drain unit
and tighten the union nut by hand.
3.2.7 Mounting equipment set
To avoid damage to the rosette and valve cone, only mount the equip-
ment set after finishing all other work on the building site. Proceed as
follows:
Fit the inlet element into the drain unit.
The shaft on the side of the inlet element must be inserted into the
recess in the drain unit.
Handling
Multiplex Trio F drain/overflow functional unit 19 from 25

Turn the external ring of the inlet element in such a way that the
screw heads of the screw-in valve is reachable.
Fit Allen screws and tighten only gently by hand.
Screw cover plate onto the drain by hand.
Align and push in overflow rosette.
3.2.8 Leakage test
The leakage test is only carried out as a visual inspection.
Check drain/overflow fitting for visible leaks.
3.3 Control
The drain / overflow are controlled via the rotatable rosette on the over-
flow. Proceed as follows to open or close the drain:
Handling
Multiplex Trio F drain/overflow functional unit 20 from 25
