Viega Visign for Public 6 8326.15 User manual

Instructions for Use
Flush plate Visign for Public 6
for concealed cistern 2H
Model Year built (from)
8326.15 10/2012
INT

Table of contents
1About these instructions for use 3
1.1 Target groups 3
1.2 Labelling of notes 3
1.3 About this translated version 4
2Product information 5
2.1 Standards and regulations 5
2.2 Safety advice 5
2.3 Intended use 6
2.3.1 Areas of application 6
2.4 Product description 7
2.4.1 Overview 7
2.4.2 Technical data 7
2.4.3 Operating mode 9
2.4.4 System expansions 12
2.4.5 Setting options 14
2.5 Accessories 16
3Handling 17
3.1 Assembly information 17
3.1.1 Mounting conditions 17
3.1.2 Required material and tools 18
3.2 Assembly 19
3.2.1 Mounting the power pack 19
3.2.2 Preparing the installation 20
3.2.3 Mounting the flush actuation (cistern 2H) 23
3.2.4 Mounting the flush plate 31
3.2.5 Connecting external sensors 33
3.3 Commissioning 34
3.3.1 Setting the infrared sensor 34
3.3.2 Setting the flush 36
3.3.3 Setting the Viega Hygiene function 38
3.4 Faults, faults and remedy 43
3.5 Care and maintenance 44
3.5.1 Care tips 44
3.5.2 Replacing the battery 45
3.6 Disposal 46
Table of contents
Flush plate Visign for Public 6 2

1 About these instructions for use
Trade mark rights exist for this document; for further information, go to
viega.com/legal.
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and plumbing experts and trained personnel
nQualified electricians
nOperators
nConsumers
Individuals without the abovementioned training or qualification are not
permitted to mount, install and, if required, maintain this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns of possible life-threatening injury.
WARNING!
This symbol warns of possible serious injury.
CAUTION!
This symbol warns of possible injury.
NOTICE!
This symbol warns of possible damage to property.
About these instructions for use
Flush plate Visign for Public 6 3

This symbol gives additional information and hints.
1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e.g. EN) and/or in Germany
(e.g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The relevant national laws, stand‐
ards, regulations, directives and other technical provisions take priority
over the German/European directives specified in this manual: The
information herein is not binding for other countries and regions; as said
above, they should be understood as a recommendation.
About these instructions for use
Flush plate Visign for Public 6 4

2 Product information
2.1 Standards and regulations
The following standards and regulations apply to Germany / Europe and
are provided as a support feature.
Regulations from section: Fields of application / Mounting conditions
Scope / Notice Regulations applicable in Ger‐
many
Protection area for installation of
the mains adapter in shower and
bath rooms
VDE 0100-701
Regulations from section: Technical data
Scope / Notice Regulations applicable in Ger‐
many
Electrical approvals EN 60950
Electrical approvals EN 60335
Electrical approvals EN 61558
2.2 Safety advice
DANGER!
Danger due to electrical current
An electric shock can lead to burns and serious injury and
even death.
nWork on the electrical system may only be carried out
by trained electricians.
nSwitch off the mains voltage before connecting the
power pack.
Product information
Flush plate Visign for Public 6 5

2.3 Intended use
2.3.1 Areas of application
A flush plate with infrared sensor in public or barrier-free sanitary rooms
offers a practical and hygienic possibility to actuate a flush for users and
carers. In addition, there is the possibility to connect radio controlled or
cabled sensors to the electronic flush actuation, so that e. g. carers can
actuate the flush from a convenient position, without having to be in the
vicinity of the infrared sensor.
An electrical connection must be planned for the elec‐
tronic actuation in the area of the cistern when planning.
Only the large flush volume can be actuated with elec‐
tronic actuation.
Flushes can be actuated at certain times via the Viega Hygiene function
to prevent stagnation in the potable water pipelines.
The flush plate is intended for touchless flush actuation of flushes on
Viega concealed cisterns.
Installation is only possible in the following Viega concealed cisterns:
nCistern model 2H
Ascertain which model is installed before mounting. The following infor‐
mation will help you to determine the model of the cistern installed:
Cistern 2H
The inspection shaft of this cistern is found at a height of approx.
1 metre on the front.
Viega Hygiene function
Suitable cisterns
Product information
Flush plate Visign for Public 6 6

2.4 Product description
2.4.1 Overview
1
2 3
4
5
6
11
7
8
10
912
Fig. 1: Scope of delivery
1 Flush plate
2 Holder for control (for cistern 2H)
3 Holder for control (for cistern 1F)
4 Control
5 Mains adapter 230 V
6 Cable tie
7 Drive unit
8 Fixing panel for motor (for cistern 2H)
9 Holder for motor (for cistern 1F)
10 Bowden cable unit
11 Fixing set for flush plate (with threaded bolts and screws, two of
each)
12 Holder for battery compartment
2.4.2 Technical data
The product has the following technical data:
Product information
Flush plate Visign for Public 6 7

Depending on the setting ( Ä ‘Settings for the infrared sensor’
on page 14), the infrared sensor automatically selects between the
small or large flush volume.
If the external sensor (e. g. a remote button on the handle) offers two
activation options, the electronic actuation can be used to select
between the large or small flush volume.
Close range 0–30 mm
Far range 450–550 mm
Input (mains adapter) 100–240 V AC, 50–60 Hz, 180 mA
Output (mains adapter) 6.5 V DC, 920 mA
Electrical approvals see section Ä ‘Regulations from sec‐
tion: Technical data’ on page 5.
Intervals 24 / 72 / 168 hours
Hygiene flush volumes 3 / 6 / 9 litres
Flush volume
Detection area
Electronics
Hygiene function
Product information
Flush plate Visign for Public 6 8

2.4.3 Operating mode
Fig. 2: Actuation of the flush via an external sensor
A signal is sent to control the flush actuation through an external sensor,
e. g. a button or photo sensor.
Fig. 3: Signal transmission from the control to the motor
The control transmits the electronic signal to the drive unit.
Fig. 4: The motor operates the Bowden cable
The motor opens the drain valve via the Bowden cable.
Electronic actuation of a flush
Product information
Flush plate Visign for Public 6 9

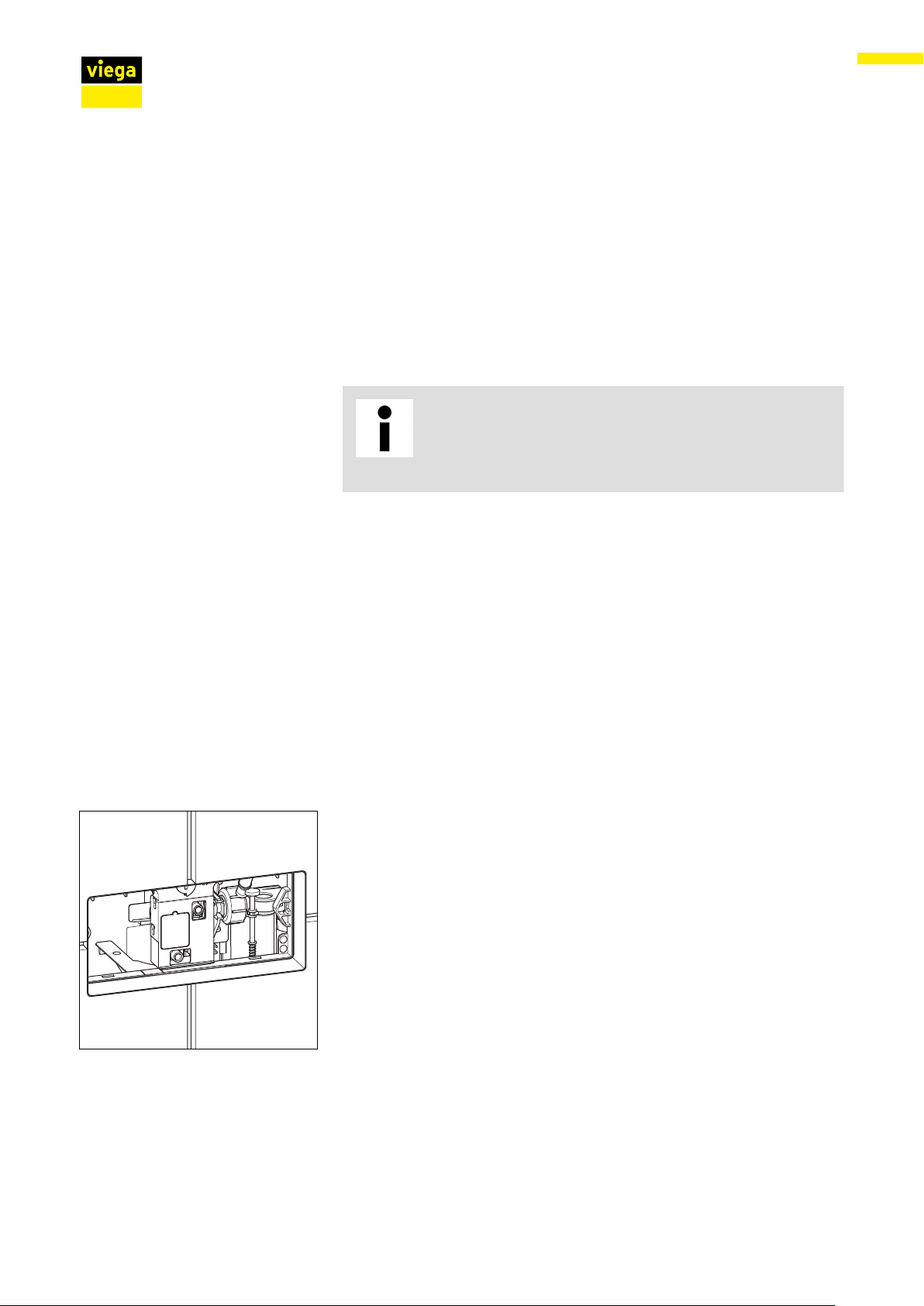

Fig. 5: The water flows into WC via the open drain valve
As long as the drain valve is open, the set flush volume will flow into the
WC.
Product information
Flush plate Visign for Public 6 10

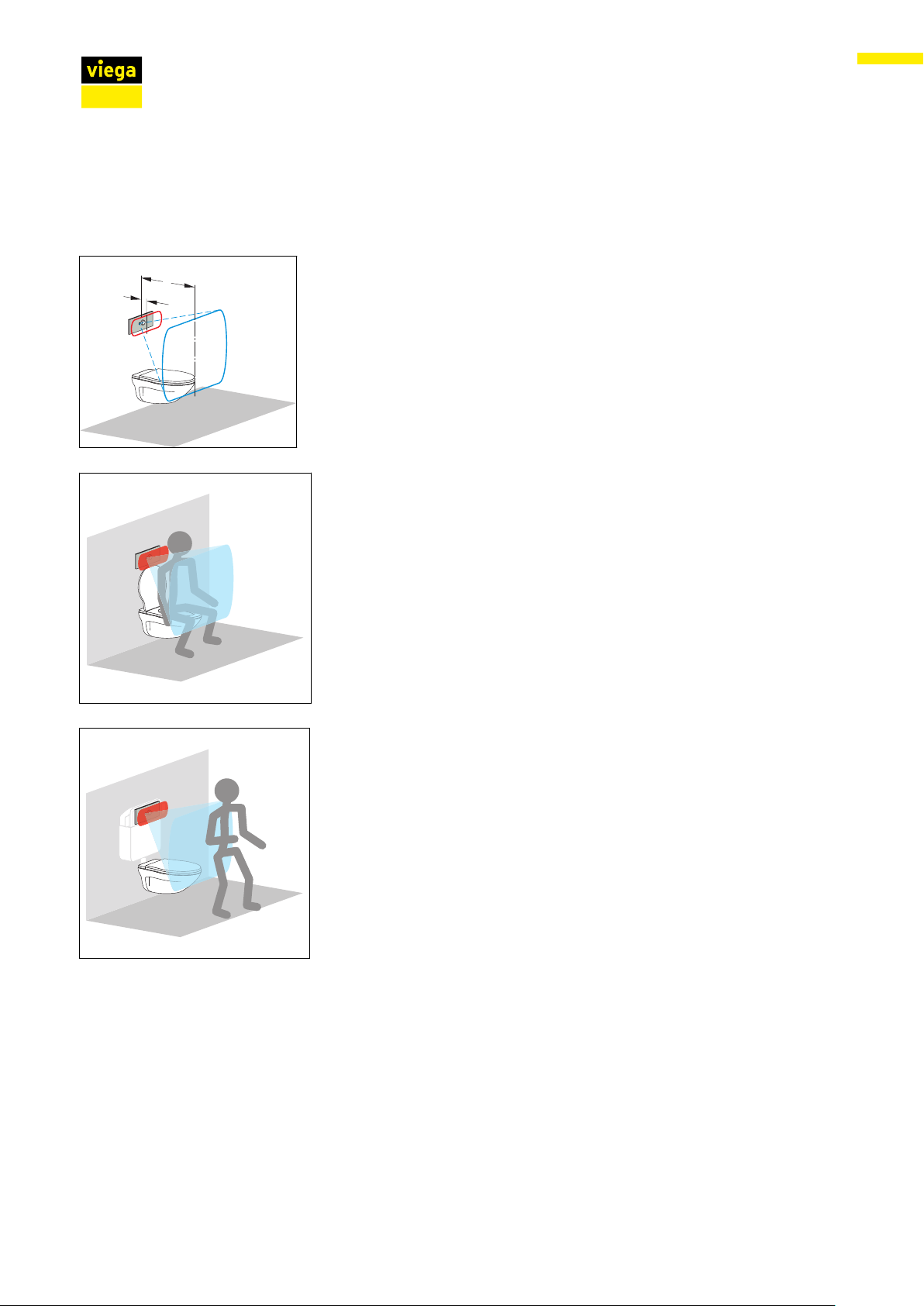

Flush actuation takes place without contact via an infrared sensor on
the flush plate. This sensor differentiates between a close and a far
range.
a: Far range (blue) 450–550 mm
b: Close range (red) 0–30 mm
A flush can be actuated by holding a hand in front in the close range.
If a person stands in the long-distance range for more than 8 seconds,
the flush actuation using the close range is automatically deactivated.
This prevents an unwanted flush actuation.
After the flush is actuated, the close range sensor can then be used to
actuate a second flush by hand.
If a person leaves the far range, a flush is automatically actuated.
If the long range is left within a definable time frame (30, 60 or 90 sec‐
onds), the small flush volume is used. If a person stays for longer, a
flush with the large flush volume takes place.
After use, an additional flush cycle can be actuated through the close
range sensor.
Stagnation can lead to the build up of germs (e.g. legionella) in potable
water pipes. It is important to rinse the pipeline regularly to prevent the
build up of bacteria. The Viega Hygiene function was developed for this
reason.
Flushes can be actuated at certain times with the Viega Hygiene func‐
tion. Interval and flush volume will be set as required and saved by the
control. All settings remain saved during a power cut.
Infrared actuation
b
a
Viega Hygiene function
Product information
Flush plate Visign for Public 6 11

2.4.4 System expansions
The system's range of functions can be expanded through the connec‐
tion of accessories onto the control.
Fig. 6: Connection of the redundant power supply
To create a redundant power supply with an additional battery compart‐
ment as shown, you will need the following accessories:
The battery compartment can be connected for a redundant power
supply using the adapter model 8355.91. The battery compartment is
included in the adapter's scope of delivery.
Redundant power supply
Product information
Flush plate Visign for Public 6 12

Fig. 7: Connection of an external button
One requires the following accessories to be able to connect an addi‐
tional external sensor as shown:
With the extension cable adapter model 8350.36, an additional sensor
can be connected to the infrared sensor.
Additionally required: 1 connection cable sensitive.
Buttons, switches or photo sensors for actuating the flush can be con‐
nected to the control on site via the connection cable sensitive model
8355.90.
Additional external sensors
Product information
Flush plate Visign for Public 6 13

Fig. 8: Connection of radio controlled actuation
One requires the following accessories to be able to connect the
infrared sensor alongside a radio controlled actuation as shown:
With the extension cable adapter model 8350.36, an additional sensor
can be connected to the infrared sensor.
Signals to actuate the flush (e. g. on support hinged handles) sent by
HEWI radio transmitters can be received by the radio receiver model
8350.35.
2.4.5 Setting options
Range of the infrared sensor
The close range is set at 0 to 3 cm.
Additional radio controlled actuation
Settings for the infrared sensor
Product information
Flush plate Visign for Public 6 14

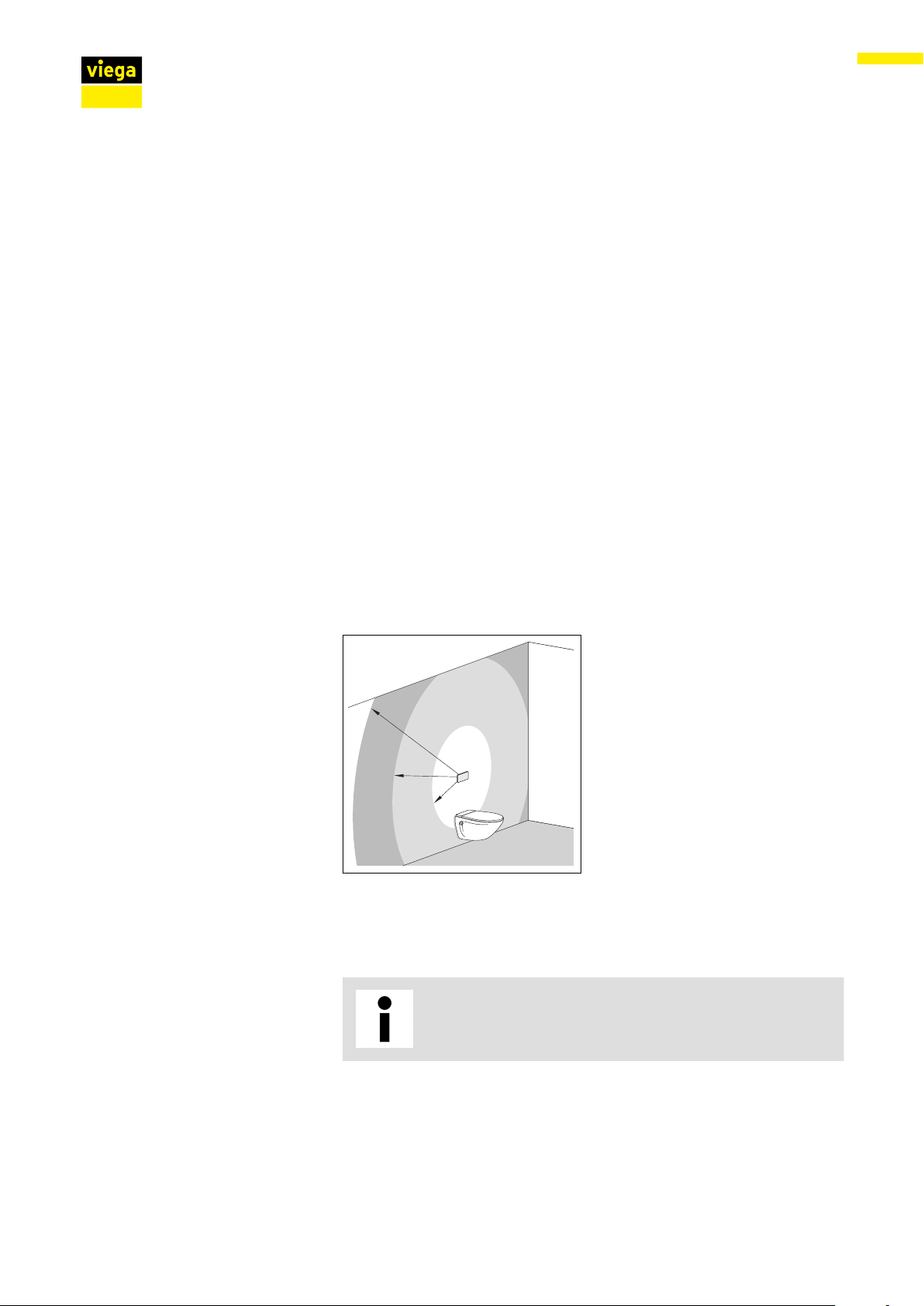

The far range can be set as follows:
nclose range (approx. 450 mm)
nmedium range (approx. 500 mm) (factory setting)
nfar range (approx. 550 mm)
Differentiation of small and large flush volume
The differentiation between small and large flush volume takes place
automatically depending on how long the WC is used. The differentia‐
tion is deactivated in the factory settings.
The following settings are possible:
nDifferentiation of small and large flush volume deactivated. This set‐
ting is the factory setting.
nLarge flush volume in the case of use of longer than 30 seconds.
In the case of shorter use the small flush volume is used.
nLarge flush volume in the case of use of longer than 60 seconds.
In the case of shorter use the small flush volume is used.
nLarge flush volume in the case of use of longer than 90 seconds.
In the case of shorter use the small flush volume is used.
Lid in front of sensor
This setting is for the case that an open lid covers the sensor. The func‐
tion is deactivated in the factory settings. If the function is activated, a
flush cycle is actuated as soon as the lid is removed from the sensor
zone.
However, during planning, we still recommend that the lid is not placed
in front of the sensor in order to ensure the device works perfectly.
Flush volume
This criterion relates exclusively to the flush volume for flush cycles
actuated electronically. The flush volume for hygiene flushes is set sep‐
arately.
The following settings are possible:
nSmall flush volume 3 litres, large flush volume 4.5 litres
nSmall flush volume 3 litres, large flush volume 6 litres (factory setting)
nSmall flush volume 4 litres, large flush volume 9 litres
Interval (Viega Hygiene function)
The following settings are possible:
nHygiene function deactivated (factory setting)
nHygiene flush 24 hours after the last use
nHygiene flush 72 hours after the last use
nHygiene flush 168 hours after the last use
Hygiene (Viega Hygiene function)
The following settings are possible:
nHygiene flush volume 3 litres (factory setting)
nHygiene flush volume 6 litres
nHygiene flush volume 9 litres
Flush settings
Product information
Flush plate Visign for Public 6 15

2.5 Accessories
Installation set
The set model 8350.14 contains a hollow wall socket to house the
mains adapter and an conduit pipe with the right clip to connect the cis‐
tern (2H, 1F and Standard 2S).
Extension cable
2 metre cable model 8352.690 for the extension of the power supply to
a maximum of 4.75 metres in length.
Optional accessories
Product information
Flush plate Visign for Public 6 16

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
The model may only be used for the models mentioned in Ä Chapter
2.3.1 ‘Areas of application’ on page 6.
The power pack should be mounted in an easily accessible place to
allow subsequent access.
Before beginning to tile, a concealed socket should be installed for the
power pack with protective pipe to the cistern (installation set
Ä ‘Optional accessories’ on page 16).
If necessary, the power pack cable can be extended to a length of
4.75 metres (two extension cables Ä ‘Optional accessories’
on page 16).
X1
X2
X3
Fig. 9: Installation position of the power pack
X1 max. 0.75 m
X2 max. 2.75 m with an extension cable (article number 628 505)
X3 max. 4.75 m with two extension cables (article number 628 505)
An extension of the mains supply by more than 5 metres
can lead to a situation in which the power is not sufficient
to actuate the flush.
Installation position of the power pack
Handling
Flush plate Visign for Public 6 17

Protected zone
Fig. 10: Protected zones
According to the applicable regulations, installation of the power pack in
the protected zones 0 and 1 of shower rooms and bathrooms is not per‐
mitted, see Ä ‘Regulations from section: Fields of application /
Mounting conditions’ on page 5.
Viega recommends installing the power pack outside of the protected
zones 0–2.
If external sensors are to be connected to the control, their connection
cables or empty pipes must be laid in the cistern before tiling is begun.
3.1.2 Required material and tools
The following material is required for mounting:
nIf necessary, empty pipe from power pack into the cistern
nIf necessary, accessories for the extension of the system
Ä Chapter
2.4.4 ‘System expansions’ on page 12
The following tools are required for mounting:
nFlat-blade screwdriver
nTorx screwdriver (T 10)
nFork spanner (size 19)
nBlade (cutter)
External sensors (optional)
Material
Tool
Handling
Flush plate Visign for Public 6 18

3.2 Assembly
3.2.1 Mounting the power pack
DANGER!
Danger due to electrical current
An electric shock can lead to burns and serious injury and
even death.
nOnly allow electrical work to be carried out by qualified
electricians.
nAlways de-energise the connection cable before work
is commenced.
Requirements:
nA 230 V mains connection is available on site.
nThe installation position of the power pack complies with the require‐
ments in acc. with
Ä ‘Installation position of the power pack’
on page 17.
nThe connection cable is de-energised.
▶Remove approx. 1 cm of the insulation on the connection cable.
▶Push the connection cable into the terminals.
Handling
Flush plate Visign for Public 6 19

3.2.2 Preparing the installation
The following work stages and diagrams differ depending
on the cistern being used. The relevant steps are marked
accordingly.
Requirements:
nThe cistern is fitted into the pre-wall.
nIf external sensors are to be connected, the cables must be laid
through to the cistern.
nThe electrical connection is laid all the way into the cistern.
nThe pre-wall is tiled.
▶Cut into shaft cover.
▶Remove shaft cover.
▶Score the revision shaft along the edge of the tiles with a knife.
Angle the knife to do this so that the cut is made flush to the surface
of the wall.
Handling
Flush plate Visign for Public 6 20
