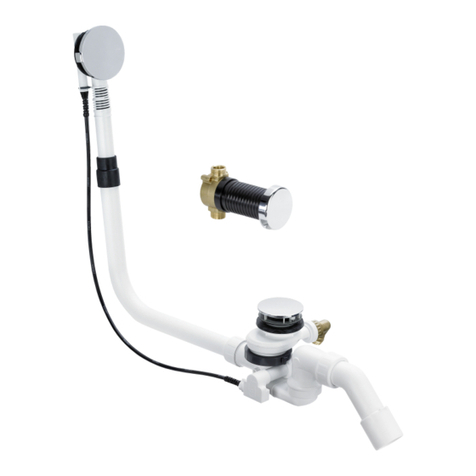

Viega Multiplex Trio Visign MT3 User manual

for drain/overflow functional unit
Model Year built:
6161.13 from 06/2015
en_INT
Multiplex Trio equipment set Visign MT3
Instructions for Use

Multiplex Trio equipment set Visign MT3 2 from 10

Table of contents
1About these instructions for use 4
1.1 Target groups 4
1.2 Labelling of notes 4
1.3 About this translated version 5
2Product information 6
2.1 Intended use 6
2.1.1 Areas of use 6
2.2 Product description 6
2.2.1 Overview 6
2.2.2 Equipment versions 6
3Handling 7
3.1 Assembly information 7
3.1.1 Mounting conditions 7
3.1.2 Required tools and materials 7
3.2 Assembly 7
3.2.1 Mounting equipment set 7
3.2.2 Demounting rotatable rosette 8
3.3 Control 8
3.4 Maintenance 10
3.5 Disposal 10
Table of contents
Multiplex Trio equipment set Visign MT3 3 from 10

1 About these instructions for use
Trade mark rights exist for this document, further information can be
found at viega.com/legal .
1.1 Target groups
The information in this instruction manual is directed at the following
groups of people:
nHeating and sanitary professionals and trained personnel
nOperators
nConsumers
It is not permitted for individuals without the abovementioned training or
qualification to mount, install and, if required, service this product. This
restriction does not extend to possible operating instructions.
The installation of Viega products must take place in accordance with
the general rules of engineering and the Viega instructions for use.
1.2 Labelling of notes
Warning and advisory texts are set aside from the remainder of the text
and are labelled with the relevant pictographs.
DANGER!
This symbol warns against possible life-threatening injury.
WARNING!
This symbol warns against possible serious injury.
CAUTION!
This symbol warns against possible injury.
NOTICE!
This symbol warns against possible damage to property.
Notes give you additional helpful tips.
About these instructions for use
Multiplex Trio equipment set Visign MT3 4 from 10

1.3 About this translated version
This instruction for use contains important information about the choice
of product or system, assembly and commissioning as well as intended
use and, if required, maintenance measures. The information about the
products, their properties and application technology are based on the
current standards in Europe (e. g. EN) and/or in Germany
(e. g. DIN/DVGW).
Some passages in the text may refer to technical codes in Europe/
Germany. These should serve as recommendations in the absence of
corresponding national regulations. The pertinent national laws, stand-
ards, regulations and guidelines, as well as other technical guidelines,
have priority over German/European guidelines in this manual: The
information is not binding for other countries and territories and should,
as mentioned, be considered as support.
About these instructions for use
Multiplex Trio equipment set Visign MT3 5 from 10

2 Product information
2.1 Intended use
2.1.1 Areas of use
The equipment set is exclusively suitable for use with a Multiplex Trio
inlet / drain / overflow for bathtubs with a 52 mm drain hole.
The model described here cannot be combined with Multi-
plex products. Separate equipment sets with other model
numbers are available for the Multiplex drains / and over-
flows.
2.2 Product description
2.2.1 Overview
The following components are included in the scope of delivery of the
equipment set:
231
Fig. 1: Component overview
1 - flange cover
2 - rotatable rosette
3 - valve cone
2.2.2 Equipment versions
The model is available in the following versions:
Version Article number
chrome-plated 725 792
designer white 725 822
Product information
Multiplex Trio equipment set Visign MT3 6 from 10

3 Handling
3.1 Assembly information
3.1.1 Mounting conditions
The following requirements exist for the mounting of the equipment set:
nThe bathtub is fully installed.
nA Multiplex Trio drain and overflow is installed.
nAll other tasks on the building site have been completed.
3.1.2 Required tools and materials
The following tools are required for mounting:
nslotted screw driver
No additional material is required for the complete mounting of the
product.
3.2 Assembly
3.2.1 Mounting equipment set
To avoid damage to the rosette and valve cone, only mount the equip-
ment set after finishing all other work on the building site. Proceed as
follows:
Place the flange cover onto the inlet flange with the straight side
facing downwards and affix.
Align and fit rotatable rosette.
Fit valve cone.
Turn rotatable rosette to check function and alignment.
The opening of the valve cone should be 2–3 cm wide when
opened. If necessary, regulate the width of the opening of the valve
cone using the adjusting screw (see next step).
Tool
Material
Handling
Multiplex Trio equipment set Visign MT3 7 from 10

Set the valve cone with the help of the adjusting screw and counter
with union nut.
3.2.2 Demounting rotatable rosette
If the rotatable rosette on the overflow is to be removed, proceed as fol-
lows to prevent damaging the rosette and the flange cover:
Remove the rotatable rosette in the axial direction.
Remove the flange cover at the marked points.
Remove flange cover.
3.3 Control
The drain / overflow are controlled via rotatable rosette on the overflow.
Proceed as follows to open or close the drain:
Handling
Multiplex Trio equipment set Visign MT3 8 from 10

Turn rotatable rosette to the left.
ðThe drain closes itself.
Turn rotatable rosette to the right.
ðThe drain opens itself.
There is a regulator for the water jet on the underside of the rotatable
rosette. Proceed as follows to adjust the water jet:
Push the flow control backwards or forwards with your finger. The
water flows closer or further away from the side of the bathtub
depending on the direction set.
Setting the water inlet direction
Handling
Multiplex Trio equipment set Visign MT3 9 from 10

3.4 Maintenance
NOTICE!
Risk of damage due to unsuitable cleaning agent.
The following cleaning agents can damage chrome-plated
surfaces and therefore may not be used:
– scouring agent
– abrasive sponges
– lime, plaster or cement dissolver
– solvents or other acidic cleaning agents
Normal soap or a mild cleaning agent can be used for regular care and
prevention of lime scale on the rotatable rosette and valve cone. Under
no circumstances should scouring agent or scratching objects be used.
Strong stains, even around the drain unit and the siphon, can be
removed using typical household cleaner. It should be noted that the
cleaning agent should be rinsed off after the prescribed soaking time.
There should be no residue on the components.
3.5 Disposal
Separate the product and packaging materials (e. g. paper, metal,
plastic or non-ferrous metals) and dispose of in accordance with valid
national legal requirements.
Handling
