Viessmann Vitotronic 200 KW2 User manual

Vitotronic 300, type KW3
Vitotronic 200, type KW2
VITOTRONIC 200
VITOTRONIC 300
Operating instructions
for system users
Heating system with
weather-compensated digital boiler and heating circuit control
5592Ă363ĂGBăăă7/2002 Please eep safe

2
Introductory information
For your safety
Please follow these safety instructions closely to prevent accidents and
material losses.
If you smell gas
Ho not smoke! o not use naked
flames or cause sparks (e.g. by
switching lights or electrical
appliances on and off).
HOpen windows and doors.
HClose the gas shut-off valve.
HNotify your heating engineer/
installation contractor from outside
the building.
HObserve the safety regulations of
your gas supplier (see gas meter)
and of your heating engineer (see
commissioning/training report).
In an emergency
HImmediately isolate the mains
electrical supply, e.g. by removing
a separate mains fuse or by means
of a mains electrical isolator
(unless you smell gas).
HClose the shut-off valves of the
main fuel lines.
HIn case of fire, use an appropriate
fire extinguisher.
Wor on the equipment
Installation, initial start-up, inspection,
maintenance and repairs must only
be carried out by a competent person
(heating engineer/installation
contractor).
Before working on the equipment/
heating system, isolate the mains
electrical supply (e.g. by removing a
separate mains fuse or by means of a
mains electrical isolator) and safeguard
against unauthorised reconnection.
When using gas as fuel, also close
the shut-off valve and safeguard
against unauthorised re-opening.
Installation of additional components
The installation of additional compo-
nents which have not been tested
together with the boiler can adversely
affect the boiler function.
Our warranty does not cover and we
accept no liability for damage caused
by the installation of such components.
Boiler room conditions
Ho not permit air pollution by
halogenated hydrocarbons (e.āg. as
contained in aerosols, paints,
solvents and cleaning agents).
Ho not use rooms with high levels
of dust.
Ho not use rooms with permanently
high levels of humidity.
HThe room should be frost protected
HMax. ambient temperature 35ĂºC.
HEnsure good ventilation and do not
close or obstruct any vents (where
provided).
Notice of completion
The user of any combustion equipment must notify the local chimney sweep
within four weeks of completion (in Germany).
5592Ă363ĂGB

3
Contents
Index
Introductory information
For your safetyĂ 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Notice of completionĂ 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quic start
Where to find the controlsĂ 4
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Your heating system is pre-set at the factoryĂ 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Summary of controls and indicatorsĂ 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating circuit selection ć before adjustments and scanningĂ 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the heating program (summer, winter)Ă 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the room temperature (day and night temperature)Ă 11. . . . . . . . . . . . . . . . . . . . . . . . . .
Scanning temperatures and operating conditionsĂ 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Utilising the Comfort function
Setting up the party modeĂ 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Activating economy modeĂ 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Start-up/shutdown
Starting the heating systemĂ 15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Shutting down the heating systemĂ 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifying and scanning time programs
General notesĂ 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Central heatingĂ 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
HW heating and HW circulation pump 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Settings
Changing the HW temperatureĂ 23
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjusting the economy mode for holiday periods 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing date and timeĂ 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the required languageĂ 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Modifying the boiler heating characteristicsĂ 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
What to do if ...
Special displaysĂ 31
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
iagnosis and troubleshootingĂ 32. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RepairsĂ37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy saving tipsĂ39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Key word indexĂ 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5592Ă363ĂGB

4
Quick start
Where to find the controls
You can change all settings for your heating system centrally at the control
unit and its integral programming unit.
You may also make such changes on the remote control unit, if your system
is equipped accordingly.
Remote control operating instructions
Please observe particularly the chapter "Special displays" in these
instructions.
The control unit is located in a
"drawer".
To open, pull the programming unit
forward, flip it up and lock it in a
position where you can clearly read
the details in the display window.
AProgramming unit
BProgramming unit flap
CHinged cover
5592Ă363ĂGB
A
B C

5
Quick start
Your heating system is pre-set at the factory
The control unit is preset at the factory for standard operation. Your heating
system is now ready to operate.
You may change the factory settings in accordance with personal
requirements.
Day of the wee and time (CET)
These were set up in the factory. The
system automatically changes over
between summer and winter.
Heating program
This is set to "Heating and HW",
i.e. central heating and HW are
operated (if a HW cylinder is
installed) in accordance with the
programmed times.
Time programs
Between the hours of 6.00 and
22.00Ăhrs, the central heating
operates with standard room
temperatures, and between 5.30 and
22.00 hrs HW is produced (if a HW
cylinder is installed).
Between 22.00 and 6.00Ăhrs, central
heating operates with a reduced
room temperature (set to frost
protection, 3 ºC).
5592Ă363ĂGB

Boiler temperature
Mo
.
6
Quick start
Summary of controls and indicators
Controls with open flap
Mains switch (page 15)
Fuses
Unblocking excess temperature
Control thermostat
Flap (page 4)
Test switch (only for service purposes)
Emissions test switch (page 33)
ON/OFF lamp (green) (page 15, 16)
Fault indicator (red) (page 32)
5592Ă363ĂGB

Boiler temperature
Mo
7
Quick start
Summary of controls and indicators (cont.)
Economy mode (page14)
Heating programs (pageĂ10)
Standard room temperature (page 11)
Party mode (page 13)
Basic setting (page 8)
Help (page 12, 27)
Confirmation/acknowledgement
Symbols (page 8)
isplay window
Programming unit flap
(page 4)
Adjusting values
Holiday program (page 24)
HW temperature (page 23)
ate/time (page 5, 26)
Heating curve level (page 28)
Heating curve slope
(page 28)
Reduced room temperature
(page 11)
Time program (pageĂ17)
Heating circuit selection
(page 9), for Vitotronic 200
only ! and ?
5592Ă363ĂGB
7

8
Quick start
Summary of controls and indicators (cont.)
Display window symbols
(these symbols are not always
displayed, but appear subject to the
system version and operating
conditions)
eIf frost is likely
sfor central heating with
standard room temperature
mfor central heating with
reduced room temperature
wHW heating,
cylinder loading pump running
pHeating circuit pump running
VMixer "Open"
vMixer "Closed"
ABurner ON
QRadio clock reception
Display window contrast settings
Open the programming unit flap and
press d, simultaneously set the
contrast using a or b.
Basic setting e
All modified values are returned to
their factory settings.
Flashing values
etails which flash in the display
indicate that modifications may be
made.
5592Ă363ĂGB

9
Quick start
Heating circuit selection ć before adjustments and scanning
For heating systems with only one heating circuit, the heating circuit selection
key ! and one heating program key are illuminated and you may begin all
settings steps.
For heating systems with two or three heating circuits, select the respective
heating circuit before making any adjustments or before scanning the heating
circuit concerned.
Heating circuit selection key !: heating circuit 1 without mixer
Heating circuit selection key ?: heating circuit 2 with mixer
Heating circuit selection key §: heating circuit 3 with mixer (only
Vitotronic 300)
Your heating contractor will label each heating circuit individually.
! or ? or §; the following keys
will then illuminate:
HHeating circuit selection key
Hcurrent heating program
(see page 10).
HParty or economy mode, if set up
(see page 13 and 14).
If you have not selected the required
heating circuit before changing
settings, the display window will
show "First press key 1 or 2" or
"First press key 1, 2 or 3".
You can now begin setting up the
selected heating circuit.
Please note:
The key illumination will extinguish
after a short time if you make no
further changes.
5592Ă363ĂGB
Boiler temperature
Mo

10
Quick start
Selecting the heating program (summer, winter)
1. !, ? or §; the respective key
will then illuminate.
2. Select the heating program with
keys G, L or K.
Heating and DHW
Example: winter and transitional periods
HCentral heating with alternate standard and reduced room
temperature (frost protection) acc. to programmed times
HHW heating (if a HW cylinder is installed) and HW
circulation pump (if installed) ON acc. to set times
HFrost protection for boiler and HW cylinder
Please note:
If this key is illuminated,
Hsymbol "s" appears, if central heating with standard room
temperature is active,
Hsymbol "m" appears, if central heating operates with a
reduced room temperature higher than ĂºC,
(see pageĂ11).
Only DHW
Example: Summer
HNo central heating
HHW heating (if a HW cylinder is installed) and HW
circulation pump (if installed) ON acc. to set times
HFrost protection for boiler and HW cylinder
Standby mode
HNo central heating
HNo HW heating
HFrost protection for boiler and HW cylinder
Please note:
The circulation pumps are briefly started every 24Ăhours to
prevent them from seizing up.
5592Ă363ĂGB

11
Quick start
Room temperature
With the "Heating and HW" program, the central heating operates
alternately with "Standard room temperature" and "Reduced room
temperature" acc. to set times (see page 17).
Change the standard room
temperature (day temperature)
Example:
For those times when you are at
home and wish to have a
comfortable ambience.
Basic factory setting:
20ĂºC from 6.00 until 22.00Ăhrs.
"Standard room temperature" is
adjustable from 3Ăto 37ĂºC.
1. !, ? or §; the respective key
will then illuminate.
2. Set the required temperature with
the rotary selectorĂĘts".
Standard room temp.
20 ºC
s
Change the reduced room
temperature (night temperature)
Example
For night and other times when you
are not in the living area.
Basic factory setting:
Frost protection 3ĂºC
from 22.00 until 6.00Ăhrs.
"Reduced room temperature" is
adjustable from 4Ăto 37ĂºC.
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Efor "Reduced room temp.";
the current temperature will
flash.
Reduced room temp.
14 ºC
m
"Frost protection" appears
in the display, if
temperature 3 has been
selected.
3. a/bfor the required
temperature.
4. d as confirmation; the
temperature no longer
flashes and is now saved.
5592Ă363ĂGB

12
Quick start
Scanning temperatures and operating conditions
Subject to connected components and settings made, you can scan current
temperatures and operating conditions.
HHoliday program with departure
and return date, if programmed.
HOutside temperature
HBoiler water temperature
HFlue gas temperature,
if a sensor is installed.
Homestic hot water temperature
HFlow temperature,
for heating circuit with mixer.
HReturn temperature,
for heating circuit with mixer,
subject to a sensor being installed.
HRoom temperature,
if a Vitotrol remote control is
installed.
HHours run of the burner
HNumber of burner start-ups
HFuel consumption subject to the
appropriate settings having been
made by the heating contractor.
HTime
Hate
HBurner On/Off
HCylinder loading pump On/Off
HHW circulation pump On/Off
HHeating circuit pump On/Off
HMixer open/closed
for heating circuit with mixer
0 ¢ Close(d)
1 to 99 (%)
100 ¢ Open
HLanguage
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. cfor "Outside temperature".
Outside temperature
i 9ºC
3. a/ābfor further scans.
4. cto end scanning.
Heating program, scan party or
economy mode
Press heating circuit selection key;
the key of the active heating
program will illuminate (see
page 9).
5592Ă363ĂGB

13
Utilising the Comfort function
Setting up the party mode
If you wish to heat and provide HW (subject to a HW cylinder being
installed) in the short term and independent of the set heating and time
program.
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. M for "Party mode"; the party
temperature flashes.
Party mode
20 ºC
3. If you want to change the party
temperature:
a/bfor the required
temperature.
4. d as confirmation; the
temperature no longer
flashes and is now saved.
End party mode
HThe party mode ends with the next
automatic change to central
heating at "Standard room
temperature".
HIf you want to prematurely
terminate party mode, press the
heating circuit selection key again
and M; the key illumination
extinguishes.
Heating DHW once outside the
programmed periods
Hnot in heating program "9", and
not during holiday program "j"
HThe HW temperature must be
below the set value (see page 23).
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. M for "Party mode".
3. d to confirm; HW will be
heated up.
4. After approx. 10 seconds, press
button M again.
5592Ă363ĂGB

14
Utilising the Comfort function
Activating economy mode
If you want to heat briefly in economy mode whilst the heating mode is set to
operate at standard room temperature.
In economy mode, the set room temperature will be reduced automatically.
Economy mode is only possible in heating programĂ"rw" (see page 10).
Activating economy mode
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Nfor "Economy mode".
Economy mode
Terminating economy mode
HThe economy mode ends
automatically when the central
heating is next changed to
"Reduced room temperature".
HIf you want to prematurely
terminate economy mode, press
the heating circuit selection key
again and N; the key illumination
extinguishes.
5592Ă363ĂGB

A
15
Start-up/shutdown
Starting the heating system
The initial start-up and matching of the control unit to local conditions and
the structural characteristics of the building must be carried out by your
heating contractor.

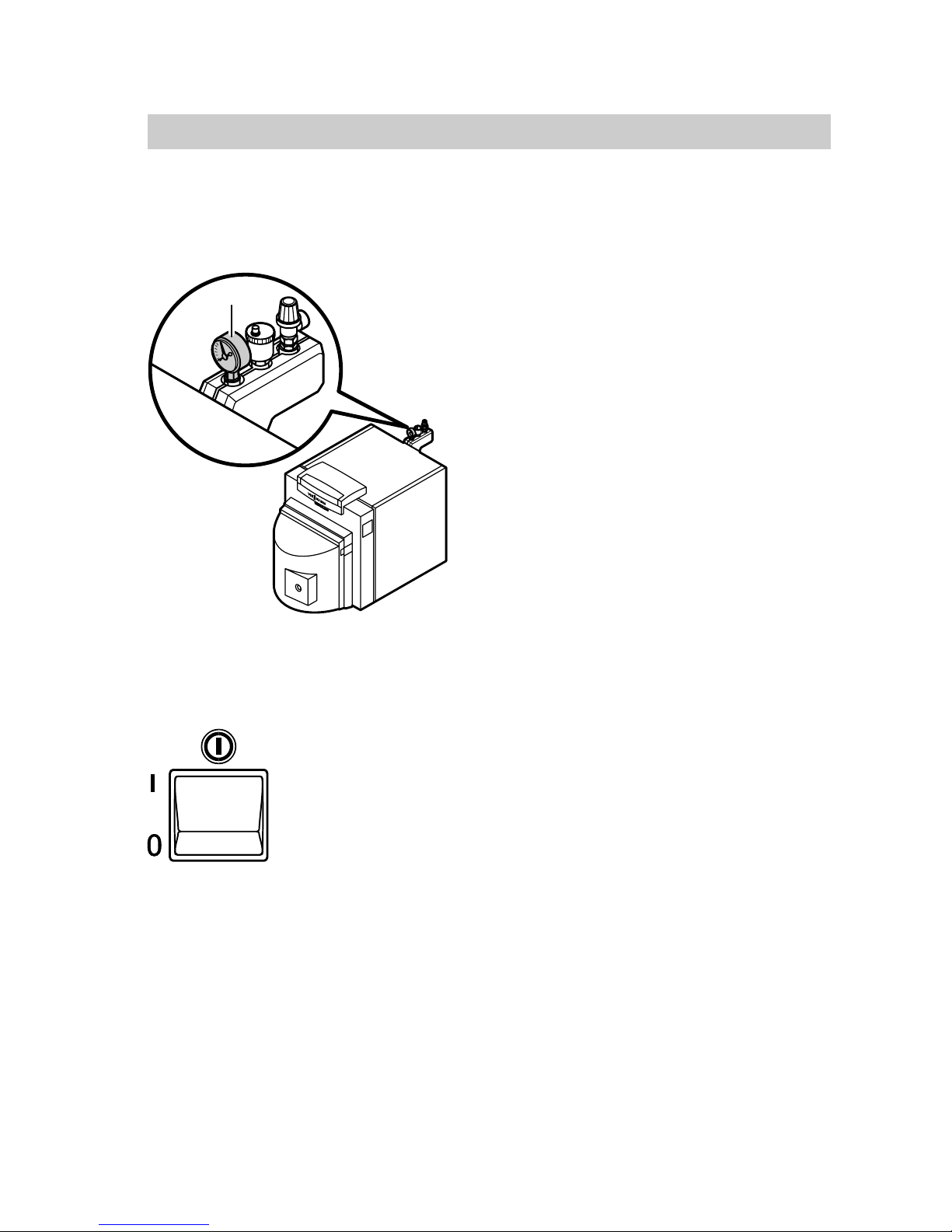

1. Check the pressure of your
heating system on the pressure
gauge A:
If the needle is below the red
marker, the system pressure is too
low ć in which case, top up with
water or contact your heating
engineer.
2. Open the shut-off valves in the oil
supply pipes (at the oil tank and
filter) or open the gas shut-off
valve.
3. Switch on the mains supply, e.g.
at a separate fuse or a mains
isolator.
4. Switch on the main ON/OFF
switchĂ"8"; standby mode is then
indicated by the green lamp (ON
lamp); shortly after the display will
indicate the boiler temperature
(see page 6).
Your heating system and, if
installed, your remote control unit
are now ready to operate.
5592Ă363ĂGB

16
Start-up/shutdown
Shutting down the heating system
If you intend shutting down your heating system for a certain time, e.āāg.
during a summer holiday, change to Standby mode (see "Selecting heating
program" on pageĂ10).
Shut down your heating system completely, if it will not be needed for longer
periods of time (several months).
Before you shut down your heating system for longer periods it would be
advisable to contact your local heating contractor.
Where necessary, your contractor can take certain measures, e.āāg. protecting
the system against frost or preserving the heating surfaces.
1. Switch off the main ON/OFF
switch "8" .
The green light (ON lamp)
extinguishes.
2. Close the shut-off valves in the oil
supply pipes (at the oil tank and
filter) or the gas shut-off valve,
whichever applies.
3. Isolate the system from the mains
electricity supply, e.g. by
removing a separate fuse or by
means of a mains electrical
isolator.
As the system is now voltage free,
the heating system has no frost
protection.
Please note:
All settings remain intact.
5592Ă363ĂGB

17
Modifying and scanning time programs
General notes
You can set time programs for central heating, for HW heating (subject to a
HW cylinder being installed) and the HW circulation pump (if installed).
The HW circulation pump ensures that hot water is available at the draw-off
points at short notice.
The time program comprises four time phases, i.e.
Hfor central heating, up to four changes between "Standard room
temperature" and "Reduced room temperature" can be programmed.
HHW heating and HW circulation pump can be activated/deactivated up to
four times per day.
At the factory, phase 1 is set for all weekdays, i.e. in this phase all rooms are
heated at standard room temperature, HW is produced and the HW
circulation pump is activated.
The following keys are allocated to the time programs:
Key Time program for Basic factory setting
ACentral heating Standard room temperature:
from 6.00 to 22.00 hrs
BHW heating On:
5.30 to 22.00 hrs
CHW circulation pump On:
5.30 to 22.00 hrs
You can select identical time programs for all weekdays or individual ones for
each weekday.
Take the response time of your heating system into consideration when
setting the time programs. Select correspondingly earlier start-up and
shutdown times.
5592Ă363ĂGB

18
Modifying and scanning time programs
Central heating
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Afor "Central heating time
program".
Please note:
If you want to terminate the time
program early, press A again
and confirm with d.
3. a/bto
"1ć7" will be displayed, if
you want to set up the
same time phases for all
weekdays
C H time program
1-7
or
"Mo", "Tu" etc. will be
displayed, if you want to
set different time phases
for the displayed weekday.
C H time program
Mo
Please note:
If different time phases are set
for individual weekdays, and you
want to set up identical time
phases for all weekdays, press
d if the display shows "1Ĉ7".
All time phases are returned to
their original condition
(see page 17).
ă4. dfor confirmation; "Central
heating time phaseĂ1" will
then be displayed.
Press a if you want to skip a
time phase.
ă5. dfor confirmation; "Central
heating time phaseĂ1 ON"
will then be displayed.
ă6. a/bfor the start time of the
heating phase.
ă7. dfor confirmation; "Central
heating time phaseĂ1
OFF" will then be
displayed.
ă8. a/bfor the end time of the
heating phase.
ă9. dfor confirmation; "Central
heating time phaseĂ2 ON"
will then be displayed.
10. Proceed for the setting up of the
start and end of heating phases
2ĂtoĂ4 as under pointsĂ6 to 9.
5592Ă363ĂGB

19
Modifying and scanning time programs
Central heating (cont.)
Scanning time phases
Proceed as per page 18, but without
activating a or b.
Time phase summary
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. A/cPress and hold down
simultaneously; the set
time phases will then be
displayed on a linear time
graphic.
1-7
Deleting time phases
Example:
You want to heat the whole day with
reduced room temperature.
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Afor "Central heating time
program"
3. duntil the required "Central
heating time phase OFF" is
displayed.
4. buntil "ćĂćĂ:ĂćĂć" is displayed
for the end time.
C H phase 1 OFF
1-7 Ă Ă
5. dto confirm, until the boiler
temperature is displayed.
5592Ă363ĂGB
03691215182124

20
Modifying and scanning time programs
DHW heating and DHW circulation pump
The time program for HW heating and HW circulation pump is set to
Automatic mode, i.āāe. the HW heating operates parallel with the time
program, but starts 30 minutes earlier.
The HW circulation pump operates parallel to the HW heating time
program.
Should you not wish to operate in automatic mode, you can also set up
individual time programs.
If you want to heat DHW once outside the set time program, see page 13.
The following explains the setting up of a time program using HW heating
as an example. Set up the HW circulation pump time program in the same
way; also note the table on page 17.
Setting up automatic mode
(if necessary)
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Bfor "DHW time program".
3. a/ābfor "Automatic?", if
"Automatic?" is not already
displayed.
4. dto confirm;
the display changes to that
of the boiler temperature.
Setting up an individual time
program
Press the following keys:
1. !, ? or §; the respective key
will then illuminate.
2. Bfor "DHW time program".
Please note:
If you want to terminate setting up
a time program, press B again
and confirm with d.
3. a/ābfor "Individual?", if
"Individual?" is not already
displayed.
4. dfor confirmation.
5592Ă363ĂGB
