ViewSonic VOT125 User manual

VOT125 Series
CHOOSE YOUR PC MINI
The ViewSonic®VOT125 PC Mini is the perfect compact
solution for business and home users who demand high
performance computing. Powered by Ultra Low Voltage,
Intel® ULV processors in a space saving prole, VOT125 offers
the ultimate in smarter, greener computing. It features a green
centric design using 90% less plastic and consuming up to 90%
less energy compared to a traditional tower PC. Whether it
is placed on the desktop or VESA®mounted to the back of
any display, the VOT125 creates a truly efcient workspace.
Standard features include 2GB internal memory, 250GB hard
drive, four USB 2.0 ports, DVI/HDMI outputs, and Ethernet/
wireless internet connections. Choose your preferred energy
saving Intel ULV processor, to customize your own VOT125 and
experience modern computing with a much smaller footprint,
on your desk and on the planet.
Smarter, Greener Computing
Choose from these Intel®ULV (Ultra Low Voltage) Processors
– Intel®Celeron®M Processor ULV 743 (VOT125-01)
– Intel®Celeron®Processor SU2300 (VOT125-02)
– Intel®Pentium®Processor SU4100 (VOT125-03)
– Intel®Core™2 Duo Processor SU7300 (VOT125-04)
Windows 7®Home Premium
VESA®mount kit (to attach to your display)
and desktop stand included
>
>
>
>
Green Design – Intel ULV processor and 0.6L form
factor design for less power, less plastic and less cables
Connectivity include: DVI-I, HDMI outputs, four USB
2.0 ports, 3-in-1 card reader
Internet capability: Gigabit Ethernet LAN
and 802.11 b/g/n wireless LAN
Kensington®lock slot provides hardware security
>
>
>
>
Desktop or display-mount options.
Monitor sold separately.

1
2
4
75 6
3
13
12
14
VOT125 Series CHOOSE YOUR PC MINI
CORE CPU ULV Processor Type Intel®Celeron®743 (VOT125-01)
Intel®Celeron®SU2300 (VOT125-02)
Intel®Pentium®SU4100 (VOT125-03)
Intel®Core™2 Duo SU7300 (VOT125-04)
CPU Processor Speed 1.30GHz, 1M Cache, 800MHz FSB, Single Core (VOT125-01)
1.20GHz, 1M Cache, 800MHz FSB, Dual Core (VOT125-02)
1.30GHz, 2M Cache, 800MHz FSB, Dual Core (VOT125-03)
1.30GHz, 3M Cache, 800MHz FSB, Dual Core (VOT125-04)
Chipset Intel GS40 (VOT125-01/02/03) or GS45 (VOT125-04)
MEMORY 2GB DDR2 SDRAM 800MHz
SOFTWARE Operating System Windows®7 Home Premium
HARD DRIVE Capacity 250GB SATA 5400RPM
COMMUNICATION Ethernet LAN 10/100/1000 Gigabit Ethernet
Wireless LAN 802.11 b/g/n
INPUT/OUTPUT USB 2.0 (x4)
DVI out, HDMI out
RJ45 Gigabit Ethernet LAN
3-in-1 card reader (SD, MMC, MS)
Microphone jack
Earphone jack
POWER Power Adapter 19V DC; 65W adapter
Power Cord 3-pin AC plug
OPERATING Temperature 32–104ºF (0–40ºC)
CONDITIONS Humidity 0–90% (non-condensing)
Altitude 0–10,000 ft. (3048 m)
DIMENSIONS Physical (W x H x D) 1.5" x 5.11" x 4.5" (39mm x 130mm x 115mm)
Carton (W x H x D) 10.5 x 8.7" x 5.4" (267mm x 222mm x 138mm)
WEIGHT Net 1.21 lb. (0.55 kg)
Gross 3.8 lb. (1.72 kg)
SECURITY Kensington®lock slot
REGULATIONS FCC, UL, cUL
VESA®MOUNT 100mm x 100mm
RECYCLE/DISPOSAL Please dispose of in accordance with local, state or federal laws.
PACKAGE CONTENTS VOT125, power cord, power adapter, stand, VESA®mounting
bracket, System Recovery CD, Driver CD, Quick Start Guide
WARRANTY 1 year limited warranty
ViewSonic Corporation’s QMS & EMS have been registered
to ISO 9001 & ISO 14001, respectively, by TUV NORD.

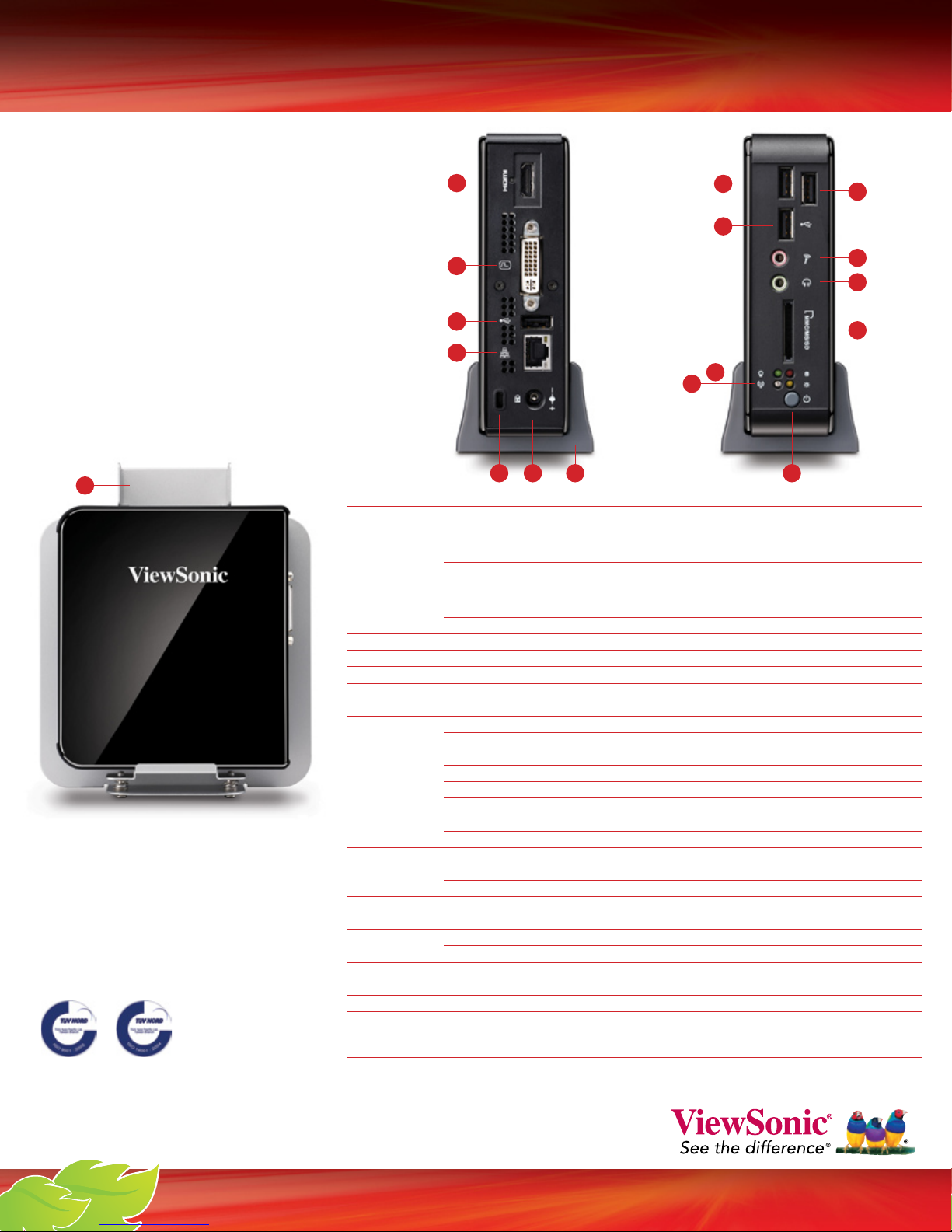

01– HDMI Port
02– DVI Port
03– USB 2.0 Port
04– RJ45 Ethernet Port
05 – Kensington®Lock Slot
06– DC Power
07– Removable Stand
08– Microphone Jack
09– Earphone Jack
10 – Card Reader
11 – Power LED Indicator
12 – WiFi LED Indicator
13 – Power Button
14 – VESA®Mounting Bracket
