ViewSonic VS14406 User manual

Tablet PC
USER GUIDE
USER GUIDE

Tablet PC
Table of Contents
----------------------------------------------------------------------------------------------

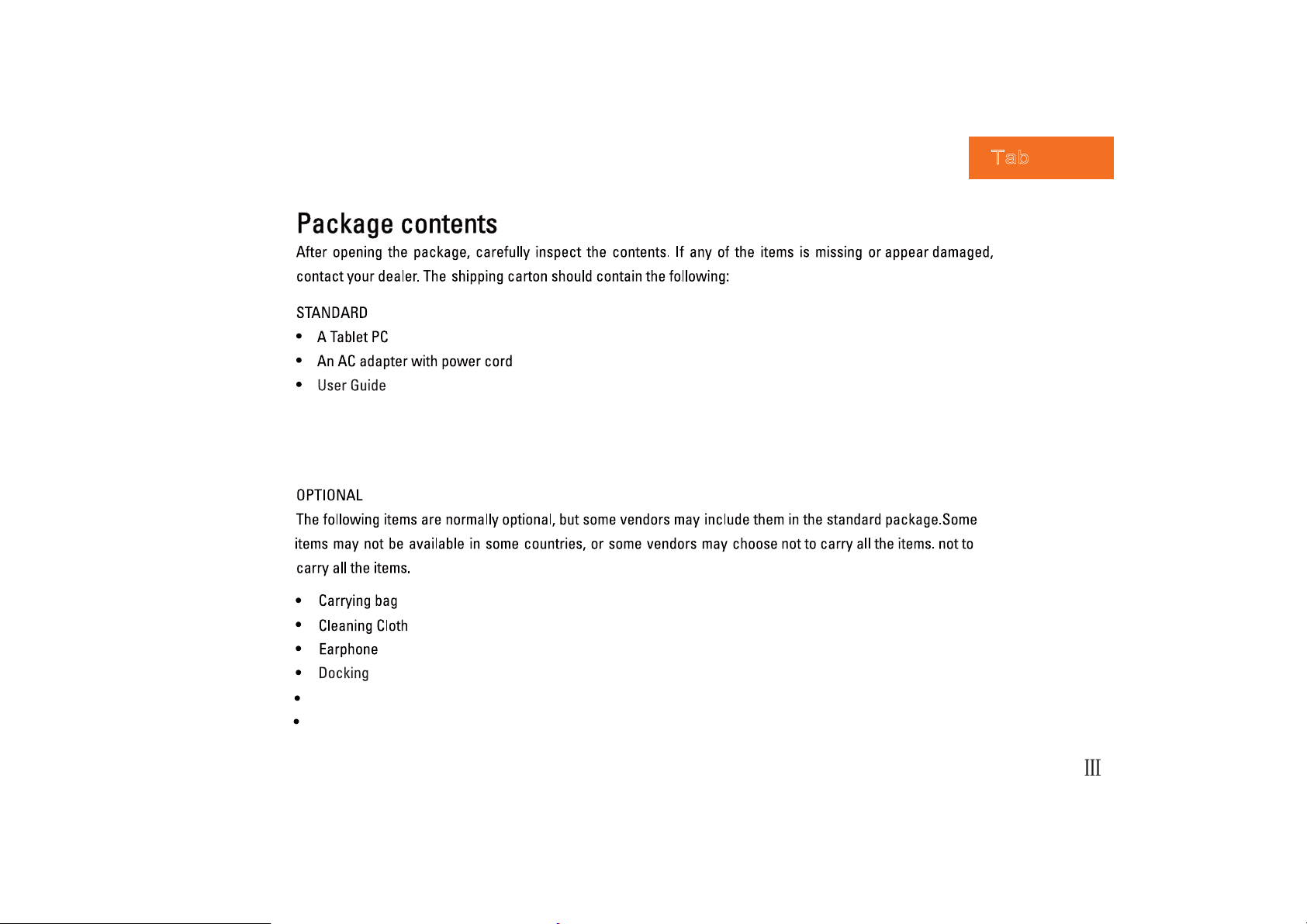

Package contents---------------------------------------------------------------------------------------------
Exploring the Table PC-----------------------------------------------------------------------------------------１
Front view---------------------------------------------------------------------------------------------------- １
Side view----------------------------------------------------------------------------------------------------- ２

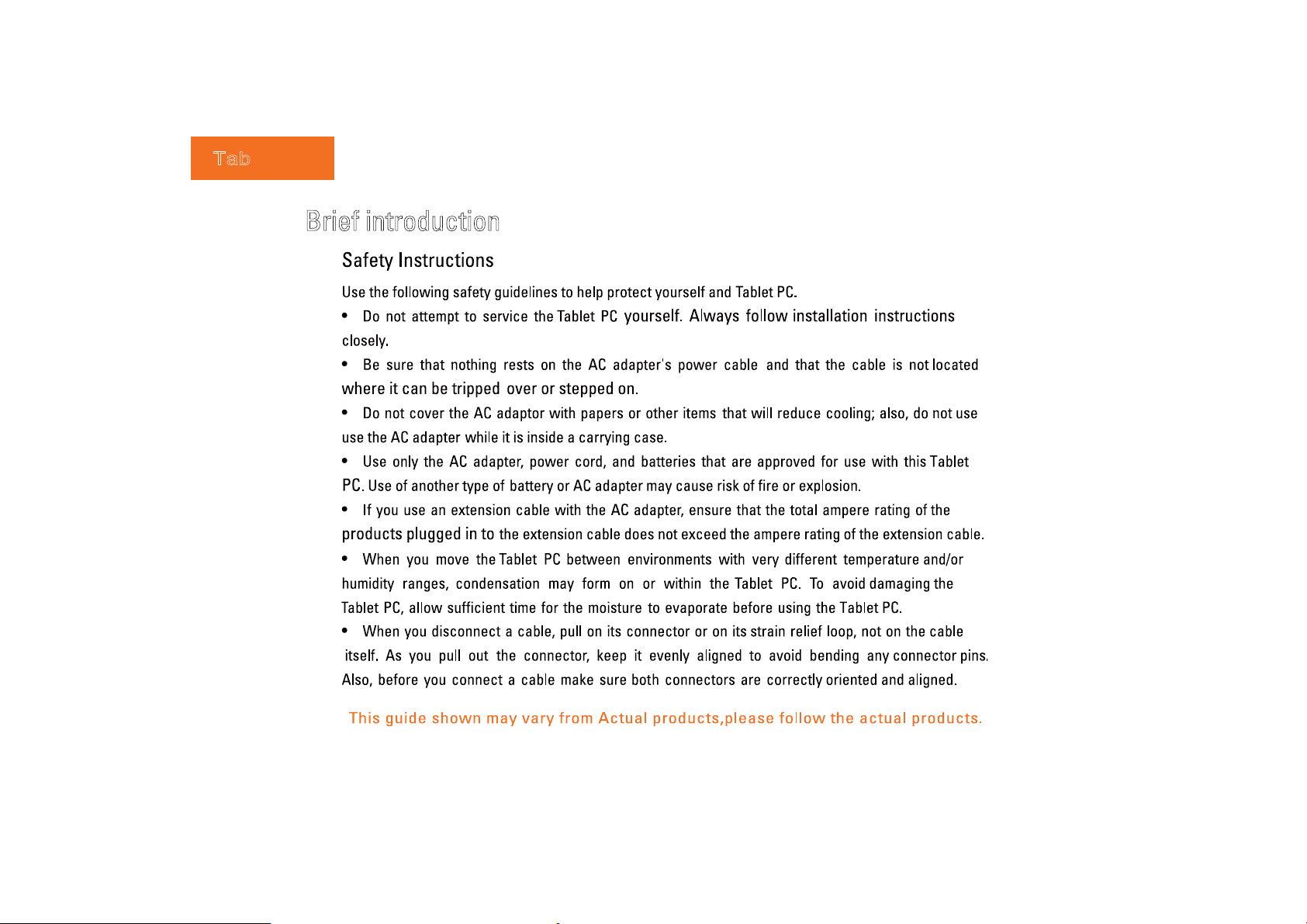

Brief introduction
Rear view-----------------------------------------------------------------------------------------------------１
Indicators---------------------------------------------------------------------------------------------------- ４
Trouble shooting --------------------------------------------------------------------------------------------- ３４
５
Dual OS Switching experience------------------------------------------------------------------------------
７
Android system applications--------------------------------------------------------------------------------
Ė
ĕ
Ĕ

ĕ
Brief introduction

Car Charge
(with keyboard or not)
Protect film

1
Exploring the Table PC
Front View Rear View
①
② ③
⑥
⑤
④
①Touch screen
④
Vent
⑤Speaker
⑥Back camera(Optional)
③ Front Camera
②Light sensor
Front / back components
You can take photos at resolutions up to 2048 x 1536 pixels (3.2 megapixels) and recording videos.
Produces sounds from multimedia files or the operating system.
Dissipate heat and keep your Notebook at an optimal temperature.
A built-in webcam that allows you to capture still images, record videos, and chat online.
Press and hold button 3s to turn on/off the light sensor.
Use finger to control system & application.

Tablet PC
Side View
2
⑧
⑨
⑩
①②③ ④ ⑤ ⑥ ⑦
Top side
Bottom side
Right side
Left side

3
Memory card slot For a SD memory card.
①Keyhole slot
Windows/Android: Press to adjust the volume (+Volume up/-Volume down).
Windows: press and hold 3s to adjust the screen brightness(+increases screen brightness
/-decreases the screen brightness).(If not access the systems, －for the arrow keys"Left"／＋for
the arrow keys"Right")
⑥Power switch Press and hold to Turns your Tablet PC on or off, short press for stanby/Wake up.
⑦Back button Windows: For the keyboard “ESC”key.
②Home button Windows: Press to go back to the home (desktop),Press 3S to turn on/off the light-sensor.
⑨Audio output jack
(Mic and headphone 2 in 1)
Connects 4 pole earphone to play audio or chat online.
Lock button Windows/Android: Switch to enable /disable the G-sensor function.
⑧Power jack Connects AC power supply to power the Tablet PC and charge the battery.
⑩USB ports Connects peripherals such as mice, digital cameras and MP3 players that use the USB 2.0
interface.
Dock connector Connect to your PC to exchange data material between your PC & Tablet PC.
Reset eject hole When system abnormal (can’t start the system or turn off the system), insert a thin,straight
object(such as a paper clip) in the manual eject hole on the Tablet.
④Volume/brightness buttons
③Menu button Windows: Press for call the “Windows Task Manager”.
Side components
Android: Press for the “Home key”.(If not access the systems, for the arrow keys"Up" ）
Android: Press for the “Back” key.
Windows/Android: Press and hold 10s to go to the touch-screen H/W calibration.
Android: Press to show menu. (If not access the systems, for the arrow keys"Down".）
MIC Receives sounds and voices for recording.
⑤Indicators Refer to "Indicators" on page 4 for details.
(If not access the systems, for the arrow keys"Enter".）

Tablet PC
4
① ② ③
①Power indicator
When the system is on, it lights up in blue.
When the system is in sleep mode, it flashes in blue.
When the system is off or in Hibernation mode, the light goes off.
②Battery status indicator
③Wireless LAN indicator
Indicators
When the battery is charging, it lights up in red.
When the battery is low,it flashes in red.
When the battery is fully charged, it lights up in blue.
When Wi-Fi is turned on, it lights up in blue.
When Wi-Fi is turned off, the light goes off.
Indicators

Dual OS switch experience
Tablet PC
5
Windows OS swich to Android OS
Run OSSwitcher application at Windows OS, and then click “Swich to Android”, after from pop-up Muti-OS menu to
select and into Android OS.
Switch to Android Muti-OS menu
Dual OS Switching experience

Tablet PC
6
Android OS swich to Windows OS
Run OSSwitcher application from main menu, and then click “Swich to Windows”, after from pop-up Muti-OS menu to
select and into Windows OS.
Switch to Windows
Main menu
Muti-OS menu

Tablet PC
Android system applications

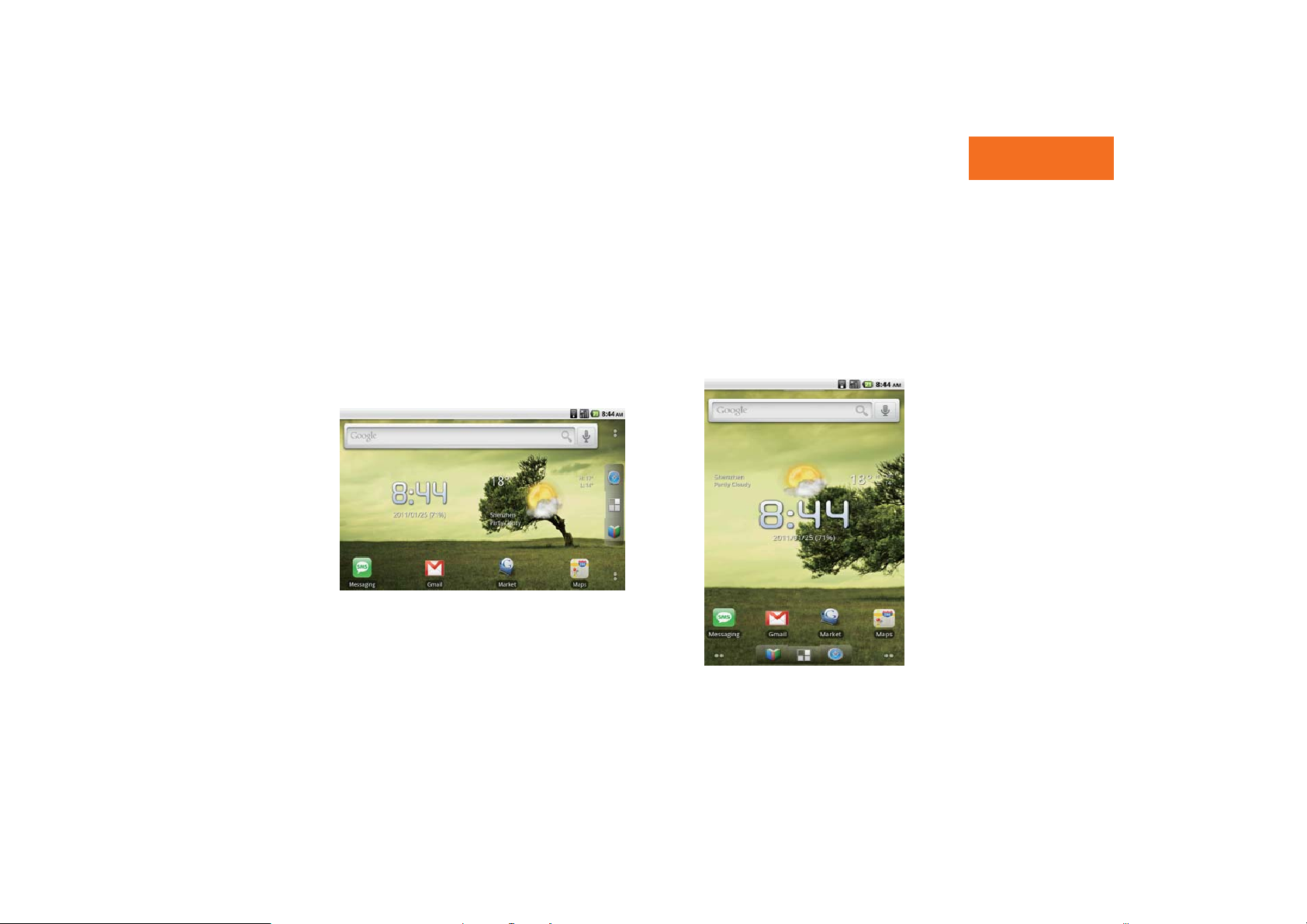

Portrait view
Landscape view
Start using your Tablet PC
Press and hold the power button until the Android logo appears., Then the power indicator would light up in blue.
And then follow the on-screen instructions to complete the initial Operating system setup.
The system Homescreen will appear as follows:
7

Tablet PC
8
Home(desk)
The default system desk include: ①Status column, ②Quick search bar, ③Main menu column, ④fancy widget,
and ⑤some Shortcuts.
The Status column shows the time, WiFi connection status,battery status, and other information, its also displays
notification icons. Quick search bar can use Google search that you can use directly on the home screen.
The Shortcut help to quick open an application or a folder, and so on. if you press and hold the shortcut icon, then
you can add, move, or delete the shortcut icons.
ķ
ĸ
Ĺ
ĺ
⑤

Tablet PC
Main menu
9
Touch the main menu tab icon to open the main menu from main menu column and view icon for all installed
applications. You can setup system, install and run application.
Main menu column content three tab icon,The middle icon is main menu tab, the other two tabs is shortcut icon, you
can customize these tabs by use drag and drop action. Slide the main menu column from left to right , you can hide it.
Also you can show it in reverse order.（When in main menu, the main menu tab icon charge to be home desktop tab
icon, touch it , you can go back to the home desktop .)
Android system main menu(not default)

Tablet PC
Using Apps
10
The high-resolution Multi-Touch screen and simple finger gestures make it easy to use android apps.
Opening and Switching Apps
You open an app on OakTrail by tapping its icon on the Homescreen or Launcher.
Return to the Home screen:
Press the Home button.
Switch to another Home screen:
Flick left or right, or tap to the left or right of the row of dots.
Go to the first Home screen:
Press the Home button again.
View your recently used apps:
Long Press the Home button.
Your most recently used apps appear at the top-left of the screen, in order starting from the left.
Switch to another app: Tap an app in the recent apps list.
Scrolling
Drag up or down to scroll. On some screens such as email and webpages, you can also scroll side to side.
Dragging your finger to scroll won’t choose or activate anything on the screen.

Tablet PC
Flick to scroll quickly:
You can wait for the scrolling to come to a stop, or touch anywhere on the screen to stop it immediately.
Touching the screen to stop scrolling won’t choose or activate anything.
Zooming In or Out
When viewing photos, webpages, email, or maps, you can zoom in and out. Pinch your fingers together or apart. For
photos and webpages, you can double-tap (tap twice quickly) to zoom in, then double‐tap again to zoom out. For
maps, double tap to zoom in and tap once with two fingers to zoom out.
Zoom is also an accessibility feature that lets you magnify the screen with any app you’re using, to help you see
what’s on the display.
Viewing in Portrait or Landscape Orientation
Many Android apps let you view the screen in either portrait or landscape orientation. Rotate OakTrail and the display
rotates too, adjusting automatically to fit the new screen orientation.
You may prefer landscape orientation for viewing webpages in Browser, or when entering text, for example. In
landscape orientation:
Webpages scale to the wider screen, making the text and images larger.
The onscreen keyboard is larger, which may help increase your typing speed and accuracy.
The following apps support both portrait and landscape orientation:
Browser
Calculator
Camera
etc.
11

Press and hold Fuction button for 10 second, the power indicator will flash , then go to H/W Calibration, When
you into Calibration, do not touch the screen.
Tablet PC
Customizing the Home Screen
12
You can customize the layout of icons on the Home screen. If you want, arrange them over multiple Home screens.
Rearranging Icons
You can arrange the icons on your Home screen in any order you want.
Rearrange icons:
1. Touch and hold any icon on the Home screen until it begins to jiggle.
2. Arrange the icons
You can also add links to your favorite webpages on the Home screen.
Move an icon to another screen:
While arranging icons, drag an icon to the side of the screen.
Adding Wallpaper
You can set an image or photo as wallpaper for the Lock screen. You can also set wallpaper for your Home screen.
You can choose an image that came with OakTrail, a photo from your Camera Roll, or a photo synced to Tablet
from your computer.
Set wallpaper:
1. In Settings, choose Wallpaper, tap the image of the Lock and Home screens, then tap Wallpaper or an album.
2. Tap to choose an image or photo. If you choose a photo, drag to position it and pinch to zoom in or out, until it
looks the way you want.
3. Tap Set, then choose whether you want to use the photo as wallpaper for your Lock Screen, Home screen, or
both.

Tablet PC
Typing
The virtual keyboard appears anytime you need to type.
13
Entering Text
Use the keyboard to enter text, such as email and web addresses. The keyboard corrects misspellings, predicts what
you're typing, and learns as you use it.Depending on the app you’re using, the intelligent keyboard may suggest
corrections as you type, to help prevent mistyped words.
Enter text:
1. Tap a text field, such as in a note or email, to bring up the keyboard.
2. Tap keys on the keyboard.
Start by typing with just your index finger. As you get more proficient, you can type more quickly using two thumbs.
As you type, each letter appears above your thumb or finger. If you touch the wrong key, you can slide your finger to the
correct key. The letter isn’t entered until you release your finger from the key.
Delete the previous character:
Tap [Backspace] button on the virtual keyboard.
Type uppercase:
Tap Shift button before tapping a letter.
Turn caps lock on:
Double‐tap or long‐tap the Shift button, then all letters you type are uppercase. Tap the Shift button again to turn caps lock off.

Tablet PC
14
Show numbers, punctuation, or symbols:
Tap the Number button on the virtual keyboard to see numbers.
Tap the Symbol button to see additional punctuation and symbols.
Searching
You can search many apps on Android, including Calendar, Music, Email and etc. Also you can search an individual
app, or search all apps at once using Search.
Go to Search:
Go to Launcher, tap the icon of Search.
Press search key to start search.
Search device:
On the Search screen, enter text in the Search field. Search results appear as you type. Tap an item in the list to open
it. Tap Search to dismiss the keyboard and see more results. Icons next to the search results show which app the
results are from.
The device may display a top hit for you at the top of the list, based on your previous searches. The Browser search
results include options to search the web or to search Wikipedia.

Tablet PC
15
Connecting to the Internet
Tablet connects to the Internet whenever you use Mail, Browser, YouTube, Stocks, Maps,
Weather, the App Store, or the iTunes Store.
How Tablet Connects to the Internet
Tablet connects to the Internet using a Wi-Fi.Tablet does the following, in order, until connected:
Connects over the last Wi-Fi network you used that’s available.
If no previously used Wi-Fi networks are available, OakTrail shows a list of Wi-Fi networks in range. Tap a network
and, if necessary, enter the password to join. Networks that require a password show the lock icon next to them. You
can prevent OakTrail from automatically showing available networks. See “ Wi-Fi ” settings.
If a Wi-Fi network isn’t available, OakTrail can’t connect to the Internet.

Tablet PC
16
Joining a Wi-Fi Network
The Wi-Fi settings let you turn on Wi-Fi and join Wi-Fi networks.
Turn on Wi-Fi : Choose Settings > Wi-Fi and turn Wi-Fi on.
Join a Wi-Fi network:
Choose Settings > Wi-Fi , wait a moment as Tablet detects networks in range, then select a
network (fees may apply to join some Wi-Fi networks). If necessary, enter a password and tap Join (networks that require
a password appear with a lock icon).
Once you join a Wi-Fi network manually, OakTrail automatically connects to it whenever the network is in range. If more
than one previously used network is in rangeThe Tablet joins the one last used.
When Tablet is connected to a Wi-Fi network, the Wi-Fi icon in the status bar at the top of the screen shows the
connection strength. The more bars you see, the stronger the connection.
For information about configuring Wi-Fi settings, see “Wi-Fi ” Settings.
