ViewSonic VS17880 User manual

ID0730
PF0730-I0WW
ViewBoard Notepad
User Guide
Model No. VS17880
P/N: ID0730/PF0730-I0WW
IMPORTANT: Please read this User Guide to obtain important information on installing and using your product in
a safe manner, as well as registering your product for future service. Warranty information contained in this User
Guide will describe your limited coverage from ViewSonic®Corporation, which is also found on our web site at
http://www.viewsonic.com in English, or in specific languages using the Regional selection box in the upper right
corner of our website. “Antes de operar su equipo lea cu idadosamente las instrucciones en este manual”

2
Thank you for choosing ViewSonic®
As a world-leading provider of visual solutions, ViewSonic® is dedicated to exceeding
the world’s expectations for technological evolution, innovation, and simplicity.
At ViewSonic®, we believe that our products have the potential to make a positive
impact in the world, and we are confident that the ViewSonic® product you have
chosen will serve you well.
Once again, thank you for choosing ViewSonic®!

3
Safety Precautions
Please read the following Safety Precauons before you start using the device.
• Keep this user guide in a safe place for later reference.
• Read all warnings and follow all instructions.
• Sit at least 18" (45 cm) away from the device.
• Allow at least 4" (10 cm) clearance around the device to ensure proper
ventilation.
• Place the device in a well-ventilated area. Do not place anything on the device
that prevents heat dissipation.
• Do not use the device near water. To reduce the risk of fire or electric shock, do
not expose the device to moisture.
• Avoid exposing the device to direct sunlight or other sources of sustained heat.
• Do not install near any heat sources such as radiators, heat registers, stoves, or
other devices (including amplifiers) that may increase the temperature of the
device to dangerous levels.
• Use a soft, dry cloth to clean the external housing.
• Oil may collect on the screen if you touch it.
• Do not touch the screen surface with sharp or hard objects, as it may cause
damage to the screen.
• When moving the device, be careful not to drop or bump the device on
anything.
• Do not place the device on an uneven or unstable surface. The device may fall
over resulting in an injury or a malfunction.
• Do not place any heavy objects on the device or connection cables.
• If smoke, an abnormal noise, or a strange odor is present, immediately turn the
device off and call your dealer or ViewSonic®. It is dangerous to continue using
the device.
• When connecting to a power outlet, DO NOT remove the grounding prong.
Please ensure grounding prongs are NEVER REMOVED.
• Protect the power cord from being treaded upon or pinched,
particularly at the plug, and at the point where it emerges from
the equipment. Ensure that the power outlet is located near the
equipment so that it is easily accessible.
• Only use attachments/accessories specified by the manufacturer.
• Disconnect the device if it is not going to be used for a long period of time.

4
Contents
Safety Precautions....................................................... 3
Introduction ................................................................ 6
Package Contents ...................................................................................................6
Product Overview...................................................................................................7
Notebook ................................................................................................................ 7
WoodPad and Pen................................................................................................... 7
Making Connections.................................................... 8
Attaching the Notebook .........................................................................................8
Connecting the Digital Writing Pad ........................................................................9
Driver Installation, Use, and Removal........................ 10
Installing the Driver ..............................................................................................10
Using the Driver....................................................................................................11
Uninstalling the Driver..........................................................................................12
For Windows ......................................................................................................... 12
For Mac ................................................................................................................. 12
Appendix................................................................... 13
Specifications........................................................................................................13
Product Dimensions .............................................................................................14
Troubleshooting ...................................................................................................15
FAQ.......................................................................................................................16
Maintenance.........................................................................................................17
General Precautions.............................................................................................. 17
Cleaning the Device............................................................................................... 17
Replacing the Pen Tip ...........................................................................................18

5
Regulatory and Service Information .......................... 19
Compliance Information.......................................................................................19
FCC Compliance Statement................................................................................... 19
Industry Canada Statement................................................................................... 19
CE Conformity for European Countries ................................................................. 19
Declaration of RoHS2 Compliance......................................................................... 20
Indian Restriction of Hazardous Substances ......................................................... 21
Product Disposal at End of Product Life................................................................ 21
Copyright Information ..........................................................................................22
Customer Service .................................................................................................. 23
Limited Warranty .................................................................................................. 24
Mexico Limited Warranty...................................................................................... 27

6
Introduction
Package Contents
• Digital Writing Pad
• USB 2.0 Cable (Micro USB to Type A)
• Ink Pen
• Pen tip x 3
• Nib removal tool
• Notebook
• Quick start guide
NOTE: The contents included in your package may vary depending on your
country. Please contact your local reseller for more informaon.

7
Product Overview
Notebook
1
2
4
6
5
1
3
Top Boom
WoodPad and Pen
1
2
4
6
5
1
3
1. Double-sided Tape 2. Tape Placement Area 3. Digital Wring Pad
4. Ink Pen 5. Acve Area 6. Micro USB Port

8
Making Connecons
Aaching the Notebook

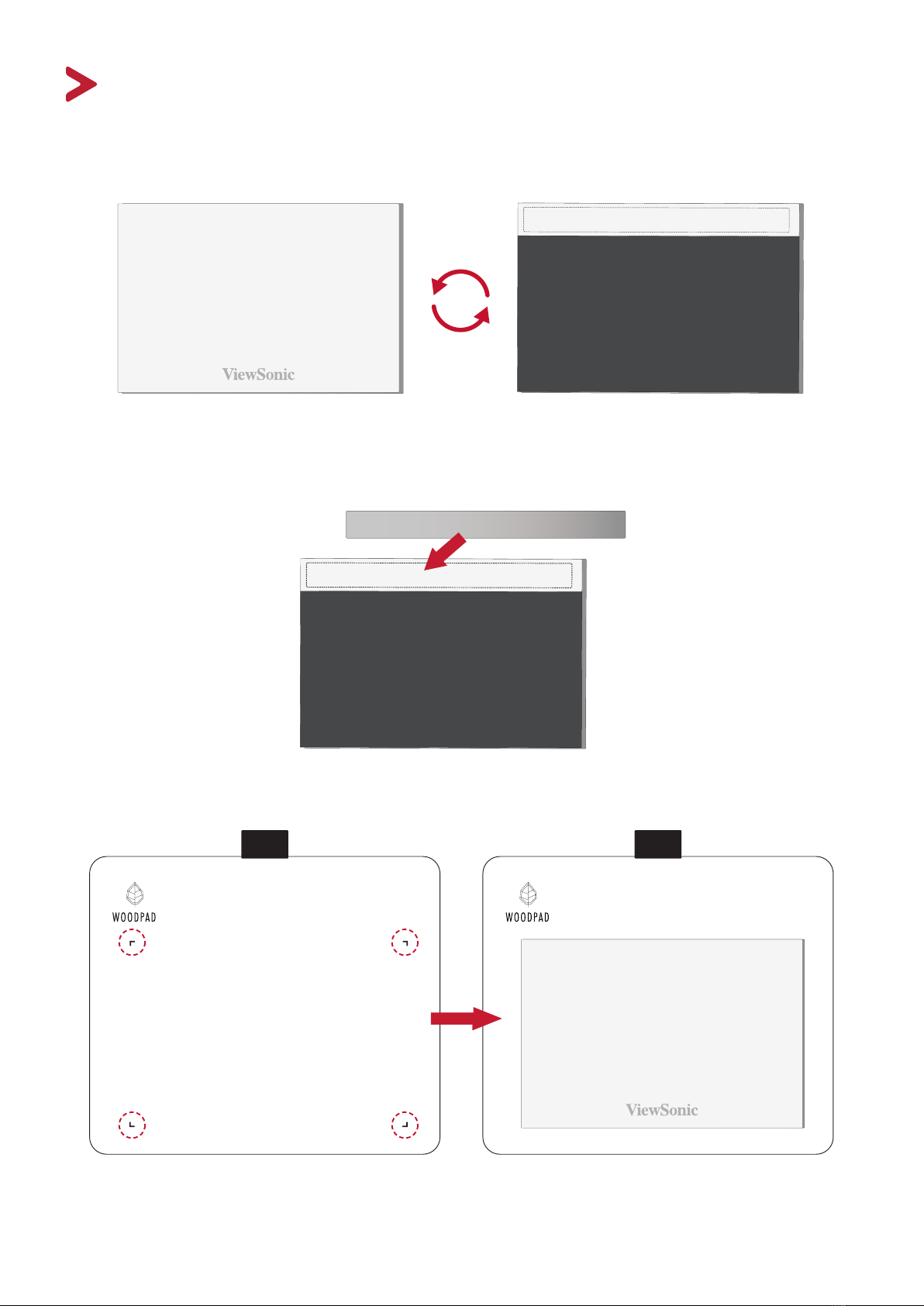

1. Turn the Notebook over so the boom side is facing up.
Top Boom
2. It is recommended to apply the double-sided tape to the boom of the Notebook
in the designated area.
3. Turn over the Notebook and aach it within the four corner frame of the Digital
Wring Pad.

99
Connecng the Digital Wring Pad
1. With the USB Cable, connect the Micro USB end to the Digital Wring Pad.
2. Connect the USB Type A end to the computer.
2
1
NOTE: Do not write on the Digital Wring Pad without the Notebook, this will
leave ink marks and aect the surface.

10
Driver Installaon, Use, and Removal
Installing the Driver
It is not necessary to download any drivers or soware to use the Digital Wring
Pad. However, if you would like more features such as pen pressure, please
download and install our ViewSonic Pen Manager.
To download and install:
1. Uninstall and remove any drivers of other graphic tablets/monitors installed on
your computer.
2. Disable any an-virus soware and rewall temporarily, and ensure you are
installing the driver as an Administrator.
3. Download and install the driver from:
hps://pendisplay.viewsonic.com
4. Aer a successful installaon, please restart the computer then plug in the Digital
Wring Pad.

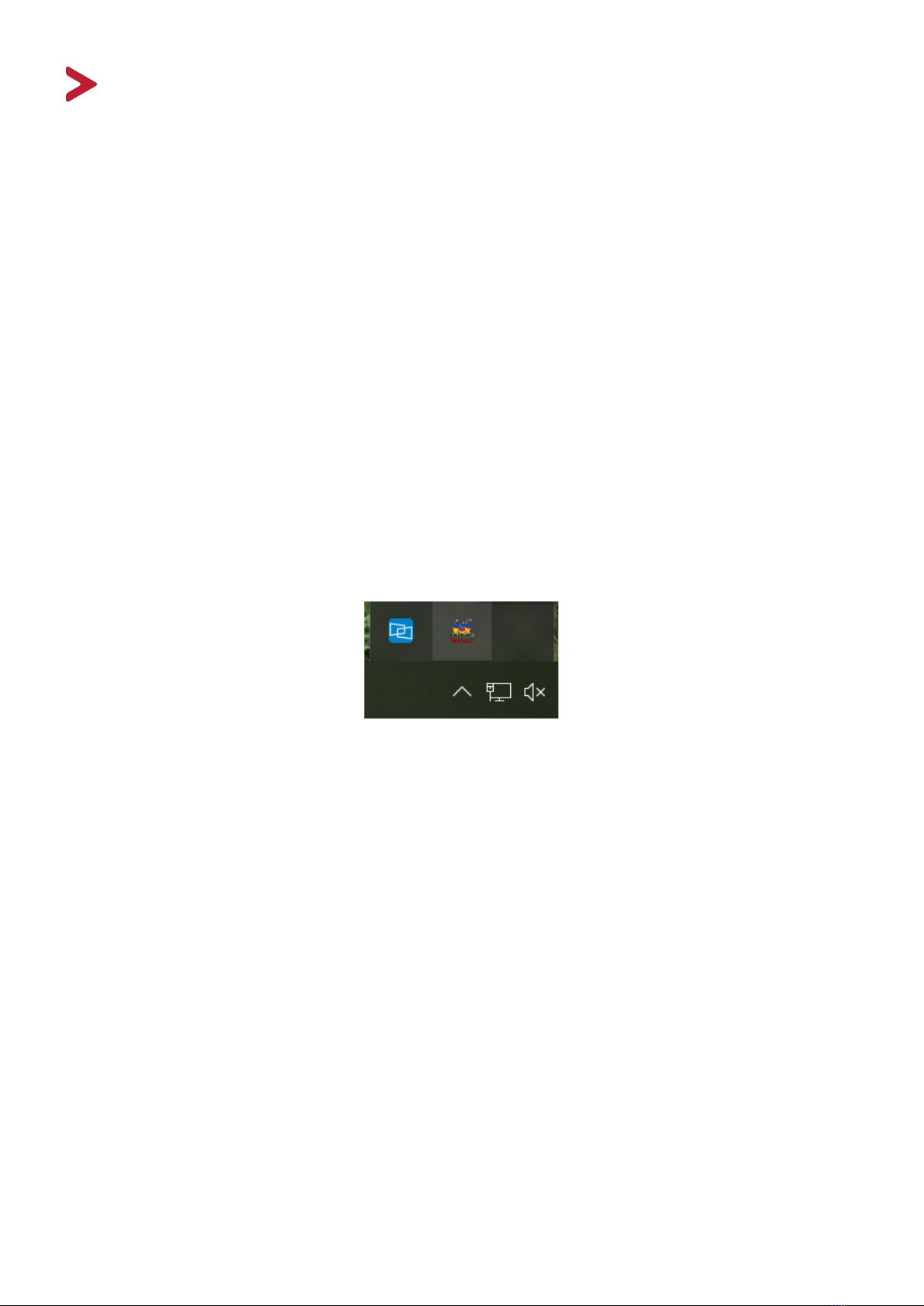

5. The System Tray will now show the “ViewSonic Pen Manager” icon.

11
Using the Driver
Pen
Adjust sengs related to the pen and how it funcons.
• Adjust the Tip Feel of the pen - So to Firm.
• Test the Pressure Sensivity.
Mapping
Adjust the screen sengs for the handwring screen.
• Choose the preferred screen Orientaon.
• Select the Pen Display screen.

1212
Uninstalling the Driver
For Windows
There are two ways to uninstall the driver:
• Start > ViewSonic Pen Manager > Right Mouse Click > Uninstall
or
• Open the Control Panel > Programs > Programs and Features > ViewSonic Pen
Manager > select Uninstall/Change
For Mac
• Open Finder > Apps > Tablet Ulity > Uninstall-Driver

13
Appendix
Specicaons
Device
Item Category Specicaons
Power USB USB 1.1/2.0: 5V/40mA Typ.
Acve Area Dimensions (W x H) 162.6 x 101.6 mm (6.4” x 4”)
Operang
condions
Temperature 0° C to 40° C (32° F to 104° F)
Humidity 30% to 80% (non-condensing)
Storage
condions
Temperature -20° C to 60° C (-4° F to 140° F)
Humidity 20% to 95% (non-condensing)
Dimensions Physical
(W x H x D)
200 x 175 x 7.5 mm
(7.87” x 6.69” x 0.3”)
Weight Physical 0.43 kg (0.94 lbs)
Power
Consumpon On 0.2W (Typical)
Pen
Item Specicaons
Model INK-031-B0WW
Type Electromagnec resonance
Power Supply Baery-less
Resoluon 5080 LPI (line per inch)
Pressure Level 4096
Tracking Speed Average 250 PPS (point per second)
Coordinate Accuracy ± 0.25 mm
Detectable Height 5-10 mm above the pad
OS Supported Windows 7 or later; Mac OS X 10.10 or later; ChromeBook;
Android 7.0 and above.

1414

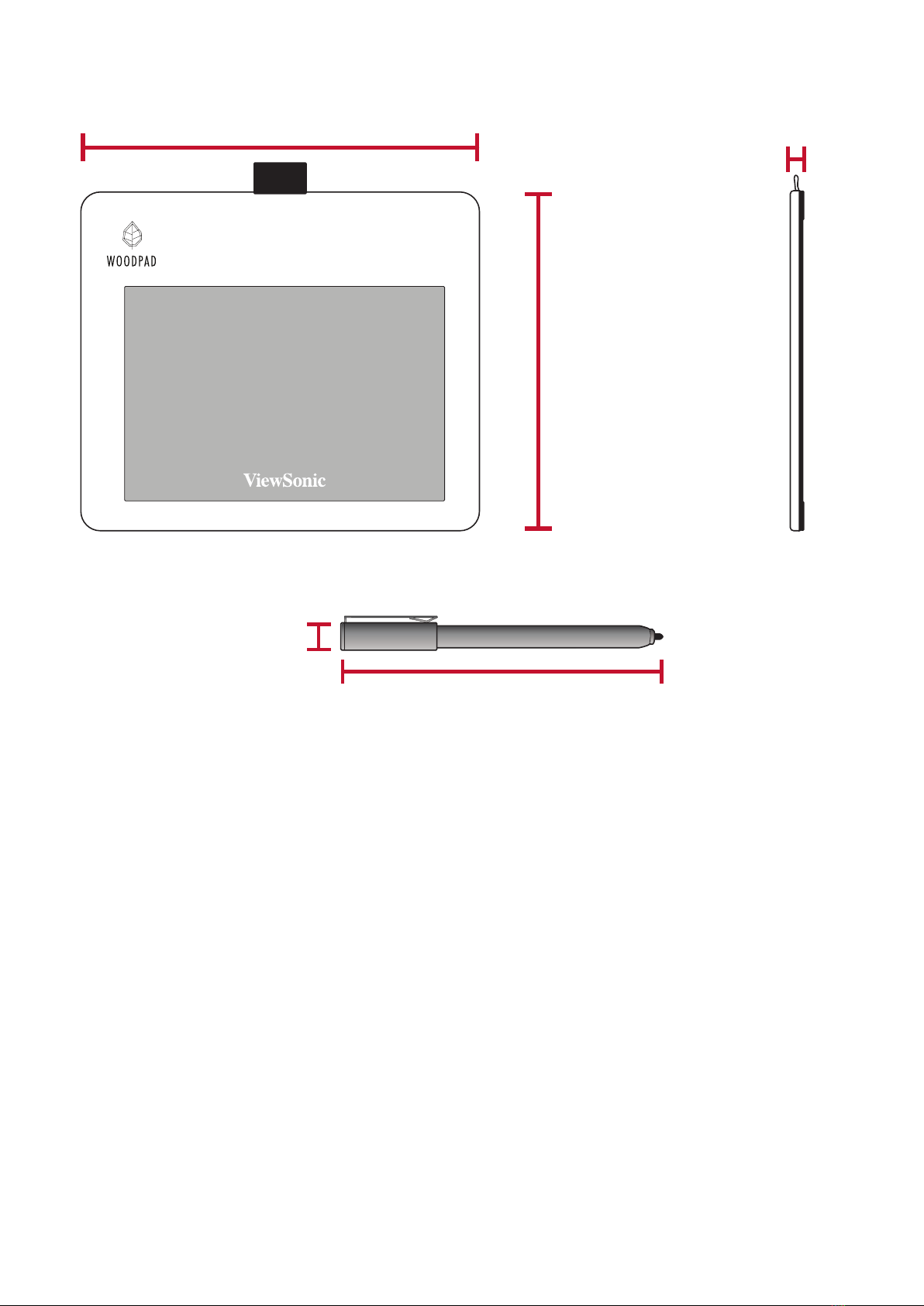

Product Dimensions
143.2 mm
11.2 mm
200 mm
175 mm
7.5 mm

15
Troubleshoong
This secon describes some common problems that you may experience when
using the monitor.
Problem or Issue Possible Soluons
The pen is not working
• Try using the computer’s mouse; if the mouse also
does not work please restart the computer.
• Reinstall the pen driver (if applicable).
The pen p is too
short, or not making
proper contact with the
display
• Check the condion of the pen p. If it is too short,
please replace the pen p.
The cursor is not
moving correctly
• Try restarng the computer.
• Ensure the USB cable is connected properly at both
ends.

16
FAQ
Queson Possible Soluons
How to nd out
whether the driver was
installed properly?
• Aer the driver was properly installed, and when
the tablet and computer are connected properly, a
small driver icon will appear in the icon tray of the
computer.
• When the electromagnec pen is used on the
tablet, it will be able to control the cursor properly,
and it will be able to sense pressure during the
pressure test in the driver control panel.
What should I do if the
small digital control
panel icon did not
appear in the icon tray
of the computer aer
driver installaon was
completed?
• If the driver was installed for the rst me, the
computer must be restarted aer installaon to let
the driver complete the inial installaon.
• Make sure that the tablet is connected properly
to the USB interface of the computer (it is
recommended to connect to the USB interface at
the back of the computer) and has not become
loose.
• If it was conrmed that the tablet was connected
to the USB interface of the computer but there was
sll no small driver icon, please try to connect to
other USB interfaces and restart the computer.
The tablet cannot be
used properly, how do
I determine whether
the malfuncon is a
hardware or soware
issue?
• Connect the tablet with another computer to test
it; if the tablet and the electromagnec pen can be
used on the other computer like a mouse without
installing the driver, it means that the malfuncon
was caused by the current computer.
How does the tablet
realize drawing
creaons?
• The tablet is only a type of input device for
computers; it is considered hardware,and not
drawing soware.
• If you want to perform drawing creaons, it must
be used with corresponding drawing soware to
realize drawing creaons. It is recommended you
purchase or download related drawing soware.

17
Maintenance
General Precauons
• Make sure the device is turned o and unplugged.
• Never spray or pour any liquid directly onto the device.
• Handle the device with care.
Cleaning the Device
• Use a so, dry cloth.
• Wipe the device with a clean, so, lint-free cloth. This removes dust and other
parcles.
Disclaimer
• ViewSonic® does not recommend the use of any ammonia or alcohol-based
cleaners on the display screen or case. Some chemical cleaners have been
reported to damage the screen and/or case of the monitor.
• ViewSonic® will not be liable for damage resulng from use of any ammonia or
alcohol-based cleaners.

18
Replacing the Pen Tip
Just like a ballpoint pen, the Ink Pen is for wring on the Notebook. When the pen
p runs out of ink or becomes damaged, it can be replaced with spare ps. To
replace a pen p:
1. Use the nib removal tool to pull the old p straight out of the pen.
2. Insert a new pen p into the pen and push the p in unl it stops and is held rm.

19
Regulatory and Service Informaon
Compliance Informaon
This secon addresses all connected requirements and statements regarding
regulaons. Conrmed corresponding applicaons shall refer to nameplate labels
and relevant markings on the unit.
FCC Compliance Statement
This device complies with part 15 of FCC Rules. Operaon is subject to the following
two condions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operaon. This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protecon against harmful
interference in a residenal installaon. This equipment generates, uses, and
can radiate radio frequency energy, and if not installed and used in accordance
with the instrucons, may cause harmful interference to radio communicaons.
However, there is no guarantee that interference will not occur in a parcular
installaon. If this equipment does cause harmful interference to radio or television
recepon, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separaon between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Warning: You are cauoned that changes or modicaons not expressly approved
by the party responsible for compliance could void your authority to operate the
equipment.
Industry Canada Statement
CAN ICES-3 (B)/NMB-3(B)
CE Conformity for European Countries
The device complies with the EMC Direcve 2014/30/EU and Low Voltage
Direcve 2014/35/EU.

20
The following informaon is only for EU-member states:
The mark shown to the right is in compliance with the Waste Electrical
and Electronic Equipment Directive 2012/19/EU (WEEE). The mark
indicates the requirement NOT to dispose of the equipment as unsorted
municipal waste, but use the return and collection systems according to
local law.
Declaraon of RoHS2 Compliance
This product has been designed and manufactured in compliance with Direcve
2011/65/EU of the European Parliament and the Council on restricon of the use
of certain hazardous substances in electrical and electronic equipment (RoHS2
Direcve) and is deemed to comply with the maximum concentraon values issued
by the European Technical Adaptaon Commiee (TAC) as shown below:
Substance Proposed Maximum
Concentraon Actual Concentraon
Lead (Pb) 0.1% < 0.1%
Mercury (Hg) 0.1% < 0.1%
Cadmium (Cd) 0.01% < 0.01%
Hexavalent Chromium (Cr6⁺) 0.1% < 0.1%
Polybrominated biphenyls (PBB) 0.1% < 0.1%
Polybrominated diphenyl ethers
(PBDE) 0.1% < 0.1%
Bis (2-ethylhexyl) phthalate
(DEHP) 0.1% < 0.1%
Butyl benzyl phthalate (BBP) 0.1% < 0.1%
Dibutyl phthalate (DBP) 0.1% < 0.1%
Diisobutyl phthalate (DIBP) 0.1% < 0.1%
Certain components of products as stated above are exempted under the Annex
III of the RoHS2 Direcves as noted below. Examples of exempted components
are:
• Mercury in cold cathode uorescent lamps and external electrode uorescent
lamps (CCFL and EEFL) for special purposes not exceeding (per lamp):
Short length (500 mm): maximum 3.5 mg per lamp.
Medium length (> 500 mm and 1,500 mm): maximum 5 mg per lamp.
Long length (> 1,500 mm): maximum 13 mg per lamp.
• Lead in glass of cathode ray tubes.
• Lead in glass of uorescent tubes not exceeding 0.2% by weight.
• Lead as an alloying element in aluminum containing up to 0.4% lead by weight.
• Copper alloy containing up to 4% lead by weight.
