Viking 5 Series User manual

Installation Guide
5 Series
Built-In Electric Cooktops
Built-in Induction Cooktops
®

2
Table of Contents
Warnings & Important Safety Instructions ___________________________ 3
Specifications (Electric Cooktops) __________________________________ 5
Specifications (Induction Cooktops) ________________________________ 6
Dimensions _____________________________________________________ 7
Cutout Dimensions ______________________________________________ 8
Clearance Dimensions____________________________________________ 9
Electrical Requirements__________________________________________11
General Information_____________________________________________12
Installation _____________________________________________________12
Final Preparation _______________________________________________13
Performance Checklist___________________________________________13
Service & Registration ___________________________________________14

33
IMPORTANT – Please Read and Follow!
• Before beginning, please read these
instructions completely and carefully.
DANGER
WARNING
Hazards or unsafe practices
which WILL result in severe personal
injury or death
Hazards or unsafe practices
which COULD result in severe
personal injury or death
CAUTION
Hazards or unsafe practices which
COULD result in minor personal injury
or property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded
by the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
• DO NOT remove permanently affixed
labels, warnings, or plates from product.
This may void the warranty.
• Please observe all local and national codes
and ordinances. Installation must conform
with local codes and National Fuel Gas
Code ANSIZ233.1/NFPA-54–latest
edition.
• Please ensure that this product is properly
grounded.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future
reference.
• Installation must conform with local codes
or, in the absence of codes, the National
Electrical Code, ANSI/NFPA 70-latest
edition.
In Canada: Electrical installation must be
in accordance with the current CSA C22.1
Canadian Electrical Codes Part 1 and/or local
codes.
For Brazil/Mexico Only: It is recommended
that a removable shelf be installed under the
appliance after it has been fully installed to
prevent unintended access to the appliance
during use.

4
IMPORTANT – Please Read and Follow!
WARNING
BURN HAZARD
The use of cabinets for storage
above the appliance may result
in potential burn hazard. Combustible items
may ignite, metallic items may become
hot and cause burns. If a cabinet storage
is to provided the risk can be reduced
by installing a range hood that projects
horizontally a minimum of 5" (12.7 cm)
beyond the bottom of the cabinets.
WARNING
ELECTRICAL
GROUNDING
INSTRUCTIONS
This cooktop must be electrically
grounded in accordance with local codes
or, in the absence of codes, with the
National Electrical Code, ANSI/NFPA 70-
latest edition. FOR PERSONAL SAFETY,
THIS APPLIANCE MUST BE PROPERLY
GROUNDED.
WARNING
The electrical power to the
unit must be shut off while line
connections are being made.
Failure to do so could result in serious
injury or death.
WARNING
FIRE AND ELECTRICAL
SHOCK HAZARD
DO NOT use an extension
cord with this appliance. Such
use may result in fire, electrical
shock, or other personal injury.
CAUTION
Be sure the electric power is
off from the breaker box to the
junction box until the cooktop
is installed and ready to operate. The
junction box should be connected to a
suitable ground.
WARNING
Stationary appliances not fitted with
means for disconnection from the supply
mains having a contact separation in all
poles that provide full disconnection under
overvoltage category III, the insrtuctions
shall state that means for disconnection
must be incorporated in the fixed wiring in
accordance with the wiring rules.
WARNING
The required overcurrent protection for
UL is not stated in the instructions. Ref.
UL858: 21.1.
Please note: The power supply board
is provided with the power supply, type
RAC03-24SC/277, manufactured by
Recom, rated Input 100-277Vac, Output
24V/125mA is UL recognized under
QAQGQ2/8.E224736. The external
overcurrent protection of the primary for
this power supply is max.20A.

5
Specifications (Electric Cooktops)
Electric Cooktop
Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide
Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height from bottom
To top of knobs
To top of cooking surface
To bottom edge of frame
4-3/4” (12.1 cm)
3-1/2” (8.9 cm)
2-5/8” (6.7 cm)
Overall depth from rear 21” (53.3 cm)
Cutout width 28-7/8” (73.3 cm) minimum to
29-1/8” (74.0 cm) maximum
34-7/8” (88.6 cm) minimum to
35-1/8” (89.2 cm) maximum
Cutout depth 19-1/4” (48.9 cm) minimum to 19-3/4” (50.2 cm) maximum
Electrical requirements 240-208/120 VAC; 50/60Hz; factory-installed 4 ft. (121.9 cm)
flexible steel conduit 3-wire conduit with a No. 10 ground wire; located on the
right rear corner of unit
Maximum amp usage 240V—36.6 amps (8.8 kw)
208V—31.7 amps (6.6 kw)
240V—45.0 amps (10.8 kw)
208V—38.9 amps (8.1 kw)
Surface element rating
Right front
Right rear
Center front
Center rear
Left front
Left rear
Bridge
8-1/2” (21.6 cm) -1,800 W
8-1/2” (21.6 cm) -1,800 W
N/A
N/A
12” (30.5 cm) triple - 1100 W/ 1000
W/1100 W
6-1/2” (16.5 cm) -1,200 W
800 W
6-1/2” (16.5 cm) -1,200 W
8-1/2” (21.6 cm) dual -1,000 W/1000 W
8-1/2” (21.6 cm) -1,800 W
8-1/2” (21.6 cm) -1,800 W
12” (30.5 cm) triple - 1100 W/
1000 W/1100 W
6-1/2” (16.5 cm) -1,200 W
800 W
Approximate shipping
weight
44 lb. (20.0 kg) 53 lb. (24.1 kg)

6
Dimensions (Electric and Induction Cooktops)
36” W. (91 cm) Cooktop
Specifications (Induction Cooktops)
30” W. (76 cm) Cooktop
Induction Cooktop
Description 30” W. - 76 cm Wide 36” W. - 91 cm Wide
Overall width 30-3/4” (78.1 cm) 36-3/4” (93.3 cm)
Overall height from bottom
To top of knobs
To top of cooking surface
To bottom edge of frame
4” (10.2 cm)
3” (7.6 cm)
3-1/8” (7.9 cm)
Overall depth from rear 21” (53.3 cm)
Cutout width 28-1/2” (72.4 cm) minimum to
29” (73.7 cm) maximum
34-1/2” (87.6 cm) minimum to
35” (88.9 cm) maximum
Cutout depth 19-3/8" (49.2 cm) minimum to 19-7/8" (50.5 cm) maximum
Electrical requirements 240-208/120 VAC; 50/60Hz; factory-installed 4 ft. (121.9 cm) flexible steel
conduit 3-wire conduit with a No. 10 ground wire; located
on the right rear corner of unit
Maximum amp usage 240V—32.2 amps (7.7 kw)
208V—27.9 amps (5.8 kw)
240V—48.3 amps (11.6 kw)
208V—41.9 amps (8.7 kw)
Surface element rating (4) 9” (22.9 cm)
2300 W / 3,700 W boost
(6) 9” (22.9 cm)
2300 W / 3,700 W boost
Approximate shipping
weight
52 lb. (23.6 kg) 63 lb. (28.6 kg)
30-3/4”
(78.1 cm)
21”
(53.4 cm)
36-3/4”
(93.3 cm)
21”
(53.4 cm)

2-5/8”
(6.7 cm)
3-1/2”
(8.9 cm)
1-1/4”
(3.2 cm)
4”
(10.2 cm)
2-1/8”
(5.4 cm)
3”
(7.6 cm)
1”
(2.5 cm)
3-1/2”
(8.9 cm)
7
Dimensions (Overall Height)
Electric Cooktop
Induction Cooktop

8
Cutout Dimensions
Note: Based on 24” deep cabinet with 3/4” backsplash.
30” W. (76 cm) Cooktop
over 30” W. (76 cm) Electric Oven
1”
(2.54 cm)*
to
2-1/2”
(6.35 cm)*
B
A
36”min.
(91.4 cm)
28-1/8”
(71.4 cm)
5”
(12.7 cm) max.
28-1/2”
(72.4 cm)
See A
Above
2-1/2” min.
(6.4 cm)
14-3/8”
(36.5 cm)
14-3/8”
(36.5 cm)
14-1/4”
(36.2 cm)
14-1/4”
(36.2 cm)
See B
Above
Note: Refer to the oven installation instructions for
undercounter oven dimensions.
Electric
30”W. MODELS 36”W. MODELS
A28-7/8” (73.3 cm) min. to
29-1/8” (74.0 cm) max.
34-7/8” (88.6 cm) min. to
35-1/8” (89.2 cm) max.
B19-1/4” (48.9 cm) min. to
19-3/4” (50.2 cm) max.
Induction
30”W. MODELS 36”W. MODELS
A28-1/2” (72.4 cm) min. to
29” (73.7 cm) max.
34-1/2” (87.6 cm) min. to
35” (88.9 cm) max.
B19-3/8" (49.2 cm) min. to
19-7/8" (50.5 cm) max.

9
Headline
9
Clearance Dimensions
PROXIMITY TO SIDE CABINET
INSTALLATION
• The cooktop may be installed directly to
existing base cabinets.
• The cooktop CANNOT be installed
directly adjacent to sidewalls, tall cabinets,
tall appliances, or other side vertical
surfaces above 36” (91.4 cm) high. There
must be a minimum of 6” (15.2 cm) side
clearance from the cooktop to such
combustible surfaces above the 36”
(91.4 cm) counter height.
• Within the 6” (15.2 cm) side clearance to
combustible vertical surfaces above
36” (91.4 cm), the maximum wall cabinet
depth must be 13” (33.0 cm) and wall
cabinets within this 6” (15.2 cm) side
clearance must be 18” (45.7 cm) above
the 36” (91.4 cm) high countertop.
• Wall cabinet above the cooktop must be
a minimum of 36” (91.4 cm) above the
countertop for a full width of the cooktop.
• If a ventilation hood is installed over the
cooktop, the minimum 36” (91.4 cm)
height clearance above the unit does not
apply. Refer to the hood installation
instructions for further information.
Minimum Clearances from Adjacent
Combustible Construction
• Above countertop 36” (91.4 cm) minimum
• Side 6” (15.2 cm)
• Rear 0” (0.0 cm)
• Within 6” side clearance. Wall cabinets no
deeper than 13” (33.0 cm)
• Must be minimum 18” (45.7 cm) above
countertop
• Wall cabinets directly above the product
must be minimum 36” (91.4 cm) above the
countertop
For Brazil/Mexico Only: It is
recommended that a removable shelf be
installed under the appliance after it has
been fully installed to prevent
unintended access to the appliance
during use.
Note: Dimensions shown are for use
with combustible surfaces unless
otherwise stated.

10
Headline
10
Clearance Dimensions

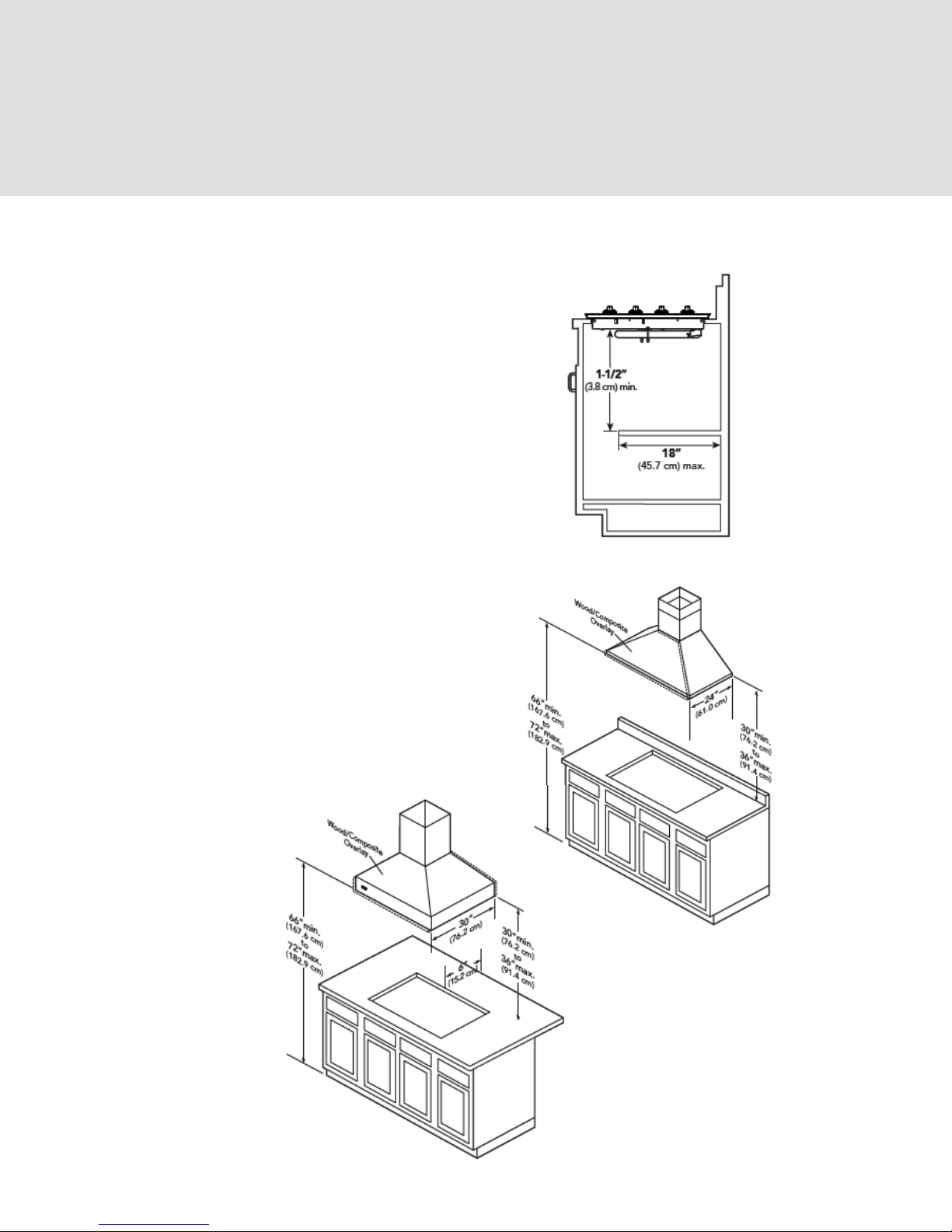

INTERIOR CABINET CLEARANCES
INDUCTION COOKTOPS
IMPORTANT: The electronic components
for the induction elements in the cooktop
need air circulation. To ensure long life of
electronic components, it is required that
1-1/2 (3.8 cm) or more open space remains
between the bottom of the cooktop and any
shelf underneath. The maximum length of
the shelf underneath is 18” (45.7 cm). It is
required that the exit air ports at the front are
not blocked.
WOOD/COMPOSITE OVERLAY
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the
floor. Refer to the rangehood installation
instructions for additional information. These
dimensions provide for safe and efficient
operation of the hood.

11
Headline
11
Electrical Requirements
Electrical Requirements
Check your local codes regarding this unit.
This cooktop is supplied with a 3-wire, A.C.
208V/120 volt or 120V/240 volt, 60 HZ
electrical system. A white (neutral) is not
needed for this unit. See next section for
grounding instructions. It should be fused
separately.
Refer to the specifications chart for kilowatt
rating and recommended amperage. House
wiring and fusing must comply with local
codes. If no local codes are applicable, wire
in accordance with the National Electrical
Code, ANSI/NFPA 70-latest edition.
WARNING
BURN HAZARD
The use of cabinets for storage
above the appliance may result
in potential burn hazard. Combustible
items may ignite, metallic items may
become hot and cause burns. If a cabinet
storage is to provided the risk can be
reduced by installing a range hood that
projects horizontally a minimum of 5" (12.7
cm) beyond the bottom of the cabinets.
Electrical Connection
When making the wire connections, use
the entire length of the conduit provided
(4 feet). The conduit must not be cut.
Connect the red and black leads from the
unit conduit to the corresponding leads in
the junction box. The bare ground wire in the
conduit is connected to the unit frame. When
connecting to a 3-conductor branch circuit,
connect the bare ground connector lead of
the unit to the branch circuit ground (bare
wire or green in color).
WARNING
The electrical power to the
unit must be shut off while line
connections are being made.
Failure to do so could result in serious
injury or death.
WARNING
FIRE AND ELECTRICAL
SHOCK HAZARD
DO NOT use an extension
cord with this appliance. Such
use may result in fire, electrical
shock, or other personal injury.
CAUTION
Be sure the electric power is
off from the breaker box to the
junction box until the cooktop
is installed and ready to operate. The
junction box should be connected to a
suitable ground.

12
Headline
12
General Information
READ AND FOLLOW ALL WARNING
AND CAUTION INFORMATION WHEN
INSTALLING THIS APPLIANCE.
• Keep appliance area clear and free from
combustible materials, gasoline and other
flammable vapors.
• Disconnect the electrical supply prior to
servicing or cleaning.
• When removing the cooktop for service
and/or cleaning, disconnect AC power
supply.
• Electrical requirements are listed in the
product specifications under the “Electrical
Requirements” section.

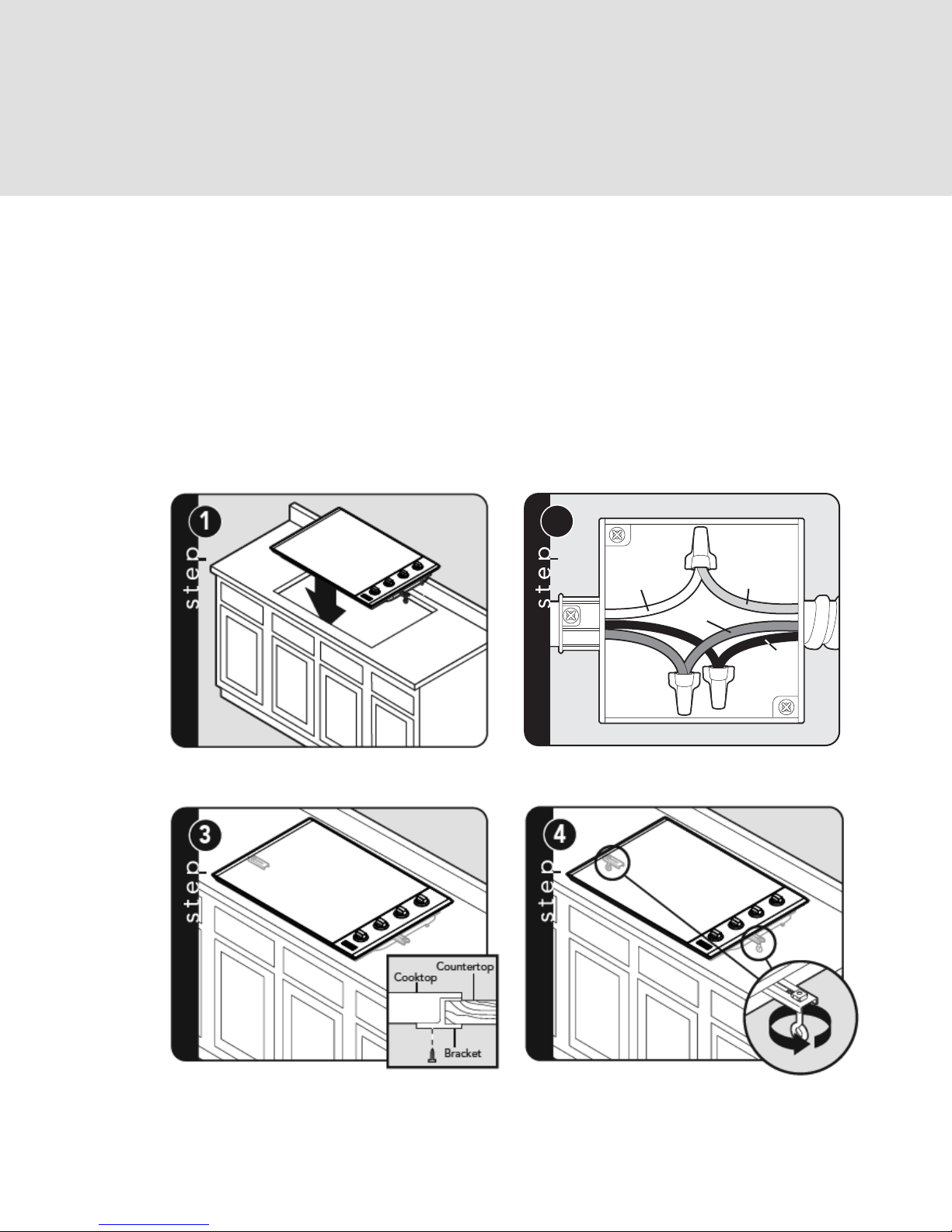

2
Ground Green
Black
Red
Lower cooktop into cutout. Connect the red and black leads from the unit conduit
to the corresponding leads in the junction box.
Screw brackets to burner box with sheet metal screw.
(Two bracket assemblies included)
Screw sheet metal screws into brackets
and tighten firmly against bottom of countertop.
Note: Be careful not to crack or damage
counter by overtightening.
Installation

13
Headline
13
Final Preparation
• Some stainless steel parts may have plastic
protective wrap which must be peeled off.
• All stainless steel body parts should be
wiped with hot, soapy water and with a
liquid cleaner designed for this material.
If buildup occurs, DO NOT use steel wool,
abrasive cloths, cleaners, or powders!
• If it is necessary to scrape stainless steel to
remove encrusted materials, soak with hot,
wet cloths to loosen the material, then use
a wood or nylon scraper. DO NOT use a
metal knife, spatula, or any other metal
tool to scrape stainless steel! Scratches are
almost impossible to remove.
Performance Checklist
A qualified installer should carry out the
following checks:
Check top surface elements
1. Starting with the left front element,
turn the corresponding knob to the
HI position—left front indicator should
flash.
2. Place an induction compatible piece
of cookware onto the left front
burner—left front indicator should be
solid.
3. Remove cookware and repeat steps
for other elements.

14
Headline
14
Service & Registration
Only authorized replacement parts may be used in performing service on the cooktop.
DO NOT repair or replace any part of the appliance unless specifically recommended in the
manual. All other servicing should be referred to a qualified technician.
Contact Viking Range, LLC, 1-888-(845-4641), for the nearest service parts distributor in your
area or write to:
VIKING RANGE, LLC
PREFERRED SERVICE
111 Front Street
Greenwood, Mississippi 38930 USA
Cooktop – The serial number and model number for your appliance can be found by looking
under the unit.
Record the information indicated below. You will need it if service is ever required.
Model number ________________________________________________________________________
Serial number _________________________________________________________________________
Date of purchase ______________________________________________________________________
Date installed _________________________________________________________________________
Dealer’s name ________________________________________________________________________
Address ______________________________________________________________________________
These installation instructions should remain with the unit for future reference.

15

F21271B EN
Viking Range, LLC
111 Front Street
Greenwood, Mississippi 38930 USA
[phone]
For product information,
call 1-888-(845-4641)
or visit the Viking Web site at vikingrange.com
(103014)
