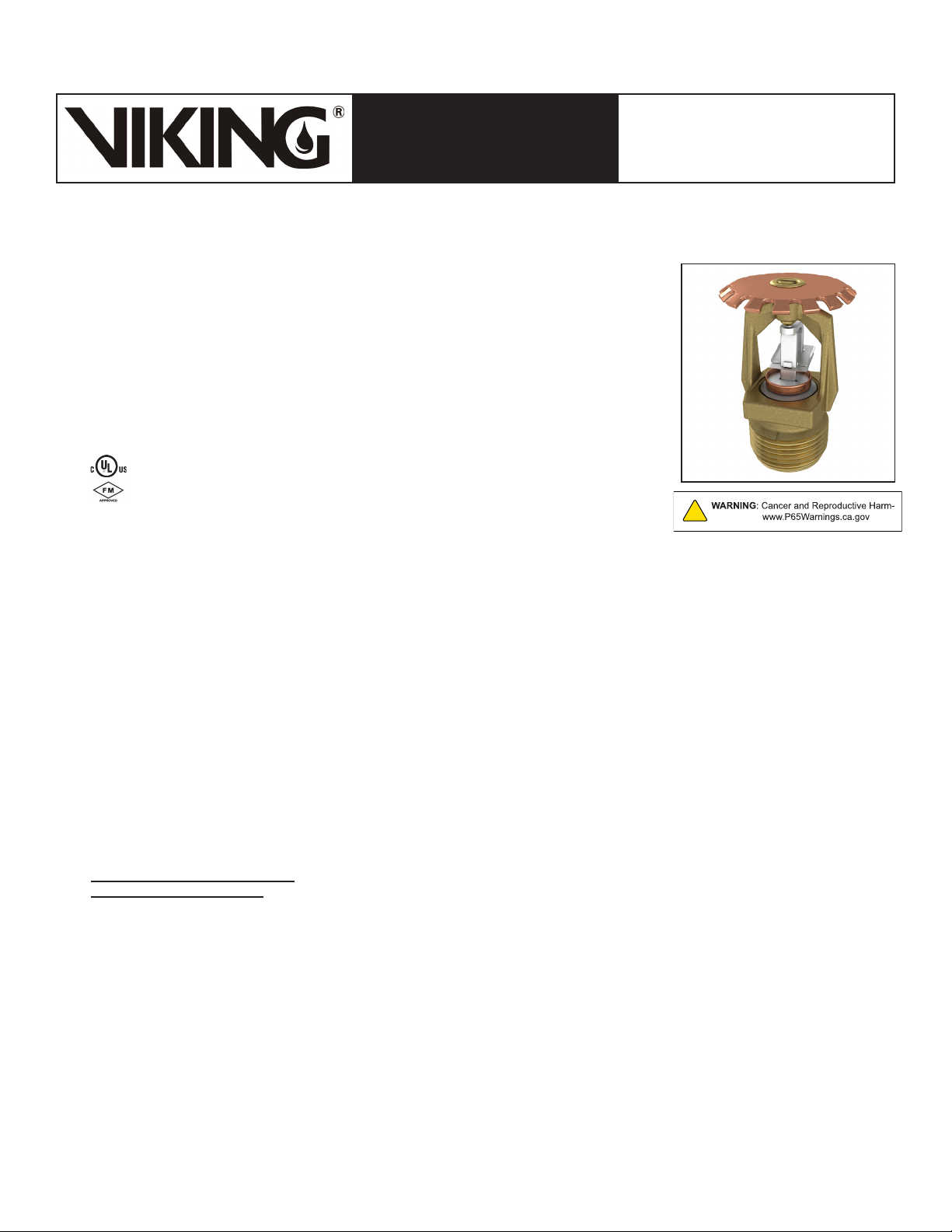

Viking VK535 Instruction manual

STANDARD/QUICK RESPONSE
ECOH ELO FUSIBLE ELEMENT
UPRIGHT SPRINKLER VK535 (K11.2)
TECHNICAL DATA
Page 1 of 5
Form No. F_072014 20.06.04 Rev 20.1
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1. DESCRIPTION
Viking EC/QREC Ordinary Hazard ELO Fusible Element Sprinkler VK535 is a thermosensitive
spray sprinkler available in several different finishes and temperature ratings to meet varying
design requirements. The extra-large orifice produces the flows required to meet Ordinary
Hazard density requirements at lower pressures than standard orifice or large orifice
sprinklers. Upright Sprinkler VK535 is UL Listed as standard response and FM Approved as
quick response. The special Polyester and Electroless Nickel PTFE (ENT) coatings can
be used in decorative applications where colors are desired. In addition, the ENT coating
has been investigated for installation in corrosive environments and is Listed/Approved as
indicated in the Approval Chart(s).
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
FM Approved: Class 2022
Refer to the Approval Chart(s) and Design Criterion for listing and approval requirements
that must be followed.
cULus Listing requires the spacing between upright VK535 sprinklers to be a minimum
of 13 ft. (4 m) to prevent cold soldering.
3. TECHNICAL DATA
Specications:
Minimum Operating Pressure: Refer to the Approval Charts.
Maximum Working Pressure: 175 psi (12 Bar).
Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 3/4” NPT
Nominal K-factor: 11.2 U.S. (161.3 metric†)
† Metric K-factor measurement shown is in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Overall Length: 2-5/16 (59 mm)
Material Standards:
Sprinkler Frame: Brass UNS-C84400
Deflector: Copper UNS-C19500 for Sprinkler
Fusible Element Assembly: Nickel Alloy
Trigger and Support: Stainless Steel UNS-S31600
Seat and Insert Assembly: Copper UNS-C11000 and Stainless Steel UNS-S30400
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Screw: Brass UNS-C36000
For Polyester Coated Sprinklers: Belleville Spring-Exposed
For ENT Coated Sprinklers: Belleville Spring-Exposed, Screw and Pip Cap-ENT Coated
Ordering Information: (Also refer to the current Viking price list.)
Order EC/QREC Ordinary Hazard ELO Fusible Element Sprinklers by first adding the appropriate suffix for the sprinkler finish
and then the appropriate suffix for the temperature rating to the sprinkler base part number.
Finish Suffix: Brass = A, Chrome = F, White Polyester = M-/W, Black Polyester = M-/B, and ENT = JN
Temperature Suffix (°F/°C): 165°/74° = C and 205°/96° = E
For example, sprinkler VK535 with a Brass finish and a 165 °F/74 °C temperature rating = Part No. 14139AC
Available Finishes And Temperature Ratings:
Refer to Table 1.
Accessories: (Also refer to the Viking website.)
Sprinkler Wrenches:
Standard Wrench: Part No. 05118CW/B (available since 1981)
Sprinkler Cabinets:
A. Six-head capacity: Part No. 01724A (available since 1971)
B. Twelve-head capacity: Part No. 01725A (available since 1971)
Replaces Form No. F_072014 Rev 19.3
(Remove Black PTFE; removed 20mm)


STANDARD/QUICK RESPONSE
ECOH ELO FUSIBLE ELEMENT
UPRIGHT SPRINKLER VK535 (K11.2)
TECHNICAL DATA
Page 2 of 5
Form No. F_072014 20.06.04 Rev 20.1
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
4. INSTALLATION
Refer to appropriate NFPA Installation Standards.
5. OPERATION
During fire conditions, the heat-sensitive fusible element assembly disengages, releasing the seat and spring assemblies to
open the waterway. Water flowing through the sprinkler orifice strikes the sprinkler deflector, forming a uniform spray pattern to
extinguish or control the fire.
6. INSPECTIONS, TESTS AND MAINTENANCE
Refer to NFPA 25 for Inspection, Testing and Maintenance requirements.
7. AVAILABILITY
Viking Sprinkler VK535 is available through a network of domestic and international distributors. See The Viking Corporation
web site for the closest distributor or contact The Viking Corporation.
8. GUARANTEE
For details of warranty, refer to Viking’s current list price schedule or contact Viking directly.

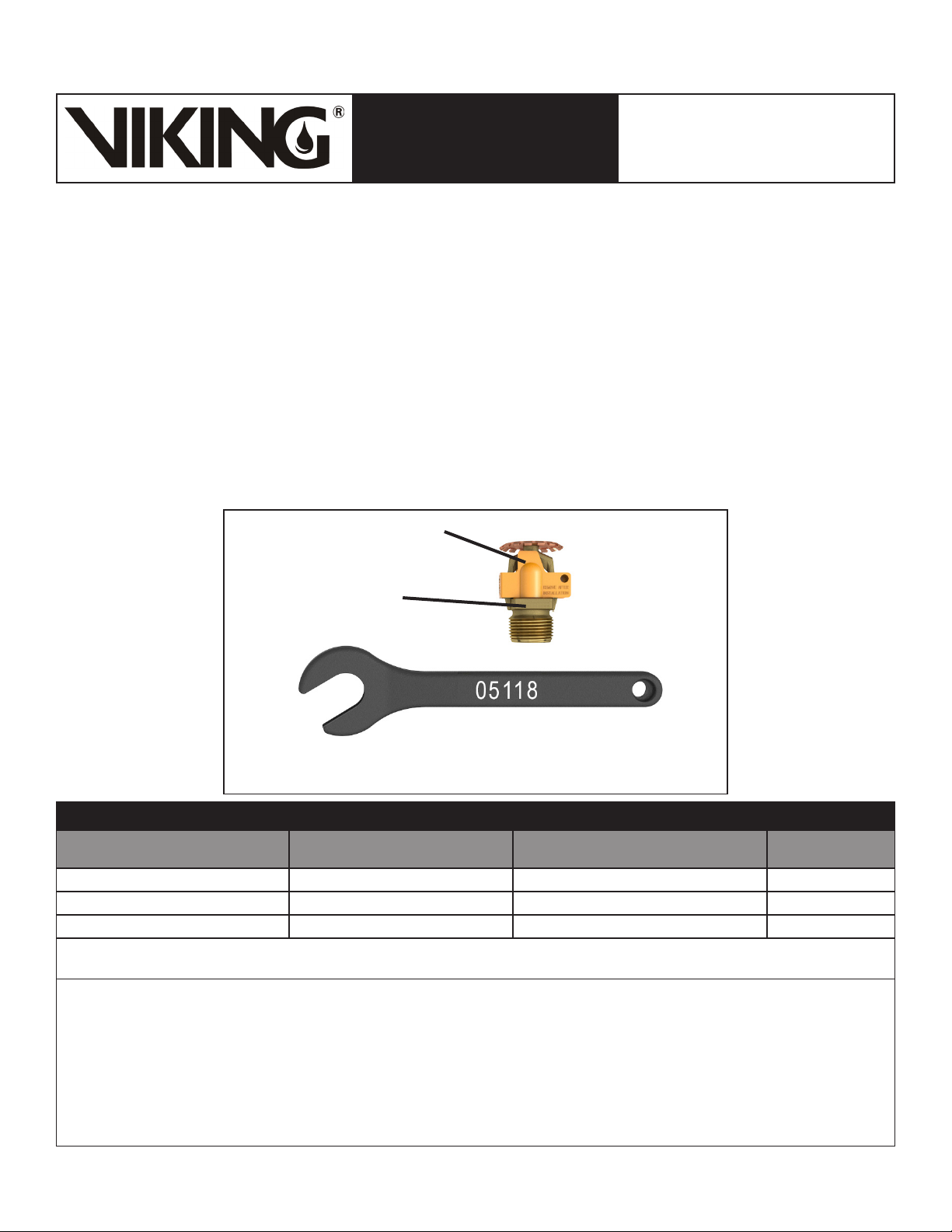

Figure 1:
Standard Sprinkler Wrench 05118CW/B
Protective Sprinkler Clip
Wrench Flat
TABLE 1: AVAILABLE SPRINKLER TEMPERATURE RATINGS AND FINISHES
Sprinkler Temperature
Classification
Sprinkler Nominal
Temperature Rating1
Maximum Ambient
Ceiling Temperature2
Frame Paint
Color
Ordinary 165 °F (74 °C) 100 °F (38 °C) None
Intermediate 205 °F (96 °C) 150 °F (65 °C) White
High 280 °F (138 °C) 225 °F (107 °C) Blue
Sprinkler Finishes: Brass, Chrome, White Polyester5, Black Polyester5, and ENT3,4
Corrosion Resistant Sprinkler Coatings: ENT3,4
Footnotes
1Decorative sprinklers may not be color coded. The temperature rating is stamped on the deflector.
2Based on NFPA-13. Other limits may apply, depending on fire loading, sprinkler location, and other requirements of the Authority Having Jurisdiction.
Refer to specific installation standards.
3The corrosion resistant coatings have passed the standard corrosion test required by the approving agencies indicated in the Approval Chart(s).
These tests cannot and do not represent all possible corrosive environments. Prior to installation, verify through the end-user that the coatings are
compatible with or suitable for the proposed environment. Note that the spring is exposed on sprinklers with ENT coatings. For ENT coated automatic
sprinklers, the waterway is coated.
4cULus Listed as corrosion resistant.
5 For automatic sprinklers, the coatings indicated are applied to the exposed exterior surfaces only. Note that the spring is exposed on sprinklers with
Polyester coatings.

STANDARD/QUICK RESPONSE
ECOH ELO FUSIBLE ELEMENT
UPRIGHT SPRINKLER VK535 (K11.2)
TECHNICAL DATA
Page 3 of 5
Form No. F_072014 20.06.04 Rev 20.1
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
Approval Chart 1 (UL)
EC/QREC Fusible Element Ordinary Hazard ELO Sprinkler VK535
Sprinkler Base
Part Number1SIN NPT Thread Size Nominal K-factor Maximum Water Working Pressure
Overall Length
Inches mm U.S. metric2Inches mm
14139 VK535 3/4 -- 11.2 161.3 175 psi (12 Bar) 2-5/16 59
Maximum Sprinkler
Spacing (L x W5)
Maximum Area
per Sprinkler
Minimum Water Supply Requirements5Listings and Approvals3
(See Design Criteria.)
Ordinary Hazard Group I Ordinary Hazard Group II
Flow / Pressure Flow / Pressure cULus4NYC
Standard Response
16 ft. x 16 ft.
(4.9 m x 4.9 m) 256 ft2(23.8 m2)38 gpm @ 11.5 psi (143.9 L/min @ .79 Bar)
51 gpm @ 20.7 psi
(193.1 L/min @ 1.43 Bar) A1 See Footnote 6.
18 ft. x 18 ft.
(5.5 m x 5.5 m) 324 ft2(30.1 m2)49 gpm @ 19.1 psi (185.5 L/min @ 1.32 Bar)
65 gpm @ 33.7 psi
(246.1 L/min @ 2.32 Bar) A1 See Footnote 6.
20 ft. x 20 ft.
(6.1 m x 6.1 m) 400 ft2(37.2 m2)60 gpm @ 28.7 psi (227.1 L/min @ 1.98 Bar)
80 gpm @ 51.0 psi
(302.8 L/min @ 3.52 Bar) A1 See Footnote 6.
Quick Response (cULus only)
14 ft. x 14 ft.
(4.3 m x 4.3 m) 196 ft2(18.2 m2)30 gpm @ 7.2 psi (113.6 L/min @ .50 Bar)
39 gpm @ 12.1 psi
(147.7 L/min @ .84 Bar) A1 See Footnote 6.
Approved Temperature Ratings
A - 165 °F (74 °C) and 205 °F (96 °C) Approved Finishes
1 - Brass, Chrome, White Polyester, Black Polyester and ENT7
Footnotes
1Part number shown is the base part number. For complete part number, refer to current Viking price list schedule.
2Metric K-factor measurement shown is when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
3This chart shows listings and approvals available at time of printing. Check with the manufacturer for any additional approvals.
4cULus Listed for use in the U.S. and Canada.
5To determine “Minimum Water Supply Requirement” for areas of coverage where length and width of actual sprinkler spacing are not equal, select
the “Maximum Sprinkler Spacing” from the chart that is equal to or greater than the larger of the actual spacing (length or width) dimensions used.
Example: When using 10’-6” x 13’-0” sprinkler spacing, provide the “Minimum Water Supply Requirement” listed in the chart for 14’-0” x 14’-0” spac-
ing. For areas of coverage smaller than shown, use the “Minimum Water Supply Requirement” in the appropriate hazard group for the next larger
area listed. The distance from sprinklers to walls shall not exceed one-half the “Maximum Sprinkler Spacing” listed for the “Minimum Water Supply
Requirement” used.
6Meets New York City requirements, effective July 1, 2008.
7cULus Listed as corrosion resistant.

STANDARD/QUICK RESPONSE
ECOH ELO FUSIBLE ELEMENT
UPRIGHT SPRINKLER VK535 (K11.2)
TECHNICAL DATA
Page 4 of 5
Form No. F_072014 20.06.04 Rev 20.1
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
DESIGN CRITERIA - UL
(Also refer to Approval Chart 1.)
cULus Listing Requirements:
ECOH-ELO Fusible Element Upright Sprinkler VK535 is cULus Listed as indicated in Approval Chart 1 for installation in accordance with the latest
edition of NFPA 13 for extended coverage upright sprinklers as indicated below:
• The minimum water supplies and maximum areas of coverage shown in the Approval Chart are designed to provide the following design densities:
0.15 gpm/ft2(6.1 mm/min) for Ordinary-Hazard Group I densities; 0.2 gpm/ft.2(8.1 mm/min) for Ordinary-Hazard Group II densities.
• The sprinkler installation rules contained in NFPA 13 for extended coverage upright and pendent spray sprinklers must be followed with the excep-
tion that cULus Listing requires the spacing between upright VK535 sprinklers to be a minimum of 13 ft. (4 m) to prevent cold soldering.
• Viking ECOH-ELO Fusible Element Upright Sprinklers are cULus Listed for use in unobstructed construction, and noncombustible obstructed
construction consisting of solid steel and/or concrete beams as defined in the latest edition of NFPA 13.
• Ceiling slope not to exceed 2/12 (9.5°).
Also, Viking ECOH-ELO Upright Sprinkler VK535 is specifically cULus Listed for:
• For non-combustible obstructed construction within trusses or bar joists having non-combustible web members greater than 1” (25.4 mm) when
applying the 4 times obstruction criteria rule as defined in NFPA 13 under “Obstructions to Sprinkler Discharge Pattern Development”.
• For installation under concrete tees when installed as follows:
1. The stems of the concrete tee construction must be spaced between 3 ft (0.9 m) and 7 ft-6 in (2.3 m) on center. The depth of the concrete
tees must not exceed 30 in (762 mm). The maximum permitted concrete tee length is 32 ft (9.8 m). However, where the concrete tee length
exceeds 32 ft (9.8 m), non-combustible baffles, equal in height to the depth of the tees, can be installed so that the space between the tees
does not exceed 32 ft (9.8 m).
2. The sprinkler deflector is to be located in a horizontal plane at or above 1” (25.4 mm) below the bottom of the concrete tee stems.
3. When the sprinkler deflector is located higher than a horizontal plane 1” (25.4 mm) beneath the bottom of the concrete tee stems, the obstruc-
tion to sprinkler discharge criteria requirements of NFPA 13 for extended coverage upright sprinklers applies.

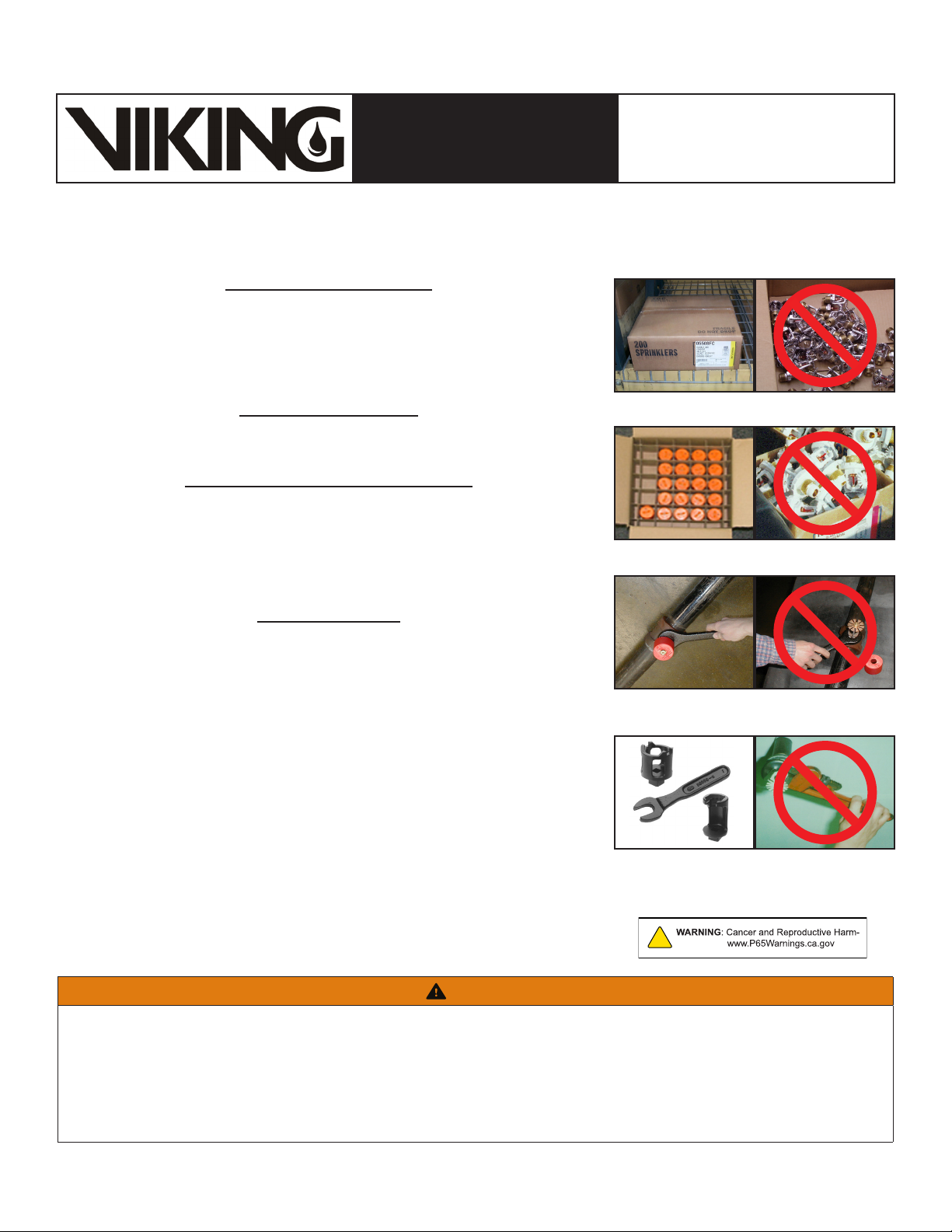

IMPORTANT: Always refer to Bulletin Form No. F_091699 - Care and Handling of Sprinklers. Also refer to Form No. F_080614
for general care, installation, and maintenance information. Viking sprinklers are to be installed in accordance with the latest
edition of Viking technical data, the appropriate standards of NFPA, LPCB, APSAD, VdS or other similar organizations, and
also with the provisions of governmental codes, ordinances, and standards, whenever applicable.

STANDARD/QUICK RESPONSE
ECOH ELO FUSIBLE ELEMENT
UPRIGHT SPRINKLER VK535 (K11.2)
TECHNICAL DATA
Page 5 of 5
Form No. F_072014 20.06.04 Rev 20.1
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
Approval Chart 2 (FM)
Quick Response Extended Coverage ELO Upright Sprinkler VK535
For HC-1, HC-2, and HC-3 Occupancies
Maximum 175 PSI (12 Bar) WWP
Maximum Sprinkler
Spacing (L x W2)
Maximum Area
per Sprinkler Refer to Design Criteria below.
NOTE: FM installation guidelines may differ
from cULus and/or NFPA criteria. Refer to the
latest applicable FM Loss Prevention
Data Sheets (including 2-0 and 3-26).
FM Approval1
12 ft. x 12 ft. (3.7 m x 3.7 m) 144 ft2(13.4 m2) A1
14 ft. x 14 ft. (4.3 m x 4.3 m) 196 ft2(18.2 m2) A1
16 ft. x 16 ft. (4.9 m x 4.9 m) 256 ft2(23.8 m2) A1
Approved Temperature Ratings
A - 165 °F (74 °C), 205 °F (96 °C), and 280 °F (138 °C)
Approved Finishes
1 - Brass, Chrome, White Polyester, Black Polyester, and ENT
Footnotes
1This chart shows the FM Approvals available at time of printing. Check with the manufacturer for any additional approvals.
2To determine “Minimum Water Supply Requirement” for areas of coverage where length and width of actual sprinkler spacing are not equal, select
the “Maximum Sprinkler Spacing” from the chart that is equal to or greater than the larger of the actual spacing (length or width) dimensions used.
Example: When using 10’-6” x 13’-0” sprinkler spacing, provide the “Minimum Water Supply Requirement” listed in the chart for 14’-0” x 14’-0” spac-
ing. For areas of coverage smaller than shown, use the “Minimum Water Supply Requirement” in the appropriate hazard group for the next larger
area listed. The distance from sprinklers to walls shall not exceed one-half the “Maximum Sprinkler Spacing” listed for the “Minimum Water Supply
Requirement” used.
DESIGN CRITERIA - FM
(Also refer to Approval Chart 2 above.)
FM Approval Requirements:
Sprinkler VK535 is FM Approved as a quick response Non-Storage extended coverage upright sprinkler as indicated in the FM Approval Guide for
use in occupancy hazard classifications HC-1, HC-2, and HC-3. For specific application and installation requirements, reference the latest applicable
FM Loss Prevention Data Sheets (including Data Sheets 2-0 and 3-26). FM Global Loss Prevention Data Sheets contain guidelines relating to, but
not limited to: minimum water supply requirements, hydraulic design, ceiling slope and obstructions, minimum and maximum allowable spacing, and
deflector distance below the ceiling.
NOTE: The FM installation guidelines may differ from cULus and/or NFPA criteria.
IMPORTANT: Always refer to Bulletin Form No. F_091699 - Care and Handling of Sprinklers. Also refer to Form No. F_080614
for general care, installation, and maintenance information. Viking sprinklers are to be installed in accordance with the latest
edition of Viking technical data, the appropriate standards of NFPA, LPCB, APSAD, VdS or other similar organizations, and
also with the provisions of governmental codes, ordinances, and standards, whenever applicable.
Replaces Form No. F_072014 Rev 19.3
(Remove Black PTFE)

BULLETIN
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
CARE AND HANDLING
OF SPRINKLERS
Page 1 of 4
Form No. F_091699 18.10.11 Rev 16.1.P65
SPRINKLERS ARE FRAGILE - HANDLE WITH CARE!
General Handling and Storage:
• Store sprinklers in a cool, dry place.
• Protect sprinklers during storage, transport, handling, and after installation.
• Use the original shipping containers. DO NOT place sprinklers loose in boxes, bins,
or buckets.
• Keep sprinklers separated at all times. DO NOT allow metal parts to contact sprinkler
operating elements.
For Pre-Assembled Drops:
• Protect sprinklers during handling and after installation.
• For recessed assemblies, use the protective sprinkler cap (Viking Part Number 10364).
Sprinklers with Protective Shields or Caps:
• DO NOT remove shields or caps until after sprinkler installation and there no longer is
potential for mechanical damage to the sprinkler operating elements.
• Sprinkler shields or caps MUST be removed BEFORE placing the system in
service!
• Remove the sprinkler shield by carefully pulling it apart where it is snapped together.
• Remove the cap by turning it slightly and pulling it off the sprinkler.
Sprinkler Installation:
• DO NOT use the sprinkler deflector or operating element to start or thread the sprinkler
into a fitting.
• Use only the designated sprinkler head wrench! Refer to the current sprinkler tech-
nical data page to determine the correct wrench for the model of sprinkler used.
• DO NOT install sprinklers onto piping at the floor level.
• Install sprinklers after the piping is in place to prevent mechanical damage.
• DO NOT allow impacts such as hammer blows directly to sprinklers or to fittings, pipe,
or couplings in close proximity to sprinklers. Sprinklers can be damaged from direct or
indirect impacts.
• DO NOT attempt to remove drywall, paint, etc., from sprinklers.
• Take care not to over-tighten the sprinkler and/or damage its operating parts!
Maximum Torque:
1/2” NPT: 14 ft-lbs. (19.0 N-m)
3/4” NPT: 20 ft-lbs. (27.1 N-m)
1” NPT: 30 ft-lbs. (40.7 N-m)
WARNING
Any sprinkler with a loss of liquid from the glass bulb or damage to the fusible element should be destroyed. Never install sprinklers
that have been dropped, damaged, or exposed to temperatures exceeding the maximum ambient temperature allowed. Sprinklers that
have been painted in the field must be replaced per NFPA 13. Protect sprinklers from paint and paint overspray in accordance with
the installation standards. Do not clean sprinklers with soap and water, ammonia, or any other cleaning fluid. Do not use adhesives
or solvents on sprinklers or their operating elements.
Refer to the appropriate technical data page and NFPA standards for complete care, handling, installation, and maintenance
instructions. For additional product and system information Viking data pages and installation instructions are available on
the Viking Web site at www.vikinggroupinc.com.
CORRECT
(Original container used)
INCORRECT
(Placed loose in box)
CORRECT
(Protected with caps)
INCORRECT
(Protective caps not used)
CORRECT
(Piping is in place at the
ceiling)
INCORRECT
(Sprinkler at floor level)
CORRECT
(Special installation
wrenches)
INCORRECT
(Designated wrench not
used)

Replaces Form No. F_091699 Rev 16.1
(Added P65 Warning)

BULLETIN
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
CARE AND HANDLING
OF SPRINKLERS
Page 2 of 4
Form No. F_091699 18.10.11 Rev 16.1.P65
PROTECTIVE SPRINKLER SHIELDS AND CAPS
General Handling and Storage:
Many Viking sprinklers are available with a plastic protective cap or shield temporarily covering the operating elements. The snap-
on shields and caps are factory installed and are intended to help protect the operating elements from mechanical damage during
shipping, storage, and installation. NOTE: It is still necessary to follow the care and handling instructions on the appropriate sprin-
kler technical data sheets* when installing sprinklers with bulb shields or caps.
WHEN TO REMOVE THE SHIELDS AND CAPS:
NOTE: SHIELDS AND CAPS MUST BE REMOVED FROM SPRINKLERS BEFORE PLACING THE SYSTEM IN SERVICE!
Remove the shield or cap from the sprinkler only after checking all of the following:
• The sprinkler has been installed*.
• The wall or ceiling finish work is completed where the sprinkler is installed and there no longer is a potential for mechanical damage
to the sprinkler operating elements.
SHIELDS AND CAPS MUST BE REMOVED FROM SPRINKLERS BEFORE PLACING THE SYSTEM IN SERVICE!
Figure 1: Sprinkler shield being
removed from a pendent sprinkler.
Figure 2: Sprinkler cap being
removed from a pendent sprinkler.
Figure 3: Sprinkler cap being re-
moved from and upright sprinkler.
HOW TO REMOVE SHIELDS AND CAPS:
No tools are necessary to remove the shields or caps from sprinklers. DO NOT use any sharp objects to remove them! Take care
not to cause mechanical damage to sprinklers when removing the shields or caps. When removing caps from fusible ele-
ment sprinklers, use care to prevent dislodging ejector springs or damaging fusible elements. NOTE: Squeezing the sprinkler cap
excessively could damage sprinkler fusible elements.
• To remove the shield, simply pull the ends of the shield apart where it is snapped together. Refer to Figure 1.
• To remove the cap, turn it slightly and pull it off the sprinkler. Refer to Figures 2 and 3.
Refer to the current sprinkler technical data page to determine the correct sprinkler wrench for the model of sprinkler used.
Never install sprinklers that have been dropped, damaged, or exposed to temperatures in excess of the maximum ambient
temperature allowed.
* Refer to the appropriate current technical data pages for complete care, handling, and installation instructions. Data
pages are included with each shipment from Viking or Viking distributors. They can also be found on the Web site at www.
vikinggroupinc.com.

BULLETIN
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
CARE AND HANDLING
OF SPRINKLERS
Page 3 of 4
Form No. F_091699 18.10.11 Rev 16.1.P65
GENERAL HANDLING AND STORAGE INSTRUCTIONS:
• Do not store in temperatures exceeding 100 °F (38 °C). Avoid direct sunlight and confined areas subject to heat.
• Protect sprinklers and cover assemblies during storage, transport, handling, and after installation.
-- Use original shipping containers.
-- Do not place sprinklers or cover assemblies loose in boxes, bins, or buckets.
• Keep the sprinkler bodies covered with the protective sprinkler cap any time the sprinklers are shipped or handled, during testing of the system, and
while ceiling finish work is being completed.
• Use only the designated Viking recessed sprinkler wrench (refer to the appropriate sprinkler data page) to install these sprinklers. NOTE: The protective cap is
temporarily removed during installation and then placed back on the sprinkler for protection until finish work is completed.
• Do not over-tighten the sprinklers into fittings during installation.
• Do not use the sprinkler deflector to start or thread the sprinklers into fittings during installation.
• Do not attempt to remove drywall, paint, etc., from the sprinklers.
• Remove the plastic protective cap from the sprinkler before attaching the cover plate assembly. PROTECTIVE CAPS MUST BE REMOVED FROM
SPRINKLERS BEFORE PLACING THE SYSTEM IN SERVICE!
Refer to the appropriate current technical data pages for complete care, handling, and installation instructions. Data
pages are included with each shipment from Viking or Viking distributors. They can also be found on the Web site at www.
vikinggroupinc.com.
Concealed Sprinkler and Adapter
Assembly with Protective Cap
CAUTION: CONCEALED COVER ASSEMBLIES ARE FRAGILE!
TO ASSURE SATISFACTORY PERFORMANCE OF THE PRODUCT, HANDLE WITH CARE.
Cover Plate Assembly
(Pendent Cover 12381 shown)
Concealed Sprinkler and Adapter
Assembly (Protective Cap Removed)

BULLETIN
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
CARE AND HANDLING
OF SPRINKLERS
Page 4 of 4
Form No. F_091699 18.10.11 Rev 16.1.P65
USE THE FOLLOWING PRECAUTIONS WHEN HANDLING WAX-COATED SPRINKLERS
Many of Viking’s sprinklers are available with factory-applied wax coating for corrosion resistance. These sprinklers MUST receive
appropriate care and handling to avoid damaging the wax coating and to assure satisfactory performance of the product.
General Handling and Storage of Wax-Coated Sprinklers:
• Store the sprinklers in a cool, dry place (in temperatures below the maximum ambient temperature allowed for the sprinkler temperature rating. Refer
to Table 1 below.)
• Store containers of wax-coated sprinklers separate from other sprinklers.
• Protect the sprinklers during storage, transport, handling, and after installation.
• Use original shipping containers.
• Do not place sprinklers in loose boxes, bins, or buckets.
Installation of Wax-Coated Sprinklers:
Use only the special sprinkler head wrench designed for installing wax-coated Viking sprinklers (any other wrench may damage
the unit).
• Take care not to crack the wax coating on the units.
• For touching up the wax coating after installation, wax is available from Viking in bar form. Refer to Table 1 below. The coating MUST be repaired after
sprinkler installation to protect the corrosion-resistant properties of the sprinkler.
• Use care when locating sprinklers near fixtures that can generate heat. Do not install sprinklers where they would be exposed to temperatures exceed-
ing the maximum recommended ambient temperature for the temperature rating used.
• Inspect the coated sprinklers frequently soon after installation to verify the integrity of the corrosion resistant coating. Thereafter, inspect representative
samples of the coated sprinklers in accordance with NFPA 25. Close up visual inspections are necessary to determine whether the sprinklers are being
affected by corrosive conditions.
Never install sprinklers that have been dropped, damaged, or exposed to temperatures in excess of the maximum ambi-
ent temperature allowed.
Refer to the appropriate current technical data pages for complete care, handling, and installation instructions. Data
pages are included with each shipment from Viking or Viking distributors. They can also be found on the Web site at www.
vikinggroupinc.com.
TABLE 1
Sprinkler Temperature Rating
(Fusing Point)
Wax Part
Number Wax Melting Point Maximum Ambient Ceiling Temperature1Wax Color
155 °F (68 °C) / 165 °F (74 °C) 02568A 148 °F (64 °C) 100 °F (38 °C) Light Brown
175 °F (79 °C) 04146A 161 °F (71 °C) 150 °F (65 °C) Brown
200 °F (93 °C) 04146A 161 °F (71 °C) 150 °F (65 °C) Brown
220 °F (104 °C) 02569A 170 °F (76 °C) 150 °F (65 °C) Dark Brown
286 °F (141 °C) 02569A 170 °F (76 °C) 150 °F (65 °C) Dark Brown
1 Based on NFPA-13. Other limits may apply, depending on fire loading, sprinkler location, and other requirements of the Authority Having
Jurisdiction. Refer to specific installation standards.
Replaces Form No. F_091699 Rev 16.1
(Added P65 Warning)

REGULATORY AND HEALTH
WARNINGS
BULLETIN
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: [phone] Technical Services: 877-384-5464 Fax: [phone] Email: [email protected]
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
Page 1 of 1
Form No. F_111218 18.11.15 Rev 18.1 New Bulletin
1. DESCRIPTION
Regulatory and Health Warnings applying to materials used in the manufacture and construction of fire protection products are
provided herin as they relate to legally mandated jurisdictional regions.
WARNING
STATE OF CALIFORNIA, USA
Installing or servicing fire protection products such as sprinklers, valves, piping etc. can expose you to chemicals including, but not li-
mited to, lead, nickel, butadiene, titaninum dioxide, chromium, carbon black, and acrylonitrile which are known to the State of California
to cause cancer or birth defects or other reproductive harm.
For more information, go to www.P65Warnings.ca.gov
2. WARRANTY TERMS AND CONDITIONS
For details of warranty, refer to Viking’s current list price schedule at www.vikinggroupinc.com or contact Viking directly.
