Viking RVER User manual

Installation
3 Series
Freestanding 30” Electric Self-Clean Range

2
Table of Contents
Warnings & Important Safety Instructions _______________________________________________3
Dimensions _________________________________________________________________________6
Specifications _______________________________________________________________________7
Clearance Dimensions (Proximity to Cabinets)___________________________________________8
Clearance Dimensions (Wood/Composite Overlay) ______________________________________9
Electrical Requirements _____________________________________________________________10
General Information ________________________________________________________________12
Installation_________________________________________________________________________13
Backguard Installation _______________________________________________________13

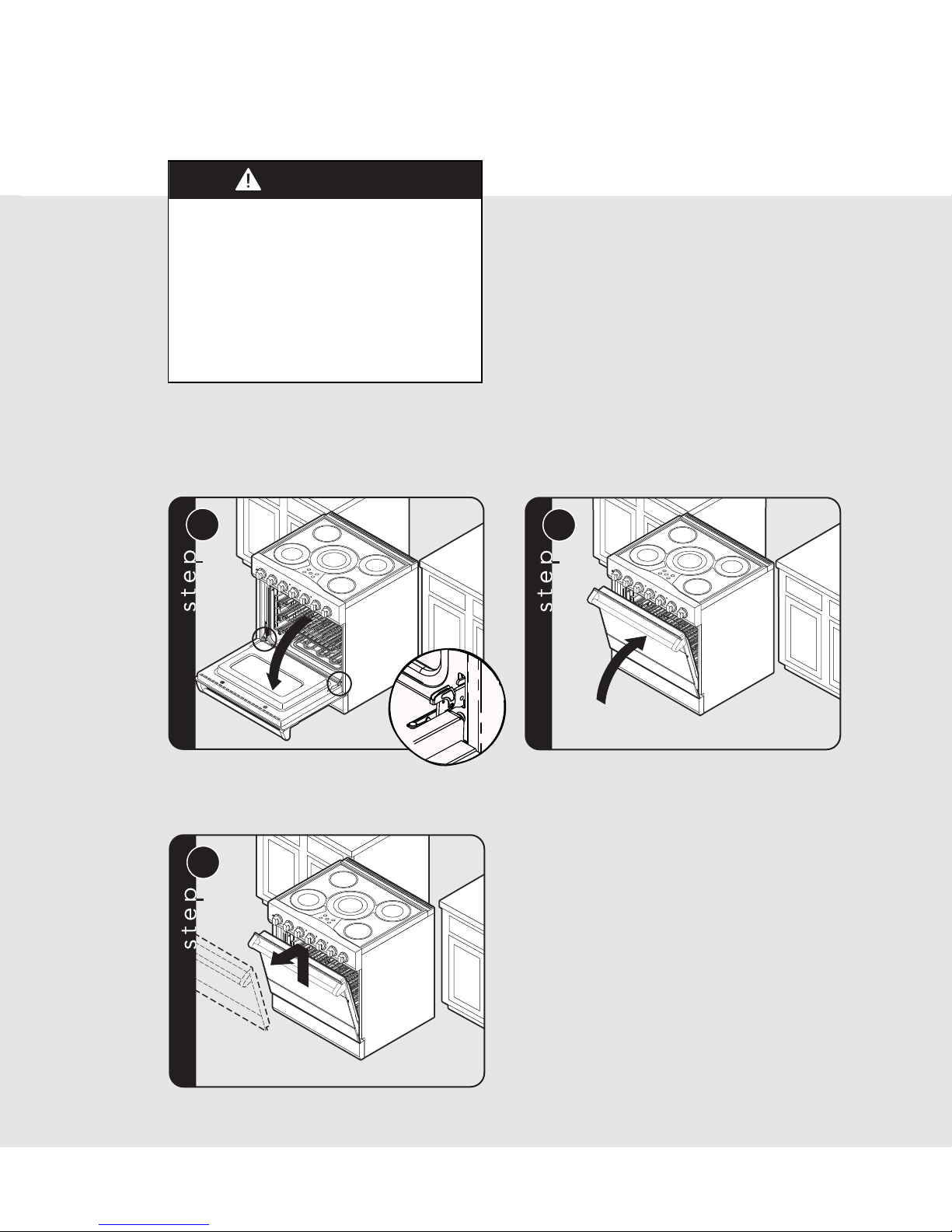

Door Removal ______________________________________________________________13
Leg Installation______________________________________________________________14

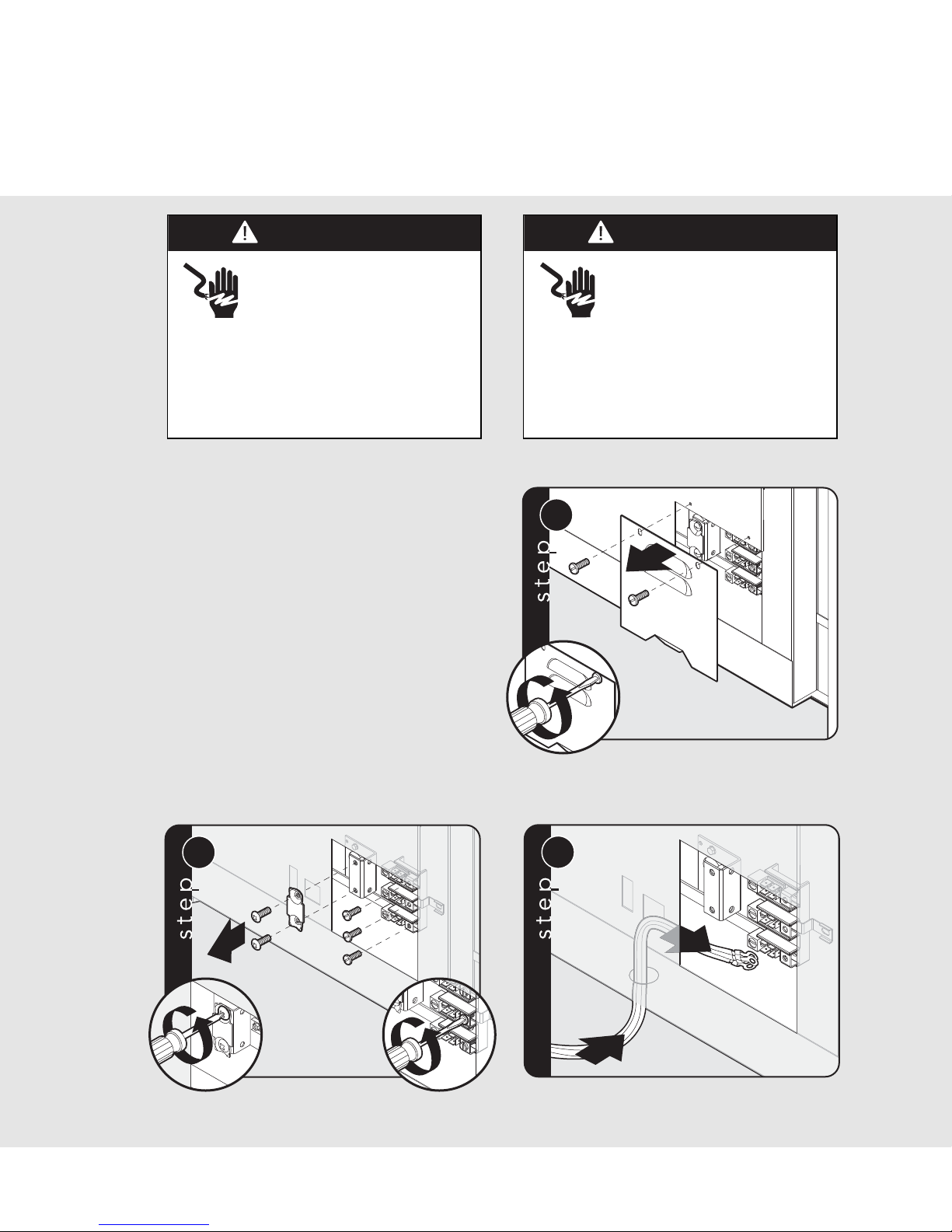

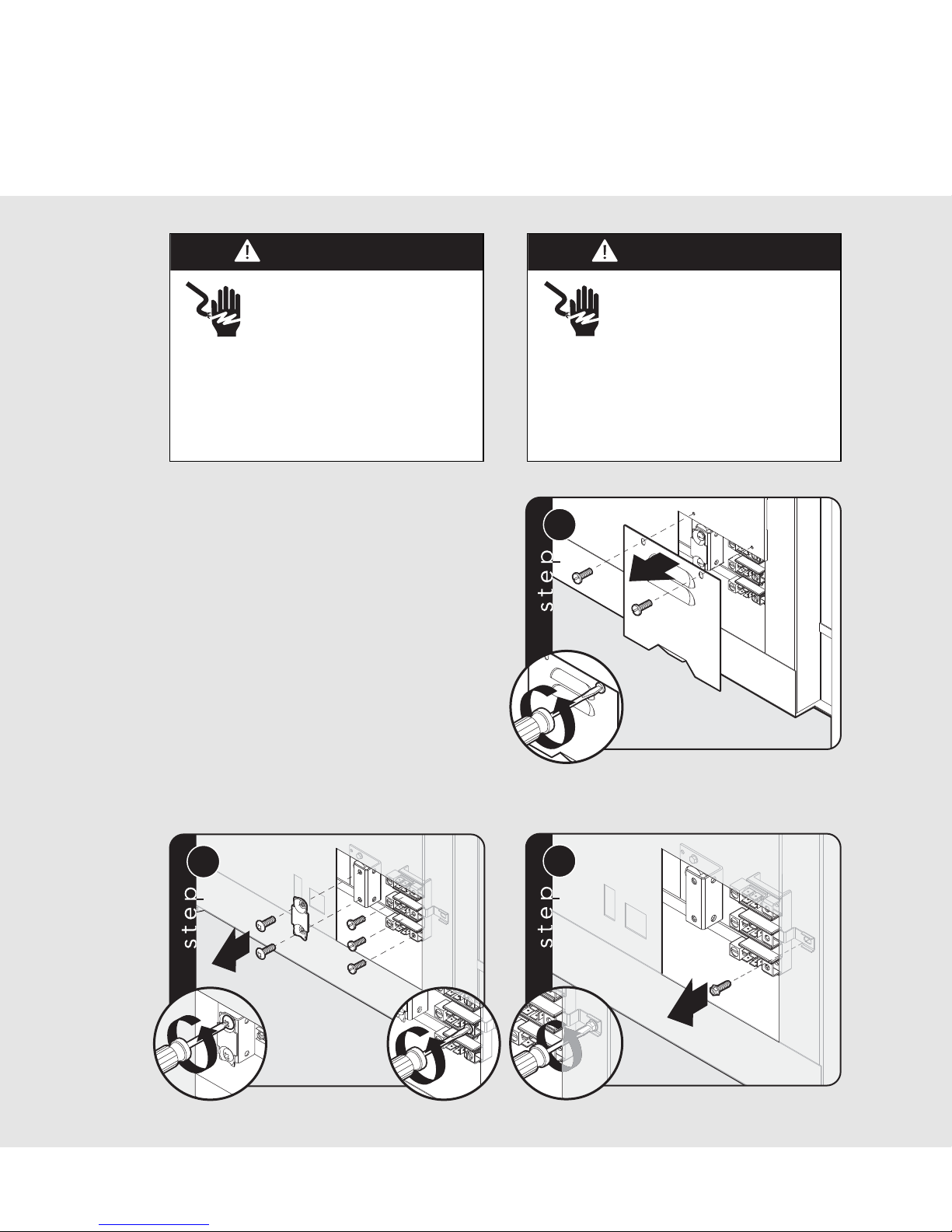

Electrical Connection (3-wire) _________________________________________________15

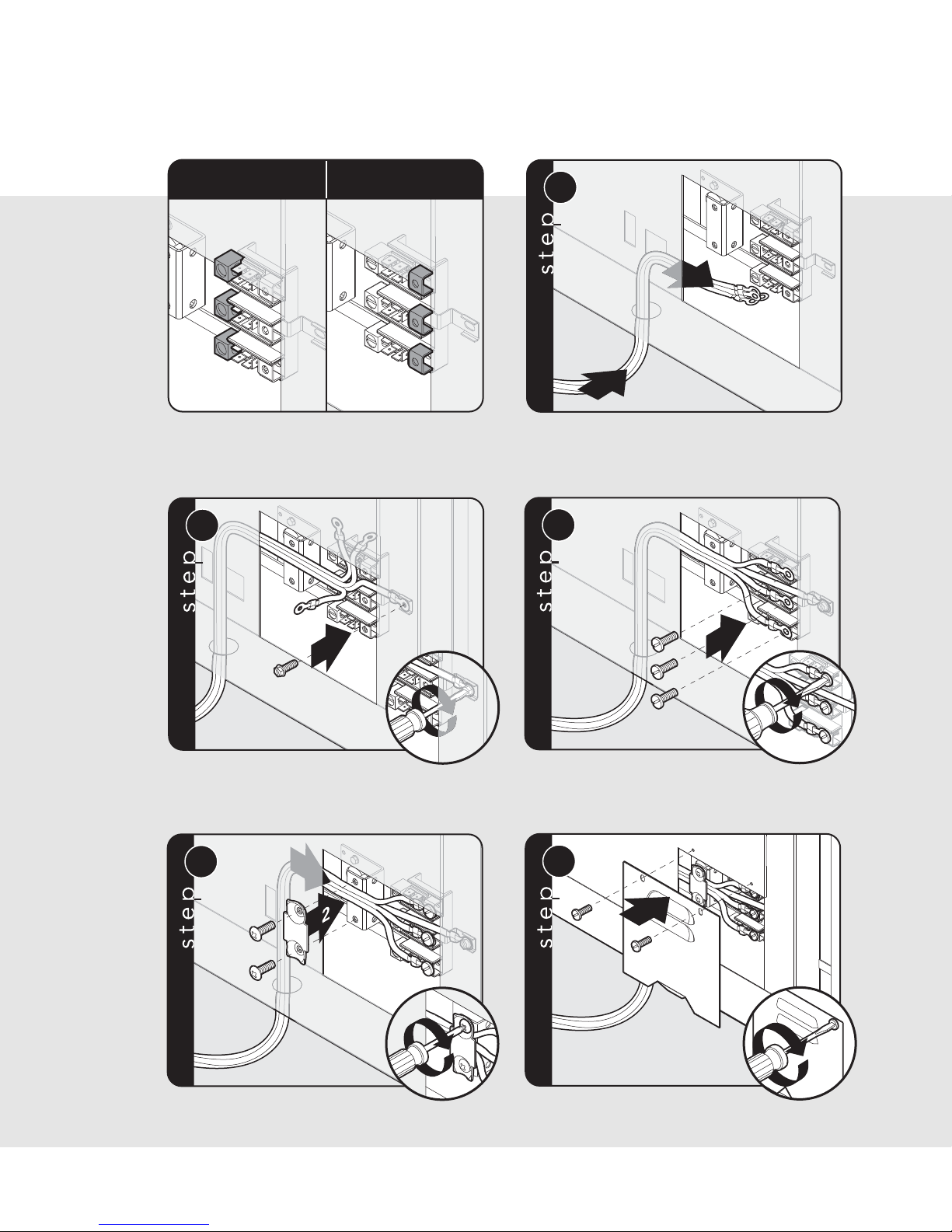

Electrical Connection (4-wire) _________________________________________________17

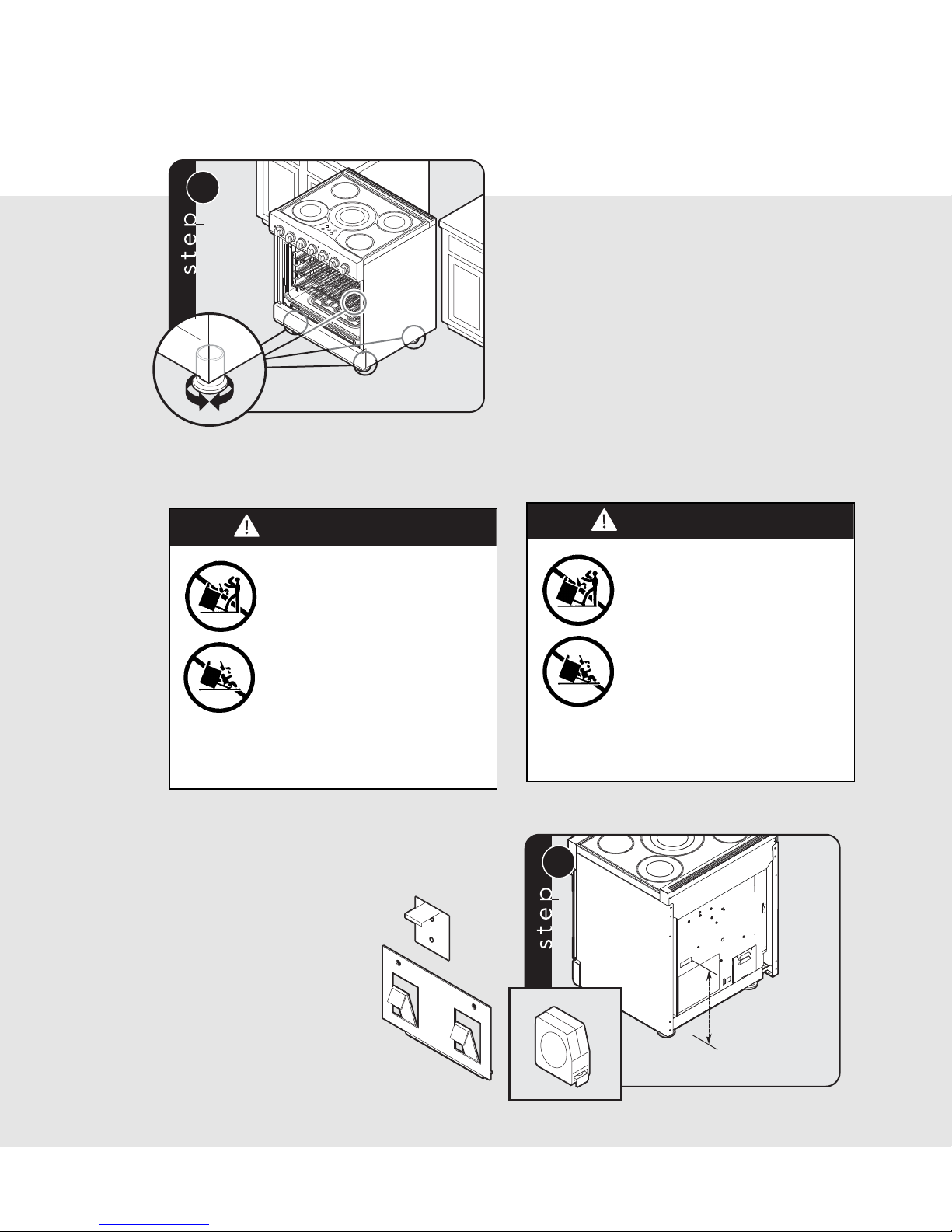

Leveling/Adjustments/Alignment ______________________________________________19
Anti-tip Device Installation____________________________________________________20
Wall Mount Anti-tip Installation _______________________________________________20
Floor Mount Anti-tip Installation_______________________________________________21
Final Installation_____________________________________________________________22
Door Replacement __________________________________________________________23
Final Preparation ___________________________________________________________________24
Performance Checklist ______________________________________________________________24
Service & Registration_______________________________________________________________25

IMPORTANT
3
• Before beginning, please read these
instructions completely and carefully.
• DO NOT remove permanently affixed
labels, warnings, or plates from product.
This may void the warranty.
• All local and national codes and ordinances
must be observed. Installation must
conform with local codes or in the absence
of codes, the National Fuel Gas Code
ANSIZ223.1/NFPA-54 – latest edition.
• The installer must leave these instructions
with the consumer who should retain for
local inspector’s use and for future reference.
In Canada: Installation must be in accordance
with the current CSA C22.1 Canadian
Electrical Codes Part 1 and/or local codes.
Your safety and the safety of others is
very important.
We have provided many important safety
messages in this manual and on your
appliance. ALWAYS read and obey all
safety messages.
This is the safety alert symbol. This
symbol alerts you to hazards that
can kill or hurt you and others.
All safety messages will be preceded by
the safety alert symbol and the word
“DANGER,” “WARNING” or “CAUTION.”
These words mean:
Hazards or unsafe practices
which WILL result in severe personal
injury or death
DANGER
Hazards or unsafe practices
which COULD result in severe personal
injury or death
Hazards or unsafe practices which
COULD result in minor personal injury or
property damage.
All safety messages will identify the
hazard, tell you how to reduce the chance
of injury, and tell you what can happen if
the instructions are not followed.
WARNING
CAUTION
–Read and Follow!

4
IMPORTANT–Read and Follow!
CAUTION
To prevent possible damage to cabinets
and cabinet finishes, use only materials
and finishes that will not discolor or
delaminate and will withstand
temperatures up to 194°F (90°C). Heat
resistant adhesive must be used if the
product is to be installed in laminated
cabinetry. Check with your builder or
cabinet supplier to make sure that the
materials meet these requirements.
A GFI
shall be used if required by NFPA-70 (National Electric Code), federal/state/local
laws, or local ordinances.
• The required use of a GFI is normally related to the location of a receptacle with respect to
any significant sources of water or moisture.
• Viking Range, LLC will NOT warranty any problems resulting from GFI outlets which are not
installed properly or do not meet the requirements below.
If the use of a GFI is required , it should be:
• Of the receptacle type (breaker type or portable type NOT recommended)
• Used with permanent wiring only (temporary or portable wiring NOT recommended)
• On a dedicated circuit (no other receptacles, switches or loads in the circuit)
• Connected to a standard breaker of appropriate size (GFI breaker of the same size NOT
recommended)
• Rated for Class A (5 mA +/- 1 mA trip current) as per UL 943 standard
• In good condition and free from any loose-fitting gaskets (if applicable in outdoor situations)
• Protected from moisture (water, steam, high humidity) as much as reasonably possible

5
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
WARNING
MOVING HAZARD
To avoid risk of severe
personal injury; this appliance
requires two or more personnel while
handling and moving. Possible use of
appliance moving devices is recommended.
WARNING
TIPPING HAZARD
• THIS RANGE CAN TIP.
• A CHILD OR ADULT CAN
TIP THE RANGE AND BE
KILLED.
• FAILURE TO INSTALL THE
ANTI-TIP DEVICE CAN
RESULT IN DEATH OR
SERIOUS BURNS TO
CHILDREN OR ADULTS.
• IF THE RANGE IS MOVED THEN THE
ANTI-TIP DEVICE MUST BE
RE-ENGAGED.
WARNING
TIPPING HAZARD
To reduce the risk of the
appliance tipping, it must be
secured by a properly installed
anti-tip bracket(s). To make
sure the bracket has been
installed properly, look behind
the range with a flashlight to
verify proper installation
engaged in the rear top left corner of the
range or under the range to verify that a floor
hook and bracket have been installed.

Dimensions
6
29-7/8”
(75.9 cm)
35-7/8”
(91.1 cm) min.
to
37”
(94.0 cm) max.
RVER/CRVER
35-7/8”
(91.1 cm) min.
to
37”
(94 cm) max.
25-3/4” (65.4 cm)
45” (114.3 cm)
19-1/4”
(48.9 cm)
24” (61.0 cm)
25” (63.5 cm)
29” (73.7 cm)
6”
(15.2 cm)
25” (63.5 cm)
27-1/8” (68.9 cm)
Note: Unit shown with standard island trim

Specifications
7
Electric 30” Range
Description
RVER/CRVER
Overall width 29-7/8” (75.9 cm)
Overall height To top of glass frame 35-7/8” (91.1 cm) min. to 37” (94.0 cm) max.
Legs adjust 1-1/8” (2.9 cm)
Overall depth from rear To end of side panel—25” (63.5 cm)
To front of door—25-3/4” (65.4 cm)
To front of control panel—27-1/8” (68.9 cm)
To end of knobs—29” (73.7 cm)
Additions to base
height
To top of island trim—add 0” (0.0 cm)
To top of backguard—add 6” (15.2 cm)
To top of high-shelf—add 18-3/16” (46.2 cm)
Electrical
requirements
240-208 VAC 60 Hz electrical connection box on product, connect with locally
supplied 3-wire, flexible cord or “pigtail” rated 40 amp. 125-250 VAC minimum.
Cord must be agency approved for use with household electric ranges.
Maximum wattage/amp
usage
240V—15,200 watts/63.3 amps
208V—11,400 watts/54.8 amps
Surface element rating
Left front
Left rear
Center
Right front
Right rear
2,000 watts
1,200 watts
3,200 watts
1,200 watts
2,000 watts
Oven interior width 25-5/16” (64.6 cm)
Oven interior height 16-1/2” (41.9 cm)
Oven interior depth AHAM 16-13/16” (42.7 cm) Overall—19-1/2” (49.5 cm)
Oven volume Total oven capacity—4.7 cu. ft.
Measure to AHAM standards 4.1 cu. ft.
Approximate
shipping weight 426 lbs. (193.2 kg)
Note: Clearances from non-combustible materials are not part of the ANSI Z21.1 scope and not certified by
CSA. Clearances to non-combustible materials must be approved by the authority having jurisdiction.
Minimum clearances from adjacent combustible construction
• Cooking surface and below, i.e., 36” (91.4 cm) and below
o Sides—0”
• Above cooking surface, i.e. above 36" (91.4 cm)
o Sides—6” (15.2 cm)
o Within 6” (15.2 cm) side clearance, wall cabinets no deeper than 13” (33.0 cm) must be minimum 18” (45.7 cm)
above cooking surface.
o Wall cabinets directly above product must be minimum 36” (91.4 cm) for open top burners above cooking surface.
o Rear—0” with backguard or highshelf; 0” with island trim and noncombustible rear wall; 6” (15.2 cm) with island
trim and combustible rear wall.

42” min.
(106.7 cm)
13” max.
(
33.0 cm)
6” min.
(15.2 cm)
18” min.
(45.7 cm)
3/8”
(0.95 cm)
36”
(
91.4 cm)
29-7/8”
(75.9 cm)
A
Range
Width
“A”
Dimension
30” 30” (76.2 cm)
Clearance Dimensions (Proximity to Cabinets)
8
• This range may be installed directly adjacent
to existing 36” (91.4 cm) high base cabinets.
IMPORTANT: The side trim MUST be
3/8” (.95 cm) above the adjacent base
cabinet countertop. This can be
accomplished by raising the unit using
the adjustment spindles on the legs.
• The range CANNOT be installed directly
adjacent to sidewalls, tall cabinets, tall
appliances, or other side vertical surfaces
above 36” (91.4 cm) high. There must be
a minimum of 6” (15.2 cm) side clearance
from the range to such combustible surfaces
above the 36” (91.4 cm) counter height.
• Within the 6” (15.2 cm) side clearance to
combustible vertical surfaces above
36” (91.4 cm), the maximum wall cabinet
depth must be 13” (33.0 cm) and wall
cabinets within this 6” (15.2 cm) side
clearance must be 18” (45.7 cm) above
the 36” (91.4 cm) high countertop.
• Wall cabinets above the range must be a
minimum of 42” (106.7 cm) above the
range cooking surface for the full width
of the range. This minimum height
requirement does not apply if a range
hood is installed over the cooking surface.
Note: If a range hood is installed, wall cabinets above the
range have a different minimum clearance height.
CAUTION
BURN HAZARD
To avoid risk of personal injury;
the use of cabinets for storage
above the appliance may result
in a potential burn hazard. Combustible
items may ignite, metallic items may
become hot and cause burns. If cabinet
storage is used, the risk can be reduced
by installing a rangehood that projects
horizontally a minimum 5" (12.7 cm) beyond
the bottom of cabinets.
CAUTION
To prevent possible damage to cabinets
and cabinet finishes, use only materials
and finishes that will not discolor or
delaminate and will withstand temperatures
up to 194°F (90°C). Heat and moisture
resistant adhesive must be used if the
product is to be installed in laminated
cabinetry. Check with your builder or
cabinet supplier to make sure that the
materials meet these requirements.

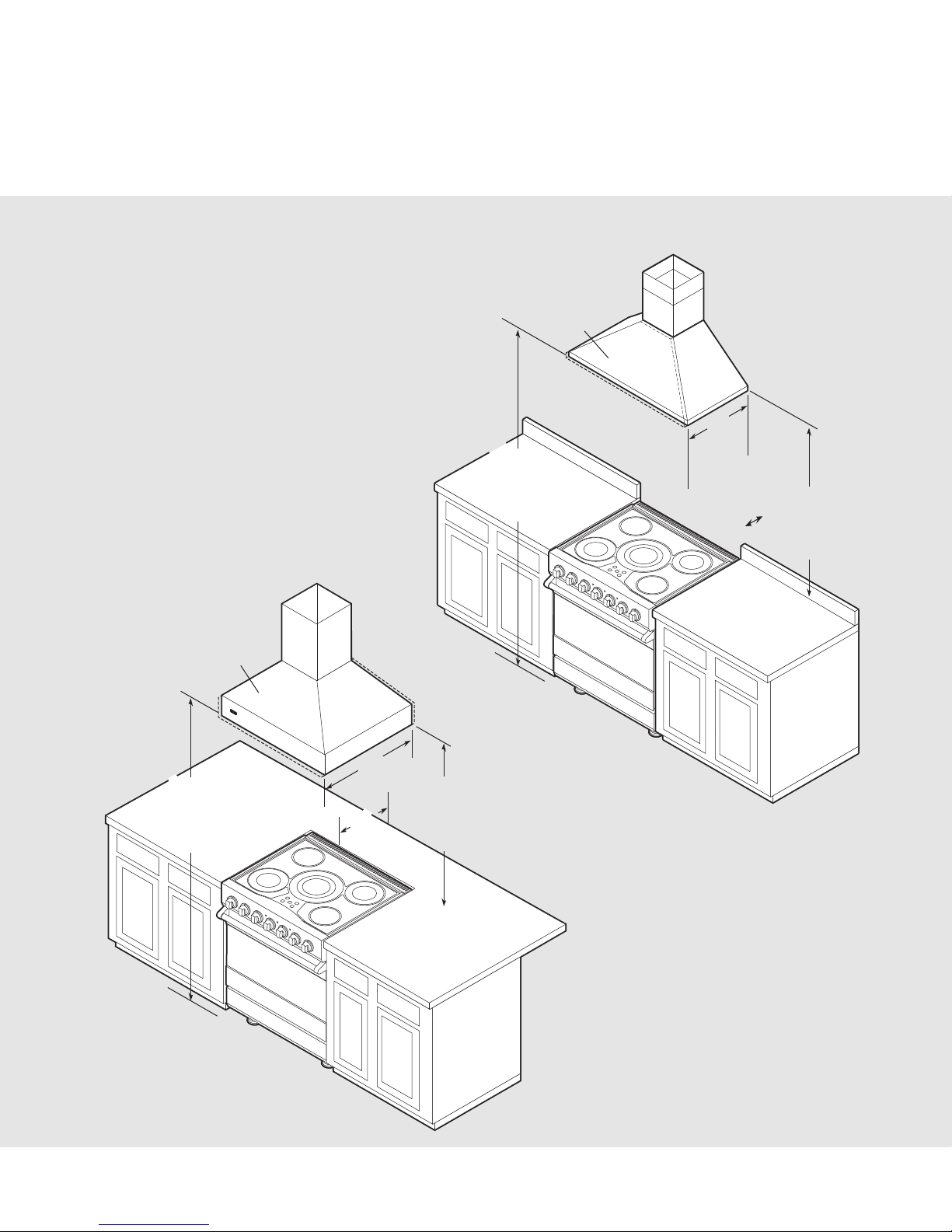

Clearance Dimensions (Wood/Composite Overlay)
9
The bottom of a standard hood should be
30” (76.2 cm) min. to 36” (91.4 cm) max.
above the countertop. This would typically
result in the bottom of the hood being
66” (167.6 cm) to 72” (182.9 cm) above the
floor. Refer to the range hood installation
instructions for additional information. These
dimensions provide for safe and efficient
operation of the hood.
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
66”min.
(167.6 cm)
to
72”max.
(182.9 cm)
24”
(61.0 cm)
or
27”
(38.6 cm)
30”
(76.2 cm)
6”
(15.2 cm)
Wood/Composite
Overlay
Wood/Composite
Overlay
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
0”
(
0 cm)
30”min.
(76.2 cm)
to
36”max.
(91.4 cm)
Wall Installation
Island Installation
Note: This range ships standard with an
island trim. There is a 6” (15.2 cm) min.
with island trim and combustible rear
wall. 0” with island trim and non-
combustible rear wall.
Note: Minimum clearance for back wall is
0” with backguard or high-shelf.
Note: Clearances from non-combustible
materials are not part of the ANSI Z21.1
scope and are not certified by CSA.
Clearances to non-combustible materials
must be approved by the authority having
jurisdiction.

Electrical Requirements
10
Electrical Requirements
This product is manufactured with the
neutral terminal connected to the cabinet.
Use a 3-wire, agency approved, power
supply kit with closed loop terminals rated
per the National Electrical Code,
ANSI/NFPA-70 – latest edition
(See Rating
chart below) . If local codes prohibit
grounding through the neutral, use a 4-wire,
agency approved, power supply kit with
closed loop terminals rated per the National
Electrical Code, ANSI/NFPA-70 – latest
edition (See Rating chart below) .
RATING* Specified Rating of Power
Supply Cord Kit and Circuit Protection
120/240 Volts 120/208 Volts Amps
12.5 – 16.5 KW 9.2 – 12.5 KW 50
16.5 – 17.5 KW 12.5 – 13.5 KW 60
*The National Electric Code calculation for
Electrical Load is less than the Total
Connected Electrical Load listed on the
model/serial rating plate.
A GFI shall be used if required by NFPA-
70 (National Electric Code),
federal/state/local laws, or local
ordinances.
• The required use of a GFI is normally
related to the location of a receptacle with
respect to any significant sources of water
or moisture.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid the risk of electrical
shock, personal injury or death;
verify electrical power is turned off at the
breaker box until the range is installed
and ready to operate, installation by an
authorized installer only.
Viking Range, LLC will NOT warranty any
problems resulting from GFI outlets which
are not installed properly or do not meet the
requirements below.
If the use of a GFI is required, it should be:
• Of the receptacle type (breaker type or
portable type NOT recommended)
• Used with permanent wiring only
(temporary or portable wiring NOT
recommended)
• On a dedicated circuit (no other
receptacles, switches or loads in the circuit)
• Connected to a standard breaker of
appropriate size (GFI breaker of the same
size NOT recommended)
• Rated for Class A (5 mA +/- 1 mA trip
current) as per UL 943 standard
• In good condition and free from any
loose-fitting gaskets (if applicable in
outdoor situations)
• Protected from moisture (water, steam,
high humidity) as much as reasonably
possible

11
Electrical Requirements
Electric access area
6”
(15.2 cm)
6”
(15.2 cm)
4-3/8”4-3/8”
(11.1 cm)(11.1 cm)
4-3/8”
(11.1 cm)
3-1/2”
(8.9 cm)
3”
(7.6 cm)
REAR VIEWSIDE VIEW

12
General Information
READ AND FOLLOW ALL WARNING
AND CAUTION INFORMATION
WHEN INSTALLING THIS APPLIANCE.
• All openings in the wall behind the
appliance and in the floor under the
appliance must be sealed.
• DO NOT obstruct the flow of combustion
and ventilation air.
Moving, Handling, and Unpacking
Remove and discard all packing materials,
including cardboard and tape on the outside
and inside of the range.
Range – DO NOT discard
the anti-tip metal brackets (2)
supplied with the range.
These are the anti-tip devices
and one must be installed
with the unit. Refer to
“Anti-tip Device Installation”
section.
Some stainless steel parts
may have a plastic protective
wrap which must be peeled
off. The interior should be
washed thoroughly with hot, soapy water to
remove film residues and any dust or debris
before being used, then rinsed and wiped
dry. Solutions stronger than soap and water
are rarely needed.
CAUTION
Avoid any damage to oven vents. The vents
need to be unobstructed and open to provide
proper airflow for optimal oven performance.
CAUTION
The cooling fan should be operating when
the unit is in operation. If you notice the
cooling fan is not operating or you observe
unusual or excessive noise coming from the
cooling fan, contact a Viking Authorized
Service Center before continuing operation.
Failure to do so can result in damage to the
oven or surrounding cabinets.

13
CAUTION
To avoid risk of personal injury or product
damages, DO NOT use the handle or
oven door to lift the oven. Remove door
before installation to ensure that it is not
used to lift the unit. DO NOT lift or carry
the door by the handle.
Removing the door must be done by your
dealer, or a qualified licensed plumber.
Door Removal
1
Open door completely.
Fold latches back until locked in place.
2
Gently close until latches stop door
3
Lift door up and out.
Installation

14
1
1
1
2
3
2 2
Legs are packed in styrofoam top pack.
Note: Legs should be installed near to where
appliance is to be used, as they are
not secure for long transit.
Note: It is strongly recommended
that a pallet or lift jack be used rather than tilting.
Raise unit about a foot. Unscrew temporary legs from
couplings .
4
Lower range gently to keep any undue strain from
legs and internal mounting hardware.
3
Screw legs into couplings on all
four corners.
Leg Installation

15
2
1
1
Remove access door.
Electrical Connection (3-wire)
3
2
1
2
Remove supply cord strain relief
bracket and three supply cord mounting screws
on terminal block.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame of the unit
may or may not be permitted through
your local codes. If ground to the frame is
not permitted then a 4-conductor power
cord must be used.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
3
Feed supply cord up through hole in bottom
of range back.
Note: If you have a 4-wire connection, see following section for
4-wire connection instructions.
See Electrical Requirements information.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured
to the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.

16
1
2
4
1
3
5
Attach line #1 (black) and line #2 (red)
leads to outside terminal. Attach neutral wire (white)
to center terminal on the terminal block.
1
1
Eyelet ConnectionBare Wire Connection
To make a bare wire connection, use holes on the left
side of the terminal block. To connect eyelet style
wires, use holes on right side of terminal.
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain
relief bracket over supply cord.
1
2
6
Reattach access door.
Electrical Connection (3-wire) (cont.)

17
2
1
1
3
2
1
2
Remove access door.
Remove supply cord strain relief
bracket and three supply cord mounting screws
on the terminal block.
Electrical Connection (4-wire)
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk or electrical
shock, personal injury or death;
grounding product to the frame of the unit
may or may not be permitted through
your local codes. If ground to the frame is
not permitted then a 4-conductor power
cord must be used.
WARNING
ELECTRICAL SHOCK
HAZARD
To avoid risk of electrical shock,
personal injury or death; verify
your appliance has been properly
grounded in accordance with local codes
or in absence of codes, with the National
Electrical Code (NEC). ANSI/NFPA-70 –
latest edition.
2
1
3
Remove grounding screw. Cut-off
and discard ground strap.
See Electrical Requirements information.
Where local codes do not permit grounding
through neutral, use a 4-wire power supply
cord. The cord or conduit must be secured
to the range with the strain relief bracket.
The electrical connection is made at the
terminal block, which is located behind the
access door on the back of the range.

18
4
Feed supply cord up through hole in bottom
of range back.
1
2
5
1
2
6
Attach ground wire (green)
with ground screw that was removed.
Attach line #1 (black) and line #2 (red)
leads to outside terminal. Attach neutral wire (white)
to center terminal on terminal block.
1
3
7
1
2
8
Push supply cord toward terminal
block to relieve strain, reattach supply cord strain
relief bracket over supply cord.
Reattach access door.
1
1
Eyelet ConnectionBare Wire Connection
To make a bare wire connection, use holes on the left
side of the terminal block. To connect eyelet style
wires, use holes on right side of terminal.
Electrical Connection (4-wire) (cont.)

19
1
2
Measure the four corners in cutout area to
verify if flooring is level.
For uneven or sloped floors, level unit with
metal shims only, as the adjustment required may
exceed the thread available in the leg.
3
3/8”3/8”
(0.95 cm)(0.95 cm)
3/8”
(0.95 cm)
4
Move unit into opening.
Leveling/Adjustments/Alignment
5
Check that unit is level side to
side and front to back. Side trim of the high corner
must be 3/8” (0.95 cm) above countertop.
If leveling is required, move unit out of opening.
6
1
2
1
Lift unit and prop on wood blocks.

20
1
(A)(A)
Measure from floor to bottom
of the anit-tip opening located on the back of range.
This will be measurement (A).
7
Set the high corner of range so that the top of side trim is
3/8” (0.95 cm) above countertop. Level range to high corner.
Anti-tip Device Installation
WARNING
TIPPING HAZARD
• THIS RANGE CAN TIP.
• A CHILD OR ADULT CAN TIP
THE RANGE AND BE KILLED.
• FAILURE TO INSTALL THE
ANTI-TIP DEVICE CAN
RESULT IN DEATH OR
SERIOUS BURNS TO
CHILDREN OR ADULTS.
• IF THE RANGE IS MOVED THEN THE
ANTI-TIP DEVICE MUST BE
RE-ENGAGED.
WARNING
TIPPING HAZARD
To reduce the risk of the
appliance tipping, it must be
secured by a properly installed
anti-tip bracket(s). To make sure
the bracket has been installed
properly, look behind the range
with a flashlight to verify proper
installation engaged in the rear
top left corner of the range or under the range
to verify that a floor hook and bracket have
been installed.
Your range is shipped standard with two
types of anti-tip devices.
Type 1 is a wall mount device
which can be used for all
installation applications.
Type 2 is a floor mount
device which can be used for
all applications other than
when the range is installed
on a concrete sub-floor.
Important – The range MUST be installed
with one of the anti-tip devices.
Wall Mount Anti-tip Installation
Leveling/Adjustments/Alignment (cont.)
