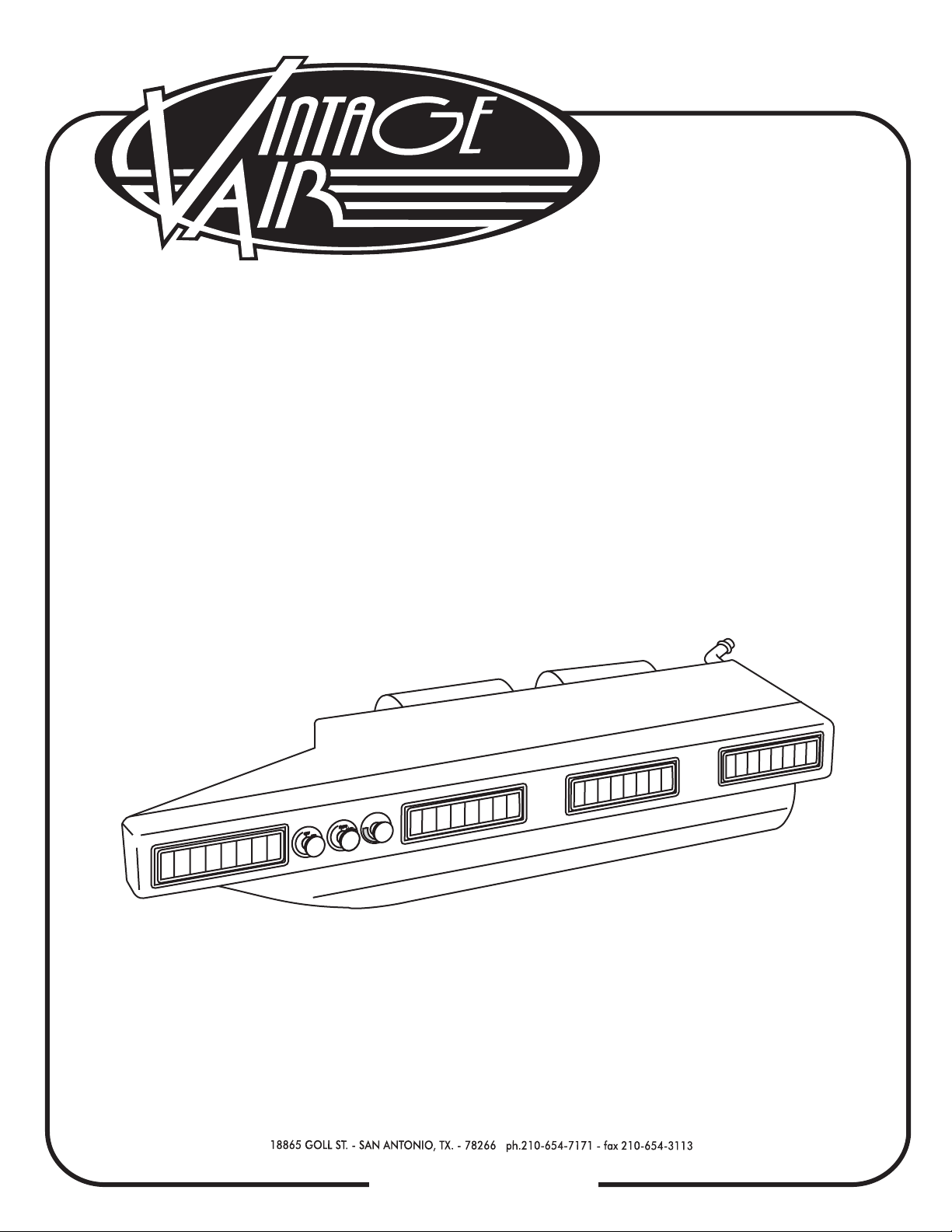

Vintage Air 11301-VUX-A User manual

SLIMLINE
HEAT/COOL
11301-VUX-A
11401-VUX-A
901301 REV D 10/27/14, SLIMLINE HC PG 1 OF 12
an ISO 9001:2008 Registered Company
OFF
LO
MED
HI
ENCO
A/C
HEAT
DEF
C

2
901301 REV D 10/27/14, SLIMLINE HC PG 2 OF 12
Table of Contents
PAGES
1. COVER
2. TABLE OF CONTENTS
3. PACKING LIST
4. INFORMATION PAGE
5. INSTALLATION
6. INSTALLATION CONTINUED
7. HOSE ROUTING
8. O-RING/FITTING INSTRUCTIONS
9. HEATER HOSE INSTALLATION
10. WIRING DIAGRAM
11. THERMOSTAT ADJUSTMENT
12. EVAPORATOR KIT PACKING LIST

3
901301 REV D 10/27/14, SLIMLINE HC PG 3 OF 12
** BEFORE BEGINNING INSTALLATION, OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT.
PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS,
VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.

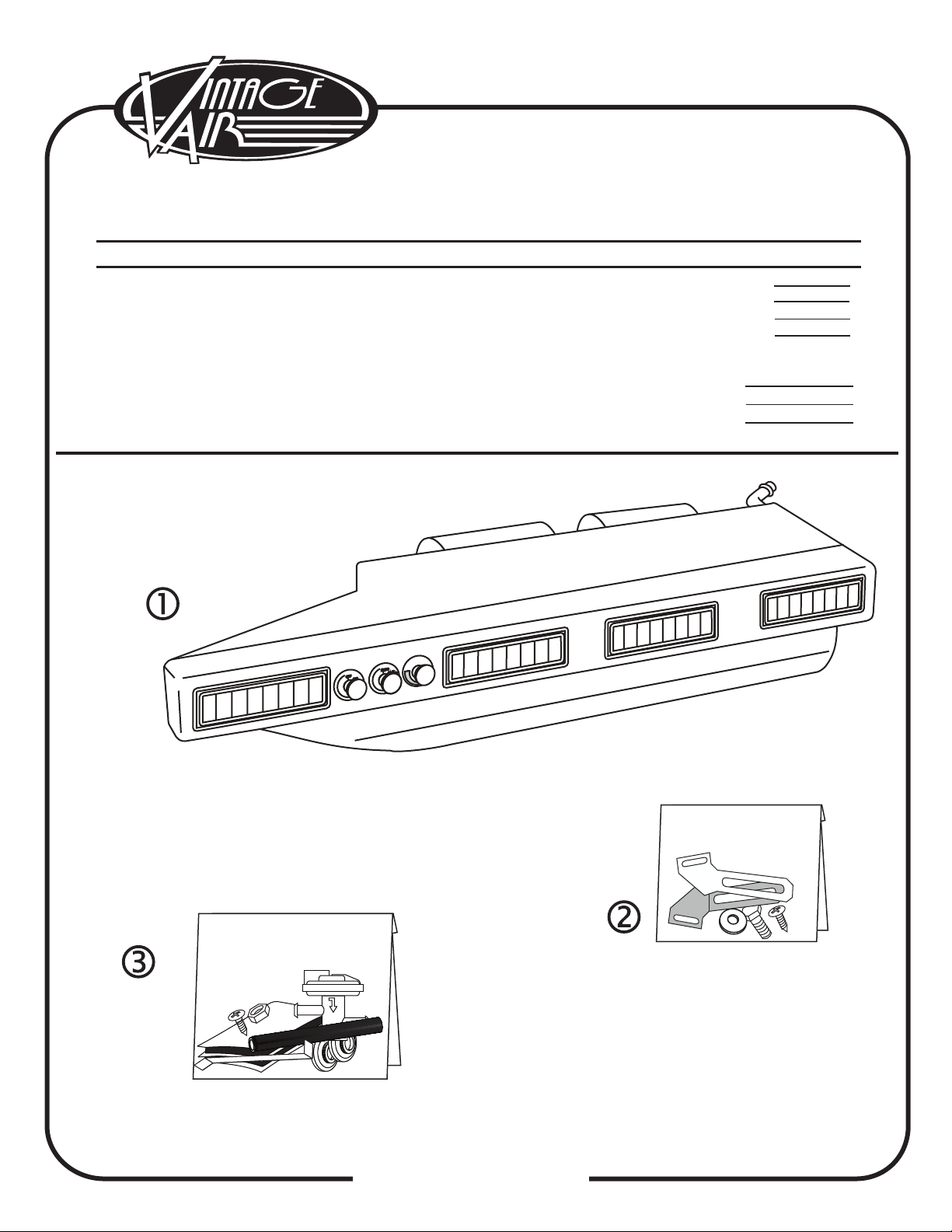

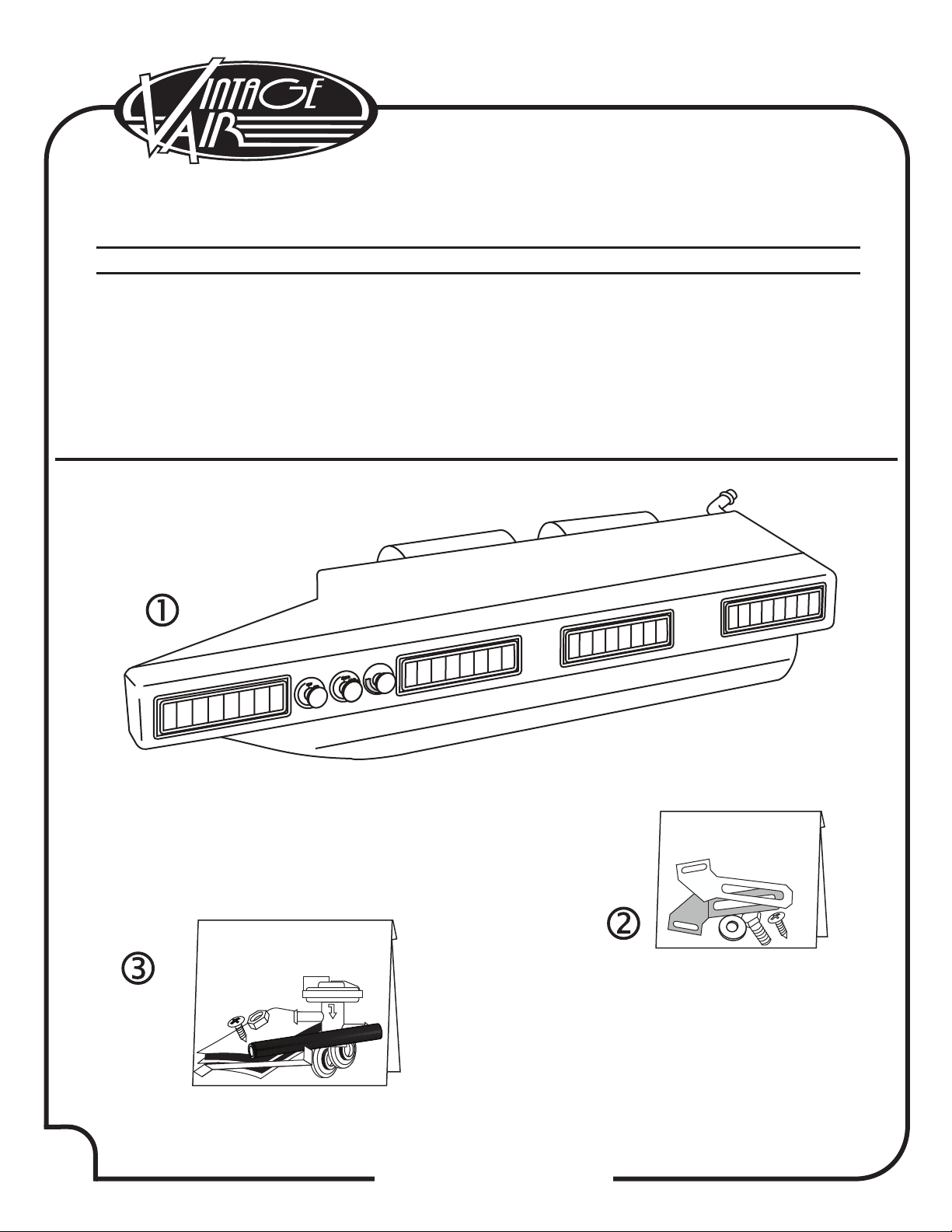

EVAPORATOR KIT PACKING LIST
EVAPORATOR KIT
11301-VUX-A
11401-VUX-A
No. QTY. PART No. DESCRIPTION
1.
2.
3.
1
1
1
55328-VUE-A
55428-VUE-A
64143-VUE
63300-VUE
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES.
EVAPORATOR SUBCASE H/C w/ STD LOUVERS
EVAPORATOR SUBCASE H/C w/ BLK LOUVERS
EVAPORATOR MOUNTING BRKT. KIT
INSTALLATION KIT
OFF
LO
MED
HI
ENCO
A/C
HEAT
DEF
C

4
901301 REV D 10/27/14, SLIMLINE HC PG 4 OF 12
IMPORTANT NOTICE-PLEASE READ
FOR MAXIMUM SYSTEM PERFORMANCE VINTAGE AIR RECOMMENDS THE FOLLOWING:
LUBRICANT CAPACITIES:
134a SYSTEM
CHARGE WITH 1.8 lbs.
(1lbs. 12ozs) OF REFRIGERANT
NEW COMPRESSOR - NO ADDITIONAL OIL NEEDED
USED COMPRESSOR - CONSULT VINTAGE AIR
SERVICE INFO:
SAFETY SWITCHES:
ATTENTION: SYSTEM COMPONENTS: THE COMPRESSOR, EVAPORATOR, CONDENSER & DRIER ARE CAPPED.
CAPS MAY BE UNDER PRESSURE WITH DRY NITROGEN; BE CAREFUL REMOVING CAPS. DO NOT REMOVE CAPS
PRIOR TO INSTALLATION. REMOVING CAPS PRIOR TO INSTALLATION WILL CAUSE COMPONENTS TO COLLECT
MOISTURE AND LEAD TO PREMATURE FAILURE AND REDUCED PERFORMANCE.
EVACUATE THE SYSTEM FOR 35-45 MINUTES WITH SYSTEM COMPONENTS (DRIER, COMPRESSOR, EVAPORATOR
AND CONDENSER) AT A TEMPERATURE OF AT LEAST 85° F. ON A COOL DAY THE COMPONENTS CAN BE HEATED
WITH A HEAT GUN OR BY RUNNING THE ENGINE WITH THE HEATER ON BEFORE EVACUATING. LEAK CHECK
AND CHARGE TO SPECIFICATIONS.
THIS KIT DOES NOT CONTAIN HEATER HOSE.. YOU MUST PURCHASE 8 FEET OF 5/8” DIA..
HEATER HOSE FROM VINTAGE AIR(31800-VUD) OR FROM YOU LOCAL PARTS RETAILER.
VINTAGE AIR SYSTEMS ARE DESIGNED TO OPERATE WITH R134a REFRIGERANT
ONLY! USE OF ANY OTHER REFRIGERANTS IS A FIRE HAZARD AND COULD
DAMAGE EITHER YOUR AIR CONDITIONING SYSTEM OR YOUR VEHICLE.
USE OF ANY OTHER REFRIGERANTS WILL VOID ALL WARRANTIES OF
THE AIR CONDITIONING SYSTEM AND COMPONENTS. USE OF THE PROPER
TYPE AND AMOUNT OF REFRIGERANT IS CRITICAL TO PROPER SYSTEM
OPERATION. VINTAGE AIR RECOMMENDS OUR SYSTEMS BE CHARGED BY
WEIGHT WITH A QUALITY CHARGING STATION OR SCALE.
REFRIGERANT CAPACITIES FOR VINTAGE AIR SYSTEMS
(FOR OTHER SYSTEMS, CONSULT MANUFACTURER GUIDELINES)
A COMPRESSOR SAFETY SWITCH MUST BE INSTALLED ON EVERY A/C SYSTEM. A BINARY SWITCH
DISENGAGES THE COMPRESSOR CLUTCH IN CASES OF EXTREME LOW PRESSURE (REFRIGERANT LOSS) OR
EXCESSIVELY HIGH HEAD PRESSURE (406 PSI) TO PREVENT COMPRESSOR DAMAGE OR HOSE RUPTURE. A
TRINARY SWITCH COMBINES HI/LO PRESSURE PROTECTION WITH AN ELECTRIC FAN OPERATION SIGNAL AT
254 PSI. COMPRESSOR SAFETY SWITCHES ARE EXTREMELY IMPORTANT SINCE AN A/C SYSTEM RELIES ON
REFRIGERANT TO CARRY LUBRICATION THROUGH THE SYSTEM.

5
901301 REV D 10/27/14, SLIMLINE HC PG 5 OF 12
INSTALLATION
FIGURE 1
FIGURE 2
ATTACH EVAPORATOR BRACKETS TO EVAPORATOR (SEE FIGURE 1).
DRAIN HOSE
FRONT
BRACKET
FRONT
BRACKET
REAR BRACKETS
1/4" x 1/2" BOLT
1/4" x 1"
BOLT 1/4" x 1"
BOLT
1/4" x 1/2" BOLT
1/4" NUT
1/4"
FLAT WASHER
1/4"
FLAT WASHER
1/4" NUT
1/4" x 1/2" BOLT 1/4" x 1/2" BOLTS
DASH LIP
DASH LIP
DRILL
9/32"
HOLE
IN DASH LIP
DRILL
9/32" HOLE
IN DASH LIP
#8 x 1/2"
SHEET METAL
SCREWS
POSITION EVAPORATOR WITH BRACKETS UNDER DASH. MARK AND DRILL (2) 9/32"
DIAMETER HOLES UNDER THE LIP OF THE DASH.
ATTACH THE FRONT BRACKETS TO THE DASH WITH 1/4" x 1" BOLTS, WASHERS AND NUTS PROVIDED
(SEE FIGURE 2).
ATTACH REAR EVAPORATOR BRACKETS (USING (2) #8 x 1/2" SHEET METAL SCREWS) TO THE COWL
OR FIREWALL.
ATTACH THE DRAIN HOSE (SEE FIGURE 2) AND DRILL A 9/16" DIAMETER HOLE IN FIREWALL 1" BELOW
THE BOTTOM OF THE EVAPORATOR.
OFF
LO
MED
HI
ENCO
A/C
DEF
C
OFF ECONO
C
A/C
MED HEAT
DEF

6
901301 REV D 10/27/14, SLIMLINE HC PG 6 OF 12
NOTE: THE DRIER IS USUALLY MOUNTED WHERE YOU HAVE ROOM FOR IT.
JUST REMEMBER TO MOUNT IT IN THE COOLEST SPOT POSSIBLE AND
VERTICALLY SO THE SIGHT GLASS IS DIRECTLY ON TOP. (NOT NEXT TO
THE EXHAUST MANIFOLD). IT CAN BE MOUNTED INSIDE THE VEHICLE
AS WELL.
PUSH THE 5/16" I.D. HOSE ONTO THE 90° #6 FITTING. (SEE HOSE ROUTING ILLUSTRATION ON PG. 7). INSTALL
THE FITTING ONTO THE EXPANSION VALVE (FINGER TIGHT). PUSH THE 1/2" I.D. HOSE ONTO THE STRAIGHT
#10 FITTING, AND INSTALL THE FITTING ONTO THE #10 LINE ON THE EVAPORATOR. (SEE HOSE ROUTING
ILLUSTRATION PG. 7).
AT THIS TIME, TRY TO DETERMINE WHERE YOU WANT YOUR LINES TO GO THRU THE FIREWALL. MOVE THE
HOSES TO THAT POINT. HOLD THE FITTINGS UP TO THEIR RESPECTIVE HOSES, AND DETERMINE IF THE HOSES
WILL CONFORM TO THE LOCATION FOR THE BULKHEAD FITTINGS OR OPTIONAL BULK-HEAD PLATE (VINTAGE
AIR PART# 34215-VUQ OR 34217-VUQ). THE 1/2" HOSE IS HARD TO BEND AT A SHARP ANGLE, AND THE
FITTINGS TAKE UP A CERTAIN AMOUNT OF SPACE. BEFORE YOU DRILL HOLES IN YOUR FIREWALL, MAKE SURE
THAT YOU CAN MAKE THE HOSES FIT WHERE YOU HAVE PLANNED. THE ENGINE COMPARTMENT APPEARANCE
IS A CONSIDERATION WHEN CHOOSING THIS LOCATION.
WHEN YOU HAVE DECIDED WHERE YOU WANT TO PLACE YOUR BULKHEAD FITTINGS, MARK THESE POINTS
WITH A GREASE PENCIL, AND MAKE A TEMPLATE FROM THE INSIDE, LOCATING WHERE THE HOLES WILL BE
CUT WITH THIS TEMPLATE, LOCATE THE SAME POINTS ON THE OUTSIDE OF THE FIREWALL. MARK THESE
POINTS WITH A GREASE PENCIL.
DETERMINE THE BEST LOCATION FOR THE DRIER THAT WILL ALLOW ADEQUATE ROOM FOR THE HOSE AND
FITTINGS THAT CONNECT THE DRIER TO THE BULKHEAD FITTING.
MOUNT THE DRIER. (KEEP THE DRIER CAPPED AS MUCH AS POSSIBLE. IF YOU MUST SCREW THE FITTING TO
THE DRIER, TAPE IT CLOSED).
AT THIS POINT, CUT HOLES FOR BULKHEAD FITTINGS, AND INSTALL THEM.
USING THE HOSE ROUTING ILLUSTRATION AS A GUIDE, ROUTE REMAINING A/C LINES, AND CUT TO LENGTH.
AT THIS TIME, YOU SHOULD HAVE THE REFRIGERATION HOSES CUT TO THEIR PROPER LENGTH. PAY CLOSE
ATTENTION TO THE ORIENTATION OF ANY HOSE WITH TWO ANGLED FITTINGS. ANY HOSE WITH TWO
ANGLED FITTINGS MUST BE MARKED FROM THE HOSE TO THE FITTINGS TO ASSURE THEYWILL REMAIN IN THIS
POSITION AFTER CRIMPING. THE RUBBER HOSE IS ONLY CAPABLE OF A MINIMAL AMOUNT OF TWIST TO AID
ALIGNMENT.
REMOVE HOSES AND CRIMP ENDS. IF YOU DO NOT HAVE ACCESS TO THE PROPER EQUIPMENT, VINTAGE AIR
RECOMMENDS TAKING THEM TO A QUALIFIED A/C SERVICE CENTER FOR CRIMPING. (SEE CRIMPING
INSTRUCTIONS SUPPLIED WITH THE HOSE KIT).
WITH THE EVAPORATOR TRIAL FIT COMPLETE, REMOVE THE UNIT AND LOWER INTO THE VEHICLE.
AFTER CRIMPING HOSES, LOCATE THE #6 A/C HOSE WITH THE 90° FITTING. LUBRICATE A #6 O-RING AND
THE THREADS ON THE FITTING, AND INSTALL ON THE EXPANSION VALVE. TIGHTEN CAREFULLY. REFER TO
FIGURES 3 & 3A, PAGE 8.
LOCATE THE #10 A/C HOSE WITH THE STRAIGHT FITTING. LUBRICATE A #10 O-RING AND THE THREADS ON
THE FITTING, AND INSTALL ON THE #10 LINE OF THE EVAPORATOR. TIGHTEN CAREFULLY. REFER TO FIGURES
3 & 3A, PAGE 8.
WRAP THE #10 FITTING WITH PRESS TAPE, AND COVER ALL EXPOSED METAL SURFACES. (DO NOT WRAP
THE #6 HOSE, FITTING, OR THE HEATER CORE TUBES). SEE FIGURE 3, PAGE 8.

7
901301 REV D 10/27/14, SLIMLINE HC PG 7 OF 12
TYPICAL HOSE ROUTING DIAGRAM
DIRECTION OF REFRIGERANT FLOW INDICATED BY ARROWS
RECEIVER/DRIER
(NOTE FLOW DIRECTION)
#6 LIQUID LINE
SAFETY SWITCH BINARY (ENGINE DRIVEN FAN) TRINARY (ELECTRIC FAN)
COMPRESSOR
CONDENSER
# 8 DISCHARGE
HOSE
EVAPORATOR
# 10 SUCTION HOSE

8
901301 REV D 10/27/14, SLIMLINE HC PG 8 OF 12

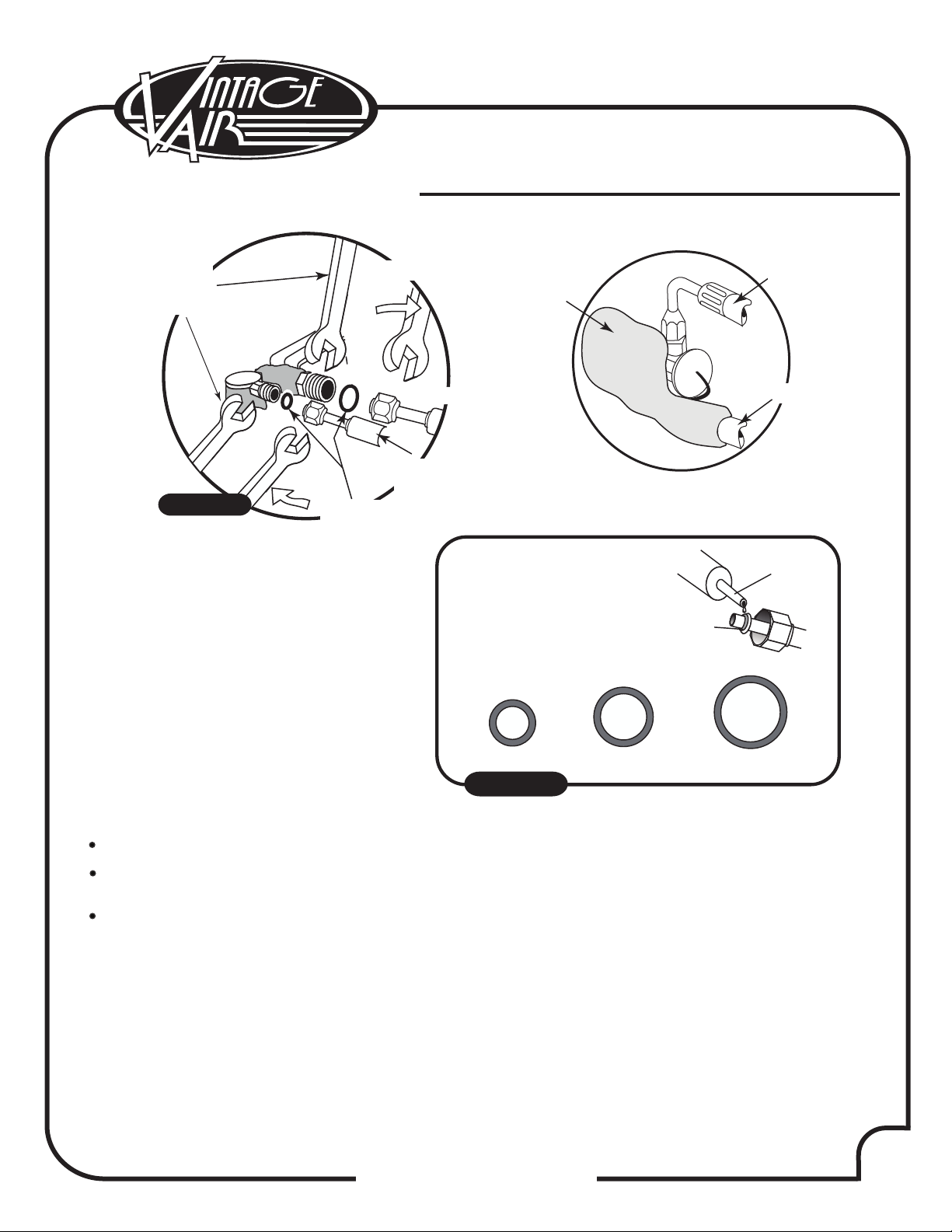

FOR A PROPER SEAL
OF FITTINGS
INSTALL SUPPLIED
O'RINGS AS SHOWN
AND LUBRICATE
WITH SUPPLIED OIL.
FIGURE 3
ROUTE HEATER HOSES (REFER TO HEATER HOSE ROUTING INSTRUCTIONS, PG. 9).
MAKE ELECTRICAL AND/OR VACUUM CONNECTIONS, ACCORDING TO THE DIAGRAM FURNISHED
ON PG. 10.
NOTE: THE RED 12GA. WIRE WITH THE 30 AMP CIRCUIT BREAKER SHOULD BE CONNECTED TO A 12
VOLT POWER SOURCE OF AT LEAST 12GA. WIRE. CONNECT MOLDED PLUG WITH THE (RED, YELLOW,
ORANGE) WIRES TO THE CORRESPONDING PLUG FROM THE BLOWER MOTOR. THE SINGLE BLACK WIRE
FROM THE BLOWER MOTOR MUST BE GROUNDED. THE BLUE CLUTCH WIRE RUNS FROM THE THERMOSTAT
TO THE COMPRESSOR SAFETY SWITCH AND FROM THE SAFETY SWITCH TO THE COMPRESSOR.
BE CAREFUL TO ENSURE THAT THIS WIRE IS NOT PINCHED OR IN A POSITION TO RUB ON A SHARP
EDGE AS IT GOES THRU THE FIREWALL. AN OPTIONAL VACUUM RESERVOIR WITH CHECK VALVE
WILL HELP SYSTEM WORK UNDER A VARIETY OF CONDITIONS. (VINTAGE AIR PART #31200-VUS
VACUUM RESERVOIR).
#6 O-RING #8 O-RING #10 O-RING
SUPPLIED OIL
FOR O-RINGS
O-RING,
SLIDE OVER
MALE INSERT
TO SWAGED LIP
FIGURE 3A
O-RING/FITTING INSTRUCTIONS
HOLD TO
RESIST
TWISTING
LUBRICATE
O-RINGS
#6 LIQUID
HOSE
#10 SUCTION
HOSE
TIGHTEN #6 HOSE
#10 HOSE
PRESS TAPE

9
901301 REV D 10/27/14, SLIMLINE HC PG 9 OF 12
HEATER HOSE INSTALLATION
GROMMETS
CLAMPS
CLAMPS
TO VACUUM SOLENOID
TO HEATER CORE
FROM MANIFOLD
EVAPORATOR
UNIT
AFTER THE EVAPORATOR IS IN PLACE, RUN 5/8" HEATER HOSE FROM THE BOTTOM HEATER FITTING
ON THE EVAPORATOR THRU THE FIREWALL OR BEHIND THE KICK PANEL THRU FLOOR TO THE INTAKE
MANIFOLD HEATER CONNECTION. INSTALL THE VACUUM HEATER CONTROL VALVE IN THIS LINE.
(PRESSURE) SEE FIGURE BELOW. (BE SURE TO FOLLOW FLOW ARROW ON HEATER CONTROL VALVE)
INSTALL 5/8" HEATER HOSE ON TOP FITTING OF HEATER. ROUTE HOSE THRU FIREWALL OR BEHIND
KICK PANEL THRU FLOORBOARD AND OUT TO WATER PUMP CONNECTION. (SUCTION)
FILL RADIATOR WITH AT LEAST A 50/50 MIXTURE OF APPROVED ANTIFREEZE AND WATER. IT IS THE
OWNER'S RESPONSIBILITY TO KEEP THE FREEZE PROTECTION AT THE PROPER LEVEL FOR THE CLIMATE
IN WHICH THE VEHICLE IS OPERATING. FAILURE TO FOLLOW ANTIFREEZE RECOMMENDATIONS WILL
CAUSE HEATER CORE TO CORRODE PREMATURLEY AND POSSIBLY BURST IN THE A/C MODE AND/OR
FREEZING WEATHER, VOIDING YOUR WARRANTY. CHECK COMPLETE A/C ASSEMBLY FOR PROPER
OPERATION. VINTAGE AIR RECOMMENDS THAT ALL A/C SYSTEMS BE SERVICED BY A CERTIFIED
AUTOMOTIVE AIR CONDITIONING TECHNICIAN ONLY. SEE INSIDE COVER FOR SERVICE INFORMATION.
START ENGINE AND RUN, UNITL NORMAL OPERATING TEMPERATURE IS REACHED. PLACE SWITCH IN HEAT
POSITION AND SELECT FAN SPEED DESIRED.
THE SYSTEM WILL HEAT THE VEHICLE. (BE SURE THE ENGINE THERMOSTAT HAS OPENED, AND THE
APPROVED ANTIFREEZE MIXTURE HAS BEEN CIRCULATED THRU THE HEATER CORE BEFORE TESTING
THE A/C MODES).
WHEN VALVE IS CLOSED, INLET SIDE OF VALVE SHOULD BE HOT AND OUTLET SIDE SHOULD BE COOL. WHEN
THE VALVE IS OPEN, BOTH INLET AND OUTLET SIDES SHOULD BE HOT.
HEATER
CONTROL
VALVE
•
•
•
•
•

10
901301 REV D 10/27/14, SLIMLINE HC PG 10 OF 12
OPTIONAL VACUUM RESERVOIR
VINTAGE AIR PART#31200-VUS
87a
87a
87 87
85 85
30 30
86 86

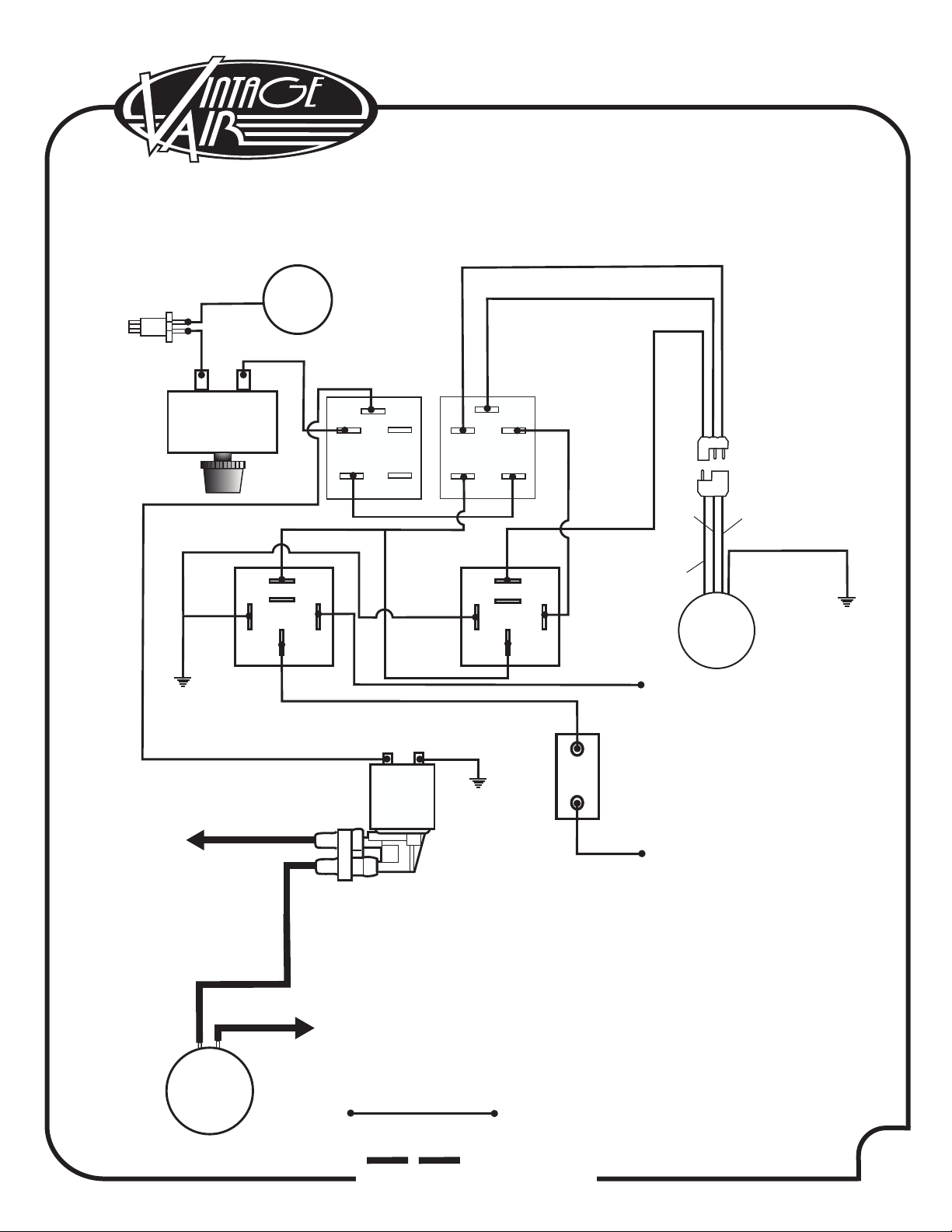

WIRING/VACUUM DIAGRAM
HEAT & COOL
(REQUIRED)
COMPRESSOR
SAFETY SWITCH
(BINARY TYPE)
A/C
CLUTCH
MODE
SWITCH
HIGH
BLOWER
RELAY
POWER
RELAY CONNECT TO
KEY ON IGNITION
SOURCE
(5 AMP FUSE)
FAN
SPEED
SWITCH
BLACK
GROUND
30
AMP
CIRCUIT
BREAKER
TO BATTERY OR
BATTERY TERMINAL
ON REGULATOR,
ALTERNATOR, OR
STARTER SOLENOID.
HEATER
CONTROL
VALVE
ENGINE
VACUUM TO INTAKE MANIFOLD
VACUUM SOURCE
A/C
THERMOSTAT
BLUE
RED
RED
AUX.
B AT.
RED
RED
RED
BLUE
BLUE
GROUND
GROUND
GROUND
WHITE WHITE
PURPLE
WHITE
BLUE
BLACK
BLACK
BLACK
BLACK
BLACK
WIRES =
VACUUM
LINES =
VACUUM
RESERVOIR
BLACK
YELLOW
ORANGE
ORANGE
ORANGE
YELLOW
BB
CC
HH LL
MM
BLOWER
MOTOR
VACUUM
SOLENOID

11
901301 REV D 10/27/14, SLIMLINE HC PG 11 OF 12

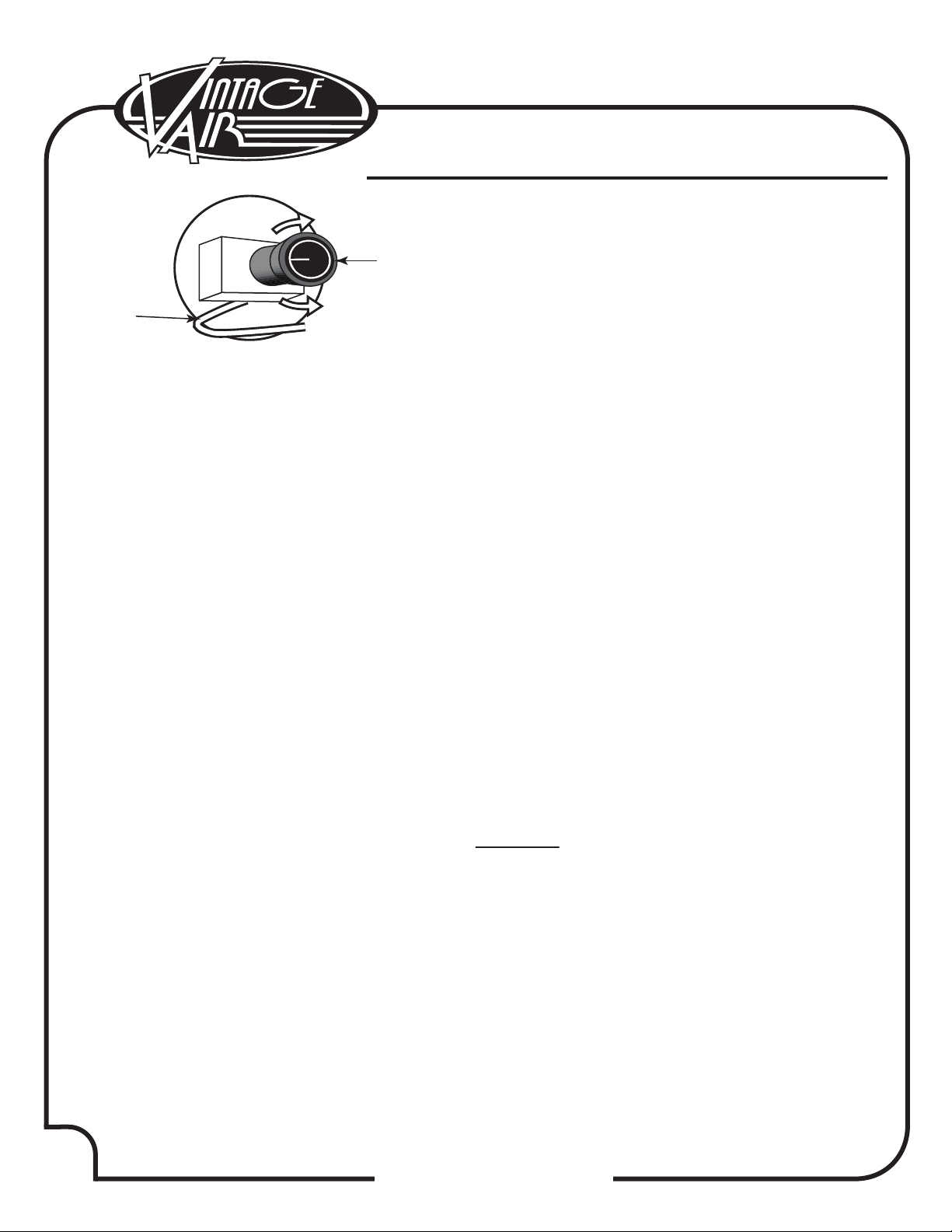

ADJUSTABLE
KNOB
CAPILLARY
TUBE
TO
EVAPORATOR
COIL
COLDER CLOCKWISE
COUNTERCLOCKWISE
WARMER
THERMOSTAT ADJUSTMENT
AIR CONDITIONING ADJUSTMENTS:
ADJUSTING A/C THERMOSTAT:
THE AIR CONDITIONER THERMOSTAT CONTROLS COIL TEMPERATURE. THERMOSTATS ARE SHIPPED ADJUSTED
FULLY COLD (CLOCKWISE). IN THE MAJORITY OF CASES, THE A/C WILL OPERATE CORRECTLY AS SHIPPED.
TURNING THE KNOB TO THE RIGHT (CLOCKWISE) MAKES THE SYSTEM OPERATE COLDER. IF THE THERMOSTAT
IS SET TOO COLD, THE EVAPORATOR COIL WILL "ICE UP," MEANING THE EVAPORATOR COIL IS RESTRICTED
WITH ICE, AND COLD AIR FLOW WILL BE REDUCED.
TURNING THE KNOB TO THE LEFT (COUNTERCLOCKWISE) MAKES THE SYSTEM OPERATE WARMER. THE
COMPRESSOR CLUTCH WILL CYCLE OFF FREQUENTLY. THE EVAPORATOR COIL WILL NOT GET AS COLD AND
THE AIR TEMPERATURE WILL NOT BE AS COLD.
1.) SYMPTOM: THE A/C WORKS WELL AT FIRST, THEN QUITS COOLING. THE AIRFLOW FROM THE VENTS IS LOW,
AND THE COMPRESSOR CLUTCH CYCLES INFRQUENTLY.
SOLUTION: THE THERMOSTAT IS SET TOO COLD AND THE EVAPORATOR IS "ICING UP" AND RESTRICTING
AIRFLOW. ALLOW THE ICE TO MELT AND SET THE THERMOSTAT WARMER (COUNTERCLOCKWISE) 1/8 OF A
TURN EACH ADJUSTMENT UNTIL THE SYMPTOMS DIMINISH.
2.) SYMPTOM: A/C NEVER GETS COLD AND THE COMPRESSOR CLUTCH CYCLES FREQUENTLY.
SOLUTION: THE THERMOSTAT IS TOO WARM. SET THE THERMOSTAT COLDER (CLOCKWISE) 1/8 OF A TURN
EACH ADJUSTMENT, UNTIL THE DESIRED AIR TEMPERATURE IS REACHED. AVOID SETTING THE THERMOSTAT
TOO COLD.
3.) SYMPTOM: THE A/C NEVER GETS COLD, SOMETIMES EVEN BLOWS HOT, AND THE A/C COMPRESSOR CLUTCH
INFREQUENTLY CYCLES OFF.
SOLUTION: THE HEATER MAY BE ON AT ALL TIMES. CAREFULLY FEEL THE HEATER HOSE BETWEEN THE
EVAPORATOR AND THE HEATER CONTROL VALVE. THIS HOSE SHOULD NOT BE HOT IN THE A/C MODE. IF
THE HOSES ARE HOT....
A)- THE HEATER CONTROL VALVE MAY BE INSTALLED BACKWARDS. CHECK THE FLOW DIRECTION ARROW ON
THE VALVE AGAINST THE ILLUSTRATION IN YOUR INSTALLATION INSTRUCTIONS.
B)- IF CABLE OPERATED: THE VALVE MAY BE MISADJUSTED.
C)- IF VACUUM OPERATED: IT MAY BE GETTING VACUUM AT ALL TIMES (CHECK ELECTRIC SOLENOID).
D)- THE HEATER CONTROL VALVE MAY BE INSTALLED IN THE WRONG HOSE. IT MUST BE INSTALLED IN THE
HOSE COMING FROM THE INTAKE MANIFOLD ENGINE COOLANT PRESSURE PORT.
•
•
•

901301 REV D 10/27/14, SLIMLINE HC PG 12 OF 12
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES.
EVAPORATOR KIT PACKING LIST
EVAPORATOR KIT
11301-VUX-A
11401-VUX-A
No. QTY. PART No. DESCRIPTION
1.
2.
3.
1
1
1
55328-VUE-A
55428-VUE-A
64143-VUE
63300-VUE
EVAPORATOR SUBCASE H/C w/ STD LOUVERS
EVAPORATOR SUBCASE H/C w/ BLK LOUVERS
EVAPORATOR MOUNTING BRKT. KIT
INSTALLATION KIT
CHECKED BY:
PACKED BY:
DATE:
OFF
LO
MED
HI
ENCO
A/C
HEAT
DEF
C
