Vintage Air 11301-VUY-A User manual

SLIMLINE
COOL
11301-VUY-A
11401-VUY-A
901302 REV E 07/16/19, SLIMLINE COOL PG 1 OF 11
an ISO 9001:2015 Registered Company
OF
F
C
18865 Goll St. San Antonio, TX 78266
Phone: [phone]
Sales: [email protected]
Tech Support: [email protected]
www.vintageair.com

2
901302 REV E 07/16/19, SLIMLINE COOL PG 2 OF 11
Table of Contents
PAGES
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
COVER
TABLE OF CONTENTS

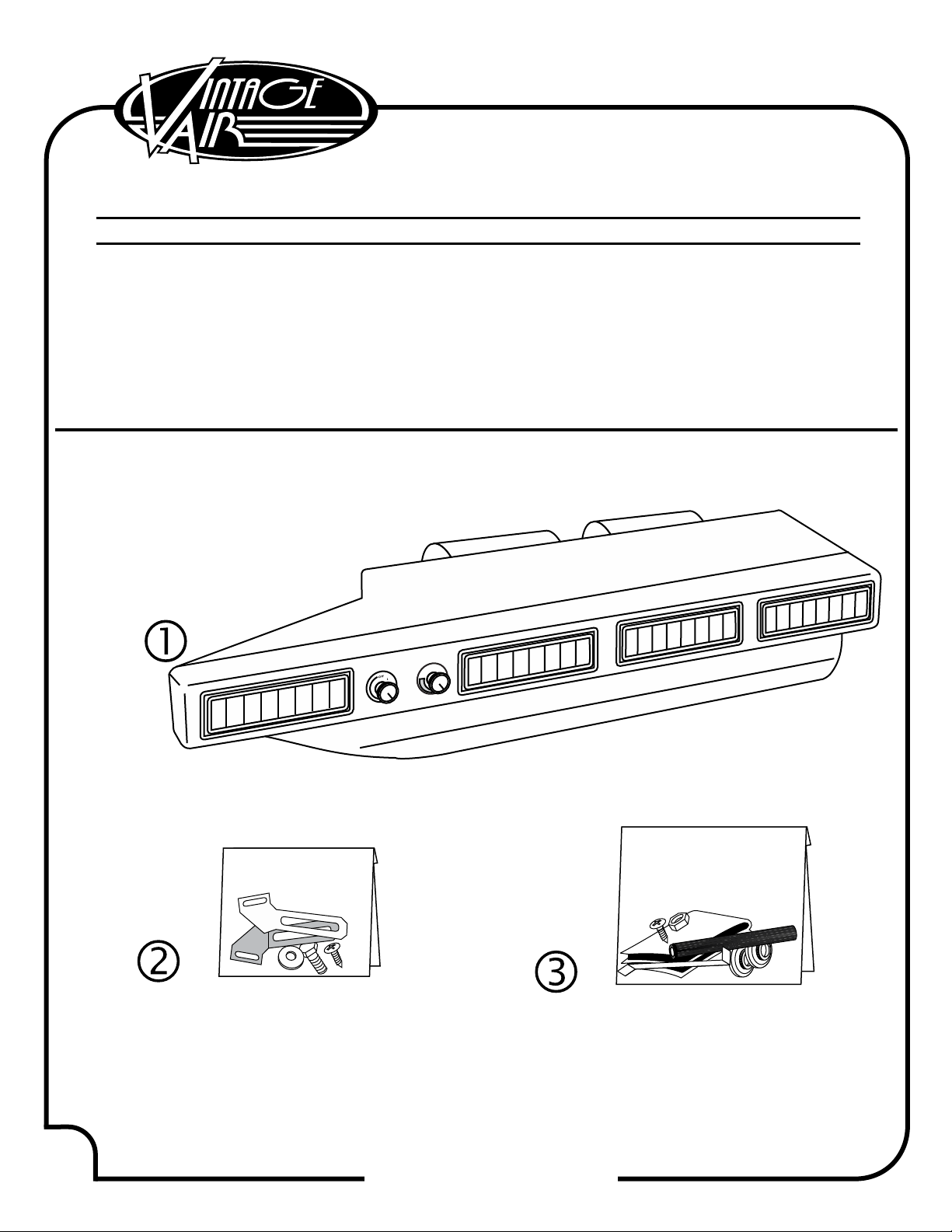

PACKING LIST
INFORMATION PAGE
INSTALLATION
INSTALLATION CONTINUED
HOSE ROUTING
O-RING/FITTING INSTRUCTIONS
WIRING DIAGRAM
THERMOSTAT ADJUSTMENT
EVAPORATOR KIT PACKING LIST

3
901302 REV E 07/16/19, SLIMLINE COOL PG 3 OF 11
1.
2.
3.
1
1
1
55327-VUE-A
55427-VUE-A
64143-VUE
63301-VUE

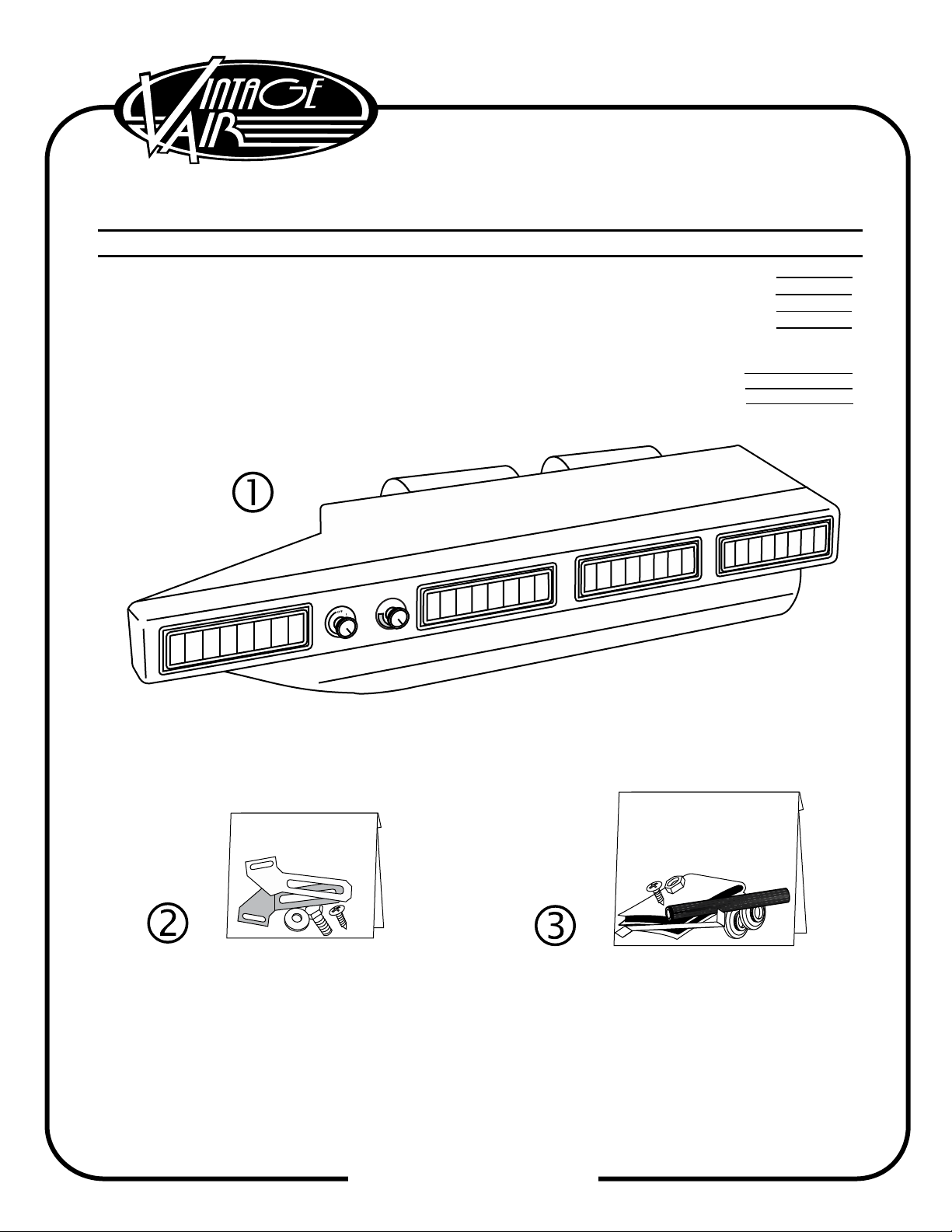

EVAPORATOR SUBCASE COOL ONLY w/ STD LOUVERS
EVAPORATOR SUBCASE COOL ONLY w/ BLK LOUVERS
EVAPORATOR MOUNTING BRKT. KIT
INSTALLATION KIT (COOL ONLY)
** BEFORE BEGINNING INSTALLATION OPEN ALL PACKAGES AND CHECK CONTENTS OF SHIPMENT.
PLEASE REPORT ANY SHORTAGES DIRECTLY TO VINTAGE AIR WITHIN 15 DAYS. AFTER 15 DAYS,
VINTAGE AIR WILL NOT BE RESPONSIBLE FOR MISSING OR DAMAGED ITEMS.
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES.
EVAPORATOR KIT PACKING LIST
EVAPORATOR KIT
11301-VUY-A
11401-VUY-A
No. QTY. PART No. DESCRIPTION
OF
F
C

4
901302 REV E 07/16/19, SLIMLINE COOL PG 4 OF 11
IMPORTANT NOTICE-PLEASE READ
FOR MAXIMUM SYSTEM PERFORMANCE VINTAGE AIR RECOMMENDS THE FOLLOWING:
LUBRICANT CAPACITIES:
134a SYSTEM
CHARGE WITH 1.8 lbs.
(1lbs. 12ozs) OF REFRIGERANT
NEW COMPRESSOR - NO ADDITIONAL OIL NEEDED
USED COMPRESSOR - CONSULT VINTAGE AIR
SERVICE INFO:
SAFETY SWITCHES:
ATTENTION: SYSTEM COMPONENTS: THE COMPRESSOR, EVAPORATOR, CONDENSER & DRIER ARE CAPPED.
CAPS MAY BE UNDER PRESSURE WITH DRY NITROGEN; BE CAREFUL REMOVING CAPS. DO NOT REMOVE CAPS
PRIOR TO INSTALLATION. REMOVING CAPS PRIOR TO INSTALLATION WILL CAUSE COMPONENTS TO COLLECT
MOISTURE AND LEAD TO PREMATURE FAILURE AND REDUCED PERFORMANCE.
EVACUATE THE SYSTEM FOR 35-45 MINUTES WITH SYSTEM COMPONENTS (DRIER, COMPRESSOR, EVAPORATOR
AND CONDENSER) AT A TEMPERATURE OF AT LEAST 85° F. ON A COOL DAY THE COMPONENTS CAN BE HEATED
WITH A HEAT GUN OR BY RUNNING THE ENGINE WITH THE HEATER ON BEFORE EVACUATING. LEAK CHECK
AND CHARGE TO SPECIFICATIONS.
TTHHIISS KKIITT DDOOEESS NNOOTT CCOONNTTAAIINN HHEEAATTEERR HHOOSSEE.. YYOOUU MMUUSSTT PPUURRCCHHAASSEE 88 FFEEEETT OOFF 55//88”” DDIIAA..
HHEEAATTEERR HHOOSSEE FFRROOMM VVIINNTTAAGGEE AAIIRR((3311880000--VVUUDD)) OORR FFRROOMM YYOOUUR LLOOCCAALL PPAARRTTSS RREETTAAIILLEERR.
VINTAGE AIR SYSTEMS ARE DESIGNED TO OPERATE WITH R134a REFRIGERANT
ONLY! USE OF ANY OTHER REFRIGERANTS IS A FIRE HAZARD AND COULD
DAMAGE EITHER YOUR AIR CONDITIONING SYSTEM OR YOUR VEHICLE.
USE OF ANY OTHER REFRIGERANTS WILL VOID ALL WARRANTIES OF
THE AIR CONDITIONING SYSTEM AND COMPONENTS. USE OF THE PROPER
TYPE AND AMOUNT OF REFRIGERANT IS CRITICAL TO PROPER SYSTEM
OPERATION. VINTAGE AIR RECOMMENDS OUR SYSTEMS BE CHARGED BY
WEIGHT WITH A QUALITY CHARGING STATION OR SCALE.
REFRIGERANT CAPACITIES FOR VINTAGE AIR SYSTEMS
(FOR OTHER SYSTEMS, CONSULT MANUFACTURER GUIDELINES)
A COMPRESSOR SAFETY SWITCH MUST BE INSTALLED ON EVERY A/C SYSTEM. A BINARY SWITCH
DISENGAGES THE COMPRESSOR CLUTCH IN CASES OF EXTREME LOW PRESSURE (REFRIGERANT LOSS) OR
EXCESSIVELY HIGH HEAD PRESSURE (406 PSI) TO PREVENT COMPRESSOR DAMAGE OR HOSE RUPTURE. A
TRINARY SWITCH COMBINES HI/LO PRESSURE PROTECTION WITH AN ELECTRIC FAN OPERATION SIGNAL AT
254 PSI. COMPRESSOR SAFETY SWITCHES ARE EXTREMELY IMPORTANT SINCE AN A/C SYSTEM RELIES ON
REFRIGERANT TO CARRY LUBRICATION THROUGH THE SYSTEM.

5
901302 REV E 07/16/19, SLIMLINE COOL PG 5 OF 11
INSTALLATION
FIGURE 1
FIGURE 2
ATTACH EVAPORATOR BRACKETS TO EVAPORATOR (SEE FIGURE 1).
DRAIN HOSE
FRONT
BRACKET
FRONT
BRACKET
REAR BRACKETS
1/4" x 1/2" BOLT
1/4" x 1"
BOLT 1/4" x 1"
BOLT
1/4" x 1/2" BOLT
1/4" NUT
1/4"
FLAT WASHER
1/4"
FLAT WASHER
1/4" NUT
1/4" x 1/2" BOLT 1/4" x 1/2" BOLTS
DASH LIP
DASH LIP
DRILL
9/32"
HOLE
IN DASH LIP
DRILL
9/32" HOLE
IN DASH LIP
#8 x 1/2"
SHEET METAL
SCREWS
POSITION EVAPORATOR WITH BRACKETS UNDER DASH. MARK AND DRILL TWO (2) 9/32"
DIAMETER HOLES UNDER THE LIP OF THE DASH.
ATTACH THE FRONT BRACKETS TO THE DASH WITH 1/4" x 1" BOLTS, WASHERS AND NUTS PROVIDED
(SEE FIGURE 2).
ATTACH REAR EVAPORATOR BRACKETS (USING TWO #8 x 1/2" SHEET METAL SCREWS) TO THE COWL
OR FIREWALL.
ATTACH THE DRAIN HOSE (SEE FIGURE 2) AND DRILL A 9/16" DIAMETER HOLE IN FIREWALL 1" BELOW
THE BOTTOM OF THE EVAPORATOR.
OF
F
C
OFF
C
MED
HI
LOW

6
901302 REV E 07/16/19, SLIMLINE COOL PG 6 OF 11
NOTE: THE DRIER IS USUALLY MOUNTED WHERE YOU HAVE ROOM FOR IT.
JUST REMEMBER TO MOUNT IT IN THE COOLEST SPOT POSSIBLE AND
VERTICALLY SO THE SIGHT GLASS IS DIRECTLY ON TOP. (NOT NEXT TO
THE EXHAUST MANIFOLD). IT CAN BE MOUNTED INSIDE THE VEHICLE
AS WELL.
PUSH THE 5/16" I.D. HOSE ONTO THE STRAIGHT #6 FITTING. (SEE HOSE ROUTING ILLUSTRATION ON PG. 7).
INSTALL THE FITTING ONTO THE EXPANSION VALVE (FINGER TIGHT). PUSH THE 1/2" I.D. HOSE ONTO THE
STRAIGHT #10 FITTING, AND INSTALL THE FITTING ONTO THE #10 LINE ON THE EVAPORATOR. (SEE HOSE
ROUTING ILLUSTRATION PG. 7).
AT THIS TIME, TRY TO DETERMINE WHERE YOU WANT YOUR LINES TO GO THRU THE FIREWALL. MOVE THE
HOSES TO THAT POINT. HOLD THE FITTINGS UP TO THEIR RESPECTIVE HOSES, AND DETERMINE IF THE HOSES
WILL CONFORM TO THE LOCATION FOR THE BULKHEAD FITTINGS OR OPTIONAL BULK-HEAD PLATE (VINTAGE
AIR PART# 34215-VUQ OR 34217-VUQ). THE 1/2" HOSE IS HARD TO BEND AT A SHARP ANGLE, AND THE
FITTINGS TAKE UP A CERTAIN AMOUNT OF SPACE. BEFORE YOU DRILL HOLES IN YOUR FIREWALL MAKE SURE
THAT YOU CAN MAKE THE HOSES FIT WHERE YOU HAVE PLANNED. THE ENGINE COMPARTMENT APPEARANCE
IS A CONSIDERATION WHEN CHOOSING THIS LOCATION.
WHEN YOU HAVE DECIDED WHERE YOU WANT TO PLACE YOUR BULKHEAD FITTINGS, MARK THESE POINTS
WITH A GREASE PENCIL, AND MAKE A TEMPLATE FROM THE INSIDE LOCATING WHERE THE HOLES WILL BE
CUT WITH THIS TEMPLATE, LOCATE THE SAME POINTS ON THE OUTSIDE OF THE FIREWALL. MARK THESE
POINTS WITH A GREASE PENCIL.
DETERMINE THE BEST LOCATION FOR THE DRIER THAT WILL ALLOW ADEQUATE ROOM FOR THE HOSE AND
FITTINGS THAT CONNECT THE DRIER TO THE BULKHEAD FITTING.
MOUNT THE DRIER. (KEEP THE DRIER CAPPED AS MUCH AS POSSIBLE, IF YOU MUST SCREW THE FITTING TO
THE DRIER, TAPE IT CLOSED).
AT THIS POINT, CUT HOLES FOR BULKHEAD FITTINGS, AND INSTALL THEM.
USING THE HOSE ROUTING ILLUSTRATION AS A GUIDE, ROUTE REMAINING A/C LINES, AND CUT TO
LENGTH.
AT THIS TIME, YOU SHOULD HAVE THE REFRIGERATION HOSES CUT TO THEIR PROPER LENGTH. PAY CLOSE
ATTENTION TO THE ORIENTATION OF ANY HOSE WITH TWO ANGLED FITTINGS. ANY HOSE WITH TWO
ANGLED FITTINGS MUST BE MARKED FROM THE HOSE TO THE FITTINGS TO ASSURE THEY WILL REMAIN IN
THIS POSITION AFTER CRIMPING. THE RUBBER HOSE IS ONLY CAPABLE OF A MINIMAL AMOUNT OF TWIST
TO AID ALIGNMENT.
REMOVE HOSES AND CRIMP ENDS. IF YOU DO NOT HAVE ACCESS TO THE PROPER EQUIPMENT, VINTAGE AIR
RECOMMENDS TAKING THEM TO A QUALIFIED A/C SERVICE CENTER FOR CRIMPING. (SEE CRIMPING
INSTRUCTIONS SUPPLIED WITH THE HOSE KIT).
WITH THE EVAPORATOR TRIAL FIT COMPLETE, REMOVE THE UNIT AND LOWER INTO THE VEHICLE.
AFTER CRIMPING HOSES, LOCATE THE #6 A/C HOSE WITH THE STRAIGHT FITTING. LUBRICATE A #6 O-RING
AND THE THREADS ON THE FITTING, AND INSTALL ON THE EXPANSION VALVE. TIGHTEN CAREFULLY. REFER
TO FIGURES 3 & 3A, PAGE 8.
LOCATE THE #10 A/C HOSE WITH THE STRAIGHT FITTING. LUBRICATE A #10 O-RING AND THE THREADS ON
THE FITTING, AND INSTALL ON THE #10 LINE OF THE EVAPORATOR. TIGHTEN CAREFULLY. REFER TO
FIGURES 3 & 3A, PAGE 8.
WRAP THE #10 FITTING WITH PRESS TAPE, AND COVER ALL EXPOSED METAL SURFACES. (DO NOT WRAP
THE #6 HOSE, FITTING, OR THE HEATER CORE TUBES). SEE FIGURE 3, PAGE 8.

7
901302 REV E 07/16/19, SLIMLINE COOL PG 7 OF 11

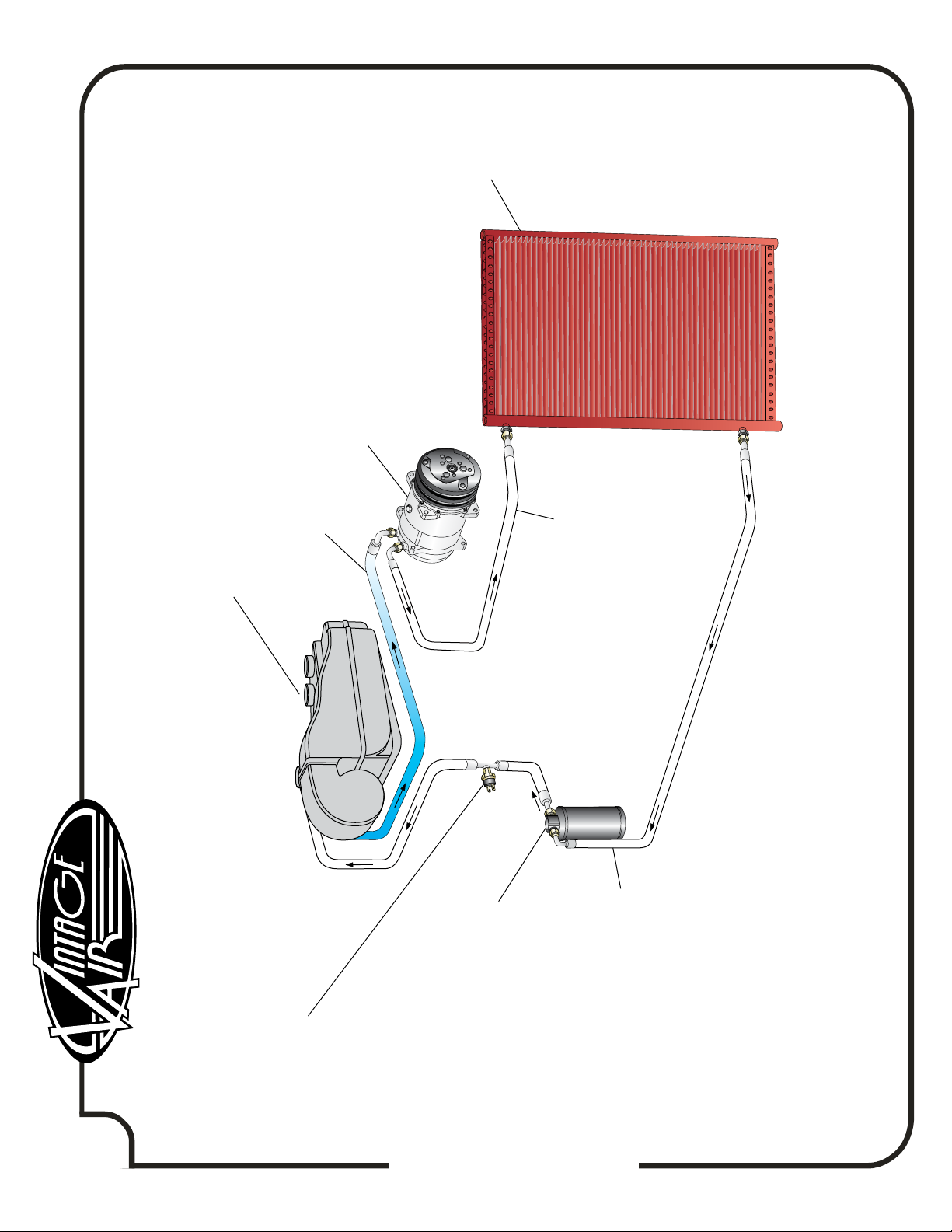

TYPICAL HOSE ROUTING DIAGRAM
DIRECTION OF REFRIGERANT FLOW INDICATED BY ARROWS
RECEIVER/DRIER
(NOTE FLOW DIRECTION)
#6 LIQUID LINE
SAFETY SWITCH BINARY (ENGINE DRIVEN FAN) TRINARY (ELECTRIC FAN)
COMPRESSOR
CONDENSER
# 8 DISCHARGE
HOSE
EVAPORATOR
# 10 SUCTION HOSE

8
901302 REV E 07/16/19, SLIMLINE COOL PG 8 OF 11

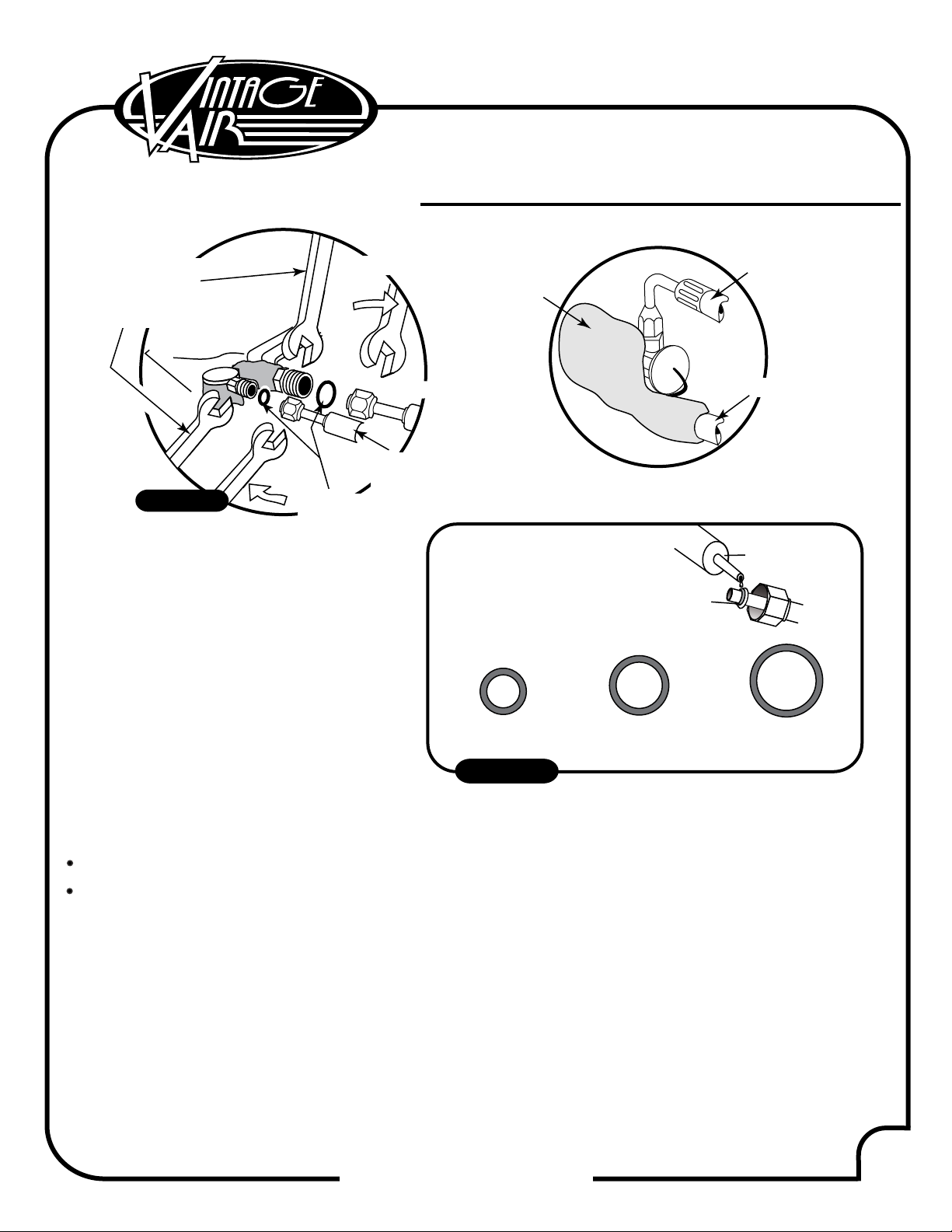

#6 O-RING #8 O-RING #10 O-RING
FOR A PROPER SEAL
OF FITTINGS
INSTALL SUPPLIED
O-RINGS AS SHOWN
AND LUBRICATE
WITH SUPPLIED OIL.
FIGURE 3A
FIGURE 3
MAKE ELECTRICAL CONNECTIONS, ACCORDING TO THE DIAGRAM FURNISHED ON PG. 9.
NOTE: THE RED 12GA. WIRE WITH THE 30 AMP CIRCUIT BREAKER SHOULD BE CONNECTED TO A 12
VOLT POWER SOURCE OF AT LEAST 12GA. WIRE. CONNECT MOLDED PLUG WITH THE (RED, YELLOW,
ORANGE) WIRES TO THE CORRESPONDING PLUG FROM THE BLOWER MOTOR. THE SINGLE BLACK WIRE
FROM THE BLOWER MOTOR MUST BE GROUNDED. THE BLUE CLUTCH WIRE RUNS FROM THE THERMOSTAT
TO THE COMPRESSOR SAFETY SWITCH AND FROM THE SAFETY SWITCH TO THE COMPRESSOR.
BE CAREFUL TO ENSURE THAT THIS WIRE IS NOT PINCHED OR IN A POSITION TO RUB ON A SHARP
EDGE AS IT GOES THRU THE FIREWALL.
HOLD TO
RESIST
TWISTING
LUBRICATE
O-RINGS
#6 LIQUID
HOSE
#10 SUCTION
HOSE
TIGHTEN #6 HOSE
#10 HOSE
PRESS TAPE
O-RING/FITTING INSTRUCTIONS
O-RING,
SLIDE OVER
MALE INSERT TO
SWAGEED LIP
SUPPLIED OIL
FOR O-RINGS

9
901302 REV E 07/16/19, SLIMLINE COOL PG 9 OF 11
TO BATTERY OR
BATTERY TERMINAL
ON STARTER SOLENOID.
A/C
CLUTCH
HIGH
BLOWER
RELAY
FAN
SPEED
SWITCH
POWER
RELAY
A/C
THERMOSTAT
(REQUIRED)
COMPRESSOR
SAFETY SWITCH
(BINARY TYPE)
CIRCUIT
BREAKER
30
AMP
CONNECT TO
KEY ON IGNITION
SOURCE
(5AMP FUSE)
BLACK
GROUND
COOL
WIRING DIAGRAM
BLUE RED
RED
RED
AUX.
B AT.
YELLOW
YELLOW
ORANGE
ORANGE
GROUND
GROUND
WHITE
WHITE
ORANGE
PURPLE
BLUE
BLUE
BLUE
BLACK
BLACK
B
L H
M
C
BLOWER
MOTOR
87 87
86 8685 85
30 30
87a 87a

10
901302 REV E 07/16/19, SLIMLINE COOL PG 10 OF 11

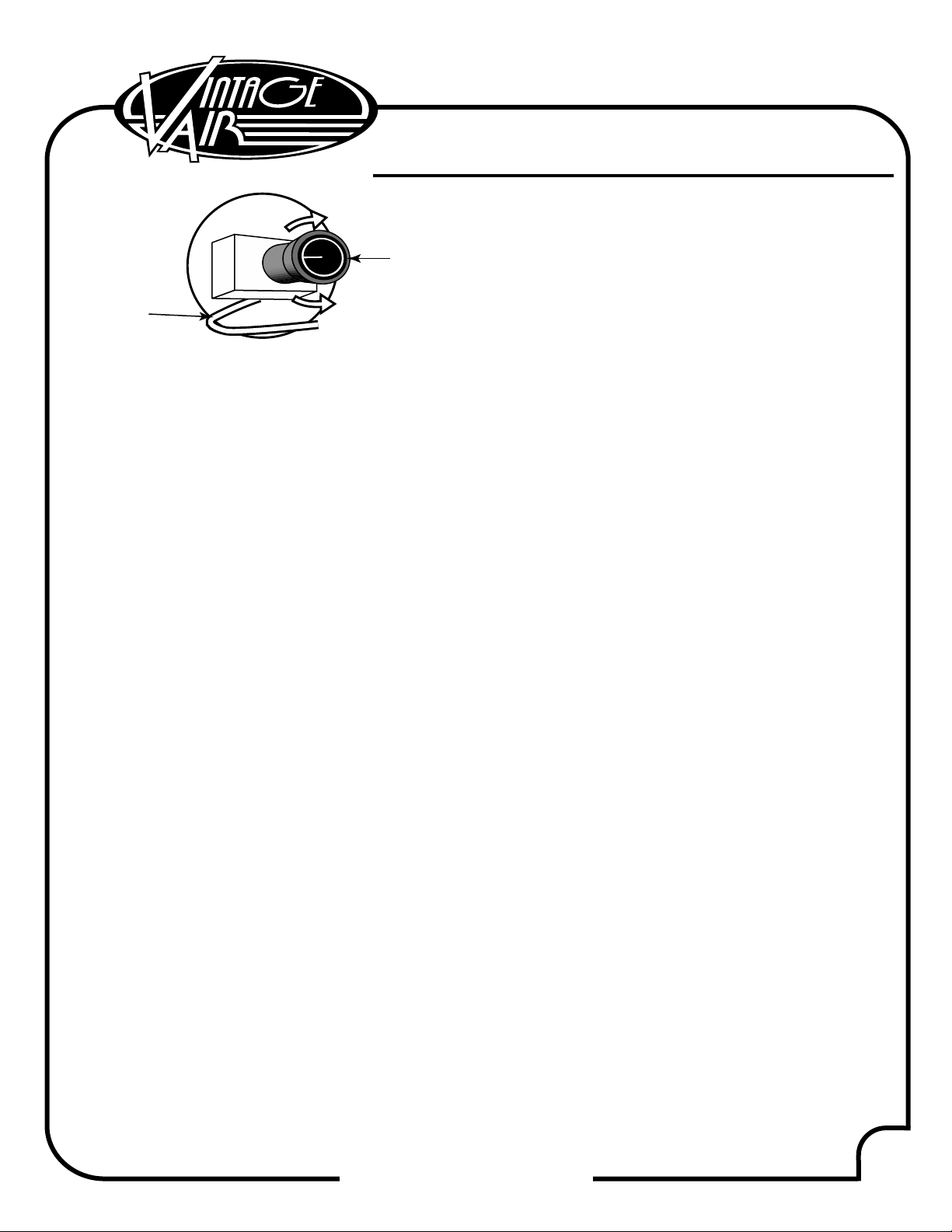

ADJUSTABLE
KNOB
CAPILLARY
TUBE
TO
EVAPORATOR
COIL
COLDER CLOCKWISE
COUNTERCLOCKWISE
WARMER
THERMOSTAT ADJUSTMENT
AIR CONDITIONING ADJUSTMENTS:
ADJUSTING A/C THERMOSTAT:
THE AIR CONDITIONER THERMOSTAT CONTROLS COIL TEMPERATURE. THERMOSTATS ARE SHIPPED ADJUSTED FULLY
COLD (CLOCKWISE), AND IN THE MAJORITY OF CASES, THE A/C WILL OPERATE CORRECTLY AS SHIPPED.
TURNING THE KNOB TO THE RIGHT (CLOCKWISE) MAKES THE SYSTEM OPERATE COLDER. IF THE THERMOSTAT IS SET
TOO COLD THE EVAPORATOR COIL WILL "ICE UP," MEANING THE EVAPORATOR COIL IS RESTRICTED WITH ICE, AND
COLD AIR FLOW WILL BE REDUCED.
TURNING THE KNOB TO THE LEFT (COUNTERCLOCKWISE) MAKES THE SYSTEM OPERATE WARMER. THE COMPRESSOR
CLUTCH WILL CYCLE OFF FREQUENTLY. THE EVAPORATOR COIL WILL NOT GET AS COLD AND THE AIR TEMPERATURE
WILL NOT BE AS COLD.
1.) SYMPTOM: THE A/C WORKS WELL AT FIRST THEN QUITS COOLING. THE AIRFLOW FROM THE VENTS IS LOW,
AND THE COMPRESSOR CLUTCH CYCLES INFREQUENTLY.
SOLUTION: THE THERMOSTAT IS SET TOO COLD, AND THE EVAPORATOR IS "ICING UP" AND RESTRICTING AIRFLOW.
ALLOW THE ICE TO MELT AND SET THE THERMOSTAT WARMER (COUNTERCLOCKWISE) 1/8 OF A TURN EACH
ADJUSTMENT UNITL THE SYMPTOMS DIMINISH.
2.) SYMPTOM: A/C NEVER GETS COLD, AND THE COMPRESSOR CLUTCH CYCLES FREQUENTLY.
SOLUTION: THE THERMOSTAT IS TOO WARM. SET THE THERMOSTAT COLDER (CLOCKWISE) 1/8 OF A TURN EACH
ADJUSTMENT, UNTIL THE DESIRED AIR TEMPERATURE IS REACHED. AVOID SETTING THE THERMOSTAT TOO COLD.
•
•
•

901302 REV E 07/16/19, SLIMLINE COOL PG 11 OF 11
1.
2.
3.
1
1
1
55327-VUE-A
55427-VUE-A
64143-VUE
63301-VUE
EVAPORATOR SUBCASE COOL ONLY w/ STD LOUVERS
EVAPORATOR SUBCASE COOL ONLY w/ BLK LOUVERS
EVAPORATOR MOUNTING BRKT. KIT
IK KIT (COOL ONLY)
NOTE: IMAGES MAY NOT DEPICT ACTUAL PARTS AND QUANTITIES.
REFER TO PACKING LIST FOR ACTUAL PARTS AND QUANTITIES
EVAPORATOR KIT PACKING LIST
EVAPORATOR KIT
11301-VUY-A
11401-VUY-A
No. QTY. PART No. DESCRIPTION
CHECKED BY:
PACKED BY:
DATE:
OF
F
C
