Virgin Ocean 2 User manual

February 2009
Introducing the Ocean 2

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 2
Agenda
Feature Summary
Positioning
- What’s New?
- Portfolio Comparison
- Competitive Positioning
- Ocean 2 vs. Ocean
- Ocean 2 vs. iPhone 3G
Ocean 2 Overview
- Ocean 2 Overview
- Function Keys
- Display Icons
- Menu Tree
- Accessories
Applications Overview
Customer Experience Improvements
- Main Menu
-Style
- Browser, SMS/MMS
- Camera
- File Viewer

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 3
Confidential and Proprietary Information of Virgin Mobile USA, L.P. 3
Feature Summary

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 4
Ocean 2 is Helio by Virgin Mobile’s next generation
flagship personal communication device featuring
upgrades to Ocean in every category including a
larger display, improved multimedia capabilities,
usability, and performance.

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 5
Feature Summary
Key Differentiators
– Big 2.6” QVGA LCD Screen
– Full background music play along with 3.5mm ear-jack
– Industrial design improvement with Mercury concept
– Analog scroll functionality through optical sensor
– Updated Helio User Interface with new Helio main menu
Upgrades from the Ocean
– Integrated Alert management system for email, call events, IM, SMS/MMS
– 512mb External Memory card bundles with Device
– Turn by turn navigation, GPS enabled Google map
– Microsoft mail for Exchange (MME) support for full outlook calendar, contact, and email sync
– Ultimate Inbox with integrated Email and IM from all leading Portals (Yahoo, AOL, MSN,
Google)
– Buddy Beacon 2.0 with increased performance, User Interface, and the ability to connect with
non-Helio members
– Community Applications, including YouTube, MySpace, and Facebook

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 6
Confidential and Proprietary Information of Virgin Mobile USA, L.P. 6
Ocean 2 Positioning

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 7
What’s New?
Category What’s New?
Industrial Design Keyboard/keypad layers switched for more comfortable QWERTY experience
External dedicated silent mode slide button
Optical Sensor Optical sensor enabled navigation button for more responsive menu scrolling and page browsing
Camera Night shot mode
Location tagging on pictures
Web Send URL to Friend
Multi-Tab Browsing
Insert Contact Info … integrated with device Address Book
Location based integration with several Content Partners
Applications Buddy Beacon 2.0
TellMe
Games Same great, unique landscape gaming capabilities
New simple ability to upgrade rental games to full versions
Six (6) new preloaded game demos
Multimedia Improved video playback (QVGA 384kbps)
MTP data transfer & Windows DRM compatible
Background Music Playback

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 8
What’s New?
Category What’s New?
Voice Search Voice-activate Search using TellMe
Address Book & Contacts
Backup
Same great Address Book and Smart Dialer
Improved integration between Device and MME contacts
Reminder prompts to backup/sync.
Ability to initiate Buddy Beacon & ‘locate’ a contact from Address Book
Messaging Ultimate inbox providing email through Gmail, Yahoo, AOL, MyHelio, Earthlink
IM through Yahoo, AOL, MSN, and now Google Talk
Text and Pic message threading functionality
Location Based Services Same great Google Maps and Garmin Mobile applications available for directions and navigation
Search Improved Yahoo search results with OneSearch upgrade and implementation of LBS/Local integration
upgrades
Consistent Search results from Dialpad and Helio WAP portal

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 9
Ocean 2 vs. Ocean
Ocean 2 ™Ocean ™
“Multitasking” Support for full Background Music play Background music play only during browsing
Video Performance 15 FPS at 384 kbps playback with additional *avi. formats supported 7 FPS playback with 16-bit sound
Messaging/Ultimate Inbox Text & Pic message threading
Same as Ocean with addition of Gtalk All messaging portal including MSN, Yahoo, AOL
Browser New Browser lid ‘Send URL to a Friend’ & Multi-Tab Browsing Single tab browsing
Idle Mode Local Search Text-based and voice-based search, both GPS-enabled, direct from
the dialpad & QWERTY Text-based and voice-based search, both GPS-enabled, direct from the dialpad & QWERTY
Voice Feature Access TellMe voice search application None
GUI Update Main Menu Design and GUI Update for simple yet classy
look Colorful GUI with Main Menu
Key Interface Bigger space bar & Qwerty keypad, Improve usability on the
numeric key Qwerty + Numeric keypad
Speakerphone Improved speakerphone with a bigger size and position of the
speaker Limited to 15pi stereo output
LCD Larger 2.6” LCD for improved experience 2.4” QVGA
Analog Input Has optical senor for better experience scrolling through large text file
External vibrate (Silent Mode) slide switch None

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 10
Item Ocean 2™iPhone 3G™
Stereo Bluetooth (A2DP) Yes No
Voice Feature Access TellMe voice search application SayNDrive
Network/speed 3G EVDO network (up to 2.5Mbps) 3G HSDPA network (up to 14.4 Mbps), WiFi
GPS Yes, (Google Maps, Garmin, Buddy Beacon, Browser
integration including WHERE widgets) Yes, (Loopt, Buddy Beacon, WHERE widgets, Google
Maps, GeoCache, Find Me!, various public transit apps,
and more)
IM AIM, Yahoo!, MSN and Google Talk with presence
detection integrated w/Address Book Support for IM only through third-party apps not
preloaded on device
Email AOL, Yahoo!, MSN/Hotmail, Gmail, POP/IMAP, and
Microsoft Exchange Mac, Yahoo, GMail, AOL, POP/IMAP, and Exchange
ActiveSync support
LCD 2.6” QVGA (320 x 240) 3.5” QVGA+ (320 x 480)
H/W keyboard Qwerty and numeric None (touch screen)
MMS Support Yes No
Ocean 2 vs. iPhone 3G

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 11
Portfolio Comparison
Features Ocean 2 ™ Ocean™ Fin™ Mysto™
Camera 2 Megapixel 2 Megapixel 3 Megapixel 2 Megapixel
Internal Memory 133 MB 200 MB 100 MB 100 MB
MicroSD External Memory SDHC support
(512 MB included) microSD Up to 4GB max Up to 4GB max
Device Size 4.56” x 2.28” x 0.81” 4.33" x 2.20" x .86" 4.06” x 2.04” x 0.45” 4.1” x 1.9” x 0.5”
Screen Size and Display 2.6” QVGA 2.4” QVGA 260k color 2.3” QVGA 262k colors 2.2” QVGA 262k colors
MP3 + MPEG 4 Player Y Y Y Y
Stereo Speakers No, 17pi single speaker Yes, Dual 15pi No N0, 15pi single speaker
Talk Time/Standby Time 5.4 hr / up to 7 days 5hr / up to 7 days 3hr/ up to 8 days -
Battery Size 1320mAh 1320mAh 800mAh 880 mAh
Free GPS-enabled Services Y Y Y Y
Music + Video Services Y (Windows Media DRM) Y (Windows Media DRM) Y (SKT-DRM) Y (SKT-DRM)
Free MySpace Mobile Service Y Y Y Y
Free H.O.T. Information Service N N Y Y
Stereo Bluetooth Y (v2.0) Y Y Y
Bluetooth® Pictbridge Printing Y Y Y Y
Built-in Photo Studio N N Y Y
Ultimate Inbox Y Y Y Y
Selling Points –“All in one” device –Ultimate Mobile machine –Thinnest EVDO device –Stylish device
Super Fast 3G Network CDMA 1x/EVDO, Dual-band (800/1900MHz)
Best in category
Worst in category

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 12
Competitive Positioning
Features Ocean 2 ™ iPhone 3G ™ BlackBerry Curve ™ LG Voyager ™
Carrier Helio AT&T T-Mobile Verizon
Camera 2 Megapixel 2 Megapixel 2 Megapixel 2 Megapixel
Weight 166g 143.2g 111g 133g
Internal / External Memory 133MB / microSD
(512MB inbox) 8 GB / 16 GB 64MB -
Device Size 4.56” x 2.28” x 0.81” 4.5" x 2.4" x 0.46" 4.21" x 2.36" x 0.61" 2.64” x 2.12” x 0.71”
Screen Size and Display 2.6’ QVGA (240 x 320)
262k color 3.5’ QVGA+ (320x 480) 262k color, touch Screen 2.4” QVGA (240 x 320) 65k color 2.81” (240 x400) 262k color, Touch screen
MP3 + MPEG 4 Player Y Y Y Y
Stereo Speakers N, 17pi Speaker N N Y
Talk Time/Standby Time 5.4 hr / up to 7 days 8hr / up to 10 days 4hr / up to 17 days 4hr / up to 20 days
Battery Size 1320 mAh -1100 mAh 950 mAh
Free GPS-enabled Services Y Y Y N
Music + Video Services Y Y Y Y
Free MySpace Mobile Service Y Y - -
Stereo Bluetooth and Pictbridge Y N Y Y
Location tagging on pictures Y N N N
Speaker Phone Y Y Y Y
Background Music Play Y Y N Y
DRM Y (Windows Media DRM) Y (Apple FairPlay DRM) NY (Windows Media DRM)
3G network Y Y N Y
IM Y (Yahoo!, Gtalk, MSN, AOL) YY Y (AOL, MSN, Yahoo!)
Best in category
Worst in category

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 13
Confidential and Proprietary Information of Virgin Mobile USA, L.P. 13
Ocean 2 Overview

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 14
Ocean 2 Overview
KEY FEATURES
–Multimedia Player : Supports MP3, MPEG-4,
VOD, MMS, h.264, WMA
–Bluetooth® : Mono and Stereo (A2DP)
Bluetooth support
–Camera : 2 Megapixel, Night shot mode
–Video Camera : MPEG-4 video recording
–Display : Large 2.6” QVGA TFT Screen with
Landscape Mode
–Internet : Full HTML Browser with Page Zoom,
Visual Tab, Mini Map
–Messaging : Ultimate Inbox for Text and
Picture messaging as well as all your Email and
IM from Yahoo!, Google, AOL, and MSN. And
POP3/IMAP email support.
–Memory : USB Mass Storage Capability
through MTP
–Contacts Synch: OTA Address book Synch
–Sensor : Optical senor on CSK to provide
analog scroll input capability
–Alert : Centralized alert management for IM,
Email, SMS/MMS, missed call
BASIC ESSENTIALS
–Speakerphone
–Planner (Calendar, To-Do List, Notepad,
Stopwatch, Wake-up Call, Alarm, Calculator, Tip
Calculator, World Time Clock)
–English and Korean Language Support
TECHNICAL SPECIFICATIONS
–Digital Dual-Band: EVDO, Digital Only; CDMA 1x
EVDO: 800, 1900 MHz
–Dimensions: 4.65” x 2.28” x 0.81”
–Weight: 167g
–Display: 2.6-inch QVGA 240 X 320 Pixels, 260
TFT Color
–Standard Battery: 3.7 Volt Lithium Poly,
1320mAh
–Talk Time: 323 mins
–Standby Time: 7 days
HELIO SERVICES
–Ultimate Inbox
–Mail for Microsoft Exchange
–HelioUp with Flickr and YouTube Integration
–MySpace Application
–YouTube Application
–Answer Rings
–Music on Demand Service
–Video Service
–Rings, VideoRings, and Screens Services
–Helio File Viewer
–Google™ Maps (GPS-Enabled)
–TellMe Voice-Activated Local Search (GPS-
Enabled)
–Buddy Beacon™ 2.0 (GPS-Enabled)
–Garmin Navigation (GPS-Enabled)
MEMORY
–133 MB Internal Memory
–External memory Mass storage through MTP
–Up to 2GB of External Memory (MicroSD)
CALL MANAGEMENT AND SERVICES
–Picture Caller ID
–Voicemail
–Caller ID
–Call Forwarding
–Call Waiting
–Three-Way Calling
ACCESSORIES
–Car charger
–Holster
–Holster carrying changing
–Stereo Bluetooth handset (Ocean 1)
–Mono bluetooth handset (Ocean 1)
–MicroSD (Ocean 1)
STANDARD IN-BOX PACKAGE
–Device
–512 MB microSD
–Standard Lithium Poly Battery
–User Guide (CD)
–Travel Charger
–Charging Data Cable
–Stereo Hands-Free Headset
–Charm
–Quick Start Guide
–Helio Referral Card
–Health and Safety Guide

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 15

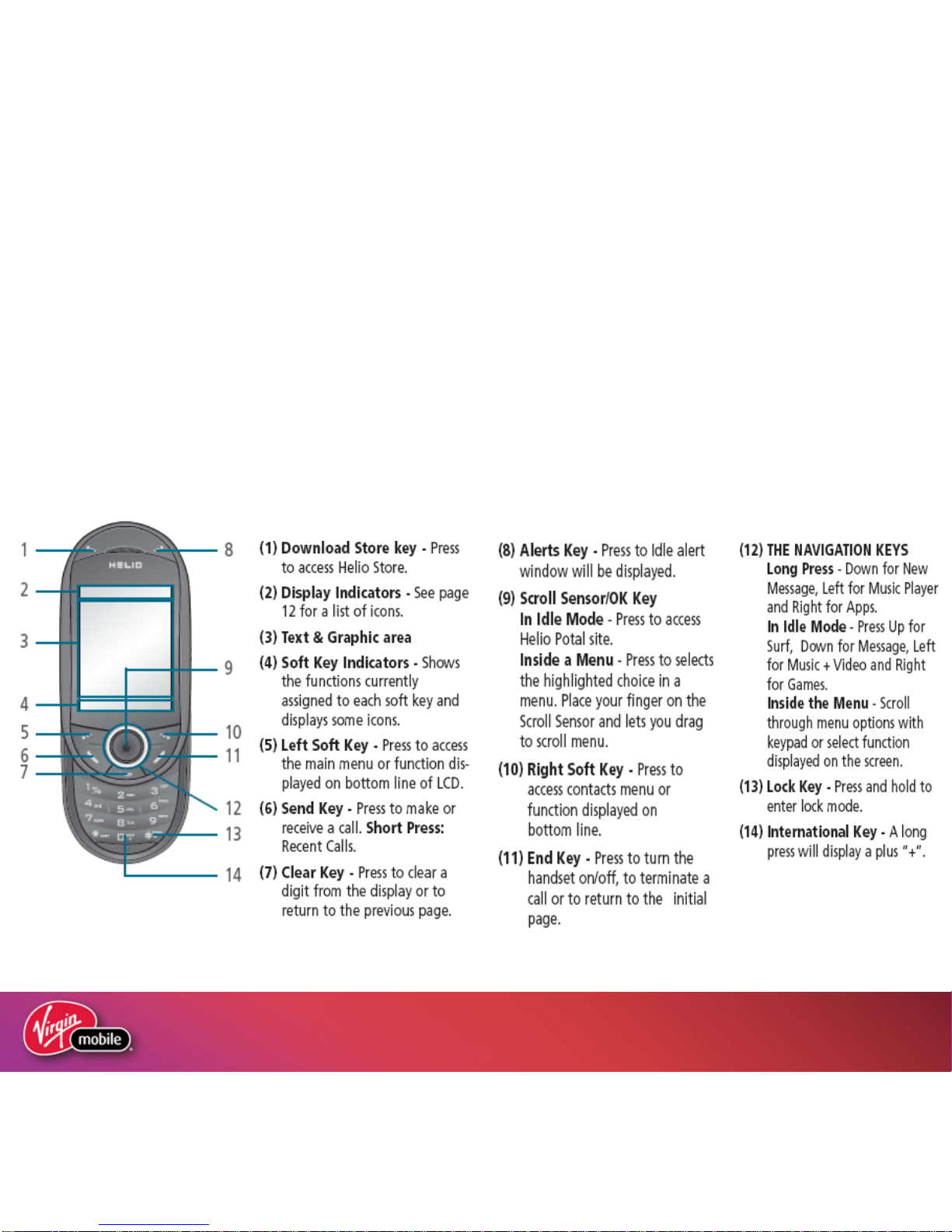

Function Keys

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 16
Function Keys (continued)

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 17
Function Keys (continued)

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 18

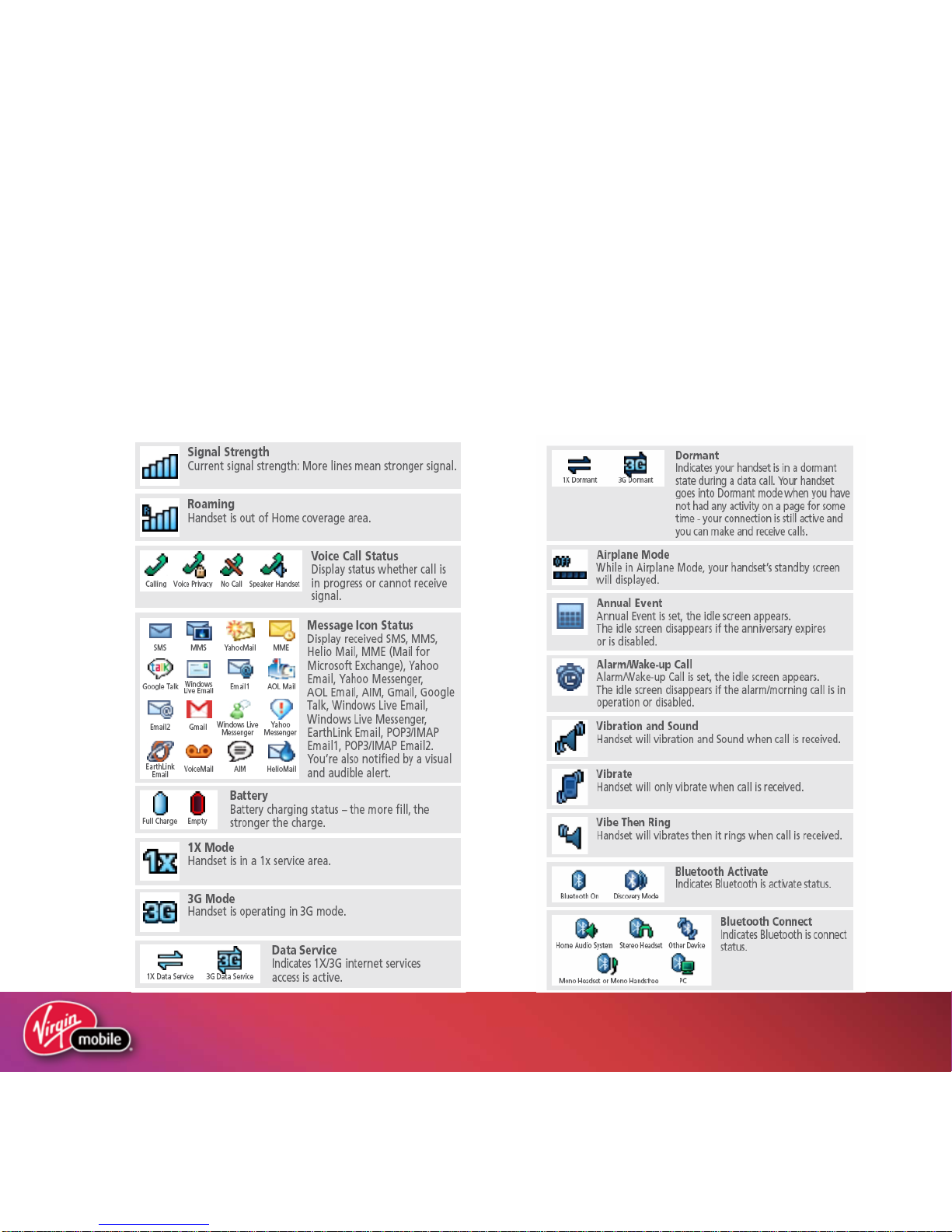

Display Icons

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 19
Menu Tree
7.2 Sound Systems
7.2.1 New message
7.2.2 Keypad
7.2.3 Slide
7.2.4 D-Pad Keys
7.2.5 Confirm Pop up
7.2.6 Cancel/Wait Pop up
7.2.7 Core Keys
7.2.8 Back/Cancel Key
7.2.9 Call Connect
7.2.10 Minute Notification
7.2.11 No Service
7.2.12 Low Battery
7.3 Scroll Sensor
Sensitivity
7.4 Language
7.4.1 Display
7.5 Alerts Manager
7.6 Call Options
7.6.1 Answer Call On
7.6.2 Auto Functions
7.6.3 Call Forwarding
7.6.4 Call Block
7.6.5 Voice Privacy
7.6.6 TTY
7.7 Security
7.7.1 Phone Lock
7.7.2 Change Password
7.8 Mode Transition Time
7.9 Network
CUSTOMIZE
1. Rings
1.1 Rings
1.1.1 Download Rings
1.1.2 Downloaded Rings
1.1.3 Free Rings
1.2 Answer Rings
1.3 Alert Rings
2. Screens
2.1 Home Screen
2.1.1 Download Home
Screens
2.1.2 Screens
2.1.3 Video Screens
2.1.4 Media
2.1.5 Album Slideshow
2.1.6 Free Screens
2.2 Overlay
2.2.1 Calendar
2.2.2 Clock
2.2.3 Dual Clock
2.2.4 Animated Sticker
2.3 Banner
2.3.1 Banner
2.3.2 Text
2.3.3 Font Color
2.4 Main Menu
2.4.1 Original
2.4.2 Dashboard
3. Ring Vibration
3.1 IF SOUND SWITCH ON:
3.2 IF SOUND SWITCH OFF:
4. Volume
4.1 Ring
4.2 Receiver
4.3 Keypad
4.4 Effects
4.5 Wake-Up Call
4.6 Alerts
4.7 Power Up/Down
5. Airplane Mode
6. Bluetooth
6.1 Turn Bluetooth On/Off
6.2 Add Device
6.3 Trusted Devices
6.4 Send + Receive
6.4.1 Receive Mode
6.4.2 Send Photos
6.4.3 Send Videos
7. Settings
7.1 Backlight
7.1.1 Display Time
7.1.2 Display Brightness
7.1.3 Keypad Backlight
7.1.4 Alerts
8.0 Device
8.1 Memory
8.1.1 Memory Info
8.1.2 Clear Memory
8.2 Reset
8.2.1 Reset All
8.2.2 Clear Contacts
8.3 Software Info
SURF
1. Access Helio Portal
SNAP
1. Capture
2. All Media
2.1 Internal Memory
2.2 External Memory
3. My Albums
3.1 Internal Memory
3.2 External Memory
4. Date View
4.1 Internal Memory
4.2 External Memory
5. Helio Album
5.1 Access Helio Portal
6. Settings
6.1 On Closed Slide
6.2 Call Receiving
6.3 Shutter Sound
6.4 Voice Recording

Confidential and Proprietary Information of Virgin Mobile USA, LLP Confidential and Proprietary Information of Virgin Mobile USA, L.P. 20
Menu Tree (continued)
MUSIC + VIDEO
1. Music
1.1 Playlists
1.2 Artists
1.3 Albums
1.4 Songs
1.5 Genres
2. Download Music
2.1 Access Helio Portal
3. Video
3.1 Playlists
3.2 Videos
3.3 Video Album
4. Download Video
4.1 Access Helio Portal
CONTACT
- Emergency
- Information
- Member Care
-MyNumber
-Voicemail
1. New
2. Edit
3. Search
4. Contact Sync
5. Locate
6. Refresh Presence
7. Delete
8. Delete Multiple
9. Copy
0. Email as vCard
*. Settings
GAMES
1. Do
1.1 Access Heli
PLAN
wnload Games
o Portal
1. Voice Memo
2. Cal
3. To Do
4. Wake-U
5. Alarm
6. Calcul
7. World Time
8. Unit Converter
9. Notepad
0. Stopwatch
*. Tip Calculator
MESSAGE
endar
p Call
ator
1. Text/Pic
2. Helio
3. Mail for Micr
4. Yahoo!
5. AOL
6. Goo
7. Window
8. EarthLink
9. Add Email Acct.
0. Add Email Acct.
Inbox
Mail osoft Exchange
gle s Live
APPS
1
2. Helio
3. YouTube
4. MySpace
5. Opera Mini
6. Google Maps
7. Buddy B
8. Garmi
9. Tellme
. Download App
1.1 Access Helio Portal
File Viewer
Mobile
eacon
n Mobile
