VIRTUFIT HTR 3.0i User manual

User manual
EN
10
HTR 3.0i Hometrainer

EN VirtuFit HTR 3.0i Hometrainer
2
SAFETY INSTRUCTIONSSAFETY INSTRUCTIONS
CHECKLISTCHECKLIST
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
ADJUSTMENTS GUIDEADJUSTMENTS GUIDE
TRAIN ON HEART RATETRAIN ON HEART RATE
MAINTENANCEMAINTENANCE
TROUBLE SHOOTINGTROUBLE SHOOTING

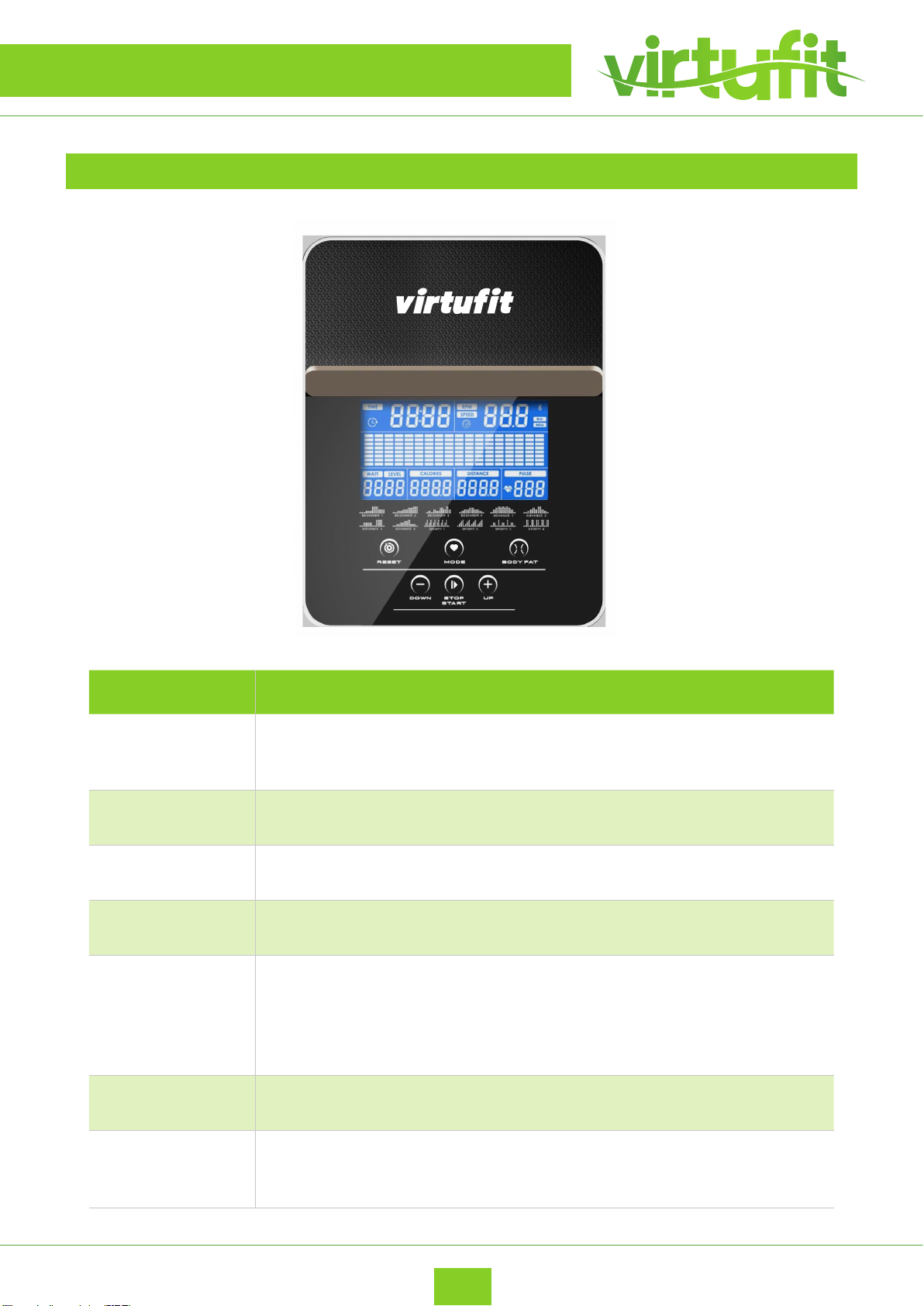

CONTROL PANELCONTROL PANEL
APP INSTRUCTIONSAPP INSTRUCTIONS
EXPLODED DRAWINGEXPLODED DRAWING
PARTS LISTPARTS LIST
TRAINING INSTRUCTIONSTRAINING INSTRUCTIONS
3 - 4
5
6 - 14
15
16
17
18 - 19
20 - 29
30
31
32 - 33
34
INDEX

EN
VirtuFit HTR 3.0i Hometrainer 3
– It is important to read this entire manual before assembling and using the device. Safe and
effective use can only be achieved if the device is assembled, maintained and used properly.
It is your responsibility to ensure that all users of the device are informed of all warnings and
precautions.
– Before starting any exercise program, you should consult your doctor to determine if you have
any medical or physical conditions that could put your health and safety at risk, or prevent you
from using the device properly. Your doctor’s advice is essential if you are taking medication
that affects your heart rate, blood pressure or cholesterol level.
– Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these conditions you should consult your doctor before continuing with your
exercise program.
– Keep children and pets away from the device. The device is designed for adult use only.
– Use the device on a solid, flat level surface with a protective cover for your floor or carpet. To
ensure safety, the device should have at least 0.5 metres of free space all around it.
– Before using the device, check that the nuts and bolts are securely tightened.
– The safety of the device can only be maintained if it is regularly examined for damage and/or
wear and tear.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any fitness equipment. Do not operate this
device without properly fitted guards, as the moving parts can present a risk of serious
injury if exposed.
SAFETY INSTRUCTIONS

EN VirtuFit HTR 3.0i Hometrainer
4
– Always use the device as indicated. If you find any defective components while assembling or
checking the device, or if you hear any unusual noises coming from the device during use,
stop immediately. Do not use the device until the problem has been rectified.
– Wear suitable clothing while using the device. Avoid wearing loose clothing that may get caught
in the device or that may restrict or prevent movement.
– The max user weight is 150 KGS. Braking ability is independent of speed.
– The device is not suitable for therapeutic use.
– Care must be taken when lifting or moving the device so as not to injure your back. Always use
proper lifting techniques and/or seek assistance if necessary.
– Please keep the space at least 1 to 2 meter at the end of base frame to escape any accidents!
– Place the device on a clean and flat surface. Do not place the device on a thick carpet.
– The device is for indoor use and not for outdoor use to prevent damage. Keep the storage location
dry, clean and flat. It is forbidden to use the device for purposes other than training.
– Only use the machine in an environment with an ambient temperature between 10 °C and 35 °C.
Only store the device at an ambient temperature between 5 °C and 45 °C.
Warranty claim is excluded if the cause of the defect is the result of:
– Maintenance assembly and repair work not carried out by an official dealer.
– In the event of improper use, neglect and / or poor maintenance.
– Failure to maintain the device in accordance with the manufacturer’s instructions (see the enclosed
manual).
SAFETY INSTRUCTIONS

EN
VirtuFit HTR 3.0i Hometrainer 5

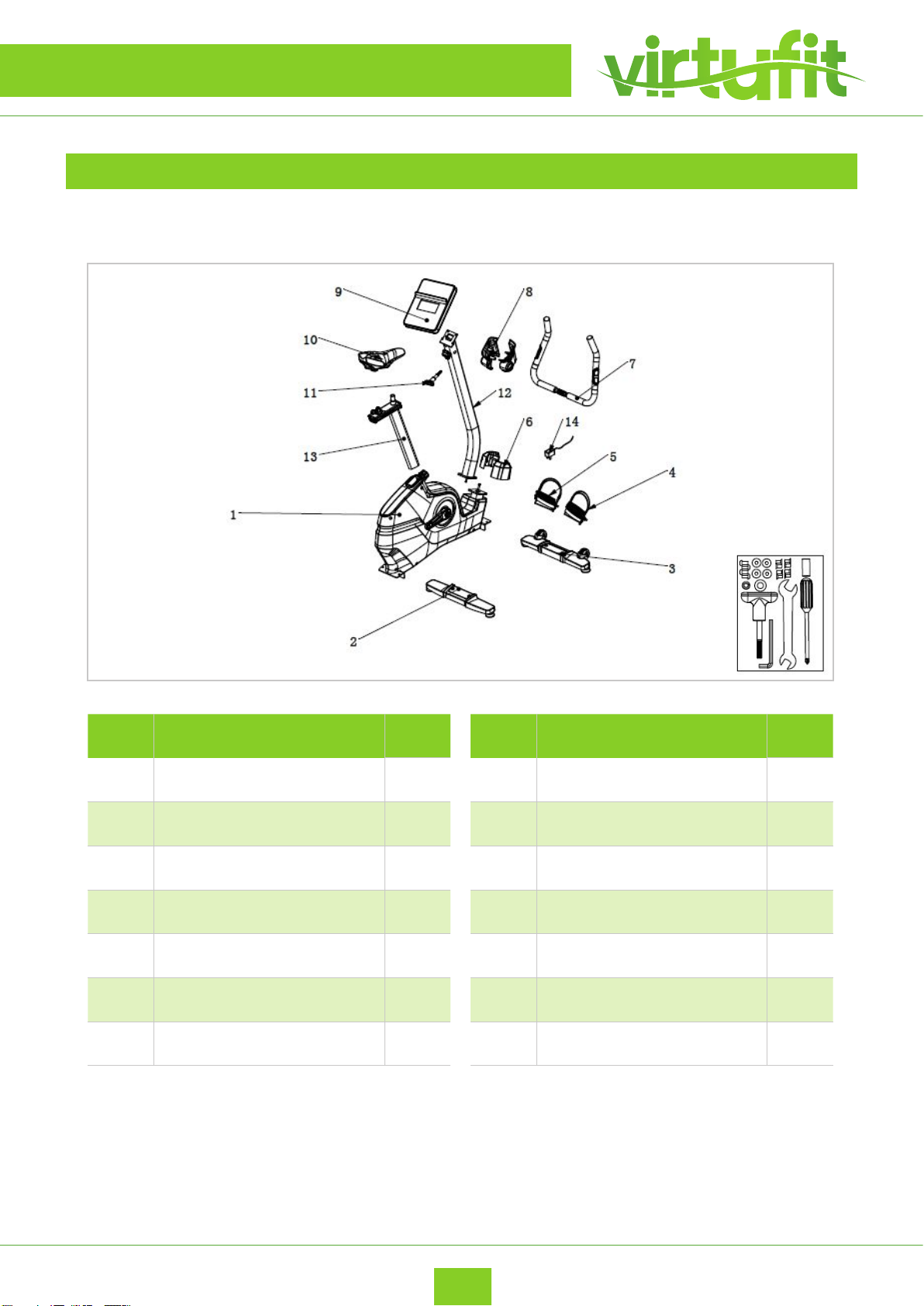

CHECKLIST
TOOLKIT
When you open the carton, and you will find the below parts in the carton:
NOTE! Do not connect the appliance to the power before it has been completely assembled.
Serial Number
Name
Quantity
1
Main Frame
1
2
Rear feet support
1
3
Front feet support
1
4
Pedal R
1
5
Pedal L
1
6
Column lower plastic part
Each one at right and left side
7
Handle
1
8
Column upper plastic part
Each one at right and left side
9
Console
1
10
Saddle
1
11
T-locking latch
1
12
Front support column
1
13
Adjustment tube
1
14
Power line
1
#DESCRIPTION QTY
1Main frame 1
2Rear feet support 1
3Front feet support 1
4Pedal R 1
5Pedal L 1
6Column lower plastic part Each 1
7Handle 1
#DESCRIPTION QTY
8Column upper plastic part Each 1
9Console 1
10 Saddle 1
11 T-locking latch 1
12 Front support collumn 1
13 Adjustment tube 1
14 Power line 1

EN VirtuFit HTR 3.0i Hometrainer
6
STEP 1
Notes：Max load 150kgs
No independent braking system
Assembly Steps:
1. Take front and rear feet support 2&3 from the package and use 45, 46,
47, 36, screws, spring washers, flat washers, nuts to connect with main
frame 1.
2. Take pedals 4, 5, and distinguish the left and right part (the mark L is
the left, the mark R is the right), and pedals are mounted on the crank
according to the direction of rotation shown in the figure, and locked
and fixed.
Note: According to the label tip of the regulating tube, the maximum
height is to STOP
• Take front and rear feet support 2&3 from the package and use 45, 46, 47, 36, screws, spring washers,
at washers, nuts to connect with main frame 1.
Missing parts: If you think you are missing certain parts in your package, carefully check the styrofoa and
the device. Some parts (bolts, screws, etc.) are already attached to/in the device.
Error message: Ensure that all cables are carefully attached. The aluminum legs are very sensitive and
must remain straight. Do you receive an error message after mounting your device? Then you have to
straighten these aluminum legs again, this may cause the error message to disappear.
Socket screws: The device contains socket screws, make sure that the allen key is firmly in the
bolt before you apply force to the key. In this way you prevent the head of the socket head screw from
being rotated.
NOTE! The transport wheels must be mounted on the front of the appliance.
ASSEMBLY INSTRUCTIONS

EN
VirtuFit HTR 3.0i Hometrainer 7
STEP 2

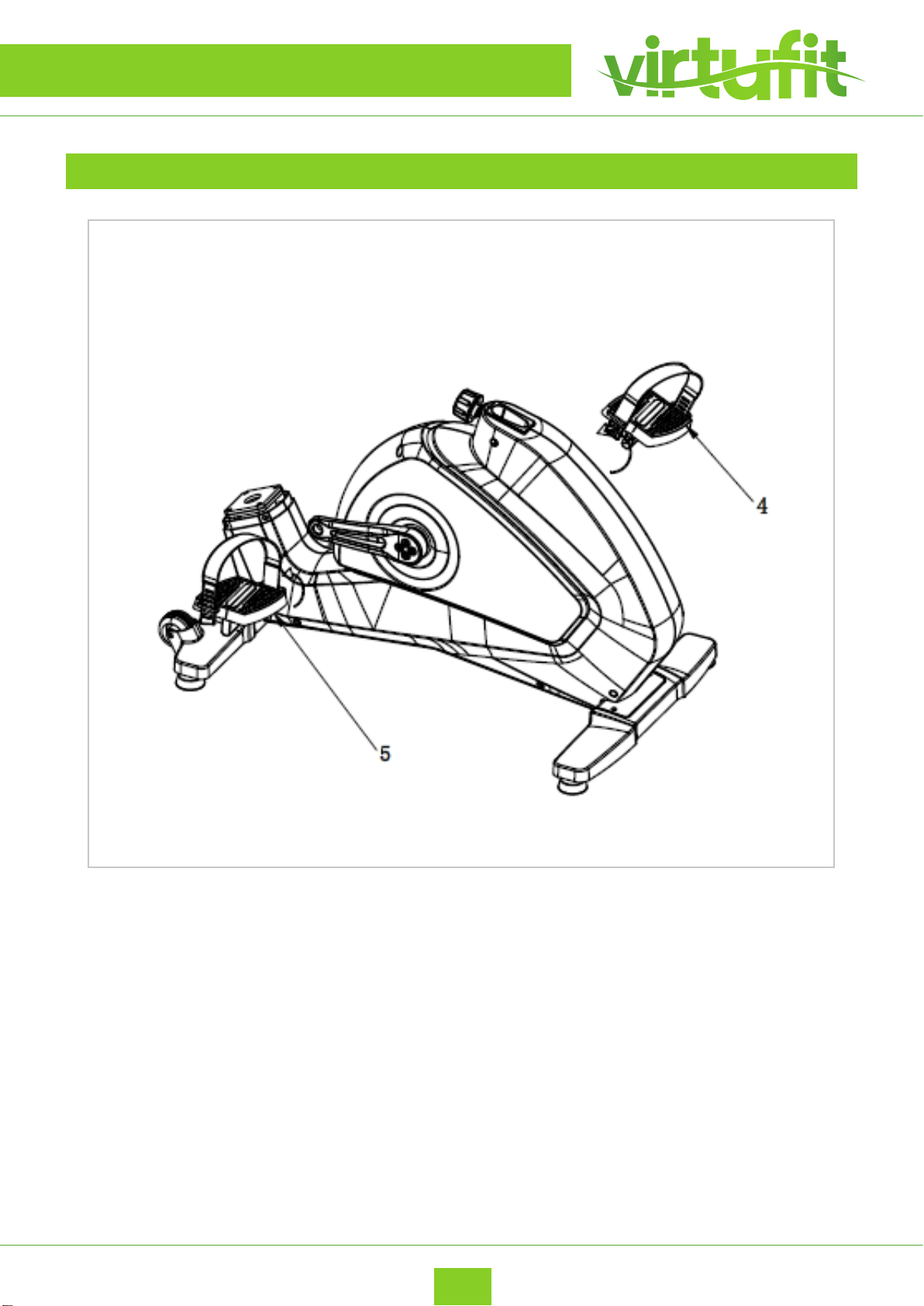

• Take pedals 4, 5, and distinguish the left and right part (the mark‘L’is the left, the mark‘R’is the right),
and pedals are mounted on the crank according to the direction of rotation shown in the figure, and
locked and fixed.
Pedals
You tighten a left pedal by turning the linskom (counterclockwise) and a right pedal by turning it to the
right (clockwise). If you turn the left pedal clockwise, then
There is a chance that you will damage the screw thread of this treadle so that the treadle can no longer
be put on it!
NOTE! Tighten the pedals firmly!
ASSEMBLY INSTRUCTIONS
4

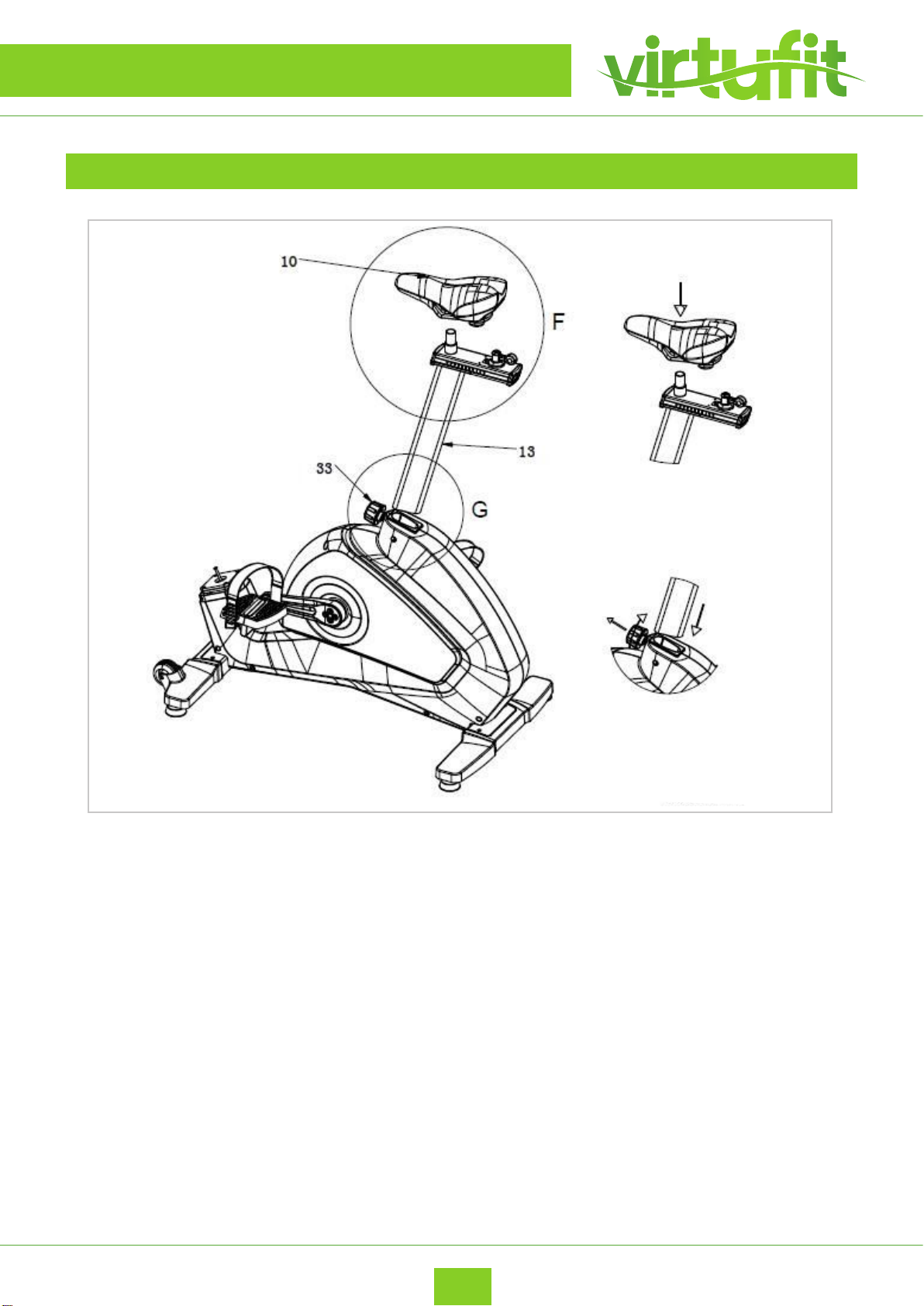

2. Take 10, 13, firstly rotate the adjustment pull pin 33 in the direction
indicated in the view G to loose and pull it out by hand. Insert the
adjustment tube 13 into the hole, adjust it to the proper position, then
tighten adjustment pull pin 33. (The height of the adjustment tube can
be adjusted by loosening adjustment pull pin 33, then pulling out the
pull pin, and tightening pull pin after adjusting to the proper height).
Then mount the saddle 10 as shown in view F, using nuts at sides to fix.
Note: The scale "1" on the adjusting tube is the maximum insertion depth,
and the scale "STOP" is the minimum insertion depth.

EN VirtuFit HTR 3.0i Hometrainer
8
• Grab the saddle (10) and saddle post (13).
• First, turn the adjusting pin (33) in the direction shown in the illustration (G) to loosen it and pull it
out by hand. Insert the seat post (13) into the hole, adjust it to the correct height, and then tighten
the adjustment pin (33). The height of the seat post (13) can be adjusted by loosening the adjustment
pin (33), then pulling out the adjustment pin and tightening the adjustment pin to the correct height
after adjustment.
• Then mount the saddle (10) on the saddle post (13) as shown in gure (F). Secure the saddle with
nuts, which can be attached to the sides.
NOTE! According to the label on the seat post, the maximum height is when you should stop.
STEP 3
3.Take 10, 13, firstly rotate the adjustment pull pin 33 in the direction
indicated in the view G to loose and pull it out by hand. Insert the
adjustment tube 13 into the hole, adjust it to the proper position, then
tighten adjustment pull pin 33. (The height of the adjustment tube can be
adjusted by loosening adjustment pull pin 33, then pulling out the pull
pin, and tightening pull pin after adjusting to the proper height). Then
mount the saddle 10 as shown in view F, using nuts at sides to fix.
4.Take out 6, 12, first install rubber cushion 96 into the front support
column 12 and connect the signal wires, then align holes of the front
support column 12 with the screw holes of the connecting plate, and use
screws 79, the spring pad 46, the flat washer 47 to connect and fix; After
fixing the front support column 12, install the plastic parts 40, 78 onto the
plastic case of the main frame 1, make rubber cushion stuck between
plastic case and front support tube, then lock by screws 76.
ASSEMBLY INSTRUCTIONS

EN
VirtuFit HTR 3.0i Hometrainer 9
• Grab the column lower plastic part (6) and column upper plastic part (12).
• First install rubber cushion 96 into the front support column 12 and connect the signal wires.
• Then align holes of the front support column 12 with the screw holes of the connecting plate, and
use screws 79, the spring pad 46, the flat washer 47 to connect and fix.
• After fixing the front support column 12, install the plastic parts 40, 78 onto the plastic case of the
main frame 1, make rubber cushion stuck between plastic case and front support tube, then lock by
screws 76.
STEP 4
5.Take out 7, 11 and first put the spacer tube 21, the spring pad 46, and
the flat washer 47 on the T-locking latch 11 in order shown in the figure,
then adjust the handle 7 to the appropriate position as shown in the figure,
and finally align the T-locking latch 11 with the screw holes and tighten
them.
6. Take out 16, 17, first align the screw hole of the console rear cover 17
with the holes of the connecting plate, and screw 80 passes through the
flat washer 81 to connect the console rear cover with the connecting
plate, and lock by the self-locking nut 82, then connect the signal wire
through the connecting plate of the console to the corresponding jack of
the console upper case 16 , and finally align the screw hole of the console
upper case 16 with the screw hole of the console rear cover 17, and fasten
ASSEMBLY INSTRUCTIONS

EN VirtuFit HTR 3.0i Hometrainer
10
• Grab the column lower plastic handle (7) and column upper plastic T-locking latch (11).
• First put the spacer tube 21, the spring pad 46, and the flat washer 47 on the T-locking latch 11 in
order shown in the figure.
• Then adjust the handle 7 to the appropriate position as shown in the figure.
• Finally align the T-locking latch 11 with the screw holes and tighten them.
STEP 5
5.Take out 7, 11 and first put the spacer tube 21, the spring pad 46, and
the flat washer 47 on the T-locking latch 11 in order shown in the figure,
then adjust the handle 7 to the appropriate position as shown in the figure,
and finally align the T-locking latch 11 with the screw holes and tighten
them.
6. Take out 16, 17, first align the screw hole of the console rear cover 17
with the holes of the connecting plate, and screw 80 passes through the
flat washer 81 to connect the console rear cover with the connecting
plate, and lock by the self-locking nut 82, then connect the signal wire
through the connecting plate of the console to the corresponding jack of
the console upper case 16 , and finally align the screw hole of the console
upper case 16 with the screw hole of the console rear cover 17, and fasten
ASSEMBLY INSTRUCTIONS

EN
VirtuFit HTR 3.0i Hometrainer 11

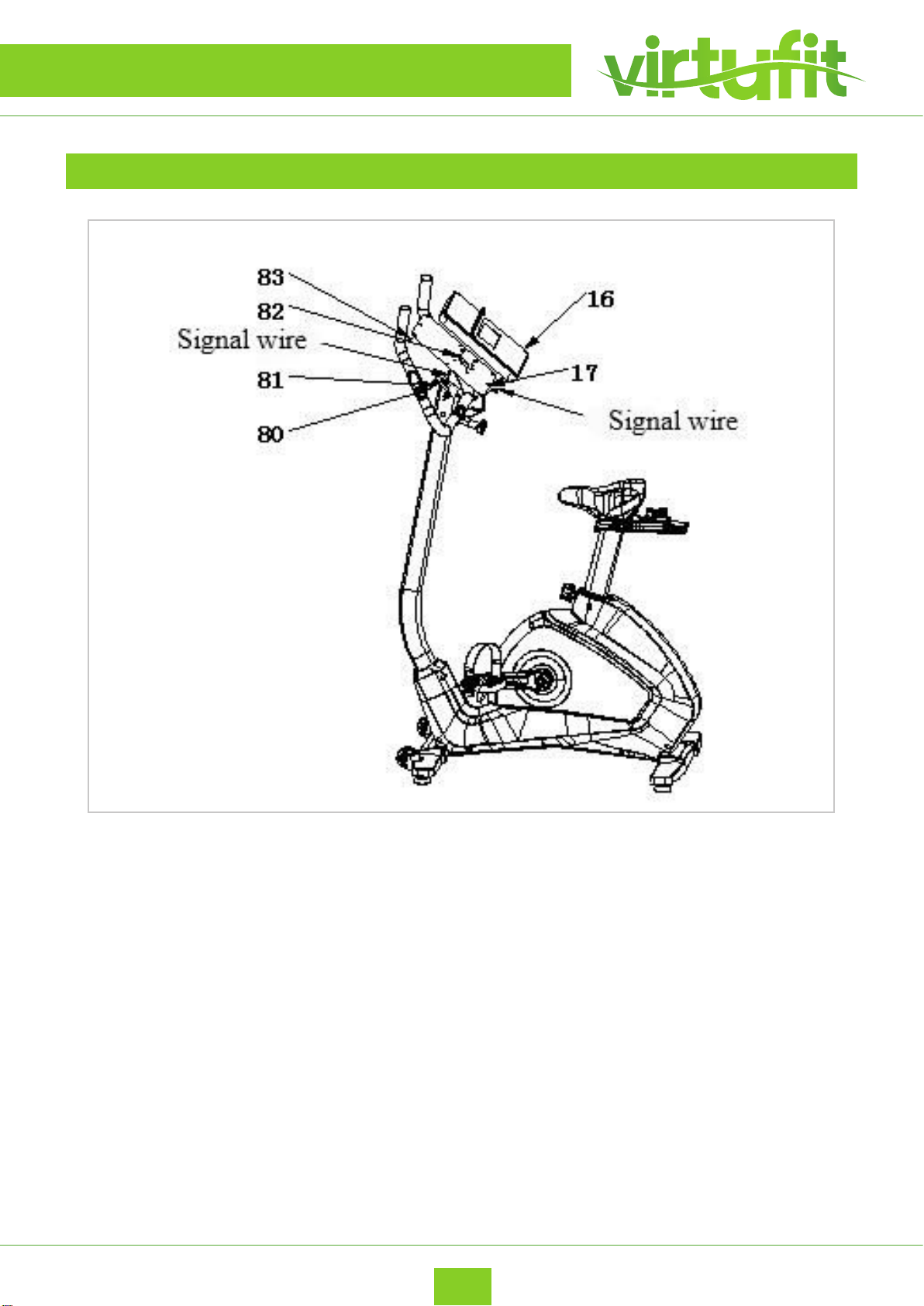

• Grab the console upper case (16) and console rear cover (17).
• First align the screw hole of the console rear cover 17 with the holes of the connecting plate, and
screw 80 passes through the at washer 81 to connect the console rear cover with the connecting
plate, and lock by the self-locking nut 82.
• Then connect the signal wire through the connecting plate of the console to the corresponding jack
of the console upper case 16.
• Finally align the screw hole of the console upper case 16 with the screw hole of the console rear
cover 17, and fasten and x it with the screw 83.
STEP 6
and fix it with the screw 83.
.

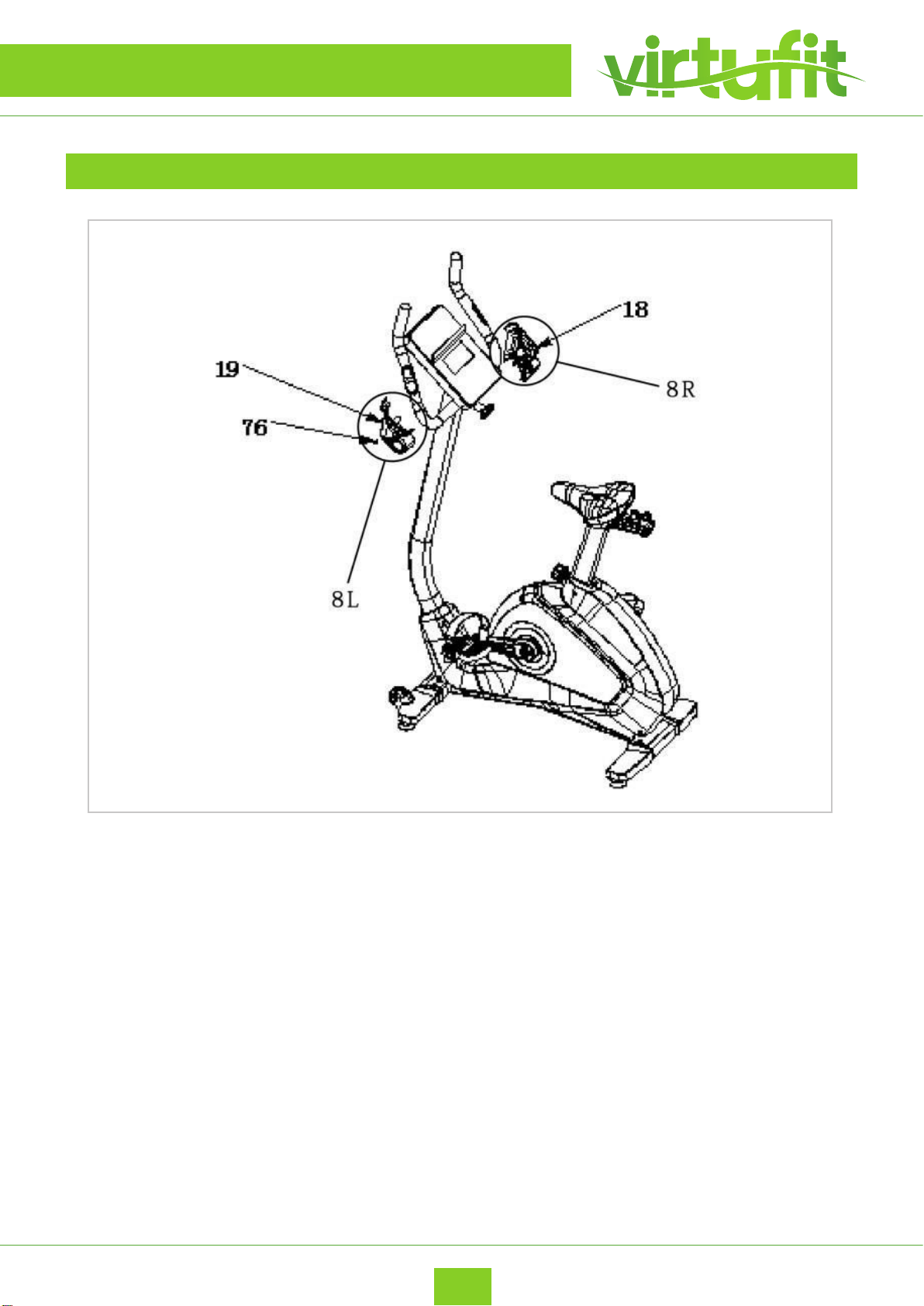

7.Take out 8 column upper plastic part, first align the 18 column up
plastic part R, 19 column lower plastic part L with the holes of the front
support column 12, then connect each other, and finally fasten them by
screws 76.
Explosive parts view
ASSEMBLY INSTRUCTIONS

EN VirtuFit HTR 3.0i Hometrainer
12
• Grab the column upper plastic parts (8).
• First align the 18 column up plastic part R, 19 column lower plastic part L with the holes of the front
• support column 12.
• Then connect each other, and nally fasten them by screws 76.
STEP 7
and fix it with the screw 83.
.
7.Take out 8 column upper plastic part, first align the 18 column up
plastic part R, 19 column lower plastic part L with the holes of the front
support column 12, then connect each other, and finally fasten them by
screws 76.
Explosive parts view
ASSEMBLY INSTRUCTIONS

EN
VirtuFit HTR 3.0i Hometrainer 13
• Grab the column upper plastic parts (8).
• First align the 18 column up plastic part R, 19 column lower plastic part L with the holes of the front
• support column 12.
• Then connect each other, and nally fasten them by screws 76.
STEP 8
9
8.Take out 98 bottle holder and 99 screws, fasten and fix bottle holder on
the support tube.
98
99
Setup completed:
ASSEMBLY INSTRUCTIONS

EN VirtuFit HTR 3.0i Hometrainer
14
ADAPTER
• The adapter connection is located on the back
of the device (see image). Attach the adapter
to the adapter connector and connect to AC
power. You can now use the hometrainer
• Do not use the hometrainer until it has
been fully assembled and inspected for
correct operation in accordance with the user
manual.
• Inspect your hometrainer to make sure
everything is tight and components are
correct are mounted.
NOTE! Switch o the power source if you will not
be using the device for a long time!
ASSEMBLY INSTRUCTIONS

TITEL HOOFDSTUK
EN
VirtuFit HTR 3.0i Hometrainer 15
LEVELING THE DEVICE
ADJUSTING THE SADDLE
ADJUSTING THE HANDLEBAR
Always make sure that the exercise bike is on a stable surface. If in doubt, you can always place a rubber mat
under your exercise bike so that you get more grip on your floor. If you do need to adjust the exercise bike
slightly, you can compensate the exercise bike for the uneven surface with a simple turn of the adjustable
ends on both sides of the frame.
The saddle bar gives an indication of how high the saddle can be adjusted. You are advised not to go too
high as this will make the device unstable. Loosen the knob under the seat and pull the knob out to loosen
the seat post. To obtain the ideal seat height, you must observe the following guideline; the highest pedal
should be about your knee and the saddle should be just above your waist.
Unlock the button and then adjust the angle of the handlebar to a suitable position.
ADJUSTMENTS GUIDE
MOVING THE HOMETRAINER
Om de hometrainer te verplaatsen, druk het stuur naar beneden totdat de transportwielen aan de voorste
stabilisator de grond raken. Met de transportwielen op de grond kunt u de hometrainer gemakkelijk naar
de gewenste plek vervoeren.

TITEL HOOFDSTUK
EN VirtuFit HTR 3.0i Hometrainer
16
HAND PULSE SENSORS
WARNING
Hand pulse sensors
This VirtuFit fitness equipment is provided with hand pulse sensors for measuring the heart rate. The hand
pulse sensors are located on the handlebars. The hand pulse sensors are only working if they are touched
both at the same time for a couple of seconds. For accurate measurement it is important to have slightly
moist hands and to use a constant pressure on the sensors. Too dry or too moist hands can result in less
accurate measurement of the heart rate.
NOTE! Do not use the hand pulse sensor in combination with a wireless heart rate transmitter to prevent
errors.
Wireless heart rate monitor (5 kHz)
This VirtuFit fitness machine is equipped with a wireless heart rate receiver. For heart rate measurement
with a wireless heart rate monitor, use a heart rate monitor that works on a 5 kHz frequency. With a Wireless
heart rate monitor it is important that the electrodes are slightly moist and that the heart rate monitor fits
well on your body. Refer to your heart rate monitor owner’s manual for correct instructions. Incorrect use
of the heart rate monitor can cause an abnormal reading.
NOTE!
•A wireless heart rate transmitter does not come standard with this fitness equipment. Contact
your dealer for purchasing.
•Do not use the wireless heart rate transmitter in combination with the hand pulse sensors to
prevent errors.
• Consult a physician if you have a pacemaker, before using a wireless heart rate transmitter.
• If there are more than one heart rate measurement devices in one room, please make sure to keep
distance to the other devices to prevent inaccurate measurement or errors.
• Alway try to keep the wireless heart rate transmitter in a close distance of 1 meter from the console.
• Always wear a wireless heart rate transmitter directly on the body under your clothes.
TRAIN ON HEART RATE

EN
VirtuFit HTR 3.0i Hometrainer 17
SEMIANNUAL MAINTENANCE
DAILY MAINTENANCE
• Clean and remove sweat after each use Do not use aggressive cleaning agents and ensure that
the device remains free of moisture.
• Check that the rail and the wheels under the seat are free from dust and dirt.
• Inspect all bolts and nuts in connection with moving parts of the device, tighten as required.
• Check the mobility of moving parts and components of the use equipment, silicone spray if
necessary.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using. The
rower machine may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the device.
CLEANING
WARNING
Before cleaning the machine, please make sure the power has been switched o.
Cleaning:General cleaning of the device will extend the life of the hometrainer. Hold clean the hometrainer
by dusting regularly.
In addition, wear clean shoes to reduce the risk of contamination of the hometrainer. Remove the hood at least
once a year to vacuum underneath.
NOTE! Use a dry cloth to clean the control panel and areas around the power switch. Use a soft, clean
cloth and detergent to remove stubborn stains and dirt from the hometrainer.
MAINTENANCE

EN VirtuFit HTR 3.0i Hometrainer
18
Display shows no values
If the display does not show any values, you can try to check the sensor cables and the cables in the back
of the display. If this still does not work, you can move the sensor slightly.
The device beeps
If necessary, lubricate parts with silicone spray. Check that all nuts and bolts are tightened. It may be that a
screw is too loose or too tight, this creates friction and makes the device appear to beep. If this is the case,
try to nd out exactly where the beep comes from and then tighten or loosen this screw. It must always be
possible to loosen the screws with your hands. If this is not possible, the screw is too tight.
Ticking sound
It is possible that the ywheel (in the housing) comes against a cable with each
pedaling movement. This may be disturbing but will not permanently damage your crosstrainer.
To x this, open the housing and move the cable or x it with
for example a tie wrap.
Heart rate display is not functioning
There can be various reasons for this:
• The sensor cables that run from the heart rate sensor to the display are not properly installed or have
become detached during use.
• The sensors may become damp, dirty or greasy. So you have to clean them regularly.
The console is not working
If there is no signal when pedaling, check if the cable is properly attached.
TROUBLE SHOOTING

EN
VirtuFit HTR 3.0i Hometrainer 19
E1: Communication failed
• Check if the console cable is loose or disconnected from the console.
• Make sure the console cable is loose from the cable puller.
• Check that there is good contact between the top clamp and the bottom clamp of the wire of the
console.
• Check if the cable puller is damaged
• Check if the console is damaged
• After turning o the power for 2 minutes, turn on again.
E8: FLASH failure
• After turning o the power for 2 minutes, turn on again.
• If it cannot start, please replace the above EEPROM IC table.
E81: Adjustment error
• Switch on again.
• Replace the cable puller.
E82: Zeroing error
• Switch on again.
• Replace the cable puller.
ERROR CODES
TROUBLE SHOOTING

EN VirtuFit HTR 3.0i Hometrainer
20
CONSOLE
BUTTON FUNCTION
RESET Press the RESET button for 5 seconds to reset all data. While setting the data,
press the RESET button to return to the previous page.
DOWN/UP Adjust the function value up or down.
START/STOP Start / stop training from resume training in stop mode.
MODE Press MODE to select a program.
BODY FAT
During the recording of a heartbeat. Press the BODY FAT button. This will start
the function. During an exercise, users can press the BODY FAT button at any
time. If this is, you as a user must ensure that the hand pulse sensors are held
with both hands to start this test.
PROGRAM Preset program.
MANUAL P01-P30: (Fixed programs), U01-U10: (Custom Programs), H01-H03: (Heart rate
programs), CONSTANT WATTS: (Energy controlled program).
CONTROL PANEL
