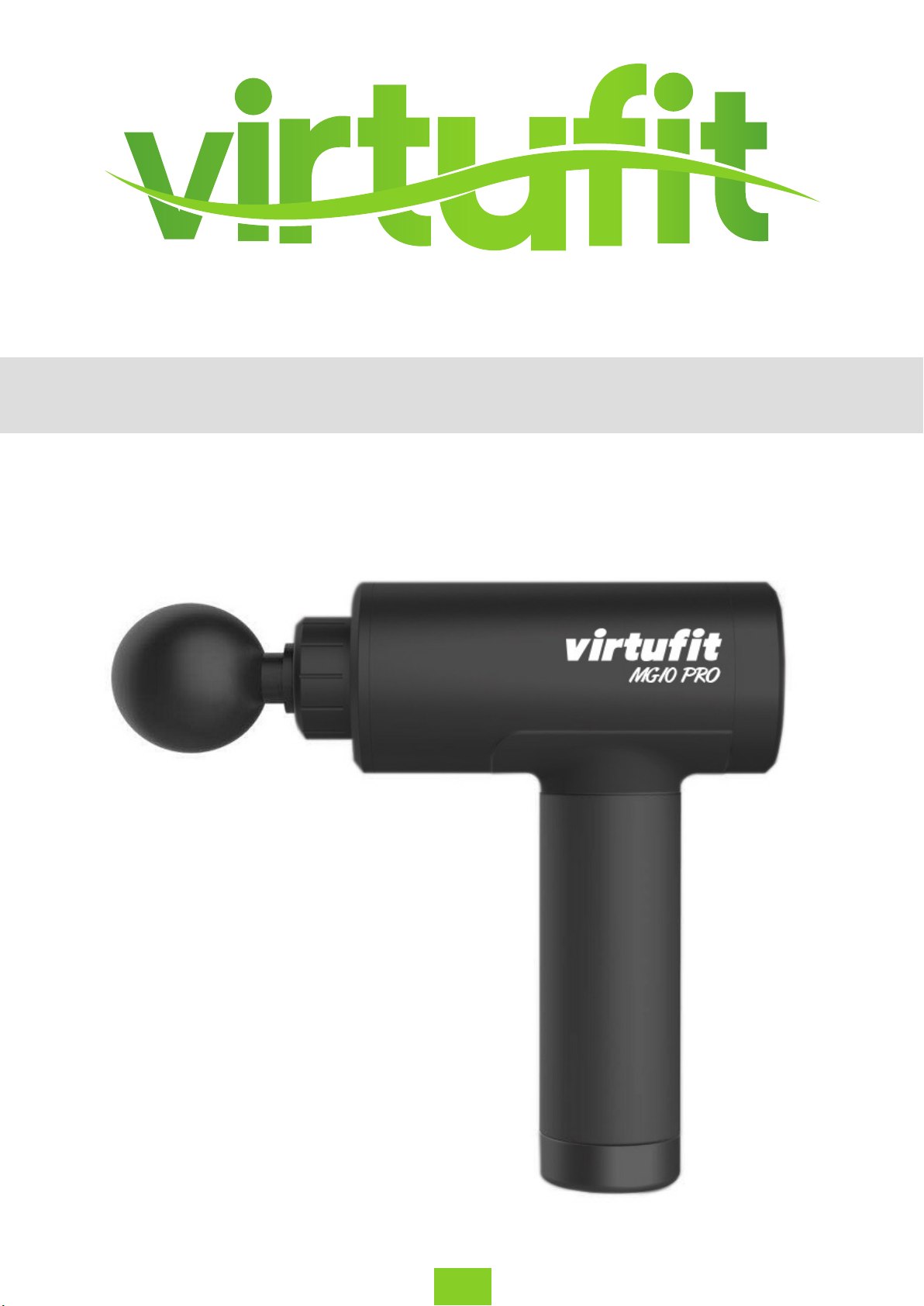

VIRTUFIT MG10 User manual

MG10 Pro Massage Gun
User manual
EN

2
EN
VirtuFit MG10 Pro Massage Gun
INDEX
SAFETY INSTRUCTIONS
CHECKLIST
FUNCTIONS
MAINTENANCE
PARTS LIST
3 - 4
5
6 - 7
8
9

3EN VirtuFit MG10 Pro Massage Gun
SAFETY INSTRUCTIONS
To reduce the risk of electric shock, re and personal injury, this product must be
used in accordance with the following instructions.
– Only allowed for adults.
– This equipment can not directly massage the skin surface to avoid damage to the skin. The
massage part should be worn after wearing dry and clean clothes or a clean and drytowel. It
should be gently pressed and moved. The massage time of the same part can not be 60 seconds.
– In the case of no pain or discomfort, use high speed and pressure only on the softtissue part of
the body. It is not allowed to use high speed and high pressure on the headand any bone parts
of the body
– The area where the body is weak, the device should not be used without a doctor’s approval.
– According to the massage needs of dierent parts, please choose the appropriatemassage head.
– Frequent high speed. High pressure exerts pressure on the same part, causingabrasions, pain and
inability to stop using immediately
– Keep your hair or any part of your body away from the telescopic rod of thedevice and the cooling
holes on the back of the motor to prevent pinching.
– Do not put any objects into the cooling holes of the motor.
– Do not immerse the device in water. Do not allow water to enter the device from themotor cooling
holes.
ATTENTION
WARNING:
Before beginning any exercise program consult your physician. This is especially
important for people who are over 35 years old or who have pre-existing health
problems. Read all instructions before using any tness equipment. Do not operate this
exercise equipment without properly tted guards, as the moving parts can present a
risk of serious injury if exposed.

4
EN
VirtuFit MG10 Pro Massage Gun
SAFETY INSTRUCTIONS
– Only use the charger provided by the original factory to charge.
– Please check the equipment and battery carefully before each use.
– Do not make any modications to the equipment.
– Do not run the device and charge the device in an unattended state.
NOTE: Before starting with this or any other device, consult your doctor before use. This is very
important for people with known health problems. Read all instructions before use.
Warranty claim is excluded if the cause of the defect is the result of:
• Maintenance assembly and repair work not carried out by an ocial dealer.
• In the event of improper use, neglect and / or poor maintenance.
• Failure to maintain the tness equipment in accordance with the manufacturer’s instructions (see
the enclosed manual).

5EN VirtuFit MG10 Pro Massage Gun
#DESCRIPTION QT Y.
1 Massage gun 1
2 Massage Head 9
3 Battery 1
4 Power Adapter 1
PARTS LIST
Instruction for massage gun
1.Configuration list：
Name
Qty
Body
1
Massage Head
9
Battery
1
Power Adapter
1

6
EN
VirtuFit MG10 Pro Massage Gun
Side view Rear view
1.1. High frequency, high mute, high speed motor
1.2. Battery（DC 24V,2400mA）
1.3. Motor start and speed control button
1.4. Battery switch
1.5. Jack charging
1.6. Battery indicator (the four green lights are on, the
battery is fully charged, and the green light is turned
off from top to bottom. Only when the red light is on, the battery is exhausted and needs to
be charged.)
1.7. gear indicator (the first blue light is on for the first gear, the pulse frequency is
1800 rpm), the second blue light is the second gear, the pulse frequency is 2200 rpm, and
the three blue lights are three. File, pulse frequency is 2800 rpm), four blue lights are four,
the pulse frequency is 3200 rpm)
Side view Rear view
1.1. High frequency, high mute, high speed motor
1.2. Battery（DC 24V,2400mA）
1.3. Motor start and speed control button
1.4. Battery switch
1.5. Jack charging
1.6. Battery indicator (the four green lights are on, the
battery is fully charged, and the green light is turned
off from top to bottom. Only when the red light is on, the battery is exhausted and needs to
be charged.)
1.7. gear indicator (the first blue light is on for the first gear, the pulse frequency is
1800 rpm), the second blue light is the second gear, the pulse frequency is 2200 rpm, and
the three blue lights are three. File, pulse frequency is 2800 rpm), four blue lights are four,
the pulse frequency is 3200 rpm)
Side view Rear view
1.1. High frequency, high mute, high speed motor
1.2. Battery（DC 24V,2400mA）
1.3. Motor start and speed control button
1.4. Battery switch
1.5. Jack charging
1.6. Battery indicator (the four green lights are on, the
battery is fully charged, and the green light is turned
off from top to bottom. Only when the red light is on, the battery is exhausted and needs to
be charged.)
1.7. gear indicator (the first blue light is on for the first gear, the pulse frequency is
1800 rpm), the second blue light is the second gear, the pulse frequency is 2200 rpm, and
the three blue lights are three. File, pulse frequency is 2800 rpm), four blue lights are four,
the pulse frequency is 3200 rpm)
FUNCTIONS
Missing parts: If you think you are missing certain parts in your package, carefully check the package.
Side view Rear view Bottom view
#FUNCTION
1 High frequency, high mute, high speed motor
2 Battery (DC 24V,2400mA)
3 Motor start and speed control button
4 Battery switch
5 Jack charging
6
Battery indicator (the four green lights are on, the battery is fully charged, and the green light is
turned o from top to bottom. Only when the red light is on, the battery is exhausted and needs to
be charged.)
7
Gear indicator (the rst blue light is on for the rst gear, the pulse frequency is 1800 rpm).
The second blue light is the second gear, the pulse frequency is 2200 rpm.
The three blue lights are three. File, pulse frequency is 2800 rpm).
The fourth blue lights are four,the pulse frequency is 3200 rpm).

7EN VirtuFit MG10 Pro Massage Gun
STEP 1
• The battery switch (4) is turned to the “ON”position. At this time, the power-on indicator lights up
• The power-on battery indicator (6) lights up, the four green lights from top tobottom represent the
strong to weak, and the green light is o. Need to charge.
STEP 2
• According to the needs of dierent parts of the massage, choose the massage head toinsert into
the round hole in front of the massage gun.
STEP 3
INSTRUCTIONS
STEP 4
• Turn o the battery switch after use.
• Press the motor start button (3), the motor starts to rotate, the rst blue light above themotor
button lights up to represent the gear position “1”.
• Press the motor start button again, 2 blue lights illuminate to represent the gear position “2”.
• Three times Press the motor start button, 3 blue lights will light up to represent the gear position“3”.
• Press the motor start button four times, 4 blue lights will light up to represent the gear position“4”
• Press the motor start button 5 times, then the motor stops rotating. . Press the motor to start the “1”
position again and cycle in sequence.
Acceleration indicator
• Gear indicator (the rst blue light is on for the rst gear, the pulse frequency is 1800 rpm).
• The second blue light is the second gear, the pulse frequency is 2200 rpm.
• The three blue lights are three. File, pulse frequency is 2800 rpm).
• Four blue lights are four, the pulse frequency is 3200 rpm).

8
EN
VirtuFit MG10 Pro Massage Gun
DAILY MAINTENANCE
• Wipe the surface of the device with a slightly damp towel and dry with a soft cloth.
• When storing or traveling for a long time, please turn o the battery and put it in the original box of
the device.
Safeandeectiveusecanonlybeachievedifthedevicewillbeassembledandmaintained
well. It is your responsibility to ensure that the equipment is regularly maintained. Parts
that are already used and / or damaged must be replaced before continuing using.
The massage gun may only be used indoors and stored away, prolonged exposure to
weathering and changes in temperature / humidity can have a serious impact on the
electrical components and moving parts of the massage gun.
BATTERY INSTRUCTIONS
BATTERY (DC 24V,2400mA)
When the battery is low it needs to be charged for 2-4 hours to be fully charged.
After being fully charged, it can be used continuously for 4-6 hours. When the battery is
charging, the indicator light will be on, indicating that the charging is normal. It is forbidden
to start the motor during charging.
MAINTENANCE

9EN VirtuFit MG10 Pro Massage Gun
NAME FUNCTION
SMALL BALL HEAD Large muscle areas
SCREW HEAD Joint parts
SPINAL HEAD For spine
BIG BALL HEAD Large muscle areas
GAS PLUG HEAD For the whole skeleton
FLAT HEAD Whole bodey
RECOVERY MODE Heart rate recovery status.
BALL HEAD Body bones
CONICAL Joint parts
2.Nine kinds of Massage head function diagram:
Name
Function
Small ball head
Large muscle areas
Screw head
Joint parts
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones
Conical
Joint parts
Steps：
2.1. The battery switch 4 is turned to the "ON" position. At this time, the power-on indicator
lights up, the power-on battery indicator 6 lights up, the four green lights from top to
bottom represent the strong to weak, and the green light is off. Need to charge.
2.2. ccording to the needs of different parts of the massage, choose the massage head to
insert into the round hole in front of the massage gun.
2.3. Press the motor start button 3, the motor starts to rotate, the first blue light above the
motor button lights up to represent the gear position "1", press the motor start button again,
2 blue lights illuminate to represent the gear position "2", three times Press the motor start
button, 3 blue lights will light up to represent the gear position “3”, press the motor start
button four times, 4 blue lights will light up to represent the gear position “4”, press the
motor start button 5 times, then the motor stops rotating. . Press the motor to start the “1”
position again and cycle in sequence.
2.4. Turn off the battery switch after use.
3. Battery instructions:
The battery is exhausted and needs to be charged for 2-4 hours to be fully charged.
After being fully charged, it can be used continuously for 4-6 hours. When the battery is
charging, the indicator light will be on, indicating that the charging is normal. It is forbidden
to start the motor during charging.
4.Safety instructions:
To reduce the risk of electric shock, fire and personal injury, this product must be used in
accordance with the following instructions.
4.1 Only allowed for adults.
4.2. This equipment can not directly massage the skin surface to avoid damage to the skin.
2.Nine kinds of Massage head function diagram:
Name
Function
Small ball head
Large muscle areas
Screw head
Joint parts
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones
PARTS LIST
Spinal head
For spine
Big ball head
Large muscle areas
Gas plug head
For the whole skeleton
Flat head
Whole body
Duckbill head
Spine parts
Ball head
Body bones

For questions or missing parts please contact your dealer.
