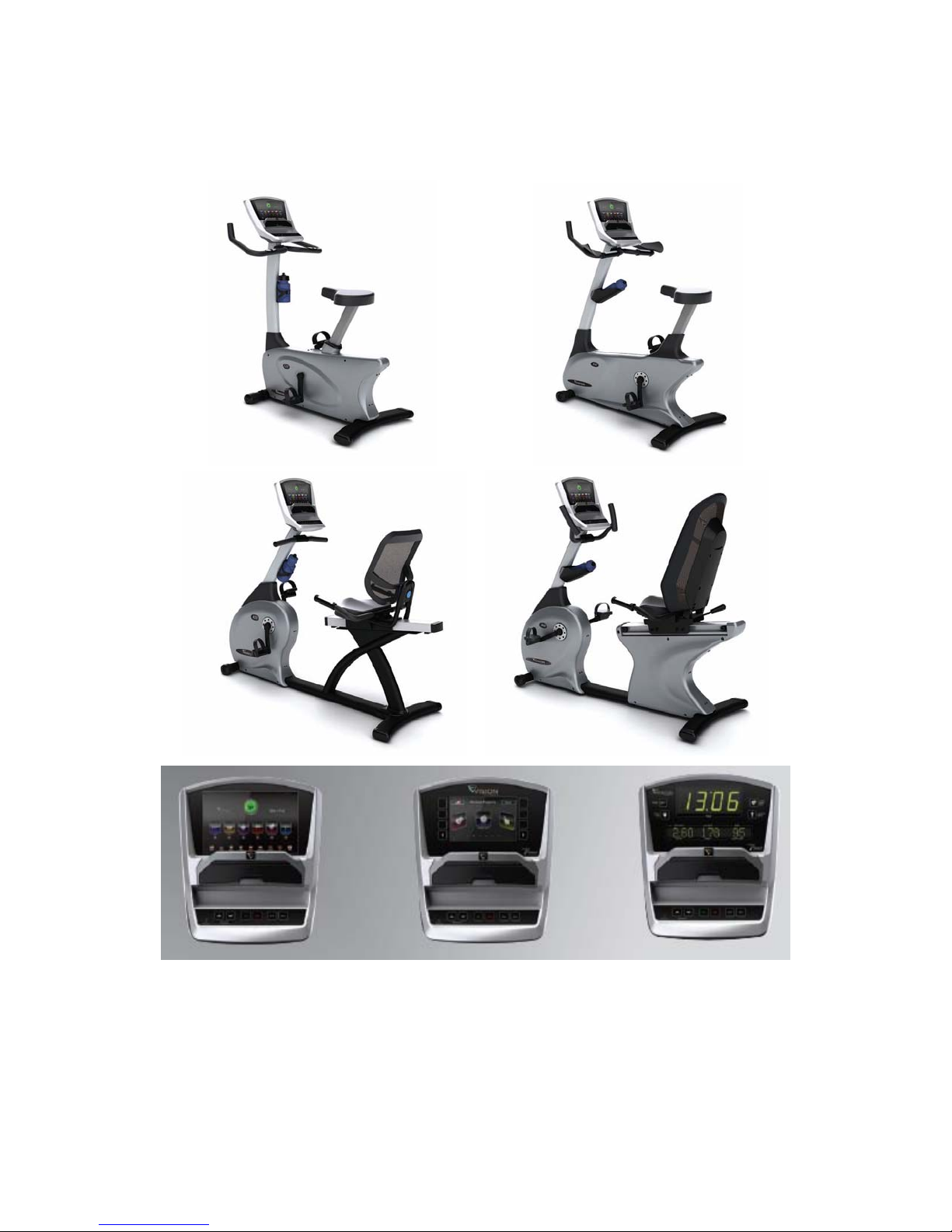

Vision Fitness R20 / R40 / U20 / U40 Bike with Classic /
Elegant / Touch Console Service Manual

2
TABLE OF CONTENTS
CHAPTER 1: SERIAL NUMBER LOCATION
1.1 Serial Number Location – U20 - U40 Frame……………………………………………..…….……..…..3
1.2 Serial Number Location – R20 - R40 Frame………………………………………………………………4
1.3 Serial Number Location – Classic / Elegant / Touch Console…………………………….…………….5
CHAPTER 2: ENGINEERING MODE
2.1 Engineering Mode - Classic Console………………………… ……………………….….….……..6
2.2 Engineering Mode Overview - Classic Console…………………………………………………….7
2.3 Engineering Mode - Elegant Console………………………… ……………………….….….……..8
2.4 Engineering Mode Overview - Elegant Console………………………………………..…………..9
2.5 Engineering Mode - Touch Console……………………………………………..……….………….15
2.6 Engineering Mode Overview - Touch Console………………………………….……………..……16
CHAPTER 3: TROUBLESHOOTING
3.1 Electrical Diagram………………………………………………………………..……………....…….24
3.2 Troubleshooting - No Power to the Console…………………………………………….……...…...29
3.3 Troubleshooting – No RPM Display…………………………………………………………………..29
3.4 Troubleshooting - No Resistance or Incorrect Resistance…………………………………………30
3.5 Troubleshooting - System Will Not Start………………………………………………………………31
3.6 Troubleshooting - Machine Will Not Start….…………………………….………..………………….32
3.7 Troubleshooting - Touch Panel Issues……….……………………………………………...….…….33
3.8 Troubleshooting - Heart Rate Issues………………………………………………………..………...34
3.9 Troubleshooting - iPod Issues………………………………………………………………….………35
3.10 Troubleshooting - Speaker/Audio Issues……………………………………………….……………..36
3.11 Troubleshooting – Radio Frequency Board Issues…………………………………….……………...37
3.12 Troubleshooting – Virtual Active (VA) Issues………………………………………………….……....38
CHAPTER 4: UPDATE OS,SOFTWARE AND IO
4.1 Updating OS and Software………………………………………………………………………………39
4.2 Updating IO………………………………………………………………………………………………...39

3
CHAPTER 1: SERIAL NUMBER LOCATION
1.1 Serial Number Location - U20 & U40

4
CHAPTER 1: SERIAL NUMBER LOCATION
1.2 Serial Number Location – R20 – R40

5
CHAPTER 1: SERIAL NUMBER LOCATION
1.3 Serial Number Location – Classic / Elegant / Touch Console
Touch Elegant Classic

6
CHAPTER 2: ENGINEERING MODE
2.1 Engineering Mode – Classic Console
1) To enter Engineering Mode, press & hold the RESISTANCE UP and DOWN keys at the same time for 3-5 seconds
until Engineering Menu appears on the display.
2) Use the RESISTANCE UP or DOWN keys to scroll through a list of parameters.
3) Press ENTER to enter a parameter setting.
4) Use the RESISTANCE UP or DOWN keys to change the parameter.
5) Press the ENTER key to save the change to the parameter.
6) Press and hold the STOP key to exit Engineering Mode and return to normal operation.

7
CHAPTER 2: ENGINEERING MODE
2.2 Engineering Mode Overview – Classic Console
MODE FUNCTION DESCRIPTION
ENG 0 Display Test Start Key – LCD/LED on
Stop Key – LCD/LED off
Any Other Key - Will show on the display window.
Hold the STOP key for 3 seconds to return to the Engineering Menu.
ENG 1 Hardware Test ECB TEST & HEART TEST & USB TEST & LCB VERSION &
CALIBRATE(for Induction Brack Model)
ENG 2 Switch Function Press ENTER key to enter the UNIT and Energy Save Mode Setting：
Use RESISTANCE UP or DOWN keys to switch Energy Save
Mode (ESM) off or on.
Use the START key to select unit.
Press the ENTER key to enter the Language setting:
Use RESISTANCE UP or DOWN keys to select the
languages.(English, Germany, Dutch, French will scroll on the middle
window).
ENG 3 Information Accumulated Time and Distance and Aged
Press and hold the START key for 5 seconds to clear all data..
Remarks: Unit of Time is Hour.
Unit of Distance is KM or Mile .
Unit of Aged is Minute.
SECOND LEVEL
ENG 8
To Get to ENG 8 - Enter into ENG 3, then press and hold the
RESISTANCE UP and DOWN key at the same time for 3-5 seconds.
Press ENTER at P0 - Software version.
Press ENTER at P1 - Select speed up rate (normal or quick).
Press ENTER at P2 - Hold the START key to clear all data.
ENG 4 SET MACHINE Use RESISTANCE UP or DOWN keys to set machine type.
Hold the STOP key for 3 seconds to return to the Engineering Menu.
※Press the “START” key to save any changes.

8
CHAPTER 2: ENGINEERING MODE
2.3 Engineering Mode – Elegant Console
1) To enter Engineering Mode, press & hold the RESISTANCE UP and DOWN keys at the same time for 3-5 seconds until
Engineering Menu appears on the display.
2) The Engineering Mode parameter list will be displayed on the screen.
3) Press the ATM style key on either side of the screen to enter the appropriate screen settings.
4) Set all the information using the ATM style keys.
5) Press and hold the “STOP” key to exit Engineering Mode.

9
CHAPTER 2: ENGINEERING MODE

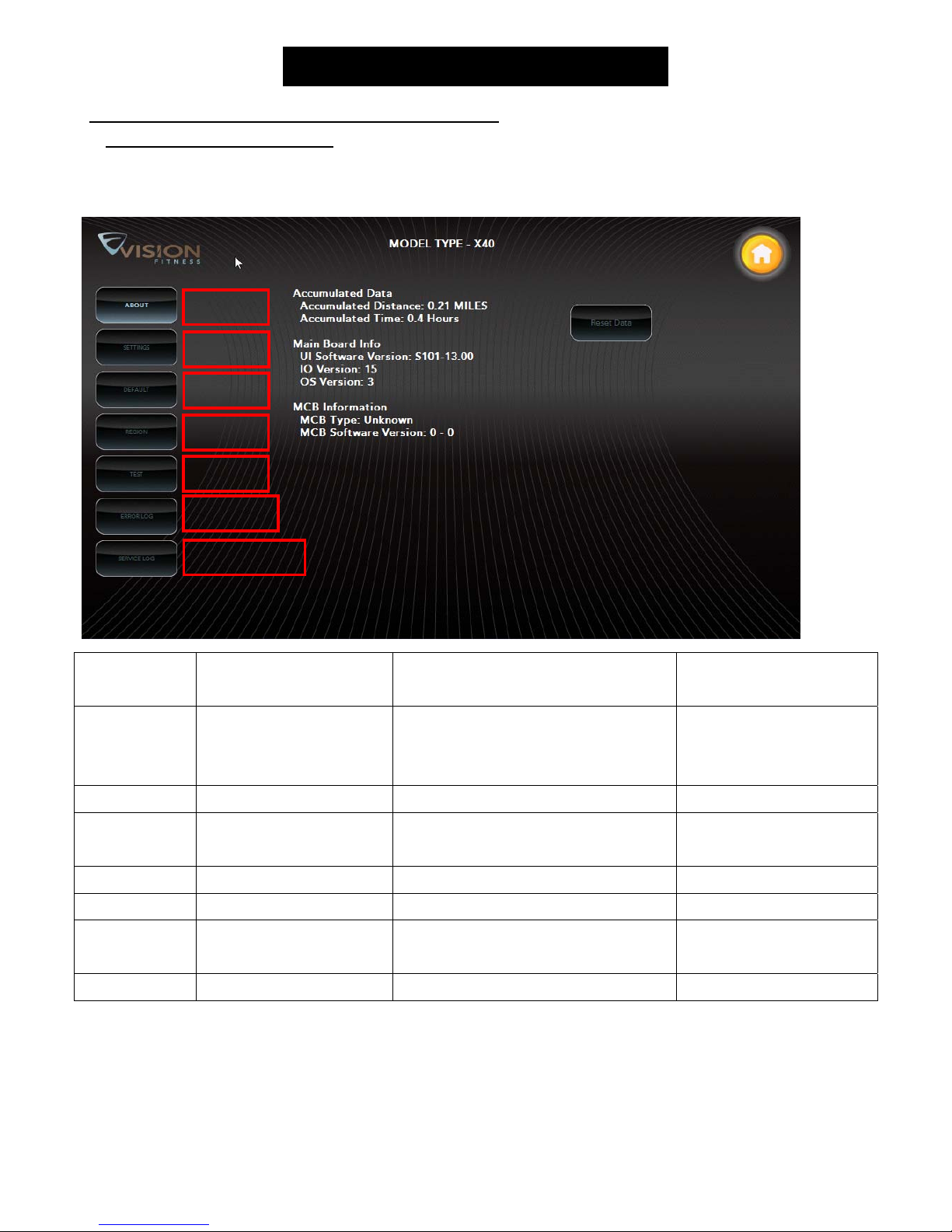

2.4 Engineering Mode Overview – Elegant Console

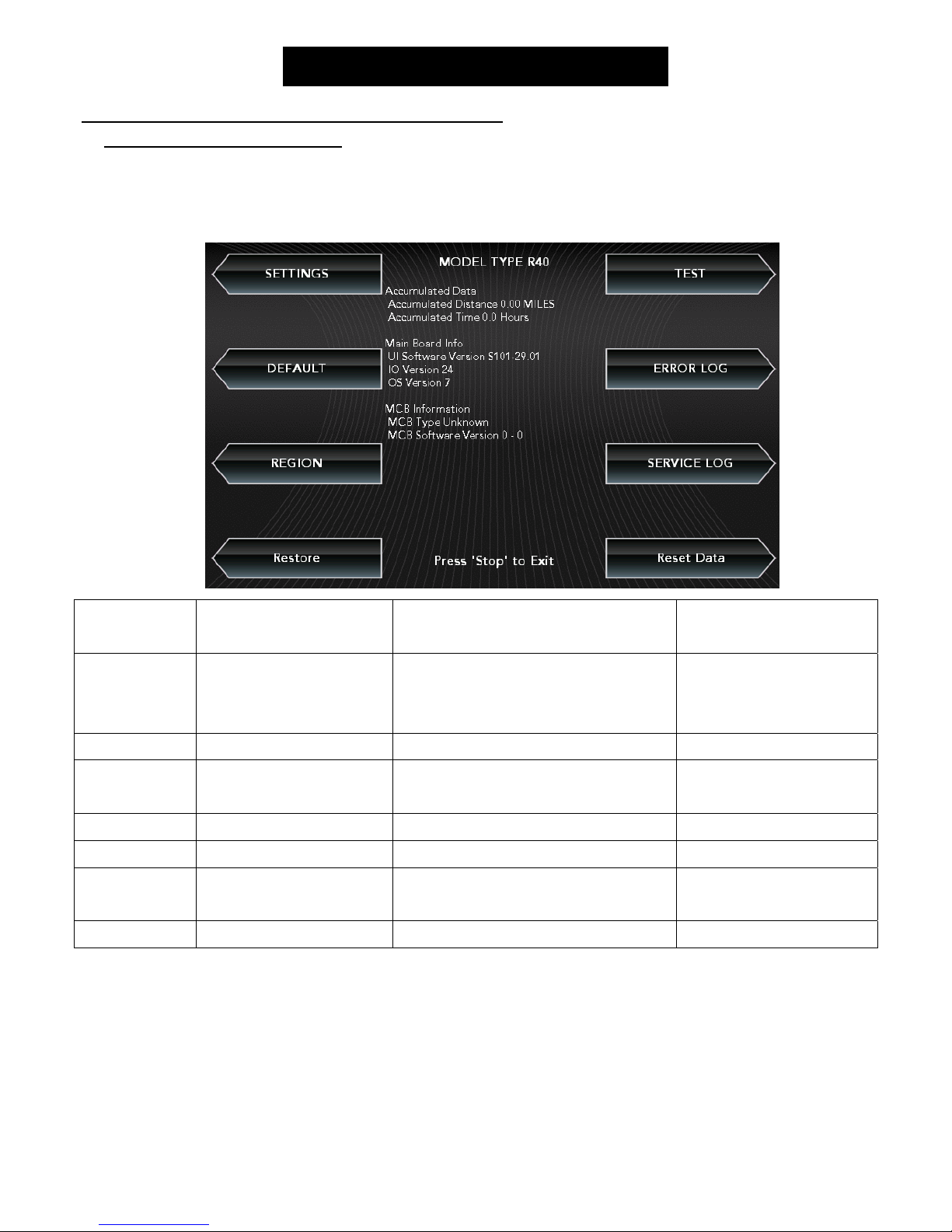

2.4.1 Elegant Console – About Tab
The Engineering Mode displays the basic parameters of the console, such as Model Type, Software Version, MCB Version,
etc… Use the ATM style keys located on both sides of the screen to enter into the parameter.
NOTE：Navigation of the other Engineering Mode screens is the same, instructions are not repeated.
Engineer Mode
- About
Function & Default Descriptions Modified
Accumulated Data Accumulated Distance Total distance displayed in native units
(miles or kilometers), not
editable
Cannot be modified
Accumulated Time Total time, not editable Cannot be modified
Main Board
Information
UI Software Version Application version, not editable Cannot be modified
IO Version Sub UCB software version, not editable Cannot be modified
OS Version Operation System Version, not editable Cannot be modified
MCB Information MCB Type The frame MCB type, for example: 2.75HP digital
MCB
Cannot be modified
MCB Software Version MCB Software Version Cannot be modified
Arrows point directly to the
corresponding ATM style key

10
CHAPTER 2: ENGINEERING MODE

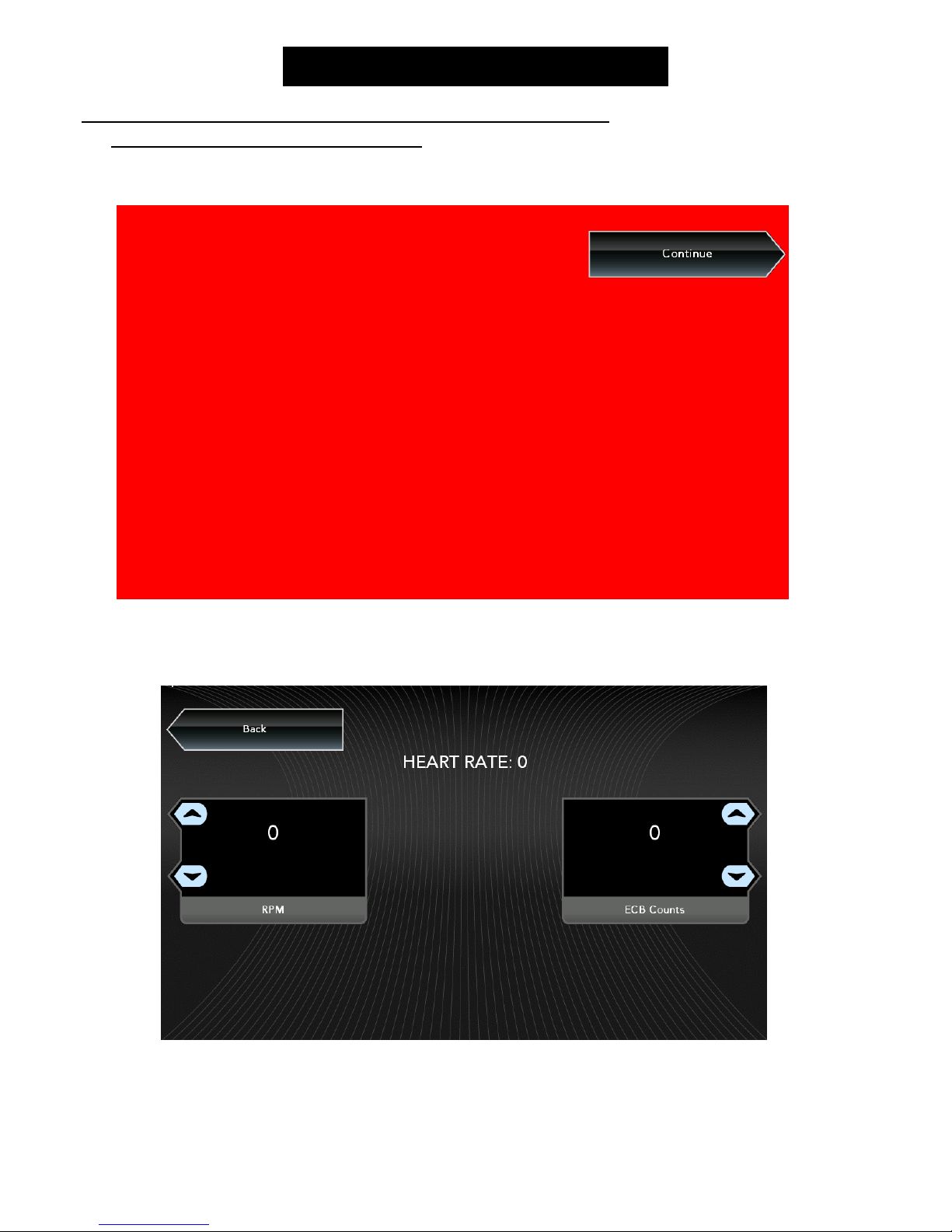

2.4 Engineering Mode Overview – Elegant Console – Continued

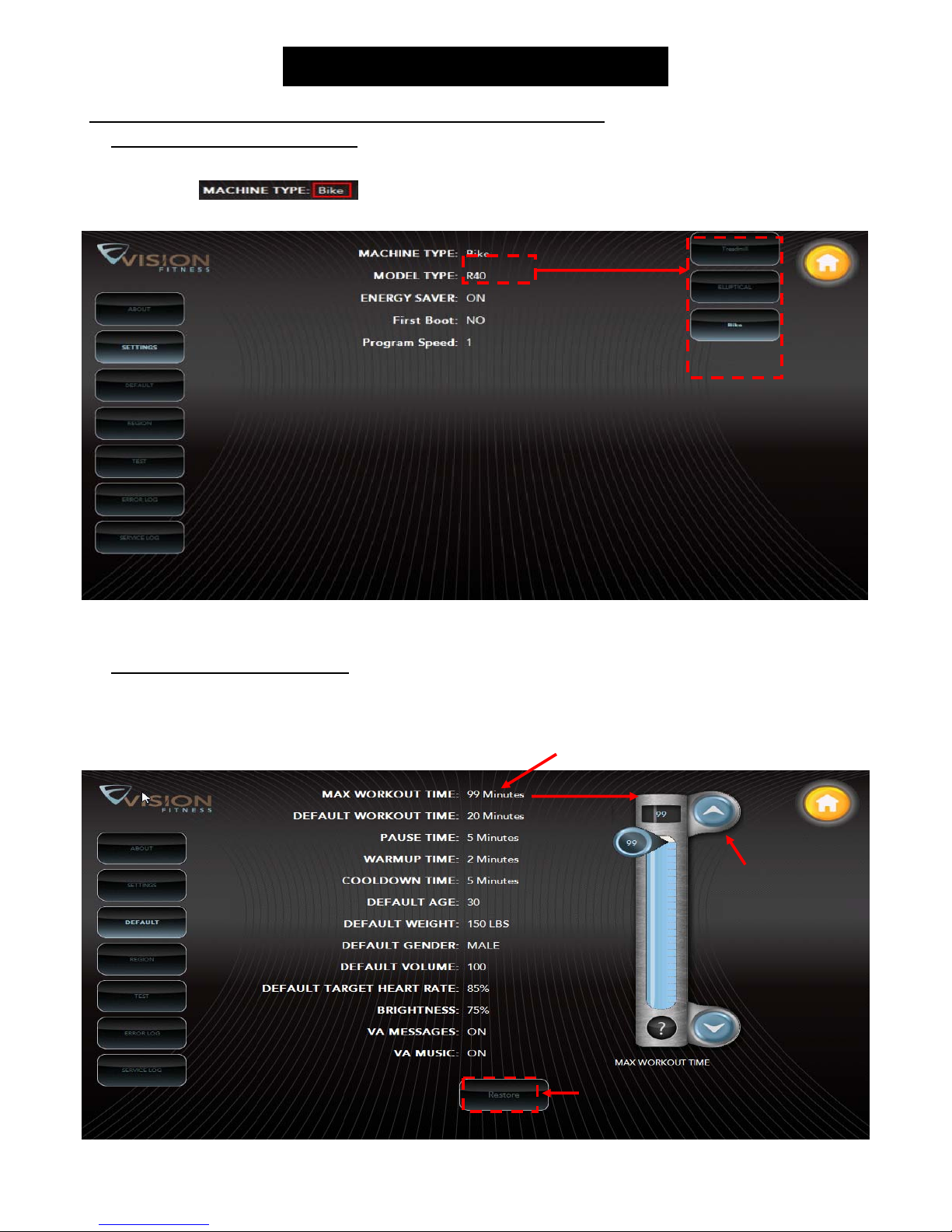

2.4.2 Elegant Console – Settings Tab
The Settings Tab includes options for setting Machine Type, Model Type, Energy Saver, First Boot, and Program Speed.
Press the key next to "Continue" to enter the next page of settings. Set these settings the same way as Machine Type.
NOTE: After changing a setting on any page, select "Finished" to complete the setup, the other items will keep the
default settings, press "Restore" to restore to the factory settings.

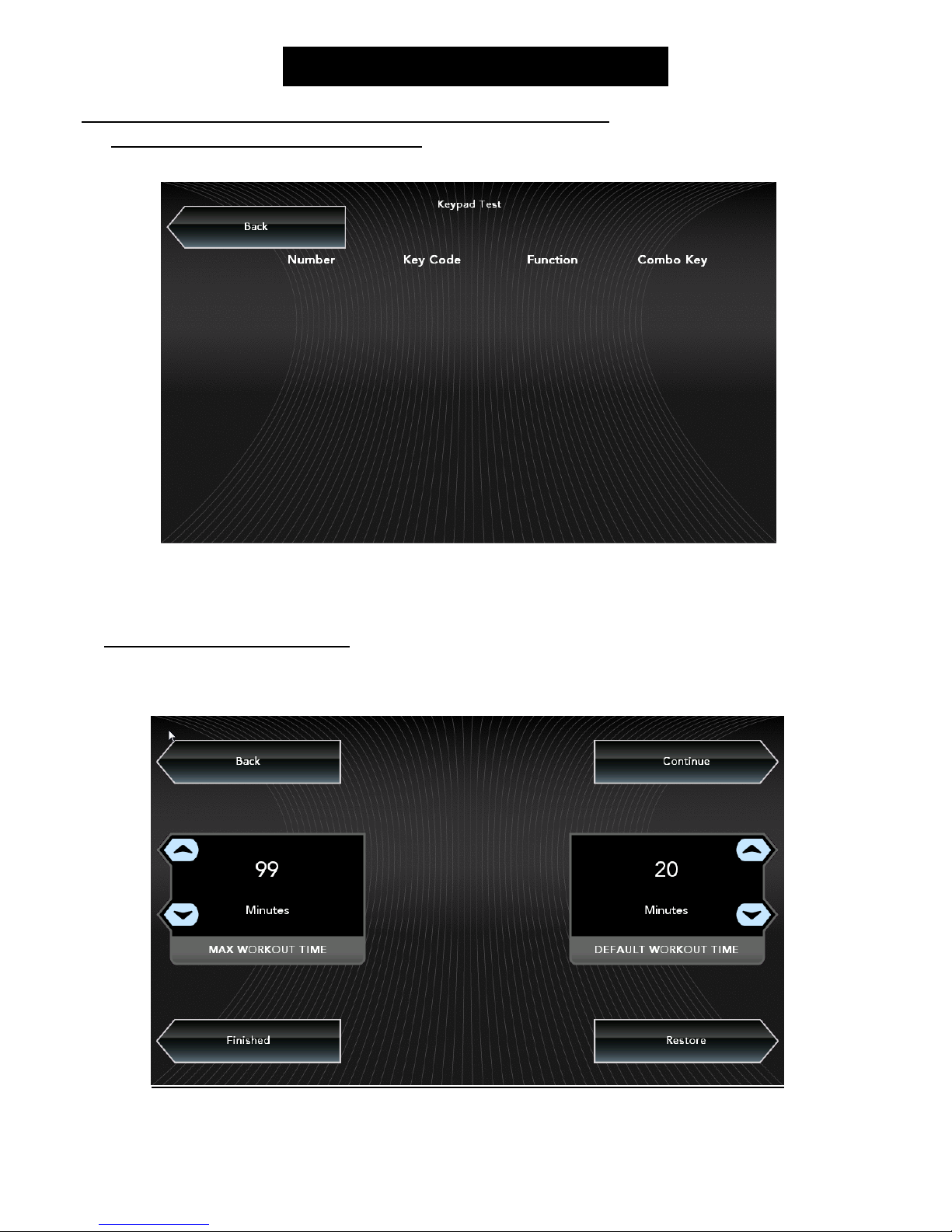

2.4.3 Elegant Console – Test Tab
The Test Tab includes various tests of the functions of the unit.
Go UP and DOWN to choose
