Vision Fitness R40 User manual

U40
U20
Read the BIKE GUIDE before using this OWNER’S MANUAL.
EXERCISE BIKE OWNER’S MANUAL
R40
R20

23
IMPORTANT PRECAUTIONS
SAVE THESE INSTRUCTIONS
When using an exercise product, basic precautions should always be followed, including the following: Read all instructions before
using this exercise bike. It is the responsibility of the owner to ensure that all users of this exercise bike are adequately informed
of all warnings and precautions. If you have any questions after reading this OWNER’S MANUAL, contact your authorized Vision
Fitness retailer.
This bike is intended for in-home use only. Do not use this bike in any commercial, rental, school or institutional setting. Failure to
comply will void the warranty.

45
READ AND SAVE ALL INSTRUCTIONS BEFORE ASSEMBLING OR USING THIS
EXERCISE BIKE. IT IS STRONGLY RECOMMENDED TO TAKE THE FOLLOWING SAFETY
INSTRUCTIONS.
• CAUTION: If you experience chest pains, nausea, dizziness or shortness of breath, stop exercising immediately and consult your
physician before continuing.
• Use this exercise bike for its intended purpose as described in this manual. Do not use attachments that have not been
recommended by the manufacturer.
• Never operate the exercise bike if it is not working properly or if it has been damaged. Please reference contact information on the
back cover for assistance.
• Do not use the exercise bike without proper footwear. NEVER operate the exercise bike with bare feet.
• Do not wear any clothing that might catch on any moving parts of this exercise bike.
• Keep hands and feet clear at all times from moving parts to avoid injury. Never turn the pedal cranks by hand.
• Do not dismount the exercise bike until the pedals are at a complete STOP.
• Do not attempt to ride the exercise bike in a standing position at high RPMs until you have practiced at slower speeds.
• Do not insert any object, hands or feet into any openings, or expose hands, arms or feet to the drive mechanism or other
potentially moving part of the exercise bike.
• Do not use any equipment that is damaged or has worn or broken parts. Use only replacement parts supplied by an authorized
service technician.
• Do not operate where aerosol (spray) products are being used or when oxygen is being administered.
• Close supervision is necessary when used near children, invalids or disabled people.
• When the exercise bike is in use, young children and pets should be kept at least 3 meters / 310 cm (10 feet) away.
• Ensure that adjustment levers (seat and handlebar fore-and-aft) are properly secured and do not interfere with range of motion
during exercise.
ASSEMBLY
There are several areas during the assembly process when special attention must be paid. It is very important to follow the
assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed
correctly, the bike could have frame parts that are not tightened and will seem loose and may cause irritating noises. To prevent
damage to the bike, the assembly instructions must be reviewed and corrective actions should be taken.

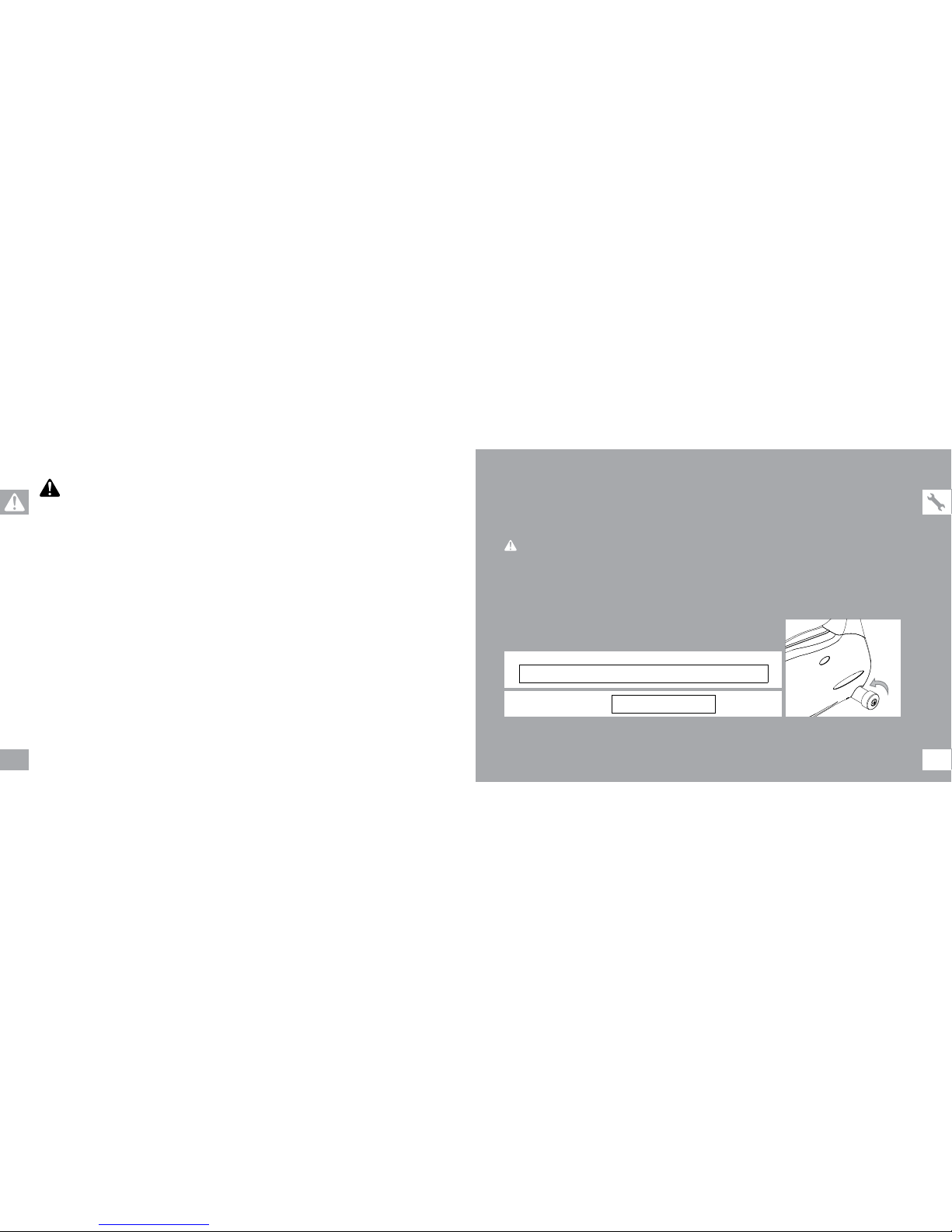

Before proceeding, find your bike’s serial number located on a white barcode sticker on
the bottom-front of the bike as shown in this image.
ENTER YOUR SERIAL NUMBER AND MODEL NAME IN THE BOXES BELOW:
WARNING
SERIAL NUMBER LOCATION
SERIAL NUMBER:
MODEL NAME: VISION BIKE
WARNING

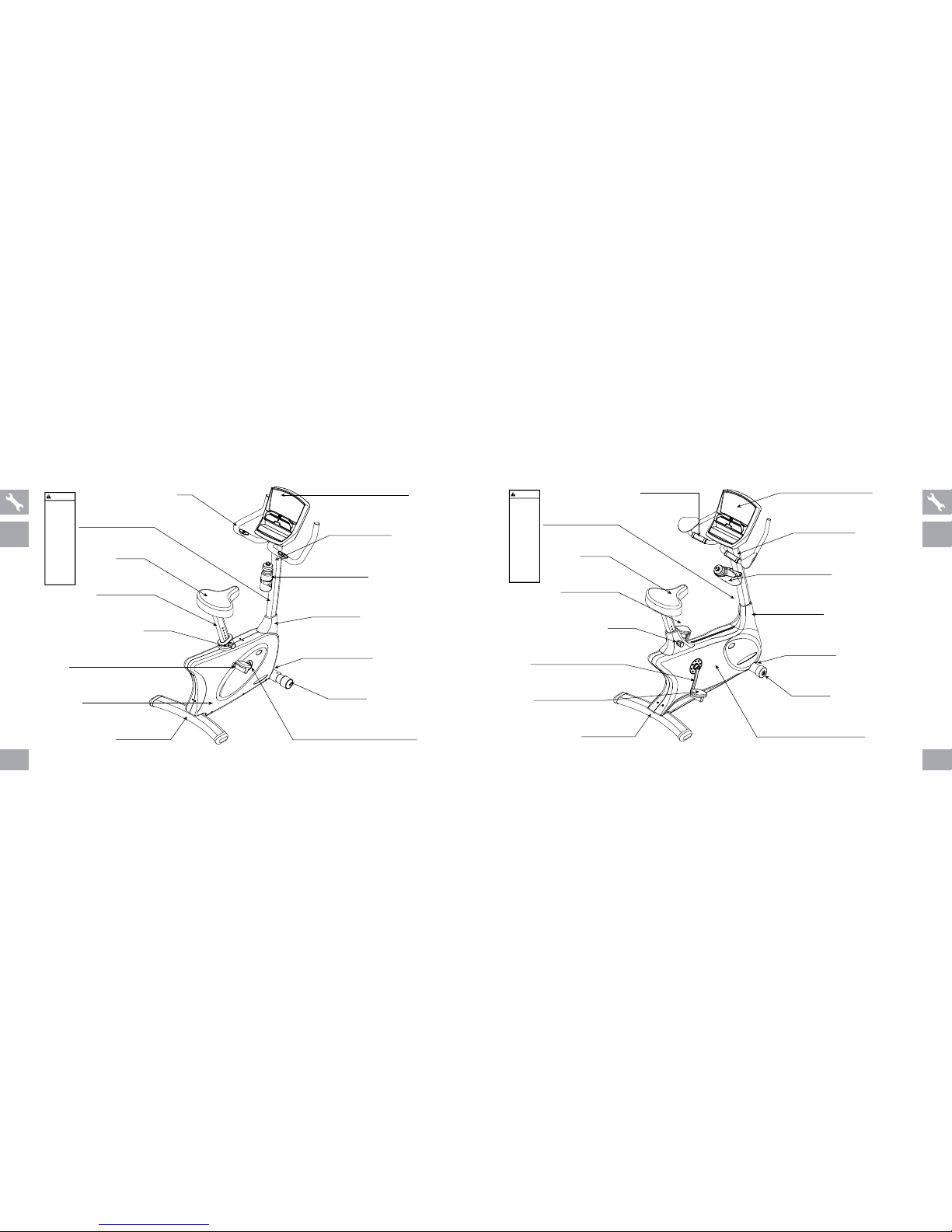

6 7
U20
CR AN K
WATE R B OTTLE HO LD ER
(BOTTLE NOT INCLUDED)
PULSE GRIP HANDLEBARS
RE AR STABILIZER TUBE
POWE R CORD SOCKET
CONSOLE
SE AT P OS T TUBE
SE AT H EI GHT ADJUSTMENT KN OB
FRONT STABILIZER TUBE
SE AT
PE DALS
BIKE FR AME
CONSOLE MA ST
CONSOLE MA ST GR OM ME T
Consult a physician prior to
using any exercise equipment.
Possibility of serious injury if
equipment is used improperly.
Heart rate monitoring systems
may be inaccurate. Over
exercise may result in serious
injury or death. Stop exercising
if you feel pain, faint, dizzy or
short of breath. Read Owner’s
Manual before using. Keep
children off and away from this
equipment. This machine is
designed for Home-use only, do
not use for club or therapeutic
purposes.
Konsultieren Sie einen Arzt,
bevor Sie mit dem Training
beginnen. Bei unsachgemäßem
Gebrauch kann es zu
ernsthaften Verletzungen
kommen.
Herzfrequenzüberwachungssys-
teme können ungenau sein.
Übermäßiges Training kann zu
ernsthaften Verletzungen oder
zum Tod führen. Beenden Sie
Ihr Training, wenn Sie
Schmerzen, Übelkeit, Schindel
oder Atemnot verspüren. Lesen
Sie vor der Erstbenutzung die
Bedienungsanleitung. Halten
Sie Kinder vom Trainingsgerät
fern. Nur für den Heimgebrauch.
WARNING
CR AN K
WATE R B OTTLE HO LDER
(BOTTLE NOT INCLUDED)
PULSE GRIP HANDLEBARS
RE AR STABILIZER TUBE
POWE R CORD SOCKET
CONSOLE
SE AT P OST TUBE
SE AT H EI GHT ADJUSTMENT KNOB
FRONT STABILIZER TUBE
SE AT
PE DALS
BIKE FR AME
CONSOLE MA ST
CONSOLE MA ST GR OMME T
Consult a physician prior to
using any exercise equipment.
Possibility of serious injury if
equipment is used improperly.
Heart rate monitoring systems
may be inaccurate. Over
exercise may result in serious
injury or death. Stop exercising
if you feel pain, faint, dizzy or
short of breath. Read Owner’s
Manual before using. Keep
children off and away from this
equipment. This machine is
designed for Home-use only, do
not use for club or therapeutic
purposes.
Konsultieren Sie einen Arzt,
bevor Sie mit dem Training
beginnen. Bei unsachgemäßem
Gebrauch kann es zu
ernsthaften Verletzungen
kommen.
Herzfrequenzüberwachungssys-
teme können ungenau sein.
Übermäßiges Training kann zu
ernsthaften Verletzungen oder
zum Tod führen. Beenden Sie
Ihr Training, wenn Sie
Schmerzen, Übelkeit, Schindel
oder Atemnot verspüren. Lesen
Sie vor der Erstbenutzung die
Bedienungsanleitung. Halten
Sie Kinder vom Trainingsgerät
fern. Nur für den Heimgebrauch.

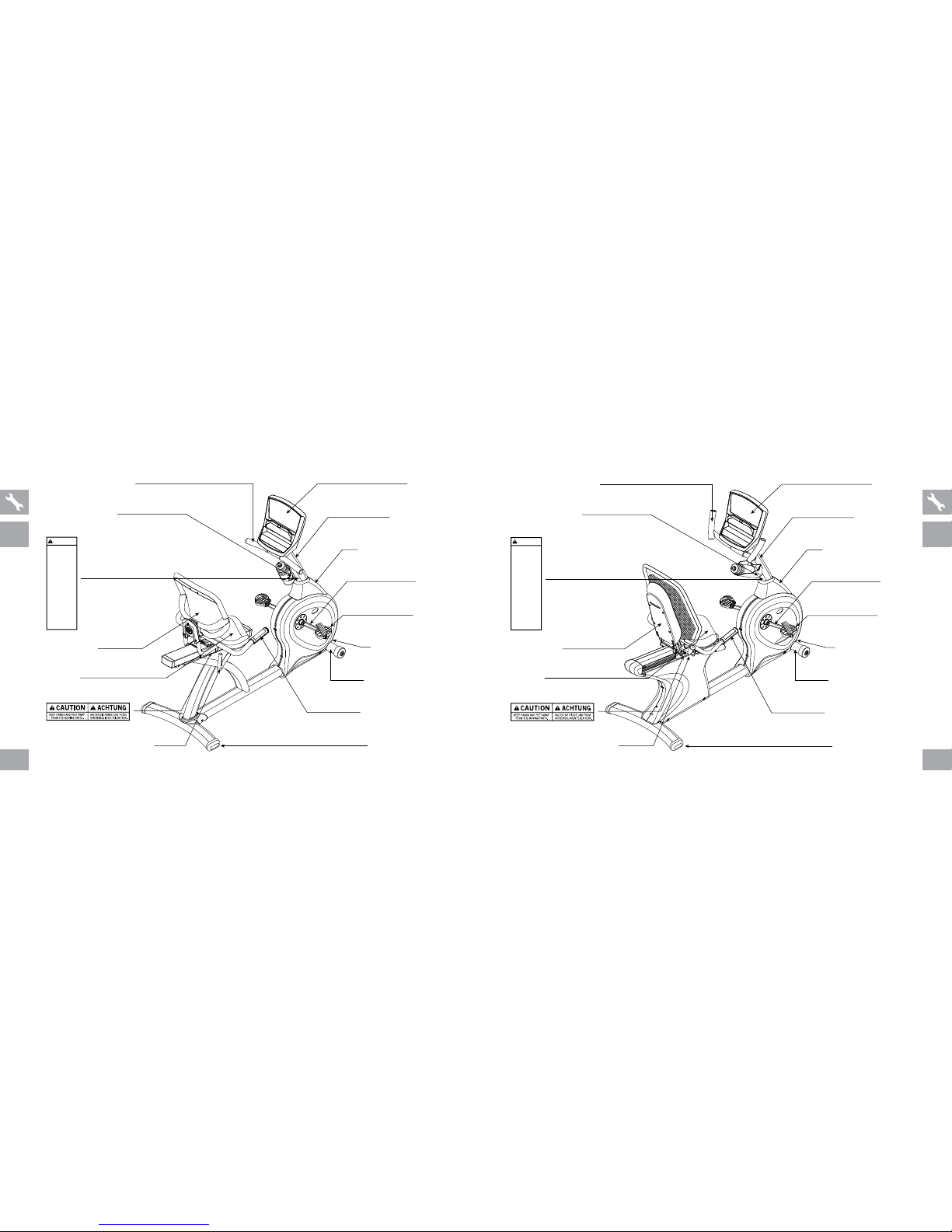

WARNING
U40

8 9
R20
CR AN K
WATE R B OTTLE HO LD ER
(BOTTLE NOT INCLUDED)
PULSE GRIP HANDLEBARS
REAR STABILIZE R TUBE
CONSOLE MA ST HANDLEBARS
POWE R CORD SOCKET
CONSOLE
SE AT P OSITION ADJUSTMENT LEVER
FRONT STABILIZER TUBE
ME SH SE ATBACK
SE AT BASE
PE DALS
CONSOLE MA ST
CONSOLE MA ST GR OM ME T
Consult a physician prior to
using any exercise equipment.
Possibility of serious injury if
equipment is used improperly.
Heart rate monitoring systems
may be inaccurate. Over
exercise may result in serious
injury or death. Stop exercising
if you feel pain, faint, dizzy or
short of breath. Read Owner’s
Manual before using. Keep
children off and away from this
equipment. This machine is
designed for Home-use only, do
not use for club or therapeutic
purposes.
Konsultieren Sie einen Arzt,
bevor Sie mit dem Training
beginnen. Bei unsachgemäßem
Gebrauch kann es zu
ernsthaften Verletzungen
kommen.
Herzfrequenzüberwachungssys-
teme können ungenau sein.
Übermäßiges Training kann zu
ernsthaften Verletzungen oder
zum Tod führen. Beenden Sie
Ihr Training, wenn Sie
Schmerzen, Übelkeit, Schindel
oder Atemnot verspüren. Lesen
Sie vor der Erstbenutzung die
Bedienungsanleitung. Halten
Sie Kinder vom Trainingsgerät
fern. Nur für den Heimgebrauch.
WARNING
CR AN K
WATE R B OTTLE HO LD ER
(BOTTLE NOT INCLUDED)
PULSE GRIP HANDLEBARS
REAR STABILIZE R TUBE
CONSOLE MA ST HANDLEBARS
POWE R CORD SOCKET
CONSOLE
SE AT P OSITION ADJUSTMENT LEVER
FRONT STABILIZER TUBE
ME SH SE ATBACK
SE AT BASE
PE DALS
CONSOLE MA ST
CONSOLE MA ST GR OM ME T
Consult a physician prior to
using any exercise equipment.
Possibility of serious injury if
equipment is used improperly.
Heart rate monitoring systems
may be inaccurate. Over
exercise may result in serious
injury or death. Stop exercising
if you feel pain, faint, dizzy or
short of breath. Read Owner’s
Manual before using. Keep
children off and away from this
equipment. This machine is
designed for Home-use only, do
not use for club or therapeutic
purposes.
Konsultieren Sie einen Arzt,
bevor Sie mit dem Training
beginnen. Bei unsachgemäßem
Gebrauch kann es zu
ernsthaften Verletzungen
kommen.
Herzfrequenzüberwachungssys-
teme können ungenau sein.
Übermäßiges Training kann zu
ernsthaften Verletzungen oder
zum Tod führen. Beenden Sie
Ihr Training, wenn Sie
Schmerzen, Übelkeit, Schindel
oder Atemnot verspüren. Lesen
Sie vor der Erstbenutzung die
Bedienungsanleitung. Halten
Sie Kinder vom Trainingsgerät
fern. Nur für den Heimgebrauch.
WARNING
R40

10 11
TOOLS INCLUDED:
F15/17 mm Flat Wrench
F4 mm L Wrench (U20/R20/R40)
F5 mm T Wrench
FScrewdriver
F5 mm L Wrench
F14/17 mm Flat Wrench (U20/U40)
UNPACKING
Unpack the product where you will be using it. Place
the carton on a level flat surface. It is recommended
that you place a protective covering on your floor.
Never open box when it is on its side.
NOTE: During each assembly step, ensure that ALL
nuts and bolts are in place and partially threaded in
before completely tightening any ONE bolt.
NOTE: A light application of grease may aid in the
installation of hardware. Any grease, such as lithium
bike grease is recommended.
NOTE: It is recommended that two people work
together for ease and efficiency while assembling.
PRE-ASSEMBLY
NEED HELP?
If you have questions or if there
are any missing parts, contact your
authorized Vision Fitness retailer.
U20 & U40 PARTS
INCLUDED:
F1 Bike Frame
F1 Rear Stabilizer Tube
F1 Front Stabilizer Tube (U20 only)
F1 Console Mast
F1 Console Mast Grommet
F1 Pulse Grip Handlebar
F1 Water Bottle Holder
F1 Seat Post Tube
F1 Seat
F1 Seat Adjustment Knob
F2 Pedals with Straps
F1 Power Cord
F1 Hardware Kit
R20 & R40 PARTS
INCLUDED:
F1 Bike Frame
F1 Rear Stabilizer Tube
F1 Seat Bottom
F1 Seat Bottom Support (R40 only)
F1 Mesh Seatback
F1 Seat Handlebar
F1 Seat Frame
F1 Set Inside/Outside Seatback
Covers (R20 only)
F1 Console Mast
F1 Console Mast Grommet
F1 Console Handlebar
F1 Water Bottle Holder
F2 Pedals with Straps
F1 Power Cord
F1 Hardware Kit
ALL
MODELS
ASSEMBLY
U20 & U40 PAGE 12 R20 & R40 PAGE 17

12 13
A Open hardware for step 2.
B Slide console mast grommet from the bottom
up the console mast.
C Attach lead wire to console cable and pull
through console mast. Slide console mast
into bike frame.
D U20 ONLY: Attach the console mast to the
bike frame using 6 bolts (g), 6 spring
washers (e) and 1 set screw (h).
E U40 ONLY: Attach the console mast to the
bike frame using 5 bolts (g) and 4 spring
washers (e).
F Slide console mast grommet down over
bike frame.
U20
U40
U20
U40
U20 & U40 ASSEMBLY STEP 2U20 & U40 ASSEMBLY STEP 1
A Open hardware for step 1.
B Attach the rear stabilizer tube to the bike
frame using 2 bolts (a) , 2 bolts (b) and 4
spring washers (c).
C U20 ONLY: Attach the front stabilizer tube
to the bike frame using 2 bolts (d), 2 spring
washers (e) and 2 arc washers (f).
BOLT (B)
70 mm
Qty: 2
SPRING
WASHER (C)
15.4 mm
Qty: 4
BOLT (A)
25 mm
Qty: 2
SPRING
WASHER (E)
13.5 mm
Qty: 2
ARC
WASHER (F)
18 mm
Qty: 2
BOLT (D)
20 mm
Qty: 2
HARDWARE FOR STEP 1 :
REAR STABILIZE R TUBE
SPRI NG WASHERS (C)
BOLTS (A)
BIKE FRAM E
BOLTS (B)
REAR STABILIZE R TUBE
SPRI NG WASHER (E)
ARC WASHER (F)
BOLT (D)
U20 & U40 MODELS
REAR STABILIZE R TUBE
SPRI NG WASHERS (C)
BOLTS (A)
BIKE FRAM E
BOLTS (B)
REAR STABILIZE R TUBE
SPRI NG WASHER (E)
ARC WASHER (F)
BOLT (D)
U20 ONLY
NOTE: Be careful not to pinch any wires
while attaching the console mast.
BOLTS (G)
CONSOLE CABLE
CONSOLE MAST BOOT
CONSOLE MAST
LEAD WIRE
SET SCREW (H)
SPRI NG WASHERS (E)
BIKE FRAME
U20 SHOWNU20 ONLY:
SPRING
WASHER (E)
13.5 mm
Qty: 4
BOLT (G)
15 mm
Qty: 5
SPRING
WASHER (E)
13.5 mm
Qty: 6
SET SCREW (H)
10 mm
Qty: 1
BOLT (G)
15 mm
Qty: 6
HARDWARE FOR U20: HARDWARE FOR U40:
BOLTS (G)
CONSOLE CABLE
CONSOLE MAST BOOT
CONSOLE MAST
LEAD WIRE
BOLT (G)
SPRI NG WASHERS (E)
BIKE FRAME
U40 SHOWN

14 15
U20
U40
U20 & U40 ASSEMBLY STEP 3
A Open hardware for step 3.
B Feed the handlebar wires through the
hole in the console mast and out the top
of the console mast.
C Attach the handlebars to the console
mast using 2 bolts (d) and 2 spring
washers (e).
D Attach the water bottle holder to the
console mast using 2 pre-installed
bolts.
SPRING
WASHER (E)
13.5 mm
Qty: 2
BOLT (D)
20 mm
Qty: 2
HARDWARE FOR STEP 3 :
CONSOLE MAST
HANDLE BARS
SPRI NG
WASHER S (E)
BOLTS (D)
WATE R BOTTLE HOLDER
PRE-IN STALLE D BOLTS
CONSOLE CABLES
U20 SHOWN
NOTE: Be careful not to pinch any wires
while attaching the handlebars.
CONSOLE MAST
HANDLE BARS
SPRI NG
WASHER S (E)
BOLTS (D)
CONSOLE CABLES
WATE R BOTTLE HOLDER
PRE-IN STALLE D BOLTS
U40 SHOWN
U20
U40
U20 & U40 ASSEMBLY STEP 4
NOTE: There is no hardware for this step.
A Attach seat to seat post tube using seat clamp
on bottom of seat, tightening it with the provided
14mm/17mm flat wrench.
B Pull the seat height adjustment knob outward
while sliding the seat post tube into the bike
frame. (NOTE: It may be necessary to turn the seat
adjustment knob to the left to allow the seat
post tube to slide into the bike frame.) Secure by
turning seat adjustment knob to the right.
C Attach the pedal strap to the right pedal.
Attach the right pedal to the right crank
arm, tightening it clockwise with the provided
15mm/17mm flat wrench.
D Attach the pedal strap to the left pedal.
Attach the left pedal onto the left crank arm,
tightening it counter-clockwise with the provided
15mm/17mm flat wrench. (NOTE: The left crank arm
is reverse-threaded, so it is very important that it is
tightened counter-clockwise. Tightening it the opposite
way can damage the pedal or the crank arm or both.)
RIGHT CRAN K ARM
LEFT CRANK AR M
LEFT PEDAL
SEAT POST TUBE
SEAT
RIGHT PE DAL
U40 SHOWN

16 17
U20 & U40 ASSEMBLY STEP 5
NOTE: All hardware is pre-installed.
A Connect the console cables and carefully tuck the
console cables into the console mast.
B Attach the console to the console mast using the 4 pre-
installed bolts.
C Plug in power adapter as shown.
POWER ADAPTER
CONSOLE MAST
PRE-IN STALLED BOLTS
CONSOLE CABLES
CONSOLE
U40 SHOWN
U20
U40
NOTE: Be careful not to pinch any wires while attaching the console.
u20 & u40 assemblY complete!

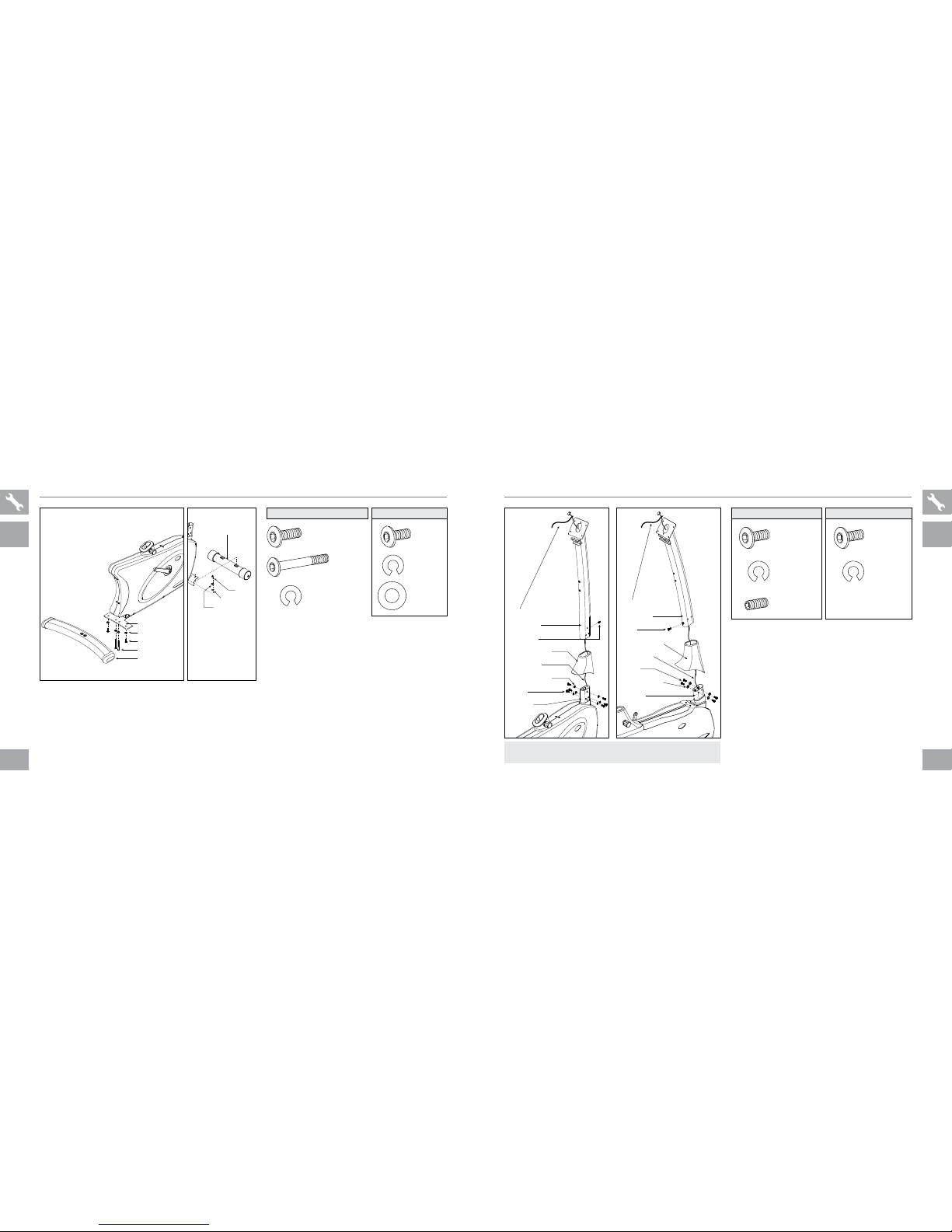

R20 & R40 ASSEMBLY STEP 1
A Open hardware for step 1.
B Attach the rear stabilizer tube to the
bike frame using 2 bolts (a) and 2 spring
washers (c) to the outside holes and with 2
bolts (b) and 2 spring washers (c) to the
inside holes.
BOLTS (A)
SPRI NG WASHERS (C)
BIKE FRAME
BOLTS (B)
R40 SHOWN
R20
R40
SPRING
WASHER (C)
15.4 mm
Qty: 4
BOLT (A)
20 mm
Qty: 2
BOLT (B)
65 mm
Qty: 2
SPRING
WASHER (C)
15.4 mm
Qty: 4
BOLT (A)
25 mm
Qty: 2
BOLT (B)
70 mm
Qty: 2
HARDWARE FOR R20: HARDWARE FOR R40:

18 19
R20

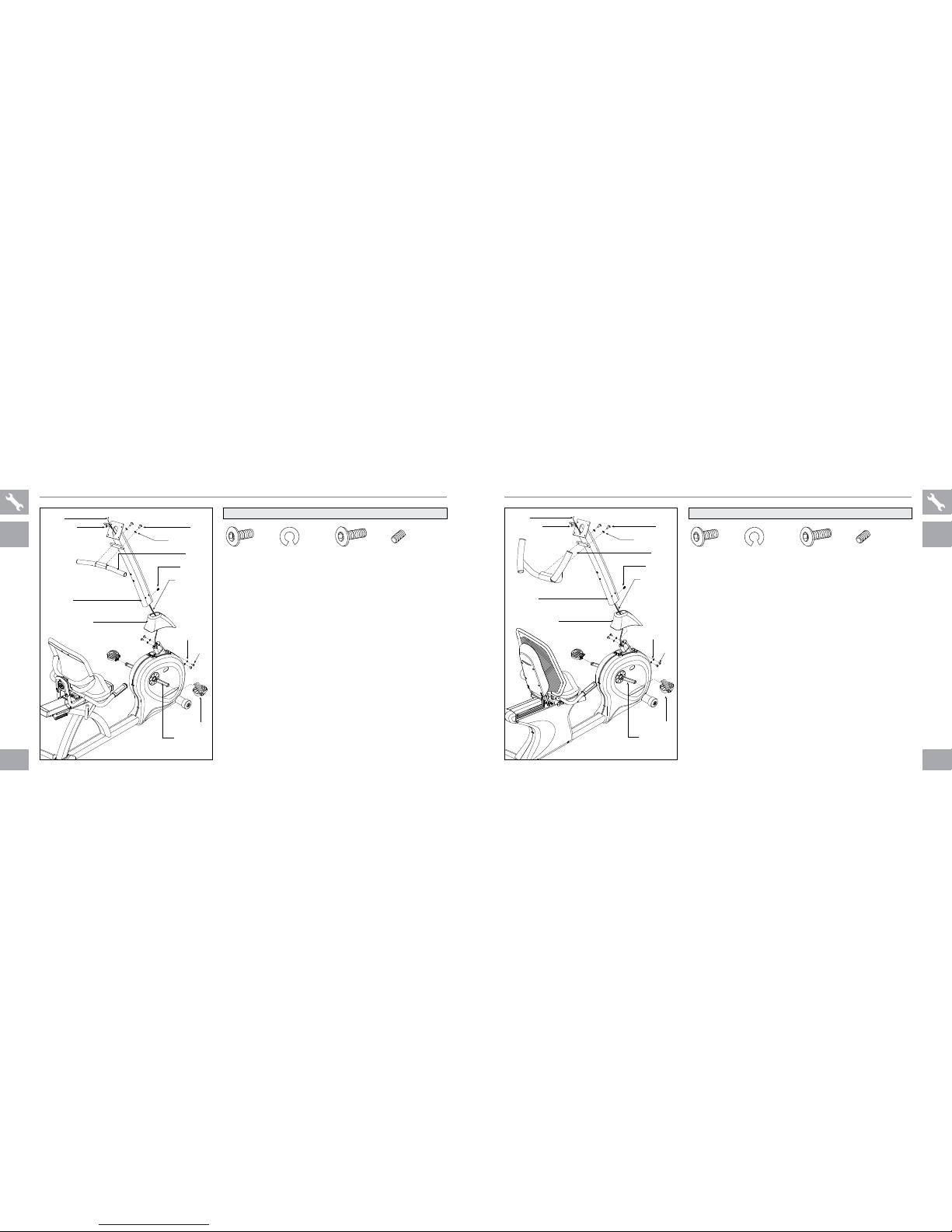

R40 ASSEMBLY STEP 2
A Open hardware for step 2.
B Remove the pre-installed bolt from the front hole
in the seat rail adjustment lever. Rotate the seat
lever into alignment on the bracket. Reinsert the pre-
installed bolt and tighten both bolts.
C Connect the seat handlebar heart rate wires to
the seat frame heart rate wires. Attach the seat
handlebars to the seat frame with 2 bolts (d) and
2 spring washers (c) to the rear set of holes.
D Set the seat bottom support onto the main seat
frame so that the rear set of holes line up over the front
set of holes on the seat handlebar. Secure in place
with 4 bolts (e) and 4 spring washers (f).
E Attach the seat bottom cushion to the seat
bottom support with 4 bolts (d) and 4 spring
washers (f).
F Slide the seat tilt adjustment lever in place over
the seat frame, making sure the handle of the seat
tilt adjustment lever is pointing up. Tighten the two
set screws in the seat tilt adjustment lever
bracket.
G Attach the mesh seatback to the seat frame using
6 bolts (g).
BOLT (E)
55 mm
Qty: 4
SPRI NG
WASHER (C)
15.4 mm
Qty: 6
BOLT (D)
20 mm
Qty: 6
BOLT (G)
12 mm
Qty: 6
SPRI NG
WASHER (F)
12.2 mm
Qty: 4
HARDWARE FOR STEP 2 :
SEAT RAIL
ADJUSTME NT LEVER
BOLT (G)
PRE-IN STALLE D BOLT
SEAT BOTTOM SUPPORT
SEAT BOTTOM
BOLTS (E)
SPRI NG WASHERS (F)
HANDLE BAR WIRES
SPRI NG WASHERS (C)
BOLTS (D)
BOLTS (G)
MES H SEATBACK
SEAT FRAME
BOLTS (G)
SEAT HANDLEBARS
SEAT TILT ADJ USTMENT LEVE R
PRE-IN STALLE D SET SCREWS
R40
R20 ASSEMBLY STEP 2
A Open hardware for step 2.
B Mount the seat handlebars to the seat
frame with 4 bolts (d) and 4 spring
washers (c).
C Mount the seat bottom to the seat frame with
4 bolts (e) and 4 arc washers (f).
D Place the inside cover over the mesh
seatback and mount the mesh seatback to
the seat frame with 4 bolts (a) and 4 spring
washers (c).
E Attach the outside cover to the seat frame
and inside cover with 3 screws (g).
F Push the seat frame lock lever forward and
side the seat frame onto the seat rail from the
rear of the bike.
G Connect the heart rate wires in the seat
handlebars to the heart rate wires coming
up from the seat rail (fig.a).
H Attach the seat rail stopper (fig.a) to the
seat rail with 2 bolts (a).
BOLT (E)
35 mm
Qty: 4
SPRI NG
WASHER (C)
15.4 mm
Qty: 8
BOLT (D)
15 mm
Qty: 4
BOLT (A)
20 mm
Qty: 6
SCREW (G)
20 mm
Qty: 3
ARC
WASHER (F)
18 mm
Qty: 4
SEAT RAIL
STOPPER
Qty: 1
HARDWARE FOR STEP 2 :
BOLTS (D)
SPRI NG WASHERS (C)
HEART RATE WIRES
MES H SEATBACK
INS IDE COVER
SEAT FRAME
SCREWS (G)
BOLTS (A)
SPRI NG WASHERS (C)
OUTSID E COVER
SEAT BOTTOM
SEAT HANDLEBARS
ARC WASHER S (F)
BOLTS (E)
SEAT RAIL
BOLTS (A)
SEAT RAIL
STOPPER
SEAT RAIL
HEART RATE WIRES
FIG. A
SEAT FRAME LOCK LEVER
