Vmac PREDATAIR Installation instructions

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 1of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
System or Parts affected
PREDATAIR40 (H400001)
PREDATAIR60 (H600002)
PREDATAIR HHP60 (H600004)
Index
System or Parts affected.............................................................1
Overview .......................................................................................1
Retrieve stored error codes:.......................................................1
Display box messages.................................................................3
Power ON, System OFF...........................................................4
ON button pressed/Initial start-up.............................................4
Running.....................................................................................4
General .....................................................................................5
Temperature Sensor Trouble Shooting .....................................7
Temporarily override the compressor temperature sensor:......7
Temporarily override the hydraulic temperature sensor:..........7
Electrical Schematic....................................................................8
Overview
General error codes, symptoms and trouble shooting.
Retrieve stored error codes
Enter DIAGNOSTIC mode: at the display box push and hold OFF button for 5 sec. The display
will show DIAGNOSTICS, release the OFF button.
The system will slowly scroll through menu headings. When the heading ERROR LOG is
displayed, press and hold the ON button. When it enters this selection, release the ON button.
While in the error log you can scroll through data by using the ON and OFF buttons.
Record error codes in box below
Once you have recorded the stored errors, press and hold both ON and OFF buttons at the same
time to exit Diagnostics mode.
A video showing how to access the PREDATAIR Diagnostics can be found here:
https://www.youtube.com/watch?v=72TqKU_mngk

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 2of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]

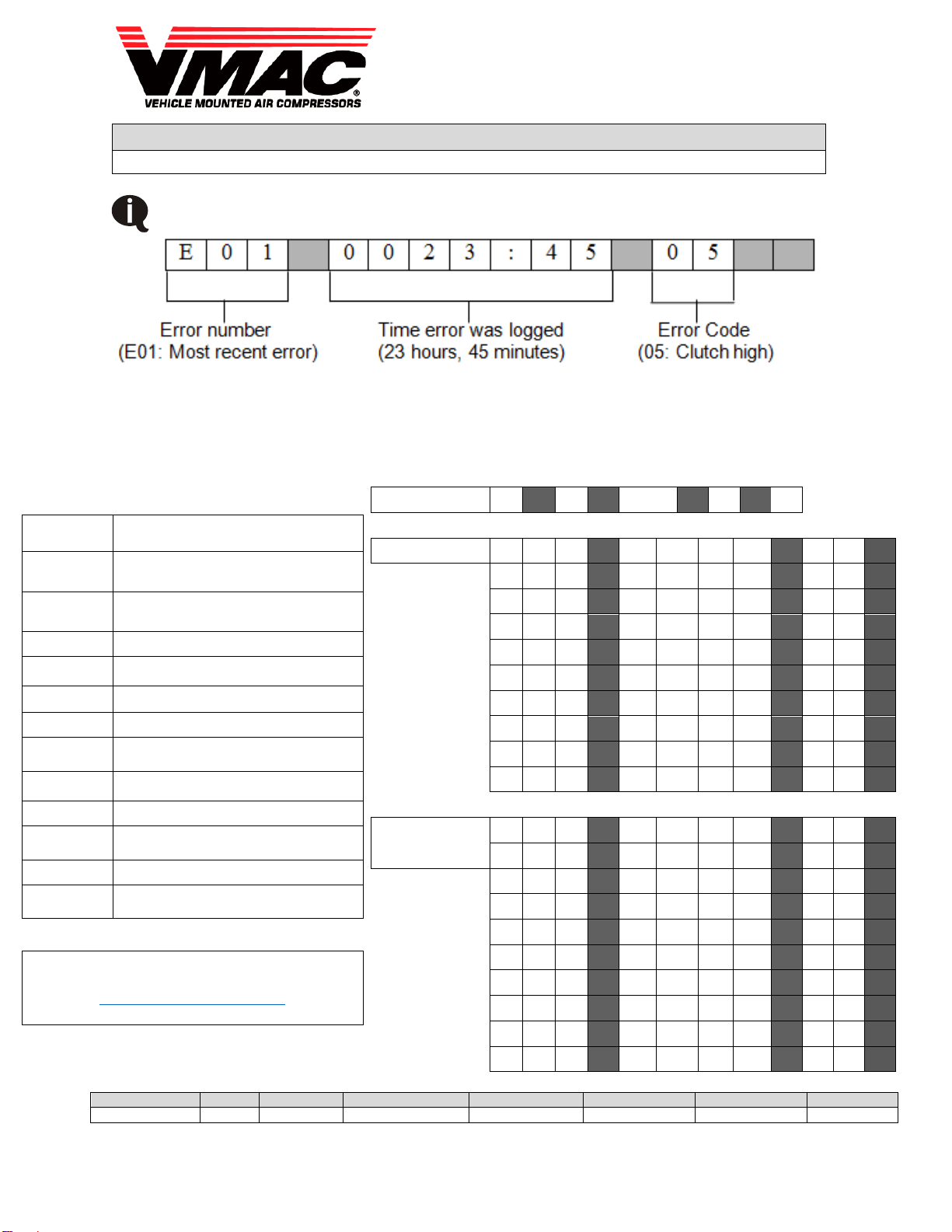

Figure 1 gives an example of an error code.
Figure 1
Name: __________________________ Phone#: ______________________
Company: _______________________ Email/Fax#:____________________
Date: ________________
Error
Code
Error
1
Compressor has Over Temped
>138C
2
Hydraulic has Over Temped
>88C
3
Not Used
4
Compressor Probe Short
5
Hydraulic Probe Short
6
Not Used
7
Compressor Probe Open
8
Hydraulic Probe Open
9
Not Used
10
Not Used (Battery Voltage)
11
No Pressure Sensor
12
No CAN Bus Connection
When you have reached the end, “NO SVC
NEEDED” will be displayed. Email completed
sheet to techsu[email protected] or fax to
[phone]
HRS
Time
Error
ERRORS
E
0
1
E
0
2
E
0
3
E
0
4
E
0
5
E
0
6
E
0
7
E
0
8
E
0
9
E
1
0
SERVICE
TIMES
S
0
1
S
0
2
S
0
3
S
0
4
S
0
5
S
0
6
S
0
7
S
0
8
S
0
9
S
1
0

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 3of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]

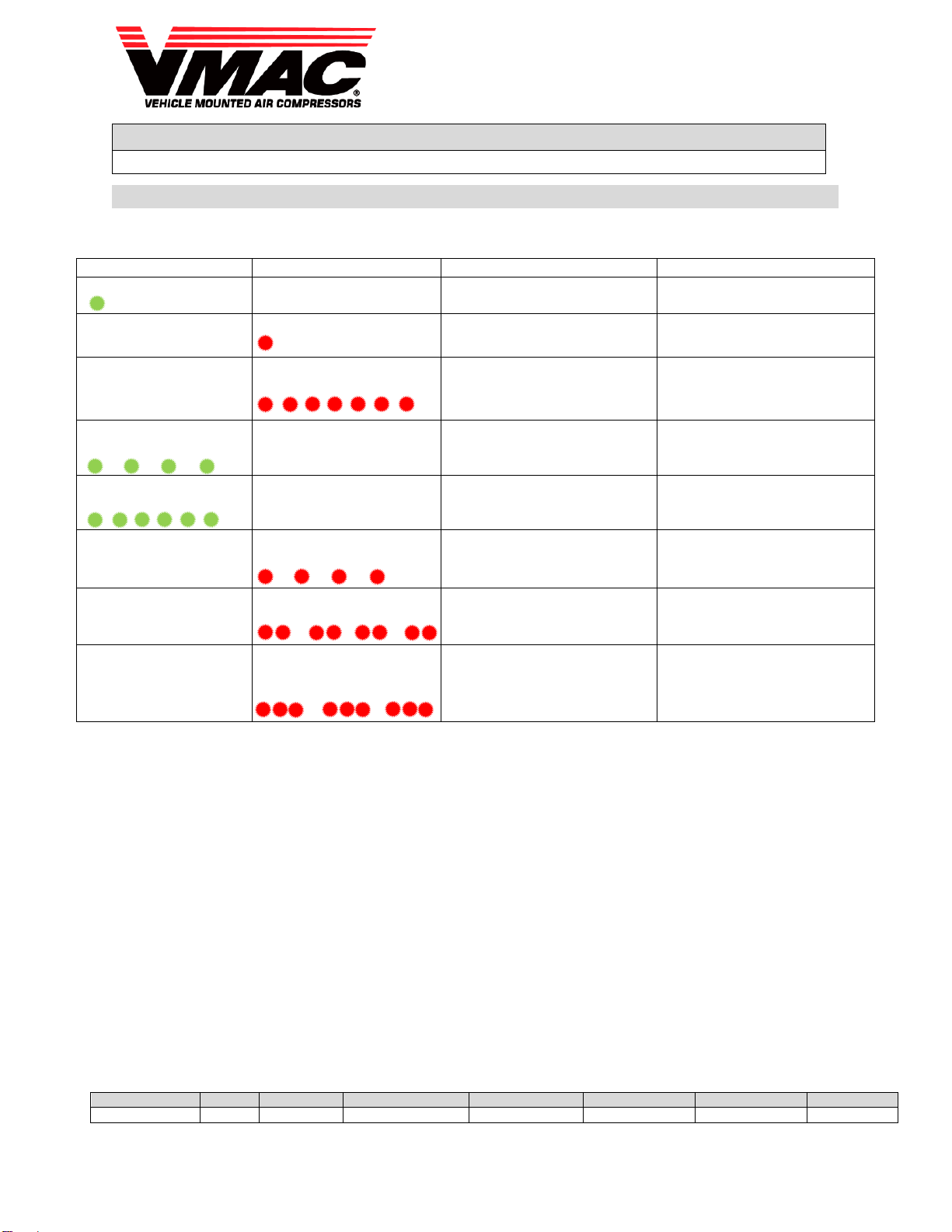

Flash Code Table
Some early models of PREDATIAR were not equipped with a Display Box. These models will have a
GREEN and RED LED on the top of the unit. Use the table below to determine the error code.
Green
Red
State
Problem
On Steady
Off
Operating
None
Off
On Steady
Compressor Off
Fan On
Compressor Too Hot
Off
Flashes On-Off
continuously
Compressor Off
Fan On
Hydraulic Oil Too Hot
One Flash-Pause-One
Flash continuously
..
Off
Compressor Off
Fan On
High Pressure Start Warning
Flashes On-Off
continuously
Off
Compressor Off
Fan OFF
Preheater on (If equipped)
Cold Start Mode
Off
One Flash-Pause-One
Flash continuously
Compressor Off
Fan OFF - Probe Open
Fan On –Probe Shorted
Compressor Temperature
Probe Failure (Service Req.)
Off
Two Flashes-Pause-Two
Flashes continuously
Compressor Off
Fan OFF - Probe Open
Fan On –Probe Shorted
Hydraulic Cooler
Temperature Probe Failure
(Service Req.)
Off
Three Flashes-Pause-
Three Flashes
continuously
Compressor Off
Fan OFF - Probe Open
Fan On –Probe Shorted
Hydraulic Manifold
Temperature Probe Failure
(Service Req.)

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 4of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
Display box messages
Power ON, System OFF
Message/Problem
Possible Causes
Corrective Action
HYD OIL TOO COLD
The hydraulic oil
temperature is below
5oF (-15oC)
Pre-heat the hydraulic oil before running the
system.
No power to display
box
Fuse blown or bad
connection
Check components, replace fuse inside
PREDATAIR
ON button pressed/Initial start-up
Message/Problem
Possible Causes
Corrective Action
SOFT START XXXPSI
The system has
started, but the
compressor oil
temperature is still
cool.
The system is in “Unload” Mode, until the
compressor has come up to temperature
+122oF(50oC)
HYD OIL TOO COLD
The hydraulic oil is
below -13oF (-25oC).
The system is cautioning the operator to preheat the
hydraulic oil before starting the PTO system. The
Cold Climate Kit (A700146) can be installed to
speed warm-up once the hydraulic oil temperature
has reached –13oF(-25oC).
HYD OIL WARMING,
HYD XXXF/XXXC
The hydraulic oil is
between -13oF(-25oC)
and +5oF(-15oC)
Keep circulating hydraulic fluid until the system
warms sufficiently to start. If installed, the Cold
Climate Kit (A700146) will speed warm-up. The
Predatair won’t start until the hydraulic oil has
warmed to +5oF(- 15oC).
PREDATAIR does not
start when the ON
button is pressed.
Inappropriate
conditions for start-up.
Check display box for messages.
Hydraulic solenoid
failure.
. Check solenoid and connections.
Hydraulic motor or
compressor seized.
Check motor and compressor will roll-over.
Running
Message/Problem
Possible Causes
Corrective Action
STANDBY XXXPSI
The air pressure
stayed above the
restart pressure for
the duration of the
standby delay time.
The hydraulic solenoid is off, and the system is
monitoring air pressure and compressor and
hydraulic oil temperatures. If the air pressure
drops below the restart pressure, or the
compressor oil temperature drops below its
minimum, it will restart and rebuild air.
Air pressure won’t build
past approx. 40psi.
The system is in
SOFT START.
Wait for the compressor to warm up.
Unload solenoid on
inlet valve has failed
Check solenoid and wiring.

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 5of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
or problem with
wiring connections
Pressure sensor has
failed or problem
with wiring
connections
Check pressure sensor and wiring.
Low system air pressure.
Air reservoir drain
open.
Close valve.
Air leak.
Check all fittings. Check air lines for
wear/damage.
System demands
exceed compressor
delivery.
Reduce air demand. Check for correct amount
of hydraulic flow for the desired CFM.
Blowdown system
stuck.
Check for air venting from blowdown cap while
running.
Compressor stalling/not
building air.
Hydraulic relief valve
lifting.
Check hydraulic pressure while running. Check
for other relief valves in system set too low.
Minimum setting 2800psi.
Hydraulic flow too
low.
Check for correct amount of hydraulic flow for
the desired CFM. Ensure that engine rpm is
being maintained when load is applied.
Unload Solenoid
Failure
Check solenoid and wiring.
General
Message/Problem
Possible Causes
Corrective Action
CHECK AIR
FILTER
Every 100 hrs, the system
reminds the operator to
check the air filter.
Check air filter and replace as needed.
Message will stop automatically after 6
hrs of operation.
HRS:XXXX:XX
500S
Every 500 hrs, the system
reminds the operator to
service the compressor.
Perform service as per Owner’s manual
using VMAC service kit. Once complete,
enter the Diagnostics Mode and clear
the service reminder. Refer to the
appropriate section in the Owner’s
manual.
OVER TEMP
COMP -
Compressor is
getting too hot and
is shutting down.
Low compressor oil.
Check oil level and fill as required.
Oil flow restricted.
Check oil filter for blockage. Remove
hoses and check for blockage. Check
cooler for blockage
Fan not operating.
Check connections. Check fan and relay
Insufficient air-flow or
ventilation.
Make sure the cooler and air filter are
not blocked. Open door if installed in a
cabinet. Improve ventilation. Move the
PREDATAIR out of the cabinet.
Failed temperature probe
or bad wiring connection.
Check the temperature probe and wiring
connections.

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 6of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
OVER TEMP HYD -
Hydraulic oil is
getting too hot and
the compressor is
shutting down.
Insufficient air-flow or
ventilation.
Make sure the cooler is not blocked.
Open door if installed in a cabinet.
Improve ventilation.
Fan not operating.
Check connections. Check fan and relay
Failed temperature probe
or bad wiring connections.
Check the temperature probe and wiring
connections in the hydraulic manifold.
HYD PROBE OPEN
HYD PROBE
SHORT
Failed hydraulic
temperature probe or bad
wiring connection.
Check the temperature probe and wiring
connections in the hydraulic manifold.
COMP PROBE
OPEN COMP
PROBE SHORT
Failed compressor
temperature probe or bad
wiring connection.
Check the temperature probe and wiring
connections.
PRESSURE
SENSOR?
Failed pressure sensor or
bad wiring connection.
Check the pressure sensor and wiring
connections.
CONNECTION ERR
Failed control box, display
box, or bad wiring
connection.
Failed control box, display box, or bad
wiring connection.
BATTERY LOW or;
System runs then
shuts down, and
display resets, but
doesn’t restart
Wires connecting to battery
positive and ground too
small.
Check wire size requirements in the
installation manual and install the correct
gauge wires.
Low battery voltage.
Check wiring connections. Measure
voltage at the input to the PREDATAIR
when it is running with the fan on to
ensure full voltage. Check charging
system.
High oil
consumption
Compressor, hose, fitting,
or cooler oil leak.
Check system for leaks.
Compressor shaft seal
leaking.
Pull off hydraulic motor and check for oil
inside coupling.
Excessive oil in air
line
Excessive oil level.
Check oil level and adjust as needed.
Coalescer filter plugged.
Check and replace as needed.
Scavenge line plugged.
Check scavenge line and fittings.
Water in air system
FRL
(Filter/Regulator/Lubricator)
failure.
Check drain on filter.
Air reservoir not drained
regularly
Drain reservoir.
Excessive water in
compressor oil.
Allow system to completely cool, and
drain water from tank until oil comes out.
Top up oil as per manual.
Air pressure relief
valve opens.
Compressor system
pressure exceeding
200psi.
Check pressure sensor.

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 7of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
Air pressure relief valve
failure.
Check valve.
Air Inlet solenoid valve
failed in the ON state.
Check solenoid and wiring.
Temperature Sensor Trouble Shooting
Temporarily override the compressor temperature sensor:
This is only intended for use in an emergency to complete a job when servicing the unit
is not immediately possible. Running without a temperature sensor may result in failure
of the unit and/or damage to the hydraulic system, and is not recommended.
To temporarily disable the compressor temperature sensor, access the DIAGNOSTICS mode by
pressing and holding the OFF button. Once in DIAGNOSTIC mode allow system to scroll through
headings until the display shows: AIR TEMP SENSOR Press the ON button to access this
setting.
oPress and hold the ON button until NO AIR TEMP PROBE DIS? Appears on the screen
and then release the ON button.
oPress and hold the ON button again until TEMP PROBE DIS appears on the screen and
then RELEASE the ON button.
After the probe is disabled you need to back out of the DIAGNOSTIC screen by pressing both the
ON and OFF buttons simultaneously. You will need to do this twice to back right out to the main
screen.
To reset the PREDATAIR to default settings turn the power OFF then ON again. This will reset
the PREDATIAR temperature probes to ON.
Temporarily override the hydraulic temperature sensor:
This is only intended for use in an emergency to complete a job when servicing the unit
is not immediately possible. Running without a temperature sensor may result in failure
of the unit and/or damage to the hydraulic system, and is not recommended.
To temporarily disable the hydraulic temperature sensor, access the DIAGNOSTICS by pressing
and holding the OFF button. Once in DIAGNOSTIC mode and allow system to scroll through
headings until the display shows: HYD TEMP SENSOR? Press the ON button to access this
setting.
oPress and hold the ON button until NO HYD TEMP PRB? Appears on the screen and
then release the ON button.
oPress and hold the ON button again until TEMP PROBE DIS appears on the screen and
then RELEASE the ON button.
After the probe is disabled you need to back out of the DIAGNOSTIC screen by pressing both the
ON and OFF buttons simultaneously. You will need to do this twice to back right out to the main
screen.
To reset the PREDATAIR to default settings turn the power OFF then ON again. This will reset
the PREDATIAR temperature probes to ON.
A video showing how to disable the PREDATAIR Temperature Sensors can be found here:
https://www.youtube.com/watch?v=9jzzm0oTMgw

Technical Support
Subject
PREDATAIR Error Codes and Symptoms
Document
Version
Department
Revision Details
Revised by
Tech
Engineering
Implemented
EXT-PRED-016
A
Tech
Document Release
SP 18 Aug 2015
DB 18 Aug 2015
N/A
18 Aug 2015
Page 8of 8
Knowledge Base: www.kb.vmacair.com
Email: [e-mail]
Web: www.vmacair.com
Technical Support: 1(888)241-2289
Toll Free:1(800)738-8622 Fax: [phone]
Electrical Schematic
Figure 2
