Volfoni EDGE 1.2 User manual

3D CINEMA
IR SYNCHRONIZER KIT
User Manual
MUV110064-V1R2 EDGETM 1.2 User Manual

02.

SUMMARY
I. 3D KIT PRESENTATION
1. General presentation
2. 3D kit composition
II. PRODUCT DESCRIPTION
1. Glasses
2. IR emitter
3. Tester
4. Synchronizer
III. 3D KIT FASTENING
IV. CONNECTION & SYNCHRONIZATION
03.

1. GENERAL PRESENTATION
I.
The power of EDGETM 1.2
Exceptional image quality without ghosting, wherever
you sit.
The brightest light level on the market.
The 3D kit (infra-red emitter) allows easy integration in
less than 30 min with existing digital theaters using a standard
screen.
EDGETM 1.2 offers all the benefits of active glasses
A full EDGETM system includes
EDGETM 3D glasses
3D kit (emitter system)
Accessories are available
Antibacterial cleaning wipes
Battery replacement tool
Adaptable "arms" to fit any head size
In option: Anti-theft panels & anti-theft tagged glasses
As a result of Volfoni's long experience in managing the world's
largest stock of active 3D glasses, EDGETM1.2 benefits from the
latest ergonomic and technical innovations. EDGETM 's comfort
and easy use is unmatched.
04.

I. 3D KIT PRESENTATION
2. 3D KIT COMPOSITION
TESTER
IR EMITTER
+ fixing
+ wire
SYNCHRONIZER
+ power cord
+ GPIO synchronizer cable
EDGETM1.2 GLASSES
+ battery tool
+ removable arms
05.

ARMS
S size
M size
L size
The glasses come with L size arms, and M & S size arms are available upon request.
For easy removal, just push in the new arms until you hear the "click".
II.
1. GLASSES
Operating Temperature: 0°C -40°C (32F-104F)
Storage Temperature: -10°C -50°C (14F-122F)
LITHIUM
BATTERY
+
BATTERY AREA
battery tray
NOSEPIECE
IR CAPTOR
keep it clean
for optimal
efficiency
The VOLFONI Active 3D Glasses use fast-response liquid crystal lenses to create
the best image quality. It is the brightest and most cost-saving 3D solution currently
on the market.
Low power consumption
(battery lasts up to 800 hours)
Rubber nosepiece
Stylish and rugged
Unbeatable receiving angle
Automatic ON/OFF
Standard size, replaceable battery
Adaptively synchronizing
Optimal circuit layout
CE certified
USE AND SETUP
The 3D glasses do not need any setup to start. It is nevertheless necessary to check
all settings and connections of the 3D digital cinema system before projection. When
started, the lenses need 2 seconds to warm up and turn into working mode. Then the
lenses appear clear. When the 3D projection is finished or turned into 2D, the lenses will
remain clear for about 5 minutes. They will go directly into operation mode again
when a new signal is received.
Note: Please, make sure that there is no
obstacle in front of the IR captor during
3D projection.
06.

click
PUSH
STEP 3
Reinsert the battery and
push to hear the "click" to
lock it.
II. PRODUCT DESCRIPTION
BATTERY REPLACEMENT
click
STEP 1
Insert the tool into the hole in the
under right side of glasses. You feel
some resistance, then push and
feel/hear the unlocking "click".
STEP 2
PULL OUT
Pull towards you
with your nail to remove
the battery tray
BATTERY TOOL
to unlock the battery
LITHIUM BATTERY
CR2032
3V
HL
make sure you install the
battery in the right position
Note: When the battery has less than three hours remaining, the lenses will
flash once a second to indicate that you must change the battery. It is
recommended to check the battery life before distributing to viewers.
To open the battery encasement on the right arm of the glasses:
-Use an instrument such as the Volfoni's battery tool, a paper clip or a prong.
-Put the glasses on a desk/table as it will be more convenient and easy
-Find the small hole on the right arm of the glasses, where the arm connects
with the battery encasement.
-Put the prong inside and when you hear a "click," you can pop open the
battery encasement
1 2
3
07.

2. IR EMITTER
II.
Long Range IR Emitter
Long Range IR Emitter VAIK-0100 is a compact and powerful unit. The
emitter, with many built-in infrared LEDs, allows coverage all types of theater
rooms, regardless of the number of seats. 4 emitters can be linked up.
Thanks to its lightweight design, VAIK-0100 enhances the heat dissipation
(LED life protection). It is provided with a universal mounting head for security,
and is easy to install. It is simple to target the screen with the emitter laser pointer.
Please do not put the emitter in front of the audience.
Emitter at a Glance
SYNC IN(DB9)
Mounting Hole
Laser Pointer
Power LED
Thank you for using our STANDARD ACTIVE 3D DIGITAL CINEMA SYSTEM.
Before starting, please check if the following parts are included in
the package.
08.

II. PRODUCT DESCRIPTION
3. TESTER
Basic Specification
IR Wavelength: 940 nm
Power Consumption: 10W in active status
Laser: Max Output: 0.5mW, Wavelength: 650 nm± 10
Dimension: 361 mm x 70 mm x 44 mm
WARNING: The laser pointer of this emitter emits Class IIIA laser.
Please DO NOT stare into beam or view directly with optical instruments.
Tester
Active 3D Glasses VAIK-0300 is a handy unit to be carried by a cinema
technician to check performance of 3D glasses. Turn on the power, then
the tester emits low rate IR signal to activate 3D glasses. Working 3D
glasses will then show a flickering.
IR Signal LED
Power LED
Power Switch
Battery Room
Additional Specification
Power supply: 3xAA batteries
09.

4. SYNCHRONIZER
II.
The multi-function Distribution Module is a unit specially designed for mid
size and large digital 3D cinemas. This unit is plugged into the digital
projector and receives frame synchronizing signal via GPIO (DB-37). It extends
to four DB-9 emitter outputs. It also supports the extension of the Distribution
Module thanks to a DIN-3 cable, that simplifies cinema wiring. Each port is
equipped with an error diagnosis indicating LED.
Power Module
Multi-function Distribution Module
10.

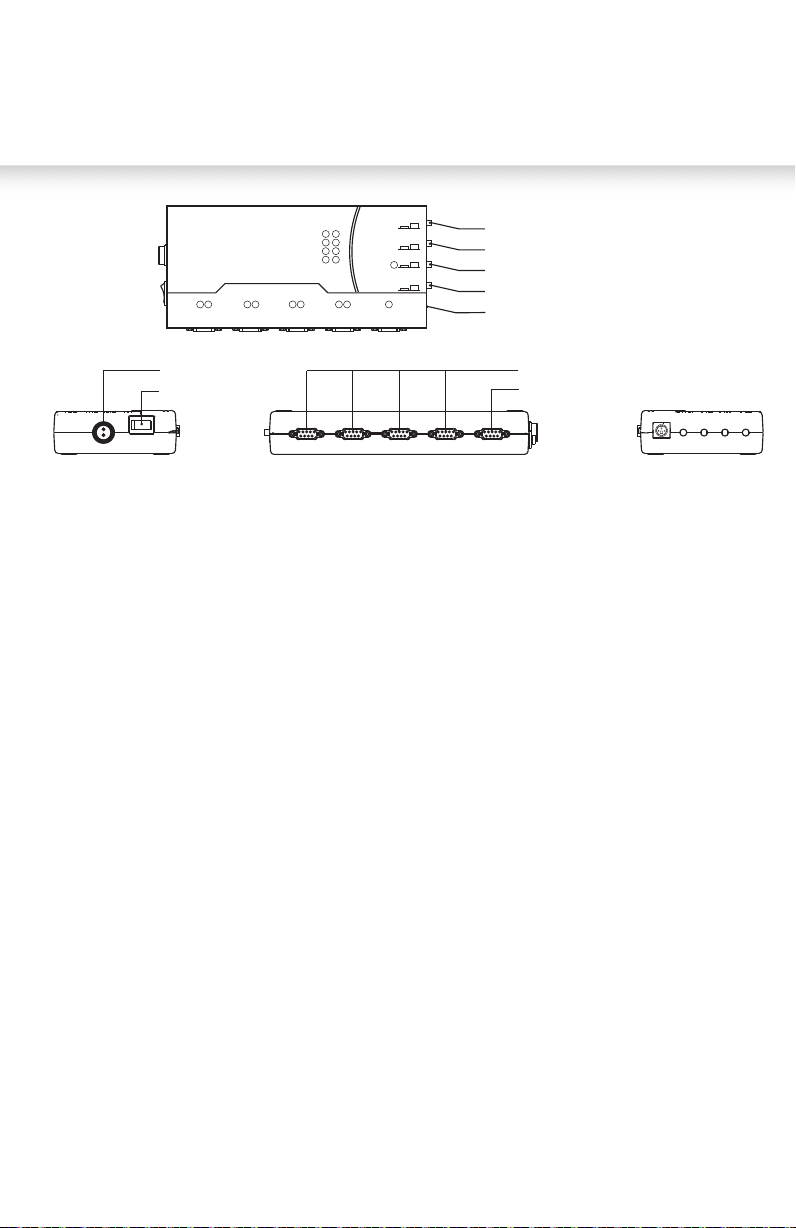

II. PRODUCT DESCRIPTION
Laser Pointer ON/OFF
Local IR Emitters ON/OFF
Frame SYNC Setup Switch
Eye Rotation Switch
Distribution Module Extension Port
Power Input Port
Power Switch
CH1,2,3,4 SYNC Port to IR Emitter
Frame SYNC From Projector
Switch Function Description
LASER POINTER: ON/OFF switch for each emitter laser.
LOCAL IR EMITTERS: ON/OFF switch for local IR emitters. Location IR emitters
are very convenient to check 3D effect on screen.
SETUP FRAME SYNC: Switch on to detect frame synchronizing range.
EYE INVERSION: Switch left/right eye image.
POWER: Turn ON/OFF the power of the Distribution Module.
Indication LED status definition
POWER: LED lights come on when power is on, otherwise lights are out.
CH1: Red LED lights come on when channel 1 IR emitter is detected,
Green LED lights come on if the IR emitter is activated, otherwise lights are out.
CH2: Red LED lights come on when channel 2 IR emitter is detected,
Green LED lights come on if the IR emitter is activated, otherwise lights are out.
CH3: Red LED lights come on when channel 3 IR emitter is detected,
Green LED lights come on if the IR emitter is activated, otherwise lights are out.
CH4: Red LED lights come on when channel 4 IR emitter is detected,
Green LED lights come on if the IR emitter is activated, otherwise lights are out.
LED light on when frame synchronizing
SETUP FRAME SYNC: LED always light when input frame is synchronized
between 130Hz to 150Hz, otherwise LED flickers.
FRAME SYNC FROM PROJECTOR:
signal is detected from projector.
Basic Specification
Power Input: 24VDC, 3A
Default Sync In: PIN9 (+) and PIN28 (-) of GPIO(DB-37)
Dimension: 106 mm x 36 mm x 23 mm
POWER
CH1 CH2 CH3 CH4
EYE ROTATION
QUICK FRAME SYNC
SETUP FRAME SYNC
LOCAL IR EMITTERS
LOCAL IR EMITTERS
OUTPUT TO IR EMITTERS
LASER POINTER
ON
FRAME SYNC FROM PROJECTOR
OFF
ON OFF
ON OFF
ON OFF
11.

III.
Before installing the emitter in the front of the screen, make sure you
have all the needed tools and the instruction manual. This wall fixing
part is provided with all the screws and wall anchors you might need.
Follow the instructions to fasten this kit.
1234
5
1/2” drywall
13 mm
(1/2”)
(1/4”)
6.35 mm
NOT
INCLUDED
solid concrete
44 mm (1 3/4”)
(3/32”)
4.7 mm
NOT
INCLUDED
wood stud
32 mm (1 1/4”)
(3/32”)
2.5 mm
INCLUDED
Parts
1
2
3
4
5
Qty
2
2
1
1
1
Product description
Mounting plate
Screw covers
Extension
Adjusting Knuckle
Emitter plate
WALL FASTENER
WALL TYPES & HOLES SIZES
12.

INSTALLATION
III. 3D KIT FASTENING
STEP 1
use the wall base to
mark each hole to drill
with a pencil.
STEP 2
drill the holes with the given bit
(for wood surface only)
(For solid concrete and drywall only)
STEP 3
Insert wall anchors
STEP 4
tightly screw the base to the wall
STEP 5
assemble the arm to the base
and then screw the emitter on it
13.

IV.
GPI/O(DB37-F) GPI/O Extension
(DB37-M)
Distribution Module
Cable
Power
24VDC/3A
AdapterPower Adapter
24VDC/3A
DIN-3 Extension Cable
IR Emitter Cable
DB-9
DB-9
DB-9
IR Emitter 3
IR Emitter 2
IR Emitter 1
Digital Projector
Distribution Module(Extension)Distribution Module
DIN-3
14.

TECHNICAL SPECIFICATIONS
500µs
1.5 ms
> 200 (no ghosting)
33%
Fall time
Rise time
Contrast
Transmission in the clear state
Chromaticity
Standard parameters
56 grs (less than 2 ounces)
Color correction not mandatory
Disposable
800 hrs
Weight
Battery
Triple flash (6.2) Darktime: 800
Delay: -320
Double flash (4.2)
EDGETM1.2
Darktime: 500
Delay: -320
Autonomy
IV. CONNECTION & SYNCHRONIZATION
Please refer to the following technical board for the digital projector.
For further information please visit our website www.volfoni.com,
Warning: Depending on your equipment and the room configuration,
you may have to adjust these parameters. We recommend that you confine
the setup of 3D parameters and color adjustments directly to integrators.
These parameters are for information purpose only. They may
be adapted if necessary.
15.

VOLFONI SAS
29, Rue Jean Jaques Rousseau
75001 Paris
France
VOLFONI GmbH
Erzgießereistraße 38
80335 München
Germany
VOLFONI Ltd
21, Tower one
Lippo center 89,
Queensway
Hong-Kong
VOLFONI Inc
3450, Cahuenga Bd West.
UNIT 504
Los Angeles, CA, 90068
USA
VOLFONI Ltd.
90 Long Acre
Covent Garden
London
WC2E 9RZ
UK
VOLFONI AEIE
Ronda Guglielmo Marconi, 4
46980 Paterna (Valencia)
Spain
www.volfoni.com
