Volvo ECR50D User manual

ECR50D
ECR50D
operator's manual
Ref. no. PUB20036502-A
2014.05
Volvo, Konz
English
English

Foreword
This operator's manual is intended as a guide for the correct
use and maintenance of the machine. Read this manual
carefully before you start and move the machine or before you
carry out any preventive maintenance.
Keep this manual in the lockable storage compartment so that
it is always available for easy reference. Replace it
immediately if it is lost.
The operator's manual describes the applications for which the
machine was primarily designed. It has been written to be valid
on all markets. Therefore, please ignore any sections which
do not relate to your machine or to the work that you do with
your machine.
NOTE!
If the manual covers more than one machine, the information
relates to all machines unless otherwise specified.
When designing this machine, much time has been invested
in achieving the best possible efficiency and safety. But
accidents do happen, and most of them can be attributed to
human error. A safety-conscious person and a well-
maintained machine make up a reliable, powerful, and
profitable combination. Therefore, read the safety instructions
and follow them.
We constantly strive to develop and improve the efficiency of
our products by making changes to their design. We reserve
the right to make design modifications to the products even
after they have been delivered. Also, we reserve the right to
change data and equipment, as well as the service and
maintenance instructions, without prior notice.
OPERATOR'S MANUAL
Table of contents
Presentation
Instrument panels
Other controls
Operating instructions
Operating techniques
Safety when servicing
Service and maintenance
Specifications
Alphabetical index
ECR50D
Ref. No. 20036502-A
The original language is English. Original instructions.
2014.05
Copyright © 2014, Volvo Construction Equipment. All rights reserved.

Safety regulations
The machine operator is responsible for being aware of and
complying with the relevant, legally prescribed, national and
regional safety instructions. The safety instructions in this
operator's manual are applicable only in cases where no
legislated safety instructions are in force.
DANGER
The safety symbol combined with this signal word indicates a
hazardous situation which, if not avoided,
will result in death
or serious injury. Danger is limited to the most extreme
situations.
WARNING
The safety symbol combined with this signal word indicates a
hazardous situation which, if not avoided, could result in
death
or serious injury .
CAUTION
The safety symbol combined with this signal word indicates a
hazardous situation which, if not avoided, could result in
moderate or minor injury .
NOTICE
Indicates a potentially hazardous situation which may result in
machine damage.
NOTE!
Used in order to refer to installation, operating, or maintenance
information which is important but not danger-related.
Get to know the capacity and limits of your machine!
2
Foreword

Identification numbers
Enter the identification number of machine and machine parts. This number must be
specified when contacting the manufacturer to order spare parts. Positions and
explanation of the PIN plates, see page 20 .
Manufacturer: Volvo Construction Equipment sas
rue Pierre Pingon
BP 01303 Belley Cedex
France
PIN (Product Identification Number) of
machine:
Engine:
Foreword
Identification numbers 3

Table of contents
Foreword ................................................ 1
Identification numbers ..................................... 3
Presentation ........................................... 9
Machine view ................................................ 15
CE-marking, EMC-directive .......................... 16
Communication equipment, installation ........ 19
Product plates ............................................... 20
Information and warning decals .................... 22
Instrument panels ................................. 26
Instrument panel, left .................................... 27
Display unit ................................................... 28
Instrument panel, right .................................. 43
Other controls ....................................... 48
Controls ........................................................ 48
ROPS ............................................................ 55
Operator comfort ........................................... 57
Climate control system ................................. 65
Operating instructions ........................... 66
Safety rules when operating ......................... 68
Measures before operating ........................... 73
Starting engine .............................................. 74
Stopping ........................................................ 76
Parking .......................................................... 77
Retrieving and towing ................................... 79
Attachments, alternative lowering ................. 81
Transporting machine ................................... 83
Table of contents
5

Operating techniques ........................... 87
Eco driving .................................................... 88
Whole-body vibrations .................................. 89
Rules for digging ........................................... 91
Working within dangerous areas .................. 92
Attachments ................................................ 100
Attachments, connecting and
disconnecting .............................................. 102
Attachment brackets ................................... 103
Pressure release ......................................... 106
Buckets ....................................................... 107
Offset boom ................................................ 108
Special hydraulics ....................................... 109
Hammer ...................................................... 110
Thumb ......................................................... 114
Clamshell bucket ........................................ 118
Hose rupture valves .................................... 121
Tracks ......................................................... 122
Lifting objects .............................................. 124
Signalling diagram ...................................... 128
Safety when servicing ......................... 131
Service position .......................................... 132
Before service, read .................................... 133
Entering, leaving and climbing the machine 136
Fire prevention ............................................ 137
Handling hazardous materials .................... 140
Handling line, tubes and hoses ................... 143
Service and maintenance ................... 144
Service points ............................................. 149
Engine ......................................................... 151
Fuel system ................................................ 152
Engine air cleaner ....................................... 154
Cooling system ........................................... 156
Electrical system ......................................... 160
Travel gearbox ............................................ 164
Track unit .................................................... 165
Cab ............................................................. 167
Air conditioning ........................................... 168
Bucket teeth ................................................ 169
Hydraulic system ........................................ 171
Greasing ..................................................... 172
Lubrication and service chart ...................... 173
6
Table of contents

Specifications ..................................... 179
Recommended lubricants ........................... 179
Fuel system ................................................ 184
Service capacities and change intervals ..... 186
Engine ......................................................... 187
Electrical system ......................................... 188
Cab ............................................................. 190
Hydraulic system ........................................ 193
Specifications .............................................. 194
Machine weights ......................................... 195
Ground pressure ......................................... 196
Dimensions ................................................. 197
Working ranges ........................................... 199
Recommended bucket sizes ....................... 200
Digging forces ............................................. 201
Lifting capacities ......................................... 202
Hammer ...................................................... 205
Service history ............................................ 206
Alphabetical index .............................. 211
Table of contents
7

Presentation
V1140060
Intended use
This machine is intended to be used under normal
conditions, at an ambient temperature between -20
°C (-4 °F) and +40 °C (104 °F) and for the
applications described in the Operator's Manual.
The engine can be started at a maximum of -15 °C
(5 °F) in cold conditions.
If it is used for other purposes or in potentially
dangerous environments, for example explosive
atmospheres, flammable environment or areas with
dust containing asbestos, special safety regulations
are to be followed and the machine to be equipped
for such use. Contact the manufacturer/dealer for
further information.
Environmental requirements
Be aware of the environment when operating and
during service and maintenance of the machine.
Always follow local and national environmental
legislation applicable to all handling of the machine.
Engine
The engine is a 4-cylinder D2.6A type diesel engine
with water cooling.
Electrical system
The machine has four electronic units:
- V-ECU (vehicle unit)
- I-ECU (display unit)
- W-ECU (caretrack, optional)
Presentation
9

- E-ECU (engine rpm control)
The display unit shows information, e.g machine
status, control lamps, gauges, settings and
information/warning lights. A buzzer is integrated in
the I-ECU to warn the operator in addition to some
warning lights.
To select various functions there are two instrument
panels with a keypad, switches and controls, see
page
26 .
Most of the relays and fuses are grouped in the
electrical box under the operator’s seat.
Cab
The cab is approved as a protective structure
according to the following standards:
- TOPS (Tip-Over Protective Structure), ISO
12117 / EN13531
- ROPS (Roll Over Protective Structure), ISO
3471-1
- OPG (Operator Protective Guard) Level 1 on top,
ISO 10262
The OPG level 2 is available as an option.
These tests are based on the heaviest machine
weight configuration, unless otherwise stated.
If any part of the cab’s protective structure is
affected by plastic deformation or rupture, the cab
must be replaced immediately.
The cab is featured with heating and ventilation.
The side window can be opened and used as exit
in case of emergency.
Never carry out any unauthorised alterations to the
cab without first, through a dealer, having discussed
the alteration with personnel at the Volvo
Construction Equipment Engineering Department.
This department will decide whether the alteration
may cause the TOPS-, ROPS- and OPG-approval
to become void.
Hydraulic system
Closed circuit hydraulic load-sensing system,
allowing full independence of the individual
movements.
10
Presentation

Equipment
The machine can be provided with different types
of optional equipment, depending on the
requirements of different markets. Examples of
such equipment are attachment bracket and
hammer.
Modifications
Modifications of this machine, including the use of
unauthorized attachments, accessories, units, or
parts, may affect the machine's integrity (condition)
and/or the machine's ability to function in the way
for which it is designed. Persons or organizations
performing unauthorized modifications assume all
responsibility for consequences that arise due to
modifications or can be attributed to modifications,
including damaging affect to the machine.
No modifications of any kind may be performed on
this product unless each specific modification first
has been approved in writing by Volvo Construction
Equipment. Volvo Construction Equipment
reserves the right to reject all warranty claims that
have arisen due to or can be traced to unauthorized
modifications.
Unauthorised modifications on the upperframe can
have an influence on the ROPS protection system
which is intended to secure the driver in case of an
accident.
Modifications may be considered to be officially
approved, if at least one of the following conditions
has been met:
1 The attachment, the accessory, the unit, or the
part has been manufactured or distributed by
Volvo Construction Equipment and has been
installed according to the factory-approved
method described in a publication available from
Volvo Construction Equipment; or
2 The modification has been approved in writing
by the Engineering Department for the relevant
product line at Volvo Construction Equipment.
Travel system
The travel motion is accomplished by the main
chassis via two rubber tracks (steel tracks optionally
Presentation
11

available). The tracks are each driven by a two
speed travel motor.
Slewing system
The slewing ring is driven by a hydraulic motor,
which is protected against excess pressure by high
pressure relief valves.
12
Presentation

Anti-theft device
An anti-theft device makes it more difficult to steal
the machine. Volvo offers an anti-theft device as
optional equipment. If your machine is not yet
equipped with it, check the possibility of having
such a device activated by your dealer.
CareTrack
The machine may be equipped with CareTrack, a
telematics system developed by Volvo
Construction Equipment. The system stores
machine data, e.g., machine position, operating
hours, fuel consumption, fuel level, that can be sent
by wireless transmission to a computer. CareTrack
is available in different versions, depending on the
required information level.
CareTrack makes it easier to plan for service and
reduces costly downtime. Productivity is improved
by knowing if machines are being operated
correctly and how much fuel is being consumed.
CareTrack also allows the customer to restrict the
operating area of the machine, by using virtual
fences. This helps to eliminate unauthorized
machine use and theft. For further information,
contact a Volvo Construction Equipment dealer.
The CareTrack system transmits data, in the same
way a mobile phone does, with a maximum output
rate of 10 W. The transmitter is always on and the
operator cannot switch it off.
Local precautions and restrictions applicable to
mobile phones, for example safety distance, also
apply to the CareTrack system.
Presentation
13

Tool kit
(optional equipment)
The toolbox is located on the right side of the
machine in front of the cooling package.
Open the engine hood to access it.
The machine comes with a number of tools, see
below.
1 2
3
4
5
V1139940
Tools in the toolbox
1 Wrench with different sizes of nuts
2 Grease gun (3) with cartridge (4) and extension (5)
V1139939
1
1 Tool box
14
Presentation

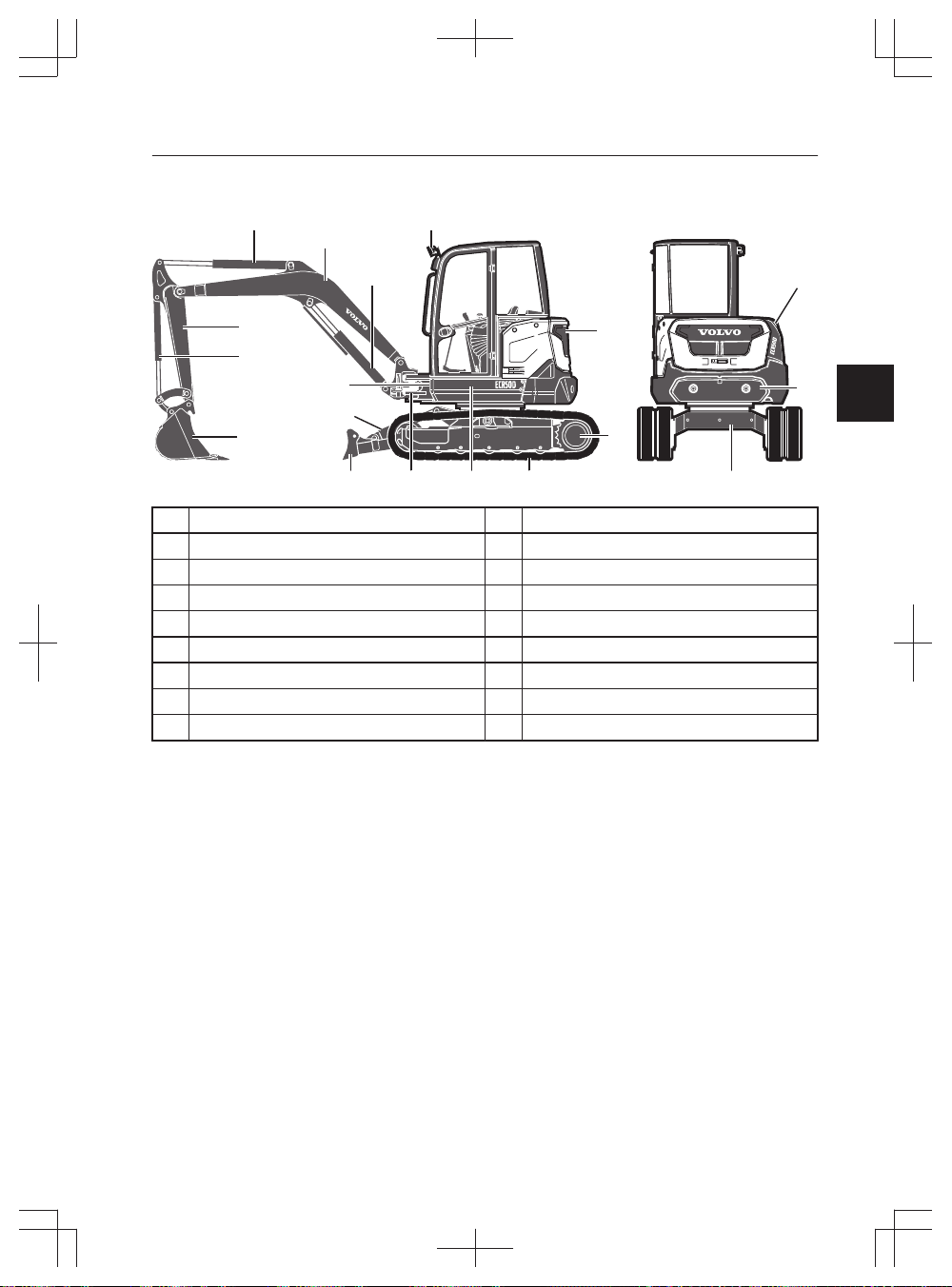

Machine view
V1140063
1
2
3
4
5
6
7
8
9
10
12
1113141516
17
18
1 Bucket 10 Additional counterweight (optional)
2 Bucket cylinder 11 Undercarriage
3 Dipper arm 12 Travel motor
4 Dipper arm cylinder 13 Tracks
5 Boom 14 Superstructure
6 Boom cylinder 15 Boom offset cylinder
7 Working lights 16 Dozer blade
8 Rear hood 17 Dozer blade cylinder
9 Engine hood 18 Battery disconnect switch
Presentation
Machine view 15

CE-marking, EMC-directive
CE marking
(Declaration of Conformity)
This machine is CE-marked. This means that, when
delivered, it meets the applicable "Essential Health
and Safety Requirements", stated in EU's so-called
Machine Safety Directive, 2006/42/EC.
Any person making changes that affect machine
safety is also responsible for the same.
An EU Declaration of Conformity as well as a sound
certificate regarding sound power in dB(A) are
supplied as proof that the requirements are fulfilled.
The sound certificate includes both measured
external values and guaranteed sound power level.
These declarations are issued by Volvo for every
individual machine. This EU-declaration also
includes attachments manufactured by Volvo. The
documentation is a valuable document and shall be
saved in a safe location for at least ten years. The
documentation shall always accompany the
machine when it is sold.
If the machine is used for other applications or with
other attachments than described in this manual,
safety must always be ensured in each individual
case. A change may in certain cases require a new
CE-marking and issuing of a new EU Declaration of
Conformity. The person responsible for this is the
same person who makes the change.
EU EMC Directive
The machine's electronic equipment may in some
cases interfere with other electronic equipment, or
be interfered with by external electromagnetic
interference, which may result in safety risks.
EU's EMC directive about "Electromagnetic
compatibility", 2004/108/EC, provides a general
description of what requirements can be made of
the machine from a safety perspective, where
permitted limit values have been determined and
stated in international standards.
A machine or device must meet the requirements
to be CE-marked. Our machines have been
specially tested for electromagnetic interference.
The machine's CE-marking and the Declaration of
Conformity also cover the EMC directive.
16
Presentation
CE-marking, EMC-directive

If other electronic equipment is fitted to this
machine, the equipment must be CE marked and
tested on the machine with regard to
electromagnetic interference.
Presentation
CE-marking, EMC-directive 17

EU conformity certificate
We, the manufacturer
Volvo Construction Equipment sas
Rue Pierre Pingon
BP 01303 Belley Cedex
France
The technical documentation is maintained by:
Mr. Marc Gergaud, Volvo Construction
Equipment, Belley France
declare that the following equipment
Excavator
Model Serial
Number
Output Representative
Sound Power
Level (LWA)
Guaranteed
Sound Power
Level (LWA)
Year of
CE-
Marking
ECR50D 31.2 kW 95 dB(A) 96 dB(A)
complies with the following relevant directives:
- EC Directive "Machinery" 2006/42/EC
- EC Directive "Noise Emission" 2000/14/EC
- EC Directive "EMC" 2004/108/EC
- As well as EC Directive "Low Voltage"
2006/95/EC for electric heating / electric
generator
Applied harmonized standards especially:
- EN 474-1 and EN 474-5
- The EN and ISO Standards specified under
Chapter 2 of EN 474-1 and EN 474-5
The assessment of conformity method used to
determine the guaranteed sound power level
complies with Article 14 item 3 of Directive 2000/14/
EC.
Certified European institute, Cofrac 1-0606,
LNE – France 1, rue Gaston Boissier 75724 Paris
Cédex 15
Belley, <dd.mm.yyyy>
<N. N.>
General Manager
Volvo Construction Equipment sas
18
Presentation
CE-marking, EMC-directive

Communication equipment,
installation
NOTICE
All installation of optional electronic communication
equipment must be performed by trained
professionals and in accordance with the Volvo
Construction Equipment instructions.
Protection against electromagnetic interference
This machine has been tested according to EU's
directive 2004/108/EC that regulates
electromagnetic interference. Therefore, it is very
important that all non-approved electronic
accessories, such as communication equipment,
are tested before they are installed and used, since
they may interfere with the machine's electronic
system.
Guidelines for installing aerial
The guide lines listed below must be followed
during installation:
The position of the aerial must be selected to
provide satisfactory adaptation to the surrounding
area.
The aerial downlead must be of the coaxial cable
type. Make sure that the cable is undamaged, that
the screen is not split at the ends and that it
thoroughly surrounds the contact sheaths and
has good galvanic contact with the same.
The surface between the mounting bracket for the
aerial and the point of attachment must be free
from dirt and oxide. Apply corrosion protection to
the surfaces after installation so that good
galvanic contact is maintained.
Take care to separate cables that may cause
interference from those which may suffer
interference. Cables that may cause interference
are voltage feed cables and the aerial cable to the
communication equipment. Cables that may
suffer from interference are connecting cables for
the electronics of the machine. Install cables as
close as possible to plate surfaces which are
connected to ground (earthed), as these have a
screening effect.
Presentation
Communication equipment, installation 19
