Vook VDT2708XD-M User manual

HD-SDI
Digital video recorders
VDT2708XD-M ; VDT2716XD-M
VOOK
VOOK

VOOK

8/16-CH DVR Quick Start Guide
1
1. Hardware installations

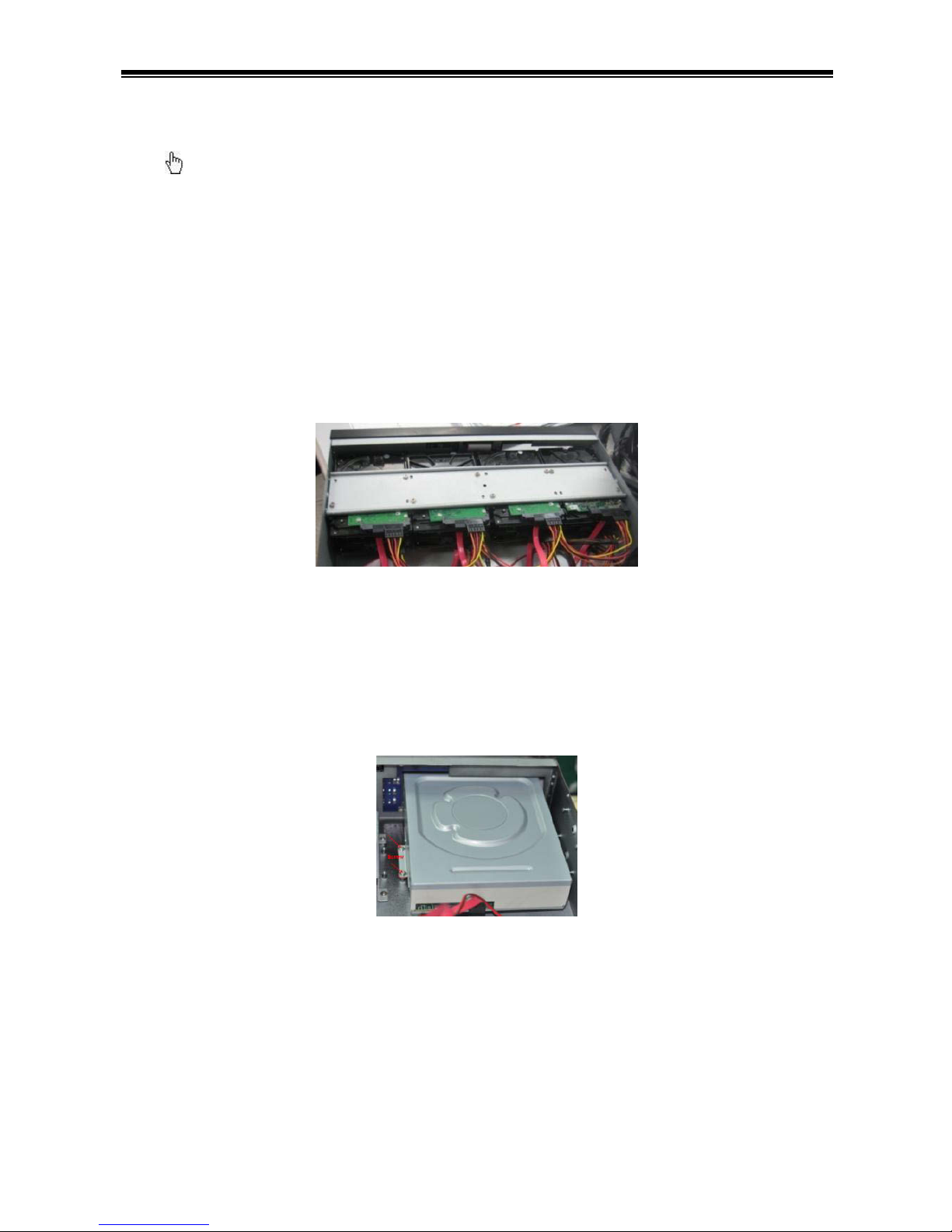

1.1 Install Hard Drive
Notice: 1.This series support eight SATA hard drives. Please use the hard drive the
manufacturers recommend specially for security and safe field.
2. Please calculate HDD capacity according to the recording setting.
Step1: Unscrew and Open the top cover
Step2: Connect the power and data cables. Place the HDD onto the bottom
case as the following picture.
Step3: Screw the HDD
Note: For the convenience to install, please connect the power and
data cables firstly, and then screw to fix.
1.2 Install DVD Writer
Step1: Unscrew and Open the top cover.
Step2: Unscrew and take the barrier out of the front panel. Then connect the
power and data cables. Finally, put the DVD with the holder into the case, let
the screw holes of the case aim at the holder‟s and screw them firmly.
2. Connections
VOOK

8/16-CH DVR Quick Start Guide
2

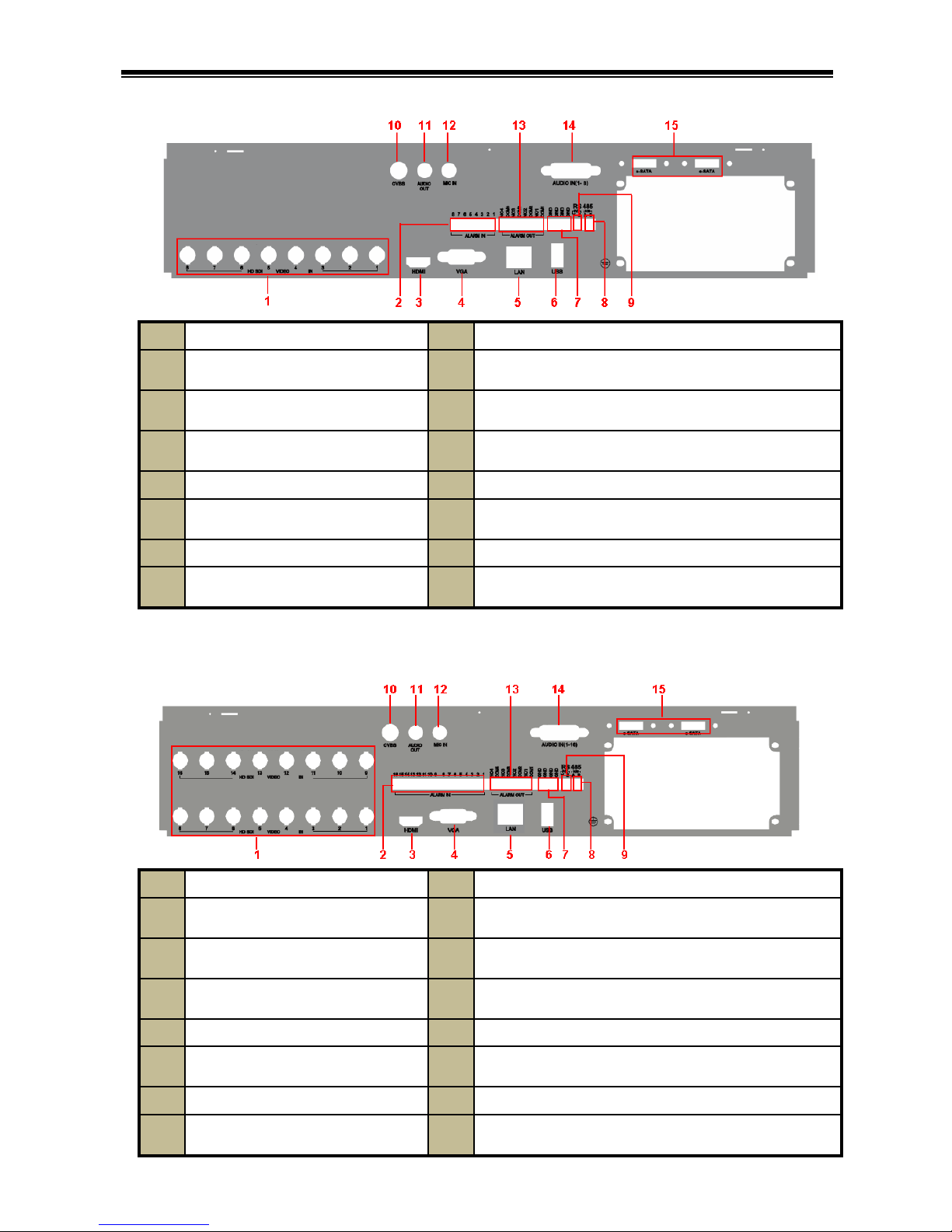

2.1 Rear view for 8-ch DVR
1
HD SDI video signal inputs.
9
Connect to speed dome. Y is TX+, Z is TX-
2
Alarm Inputs for connecting
sensors
10
CVBS output
3
Connect to high-definition
display device
11
Audio output, connect to the sound box
4
VGA output, connect to
monitor
12
Talk. Connect to microphone
5
Network port
13
Relay Output. Connect to external alarm.
6
Connect USB mouse or connect
external USB devices
14
Audio input
7
Grounding
15
Connect to HDD for backup
8
Connect to keyboard. A is TX+,
B is TX-.
2.2 Rear view for 16-ch DVR
1
HD SDI video signal inputs.
9
Connect to speed dome. Y is TX+, Z is TX-
2
Alarm Inputs for connecting
sensors
10
CVBS output
3
Connect to high-definition
display device
11
Audio output, connect to the sound box
4
VGA output, connect to
monitor
12
Talk. Connect to microphone
5
Network port
13
Relay Output. Connect to external alarm.
6
Connect USB mouse or connect
external USB devices
14
Audio input
7
Grounding
15
Connect to HDD for backup
8
Connect to keyboard. A is TX+,
B is TX-.
VOOK

8/16-CH DVR Quick Start Guide
3
3. Startup &Shutdown
3.1 Startup
Step1: Connect to cameras and monitor.
Step2: Connect with the source power;
Step3: The device will boot and the power indicator will display blue.
Step4: A WIZZARD window will be pop-up.
3.2 Shutdown
You can shut down the device by using IR remote controller and mouse.
By IR remote controller:
Step1: Press Power button. This will bring up a shutdown window. The unit will
shut down by clicking “OK” button.
Step2: Disconnect the power
By mouse:
Step1: Enter into Menu and select “Shut Down” icon. This will take you
to a shutdown window.
Step2: Click OK. Then the unit will power off after a while.
Step3: Disconnect the power.

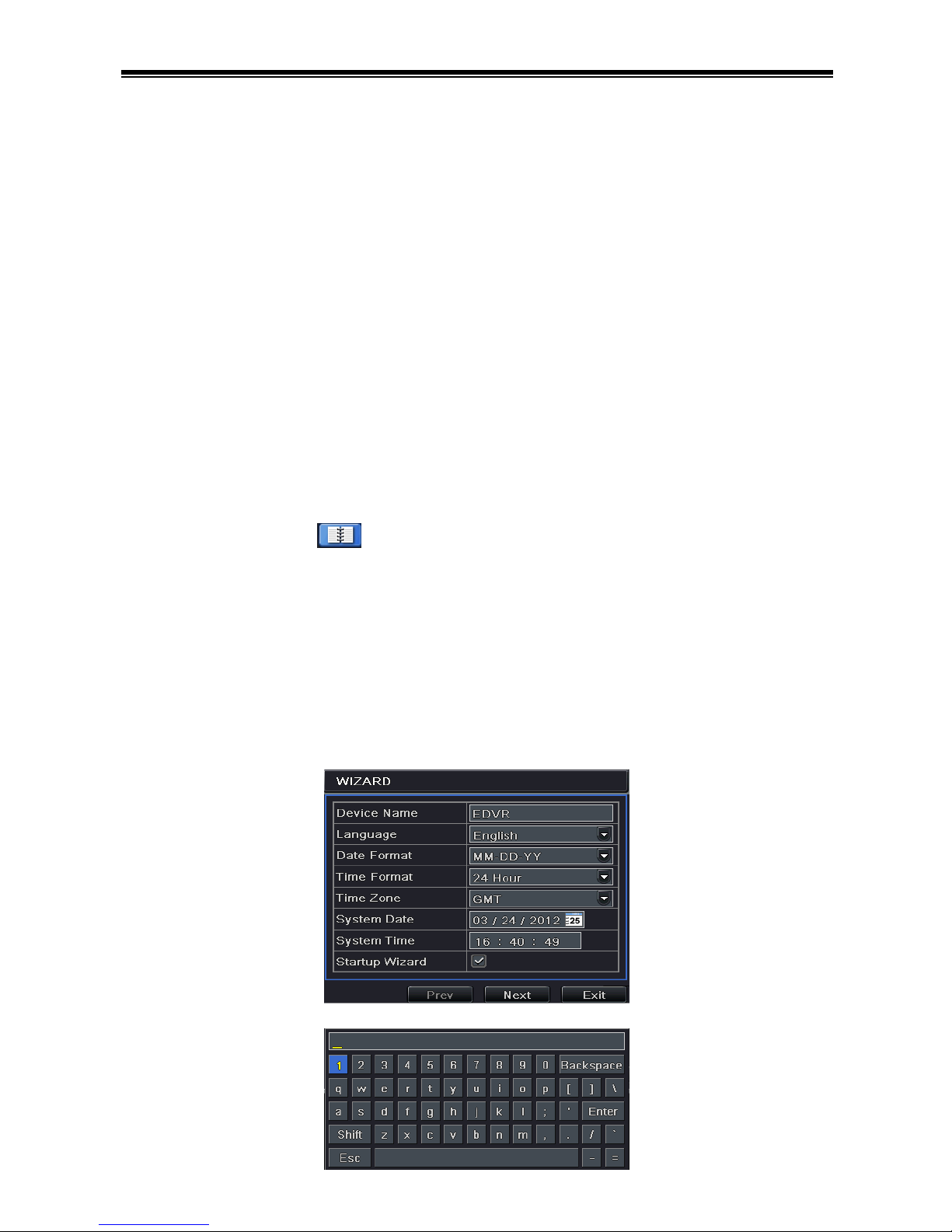

4. Setup Wizard
 After the device starts, a setup wizard pops up. You can set up time，network ,
record and disk management.
Click Device name box to popup a keyboard as follows:
VOOK

8/16-CH DVR Quick Start Guide
4
It supports digits, alphabets and symbols as inputs. Click Shift button to input
Capital letters and symbols; click Shift button again to return.
 Click „Next‟ button to bring up a network setup window.
The default HTTP port is 80. The default server port is 6036. You can check
„Obtain an IP address automatically‟ to acquire network information or input IP
address, subnet mask, gateway, preferred/alternate DNS server manually. This
function is used to monitor DVR through internet (See Section 10 for details).
 Click „Next‟ button. This will take you to record setup window.
Select resolution, fps, encode, quality and bitrate. The higher the value is, the
clearer the recorded picture is. Of course, more space of HDD will be taken up.
 Click „Next‟ button. This will take you to the HDD management window.
You can check your HDD information through this tab. If your HDD was recently
installed, select the HDD from the list to format it.
 Click „Next‟ button. This will let you to see your DVR status. And then Click
„Finish‟ button to end this wizard.
You can also refer to the complete setup steps from the relevant sections of DVR
User Manual. If you don‟t want to setup Wizard, please click Exit button to exit.
VOOK

8/16-CH DVR Quick Start Guide
5
5. Login
After you exit the wizard setup, you can login to the DVR.
Notice: This DVR can only display options on either VGA/HDMI monitor or BNC
monitor at a given point of time, if there is live image display without menu
options，please check if there is display on other device/monitor, or long press
ESC/Fn key to wait for login dialog box to appear. Long press ESC/Fn key can
switch the output between BNC and VGA/HDMI.

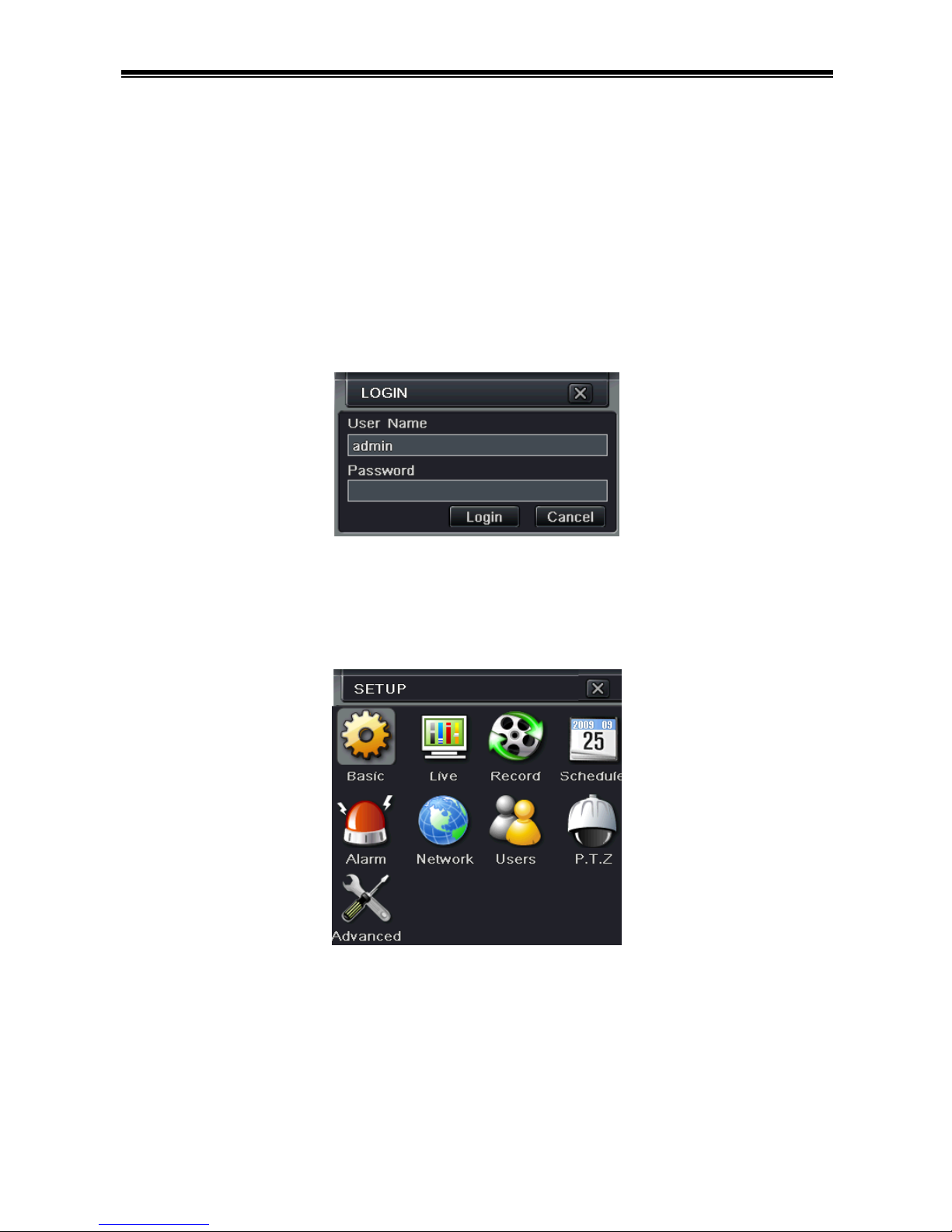

Click the MENU button to bring the LOGIN dialogue box and enter the user name:
admin and password: 123456
6. Main menu setup
Click right mouse, or press ENTER button on the front panel to enter into the
main menu. Then click Setup to enter into Setup interface as shown below
Basic configuration: Users can set video system, menu language, audio, time
and authorization check.
Live configuration：Users can set name/time display, picture color and hide
cameras.
Record configuration：Users can set record quality, frame rate, resolution,
time stamp and recycle.
Schedule configuration: Users can set schedule for timer, motion detection,
VOOK

8/16-CH DVR Quick Start Guide
6
and sensor alarm respectively.
Alarm configuration: Users can set sensor type, alarm trigger and buzzer
alarm.
Network configuration: Users enable network function, and configure IP
address, DDNS, transmission video parameters here.
User configuration: Administrator can add, delete users, and change their
authorization
PTZ configuration: Users can set protocol, baud rate, address, presets and
auto cruise track here.
Advanced configuration: Users can reboot the device and import & export
data into or from mobile storage medium.
7. Recording Setup
A user needs to install and format a HDD, and set all the recording parameters
before recording. There are four kinds of record modes.
7.1 Manual Recording
A user can press REC button on the front panel after quitting system setup.
Press this button again to stop recording.
Or press REC button on remote controller. Click it again to stop.
Or click REC button on the tool bar with mouse. Click it again to stop.

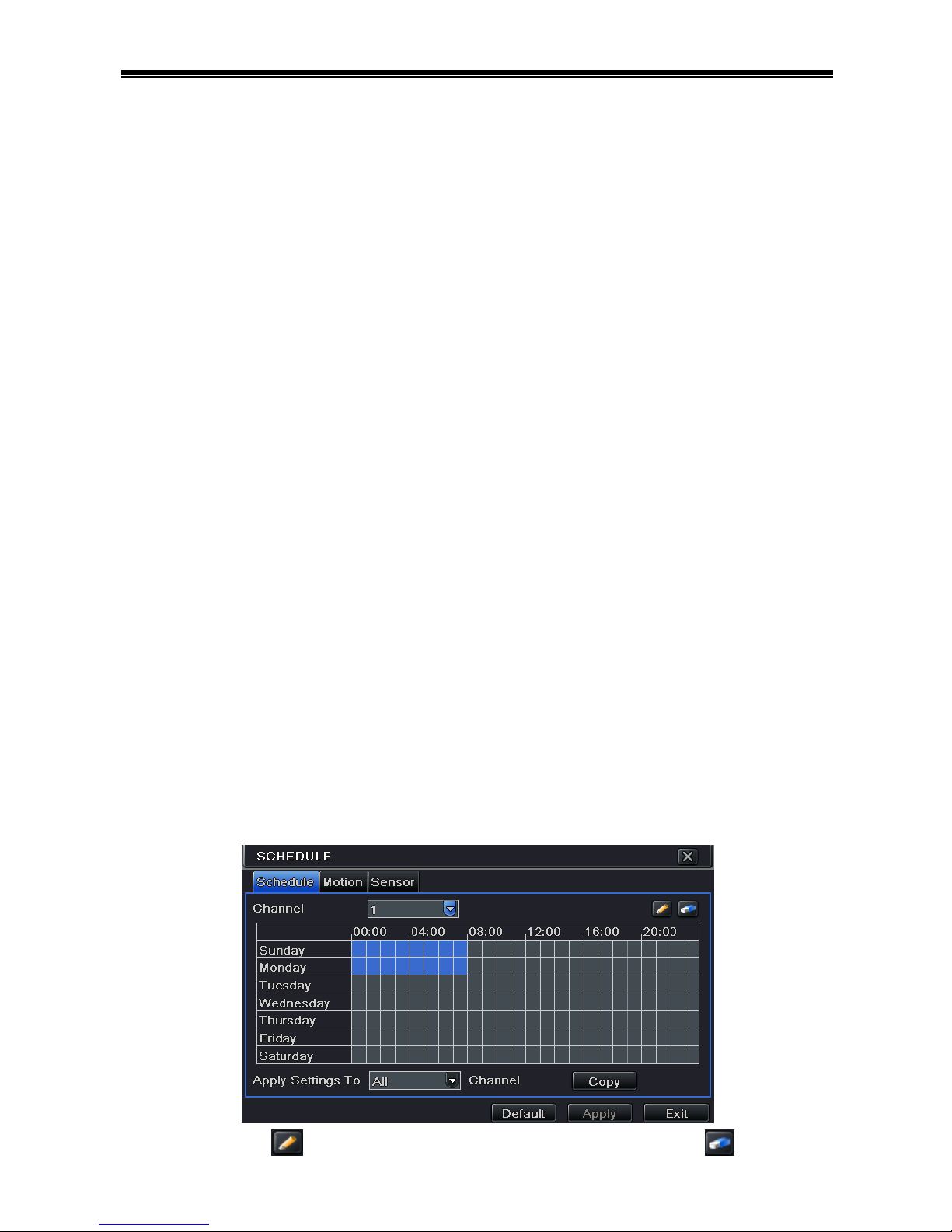

7.2 Schedule Recording
To Setup Schedule Recording:
Step1: Enter into MenuSetupSchedule tab. Refer to the following picture.
Step2: Click “ ” button to add a certain day schedule; click “ ” button to
VOOK

8/16-CH DVR Quick Start Guide
7
delete the selected schedule;
Step 3: You can also double-click the grid to pop up a week schedule window.
Select day and then click „Add‟ button to setup the start time and end time. Then
select other days and click „Copy‟ button to save the setting to other days. Finally,
click „OK‟ button to save week schedule.
Step 4: Select other channels and set timeline for them or select „Apply Settings
To All Channel and click “Copy” button to set the same settings for all channels.
7.3 Motion Based Recording
Motion detection based recording: when there is a motion event detected, the
camera will be triggered to record.
To Setup Motion Based Recording:
Step 1: Enter into MenuSetupScheduleMotion tab. The setup steps for
schedule for motion based recording are similar to normal schedule setup. You
can refer to 7.2 Schedule Recording for details.
Step 2: Enter into MenuSetupAlarmMotionMotion tab as shown below.
Step3: Enable motion alarm (Please specify to channel) and click „Apply‟ to save
settings.

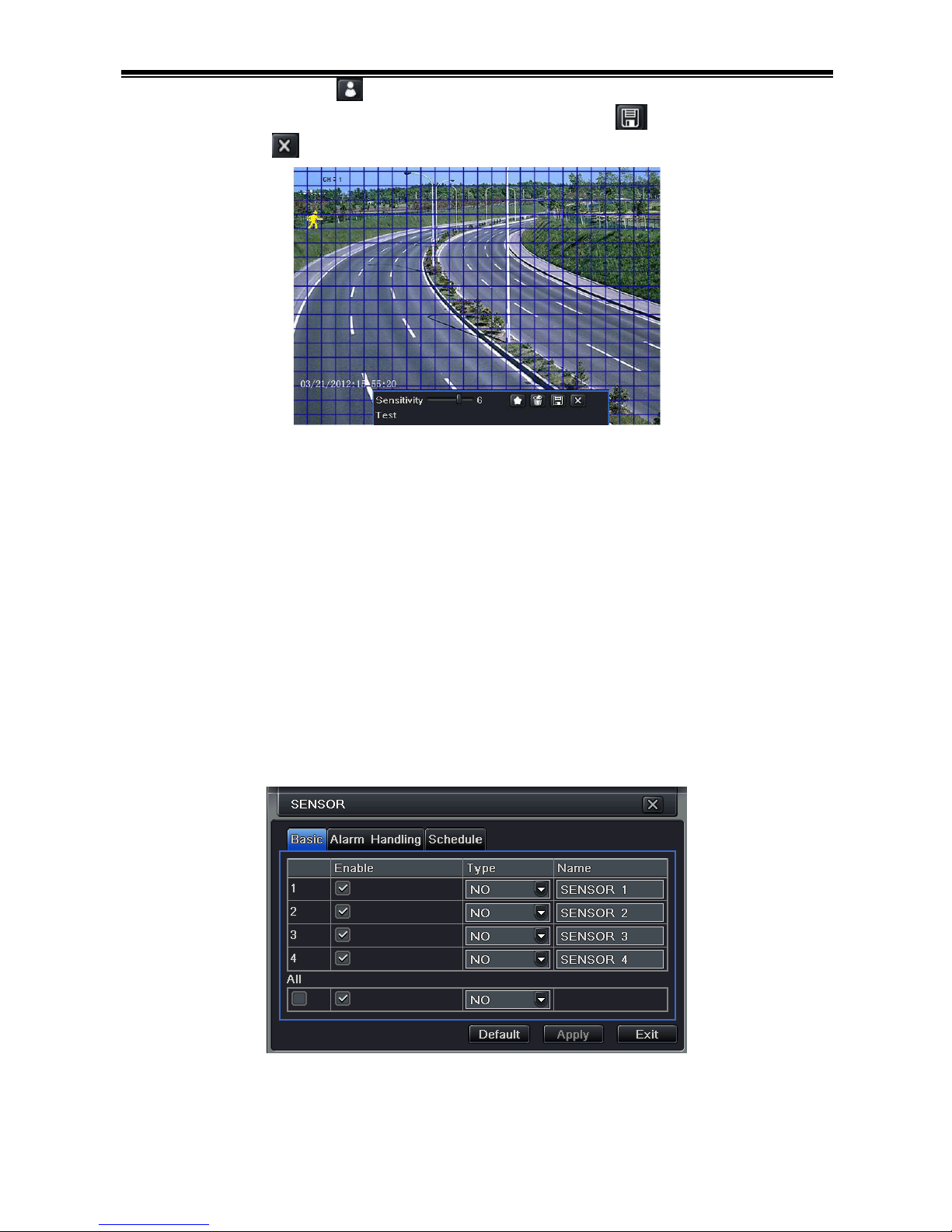

Step4: Click „Setting‟ button under the Area to set Sensitivity and Detection area.
Left click the grid and drag to delete the area. Drag again to add area. You can
drag slide bar to set the sensitivity value (1-8). The higher the value is the more
sensitive it is to motion. Since the sensitivity is influenced by color and time (day
or night), you can adjust its value according to the practical conditions. Click
icon to set the whole area as detection area. Click icon to clear the set
VOOK

8/16-CH DVR Quick Start Guide
8
detection area. Click icon to test the sensitivity as per the local conditions.
Once motion is sensed, it displays a figure icon. Click icon to save the
setting. Click icon to exit the current interface
Step 5: Enter into MenuSetupAlarmMotionSchedule tab to bring up
schedule settings for motion alarm. The setup steps are similar to normal
schedule setup. You can refer to 7.2 Schedule Recording for details.
Note: The timelines of the two schedules must match, otherwise you cannot
get the record in some time.
7.4 Sensor Based Recording
To Setup sensor Based Recording:
Step 1: Enter into MenuSetupScheduleSensor tab. The setup steps for
schedule for sensor based recording are similar to normal schedule setup. You
can refer to 7.2 Schedule Recording for details.
Step 2: Enter into MenuSetupAlarmSensorBasic tab, as shown below.
Step 3: Enable sensor alarm (Please specify to channel), select senor type and
click „Apply‟ to save settings.
Step 4: Enter into MenuSetupAlarmSensorSchedule tab to bring up
schedule settings for sensor alarm. The setup steps are similar to normal
VOOK

8/16-CH DVR Quick Start Guide
9
schedule setup. You can refer to 7.2 Schedule Recording for details.
Note: The timelines of the two schedules must match, otherwise you cannot
get the record in some time.
8. Playback
This unit supports four kinds of playback
8.1 Live Playback
Click Play button on the main menu bar to playback the record. User can do
concrete operation by clicking the buttons on screen.
8.2 Playback by Time Search
Step 1: Enter into MenuSearchTime Search tab.
VOOK

8/16-CH DVR Quick Start Guide
10
Step 2: Select date and channels on the right hand side and press “Search”
button. A date with highlighted borderline indicates presence of data.
Step 3: Set the start time by clicking a particular grid or by entering the specific
value in the start time field.
Step 4: Select the channel display mode and click button to play record.
Use the playback toolbar to control the playback.
8.3 Playback by Event Search
Step 1: Enter into MenuSearchEvent Search tab.
Step 2: Select date and channels on the right hand side. A data with highlighted
borderline indicates presence of data.
Step 3: Then checkmark Motion, Sensor or All accordingly. You can search for
motion based recording and sensor based recording.
Step 4: Press “Search” button to display the searched event information in the
event list box.
Step 5: Double click the event item to play the record.
8.4 Playback by Image Search
Step 1: Enter into MenuSearchImage tab.
Step 2: Select data and channels on the right hand side.
VOOK

8/16-CH DVR Quick Start Guide
11
Step 3: Press “Search” button to search for a recorded image.
Step 4: Once an alarm image has been identified, the user can double click the
image to play the recording.
You can lock the image by clicking “Lock” button. Click “Save” button to copy the
image on the HDD. Click “Save All” to copy all images on the HDD.
Note: In order to take images on alarm, the snapshot feature should be
activated in “Alarm Handling” for different kind of alarms. Please refer to Alarm
Configuration for details.
9. Back up
This unit supports backup by USB flash and USB HDD.
Step 1：Enter into MenuBackup tab.
Step 2: Set the start & end time, select channels and click Search button to
display the searched data in the data backup list box
Step 3: Select a required file or checkmark “All” to select all data files. Click
Backup button to pop up Backup information window.
Step 4: In the backup information interface, user can check the relevant options
for backing up files. These options include storage Media, backup player and
save file type. Then click Start button to start backup.
10. Remote Surveillance
In order to view the DVR from a network it must be connected to a LAN/WAN or
internet. The network setup should be done accordingly.
10.1 Access DVR on LAN
Please enter into MenuSetup Network Setup as shown below:
●Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in
both the DVR and the router. Enter into Menu Information Network, and
user can check the network settings of the DVR.
VOOK

8/16-CH DVR Quick Start Guide
12
●Enter into Record Setup to set network video parameters like resolution, frame
rate etc.
●Open IE on a computer on the same network. Input the IP address of the DVR
in IE address bar and press enter. If HTTP port is not 80, add the port number
after IP address.
●IE will download ActiveX component automatically. Enter the username and
password in the subsequent window
10.2 Access DVR on WAN
1. Connect the DVR to internet through router or virtual server
Please enter into MenuSetup Network Setup as shown above.
●Input IP address, Subnet, Gateway. If using DHCP, please enable DHCP in
both the DVR and the router.
●Forward IP address and port number in Virtual Server setup of the router or
virtual server. Configure the firewall to allow accessing the DVR. (If the user has
enabled the UPnP function in both the DVR and router, he can skip this step.
Please refer to the relevant chapter for more details.)
●Open IE browser, input IP address, or dynamic domain name and enter. If
HTTP port is not 80, add the port number after IP address or domain name.
●IE will download ActiveX automatically. Then a window pops up and asks for
user name and password. Input name and password correctly, and enter to
view.
2. Connect the DVR to Internet through PPPoE
●Enter into the DVR‟s Main MenuSetupNetwork interface to enable PPPoE
and then input user name and password received from your ISP. Next, click
VOOK

8/16-CH DVR Quick Start Guide
13
„Apply‟. The DVR will connect to the server and would give a confirmation
message.
●If users want to utilize dynamic domain name, please apply for a domain name
in a DNS server supported by the DVR or router. Then add to the DVR or router.
●When accessing the remote interface of DVR, user can input WAN IP/domain
name to access directly (user can enter into Main menuInformationNetwork
interface to check IP address). The browser will download Active X control
●The following steps are the same as the connection way above.
450041000239 A0
VOOK
